Hikvision DS-7604NI-Q1-4P-1TB, DS-7604NI-Q1-4P-2TB, DS-7604NI-Q1-4P-4TB Quick Start Guide
Network Video Recorder
Quick Start Guide
Network Video Recorder Quick Start Guide
|
TABLE OF CONTENTS |
|
Chapter1 Panels Description .......................................................................................................................... |
7 |
|
1.1 |
Front Panel........................................................................................................................................... |
7 |
|
DS-7600NI-Q1 (/P) and DS-7600-K1(/P) (B) Series......................................................................... |
7 |
|
DS-7600NI-Q2 (/P) Series................................................................................................................. |
7 |
|
DS-7700NI-Q4 (/P) and DS-8600NI-Q8 Series................................................................................. |
8 |
1.2 |
Rear Panel............................................................................................................................................ |
9 |
|

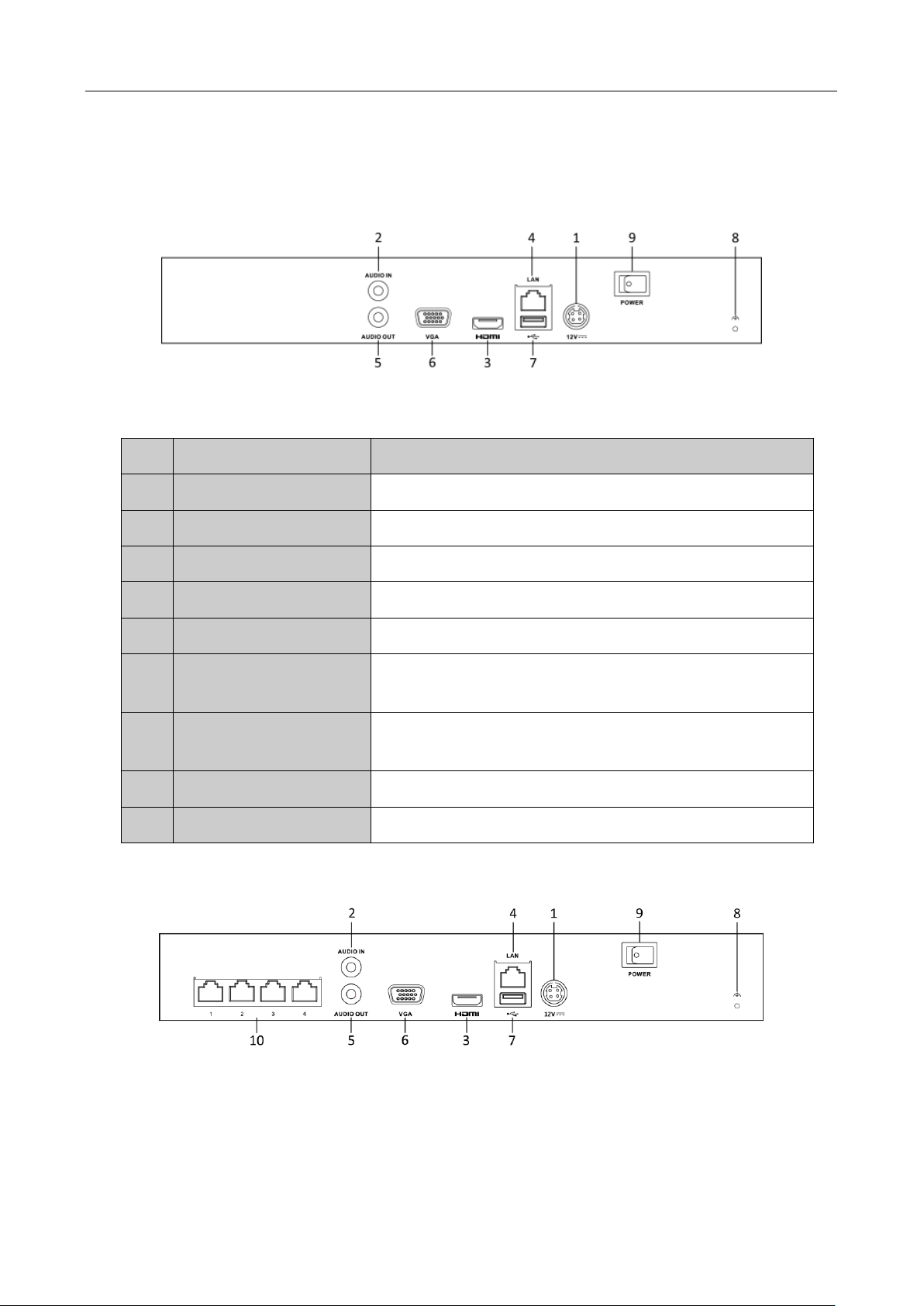

DS-7600NI-Q1, DS-7600NI-K1 (B) and DS-7600NI-Q2 Series....................................................... |
9 |
|
DS-7600NI-Q1/P, DS-7600NI-K1/P(B) and DS-7600NI-Q2/P Series .............................................. |
9 |
|
DS-7700NI-Q4 (/P) and DS-8600NI-Q8 Series............................................................................... |
10 |
Chapter 2 Installation and Connections ...................................................................................................... |
13 |
|
2.1 |
NVR Installation................................................................................................................................ |
13 |
2.2 |

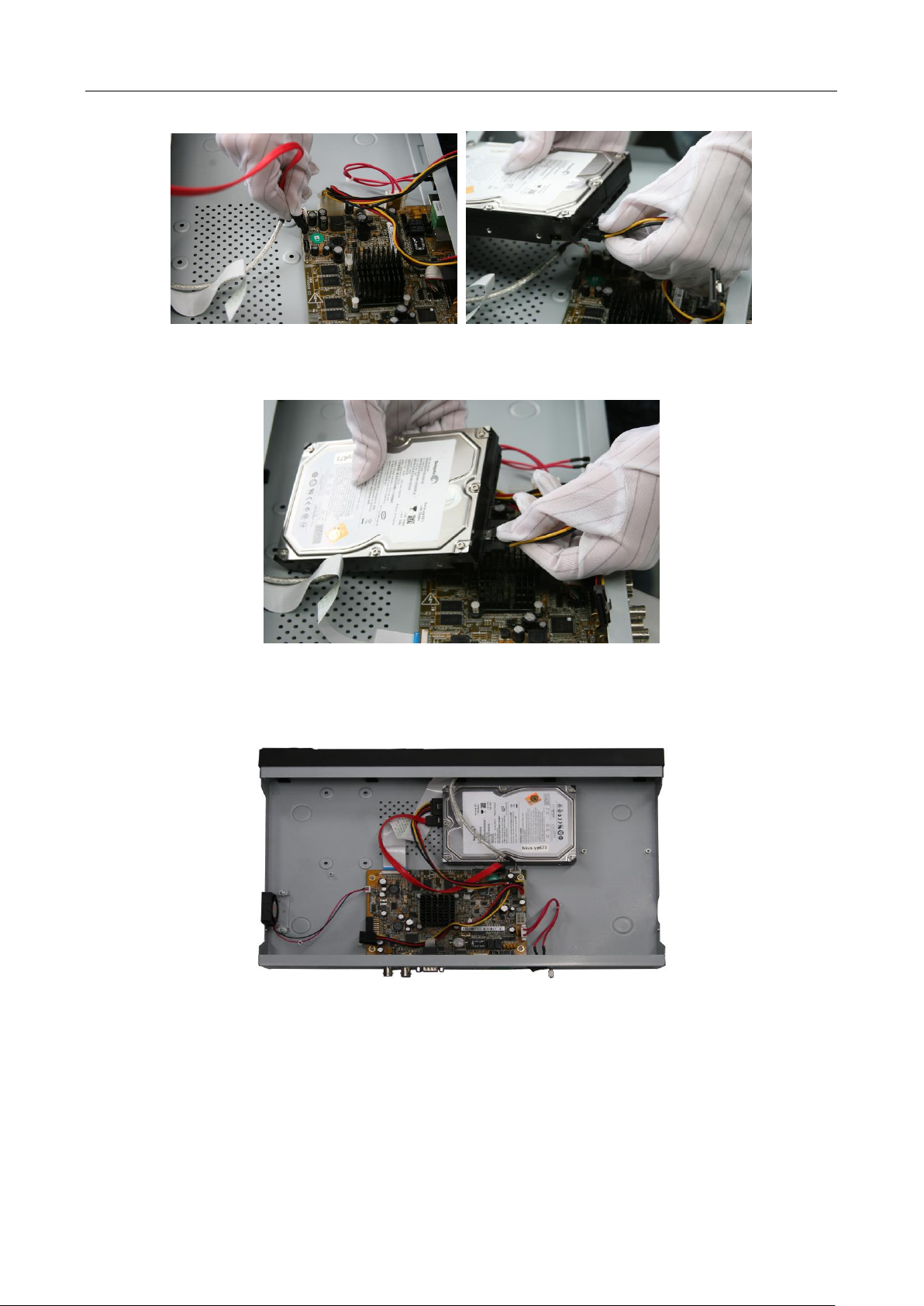

Hard Disk Installation........................................................................................................................ |
13 |
2.3 |
HDD Storage Calculation Chart ........................................................................................................ |
15 |
Chapter 3 Menu Operation........................................................................................................................... |
16 |
|
3.1 |
Menu Structure .................................................................................................................................. |
16 |
3.2 |

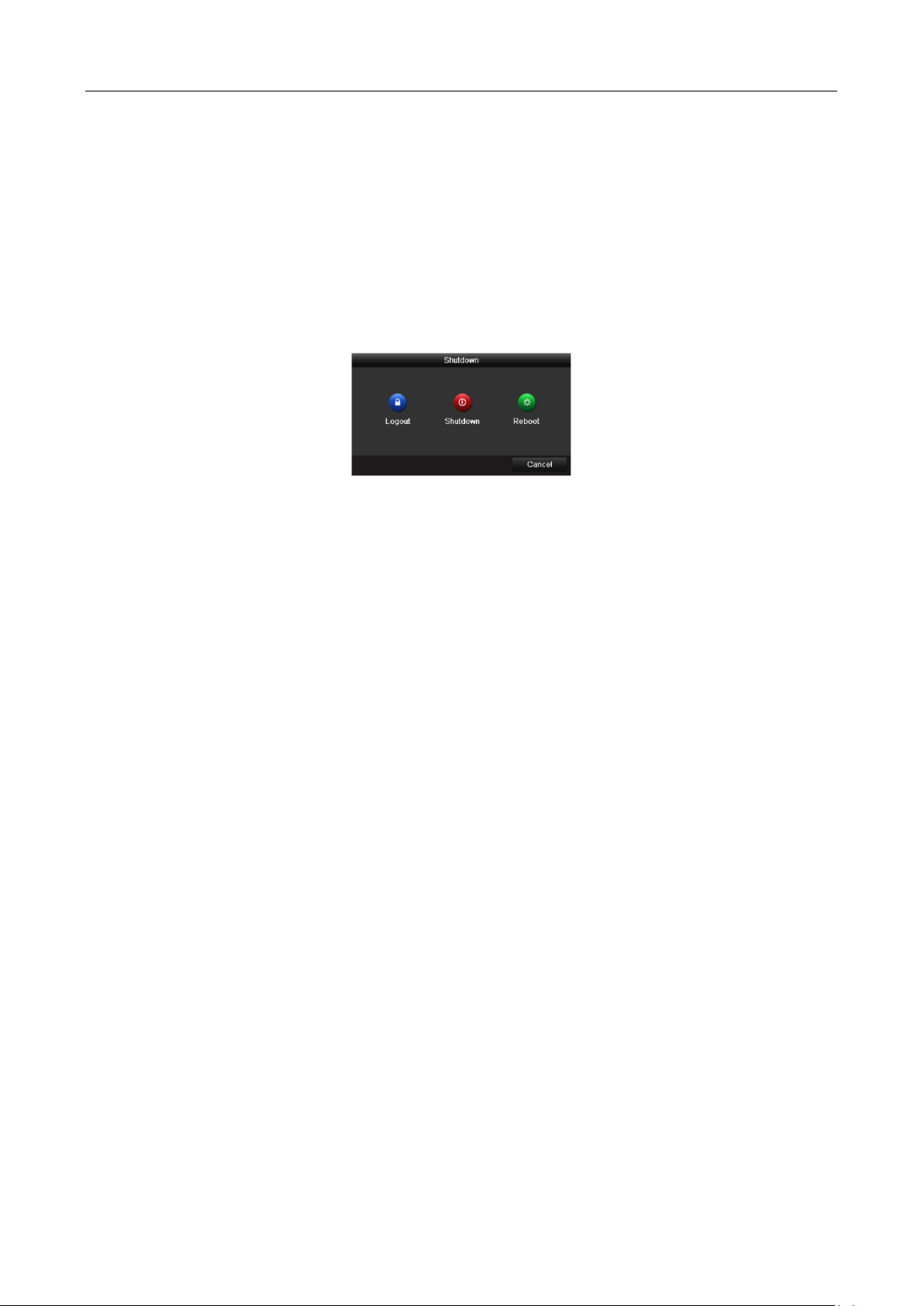

Startup and Shutdown ........................................................................................................................ |
16 |
3.3 Activating Your Device...................................................................................................................... |
17 |
|
3.4 |
Using the Unlock Pattern for Login ................................................................................................... |
19 |
3.5 |
User Login ......................................................................................................................................... |
19 |
3.6 |
Using the Setup Wizard ..................................................................................................................... |
20 |
3.7 |
Network Settings ............................................................................................................................... |
21 |
3.8 Adding IP Cameras ............................................................................................................................ |
21 |
|
3.9 |
Live View .......................................................................................................................................... |
22 |
3.10 Recording Settings........................................................................................................................... |
23 |
|
3.11 Playback........................................................................................................................................... |
23 |
|
Chapter 4 Accessing by Web Browser.......................................................................................................... |
25 |
|
1
Network Video Recorder Quick Start Guide
Quick Start Guide
COPYRIGHT © 2018 Hangzhou Hikvision Digital Technology Co., Ltd.
ALL RIGHTS RESERVED.
Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be
“Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties, guarantees or representations, express or implied, regarding to the Manual.
About this Manual
This Manual is applicable to Network Video Recorder (NVR).
The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in the company website (http://overseas.hikvision.com/en/).
Please use this user manual under the guidance of professionals.
Trademarks Acknowledgement
and other Hikvision’s trademarks and logos are the properties of Hikvision in various jurisdictions. Other trademarks and logos mentioned below are the properties of their respective owners.
Legal Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS
HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS,
AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.
2
Network Video Recorder Quick Start Guide
Regulatory Information
FCC Information
Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1.This device may not cause harmful interference.
2.This device must accept any interference received, including interference that may cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the
EMC Directive 2014/30/EU, the LVD Directive 2014/35/EU, the RoHS Directive 2011/65/EU. 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or
dispose of it at designated collection points. For more information see: www.recyclethis.info
2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may
include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.
3
Network Video Recorder Quick Start Guide
Applicable Models
This manual is applicable to the models listed in the following table.
|
Series |
|
Model |
|
|
|
|
|
|
|
DS-7604NI-Q1 |
|
|
|
|
|
DS-7600NI-Q1 |
|
DS-7608NI-Q1 |
|
|
|
|
|
|
|
DS-7616NI-Q1 |
|
|
|
|
|
DS-7600NI-Q2 |
|
DS-7608NI-Q2 |
|
|
|
|
|
|
DS-7616NI-Q2 |
|
|
|
|
|
|
|
|
|
|
DS-7600NI-Q1/P |
|
DS-7604NI-Q1/4P |
|
|
|
|
|
|
DS-7608NI-Q1/8P |
|
|
|
|
|
|
|
|
|
|
DS-7600NI-Q2/P |
|
DS-7608NI-Q2/8P |
|
|
|
|
|
|
DS-7616NI-Q2/16P |
|
|
|
|
|
|
|
|
|
|
|
|
DS-7604NI-K1(B) |
|
|
|
|
|
DS-7600NI-K1(B) |
|
DS-7608NI-K1(B) |
|
|
|
|
|
|
|
DS-7616NI-K1(B) |
|
|
|
|
|
DS-7600NI-K1/P(B) |
|
DS-7604NI-K1/4P(B) |
|
|
|
|
|
|
DS-7608NI-K1/8P(B) |
|
|
|
|
|
|
|
|
|
|
|
|
DS-7708NI-Q4 |
|
|
|
|
|
DS-7700NI-Q4 |
|
DS-7716NI-Q4 |
|
|
|
|
|
|
|
DS-7732NI-Q4 |
|
|
|
|
|
|
|
DS-7708NI-Q4/8P |
|
|
|
|
|
DS-7700NI-Q4/P |
|
DS-7716NI-Q4/16P |
|
|
|
|
|
|
|
DS-7732NI-Q4/16P |
|
|
|
|
|
|
|
DS-8608NI-Q8 |
|
|
|
|
|
DS-8600NI-Q8 |
|
DS-8616NI-Q8 |
|
|
|
|
|
|
|
DS-8632NI-Q8 |
|
|
|
|
4
Network Video Recorder Quick Start Guide
Symbol Conventions
The symbols that may be found in this document are defined as follows.
Symbol Description
Provides additional information to emphasize or supplement important points of the main text.
Indicates a potentially hazardous situation, which if not avoided, could result in equipment damage, data loss, performance degradation, or unexpected results.
Indicates a hazard with a high level of risk, which if not avoided, will result in death or serious injury.
Safety Instructions
Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.
In the use of the product, you must be in strict compliance with the electrical safety regulations of the nation and region. Please refer to technical specifications for detailed information.
Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power Source with 100~240 VAC or 12 VDC according to the IEC60950-1 standard. Please refer to technical specifications for detailed information.
Do not connect several devices to one power adapter as adapter overload may cause over-heating or a fire hazard.
Please make sure that the plug is firmly connected to the power socket.
If smoke, odor or noise rise from the device, turn off the power at once and unplug the power cable, and then please contact the service center.
If the POE ports of device do not comply with Limited Power Source, the additional equipment connected to POE ports shall have fire enclosure.
The USB interface of the /P devices can be connected with the mouse and U-flash disk storage device only.
Preventive and Cautionary Tips
Before connecting and operating your device, please be advised of the following tips:
Ensure unit is installed in a well-ventilated, dust-free environment.
Unit is designed for indoor use only.
Keep all liquids away from the device.
5
Network Video Recorder Quick Start Guide
Ensure environmental conditions meet factory specifications.
Ensure unit is properly secured to a rack or shelf. Major shocks or jolts to the unit as a result of dropping it may cause damage to the sensitive electronics within the unit.
Use the device in conjunction with an UPS if possible.
Power down the unit before connecting and disconnecting accessories and peripherals.
A factory recommended HDD should be used for this device.
Improper use or replacement of the battery may result in hazard of explosion. Replace with the same or equivalent type only. Dispose of used batteries according to the instructions provided by the battery manufacturer.
When installing the device into a cabinet over 2U height, it is suggest to use rack shelf to bear the weight. If the cabinet height is over 4U, it is suggested to use slide rails or rack shelf to bear the weight.
6
Network Video Recorder Quick Start Guide
Chapter1 Panels Description
1.1 Front Panel
DS-7600NI-Q1 (/P) and DS-7600-K1(/P) (B) Series
Figure 1-1 DS-7600NI-Q1 (/P) and DS-7600-K1(/P) (B) Series
Table 1-1 Panel Description
|
No. |
|
|
Name |
|
|
|
|
Description |
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Power |
|
|
Power |
indicator |
turns |
green |
when |
system is |
|
|
|
|
|
|
|
|
|
running. |
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
||||||
|
1 |
|
|
Status |
|
|
Status |
|
|
Status indicator blinks red when data is being |
|||||
|
|
|
Indicator |
|
|
|
|
read from or written to HDD. |
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Tx/Rx |
|
|
Tx/Rx |
indictor |
blinks |
green |
when |
network |
|
|
|
|
|
|
|
|
|
connection is functioning properly. |
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
Universal Serial Bus (USB) ports for additional |
|||||
|
2 |
|
|
USB Interface |
|
|
devices such as USB mouse and USB Hard Disk |
||||||||
|
|
|
|
|
|
|
|
|
|
Drive (HDD). |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DS-7600NI-Q2 (/P) Series
Figure 1-2 DS-7600NI-Q2 and DS-7600NI-Q2/P Series
7
Network Video Recorder Quick Start Guide
|
|
|
|
|
|
|
Table 1-2 Panel Description |
|
|
|
|
|
|
|
|
|
|
|
No. |
|
|
Name |
|
|
Connections |
|
|
|
|
|
|
|
|
|
|
|
1 |
|
|
POWER |
|
|
Turns green when device is powered up. |
|
|
|
|
|
|
|
|
|
|
|
2 |
|
|
HDD |
|
|
Flickers red when data is being read from or written to HDD. |
|
|
|
|
|
|
|
|
|
|
|
3 |
|
|
Tx/Rx |
|
|
Flickers blue when network connection is functioning |
|
|
|
|
|
|
properly. |
|||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
4 |
|
|
USB Interface |
|
|
Universal Serial Bus (USB) port for additional devices such as |
|
|
|
|
|
|
USB mouse and USB Hard Disk Drive (HDD). |
|||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
DS-7700NI-Q4 (/P) and DS-8600NI-Q8 Series
|
|
|
|
|
Figure 1-3 DS-7700NI-Q4 (/P) and DS-8600NI-Q8 Series |
|||
|
|
|
|
|
|
|
|
Table 1-3 Panel Description |
|
|
|
|
|
|
|
|
|
|
No. |
|
|
Name |
|
|
|
Connections |
|
|
|
|
|
|
|
|
|
|
1 |
|
|
POWER |
|
|
|
Turns white when device is powered up. |
|
|
|
|
|
|
|
|
|
|
2 |
|
|
HDD |
|
|
|
Flickers red when data is being read from or written to HDD. |
|
|
|
|
|
|
|
|
|
|
3 |
|
|
Tx/Rx |
|
|
|
Flickers white when network connection is functioning properly. |
|
|
|
|
|
|
|
|
|
|
4 |
|
|
Infrared |
|
|
|
Receiver for IR remote control. |
|
|
|
Receiver |
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5 |
|
|
USB Interface |
|
|
Universal Serial Bus (USB) port for additional devices such as USB |
|
|
|
|
|
|
||||
|
|
|
|
|
mouse and USB Hard Disk Drive (HDD). |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
8
