DS-3E0105P-E/DS-3E0109P-E
User Manual
UD.6L0202D2008A01
User Manual of Network Video Recorder DS-3E0109P-E
User Manual
COPYRIGHT ©2016 Hangzhou Hikvision Digital Technology Co., Ltd.
ALL RIGHTS RESERVED.
Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou
Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be “Hikvision”). This user
manual (hereinafter referred to be “the Manual”) cannot be reproduced, changed, translated, or distributed,
partially or wholly, by any means, without the prior written permission of Hikvision. Unless otherwise stipulated,
Hikvision does not make any warranties, guarantees or representations, express or implied, regarding to the
Manual.
About this Manual
This Manual is applicable to DS-3E0105P-E/DS-3E0109P-E.
The Manual includes instructions for using and managing the product. Pictures, charts, images and all other
information hereinafter are for description and explanation only. The information contained in the Manual is
subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in the
company website (http://overseas.hikvision.com/en/
Please use this user manu al under the guidance of professionals.
Trademarks Acknowledgement
and other Hikvision’s trademarks and logos are the properties of Hikvision in various jurisdictions.
Other trademarks and logos mentioned below are the properties of their respective owners.
Legal Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE P RODUCT DESCRIBED, WITH
ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND
ERRORS, AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT
LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR
PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS
DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL,
CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS,
DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR
DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS P RODUCT, EVEN IF HIKVISION HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE
WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR
ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER
ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS;
HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUP PORT IF REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. P LEASE CHECK ALL RELEVANT LAWS IN YOUR
JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS
THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS
USED WITH ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE
LATER P REVAILS.
).
1
User Manual of Network Video Recorder DS-3E0109P-E
Regulatory Information
CE Mark Warning
This is a Class A product. In a domestic environment, t his p roduct may cause rad io in terference, i n which case th e
user may be required to take adequate measures.
NOTE: (1) The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modifications to this equipment. (2) To avoid unnecessary radiation interference, it is recommended to use a
shielded RJ45 cable.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part
15 of the FCC Rules. These limits are design ed to pro vide r easonab le pro tect ion agains t h armful interfer ence when
the equipment is operated in a commercial environment. This equipment gen erates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio co mmunications. Operati on of this equipment in a residen tial area is likely to cause harmful
interference in which case the user will be requi r ed t o correct the interference at his own expense.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful i nterference, and (2) this device must accep t any interference recei ved, including
interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV
interference caused by unauthorized modifications to this equipment.
Caution!
Any changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
NOTE: (1) The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modifications to this equipment. (2) To avoid unnecessary radiation interference, it is recommended to use a
shielded RJ45 cable.
IC
CAN ICES-3（A）/NMB-3（A）
2
User Manual of Network Video Recorder DS-3E0109P-E
Safety Instruction
These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss.
The precaution measure is divided into “Warnings” and “Cautions”
Warnings: Serious injury or death may occur if any of the warnings are neglected.
Cautions: Injury or equipment damage may occur if any of the cautions are neglected.
Warnings Follow these safeguards to
prevent serious injury or death.
Cautions Follow these precautions to
prevent potential injury or material
damage.
Warnings
● Proper configuration of all passwords and other security settings is the responsibility of the installer and/or
end-user.
● In the use of the product, you must be in strict compliance with the electrical safety regulations of the nation
and region. Please refer to technical specifications fo r detailed information.
● Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power Source with
100~240 VAC or 12 VDC according to the IEC60950-1 standard. Please refer to technical specificati ons for
detailed information.
● Do not connect several devi ces to one power adapter as adapter overload may cause over-heating or a fire
hazard.
● Please make sure that the plug is firmly connected to the power socket.
● If smoke, odor or noise rise from the device, turn off the power at once and unplug the power cable, and then
please contact the ser vi ce center.
3
User Manual of Network Video Recorder DS-3E0109P-E
Preventive and Cautionary Tips
Before connecting and operating your device, please be advised of the following tips:
• Ensure unit is installed in a well-ventilated, dust-free environment.
• Unit is designed for indoor use only.
• Keep all liquids away from the device.
• Ensure environmental conditions meet factory specifications.
• Ensure unit is properly secured to a rack or shelf. Major shocks or jolts to the unit as a result of dropping it
may cause damage to the sen s itive electronics within the unit.
• Use the device in conjunction with an UPS if possible.
• Power down the unit before connecting and disconnecting accessories and peripherals.
• A factory recommended HDD should be used for this device.
• Improper use or replacement of the battery may result in hazard of explosion. Replace with the same or
equivalent type only. Dispose of used batteries according to the instructions provided by the battery
manufacturer.
4
User Manual of Network Video Recorder DS-3E0109P-E
Model
DS-3E0105P-E
DS-3E0109P-E
Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact dealer.
The figures in th e manual are for reference only.
This manual is applicab le to the models listed in the following table.
5
User Manual of Network Video Recorder DS-3E0109P-E
TABLE OF CONTENTS
Chapter 1 Product Overview ................................................................................................................. 7
1.1 Introduction ..................................................................................................................................... 7
1.2 Packages Content ............................................................................................................................ 7
1.3 Front Panel ...................................................................................................................................... 8
1.4 Rear Panel ....................................................................................................................................... 9
Chapter 2 Device Installation .............................................................................................................. 11
2.1 Installation Notes ........................................................................................................................... 11
Safety Alert ...................................................................................................................................... 11
Environmental Requests ................................................................................................................... 11
2.2 Installation ..................................................................................................................................... 12
Desktop-mounting ............................................................................................................................ 12
Wall-mounting ................................................................................................................................. 12
2.3 Grounding...................................................................................................................................... 14
With grounding bar .......................................................................................................................... 14
Without grounding bar ..................................................................................................................... 14
Chapter 3 Physical Connection ........................................................................................................... 16
3.1 Connect to RJ45 Ports ................................................................................................................... 16
3.2 Check the Cabling ......................................................................................................................... 16
3.3 Connect to Power Supply .............................................................................................................. 17
Appendix T echnical Specifications ............................................................................................................... 18
6
User Manual of Network Video Recorder DS-3E0109P-E
Chapter 1 Product Overview
1.1 Introduction
DS-3E0105P-E/DS-3E0109P-E is a series of 10/100Mbps desktop PoE switc h. It provides 5/9 10/100Mbps
auto-negotiation RJ45 ports, in which ports 1-4/8 support IEEE 802. 3a f PoE (15.4W) and IEEE 802 . 3a t P oE+
(30W). The whole PoE power output is 58W/120W. With Cat 5 Ethernet cable, power and data can be
simultaneously transmitted to APs, IP cameras, IP phones, and other PDs (Power devices).
In addition, DS-3E0105P-E/DS-3E0109P-E supports Extend mode. With enabling extend mode and Cat 5e
Ethernet cable, the transmission distance of data and power can be up to 250m .
1.2 Packages Content
Open your package and check the followings.
Item Number
Switch 1
Power adapter 1
Footpads 4
Screws 2
Expansion screw tubes 2
User Manual 1
If any item is incorrect, missing, or damaged, please keep the original package an d contact the vendor for
replacement immediately.
7
User Manual of Network Video Recorder DS-3E0109P-E
1.3 Front Panel
Figure 1.1 DS-3E0105P-E
Figure 1.2 DS-3E0109P-E
Table 1. 1 Description of LEDs
LED Status Description
Solid The device is connected to the power supply properly.
PWR
POE-MAX
LINK/ACT
POE STATUS
Off
Solid
Blinking The PoE power gets to the maximum.
Off
Solid The corresponding port is connected properly.
Blinking The corresponding port is transmitting data.
Off The corresponding port is connected improperly or not connected.
Solid
Blinking The PoE output of the corresponding port exceeds 30W.
Off The corresponding port is no PoE power output or no PD connected.
The device is connected improperly or not connected to the power
supply.
The PoE power gets to the alarm value, an d the available PoE power
is less than 6W.
The PoE power works properly, and the available PoE power is
more than 6W.
The corresponding port is connected with a PD (Powered Device)
and powers the PD properly.
N/A Off For reservation
8
User Manual of Network Video Recorder DS-3E0109P-E
Extend Mode
Details for enabling extend mode:
Model Name Status Description
Off Ports 1-4: 100M
DS-3E0105P-E
ON Ports 1-4: 10M with Extend Mode being enabled
EXTEND
Off Ports 1-8: 100M
DS-3E0109P-E
ON Ports 1-8: 10M with Extend Mode being enabled
Cautions
1. To guarantee the extend mode performance, please use Cat 5e or better Ethernet cable and configure the speed
and duplex of the remote device to be “Auto Negotiation”.
2. If Extend mode is OFF, the transmission distance of PoE powering and data is up to 150m by using Cat 5e or
better Ethernet cable.
RJ45 ports
Model 10/100Mbps RJ45 ports Uplink port
DS-3E0105P-E 4 1
DS-3E0109P-E 8 1
Note that:
1. Ports 1-2 of DS-3E0109P-E (Port 1 of DS-3E0105P-E) are with high priority by default, which take advantage
over other ports to process key data or video data.
2. Ports 1-4/8 support IEEE 802.3af and IEEE 802.3at PoE power;
1.4 Rear Panel
Figure 1.3 DS-3E0105P-E
9
User Manual of Network Video Recorder DS-3E0109P-E
Figure 1 .4 DS-3E0109P-E
Power Socket
Used for connecting the included power adapter for power supply. Please use the included power adapter to
connect the device to power supply.
Grounding Terminal
Used for connecting the grounding cable for lightning-resisting. The grounding details refer to Section
Grounding
Lock Hole (O nly for DS-3E0109P-E)
This hole is used to lock the switch with another fixed object to prevent picking.
2.3
10
User Manual of Network Video Recorder DS-3E0109P-E
Chapter 2 Device Installation
(Here DS-3E0109P-E is taken as an installation guide, which applies to DS-3E0105P-E.)
2.1 Installation Notes
To guarantee the device long service and your per s onal safety, please follow notes below.
Safety Alert
Wear antistatic gloves while installing, and connect the device to power after finishing other installation.
Use the included power adapter to power the device.
Make sure the input volt age mat ches the value which i s marked on the device's label.
Place the device in a well-ventilated and dry environment.
Do not open the cabinet of the device.
Disconnect the device from the power supply when you are doing the cleaning.
Position the device away from strong current.
Cautions
There is a seal covering one of the screws in the case of the device. In case of need repair, keep the seal unbroken
until the agent supervise the maintenance. The user should not break the seal of the coverage without permission
of the local agent, otherwise will be responsible for any damage.
Environmental Requests
Temperature/Humidity
Item Temperature Humidity
Operation Environment
0℃ - 40℃
10% - 90% RH
(non-condensing)
Storage Environment
Antistatic Precautions
Dust may lead to electrostatic adsorption. To protect the device from static electricity harm, please pay attention to
the following:
Keep the device environment ai r clean. (A regular dusting is necessary)
-40℃ -70℃
11
5% - 90% RH
(non-condensing)
User Manual of Network Video Recorder DS-3E0109P-E
Make sure the device is grounded well.
Lightning Protection
In a thunderstorm weather, a sudden current may damage the device. To protect the device from lightning stroke or
strong current, please:
Make sure the device, the installation desktop and power outlet on the wall all are well-grounded.
Cable the device properly; and if you need to cable outdoors, it is advisable to set up with a signal lightning
arrester.
Mounting Standards
No matter whether it is wall-mounting or desktop-mounting, follow the instructions below.
The desktop is stable and sturdy enough.
Place the device in a clean, dry and well-ventilated enviro nment. Keep at least 10cm free o n all sides for
cooling.
Do not place any heavy or big size object on the device.
Keep at least 1.5cm vertical dist ance between each device while installing it in s tack.
2.2 Installation
The device supports two types of installation: wall-mounting and desktop-mounting. Install your device according
to the tools you have. Here DS-3E0109P-E is taken as an installation guide, which appli es to DS-3E0105P-E.
Desktop-mounting
Find a flat and stable desktop and place the switch correctly.
Wall-mounting

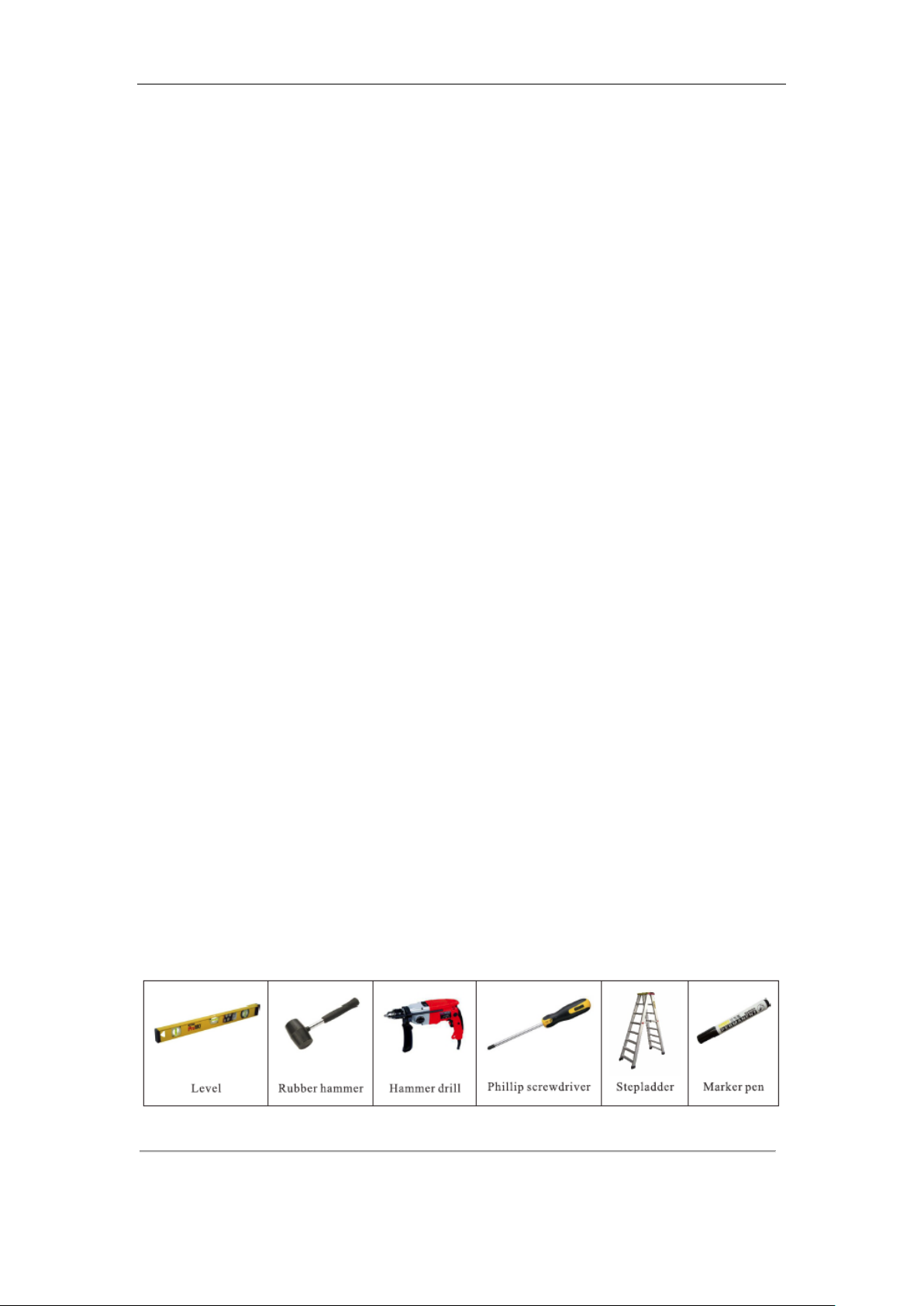

Step 1: Prepare the following tools.
Figure 2.1 Installation Tools
12
User Manual of Network Video Recorder DS-3E0109P-E
Step 2: Drill two 6mm diameter holes, about 110mm (DS-3E0109P-E) away apart on the same level in the wall.
(93mm for DS-3E0105P-E)
Figure 2.2 Drill holes in the wall
Step 3: Insert the expansion screw tubes completely into the holes in the wall with rubber hammer.
Step 4: Tighten the expansion tubes and screws with Phillips screwdriver. In order to mount the switch to the wall
firmly, the distance between the screw head and the tube head must be kept at l east 2.5mm wide.
Figure 2.3 Tighten the expansion tubes
Step 5: Place the switch onto the mounting screws, and slide it down until it locks in place.
Figure 2.4 Hang the switch against the wall
13
User Manual of Network Video Recorder DS-3E0109P-E
2.3 Grounding
Grounding is not only important for lightning arresting and anti-interference, but for your own personal safety.
Please select the proper method to ground your device.
With grounding bar
If a grounding bar is available at the installation site, follow steps below to ground the device.
1) Connect one end of the grounding cable to the binding post on the grounding bar.
2) Connect the other end of the grounding cable to the grounding terminal and fix the screw.
Figure 2.5 Connect to the grounding bar
Cautions
Connect the grounding cable to the earthing system in the equipment room. Do not connect it to a fire main or
lightning.
Without grounding bar
If there is no grounding bar but earth nearby and the grounding body is allowed to be buried, follow below
steps:
1) Bury an angle steel or steel pipe (≥0.5m) into the mud land.
2) Weld one end of the grounding cable to the angle steel or steel pipe and embalm the welding point.
3) Connect the other end of the grounding cable to the grounding terminal and fix the screw.
14
User Manual of Network Video Recorder DS-3E0109P-E
Figure 2.6 Ground with an angle steel
If both ground bar and the conditions for burying the grounding body are not available, an AC-powered
Ethernet switch can be grounded using the PE (Protecting Earth) wire of the AC power supply.
Figure 2.7 Ground with 3-core AC power cord
Cautions
Make sure that the PE wire of the AC power supply has been well grounded at the side of the power distribution
room or AC power supply transformer.
15
User Manual of Network Video Recorder DS-3E0109P-E
Chapter 3 Physical Connection
3.1 Connect to RJ45 Ports
Connect the switch to a r emot e device with Ethernet cable via RJ45 port. UPLINK is the uplink port. Ports 1-4/8
support IEEE 802.3af and IEEE 802.3at PoE supply, and the PD can be wireless AP, IP phone or IP camera, etc.
Figure 3.1 RJ45 port connection
Note that:
Cat.5e or better Ethernet cable is recommended. As each RJ45 port supports MDI/MDIX auto-negotiating,
either parallel or crossover cable is available.
The device supports dynamic PoE supply. Namely, the device will power the PD properly and automatically.
3.2 Check the Cabling
Once installation i s completed, check the cabling of the device as the following:
The operating power supply should accord with rated input standard.
Ports cablings and ground ing cable are correctly conn ected.
If there is outdoor cabling, connect a lightning protector to the cable before you plug the cable into the port.
16
User Manual of Network Video Recorder DS-3E0109P-E
Figure 3.2 Lightning protector connection
① Ethernet cable ③ Grounding terminal ⑤ Lightning pr ote ctor
② Grounding cable ④ Outdoor cabling
3.3 Connect to Power Supply
Please use the includ ed power adapter for power supply.
17
User Manual of Network Video Recorder DS-3E0109P-E
Supports 8 pins pow e ri ng , whi c h m e a ns pins 1,2,3,6 and pins
4,5,7,8 can power simultaneously
Humidity: 5%-90% RH non-condensing
Ethernet: 10Mbps (Half Duplex) / 20Mbps (Full Duplex)
Duplex)
Fast Ethernet: Cat 5 or bet ter UTP/STP
Appendix Technical Specifications
Item
Interfaces
Performance
PoE Power
Extend Mode Supported
Lightning-proof
Ranking
10/100Mbps RJ45 ports 5 9
High priority ports Port 1 Ports 1-2
Store-and-forward Supported
MAC Table 1k 4k
MAC Learning Auto-learning/ Auto-aging
Switching Capacity 1Gbps 1.8Gbps
PoE standard IEEE 802.3af, IEEE 802.3at
PoE Powering Mode
PoE Port 1-4 1-8
Max Port Output 30W 30W
Max Total Output 58W 120W
Port lightning proof 4KV
Power source lightning
proof
DS-3E0105P-E DS-3E0109P-E
4KV 2KV
Power Input 51V DC, 1.25A 51V DC, 2.5A
Temperature: 0℃-40℃
Humidity: 10%-90% RH non-condensing
Temperature: -40℃-70℃
Fast Ethernet: 100Mbps (Half Duplex) / 200Mbps (Full
Ethernet: Cat 3 or better UTP/STP
IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE802.3at, IEEE
802.3x
Physical
Environment
Transmission Speed
Transmission Medium
Network Standard
Operating Environment
Storage Environment
18
Loading...
