Hikvision DS-2TD8166-150ZE2F, DS-2TD8166-180ZE2F-V2 User Manual

Download

Thermal Bi-spectrum

Network Positioning System

User Manual

UD05158B

User Manual of Thermal Bi-spectrum Network Positioning System

User Manual

Any and all information, including, among others, wordings, pictures, graphs are the properties

of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be

“Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced,

changed, translated, or distributed, partially or wholly, by any means, without the prior written

permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties,

guarantees or representations, express or implied, regarding to the Manual.

About this Manual

This Manual is applicable to Thermal Bi-spectrum Network Positioning System.

The Manual includes instructions for using and managing the product. Pictures, charts, images

and all other information hereinafter are for description and explanation only. The information

contained in the Manual is subject to change, without notice, due to firmware updates or other

reasons. Please find the latest version in the company website

(http://overseas.hikvision.com/en/).

Please use this user manual under the guidance of professionals.

Trademarks Acknowledgement

and other Hikvision’s trademarks and logos are the properties of Hikvision in

various jurisdictions. Other trademarks and logos mentioned below are the properties of their

respective owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED,

WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS

AND ERRORS, AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING

WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A

PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL

HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR

ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG

OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS

OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF

HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE

WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR

ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER

ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS;

HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN

YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE

User Manual of Thermal Network Positioning system

CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT

THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.

IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW,

THE LATER PREVAILS.

User Manual of Thermal Network Positioning system

iii

Regulatory Information

FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. FCC Conditions This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation. EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the Low Voltage Directive 2006/95/EC, the EMC

Directive 2014/30/EU, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info.

2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is

marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info.

Industry Canada ICES-003 Compliance This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

User Manual of Thermal Network Positioning system

Warnings Follow these safeguards to prevent serious injury or death.

Cautions Follow these precautions to prevent potential injury or material damage.

Safety Instruction

These instructions are intended to ensure that the user can use the product correctly to avoid danger or property loss.

The precaution measure is divided into ‘Warnings’ and ‘Cautions’:

Warnings: Serious injury or death may be caused if any of these warnings are neglected.

Cautions: Injury or equipment damage may be caused if any of these cautions are

neglected.

Warnings

 The device should be used in compliance with local laws and electrical safety regulations. Refer to the

appropriate documentation for detailed information.

 The input voltage should conform to IEC60950-1 standard: SELV (Safety Extra Low Voltage) and the

Limited Power Source (24 VAC/12 VDC). Refer to the appropriate documentation for detailed information.

 DO NOT connect multiple devices to one power adapter, to avoid over-heating or fire hazards caused

by overload.

 Make sure the plug is properly connected to the power socket.  If smoke, odor, or noise arises from the device, immediately turn off the power, unplug the power cable,

and contact the service center.

 The installer and user are responsible for password and security configuration and its settings.  Both internal and external grounds should be connected properly. (The cross section area of the

grounding wire must be no less than 4 mm2, and no less than that of the phase connector).

Cautions

 Do not drop the device or subject it to physical shock.  Wipe the device gently with a clean cloth and a small quantity of ethanol, if necessary.  Do not aim the lens at the sun or any other bright light.  When any laser equipment is in use, make sure that the device lens is not exposed to the laser beam, or

it may burn out.

 Do not expose the device to high electromagnetic radiation or extremely hot, cold, dusty, or damp

environments.

 Place the device in a dry and well-ventilated environment.  Keep non-waterproof devices away from liquids.  Keep the device in original or similar packaging while transporting it.  A few device components (e.g., electrolytic capacitor) require regular replacement. The average lifespan

varies, so periodic checking is recommended. Contact your dealer for details.

 Improper use or replacement of the battery may result in explosion hazard. Replace with the same or

equivalent type only. Dispose of used batteries in conformance with the instructions provided by the battery manufacturer.

 Never attempt to disassemble the device.

0504001070316

User Manual of Thermal Network Positioning system

Table of Contents

Chapter 1 Overview ................................................................................................................... 1

1.1 Overview .................................................................................................................................. 1

1.2 System Requirement ............................................................................................................. 1

1.3 Functions ................................................................................................................................ 2

Chapter 2 Network Connection ................................................................................................ 4

2.1 Setting the Network Positioning system over the LAN ..................................................... 4

2.1.1 Wiring over the LAN .......................................................................................................... 4

2.1.2 Activating the Positioning system ................................................................................... 5

2.2 Setting the Network Positioning system over the WAN .................................................. 10

2.2.1 Static IP Connection ........................................................................................................ 10

2.2.2 Dynamic IP Connection .................................................................................................. 11

Chapter 3 Access to the Network Positioning system ......................................................... 14

3.1 Accessing by Web Browsers .............................................................................................. 14

3.2 Accessing by Client Software ............................................................................................. 15

Chapter 4 Basic Operations .................................................................................................... 17

4.1 Configuring Local Parameters ........................................................................................... 17

4.2 Live View Page ..................................................................................................................... 18

4.3 Starting Live View ................................................................................................................ 19

4.3.1 Configuring Basic PTZ Parameters ..................................................

4.3.2 Configuring PTZ Limits ..................................................................

4.3.3 Configuring Initial Position ............................................................

4.3.4 Configuring Park Actions ...............................................................

4.3.5 Configuring Privacy Mask .............................................................

4.3.6 Configuring Scheduled Tasks .......................................................

4.3.7 Clearing PTZ Configurations .........................................................

4.3.8 Prioritize PTZ ...................................................................................

4.3.9 Position Settings ............................................................................

4.3.10 Configuring Linear Scan ................................................................

4.4 Operating PTZ Control ........................................................................................................ 21

4.4.11 PTZ Control Panel ....................................................................................................... 22

4.4.12 Auxiliary Functions ...................................................................................................... 23

4.4.13 Setting / Calling a Preset ............................................................................................ 25

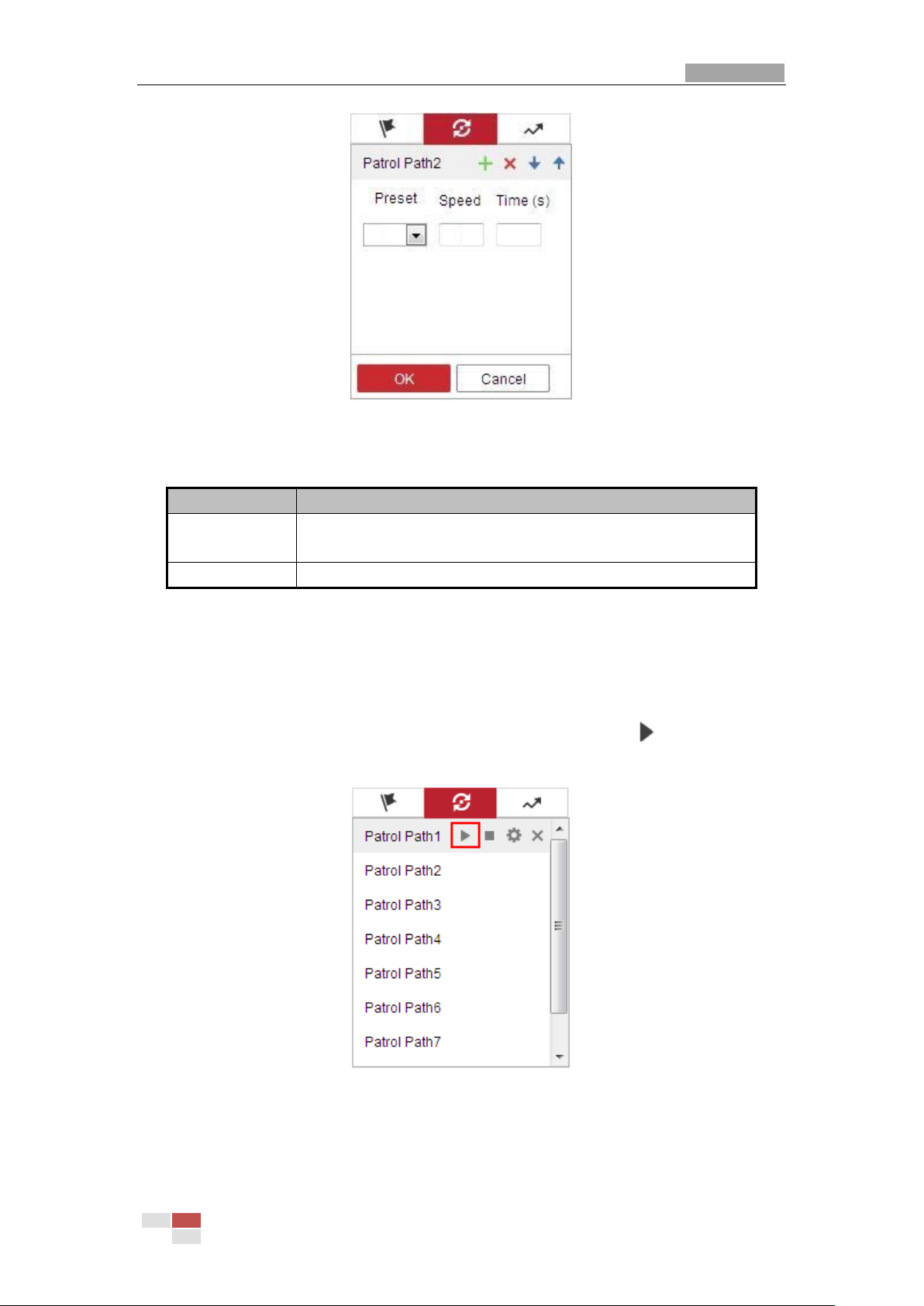

4.4.14 Setting / Calling a Patrol ............................................................................................. 27

4.4.15 One-touch Patrol ......................................................................................................... 29

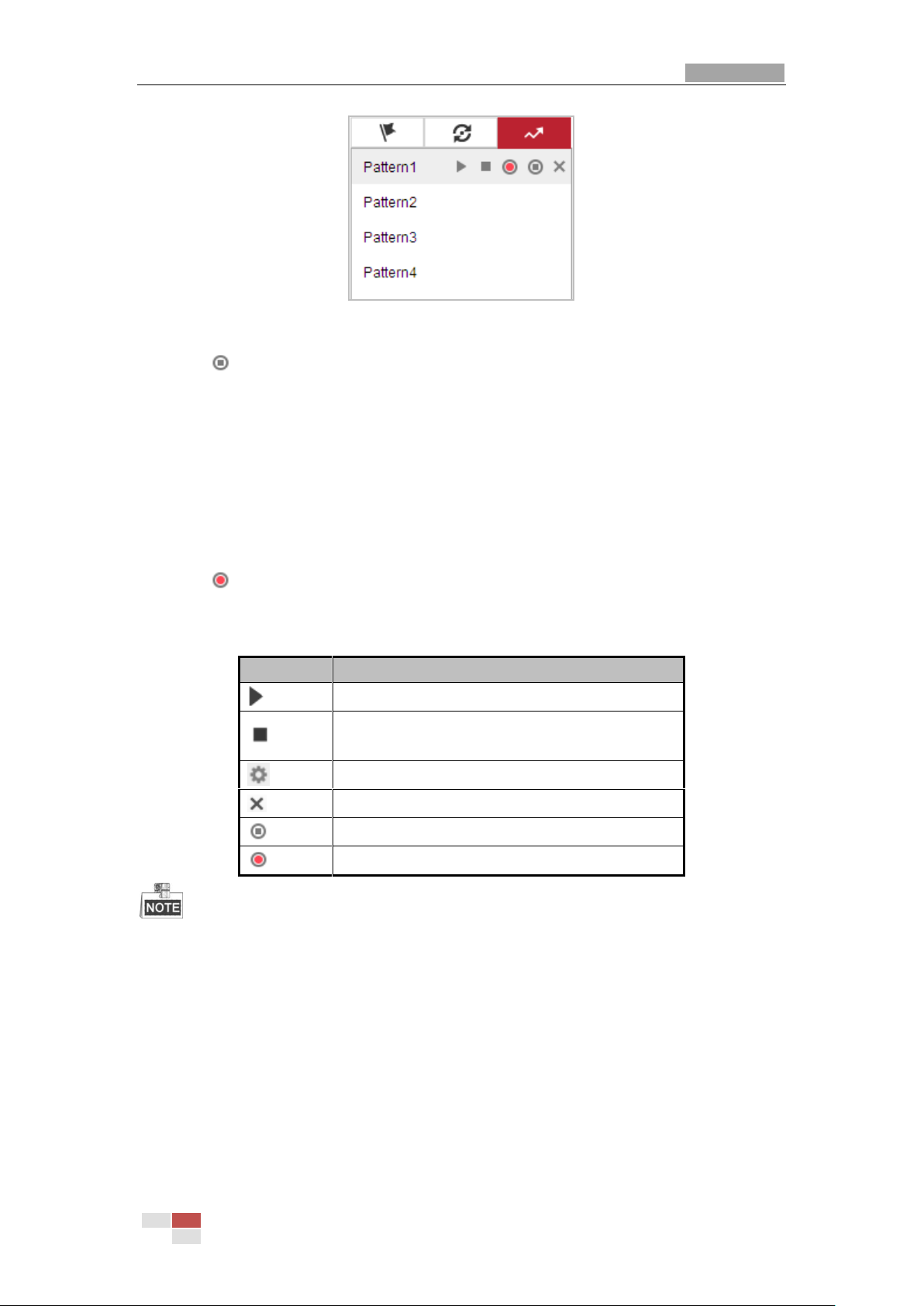

4.4.16 Setting / Calling a Pattern .......................................................................................... 29

4.5 Playback ............................................................................................................................... 30

4.5.1 Play Back Video Files ...................................................................................................... 31

4.5.2 Downloading Video Files ................................................................................................ 32

4.6 Pictures ................................................................................................................................. 33

错误!未定义书签。错误!未定义书签。错误!未定义书签。错误!未定义书签。错误!未定义书签。错误!未定义书签。错误!未定义书签。错误!未定义书签。错误!未定义书签。错误!未定义书签。

User Manual of Thermal Network Positioning system

Chapter 5 System Configuration ............................................................................................ 35

5.1 Storage Settings .................................................................................................................. 35

5.1.1 Configuring Recording Schedule ............................................................................... 35

5.1.2 Configuring Capture Schedule ................................................................................... 37

5.1.3 Configuring Net HDD .................................................................................................. 39

5.2 Basic Event Configuration .................................................................................................. 41

5.2.1 Configuring Motion Detection ........................................................................................ 41

5.2.2 Configuring Video Tampering Alarm ......................................................................... 46

5.2.3 Configuring Alarm Input ............................................................................................. 47

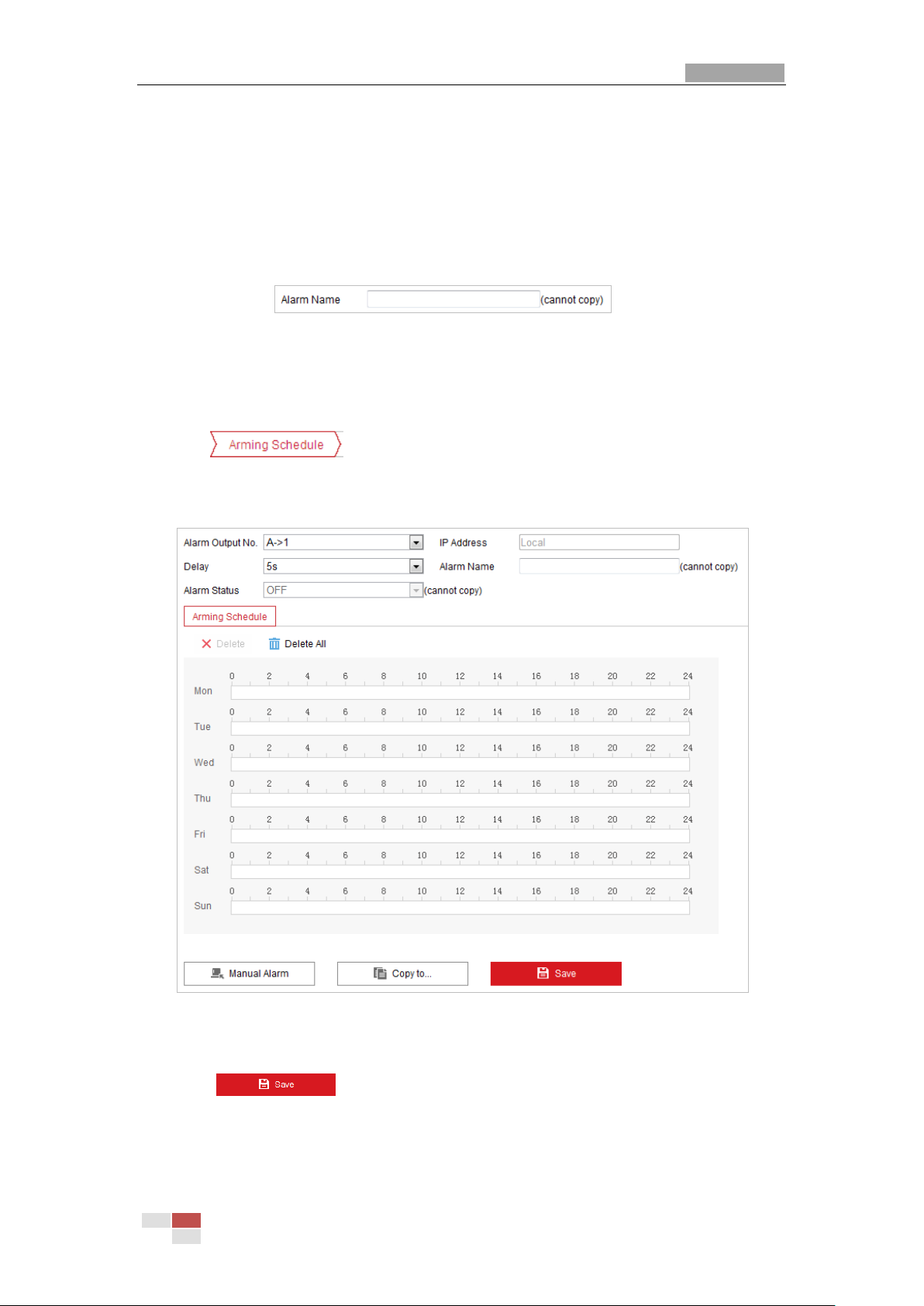

5.2.4 Configuring Alarm Output .......................................................................................... 49

5.2.5 Handling Exception ..................................................................................................... 50

5.3 Smart Event Configuration ................................................................................................. 50

5.3.1 Detecting Audio Exception ............................................................................................. 51

5.3.2 Configuring Fire and Smoke Detection ......................................................................... 52

5.3.3 Configuring Fire Source Detection Shield ................................................................. 54

5.3.4 Configuring Smoke Detection Shield ........................................................................ 55

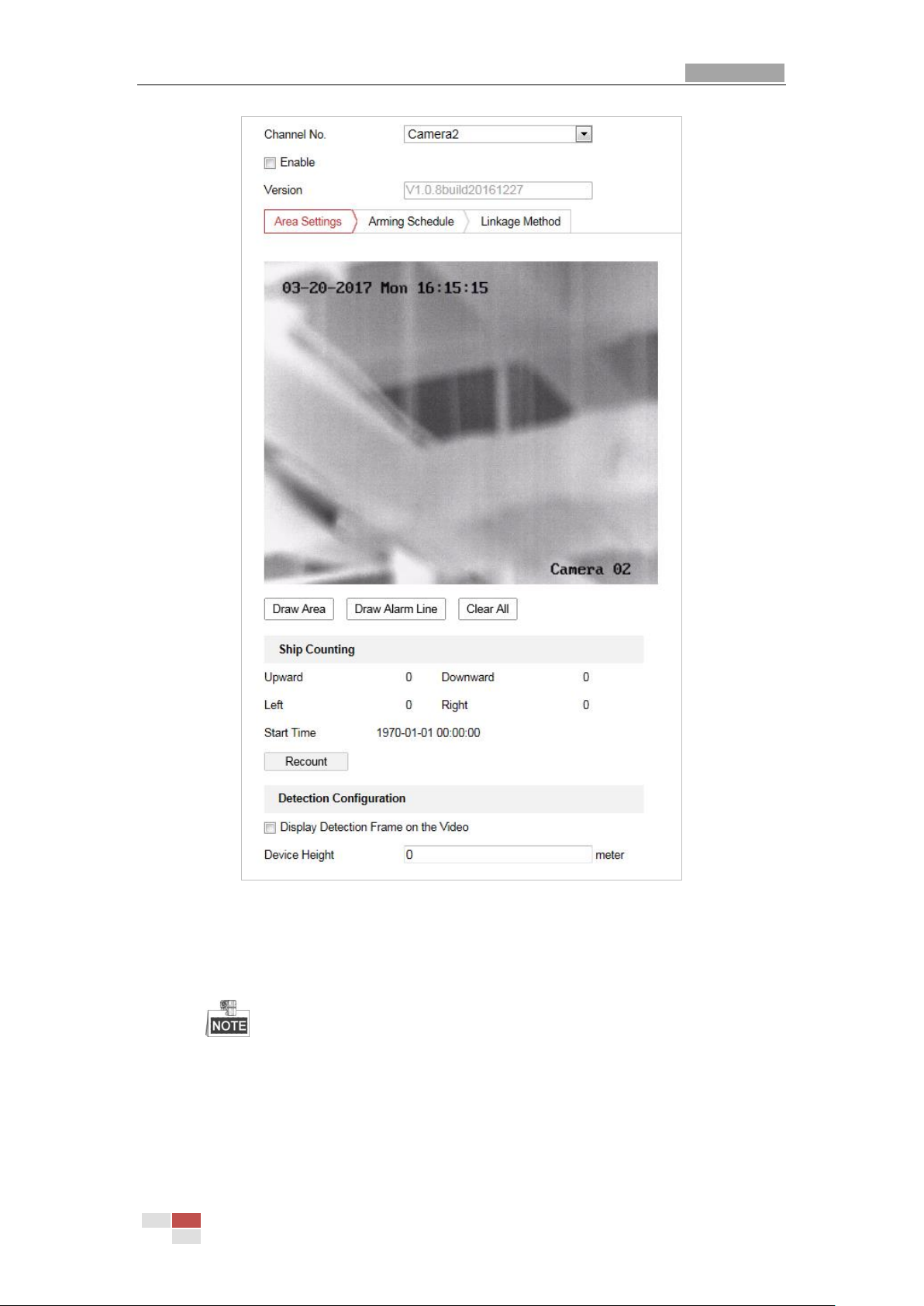

5.3.5 Ship Detection .................................................................................................................. 56

5.4 Temperature Measurement ................................................................................................ 58

5.4.1 Temperature Measurement Configuration ............................................................... 58

5.4.2 Temperature Measurement and Alarm .................................................................... 60

Chapter 6 VCA Configuration ................................................................................................. 65

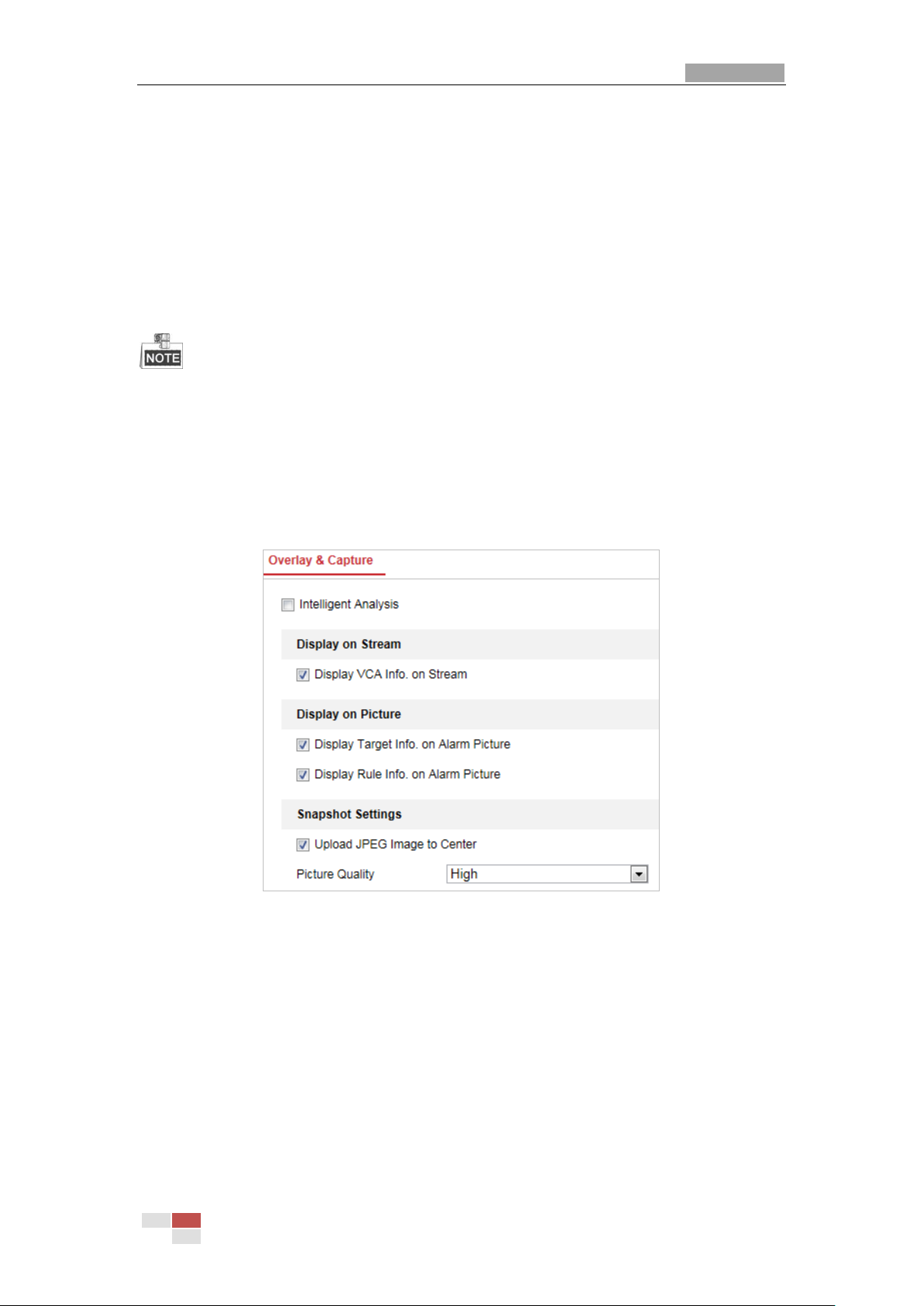

6.1 Configuring VCA Information ............................................................................................. 65

6.2 Advanced Configuration ..................................................................................................... 66

6.3 Behavior Analysis ................................................................................................................ 67

6.4 Rule Configuration Demonstration .................................................................................... 71

6.4.1 Line Crossing ............................................................................................................... 71

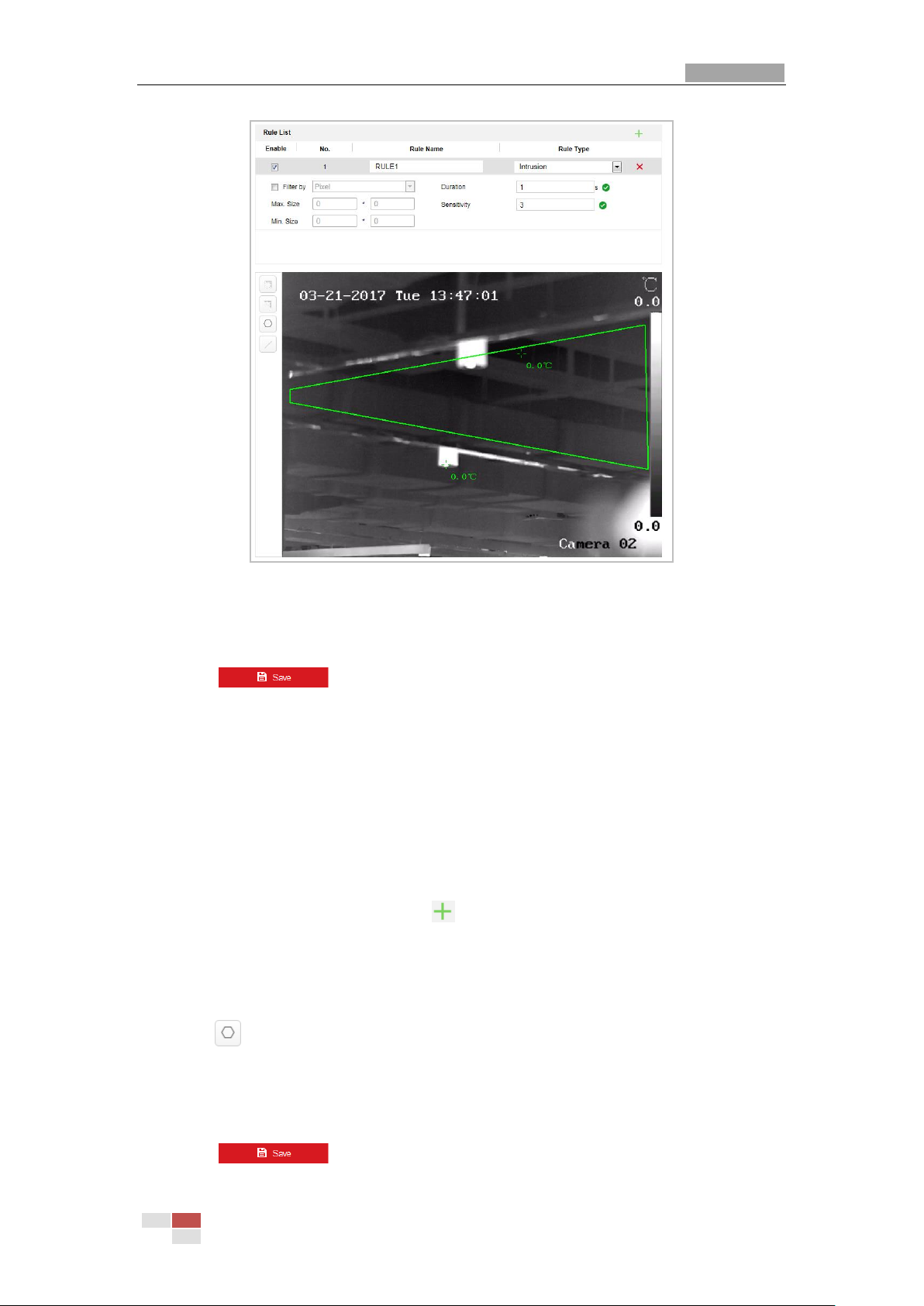

6.4.2 Intrusion ....................................................................................................................... 73

6.4.3 Region Entrance .......................................................................................................... 74

6.4.4 Region Exiting .............................................................................................................. 75

Chapter 7 Positioning System Configuration ....................................................................... 76

7.1 Configuring Network Settings ............................................................................................ 76

7.1.1 Basic Settings .............................................................................................................. 76

7.1.2 Advanced Settings ...................................................................................................... 82

7.2 Configuring Video and Audio Settings .............................................................................. 90

7.2.1 Configuring Video Settings ............................................................................................. 90

7.2.2 Configuring Audio Settings ........................................................................................ 92

7.2.3 Configuring ROI Settings ............................................................................................ 92

7.3 PTZ Configuration ............................................................................................................... 94

7.3.4 Configuring Basic PTZ Parameters ............................................................................... 94

7.3.5 Configuring PTZ Limits ............................................................................................... 96

7.3.6 Configuring Initial Position ......................................................................................... 97

7.3.7 Configuring Park Actions ............................................................................................ 98

User Manual of Thermal Network Positioning system

vii

7.3.8 Configuring Privacy Mask .......................................................................................... 99

7.3.9 Configuring Scheduled Tasks .................................................................................. 100

7.3.10 Clearing PTZ Configurations .................................................................................... 101

7.3.11 Prioritize PTZ .............................................................................................................. 102

7.3.12 Position Settings ....................................................................................................... 102

7.3.13 Configuring Linear Scan ........................................................................................... 104

7.4 Configuring Image Settings .............................................................................................. 105

7.4.1 Configuring Display Settings .................................................................................... 105

7.4.2 Configuring OSD Settings ......................................................................................... 114

7.4.3 Configuring Text Overlay Settings ........................................................................... 115

7.4.4 VCA Rule Display ....................................................................................................... 116

7.4.5 Configuring DPC Settings ......................................................................................... 116

7.4.6 Picture in Picture ....................................................................................................... 117

7.5 Configuring System Settings ........................................................................................... 118

7.5.1 System Settings ............................................................................................................ 118

7.5.2 Maintenance .............................................................................................................. 122

7.5.3 Security ....................................................................................................................... 126

7.5.4 User Management ..................................................................................................... 128

Appendix ....................................................................................................................................... 133

SADP Software Introduction ......................................................................................................... 133

User Manual of Thermal Bi-spectrum Network Positioning System

Chapter 1 Overview

1.1 Overview

Thermal bi-spectrum network positioning system (named as positioning system in the chapters below) integrates the function of the decoder, thermal camera, and the high-definition zoom camera. It performs temperature measurement, dynamic fire source detection and other smart detections in the remote surveillance of the power system, metallurgy system, and petrochemical engineering, and so on. You can get a high-quality live view via web browser or client software. The figure below shows one type of the positioning system series.

Figure 1-1 Overview of Thermal Positioning System

1.2 System Requirement

System requirement of web browser accessing is as follows: Operating System: Microsoft Windows XP SP1 and above version / Vista / Win7 / Server 2003 / Server 2008 32bits CPU: Intel Pentium IV 3.0 GHz or higher RAM: 1G or higher Display: 1024× 768 resolution or higher Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.02 and above version, Mozilla Firefox 5 and above version and Google Chrome 18 and above versions.

User Manual of Thermal Network Positioning system

1.3 Functions

The functions vary depending on the models of positioning system.

 Bi-spectrum

The positioning system has two lens, an optical one and a thermal one, and two images are respectively provided by each lens.

 PTZ Limits

The positioning system can be programmed to move within the PTZ limits (left/right, up/down).

 Scan Modes

The positioning system provides 5 scan modes: auto scan, tilt scan, frame scan, random scan and panorama scan.

 Presets

A preset is a predefined image position. When the preset is called, the positioning system will automatically move to the defined position. The presets can be added, modified, deleted and called.

 Label Display

The on-screen label of the preset title, azimuth/elevation, zoom, time and positioning system name can be displayed on the monitor. The displays of time and positioning system name can be programmed.

 Auto Flips

In manual tracking mode, when a target object goes directly beneath the positioning system, the video will automatically flips 180 degrees in horizontal direction to maintain continuity of tracking. This function can also be realized by auto mirror image depending on different camera models.

 Privacy Mask

This function allows you to block or mask certain area of a scene, for preventing the personal privacy from recording or live viewing. A masked area will move with pan and tilt functions and automatically adjust in size as the lens zooms telephoto and wide.

 3D Positioning

In the client software, use the left key of mouse to click on the desired position in the video image and drag a rectangle area in the lower right direction, then the positioning system will move the position to the center and allow the rectangle area to zoom in. Use the left key of mouse to drag a rectangle area in the upper left direction to move the position to the center and allow the rectangle area to zoom out.

 Proportional Pan/Tilt

Proportional pan/tilt automatically reduces or increases the pan and tilt speeds according to the amount of zoom. At telephoto zoom settings, the pan and tilt speeds will be slower than at wide zoom settings. This keeps the image from moving too fast on the live view image when there is a large amount of zoom.

 Auto Focus

The auto focus enables the camera to focus automatically to maintain clear video images.

 Day/Night Auto Switch

User Manual of Thermal Network Positioning system

The positioning systems deliver color images during the day. And as light diminishes at night, the positioning systems switch to night mode and deliver black and white images with high quality.

 Slow Shutter

In slow shutter mode, the shutter speed will automatically slow down in low illumination conditions to maintain clear video images by extending the exposure time. The feature can be enabled or disabled.

 Backlight Compensation (BLC)

If you focus on an object against strong backlight, the object will be too dark to be seen clearly. The BLC (Backlight Compensation) function can compensate light to the object in the front to make it clear, but this causes the over-exposure of the background where the light is strong.

 Wide Dynamic Range (WDR)

The wide dynamic range (WDR) function helps the camera provide clear images even under back light circumstances. When there are both very bright and very dark areas simultaneously in the field of view, WDR balances the brightness level of the whole image and provide clear images with details.

 White Balance (WB)

White balance can remove the unrealistic color casts. White balance is the white rendition function of the camera to adjust the color temperature according to the environment automatically.

 Patrol

A patrol is a memorized series of pre-defined preset function. The scanning speed between two presets and the dwell time at the preset are programmable.

 Pattern

A pattern is a memorized series of pan, tilt, zoom, and preset functions. By default the focus and iris are in auto status during the pattern is being memorized.

 Power Off Memory

The positioning system supports the power off memory capability with the predefined resume time. It allows the positioning system to resume its previous position after power is restored.

 Scheduled Task

A time task is a preconfigured action that can be performed automatically at a specific date and time. The programmable actions include: auto scan, random scan, patrol 1-8 ,pattern 1-4, preset 1-8,frame scan, panorama scan, tilt scan, day, night, reboot, PT adjust, Aux Output, etc.

 Park Action

This feature allows the positioning system to start a predefined action automatically after a period of inactivity.

 3D Digital Noise Reduction

Comparing with the general 2D digital noise reduction, the 3D digital noise reduction function processes the noise between two frames besides processing the noise in one frame. The noise will be much less and the video will be clearer.

User Manual of Thermal Bi-spectrum Network Positioning System

Network Cable

PT Camera

Chapter 2 Network Connection

Before you start:

 If you want to set the network positioning system via a LAN (Local Area Network),

please refer to Section 2.1.

 If you want to set the network positioning system via a WAN (Wide Area Network),

please refer to Section 2.2.

2.1 Setting the Network Positioning system over

the LAN

Purpose:

To view and configure the positioning system via a LAN, you need to connect the network positioning system in the same subnet with your computer, and install the SADP or client software to search and change the IP of the network positioning system.

For the detailed introduction of SADP, please refer to Appendix.

2.1.1 Wiring over the LAN

The following figures show the two ways of cable connection of a network positioning system and a computer:

Purpose:

 To test the network positioning system, you can directly connect the network

positioning system to the computer with a network cable as shown in Figure 2-1.

 Refer to the Figure 2-2 to set the network positioning system over the LAN via a

switch or a router.

Figure 2-1 Connecting Directly

User Manual of Thermal Network Positioning system

Network Cable

Switch or Router

Network Cable

PT Camera

Figure 2-2 Connecting via a Switch or a Router

2.1.2 Activating the Positioning system

Purpose:

You are required to activate the positioning system first before you can use the positioning system. Activation via Web Browser, Activation via SADP, and Activation via client software are supported. In the following sections, activation via web browser and SADP will be taken as examples. You may refer to the user manual of the positioning system for the details of activation via client software.

 Activation via Web Browser

Steps:

1. Power on the positioning system, and connect the positioning system to the network.

2. Input the IP address into the address bar of the web browser, and click Enter to enter

the activation interface.

The default IP address of the positioning system is 192.168.1.64.

Figure 2-3 Activation Interface(Web)

3. Create a password and input the password into the password field.

STRONG PASSWORD RECOMMENDED–We highly recommend you create a

strong password of your own choosing (Using a minimum of 8 characters,

User Manual of Thermal Network Positioning system

including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

4. Confirm the password.

5. Click OK to activate the positioning system and enter the live view interface.

 Activation via SADP Software

SADP software is used for detecting the online device, activating the device, and resetting the password. Get the SADP software from the supplied disk or the official website, and install the SADP according to the prompts. Follow the steps to activate the positioning system. Steps:

1. Run the SADP software to search the online devices.

2. Check the device status from the device list, and select an inactive device.

Figure 2-4 SADP Interface

3. Create a password and input the password in the password field, and confirm the

password.

STRONG PASSWORD RECOMMENDED–We highly recommend you create a

strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product. And we recommend you reset your password

User Manual of Thermal Network Positioning system

regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

4. Click OK to save the password.

You can check whether the activation is completed on the popup window. If activation failed, please make sure that the password meets the requirement and then try again.

5. Change the device IP address to the same subnet with your computer by either

modifying the IP address manually or checking the checkbox of Enable DHCP.

Figure 2-5 Modify the IP Address

6. Input the password and click Save to activate your IP address modification.

 Activation via Client Software

The client software is versatile video management software for multiple kinds of devices. Get the client software from the supplied disk or the official website, and install the software according to the prompts. Follow the steps to activate the camera.

Steps:

1. Run the client software and the control panel of the software pops up, as shown in the

figure below.

User Manual of Thermal Network Positioning system

Figure 2-6 Control Panel

2. Click Device Management to enter the Device Management interface, as shown in the

figure below.

Figure 2-7 Device Management Interface

3. Check the device status from the device list, and select an inactive device.

4. Click Activate to pop up the Activation interface.

5. Create a password and input the password in the password field, and confirm the

password.

User Manual of Thermal Network Positioning system

STRONG PASSWORD RECOMMENDED–We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

Figure 2-8 Activation Interface

6. Click OK to start activation.

7. Click Modify Netinfo to pop up the Network Parameter Modification interface, as

shown in the figure below.

Figure 2-9 Modifying the Network Parameters

8. Change the device IP address to the same subnet with your computer by either

modifying the IP address manually or checking the checkbox of Enable DHCP.

9. Input the password to activate your IP address modification.

User Manual of Thermal Network Positioning system

Positioning

System

Network Cable

Router with Static IP

Network Cable

Internet

2.2 Setting the Network Positioning system over

the WAN

Purpose:

This section explains how to connect the network positioning system to the WAN with a static IP or a dynamic IP.

2.2.1 Static IP Connection

Before you start:

Please apply a static IP from an ISP (Internet Service Provider). With the static IP address, you can connect the network positioning system via a router or connect it to the WAN directly.

 Connecting the network positioning system via a router

Steps:

1. Connect the network positioning system to the router.

2. Assign a LAN IP address, the subnet mask and the gateway. Refer to Section 2.1.2 for

detailed IP address configuration of the positioning system.

3. Save the static IP in the router.

4. Set port mapping, E.g., 80, 8000 and 554 ports. The steps for port mapping vary

depending on different routers. Please call the router manufacturer for assistance with port mapping.

5. Visit the network positioning system through a web browser or the client software over

the internet.

Figure 2-10 Accessing the Positioning system through Router with Static IP

 Connecting the network positioning system with static IP directly

You can also save the static IP in the positioning system and directly connect it to the internet without using a router. Refer to Section 2.1.2 for detailed IP address configuration of the positioning system.

User Manual of Thermal Network Positioning system

Positioning

System

Network Cable

Internet

Figure 2-11 Accessing the Positioning system with Static IP Directly

2.2.2 Dynamic IP Connection

Before you start:

Please apply a dynamic IP from an ISP. With the dynamic IP address, you can connect the network positioning system to a modem or a router.

 Connecting the network positioning system via a router

Steps:

1. Connect the network positioning system to the router.

2. In the positioning system, assign a LAN IP address, the subnet mask and the gateway.

Refer to Section 2.1.2 for detailed LAN configuration.

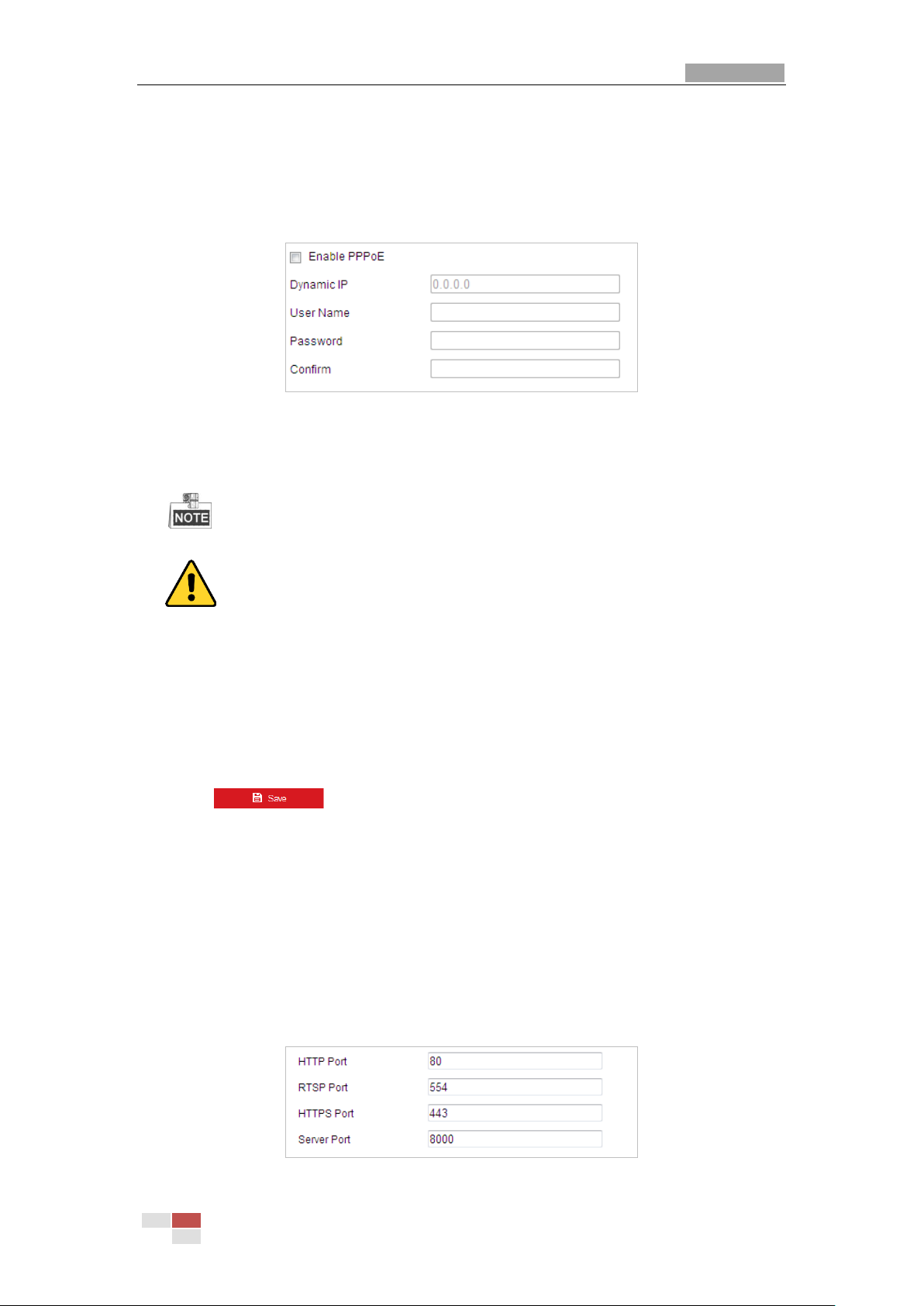

3. In the router, set the PPPoE user name, password and confirm the password.

 For your privacy and to better protect your system against security risks, we

strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product.

 Proper configuration of all passwords and other security settings is the

responsibility of the installer and/or end-user.

4. Set port mapping. E.g. 80, 8000 and 554 ports. The steps for port mapping vary

depending on different routers. Please call the router manufacturer for assistance with port mapping.

5. Apply a domain name from a domain name provider.

6. Configure the DDNS settings in the setting interface of the router.

7. Visit the positioning system via the applied domain name.

 Connecting the network positioning system via a modem

Purpose:

This positioning system supports the PPPoE auto dial-up function. The positioning system gets a public IP address by ADSL dial-up after the positioning system is connected to a modem. You need to configure the PPPoE parameters of the network positioning system. Refer to Section 7.1.1 Configuring PPPoE Settings for detailed configuration.

User Manual of Thermal Network Positioning system

Positioning

System

Network Cable

Modem

Network Cable

Internet

Positioning

System

Network Cable

Router with Static IP

Network Cable

Internet

(Port Mapping)

Domain Name Resolution Server

Figure 2-12 Accessing the Positioning system with Dynamic IP

The obtained IP address is dynamically assigned via PPPoE, so the IP address always changes after rebooting the positioning system. To solve the inconvenience of the dynamic IP, you need to get a domain name from the DDNS provider (E.g. DynDns.com). Please follow below steps for normal domain name resolution and private domain name resolution to solve the problem.

 Normal Domain Name Resolution

Figure 2-13 Normal Domain Name Resolution

Steps:

1. Apply a domain name from a domain name provider.

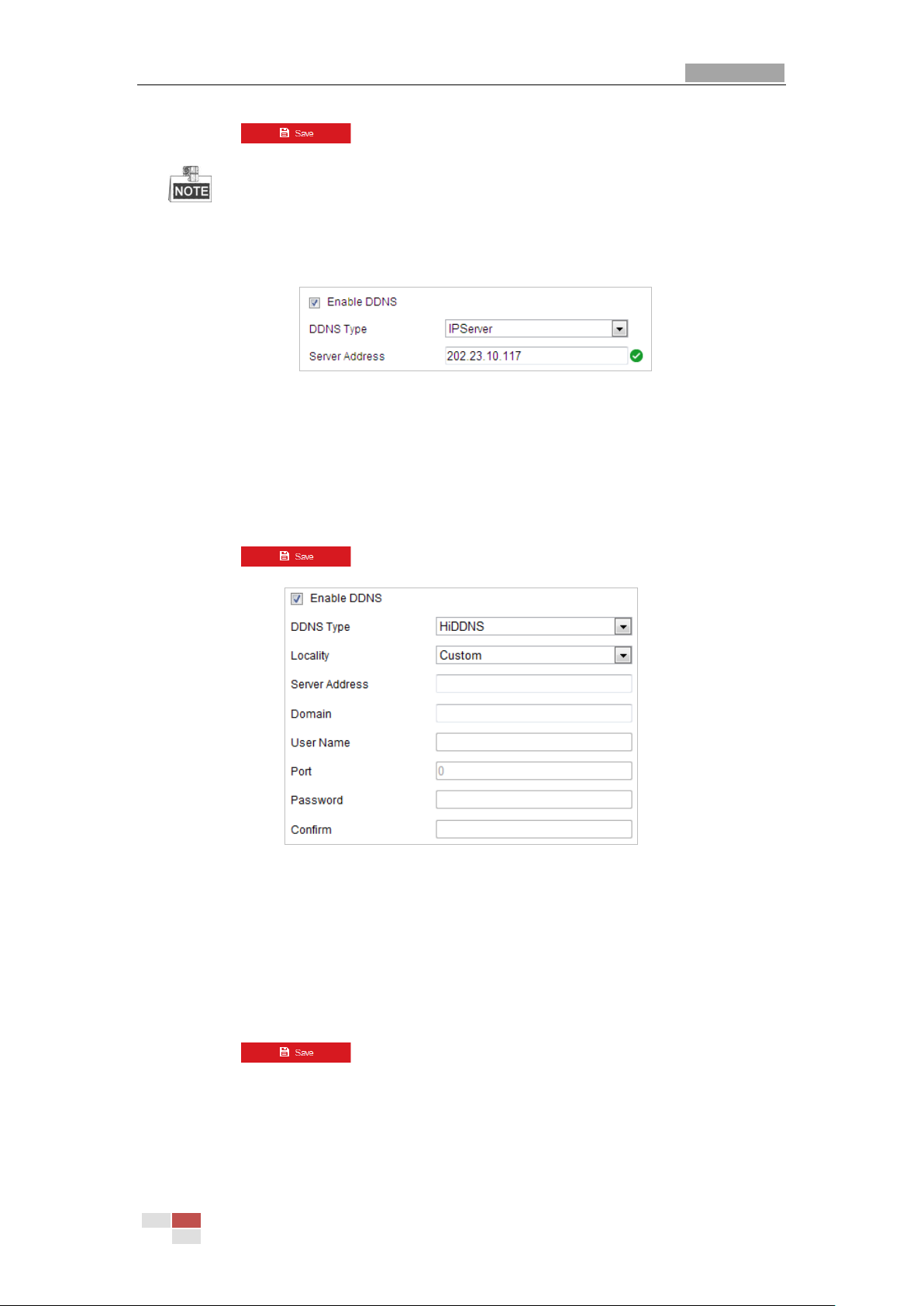

2. Configure the DDNS settings in the DDNS Settings interface of the network

positioning system. Refer to Section 7.1.1 Configuring DDNS Settings for detailed configuration.

3. Visit the positioning system via the applied domain name.  Private Domain Name Resolution

User Manual of Thermal Network Positioning system

Positioning

System

Network Cable

Router with Static IP

Network Cable

Internet

(Port Mapping)

PC + IP Server + Staic IP

Figure 2-14 Private Domain Name Resolution

Steps:

1. Install and run the IP Server software in a computer with a static IP.

2. Access the network positioning system through the LAN with a web browser or the

client software.

3. Enable DDNS and select IP Server as the protocol type. Refer to Section 7.1.1

Configuring DDNS Settings for detailed configuration.

User Manual of Thermal Bi-spectrum Network Positioning System

Chapter 3 Access to the Network

Positioning system

3.1 Accessing by Web Browsers

Steps:

1. Open the web browser.

2. In the address field, input the IP address of the network positioning system, e.g.,

192.168.1.64 and press the Enter key to enter the login interface.

3. Activate the positioning system for the first time using, refer to the section 2.1.2

Activating the Positioning system.

4. Select English as the interface language on the top-right of login interface.

5. Input the user name and password and click .

The admin user should configure the device accounts and user/operator permissions properly. Delete the unnecessary accounts and user/operator permissions.

The device IP address gets locked if the admin user performs 7 failed password attempts (5 attempts for the user/operator).

Figure 3-1 Login Interface

6. Install the plug-in before viewing the live video and operating the positioning system.

Please follow the installation prompts to install the plug-in.

You may have to close the web browser to install the plug-in. Please reopen the web browser and log in again after installing the plug-in.

User Manual of Thermal Network Positioning system

Figure 3-2 Download and Install Plug-in

3.2 Accessing by Client Software

The product CD contains the client software. You can view the live video and manage the positioning system with the client software. Follow the installation prompts to install the client software and WinPcap. The configuration interface and live view interface of client software are shown below.

Figure 3-3 iVMS-4200 Control Panel

User Manual of Thermal Network Positioning system

Figure 3-4 iVMS-4200 Live View Interface

 If you use third party VMS software, please contact technical support of our branch

for camera firmware.

 For detailed information about client software of our company, please refer to the

user manual of the software. This manual mainly introduces accessing to the network positioning system by web browser.

User Manual of Thermal Bi-spectrum Network Positioning System

Chapter 4 Basic Operations

In this and the following chapters, operation of the positioning system by the web browser will be taken as an example.

4.1 Configuring Local Parameters

The local configuration refers to the parameters of the live view and other operations using the web browser.

Steps:

1. Enter the Local Configuration interface:

Configuration > Local

Figure 4-1 Local Configuration Interface

2. Configure the following settings:

 Live View Parameters: Set the protocol type, play performance, rules and image

format.

 Protocol Type: TCP, UDP, MULTICAST and HTTP are selectable.

TCP: Ensures complete delivery of streaming data and better video quality, yet the real-time transmission will be affected. UDP: Provides real-time audio and video streams. MULTICAST: It’s recommended to select the protocol type to MULTICAST when using the Multicast function. HTTP: Allows the same quality as of TCP without setting specific ports for streaming under some network environments.

 Play Performance: Set the play performance to Shortest Delay, or Auto.

User Manual of Thermal Network Positioning system

 Rules: You can enable or disable the rules of dynamic analysis for motion here.  Image Format: The captured pictures can be saved as different format. JPEG and

BMP are available.

 Record File Settings: Set the saving path of the video files.

 Record File Size: Select the packed size of manually recorded and downloaded

video files. The size can be set to 256M, 512M or 1G.

 Save record files to: Set the saving path for the manually recorded video files.  Save downloaded files to: Set the saving path for the downloaded video files in

interface.

 Picture and Clip Settings: Set the saving paths of the captured pictures and clipped

video files.

 Save snapshots in live view to: Set the saving path of the manually captured

pictures in interface.

 Save snapshots when playback to: Set the saving path of the captured pictures in

interface.

 Save clips to: Set the saving path of the clipped video files in

interface.

 You can click Browse to change the directory for saving video files, clips and

pictures.

 You can click Open to directly open the video files, clips and pictures.

3. Click to save the settings.

4.2 Live View Page

Purpose:

The live video page allows you to view live video, capture images, realize PTZ control, set/call presets and configure video parameters. Log in the network positioning system to enter the live view page, or you can click

on the menu bar of the main page to enter the live view page.

User Manual of Thermal Network Positioning system

Live View

Parameters

Live View Window

Toolbar

Show or hide PTZ control panel

PTZ Control

Preset/Patrol/Pattern

Menu Bar

Descriptions of the live view page:

Figure 4-2 Live View Page

Menu Bar: Click each tab to enter Live View, Playback, Picture, and Configuration page respectively. Click to display the help file of the positioning system. Click to logout the system. Live View Window: Display the live video. Toolbar: Operations on the live view page, e.g., live view, capture, record, audio on/off, regional exposure, regional focus, etc. PTZ Control: Panning, tilting, focusing and zooming actions of the positioning system. The lighter, wiper, one-touch focus and lens initialization control. Preset/patrol/pattern: Set and call the preset/patrol/pattern for the positioning system.

Pattern function varies depending on the models of positioning system.

Live View Parameters: Configure the image size, stream type, plug-in type, and two-way audio of the live video.

4.3 Starting Live View

In the live view window as shown in Figure 4-3, click on the toolbar to start the live

view of the positioning system.

User Manual of Thermal Network Positioning system

Icon

Description

Icon

Description

Start/Stop Live view.

Manually capture the pictures.

/ / /

Display in 4:3/16:9/original/ Self-adaptive window size.

/ /

Live view with the main/sub/third stream.

Play via webcomponents/ quick time.

Start/Stop Two-way Audio.

Manual start/stop recording.

Mute/Audio on and adjust volume

Start/stop digital zoom.

Enable/Disable Regional Exposure

Enable / Disable Regional Focus

Figure 4-3 Start Live View

Table 4-1 Descriptions of the Toolbar

 Double-click on the live video to switch the current live view into full-screen or return to

normal mode from the full-screen.

 Click to select from and display live video in 4:3/16:9/

original/self-adaptive window size.

 Click to select from and display live video with the main/

sub/third stream. The main stream is with a relatively high resolution and needs much bandwidth. The default setting of stream type is .

User Manual of Thermal Network Positioning system

 Click to select between and play the live video via player

Webcomponents or Quick Time. The live video is played via webcomponents by default, and other types of players are supported for the browser, such as MJPEG, and VLC. You are required to download and install the player to play the live video.

 Click and it displays . Click to enable two-way audio and the icon turns

into . Click the icon again to stop two-way audio.

 Click to start live view and the icon turns into . Click the icon again to stop live

view.

 Click to capture the picture.  Click to start recording and the icon turns into . Click the icon again to stop

recording.

 Click to enable digital zoom function and the icon turns into . Then click and

drag the mouse towards low right direction to draw a rectangle on the image as the desired zoom. After viewing it you can click any place of the picture to get back to normal picture.

 Click the on the toolbar to enter the regional exposure operation mode and the

icon turns into . Then click and drag the mouse to draw a rectangle on the image as the desired exposure region.

 Click the on the toolbar to enter the regional focus operation mode and the icon

turns into . Then click and drag the mouse to draw a rectangle on the image as the desired focus region.

 Click to display the . Drag the slider to adjust the volumn.

Before using the two-way audio or recording with audio functions, please set the Stream Type to Video & Audio referring to Section 7.2.1 Configuring Video Settings. Please refer to the following sections for more information:

 Configuring remote recording in Section 5.1.1 Configuring Recording Schedule.  Setting the image quality of the live video in Section 7.4 Configuring Image Settings.  and Section 7.2.1 Configuring Video Settings.  Setting the OSD text on live video in Section 7.4.2 Configuring OSD Settings.

4.4 Operating PTZ Control

Purpose:

In the live view interface, you can use the PTZ control buttons to control panning, tilting and zooming.

User Manual of Thermal Network Positioning system

Button

Name

Description

PTZ Control Panel

Hold and press the direction button to pan/tilt the positioning system. Click and the positioning system keeps panning, the icon turns into . Click the icon again to stop the positioning system.

Zoom out/in

Click , the lens zooms in, click

, and the lens zooms out.

4.4.1 PTZ Control Panel

On the live view page, click to show the PTZ control panel or click to hide it. Click the direction buttons to control the pan/tilt movements.

Click the zoom/iris/focus buttons to realize lens control.

Figure 4-4 PTZ Control Panel

Table 4-2 Descriptions of PTZ Control Panel

User Manual of Thermal Network Positioning system

Button

Name

Description

Focus near/far

Click , the lens focus far and the items far away gets clear. Click

, the lens focus near and the

items nearby gets clear.

Iris close/open

When the image is too dark, click

to open the iris. When the image is too bright, click to close the iris.

Auxiliary Functions

The auxiliary functions include light, wiper, auxiliary focus, lens initialization, manual tracking, 3D positioning, one-touch patrol, and one-touch park.

Speed Adjustment

Adjust speed of pan/tilt movements.

Preset

Refer to 4.4.3 for detailed information of setting preset.

Patrol

Refer to 4.4.4 for detailed information of setting patrol.

Pattern

Refer to4.4.6 for detailed information of setting pattern.

Buttons

Description

Start the selected patrol/pattern.

Stop current patrol/pattern.

Set the selected preset/patrol.

Delete the selected preset/patrol/pattern.

Start recording a pattern.

Stop recording the pattern.

 Buttons on the Preset/Patrol/Patterns interface:

4.4.2 Auxiliary Functions

The Auxiliary functions panel is shown in the figure below:

Table 4-3 Descriptions of Buttons

User Manual of Thermal Network Positioning system

Figure 4-5 Auxiliary Functions

 Light

Click to enable/disable the light supplement of the positioning system. This function is reserved.

 Wiper

Click to move the wiper once.

 Auxiliary Focus

The auxiliary focus function is reserved.



Click to enable manual De-Icing function of the device.

The de-icing function takes effect when the device inner temperature is ≤ 30°C (86°F).

 Manual Tracking

Before you start:

Please enter the Smart Tracking settings interface and enable smart tracking first. Configuration > PTZ > Smart Tracking

Steps:

1. Click on the toolbar of live view interface.

2. Click a moving object in the live video.

The positioning system will track the object automatically.

 3D Positioning

Steps:

1. Click on the toolbar of live view interface.

2. Operate the 3D positioning function:

3. Click a position of the live video. The corresponding position will be moved to the

center of the live video.

4. Hold down the left mouse button and drag the mouse to the lower right on the live

video. The corresponding position will be moved to the center of the live video and zoomed in.

5. Hold down the left mouse button and drag the mouse to the upper left on the live video.

The corresponding position will be moved to the center of the live video and zoomed out.

User Manual of Thermal Network Positioning system

 One-touch Patrol

Click to call one-touch patrol. For detailed information of setting one-touch patrol, refer to 4.4.5 One-touch Patrol.

 One-touch Park

Click to save the current view as the preset No. 32 and start park at the the current position.

4.4.3 Setting / Calling a Preset

Purpose:

A preset is a predefined image position. For the defined preset, you can click the calling button to quickly view the desired image position.

 Setting a Preset:

Steps:

1. In the PTZ control panel, select a preset number from the preset list.

Figure 4-6 Setting a Preset

2. Use the PTZ control buttons to move the lens to the desired position.

• Pan the positioning system to the right or left.

• Tilt the positioning system up or down.

• Zoom in or out.

• Refocus the lens.

3. Click to finish the setting of the current preset.

4. Edit a preset name by double clicking on the default name such as preset 1. (The pre-defined presets

are named already and not configurable. Please refer to the user manual for detailed function

description.)

5. You can click to delete the preset.

You can configure up to 256 presets.

 Calling a Preset:

In the PTZ control panel, select a defined preset from the list and click to call the preset.

User Manual of Thermal Network Positioning system

Preset

Function

Preset

Function 33

Auto flip

Start to set limit stops

Back to initial position

Set limit stops manually

Call patrol 1

Remote reboot

Call patrol 2

Call OSD menu

Call patrol 3

Stop a scan

Call patrol 4

Start random scan

Day mode (IR cut filter in)

Start frame scan

Night mode (IR cut filter out)

Start auto scan

Call pattern 1

100

Start tilt scan

Call pattern 2

101

Start panorama scan

Call pattern 3

102

Call patrol 5

Call pattern 4

103

Call patrol 6

One-touch Patrol

104

Call patrol 7

Wiper

105

Call patrol 8

Figure 4-7 Calling a Preset

For convenient preset selection, refer to the following steps to navigate to the preset you want.

Steps:

1. Select any preset from the list.

2. Click the preset number you need on the keyboard.

 The following presets are predefined with special commands. You can only call them

but not configure them. For instance, preset 99 is the “Start auto scan”. If you call the

preset 99, the positioning system starts auto scan function.

 Pattern function varies depending on the models of positioning system.

Table 4-4 Special Presets

User Manual of Thermal Network Positioning system

Figure 4-8 Special Preset

You may need to use the OSD (On Screen Display) menu when controlling the positioning system remotely. To display the OSD menu on the live view screen, you can call the preset number 95.

4.4.4 Setting / Calling a Patrol

Purpose:

A patrol is a memorized series of preset function. It can be configured and called on the patrol settings interface. There are up to 8 patrols for customizing. A patrol can be configured with 32 presets.

Before you start:

Please make sure that the presets you want to add into a patrol have been defined.

 Setting a Patrol:

Steps:

1. In the PTZ control panel, click to enter the patrol settings interface.

2. Select a patrol number from the list and click .

3. Click to enter the adding interface of preset, as shown in Figure 4-9.

User Manual of Thermal Network Positioning system

Name

Description

Patrol Time

It is the duration staying on one patrol point. The positioning system moves to another patrol point after the patrol time.

Patrol Speed

It is the speed of moving from one preset to another.

Figure 4-9 Adding Presets

4. Configure the preset number, patrol time and patrol speed.

5. Click OK to save a preset into the patrol.

6. Repeat the steps from 3 to 5 to add more presets.

7. Click OK to save all the patrol settings.  Calling a Patrol:

In the PTZ control panel, select a defined patrol from the list and click to call the patrol,

as shown in Figure 4-10.

Figure 4-10 Calling a Preset

User Manual of Thermal Network Positioning system

4.4.5 One-touch Patrol

Purpose:

One-touch patrol is an automatically created patrol. The system automatically add preset No.1 to No.32 to the patrol path 8. You can call the one-touch patrol and the positioning system moves as the patrol path 8 automatically.

Steps:

1. Set preset No.1 to No.32. Refer to 4.4.3 Setting / Calling a Preset for detailed

information of setting preset.

2. Call preset No. 45, and the positioning system moves as patrol path 8.

3. Click to enter the patrol settings interface and start/stop one-touch patrol, edit

the patrol time and the speed.

4. You can click of the PTZ control panel to start one-touch patrol.

Figure 4-11 Patrol Path 8

4.4.6 Setting / Calling a Pattern

Purpose:

A pattern is a memorized series of pan, tilt, zoom, and preset functions. It can be called on the pattern settings interface. There are up to 4 patterns for customizing.

Pattern function varies depending on positioning system models.

 Setting a Pattern:

Steps:

1. In the PTZ control panel, click to enter the pattern settings interface.

2. Select a pattern number from the list as shown in Figure 4-12.

User Manual of Thermal Network Positioning system

Buttons

Description

Start the selected patrol/pattern.

Stop current patrol/pattern. Set the selected preset/patrol.

Delete the selected preset/patrol/pattern.

Start recording a pattern.

Stop recording the pattern.

Figure 4-12 Patterns Settings Interface

3. Click to enable recording the panning, tilting and zooming actions.

4. Use the PTZ control buttons to move the lens to the desired position after the

information of PROGRAM PATTERN REMAINNING MEMORY(%) is displayed on the screen.

 Pan the positioning system to the right or left.  Tilt the positioning system up or down.  Zoom in or out.  Refocus the lens.

5. Click to save all the pattern settings.

 Buttons on the Patterns interface:

 These 4 patterns can be operated separately and with no priority level.  When configuring and calling the pattern, proportional pan is valid; the limit stops and

auto flip will be invalid; and the 3D positioning operation is not supported.

4.5 Playback

Purpose:

This section explains how to view the video files stored in the network disks or memory cards.

User Manual of Thermal Network Positioning system

4.5.1 Play Back Video Files

Steps:

1. Click on the menu bar to enter playback interface.

Figure 4-13 Playback Interface

2. Select the date and click .

Figure 4-14 Search Video

3. Click to play the video files found on this date.

The toolbar on the bottom of Playback interface can be used to control playing process.

Figure 4-15 Playback Toolbar

User Manual of Thermal Network Positioning system

Button

Operation

Button

Operation

Play

Capture a picture

Pause

Start/Stop clipping

video files

Stop

Audio on and

adjust

volume/Mute

Speed down

Download

Speed up

Playback by frame

Enable/Disable

digital zoom

Table 4-5 Description of the buttons

You can choose the file paths locally for downloaded playback video files and pictures in Local Configuration interface. Please refer to Section 4.1 Configuring Local Parameters for details. Drag the progress bar with the mouse to locate the exact playback point. You can also input the time and click to locate the playback point in the Set playback time field. You can also click to zoom out/in the progress bar.

Figure 4-16 Set Playback Time

Figure 4-17 Progress Bar

The different colors of the video on the progress bar stand for the different video types as shown in Figure 4-18.

Figure 4-18 Video Types

4.5.2 Downloading Video Files

Steps:

User Manual of Thermal Network Positioning system

1. Click on the playback interface. The pop-up menu is shown in Figure 4-19.

2. Set the start time and end time. Click Search. The corresponding video files are listed

on the left.

Figure 4-19 Video Downloading interface

3. Check the checkbox in front of the video files that you need to download.

4. Click to download the video files.

4.6 Pictures

Purpose:

This section explains how to view the captured picture files stored in the network disks or the memory cards and download the captured pictures.

Steps:

1. Click on the menu bar to enter picture interface.

User Manual of Thermal Network Positioning system

Figure 4-20 Picture Interface

2. Select the file type of capturing the pictures from the list as timing, alarm, motion, etc.

3. Set the start time and end time. Click Search. The corresponding picture files will be

listed.

4. Check the checkbox in front of the files that you need to download.

5. Click to download the files.

User Manual of Thermal Bi-spectrum Network Positioning System

Chapter 5 System Configuration

5.1 Storage Settings

Before you start:

To configure record settings, please make sure that you have the network storage device within the network or the memory card inserted in your positioning system.

5.1.1 Configuring Recording Schedule

Purpose:

There are two kinds of recording for the positioning systems: manual recording and scheduled recording. In this section, you can follow the instructions to configure the scheduled recording. By default, the record files of scheduled recording are stored in the memory card (if supported) or in the network disk.

Steps:

1. Enter the Record Schedule settings interface:

Configuration > Storage > Schedule Settings > Record Schedule

Figure 5-1 Recording Schedule Interface

2. Check the checkbox of Enable to enable scheduled recording.

3. To set the advanced settings of the positioning system, click to enter the

advanced settings interface.

User Manual of Thermal Network Positioning system

Figure 5-2 Record Parameters

 Pre-record: The time you set to start recording before the scheduled time or the

event. For example, if an alarm triggers recording at 10:00, and the pre-record time is set as 5 seconds, the positioning system starts to record at 9:59:55. The Pre-record time can be configured as No Pre-record, 5 s, 10 s, 15 s, 20 s, 25 s, 30 s or not limited.

The pre-record time changes according to the video bitrate.

 Post-record: The time you set to stop recording after the scheduled time or the

event. For example, if an alarm triggered recording ends at 11:00, and the post-record time is set as 5 seconds, the positioning system records until 11:00:05. The Post-record time can be configured as 5 s, 10 s, 30 s, 1 min, 2 min, 5 min or 10 min.

 Stream Type: You can select the stream type for recording; Main Stream, Sub

Stream and Third Stream are selectable. If you select the sub stream, you can record for a longer time with the same storage capacity.

The Pre-record and Post-record parameters vary depending on the models of positioning system.

4. Click OK to save the advanced setting.

5. Select a Record Type. The record type can be Continuous, Motion, Alarm, Motion |

Alarm, Motion & Alarm, and Event.

 Normal: If you select Continuous, the video will be recorded automatically

according to the time of the schedule.

 Record Triggered by Motion Detection: If you select Motion, the video will be

recorded when the motion is detected. Besides configuring the recording schedule, you have to set the motion detection area and check the checkbox of Trigger Channel in the Linkage Method of Motion Detection settings interface. For detailed information, please refer to Section Motion Detection.

 Record Triggered by Alarm: If you select Alarm, the video will be recorded when

the alarm is triggered via the external alarm input channels. Besides configuring

User Manual of Thermal Network Positioning system

the recording schedule, you have to set the Alarm Type and check the checkbox of Trigger Channel in the Linkage Method of Alarm Input settings interface. For detailed information, please refer to Section Alarm Input.

 Record Triggered by Motion & Alarm: If you select Motion & Alarm, the video will

be recorded when the motion and alarm are triggered at the same time. Besides configuring the recording schedule, you have to configure the settings on the Motion Detection and Alarm Input settings interfaces.

 Record Triggered by Motion | Alarm: If you select Motion | Alarm, the video will be

recorded when the external alarm is triggered or the motion is detected. Besides configuring the recording schedule, you have to configure the settings on the Motion Detection and Alarm Input settings interfaces.

 Record Triggered by VCA events: If you select VCA, the video will be recorded

when the either of the VCA events is triggered. Besides configuring the recording schedule, you have to configure the settings on the VCA interface.

VCA function varies depending on the models of positioning system.

 Record Triggered by Event: If you select to record by event, the video will be

recorded when any of the events is triggered.

6. Click to save the settings.

5.1.2 Configuring Capture Schedule

Purpose:

You can configure the scheduled snapshot and event-triggered snapshot. The captured picture can be stored in the local storage or network storage.

Steps:

1. Enter the Snapshot settings interface:

Configuration > Storage > Storage Settings > Capture

User Manual of Thermal Network Positioning system

Figure 5-3 Snapshot Settings

2. Click to enter the Capture Schedule interface.

3. Select the timeline of a certain day, click and drag the left button of the mouse to

set the capture schedule (the start time and end time of the recording task).

4. After you set the scheduled task, you can click and copy the task to other

days (optional).

5. After setting the capture schedule, you can click a capture segment to display the

segment capture settings interface to edit the segment capture parameters. (optional)

Figure 5-4 Segment Snapshot Settings

6. Click to enter the advanced setting interface. You can select the

stream type of the capture.

7. Click to enter the Capture Parameters Interface.

8. Check the Enable Timing Snapshot checkbox to enable continuous snapshot,

and configure the schedule of timing snapshot. Check the Enable Event-triggered Snapshot checkbox to enable event-triggered snapshot.

9. Select the format, resolution, quality of the snapshot.

10. Set the time interval between two snapshots.

11. Click to save the settings.

Uploading to FTP

Please make sure that the FTP server is online.

You can follow below configuration instructions to upload the snapshots to FTP.

 Upload continuous snapshots to FTP

Steps:

1) Configure the FTP settings and check Upload Picture checkbox in FTP Settings

interface. Please refer to Section 7.1.2 Configuring FTP Settings for more details to configure FTP parameters.

2) Check the Enable Timing Snapshot checkbox.

3) Click Edit to set the snapshot schedule. Refer to Section 5.2.1 Configuring

Motion Detection.

User Manual of Thermal Network Positioning system

 Upload event-triggered snapshots to FTP

Steps:

1) Configure the FTP settings and check Upload Picture checkbox in FTP Settings

interface. Please refer to Section 7.1.2 Configuring FTP Settings for more details to configure FTP parameters.

2) Check Upload to FTP checkbox in Motion Detection Settings or Alarm Input

interface. Refer to Section 5.2.1 Configuring Motion Detection.

3) Check the Enable Event-triggered Snapshot checkbox.

5.1.3 Configuring Net HDD

Before you start:

The network disk should be available within the network and properly configured to store the recorded files, log files, etc.

Steps:

 Add the network disk

1. Enter the NAS (Network-Attached Storage) settings interface:

Configuration > Storage > Storage Management > Net HDD

Figure 5-5 Select Net HDD Type

2. Enter the IP address and the file path of the network disk.

3. Select the mounting type. NFS and SMB/CIFS are selectable. You can set the user

name and password to guarantee the security if SMB/CIFS is selected.

Please refer to the NAS User Manual for creating the file path.

 For your privacy and to better protect your system against security risks, we

User Manual of Thermal Network Positioning system

 Proper configuration of all passwords and other security settings is the

responsibility of the installer and/or end-user.

4. Click to add the network disk.

After having saved successfully, you need to reboot the positioning system to activate the settings.

 Initialize the added network disk.

1. Enter the HDD settings interface (Configuration > Storage > Storage Management >

HDD Management), in which you can view the capacity, free space, status, type and property of the disk.

Figure 5-6 Storage Management Interface

2. If the status of the disk is Uninitialized, check the corresponding checkbox to select the

disk and click Format to start initializing the disk.

3. When the initialization completed, the status of disk will become Normal as shown in

Figure 5-7.

Figure 5-7 View Disk Status

 Define the Quota for Record and Pictures

1. Input the quota percentage for picture and for record.

2. Click Save and refresh the browser page to activate the settings.

User Manual of Thermal Network Positioning system

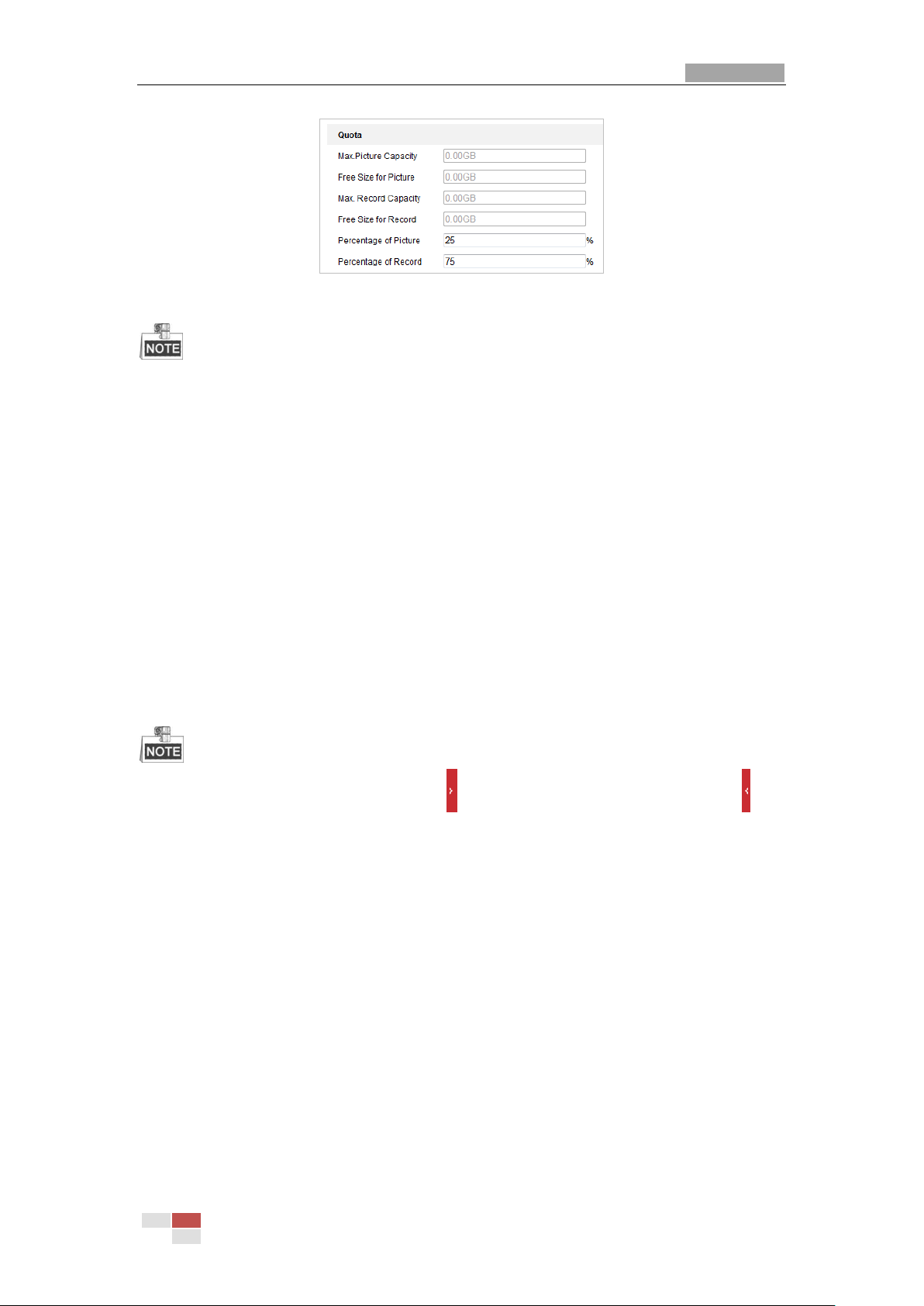

Figure 5-8 Quota Settings

 Up to 8 NAS disks can be connected to the positioning system.  To initialize and use the memory card after insert it to the positioning system, please

refer to the steps of NAS disk initialization

5.2 Basic Event Configuration

Purpose:

This section explains how to configure the network positioning system to respond to alarm events, including motion detection, video tampering alarm input, alarm output and exception. These events can trigger the alarm actions, such as Send Email, Notify Surveillance Center, etc. For example, when motion detection is triggered, the network positioning system sends a notification to an e-mail address.

 On the event configuration page, click to show the PTZ control panel or click to

hide it.

 Click the direction buttons to control the pan/tilt movements.  Click the zoom/iris/focus buttons to realize lens control.  The functions vary depending on the models of positioning system.

5.2.1 Configuring Motion Detection

Purpose:

Motion detection is a feature which can trigger alarm actions and actions of recording videos when the motion occurred in the surveillance scene.

Steps:

1. Enter the motion detection setting interface:

Configuration > Event > Basic Event > Motion Detection

2. Select the channel to set the motion detection.

3. Check the checkbox of the Enable Motion Detection to enable this function.

User Manual of Thermal Network Positioning system

You can check the Enable Dynamic Analysis for Motion checkbox if you want the detected object get marked with rectangle in the live view.

4. Select the configuration mode as Normal or Expert and set the corresponding motion

detection parameters.

 Normal

Figure 5-9 Motion Detection Settings-Normal

Steps:

(1) Click and drag the mouse on the live video image to draw a motion

detection area.

(2) Click to finish drawing.

 You can draw up to 8 motion detection areas on the same image.

 You can click to clear all of the areas.

(3) Move the slider to set the

sensitivity of the detection.

 Expert

User Manual of Thermal Network Positioning system

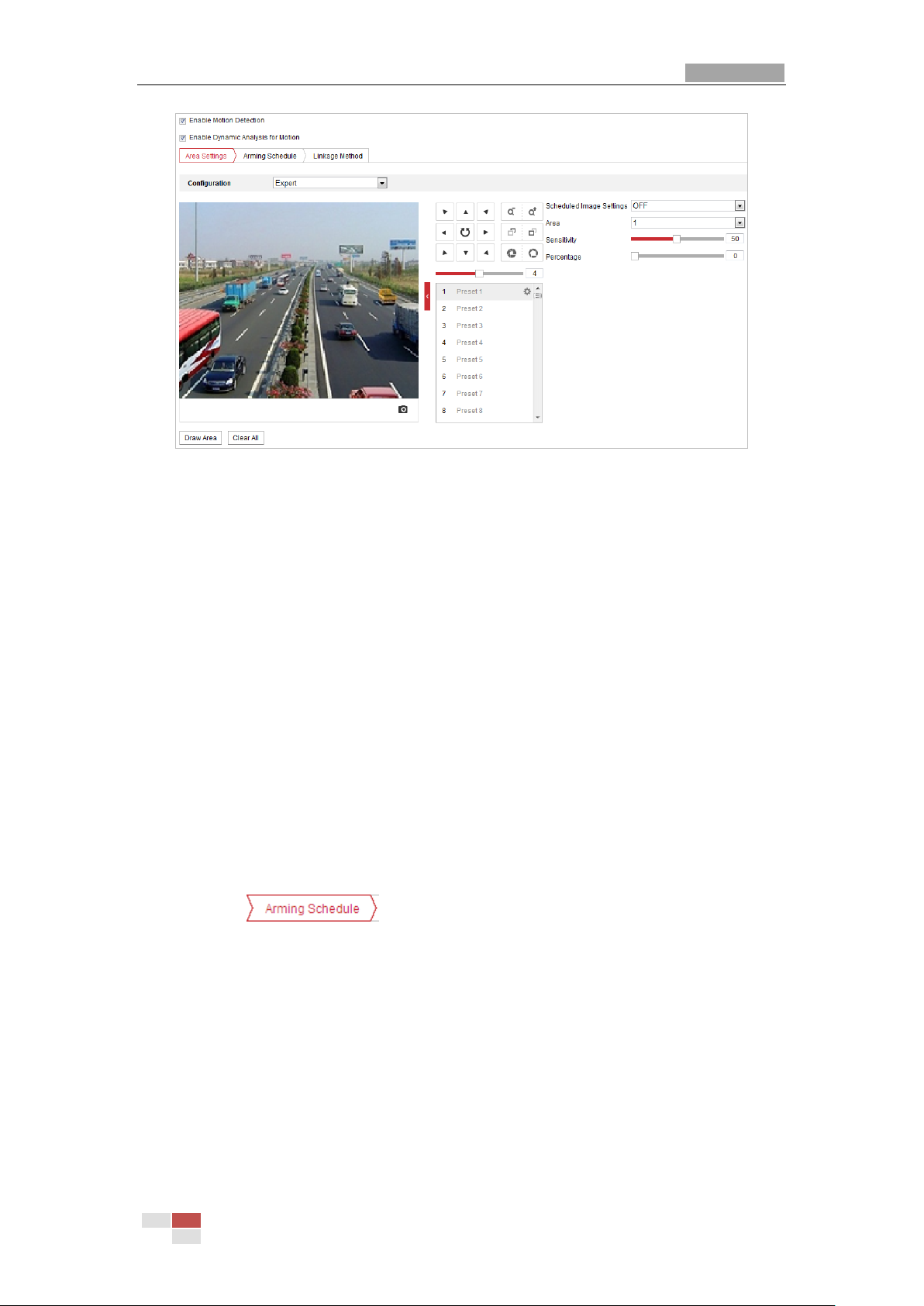

Figure 5-10 Motion Detection Settings-Expert

Steps:

(1) Set the Schedule Image Settings, there are OFF, Auto-Switch and

Scheduled-Switch selectable. If the schedule image switch mode is enabled, you can configure the detection rule for the day and night separately. OFF: Disable the day and night switch. Auto-Switch: Switch the day and night mode according to the illumination automatically. Scheduled-Switch: Switch to the day mode at 6:00 a.m., and switch to the night mode at 18:00 p.m..

(2) Select Area No. to configure in the dropdown list. (3) Set the values of sensitivity and proportion of object on area.

Sensitivity: The greater the value is, the easier the alarm will be triggered. Proportion of Object on Area: When the size proportion of the moving object exceeds the predefined value, the alarm will be triggered. The less the value is, the easier the alarm will be triggered.

5. Set the Arming Schedule for Motion Detection.

(1) Click tab to enter the arming schedule setting interface.

User Manual of Thermal Network Positioning system

Figure 5-11 Arming Schedule

(2) Select the timeline of a certain day, click and drag the mouse to set the arming

schedule (the start time and end time of the arming task).

(3) After you set the scheduled task, you can click and copy the task to other

days (optional).

Figure 5-12 Arming Time Schedule

(4) After setting the arming schedule, you can click a segment to display the

segment arming settings interface to edit the segment record parameters (optional).

Figure 5-13 Segment Arming Settings

(5) Click to save the settings.

User Manual of Thermal Network Positioning system

The time of each period cannot be overlapped. Up to 8 periods can be configured for each day.

6. Set the Alarm Actions for Motion Detection.

Click tab to enter the Linkage Method interface.

You can specify the linkage method when an event occurs. The following contents are about how to configure the different types of linkage method.

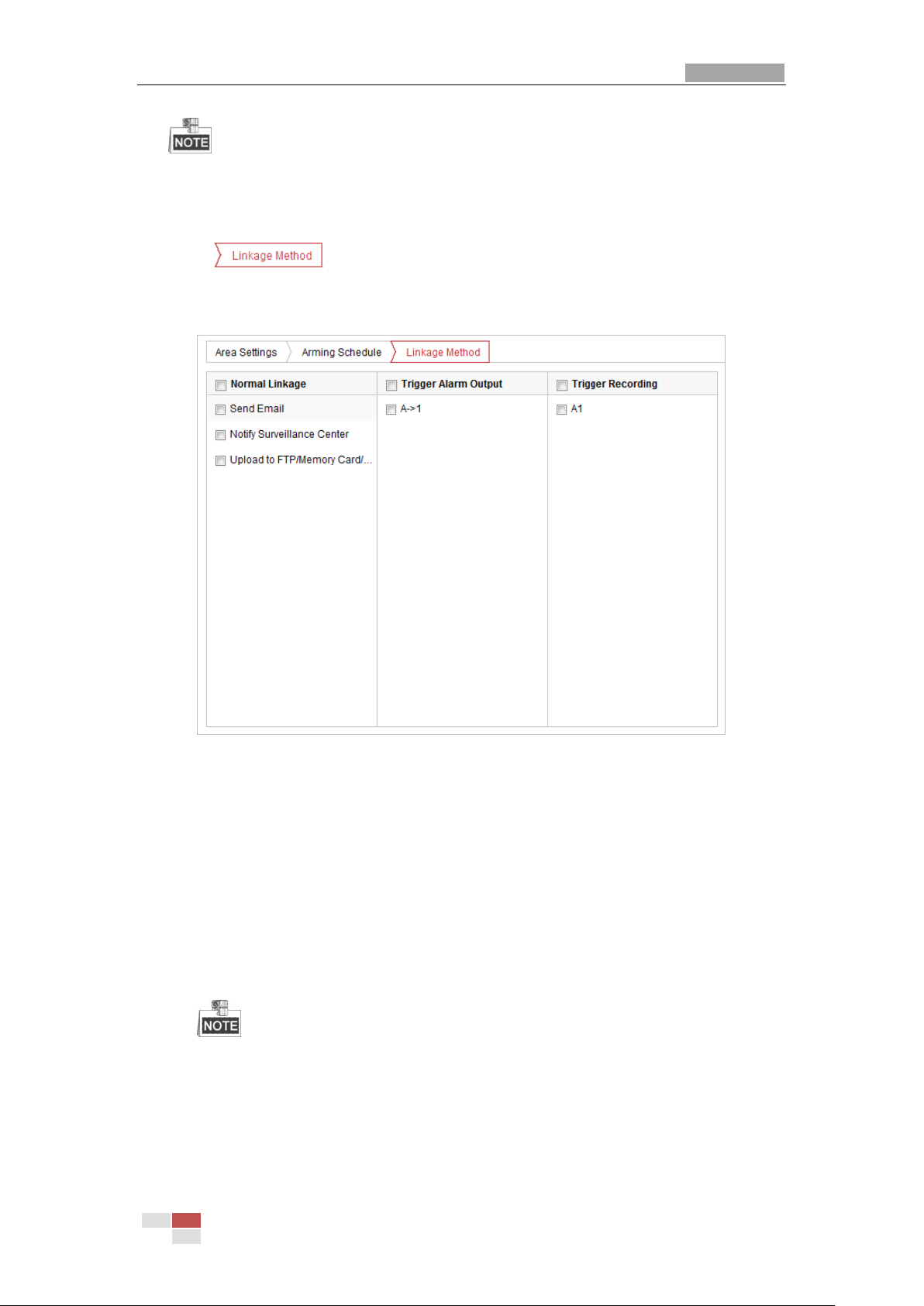

Figure 5-14 Linkage Method

Check the checkbox to select the linkage method. Notify Surveillance Center, Send Email, Upload to FTP/Memory/NAS, Trigger Alarm Output and Trigger Recording are selectable.

 Notify Surveillance Center

Send an exception or alarm signal to remote management software when an event occurs.

 Send Email

Send an email with alarm information to a user or users when an event occurs.

To send the Email when an event occurs, you need to refer to Section Configuring Email Settings to set the Email parameters.

 Upload to FTP/Memory/NAS

Capture the image when an alarm is triggered and upload the picture to a FTP server.

User Manual of Thermal Network Positioning system

You need a FTP server and set FTP parameters first. Refer to Section Configuring FTP Settings for setting FTP parameters.

 Trigger Alarm Output

Trigger one or more external alarm outputs when an event occurs.

To trigger an alarm output when an event occurs, please refer to Section 5.2.4 Configuring Alarm Output to set the alarm output parameters.

 Trigger Recording

Record a video when an event occurs.

You have to set the recording schedule to realize this function. Please refer to Section 5.1.1 Configuring Recording Schedule for settings the recording schedule.

5.2.2 Configuring Video Tampering Alarm

Purpose:

You can configure the positioning system to trigger the alarm actions when the lens is covered.

Steps:

1. Enter the Video Tampering settings interface :

Configuration > Event > Basic Event > Video Tampering

2. Select the channel to set the video tampering alarm.

User Manual of Thermal Network Positioning system

Figure 5-15 Tampering Alarm

3. Check Enable checkbox to enable the tampering detection.

4. Click tab to enter the arming schedule setting interface. The

arming schedule configuration is the same as the setting of the arming schedule for motion detection. Refer to Section 5.2.1 Configuring Motion Detection.

5. Click tab to select the linkage method taken for tampering, notify

surveillance center, send email and trigger alarm output are selectable. Refer to Section

5.2.1 Configuring Motion Detection.

6. Click to save the settings.

5.2.3 Configuring Alarm Input

Steps:

1. Enter the Alarm Input settings interface:

Configuration > Event > Basic Event > Alarm Input

2. Choose the alarm input No. and the Alarm Type. The alarm type can be NO (Normally

Open) and NC (Normally Closed).

3. Edit the name in to set a name for the

alarm input (optional).

User Manual of Thermal Network Positioning system

Figure 5-16 Alarm Input Settings

4. Click tab to enter the arming schedule setting interface. The

arming schedule configuration is the same as the setting of the arming schedule for motion detection. Refer to Section 5.2.1 Configuring Motion Detection.

5. Click tab to select the linkage method taken for alarm input, including

Notify Surveillance Center, Send Email, Upload to FTP/Memory Card/NAS, Trigger Alarm Output and Trigger Recording. Refer to Section 5.2.1 Configuring Motion

Detection.

6. You can also choose the PTZ linking for the alarm input. Check the relative checkbox

and select the No. to enable Preset Calling, Patrol Calling or Pattern Calling.

7. You can copy your settings to other alarm inputs.

8. Click to save the settings.

Figure 5-17 Linkage Method

User Manual of Thermal Network Positioning system

5.2.4 Configuring Alarm Output

Steps:

1. Enter the Alarm Output settings interface:

Configuration> Event > Basic Event > Alarm Output

2. Select one alarm output channel in the Alarm Output dropdown list.

3. Set a name in for the alarm output

(optional).

4. The Delay time can be set to 5sec, 10sec, 30sec, 1min, 2min, 5min, 10min or Manual.

The delay time refers to the time duration that the alarm output remains in effect after alarm occurs.

5. Click tab to enter the arming schedule setting interface. The time

schedule configuration is the same as the settings of the arming schedule for motion detection. Refer to Section 5.2.1 Configuring Motion Detection.

Figure 5-18 Alarm Output Settings

6. You can copy the settings to other alarm outputs.

7. Click to save the settings.

User Manual of Thermal Network Positioning system

5.2.5 Handling Exception

The exception type can be HDD full, HDD error, network disconnected, IP address conflicted and illegal login to the positioning systems.

Steps:

1. Enter the Exception settings interface:

Configuration > Event > Basic Event > Exception

2. Check the checkbox to set the actions taken for the Exception alarm. Refer to Section

5.2.1 Configuring Motion Detection.

Figure 5-19 Exception Settings

3. Click to save the settings.

5.3 Smart Event Configuration

The functions vary depending on the models of positioning system.

User Manual of Thermal Network Positioning system

5.3.1 Detecting Audio Exception

Purpose:

When you enable this function and audio exception occurs, the alarm actions will be triggered.

Steps:

1. Enter the video audio exception detection interface:

Configuration > Event > Smart Event > Audio Exception Detection

Figure 5-20 Audio Exception Detection

2. Check the checkbox of Audio Loss Detection to enable the audio input exception

detection.

3. Check the checkbox of Sudden Increase of Sound Intensity Detection checkbox to

enable the sudden rise detection.

 Sensitivity: Range [1-100], the smaller the value the more severe the sound change

will trigger the detection.

 Sound Intensity Threshold: Range [1-100], it can filter the sound in the environment,

the louder the environment sound, the higher the value should be. You can adjust it according to the actual environment.

4. Check the checkbox of Sudden Decrease of Sound Intensity Detection checkbox to

enable the sudden drop detection. Sensitivity: Range [1-100], the smaller the value the more severe the sound change will trigger the detection.

User Manual of Thermal Network Positioning system

5. Click tab to enter the arming schedule setting interface. The time

schedule configuration is the same as the settings of the arming schedule for motion detection. Refer to Section 5.2.1 Configuring Motion Detection.

6. Click tab to select the linkage method taken for the audio input

exception, Notify Surveillance Center, Send Email, Trigger Alarm Output and Trigger Recording are selectable. Refer to Section 5.2.1 Configuring Motion Detection.

7. Click to save the settings.

5.3.2 Configuring Fire and Smoke Detection

Purpose:

When you enable this function and fire source or smoke is detected, the alarm actions will be triggered. You can set different detection mode, fire source zoom mode, and so on.

Steps:

1. Enter Configuration>Advanced Configuration>System>VCA Resource Type to select

Fire and Smoke Detection as VCA Resource Type.

2. Enter the fire and smoke detection interface:

Configuration > Event > Smart Event > Dynamic Fire and Smoke Detection

Figure 5-21 Fire and Smoke Detection

3. Check the checkbox of Enable Fire and Smoke Detection to enable the fire and smoke

detection function.

User Manual of Thermal Network Positioning system

The function of dynamic fire source detection can only be enabled for camera 2.

 Fire and Smoke Detection Mode:

1) Select Fire or Smoke, and the system alarms when device is either triggered

by Fire Source Detection or Smoke Detection.

2) Select Fire and Smoke, the system holds when device is triggered by Fire

Source Detection or Smoke Detection. When target is detected by both rules, the system sends two alarms, otherwise, the system sends single alarm.

3) Select Double Confirm, the system alarms when device is both triggered by

Fire Source Detection and Smoke Detection.

4) Select Specified Fire Source, and the system alarms when device is triggered

by fire source detection.

5) Select Specified Smoke, and the system alarms when device is triggered by

smoke.

 Detection Mode: Select detection mode as by Multiple Frame, and the system

alarms with high accuracy. Select detection mode as by Single Frame, and the system alarms with short delay.

 Fire Source Zoom Mode: In Auto mode, the system moves and locates at the fire

source, and then it zooms according to the predefined focus mode. To set the focus mode, go to Configuration>Advanced Configuration>Image>Channel No.2>Focus Mode.

 Sensitivity: Range [1-100], the smaller the value is, the fire source of lower

temperature can be detected.

 Dwell Time(s): Range [0-120]. You can set the dwell time of the positioning system

staying the position where detects the fire source when performing auto scan, patrol, pattern, scheduled task, and park action.

 Fire Source Zoom Ratio: Set the zoom ratio of the optical channel when it detects

the fire source. In Auto mode, the optical channel changes its zoom ratio until two channels have the same field of view. In Manual mode, you can set the optical zoom ratio.

 Smoke Detection: Set the sensitivity of the smoke detection. The greater the value

is, the easier the alarm will be triggered. (reserved)

4. Check the checkbox of Display Fire Source Frame on Stream to display a red frame

around the fire source on stream when fire occurs. (Optional)

5. Check the checkbox to select the linkage method taken for the alarm input. Refer to

Step 3 in Section 5.2.1 Configuring Motion Detection. In the field of Other Linkage, you can check the checkbox to enable the alarm output (The alarm output number varies depending on device ability).

6. Click to save the settings.

User Manual of Thermal Network Positioning system

5.3.3 Configuring Fire Source Detection Shield

Purpose:

Fire Source Detection Shield enables you to shield certain areas from being detected in fire source detection.

The Fire Source Detection Shield function is supported by the optical lens only.

Steps:

1. Enter the Fire Source Detection Shield Setting interface:

Configuration > Event > Smart Event > Fire Source Detection Shield

Figure 5-22 Fire Source Detection Shield

2. Click the PTZ control buttons to find the area you want to shield from the smoke

detection.

3. Click Draw Area and drag the mouse in the live video window to draw the area.

4. You can drag the corners of the red rectangle area to change its shape and size.

5. Click Stop Drawing to finish drawing or click Clear All to clear all of the areas you set

without saving them.

6. Set the value of Active Zoom Ratio on your demand, and then the shield will only

appear when the zoom ratio is greater than the predefined value.

User Manual of Thermal Network Positioning system

7. Click Add to save the smoke detection shield, and it will be listed in the Fire Source

Detection Shield List area; you can select a region and click Delete to delete it from the list; you can also define the color of the regions.

8. Check the checkbox of Enable Fire Source Detection Shield to enable this function.

You are allowed to draw up to 24 areas on the same image.

9. Click to save the settings.

5.3.4 Configuring Smoke Detection Shield

Purpose:

Smoke Detection Shield enables you to shield certain areas from being detected in smoke detection.

The smoke detection shield function is supported by the optical lens only.

Steps:

1. Enter the Smoke Detection Shield Setting interface:

Configuration > Event > Smart Event > Smoke Detection Shield

Figure 5-23 Smoke Detection Shield

User Manual of Thermal Network Positioning system

2. Click the PTZ control buttons to find the area you want to shield from the smoke

detection.

3. Click Draw Area and drag the mouse in the live video window to draw the area.

4. You can drag the corners of the red rectangle area to change its shape and size.

5. Click Stop Drawing to finish drawing or click Clear All to clear all of the areas you set

without saving them.

6. Set the value of Active Zoom Ratio on your demand, and then the shield will only

appear when the zoom ratio is greater than the predefined value.

7. Click Add to save the smoke detection shield, and it will be listed in the Smoke

Detection Shield List area; you can select a region and click Delete to delete it from the list; you can also define the color of the regions.

8. Check the checkbox of Enable Smoke Detection Shield to enable this function.

 You are allowed to draw up to 24 areas on the same image.  The smoke detection shield function is reserved

9. Click to save the settings.

5.3.5 Ship Detection

Purpose:

When you enable this function and ship is detected, the alarm actions will be triggered.

Steps:

1. Enter Configuration>Advanced Configuration>System>VCA Resource Type to select

Ship Detection as VCA Resource Type.

2. Enter the ship detection interface:

Configuration > Advanced Configuration > Smart Event > Ship Detection

User Manual of Thermal Network Positioning system

Figure 5-24 Ship Detection

3. Check the checkbox of Enable to enable the ship detection function.

4. Check the checkbox of Display Detection Frame on Video to display the frame and

alarm line on stream. (Optional)

 The ship detection function is not supported for some models.  For better effect, make sure there is no sky in your scene.  If you moved the camera to other direction when you enabled the ship

detection function, the device will move back to the saved scene 15 s later.

5. Enter the device height in the textbox as the height of device above the water level.

6. Draw the ship detection area and the alarm lines.

User Manual of Thermal Network Positioning system

(1) Click Draw Area. Click the mouse on the live video image to draw a ship

detection area and right click to finish the drawing. The alarm will be uploaded when ship is detected in this area.

(2) Click Draw Alarm Line. Click the mouse on the live video to draw an alarm

line and right click to finish the drawing. The device alarms and counts the ship number when ships are detected in the area and the ship information will be displayed on the right.

Make sure the alarm line is longer than the width of ship detection area.

7. Check the checkbox to select the linkage method taken for the alarm input. Refer to

8. Click to save the settings.

5.4 Temperature Measurement

Purpose:

When you enable this function, it measures the actual temperature of the spot being monitored. The device alarms when temperature exceeds the temperature threshold value.

Before You Start:

Enter Configuration > Advanced Configuration > System > VCA Resource Type to select Temperature Measurement + Behavior Analysis as VCA Resource Type.

5.4.1 Temperature Measurement Configuration

Steps:

1. Enter Configuration > Temperature Measurement > Basic Settings Configuration.

User Manual of Thermal Network Positioning system

Figure 5-25 Dynamic Fire Source Detection

2. Check the checkboxes of the interface to set the temperature measurement

configurations.

 Enable Temperature Measurement: Check the checkbox to enable temperature

measurement function.

 Enable Color-Temperature: Check the checkbox to display Temperature-Color

Ruler in live view.

 Display Temperature Info. on Stream: Check the checkbox to display temperature

information in live view.

 Add Original Data on Capture: Check the checkbox to add original data on capture.  Add Original Data on Stream: Check the checkbox to add original data on stream.  Data Refresh Interval: Select the data refresh interval from 1s to 5s.  Unit: Display temperature with Degree Celsius (° C)/Degree Fahrenheit (° F)/Degree

Kelvin (K).

 Temperature Range: Set the temperature range.  Emissivity: Set the emissivity of your target. Note: The emissivity of each object is

different.

 Distance (m): The straight-line distance between the target and the device.

3. Clcik Save to save the settings .

User Manual of Thermal Network Positioning system

5.4.2 Temperature Measurement and Alarm

Purpose:

This function is used for measuring the temperature of detected spot and the device compares temperature of selected regions and alarms.

Steps:

1. Enter Configuration > Temperature Measurement > Advanced Settings.

2. Select the temperature measurement and alarm configuration as Normal or Expert.  Normal Mode:

Figure 5-26 Temperature Measurement Configuration

Emissivity: Set the emissivity of your target. Note: The emissivity of each object is different. Distance (m): The straight-line distance between the target and the device. Pre-Alarm Threshold: Set the pre-alarm temperature and the device sends pre-alarm when its rule temperature exceeds pre-alarm temperature. Alarm Threshold: Set the alarm temperature and the device sends alarm when its rule temperature exceeds alarm temperature.

User Manual of Thermal Network Positioning system

 Expert Mode:

Figure 5-27 Temperature Measurement Configuration

1) Adjust the image to the scene for temperature measurement with the PTZ control

panel. Save current scene as certain preset.

 You can set the preset in live view interface before and call the preset in the

temperature measurement and alarm interface.

 You can set/ call/ clear the preset in temperature measurement interface.

2) Set the alarm rule: Select a temperature measurement rule from the rule list and

configure the parameters.

Name: You can customize the rule name. Type: Select Point, Line, or Frame as rule type. Emissivity: Set the emissivity of your target. The emissivity of each object is different, you can refer to the Quick Start Guide Appendix for details. Distance (m): The straight-line distance between the target and the device.

User Manual of Thermal Network Positioning system

Reflective Temperature: If there is any target with high emissivity in the scene, check the checkbox and set the reflective temperature to correct the temperature. If no such target exists, uncheck the checkbox. Tolerance Temperature: The device judges whether the triggered alarm stops until the device temperature/temperature difference is lower than rule temperature by tolerance temperature. E.g., set tolerance temperature as 3° C, set alarm temperature as 55°C, and set pre-alarm temperature as 50° C. The device sends pre-alarm when its temperature reaches 50° C and it alarms when its temperature reaches 55° C and only when the device temperature is lower than 52°C will the alarm be cancelled.

3) Set the alarm rules.

For Point Rule:

a) Click to show the Alarm Rule setting interface.

Figure 5-28 Alarm Rule Settings (Point)

b) Set the alarm rule. c) Set the Alarm Temperature, Pre-Alarm Temperature, and Tolerance

Temperature. E.g., select Alarm Rule as Average Temperature is Higher than, and set the Alarm Temperature to 50 ° C, and the device alarms when its average temperature is higher than 50 °C.

For Line Rule:

a) Click to show the Alarm Rule setting interface.

User Manual of Thermal Network Positioning system

Figure 5-29 Alarm Rule Settings (Line)

b) Set the alarm rule. c) Set the Alarm Temperature, Pre-Alarm Temperature, and Tolerance

Temperature. E.g., select Alarm Rule as Min. Temperature is Lower than, and set the Alarm Temperature to 40 °C, and the device alarms when the minimum temperature is lower than 40 °C.

For Frame Rule: Task 1.

a) Click to show the Alarm Rule setting interface.

Figure 5-30 Alarm Rule Settings (Frame)

b) Set the alarm rule. c) Set the Alarm Temperature, Pre-Alarm Temperature, and Tolerance

Temperature. E.g., select Alarm Rule as Temperature Difference is Higher than, and set the Alarm Temperature to 10 ° C, and the device alarms when the difference between the minimum temperature and the maximum temperature of the region is higher than 10 ° C.

User Manual of Thermal Network Positioning system

Task 2.

For two alarm rules of frame, you can set the alarm for region temperature

difference.

a) Set the frame alarm rules.

b) Click to show the region temperature

difference alarm interface.

Figure 5-31 Region Temperature Difference Alarm

c) Select two rules to compare the saved regions. d) Set the alarm rules and the temperature.

E.g., select Alarm Rule as Temperature Difference is Higher than, and enter 10 °C, the device alarms when the difference between the minimum temperature and the maximum temperature of the region is higher than 10 ° C.

Temperature Difference Alarm only applies to the targets set by frame.

3. Set Alarm Linkage: Click Alarm Linkage to enter the alarm linkage interface and set the

linkage methods. Refer to Step 3 in Section 5.2.1 Configuring Motion Detection. In the field of Other Linkage, you can check the checkbox to enable the alarm output (The alarm output number varies depending on device ability).

4. Click to save the settings.

User Manual of Thermal Network Positioning system

Chapter 6 VCA Configuration

Before you start:

Go to Configuration > System > Maintenance > VCA Resource Type and select the VCA Resource as Temperature Measurement + Behavior Analysis.

Purpose:

You can do intelligent analysis, such as behavior analysis, with the positioning system. Multiple rules can be configured for different requirements.

The VCA (Video Content Analysis) function only supported by the thermal channel.

6.1 Configuring VCA Information

Steps:

1. Enter the VCA Information Configuration interface:

Configuration > VCA Configuration > VCA Info.

Figure 6-1 VCA Information

2. Check the checkbox to enable the Intelligent Analysis. And you can view the current

version for the behavior analysis.

3. Set the display information:  If you select to display the target info and rule info on the alarm picture are

supported; you can enable the functions by ticking the corresponding checkbox on your demand.

 And if you tick the checkbox of display target info and rule on stream, the

information will be added to the video stream, and the overlay will be displayed if you get live view or play back by the VS Player.

4. Set the Snapshot:

User Manual of Thermal Network Positioning system

 You can configure the Notify Surveillance Center function which is used for

uploading the picture to the surveillance center when and VCA alarm occurs.

 You can also set the quality and resolution of the picture separately.

5. Click to save the settings.

6.2 Advanced Configuration

All the parameters for both behavior analysis and face capture are collected in the advanced configuration page. You can configure these parameters for different VCA types on your demand.

Steps:

1. Enter the Advanced Configuration interface:

Configuration > VCA > Advanced Configuration

Figure 6-2 Advanced Configuration
