Hikvision DS-2TD4237-25-V2, DS-2TD6236-75C2L-V2 User Manual

Download
Thermal Bi-spectrum Network PTZ Device
User Manual
i
User Manual
© 2019 Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved.
This Manual is the property of Hangzhou Hikvision Digital Technology Co., Ltd. or its affiliates (hereinafter referred to as “Hikvision”), and it cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision. Unless otherwise expressly stated herein, Hikvision does not make any warranties, guarantees or representations, express or implied, regarding to the Manual, any information contained herein.
About this Manual
The Manual includes instructions for using and managing the Product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version of this Manual at the Hikvision website
(http://www.hikvision.com/en/).
Please use this Manual with the guidance and assistance of professionals trained in supporting the Product.
Trademarks Acknowledgement
and other Hikvision’s trademarks and logos are the properties of Hikvision in
various jurisdictions.
Other trademarks and logos mentioned are the properties of their respective owners.
LEGAL DISCLAIMER
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL AND THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED “AS IS” AND “WITH
ALL FAULTS AND ERRORS”. HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS. YOU ACKNOWLEDGE THAT THE NATURE OF INTERNET PROVIDES FOR INHERENT SECURITY RISKS, AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED. YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.
ii
Symbol Convention
The symbols that may be found in this document are defined as follows.
Symbol
Description
Provides additional information to emphasize or supplement important
points of the main text.
Indicates a potentially hazardous situation, which if not avoided, could
result in equipment damage, data loss, performance degradation, or
unexpected results.
Indicates a hazard with a high level of risk, which if not avoided, will
result in death or serious injury.
Safety Instruction
The device should be used in compliance with local laws and electrical safety regulations. Refer
to the appropriate documentation for detailed information.
The input voltage should conform to IEC60950-1 standard: SELV (Safety Extra Low Voltage) and
the Limited Power Source (24 VAC/12 VDC). Refer to the appropriate documentation for detailed information.
DO NOT connect multiple devices to one power adapter, to avoid over-heating or fire hazards
caused by overload.
Make sure the plug is properly connected to the power socket. If smoke, odor, or noise arises from the device, immediately turn off the power, unplug the
power cable, and contact the service center.
The installer and user are responsible for password and security configuration and its settings. Both internal and external grounds should be connected properly. (The cross section area of
the grounding wire must be no less than 4 mm2, and no less than that of the phase connector).
Do not drop the device or subject it to physical shock. Wipe the device gently with a clean cloth and a small quantity of ethanol, if necessary. Do not aim the lens at the sun or any other bright light. When any laser equipment is in use, make sure that the device lens is not exposed to the laser
beam, or it may burn out.
Do not expose the device to high electromagnetic radiation or extremely hot, cold, dusty, or
damp environments.
Place the device in a dry and well-ventilated environment. Keep non-waterproof devices away from liquids. Keep the device in original or similar packaging while transporting it. A few device components (e.g., electrolytic capacitor) require regular replacement. The
average lifespan varies, so periodic checking is recommended. Contact your dealer for details.
Improper use or replacement of the battery may result in explosion hazard. Replace with the
same or equivalent type only. Dispose of used batteries in conformance with the instructions provided by the battery manufacturer.
Never attempt to disassemble the device.
0505191090816
iii
Table of Contents
Chapter 1 Overview ........................................................................................................................ 1
1.1 Overview .................................................................................................................................. 1
1.2 System Requirement ................................................................................................................ 1
1.3 Functions.................................................................................................................................. 1
Chapter 2 Network Connection .................................................................................................... 14
2.1 Set the Network Device over the LAN ................................................................................... 14
2.1.1 Wiring over the LAN .......................................................................................................... 14
2.1.2 Activate the Device ............................................................................................................ 15
2.2 Set the Network Device over the WAN .................................................................................. 17
2.2.1 Static IP Connection ........................................................................................................... 17
2.2.2 Dynamic IP Connection ...................................................................................................... 18
Chapter 3 Access to the Network Device ...................................................................................... 21
Chapter 4 Basic Operations .......................................................................................................... 23
4.1 Configure Local Parameters ................................................................................................... 23
4.2 Live View Page ....................................................................................................................... 24
4.3 Start Live View ....................................................................................................................... 25
4.3.1 Toolbar Description ............................................................................................................ 26
4.4 Operate PTZ Control ............................................................................................................... 27
4.4.1 PTZ Control Panel ............................................................................................................... 27
4.4.2 Auxiliary Functions ............................................................................................................. 29
4.4.3 Set / Call a Preset ............................................................................................................... 31
4.4.4 Set / Call a Patrol ............................................................................................................... 33
4.4.5 Set / Call a Pattern ............................................................................................................. 34
4.5 Quick Setup ............................................................................................................................ 35
4.6 Playback ................................................................................................................................. 36
4.6.1 Play Back Video Files ......................................................................................................... 36
4.6.2 Download Video Files ........................................................................................................ 38
4.7 Picture .................................................................................................................................... 39
Chapter 5 System Configuration ................................................................................................... 41
5.1 Storage Settings ..................................................................................................................... 41
5.1.1 Configure Recording Schedule ........................................................................................... 41

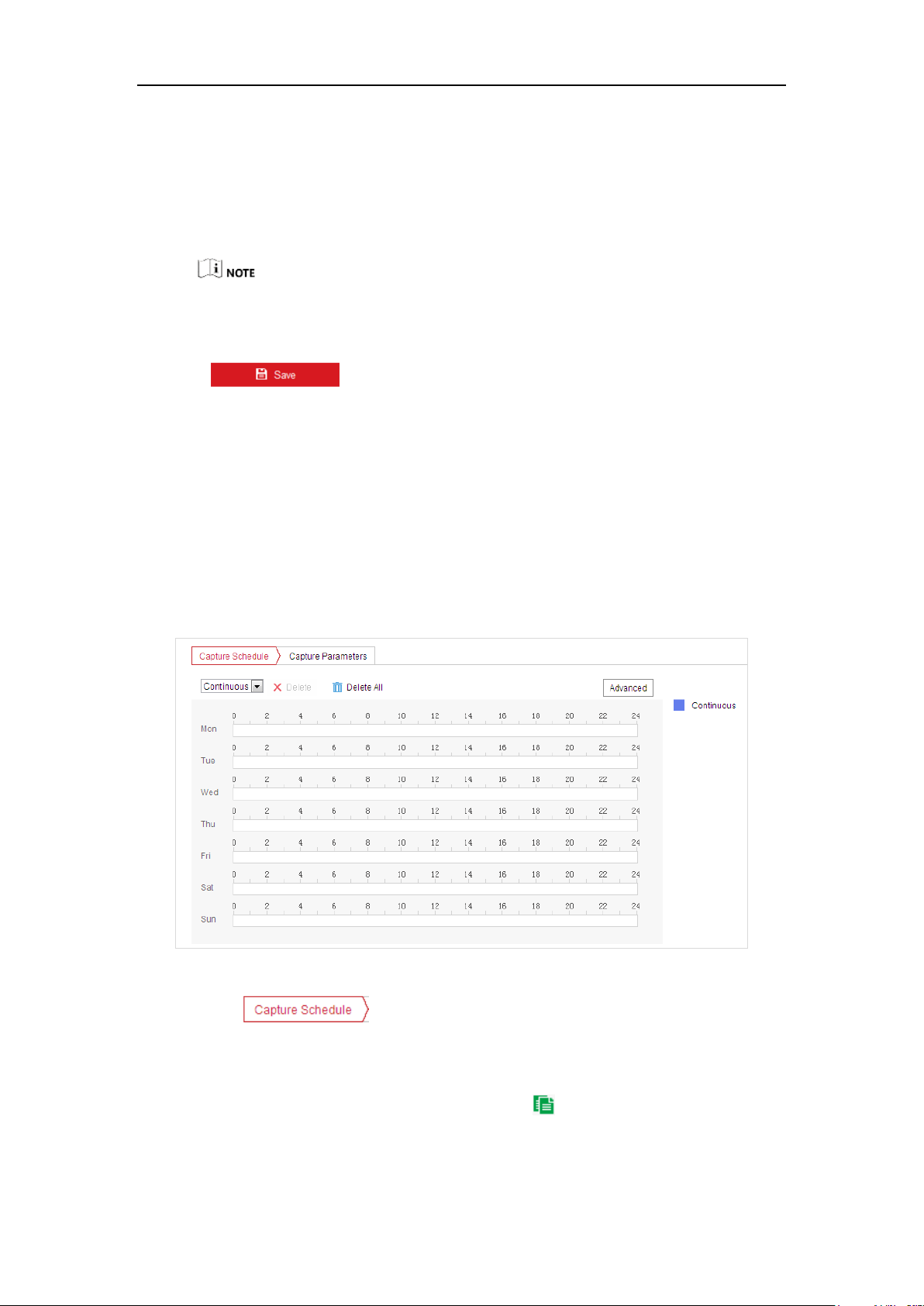

5.1.2 Configure Capture Schedule ............................................................................................... 43
5.1.3 Configure Net HDD ............................................................................................................ 44
5.2 Event Configuration ............................................................................................................... 46
5.2.1 Configure Motion Detection .............................................................................................. 47
5.2.2 Configure Video Tampering Alarm..................................................................................... 52
5.2.3 Configure Alarm Input ....................................................................................................... 53
5.2.4 Configure Alarm Output .................................................................................................... 54
5.2.5 Handle Exception ............................................................................................................... 55
iv

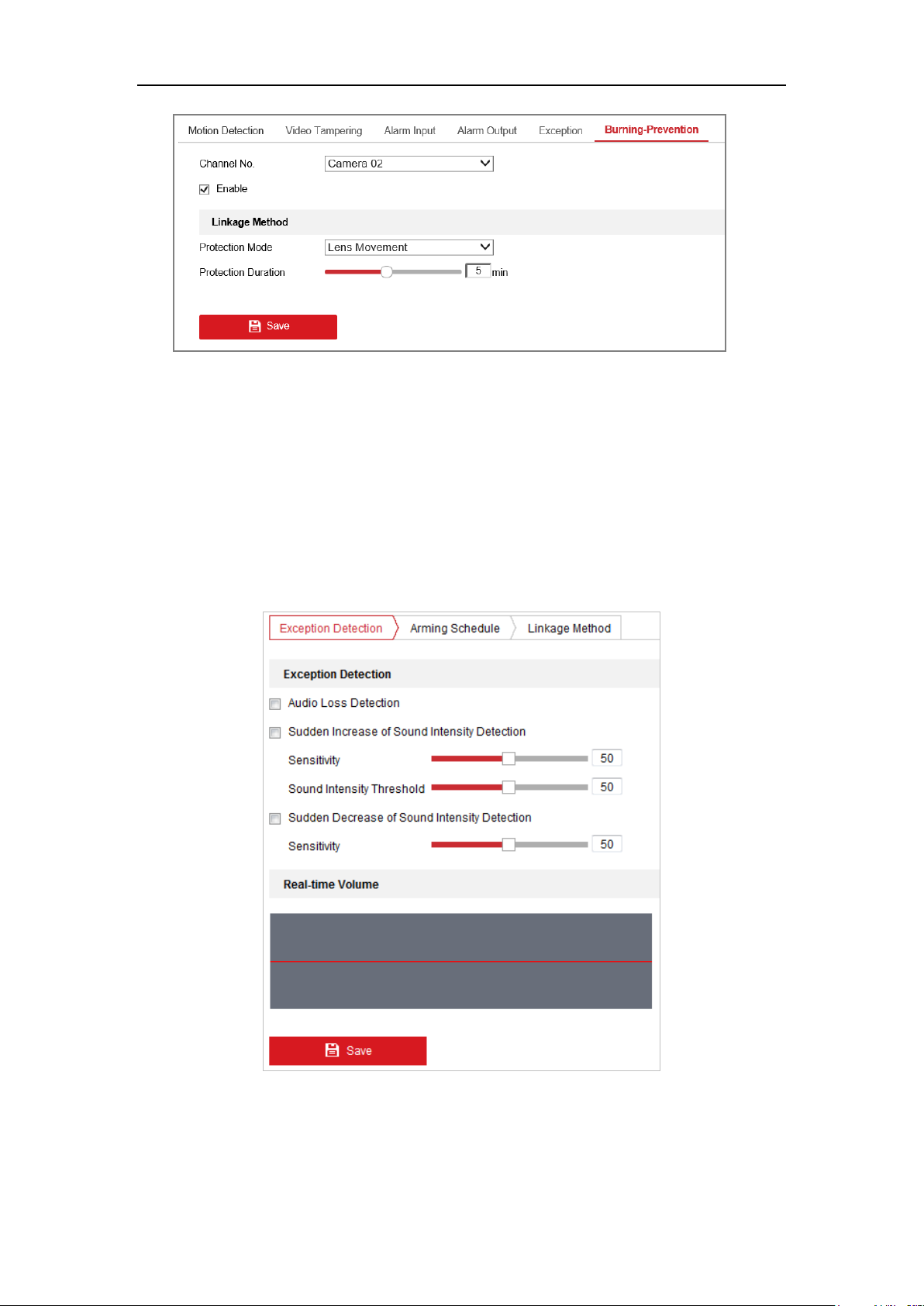

5.2.6 Configure Burning-Prevention ........................................................................................... 56
5.2.7 Detect Audio Exception ...................................................................................................... 57
5.3 Fire Source Detection Configuration ...................................................................................... 58
5.3.1 Configure Initial Position .................................................................................................... 59
5.3.2 Configure Dynamic Fire Source Detection ......................................................................... 61
5.3.3 Configure Fire Source Detection Shield .............................................................................. 63
5.4 Temperature Measurement ................................................................................................... 65
5.4.1 Configure Temperature Measurement ............................................................................... 65
5.4.2 Temperature Measurement and Alarm ............................................................................. 66
5.4.3 Linkage Method ................................................................................................................. 71
5.4.4 Search History Temperature ............................................................................................... 71
5.5 PTZ Configuration .................................................................................................................. 73
5.5.1 Configure Basic PTZ Parameters ........................................................................................ 73
5.5.2 Configure PTZ Limits .......................................................................................................... 74
5.5.3 Configure Park Actions ....................................................................................................... 75

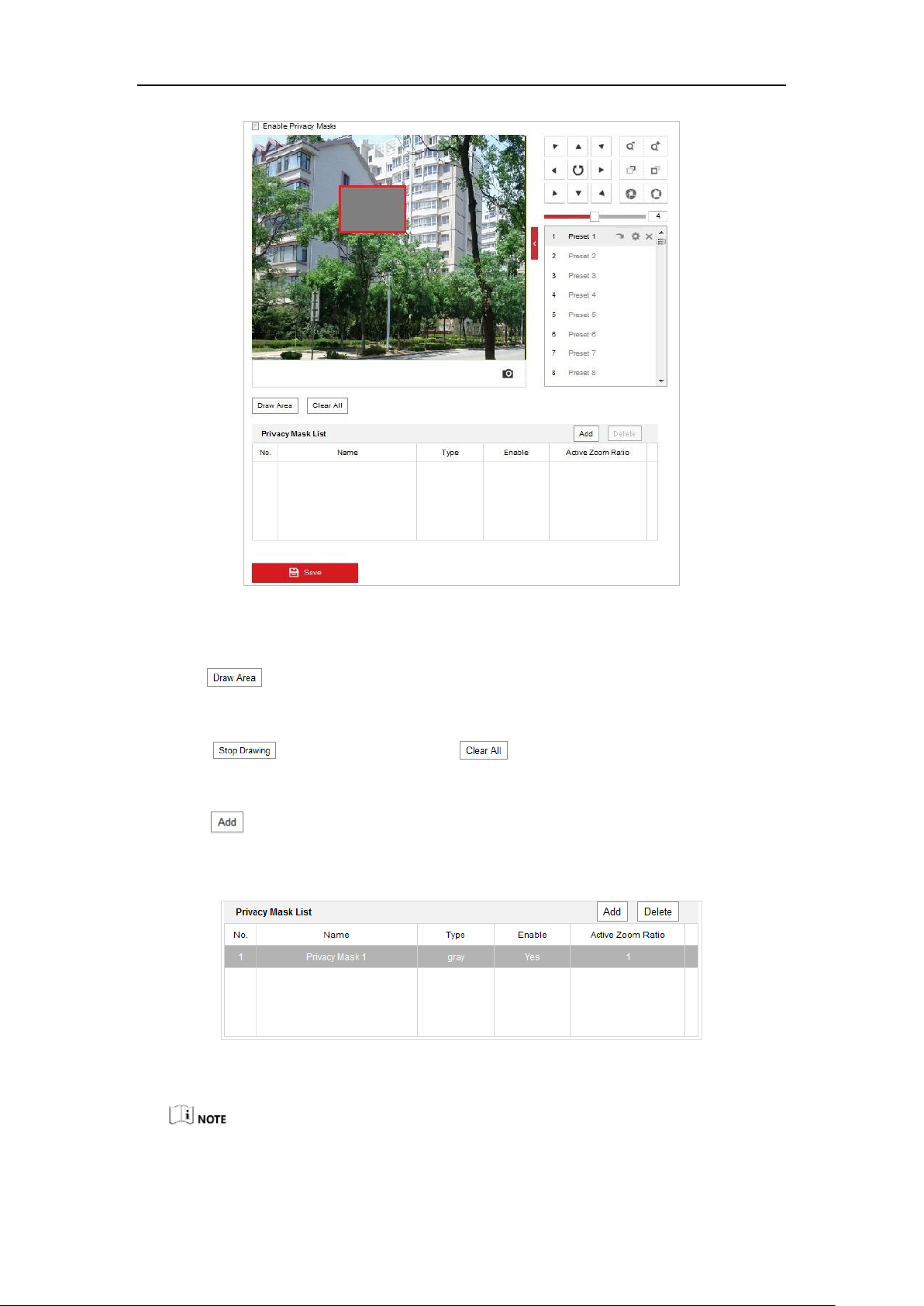

5.5.4 Configure Privacy Mask ..................................................................................................... 76
5.5.5 Configure Scheduled Tasks ................................................................................................. 78
5.5.6 Clear PTZ Configurations .................................................................................................... 79
5.5.7 Prioritize PTZ ...................................................................................................................... 79
5.5.8 Position and Vandal-Resistance Alarm Settings ................................................................. 80
5.5.9 Configure Linear Scan ........................................................................................................ 81
Chapter 6 VCA Configuration ........................................................................................................ 82

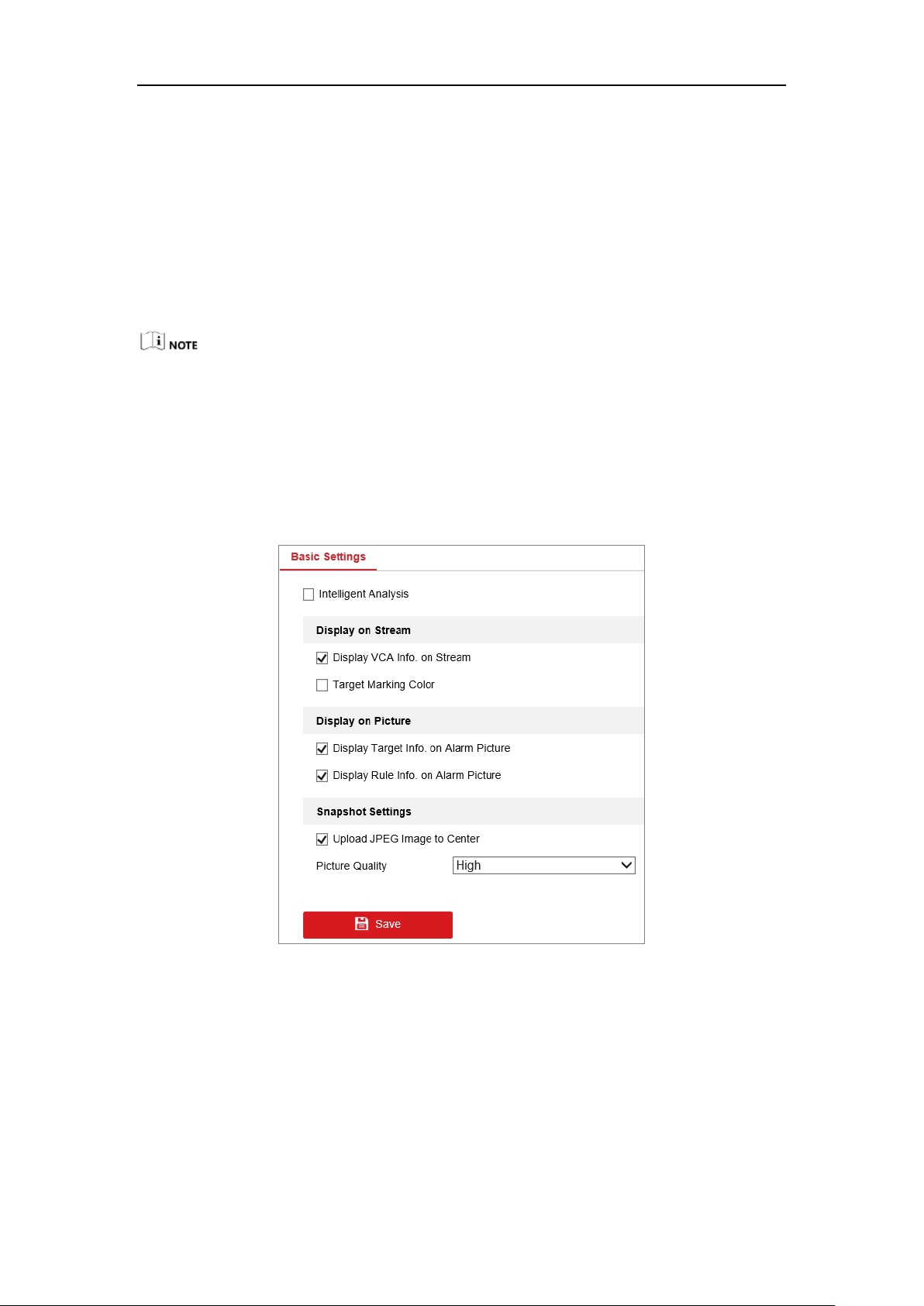

6.1 Configure VCA Information .................................................................................................... 82
6.2 Advanced Configuration ......................................................................................................... 83
6.3 Behavior Analysis ................................................................................................................... 84
6.4 Rule Configuration Demonstration ........................................................................................ 88
6.4.1 Line Crossing ...................................................................................................................... 88
6.4.2 Intrusion ............................................................................................................................. 90
6.4.3 Enter Region ....................................................................................................................... 91

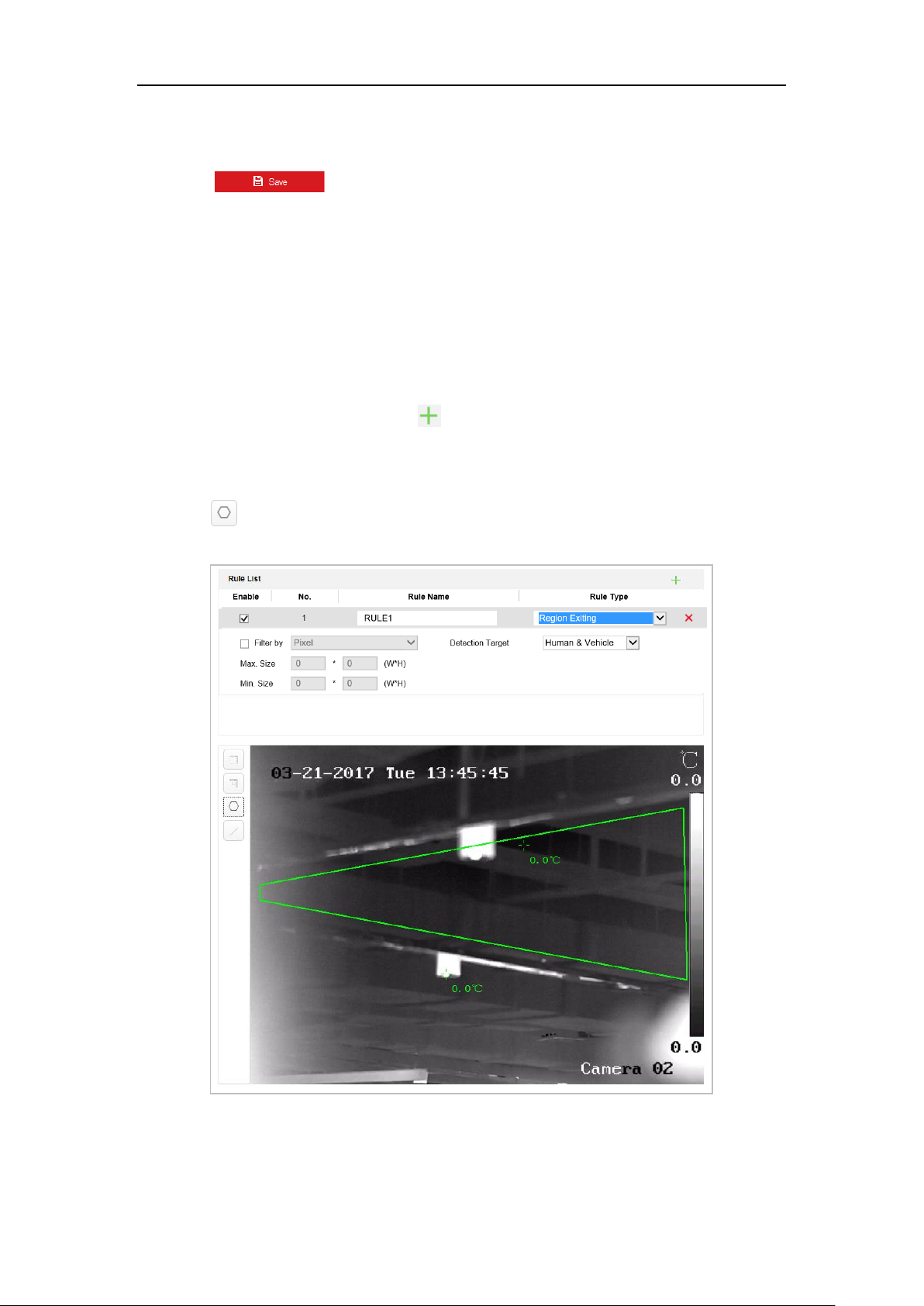

6.4.4 Exit Region ......................................................................................................................... 92
Chapter 7 Device Configuration .................................................................................................... 94
7.1 Configure Network Settings ................................................................................................... 94
7.1.1 Basic Settings ..................................................................................................................... 94
7.1.2 Advanced Settings ............................................................................................................ 100
7.2 Configure Video and Audio Settings .................................................................................... 108
7.2.1 Configure Video Settings ................................................................................................. 108
7.2.2 Configure Audio Settings ................................................................................................. 111
7.2.3 Configure ROI Settings ..................................................................................................... 111
7.3 Configure Image Settings ..................................................................................................... 112
7.3.1 Configure Display Settings ............................................................................................... 113
7.3.2 Configure OSD Settings .................................................................................................... 121
7.3.3 Configure Text Overlay Settings ....................................................................................... 122
7.3.4 VCA Rule Display .............................................................................................................. 122
v
7.3.5 Configure Picture Overlay ................................................................................................ 123
7.3.6 Configure DPC Settings .................................................................................................... 124
7.3.7 Picture in Picture .............................................................................................................. 124
7.4 Configure System Settings ................................................................................................... 125
7.4.1 System Settings ................................................................................................................ 125
7.4.2 Maintenance .................................................................................................................... 130
7.4.3 Security ............................................................................................................................ 134
7.4.4 User Management ........................................................................................................... 136
Appendix ....................................................................................................................................... 141
Appendix 1 ....................................................................................................................................... 141
Appendix 2 ....................................................................................................................................... 143
1

Chapter 1 Overview

1.1 Overview

Thermal bi-spectrum network device (named as device in the chapters below) integrates the
function of the decoder, thermal camera, and the high-definition zoom camera. It performs
temperature measurement, dynamic fire source detection and other smart detections in the
remote surveillance of the power system, metallurgy system, and petrochemical engineering, and
so on.
You can get a high-quality live view via web browser or client software.

1.2 System Requirement

System requirement of web browser accessing is as follows:
Operating System: Microsoft Windows XP SP1 and above version / Vista / Win7 / Server 2003 /
Server 2008 32bits
CPU: Intel Pentium IV 3.0 GHz or higher
RAM: 1G or higher
Display: 1024×768 resolution or higher
Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.02 and above version,
Mozilla Firefox 5 and above version and Google Chrome 18 and above versions.

1.3 Functions

The main functions of this camera is fire source detection, and temperature measurement, and
VCA (video content analysis) functions.
Fire Detection
Fire Source Detection Shield enables you to shield certain areas from being detected in fire
source detection.
For fire detection, refer to Section 5.3 Fire Source Detection Configuration.
Temperature Measurement
When you enable this function, it measures the actual temperature of the spot being
monitored. The device alarms when temperature exceeds the temperature threshold value.
For temperature measurement, refer to Section5.4 Temperature Measurement.
VCA function
You can do intelligent analysis, such as behavior analysis. Multiple rules can be configured
for different requirements.
2
For VCA function, refer to 5.5PTZ Configuration
On the event configuration page, click to show the PTZ control panel or click to hide
it.
Click the direction buttons to control the pan/tilt movements. Click the zoom/iris/focus buttons to realize lens control. The functions vary depending on the models of device.

1.3.1 Configure Basic PTZ Parameters

Purpose:
You can configure the basic PTZ parameters, including proportional pan, preset freezing, preset
speed, etc.
1. Go to the. Basic PTZ Parameter Configuration interface:
Configuration > PTZ > Basic Settings

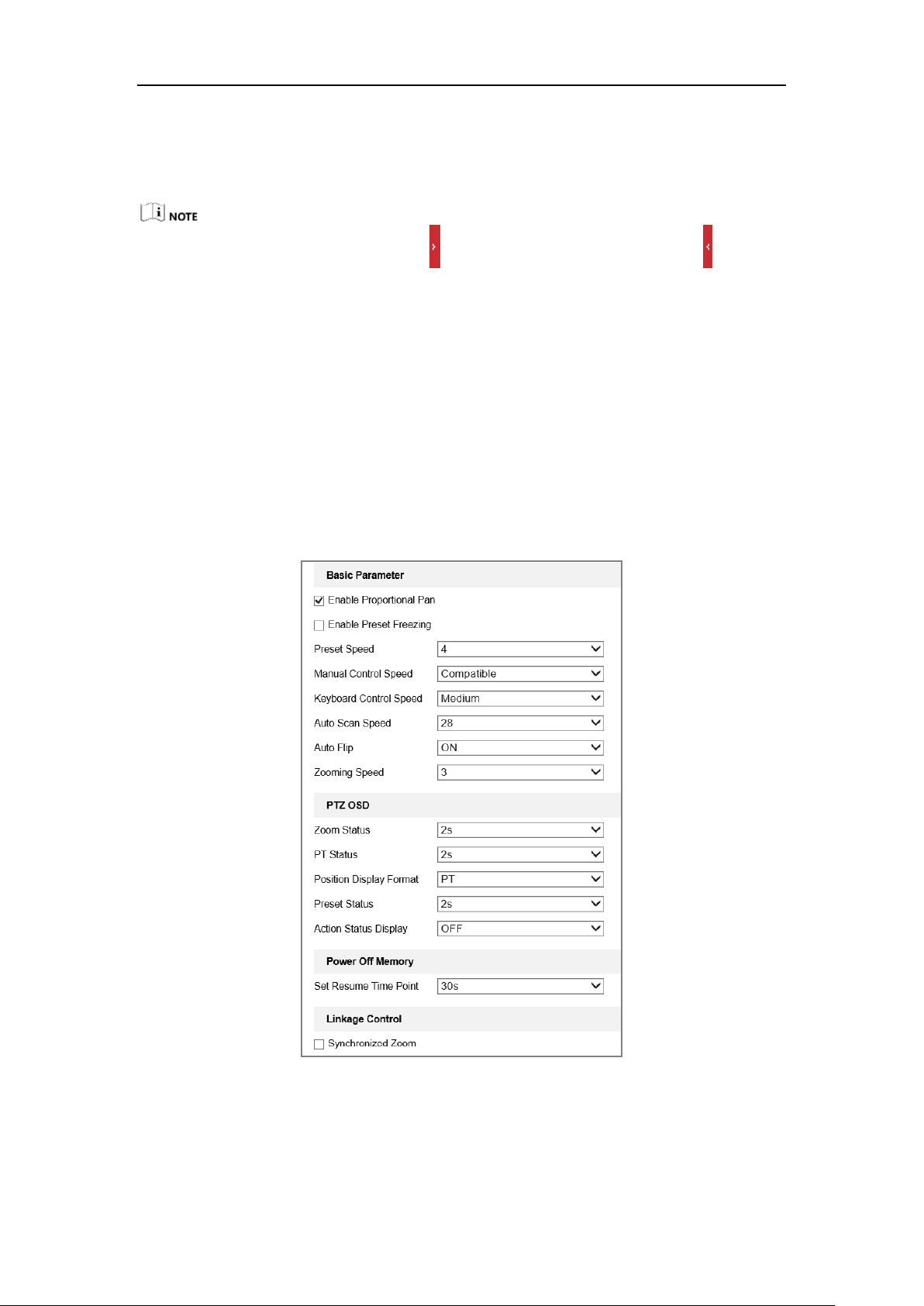

Figure 1-1 Basic PTZ Configuration Interface
2. Configure the following settings:
Basic Parameters: Enable/disable proportional pan and preset freezing, set the preset speed,
keyboard control speed, and auto scan speed.
Proportional Pan: If you enable this function, the pan/tilt speeds change according to
the amount of zoom. When there is a large amount of zoom, the pan/tilt speed will be
3
slower for keeping the image from moving too fast on the live view image.
Preset Freezing: This function enables the live view to switch directly from one scene
defined by a preset to another, without showing the middle areas between these two, to
ensure the surveillance efficiency. It can also reduce the use of bandwidth in a digital
network system.
Preset freezing function is invalid when you calling a pattern.
Preset Speed: You can set the speed of a defined preset from 1 to 8. Manual Control Speed: The device provides 5 control speed modes: Compatible,
Pedestrian, Non-motor Vehicle, Motor Vehicle and Auto. Select it from the dropdown list.
Keyboard Control Speed: Define the speed of PTZ control by a keyboard as Low, Medium
or High.
Auto Scan Speed: The scan speed can be set from level 1 to 40. Auto Flip : Select auto flip mode as ON/OFF. Max. Tilt-angle: Set the tilt-angle of the device from the dropdown list. Zooming Speed: The speed of zooming is adjustable.
PTZ OSD: Set the on-screen display duration of the PTZ status.
Zoom Status: Set the OSD duration of zooming status as 2 seconds, 5 seconds, 10
seconds, Always Close or Always Open.
PT Status: Set the azimuth angle display duration while panning and tilting as 2 seconds,
5 seconds, 10 seconds, Always Close or Always Open.
Position Display Format: Set the position display format as PT or Direction and the
position parameter displays in corresponding format.
Preset Status: Set the preset name display duration while calling the preset as 2 seconds,
5 seconds, 10 seconds, Always Close or Always Open.
Action Status Display: Display the current status of device in optical channel or not. Such as patrol, fire
detection, etc.
Power-off Memory: The device can resume its previous PTZ status or actions after it
restarted from a power-off. You can set the time point of which the device resumes its PTZ
status. You can set it to resume the status of 30 seconds, 60 seconds, 300 seconds or 600
seconds before power-off.
Linkage Control: Check Synchronized Zoom to zoom the thermal lens and optical lens at the
same time. The image of these two channels will be consistent.
3. Click .

1.3.2 Configure PTZ Limits

Purpose:
The device can be programmed to move within the configurable PTZ limits (left/right, up/down).
Steps:
1. Go to the. Limit configuration interface:
Configuration > PTZ > Limit
4
Figure 1-2 Configure the PTZ Limit
2. Click Enable Limit and choose the limit type as manual stops or scan stops.
Manual Stops:
When manual limit stops are set, you can operate the PTZ control panel manually only in the
limited surveillance area.
Scan Stops:
When scan limit stops are set, the random scan, frame scan, auto scan, tilt scan, panorama
scan is performed only in the limited surveillance area.
Manual Stops of Limit Type is prior to Scan Stops. When you set these two limit types at the
same time, Manual Stops is valid and Scan Stops is invalid.
3. Click the PTZ control buttons to find the left/right/up/down limit stops; you can also call the
defined presets and set them as the limits of the device.
4. Click Set to save the limits or click Clear to clear the limits.

1.3.3 Configure Park Actions

Purpose:
This feature allows the device to start a predefined park action (scan, preset, pattern and etc.)
automatically after a period of inactivity (park time).
Scheduled Tasks function is prior to Park Action function. When these two functions are set
at the same time, only the Scheduled Tasks function takes effect.
Pattern function varies depending on device models.
Steps:
5
1. Go to the. Park Action settings interface:
Configuration > PTZ > Park Action
Figure 1-3 Set the Park Action
2. Check Enable Park Action.
3. Set the Park Time as the inactivity time of the device before it starts the park actions.
4. Choose Action Type the from the dropdown list.
Figure 1-4 Action Types
5. Select the Action Type ID from the dropdown list.
6. Click .

1.3.4 Configure Privacy Mask

Purpose:
Privacy mask enables you to cover certain areas on the live video to prevent certain spots in the
surveillance area from being live viewed and recorded.
Steps:
1. Go to the. Privacy Mask settings interface:
Configuration > PTZ > Privacy Mask
6
Figure 1-5 Draw the Privacy Mask
2. Click the PTZ control buttons to find the area you want to set the privacy mask.
3. Click ; click and drag the mouse in the live video window to draw the area.
4. You can drag the corners of the red rectangle area to draw a polygon mask.
5. Click to finish drawing or click to clear all of the areas you set without
saving them.
6. Click to save the privacy mask, and it will be listed in the Privacy Mask List area; set
the value of Active Zoom Ratio on your demand, and then the mask will only appear when
the zoom ratio is greater than the predefined value.
Figure 1-6 Privacy Mask List
7. Check Enable Privacy Mask.
You are allowed to draw up to 8 areas for the device.
7

1.3.5 Configure Scheduled Tasks

Purpose:
You can configure the network device to perform a certain action automatically in a user-defined
time period.
Steps:
1. Go to the. Scheduled Task settings interface:
Configuration> PTZ > Scheduled Tasks
Figure 1-7 Configure Scheduled Tasks
2. Check Enable Scheduled Task.
3. Set the Park Time. You can set the park time (a period of inactivity) before the device starts
the scheduled tasks.
4. Select the task type from the dropdown list. You can choose scan, preset, pattern and etc.
Figure 1-8 Task Types
5. Select the timeline of a certain day, click and drag the the mouse to set the recording
schedule (the start time and end time of the recording task).
6. After you set the scheduled task, you can click and copy the task to other days
(optional).
8
Figure 1-9 Edit the Schedule and Task Type
The time of each task cannot be overlapped. Up to 10 tasks can be configured for each
day.
7. Click .

1.3.6 Clear PTZ Configurations

Purpose:
You can clear PTZ configurations in this interface, including all presets, patrols, privacy masks, PTZ
limits, scheduled tasks and park actions.
Pattern function varies depending on device models.
Steps:
1. Go to the. Clearing Configuration interface:
Configuration > PTZ > Clear Config
2. Select the items you want to clear.
3. Click .

1.3.7 Prioritize PTZ

Steps:
1. Go to the Prioritize PTZ interface:
Configuration > PTZ > Prioritize PTZ.
9
Figure 1-10 Position Settings
2. Select Network or RS-485 from the dropdown list
3. Set the delay time (Range 2-200s).
4. Click .

1.3.8 Position and Vandal-Resistance Alarm Settings

Steps:
1. Go to the. Position Settings interface:
Configuration > PTZ > Position Settings.
The actual interface may vary from model to model.
Figure 1-11 Position Settings
2. Set the vandal-resistance alarm. (1) Slide the bar to adjust the sensitivity of vandal-resistance detection. (2) Check Upload Vandal-Resistance Alarm to upload the vandal-resistance alarm. (3) Check Enable Vandal-Resistance Alarm Voice Warning to enable the voice warning of
vandal-resistance alarm.
10
3. Set GPS settings. (1) Select Longitude-Latitude Mode as Manual. (2) Select longitude and latitude as East or West according to the actual position. (3) Input the value of longitude and latitude in three textboxes.
4. Click .

1.3.9 Configure Linear Scan

Steps:
1. Go to the linear scan interface:
Configuration > Advanced Configuration> PTZ > Linear Scan.
Figure 1-12 Linear Scan
2. Select Camera 1 or Camera 2 from the Channel No. list.
3. Zoom in and zoom out the camera to the appropriate zoom ratio.
4. Click Save Ratio.
5. Optionally, you can click Enable Saved Ratio to set the camera to the saved zoom ratio.
6. Click Set Scan Area and set the left/right/up/down limits with the PTZ control panel and
Iris+/- button.
7. Optionally, you can click Clear to delete the saved scan area.
8. Click Save and the Linear Scan Area shows Scan area saved.
9. Click Start Linear Scan and Stop Linear Scan to start and stop the saved linear scan.
11
VCA Configuration.
Alarm Input and Output
Refer to the figure below to configure the alarm devices and sensors.
Alarm Device /Alarm
Sensor?
Start
Alarm Device
(e.g., siren)
Alarm Sensor (e.g.,
gas detector)
Connect to Alarm Output
Terminal (labeled ALARM OUT)
END
Connect your camera with the alarm device(s).
Connect to Alarm Input
Terminal (labeled ALARM IN)
Turn on the Camera. Turn on the Camera.
Go to Event>Basic Event>Alarm Output
and set the alarm.
Go to Event>Basic Event>Alarm Input
and set the alarm.
Set the schedule for the alarm device. Set the schedule for the sensor.
Link the alarm to e-mail,
center, alarm out , etc.
Set Alarm Linkage for events.
The functions vary depending on the models.
Bi-spectrum
The device has two lens, an optical one and a thermal one, and two images are respectively
provided by each lens.
PTZ Limits
The device can be programmed to move within the PTZ limits (left/right, up/down).
Scan Modes
The device provides 5 scan modes: auto scan, tilt scan, frame scan, random scan and panorama
scan.
Presets
A preset is a predefined image position. When the preset is called, the device will automatically
move to the defined position. The presets can be added, modified, deleted and called.
Label Display
The on-screen label of the preset title, azimuth/elevation, zoom, time and device name can be
displayed on the monitor. The displays of time and device name can be programmed.
Auto Flips
In manual tracking mode, when a target object goes directly beneath the device, the video will
12
automatically flips 180 degrees in horizontal direction to maintain continuity of tracking. This
function can also be realized by auto mirror image depending on different camera models.
Privacy Mask
This function allows you to block or mask certain area of a scene, for preventing the personal
privacy from recording or live viewing. A masked area will move with pan and tilt functions and
automatically adjust in size as the lens zooms telephoto and wide.
3D Positioning
In the client software, use the left key of mouse to click on the desired position in the video
image and drag a rectangle area in the lower right direction, then the device will move the
position to the center and allow the rectangle area to zoom in. Use the left key of mouse to drag
a rectangle area in the upper left direction to move the position to the center and allow the
rectangle area to zoom out.
Proportional Pan/Tilt
Proportional pan/tilt automatically reduces or increases the pan and tilt speeds according to the
amount of zoom. At telephoto zoom settings, the pan and tilt speeds will be slower than at wide
zoom settings. This keeps the image from moving too fast on the live view image when there is a
large amount of zoom.
Auto Focus
The auto focus enables the camera to focus automatically to maintain clear video images.
Day/Night Auto Switch
The devices deliver color images during the day. And as light diminishes at night, the devices
switch to night mode and deliver black and white images with high quality.
Slow Shutter
In slow shutter mode, the shutter speed will automatically slow down in low illumination
conditions to maintain clear video images by extending the exposure time. The feature can be
enabled or disabled.
Backlight Compensation (BLC)
If you focus on an object against strong backlight, the object will be too dark to be seen clearly.
The BLC (Backlight Compensation) function can compensate light to the object in the front to
make it clear, but this causes the over-exposure of the background where the light is strong.
Wide Dynamic Range (WDR)
The wide dynamic range (WDR) function helps the camera provide clear images even under back
light circumstances. When there are both very bright and very dark areas simultaneously in the
field of view, WDR balances the brightness level of the whole image and provide clear images
with details.
White Balance (WB)
White balance can remove the unrealistic color casts. White balance is the white rendition
function of the camera to adjust the color temperature according to the environment
automatically.
Patrol
A patrol is a memorized series of pre-defined preset function. The scanning speed between two
presets and the dwell time at the preset are programmable.
Pattern
A pattern is a memorized series of pan, tilt, zoom, and preset functions. By default the focus and
13
iris are in auto status during the pattern is being memorized.
Power Off Memory
The device supports the power off memory capability with the predefined resume time. It allows
the device to resume its previous position after power is restored.
Scheduled Task
A time task is a preconfigured action that can be performed automatically at a specific date and
time. The programmable actions include: auto scan, random scan, patrol 1-8 ,pattern 1-4, preset
1-8,frame scan, panorama scan, tilt scan, day, night, reboot, PT adjust, Aux Output, etc.
Park Action
This feature allows the device to start a predefined action automatically after a period of
inactivity.
3D Digital Noise Reduction
Comparing with the general 2D digital noise reduction, the 3D digital noise reduction function
processes the noise between two frames besides processing the noise in one frame. The noise
will be much less and the video will be clearer.
14

Chapter 2 Network Connection

Before you start:
If you want to set the network device via a LAN (Local Area Network), please refer to Section
2.1.
If you want to set the network device via a WAN (Wide Area Network), please refer to
Section 2.2.

2.1 Set the Network Device over the LAN

Purpose:
To view and configure the device via a LAN, you need to connect the network device in the same
subnet with your computer, and install the SADP or client software to search and change the IP of
the network device.
For the detailed introduction of SADP, please refer to Appendix.

2.1.1 Wiring over the LAN

The following figures show the two ways of cable connection of a network device and a
computer:
Purpose:
To test the network device, you can directly connect the network device to the computer
with a network cable as shown in Figure 2-1.
Refer to the Figure 2-2 to set the network device over the LAN via a switch or a router.
Network Cable
Figure 2-1 Connect Directly
15
Network
Speed Dome
Switch
Internet
NVR
PC
Figure 2-2 Connect via a Switch or a Router

2.1.2 Activate the Device

Purpose:
You are required to activate the device first before you can use the device.
Activation via Web Browser, Activation via SADP, and Activation via client software are supported.
In the following sections, activation via web browser and SADP will be taken as examples. You
may refer to the user manual of the device for the details of activation via client software.
Activate via Web Browser
Steps:
1. Power on the device, and connect the device to the network.
2. Input the IP address into the address bar of the web browser, and click Enter to go to the.
activation interface.
The default IP address of the device is 192.168.1.64.
Figure 2-3 Activation Interface(Web)
3. Create a password and input the password into the password field.
4. Confirm the password.
16
We highly recommend you create a strong password of your own choosing (using a minimum
of 8 characters, including upper case letters, lower case letters, numbers, and special
characters) in order to increase the security of your product. And we recommend you reset
your password regularly, especially in the high security system, resetting the password
monthly or weekly can better protect your product.
5. Click OK.
Activate via SADP Software
SADP software is used for detecting the online device, activating the device, and resetting the
password.
Get the SADP software from the supplied disk or the official website, and install the SADP
according to the prompts. Follow the steps to activate the device.
Steps:
1. Run the SADP software to search the online devices.
2. Check the device status from the device list, and select an inactive device.
Select inactive device.
Input and confirm password.
Figure 2-4 SADP Interface
We highly recommend you create a strong password of your own choosing (using a minimum
of 8 characters, including upper case letters, lower case letters, numbers, and special
characters) in order to increase the security of your product. And we recommend you reset
your password regularly, especially in the high security system, resetting the password
monthly or weekly can better protect your product.
3. Create a password and input the password in the password field, and confirm the password.
4. Click OK.
You can check whether the activation is completed on the popup window. If activation failed,
please make sure that the password meets the requirement and then try again.
5. Change the device IP address to the same subnet with your computer by either modifying
the IP address manually or checking Enable DHCP.
17
Figure 2-5 Modify the IP Address
6. Input the password and click Save.

2.2 Set the Network Device over the WAN

Purpose:
This section explains how to connect the network device to the WAN with a static IP or a dynamic
IP.

2.2.1 Static IP Connection

Before you start:
Please apply a static IP from an ISP (Internet Service Provider). With the static IP address, you can
connect the network device via a router or connect it to the WAN directly.
Connect the network device via a router
Steps:
1. Connect the network device to the router.
2. Assign a LAN IP address, the subnet mask and the gateway. Refer to Section 2.1.2 for detailed
IP address configuration of the device.
3. Save the static IP in the router.
4. Set port mapping, E.g., 80, 8000 and 554 ports. The steps for port mapping vary depending
on different routers. Please call the router manufacturer for assistance with port mapping.
5. Visit the network device through a web browser or the client software over the internet.
18
Speed Dome
Network Cable
Router with Static IP
PC
Network Cable
Network Cable
Internet
Figure 2-6 Access the Device through Router with Static IP
Connect the network device with static IP directly
You can also save the static IP in the device and directly connect it to the internet without using a
router. Refer to Section 2.1.2 for detailed IP address configuration of the device.
Speed Dome
PC
Network Cable
Network Cable
Internet
Figure 2-7 Access the Device with Static IP Directly

2.2.2 Dynamic IP Connection

Before you start:
Please apply a dynamic IP from an ISP. With the dynamic IP address, you can connect the network
device to a modem or a router.
Connect the network device via a router
Steps:
1. Connect the network device to the router.
2. In the device, assign a LAN IP address, the subnet mask and the gateway. Refer to Section
2.1.2 for detailed LAN configuration.
3. In the router, set the PPPoE user name, password and confirm the password.
We highly recommend you create a strong password of your own choosing (using a minimum
of 8 characters, including upper case letters, lower case letters, numbers, and special
characters) in order to increase the security of your product. And we recommend you reset
your password regularly, especially in the high security system, resetting the password
monthly or weekly can better protect your product.
19
4. Set port mapping. E.g. 80, 8000 and 554 ports. The steps for port mapping vary depending on
different routers. Please call the router manufacturer for assistance with port mapping.
5. Apply a domain name from a domain name provider.
6. Configure the DDNS settings.
7. Visit the device via the applied domain name.
Connecting the network device via a modem
Purpose:
This device supports the PPPoE auto dial-up function. The device gets a public IP address by ADSL
dial-up after the device is connected to a modem. You need to configure the PPPoE parameters of
the network device. Refer to Section 7.1.1 Configure PPPoE Settings for detailed configuration.
Figure 2-8 Access the Device with Dynamic IP
The obtained IP address is dynamically assigned via PPPoE, so the IP address always changes
after rebooting the device. To solve the inconvenience of the dynamic IP, you need to get a
domain name from the DDNS provider (E.g. DynDns.com). Please follow below steps for
normal domain name resolution and private domain name resolution to solve the problem.
Normal Domain Name Resolution
Figure 2-9 Normal Domain Name Resolution
Steps:
1. Apply a domain name from a domain name provider.
2. Configure the DDNS settings in the DDNS Settings interface of the network device. Refer to
Section 7.1.1 Configure DDNS for detailed configuration.
3. Visit the device via the applied domain name.
Private Domain Name Resolution
20
Figure 2-10 Private Domain Name Resolution
Steps:
1. Install and run the IP Server software in a computer with a static IP.
2. Access the network device through the LAN with a web browser or the client software.
3. Enable DDNS and select IP Server as the protocol type. Refer to Section 7.1.1 Configure
DDNS for detailed configuration.
21
Chapter 3 Access to the Network
Device
You can access to the device by using web browser or client software. Here is the introduction of
accessing by web browser.
Steps:
1. Open the web browser.
2. In the address field, input the IP address of the network device, e.g., 192.168.1.64 and press
the Enter key to go to the. login interface.
3. Activate the device for the first time using, refer to the section 2.1.2 Activate the Device.
4. Select English as the interface language on the top-right of login interface.
5. Input the user name and password and click .
The admin user should configure the device accounts and user/operator permissions properly.
Delete the unnecessary accounts and user/operator permissions.
The device IP address gets locked if the admin user performs 7 failed password attempts (5
attempts for the user/operator).
Figure 3-1 Login Interface
6. Install the plug-in before viewing the live video and operating the device. Please follow the
installation prompts to install the plug-in.
You may have to close the web browser to install the plug-in. Please reopen the web browser
and log in again after installing the plug-in.
22
Figure 3-2 Download and Install Plug-in
23

Chapter 4 Basic Operations

In this and the following chapters, operation of the device by the web browser will be taken as an
example.

4.1 Configure Local Parameters

The local configuration refers to the parameters of the live view and other operations using the
web browser.
Steps:
1. Go to the. Local Configuration interface:
Configuration > Local
Figure 4-1 Local Configuration Interface
2. Configure the following settings:
Live View Parameters: Set the protocol type, play performance, rules and image format.
Protocol Type: TCP, UDP, MULTICAST and HTTP are selectable.
TCP: Ensures complete delivery of streaming data and better video quality, yet the
real-time transmission will be affected.
UDP: Provides real-time audio and video streams.
MULTICAST: It’s recommended to select the protocol type to MULTICAST when using
the Multicast function.
HTTP: Allows the same quality as of TCP without setting specific ports for streaming
24
under some network environments.
Play Performance: Set the play performance to Shortest Delay, or Auto. Rules: You can enable or disable the rules of dynamic analysis for motion here. Fire Point: Locate Highest Temperature Point, and Frame Fire Point are selectable.
Display the highest temperature area as point or frame.
Display Temperature Info.: Display temperature information or not with temperature
measurement rule configured.
Display Temperature Info. on Capture: Display temperature information on the capture
or not.
Image Format: The captured pictures can be saved as different format. JPEG and BMP are
available.
Display Rules Info. on Capture: Display rules information on the capture or not.
Record File Settings: Set the saving path of the video files.
Record File Size: Select the packed size of manually recorded and downloaded video files.
The size can be set to 256M, 512M or 1G.
Save record files to: Set the saving path for the manually recorded video files. Save downloaded files to: Set the saving path for the downloaded video files in
interface.
Picture and Clip Settings: Set the saving paths of the captured pictures and clipped video
files.
Save snapshots in live view to: Set the saving path of the manually captured pictures in
interface.
Save snapshots when playback to: Set the saving path of the captured pictures in
interface.
Save clips to: Set the saving path of the clipped video files in interface.
You can click Browse to change the directory for saving video files, clips and pictures. You can click Open to directly open the video files, clips and pictures.
3. Click .

4.2 Live View Page

Purpose:
The live video page allows you to view live video, capture images, realize PTZ control, set/call
presets and configure video parameters.
Log in the network device to go to the. live view page, or you can click on the menu
bar of the main page to go to the. live view page.
25
Descriptions of the live view page:
Menu Bar
Camera
Number
Live View
Window
Toolbar
PTZ Control &
Quick Setup
Preset/Patrol
Settings
Figure 4-2 Live View Page
Menu Bar:
Click each tab to enter Live View, Playback, Picture, and Configuration page respectively.
Click to display the help file of the device.
Click to logout the system.
Live View Window:
Display the live video.
Toolbar:
Operations on the live view page, e.g., live view, capture, record, audio on/off, regional exposure,
regional focus, etc.
PTZ Control:
Panning, tilting, focusing and zooming actions of the device. The lighter, wiper, one-touch focus
and lens initialization control.
Preset/patrol/pattern:
Set and call the preset/patrol/pattern for the device.
Pattern function varies depending on the models of device.
Live View Parameters:
Configure the image size, stream type, plug-in type, and two-way audio of the live video.

4.3 Start Live View

In the live view window as shown in Figure 4-3, click on the toolbar to start the live view of
the device.
26
Figure 4-3 Start Live View

4.3.1 Toolbar Description

Table 4-1 Descriptions of the Toolbar
Icon
Description
Icon
Description
/
Start/Stop Live view.
Manually capture the pictures.
/ / /
Display in 1×1/2×2/3×3/4×4
window.
/
Live view with the main/sub
stream.
/
Manual start/stop recording.
/
Start/Stop Two-way Audio.
/
View previous / next page.
/
Mute/Audio on and adjust
volume
Show full screen
/
Enable / Disable Regional
Focus
Double-click on the live video to switch the current live view into full-screen or return to
normal mode from the full-screen.
Click to select from / / / and display live video in 1 × 1/2 × 2/3 × 3/4 × 4
window.
Click to select from / and display live video with the main/ sub stream. The
main stream is with a relatively high resolution and needs much bandwidth. The default
setting of stream type is .
27
Click and it displays . Click to enable two-way audio and the icon turns
into . Click the icon again to stop two-way audio.
Click to start live view and the icon turns into . Click the icon again to stop live view. Click to capture the picture. Click to start recording and the icon turns into . Click the icon again to stop
recording.
Click to switch between the optical channel and thermal channel when selecting 1 ×
1 live view window.
Click the on the toolbar to go to the. regional focus operation mode and the icon turns
into . Then click and drag the mouse to draw a rectangle on the image as the desired
focus region.
Click to display the . Drag the slider to adjust the volumn. Click to show full screen of live view, press Esc to exit.
Before using the two-way audio or recording with audio functions, please set the Stream Type to
Video & Audio referring to Section 7.2.1 Configure Video Settings.
Please refer to the following sections for more information:
Configure remote recording in Section 5.1.1 Configure Recording Schedule. Setting the image quality of the live video in Section 7.3 Configure Image Settings.
and Section 7.2.1 Configure Video Settings.
Setting the OSD text on live video in Section 7.3.2 Configure OSD Settings.

4.4 Operate PTZ Control

Purpose:
In the live view interface, you can use the PTZ control buttons to control panning, tilting and
zooming.

4.4.1 PTZ Control Panel

On the live view page, click to show the PTZ control panel or click to hide it. Click the direction buttons to control the pan/tilt movements.
Click the zoom/iris/focus buttons to realize lens control.
28
Figure 4-4 PTZ Control Panel
Table 4-2 Descriptions of PTZ Control Panel
Button
Name
Description
PTZ Control Panel
Hold and press the direction button
to pan/tilt the device.
Click and the device keeps
panning, the icon turns into .
Click the icon again to stop the
device.
Zoom out/in
Click , the lens zooms in, click
, and the lens zooms out.
Focus near/far
Click , the lens focus far and the
items far away gets clear. Click ,
the lens focus near and the items
nearby gets clear.
29
Button
Name
Description
Iris close/open
When the image is too dark, click
to open the iris. When the
image is too bright, click to
close the iris.
Auxiliary Functions
The auxiliary functions include light,
wiper, auxiliary focus, lens
initialization, manual tracking, 3D
positioning, de-icing heater,
click-to-thermometry, synchronize
FOV
Speed Adjustment
Adjust speed of pan/tilt movements.
Preset
Refer to 4.4.3 for detailed
information of setting preset.
Patrol
Refer to 4.4.3 for detailed
information of setting patrol.
Pattern
Refer to4.4.5 for detailed
information of setting pattern.
Buttons on the Preset/Patrol/Patterns interface:
Table 4-3 Descriptions of Buttons
Buttons
Description
Start the selected patrol/pattern.
Stop current patrol/pattern.
Set the selected preset/patrol.
Delete the selected preset/patrol/pattern.
Start recording a pattern.
Stop recording the pattern.

4.4.2 Auxiliary Functions

The Auxiliary functions panel is shown in the figure below:
Figure 4-5 Auxiliary Functions
Light
30
Click to enable/disable the light supplement of the device. This function is reserved.
Wiper
Click to move the wiper once.
Auxiliary Focus
The auxiliary focus function is reserved.
Click and the lens operates the movements for initialization.
Click to enable manual De-Icing function of the device.
The de-icing function takes effect when the device inner temperature is ≤ 30°C (86°F).
Click to enable/disable the manual thermometry function of the device. You can click any position on the interface to show the real temperature.
Click to synchronize the FOV of optical lens and thermal lens
Manual Tracking
Before you start:
Go to Configuration > System > Maintenance > VCA Resource Type and select the VCA Resource
as Temperature Measurement + Behavior Analysis.
Then go to the. VCA Information Configuration interface:
Configuration > VCA Configuration > VCA Info and enable Intelligent Analysis first.
Steps:
1. Click on the toolbar of live view interface.
2. Click a moving object in the live video.
The device will track the object automatically.
3D Positioning
Steps:
1. Click on the toolbar of live view interface.
2. Operate the 3D positioning function:
3. Click a position of the live video. The corresponding position will be moved to the center of
the live video.
4. Hold down the left mouse button and drag the mouse to the lower right on the live video.
The corresponding position will be moved to the center of the live video and zoomed in.
5. Hold down the left mouse button and drag the mouse to the upper left on the live video. The
corresponding position will be moved to the center of the live video and zoomed out.
31

4.4.3 Set / Call a Preset

Purpose:
A preset is a predefined image position. For the defined preset, you can click the calling button to
quickly view the desired image position.
Set a Preset:
Steps:
1. In the PTZ control panel, select a preset number from the preset list.
Figure 4-6 Set a Preset
2. Use the PTZ control buttons to move the lens to the desired position.
• Pan the speed dome to the right or left.
• Tilt the speed dome up or down.
• Zoom in or out.
• Refocus the lens.
3. Click to finish the setting of the current preset.
4. Edit a preset name by double clicking on the default name such as preset 1. (The pre-defined presets are
named already and not configurable. Please refer to the user manual for detailed function description.)
5. You can click to delete the preset.
You can configure up to 256 presets.
Call a Preset:
In the PTZ control panel, select a defined preset from the list and click to call the preset.
Figure 4-7 Call a Preset
For convenient preset selection, refer to the following steps to navigate to the preset you want.
Steps:
1. Select any preset from the list.
32
2. Click the preset number you need on the keyboard.
The following presets are predefined with special commands. You can only call them but not
configure them. For instance, preset 99 is the “Start auto scan”. If you call the preset 99, the
speed dome starts auto scan function.
Pattern function varies depending on the models of speed dome.
Table 4-4 Special Presets
Preset
Function
Preset
Function
33
Auto flip
92
Start to set limit stops
34
Back to initial position
93
Set limit stops manually
35
Call patrol 1
94
Remote reboot
36
Call patrol 2
95
Call OSD menu
37
Call patrol 3
96
Stop a scan
38
Call patrol 4
97
Start random scan
39
Day mode (IR cut filter in)
98
Start frame scan
40
Night mode (IR cut filter out)
99
Start auto scan
41
Call pattern 1
100
Start tilt scan
42
Call pattern 2
101
Start panorama scan
43
Call pattern 3
102
Call patrol 5
44
Call pattern 4
103
Call patrol 6
45
One-touch Patrol
104
Call patrol 7
90
Wiper
105
Call patrol 8
Figure 4-8 Special Preset
You may need to use the OSD (On Screen Display) menu when controlling the speed dome
remotely. To display the OSD menu on the live view screen, you can call the preset number
95.
33

4.4.4 Set / Call a Patrol

Purpose:
A patrol is a memorized series of preset function. It can be configured and called on the patrol
settings interface. There are up to 8 patrols for customizing. A patrol can be configured with 32
presets.
Before you start:
Please make sure that the presets you want to add into a patrol have been defined.
Set a Patrol:
Steps:
1. In the PTZ control panel, click to go to the. patrol settings interface.
2. Select a patrol number from the list and click .
3. Click to go to the. adding interface of preset, as shown in Figure 4-9.
Figure 4-9 Add Presets
4. Configure the preset number, patrol time and patrol speed.
Name
Description
Patrol Time
It is the duration staying on one patrol point. The device moves to
another patrol point after the patrol time.
Patrol Speed
It is the speed of moving from one preset to another.
5. Click OK to save a preset into the patrol.
6. Repeat the steps from 3 to 5 to add more presets.
7. Click OK to save all the patrol settings.
Call a Patrol:
In the PTZ control panel, select a defined patrol from the list and click to call the patrol, as
shown in Figure 4-10.
34
Figure 4-10 Call a Preset

4.4.5 Set / Call a Pattern

Purpose:
A pattern is a memorized series of pan, tilt, zoom, and preset functions. It can be called on the
pattern settings interface. There are up to 4 patterns for customizing.
Pattern function varies depending on device models.
Set a Pattern:
Steps:
1. In the PTZ control panel, click to go to the. pattern settings interface.
2. Select a pattern number from the list as shown in Figure 4-11.
Figure 4-11 Patterns Settings Interface
3. Click to enable recording the panning, tilting and zooming actions.
4. Use the PTZ control buttons to move the lens to the desired position after the information of
PROGRAM PATTERN REMAINNING MEMORY(%) is displayed on the screen.
Pan the device to the right or left. Tilt the device up or down. Zoom in or out. Refocus the lens.
35
5. Click to save all the pattern settings.
Buttons on the Patterns interface:
Buttons
Description
Start the selected patrol/pattern.
Stop current patrol/pattern. Set the selected preset/patrol.
Delete the selected preset/patrol/pattern.
Start recording a pattern.
Stop recording the pattern.
These 4 patterns can be operated separately and with no priority level. When configuring and calling the pattern, proportional pan is valid; the limit stops and auto
flip will be invalid; and the 3D positioning operation is not supported.

4.5 Quick Setup

It allows quick setup of image/video related parameters on live view page.
Steps:
1. Click button on the right of the live view page to show the PTZ control panel. Click to
hide it.
2. Specify Display, OSD, Video/Audio, and VCA resource parameters. For more settings, go to
Configuration -> Image, Configuration -> Video/Audio and Configuration -> VCA.
Display Settings
Set the brightness, contrast, palettes, DNR, DDE, etc.
OSD (On Screen Display)
Set text information displayed on screen. Save the settings after configuration.
Video/Audio
Resolution and Max. Bit rate are adjustable. Click to change stream.
VCA Resource
Select VCA resource type as required.
Note:
VCA Resource function varies according to different camera models. VCA options are mutually exclusive. The function may not be supported by some camera models.
36

4.6 Playback

Purpose:
This section explains how to view the video files stored in the network disks or memory cards.

4.6.1 Play Back Video Files

Steps:
1. Click on the menu bar to enter playback interface.
Figure 4-12 Playback Interface
2. Select the date and click .
Figure 4-13 Search Video
3. Click to play the video files found on this date.
The toolbar on the bottom of Playback interface can be used to control playing process.
Figure 4-14 Playback Toolbar
37
Table 4-5 Description of the buttons
Button
Operation
Button
Operation
Play
Capture a picture
Pause
/
Start/Stop clipping
video files
Stop
/
Audio on and adjust
volume/Mute
Speed down
Download
Speed up
Playback by frame
/ / /
Display in
1×1/2×2/3×3/4×4
window.
Show full screen
Stop all Playback
Play recorded videos
of different cameras
asynchronously.
Play recorded videos
of different cameras
synchronously.
You can choose the file paths locally for downloaded playback video files and pictures in Local
Configuration interface. Please refer to Section 4.1 Configure Local Parameters for details.
Drag the progress bar with the mouse to locate the exact playback point. You can also input the
time and click to locate the playback point in the Set playback time field. You can also
click to zoom out/in the progress bar.
Figure 4-15 Set Playback Time
Figure 4-16 Progress Bar
The different colors of the video on the progress bar stand for the different video types as shown
in Figure 4-17.
Figure 4-17 Video Types
38
Synchronously play recorded videos of different channels
Steps:
1. Click to enable synchronous playback function.
2. Choose camera channels.
3. Setting date and time of recorded videos.
4. Click to view the videos of optical channel and thermal channel synchronously.
Asynchronously play recorded videos of different channels
Steps:
1. Click to enable asynchronous playback function.
2. Choose Channel No: 1.
3. Setting date and time of recorded videos.
4. Choose Channel No: 2.
5. Setting date and time of recorded videos.
6. Repeat step 2-5 to configure the date and time for different channels separately.
7. Click to view the videos of optical channel and thermal channel asynchronously.

4.6.2 Download Video Files

Steps:
1. Click . The pop-up menu is shown in Figure 4-18.
2. Set the start time and end time. Click Search. The corresponding video files are listed on the
left.
39
Figure 4-18 Video Downloading interface
3. Select the video files that you need to download.
4. Click .

4.7 Picture

Purpose:
This section explains how to view the captured picture files stored in the network disks or the
memory cards and download the captured pictures.
Steps:
1. Click .
40
Figure 4-19 Picture Interface
2. Select the channel No. and file type of capturing the pictures from the list as timing, alarm,
motion, etc.
3. Set the start time and end time. Click Search. The corresponding picture files will be listed.
4. Select the files that you need to download.
5. Click .
41

Chapter 5 System Configuration

5.1 Storage Settings

Before you start:
To configure record settings, please make sure that you have the network storage device within
the network or the memory card inserted in your device.

5.1.1 Configure Recording Schedule

Purpose:
There are two kinds of recording for the devices: manual recording and scheduled recording. In
this section, you can follow the instructions to configure the scheduled recording. By default, the
record files of scheduled recording are stored in the memory card (if supported) or in the
network disk.
Steps:
1. Go to Record Schedule settings interface:
Configuration > Storage > Schedule Settings > Record Schedule
Figure 5-1 Recording Schedule Interface
2. Check Enable.
3. Click to set the advanced settings of the device.
42
Figure 5-2 Record Parameters
Pre-record: The time you set to start recording before the scheduled time or the event.
For example, if an alarm triggers recording at 10:00, and the pre-record time is set as 5
seconds, the device starts to record at 9:59:55.
The pre-record time changes according to the video bitrate.
Post-record: The time you set to stop recording after the scheduled time or the event.
For example, if an alarm triggered recording ends at 11:00, and the post-record time is
set as 5 seconds, the device records until 11:00:05.
Stream Type: You can select the stream type for recording; Main Stream, Sub Stream
and Third Stream are selectable. If you select the sub stream, you can record for a longer
time with the same storage capacity.
The Pre-record and Post-record parameters vary depending on the models of device.
4. Click OK.
5. Select a Record Type. The record type can be Continuous, Motion, Alarm, Motion | Alarm,
Motion & Alarm, and Event.
Normal: If you select Continuous, the video will be recorded automatically according to
the time of the schedule.
Record Triggered by Motion Detection: If you select Motion, the video will be recorded
when the motion is detected. Besides configure the recording schedule, you have to set
the motion detection area and check Trigger Channel in the Linkage Method of Motion
Detection settings interface. For detailed information, please refer to Section Motion
Detection.
Record Triggered by Alarm: If you select Alarm, the video will be recorded when the
alarm is triggered via the external alarm input channels. Besides configure the recording
schedule, you have to set the Alarm Type and check Trigger Channel in the Linkage
Method of Alarm Input settings interface. For detailed information, please refer to
Section Alarm Input.
Record Triggered by Motion & Alarm: If you select Motion & Alarm, the video will be
recorded when the motion and alarm are triggered at the same time. Besides configure
the recording schedule, you have to configure the settings on the Motion Detection and
Alarm Input settings interfaces.
Record Triggered by Motion | Alarm: If you select Motion | Alarm, the video will be
43
recorded when the external alarm is triggered or the motion is detected. Besides
configure the recording schedule, you have to configure the settings on the Motion
Detection and Alarm Input settings interfaces.
Record Triggered by VCA events: If you select VCA, the video will be recorded when the
either of the VCA events is triggered. Besides configure the recording schedule, you have
to configure the settings on the VCA interface.
VCA function varies depending on the models of device.
Record Triggered by Event: If you select to record by event, the video will be recorded
when any of the events is triggered.
6. Click .

5.1.2 Configure Capture Schedule

Purpose:
You can configure the scheduled snapshot and event-triggered snapshot. The captured picture
can be stored in the local storage or network storage.
Steps:
1. Go to the. Snapshot settings interface:
Configuration > Storage > Schedule Settings > Capture
Figure 5-3 Snapshot Settings
2. Click .
3. Select the timeline of a certain day, click and drag the left button of the mouse to set
the capture schedule (the start time and end time of the recording task).
4. After you set the scheduled task, you can click and copy the task to other days
(optional).
5. After setting the capture schedule, you can click a capture segment to display the
44
segment capture settings interface to edit the segment capture parameters. (optional)
Figure 5-4 Segment Snapshot Settings
6. Click . You can select the stream type of the capture.
7. Click .
8. Check Enable Timing Snapshot to enable continuous snapshot, and configure the
schedule of timing snapshot. Check Enable Event-triggered Snapshot to enable
event-triggered snapshot.
9. Select the format, resolution, quality of the snapshot.
10. Set the time interval between two snapshots.
11. Click .
Uploading to FTP
Please make sure that the FTP server is online.
You can follow below configuration instructions to upload the snapshots to FTP.
Upload continuous snapshots to FTP
Steps:
1) Configure the FTP settings and check Upload Picture checkbox in FTP Settings interface.
Please refer to Section 7.1.2 for more details to configure FTP parameters.
2) Check the Enable Timing Snapshot checkbox.
3) Click Edit to set the snapshot schedule. Refer to Section 5.2.1.
Upload event-triggered snapshots to FTP
Steps:
1) Configure the FTP settings and check Upload Picture checkbox in FTP Settings interface.
Please refer to Section 7.1.2 for more details to configure FTP parameters.
2) Check Upload to FTP checkbox in Motion Detection Settings or Alarm Input interface.
Refer to Section 5.2.1.
3) Check Enable Event-triggered Snapshot.

5.1.3 Configure Net HDD

Before you start:
The network disk should be available within the network and properly configured to store the
recorded files, log files, etc.
45
Steps:
Add the network disk
1. Go to the. NAS (Network-Attached Storage) settings interface:
Configuration > Storage > Storage Management > Net HDD
Figure 5-5 Select Net HDD Type
2. Input the IP address and the file path of the network disk.
3. Select the mounting type. NFS and SMB/CIFS are selectable. You can set the user name and
password to guarantee the security if SMB/CIFS is selected.
Please refer to the NAS User Manual for creating the file path.
We highly recommend you create a strong password of your own choosing (using a minimum
of 8 characters, including upper case letters, lower case letters, numbers, and special
characters) in order to increase the security of your product. And we recommend you reset
your password regularly, especially in the high security system, resetting the password
monthly or weekly can better protect your product.
4. Click .
After having saved successfully, you need to reboot the device to activate the settings.
Initialize the added network disk.
1. Go to the HDD settings interface (Configuration > Storage > Storage Management > HDD
Management), in which you can view the capacity, free space, status, type and property of
the disk.
46
Figure 5-6 Storage Management Interface
2. If the status of the disk is Uninitialized, check the corresponding checkbox to select the disk
and click Format to start initializing the disk.
3. When the initialization completed, the status of disk will become Normal as shown in Figure
5-7.
Figure 5-7 View Disk Status
Define the Quota for Record and Pictures
1. Input the quota percentage for picture and for record.
2. Click Save and refresh the browser page to activate the settings.
Figure 5-8 Quota Settings
Up to 8 NAS disks can be connected to the device. To initialize and use the memory card after insert it to the device, please refer to the steps of
NAS disk initialization

5.2 Event Configuration

Purpose:
47
This section explains how to configure the network device to respond to alarm events, including
motion detection, video tampering alarm input, alarm output and exception. These events can
trigger the alarm actions, such as Send Email, Notify Surveillance Center, etc.
For example, when motion detection is triggered, the network device sends a notification to an
e-mail address.
On the event configuration page, click to show the PTZ control panel or click to hide it. Click the direction buttons to control the pan/tilt movements. Click the zoom/iris/focus buttons to realize lens control. The functions vary depending on the models of device.

5.2.1 Configure Motion Detection

Purpose:
Motion detection is a feature which can trigger alarm actions and actions of recording videos
when the motion occurred in the surveillance scene.
Steps:
1. Go to the. motion detection setting interface:
Configuration > Event > Basic Event > Motion Detection
2. Select the channel to set the motion detection.
3. Check Enable Motion Detection.
You can check Enable Dynamic Analysis for Motion if you want the detected object get
marked with rectangle in the live view.
4. Select the configuration mode as Normal or Expert and set the corresponding motion
detection parameters.
Normal
48
Figure 5-9 Motion Detection Settings-Normal
Steps:
(1) Click and drag the mouse on the live video image to draw a motion
detection area.
(2) Click to finish drawing.
You can draw up to 8 motion detection areas on the same image. You can click Clear All to clear all of the areas.
(3) Move the slider to set the
sensitivity of the detection.
Expert
49
Figure 5-10 Motion Detection Settings-Expert
Steps:
(1) Set the Schedule Image Settings, there are OFF, Auto-Switch and Scheduled-Switch
selectable. If the schedule image switch mode is enabled, you can configure the
detection rule for the day and night separately.
OFF: Disable the day and night switch.
Auto-Switch: Switch the day and night mode according to the illumination
automatically.
Scheduled-Switch: Switch to the day mode at 6:00 a.m., and switch to the night mode
at 18:00 p.m..
(2) Select Area No. to configure in the dropdown list. (3) Set the values of sensitivity and proportion of object on area.
Sensitivity: The greater the value is, the easier the alarm will be triggered.
Proportion of Object on Area: When the size proportion of the moving object exceeds
the predefined value, the alarm will be triggered. The less the value is, the easier the
alarm will be triggered.
5. Set the Arming Schedule for Motion Detection.
(1) Click .
50
Figure 5-11 Arming Schedule
(2) Select the timeline of a certain day, click and drag the mouse to set the arming
schedule (the start time and end time of the arming task).
(3) After you set the scheduled task, you can click and copy the task to other days
(optional).
Figure 5-12 Arming Time Schedule
(4) After setting the arming schedule, you can click a segment to display the segment
arming settings interface to edit the segment record parameters (optional).
Figure 5-13 Segment Arming Settings
(5) Click .
51
The time of each period cannot be overlapped. Up to 8 periods can be configured for each
day.
6. Set the Alarm Actions for Motion Detection.
Click tab to go to the. Linkage Method interface.
You can specify the linkage method when an event occurs. The following contents are about
how to configure the different types of linkage method.
Figure 5-14 Linkage Method
Check to select the linkage method. Notify Surveillance Center, Send Email, Upload to
FTP/Memory/NAS, Trigger Alarm Output and Trigger Recording are selectable.
Notify Surveillance Center
Send an exception or alarm signal to remote management software when an event
occurs.
Send Email
Send an email with alarm information to a user or users when an event occurs.
To send the Email when an event occurs, you need to refer to Section Configure Email
Settings to set the Email parameters.
Upload to FTP/Memory/NAS
Capture the image when an alarm is triggered and upload the picture to a FTP server.
You need a FTP server and set FTP parameters first. Refer to Section Configure FTP for
setting FTP parameters.
Trigger Alarm Output
Trigger one or more external alarm outputs when an event occurs.
52
To trigger an alarm output when an event occurs, please refer to Section 5.2.4
Configure Alarm Output to set the alarm output parameters.
Trigger Recording
Record a video when an event occurs.
You have to set the recording schedule to realize this function. Please refer to Section
5.1.1 Configure Recording Schedule for settings the recording schedule.

5.2.2 Configure Video Tampering Alarm

Purpose:
You can configure the device to trigger the alarm actions when the lens is covered.
Steps:
1. Go to the. Video Tampering settings interface :
Configuration > Event > Basic Event > Video Tampering
2. Select the channel to set the video tampering alarm.
Figure 5-15 Tampering Alarm
3. Check Enable.
4. Click tab to go to the. arming schedule setting interface. The arming
schedule configuration is the same as the setting of the arming schedule for motion detection.
Refer to Section 5.2.1 Configure Motion Detection.
53
5. Click tab to select the linkage method taken for tampering, notify
surveillance center, send email and trigger alarm output are selectable. Refer to Section 5.2.1
Configure Motion Detection.
6. Click .

5.2.3 Configure Alarm Input

Steps:
1. Go to the. Alarm Input settings interface:
Configuration > Event > Basic Event > Alarm Input
2. Choose the alarm input No. and the Alarm Type. The alarm type can be NO (Normally Open)
and NC (Normally Closed).
3. Edit the name in to set a name for the
alarm input (optional).
Figure 5-16 Alarm Input Settings
4. Click tab to go to the. arming schedule setting interface. The arming
schedule configuration is the same as the setting of the arming schedule for motion detection.
Refer to Section 5.2.1 Configure Motion Detection.
5. Click tab to select the linkage method taken for alarm input, including
Notify Surveillance Center, Send Email, Upload to FTP/Memory Card/NAS, Trigger Alarm
Output and Trigger Recording. Refer to Section 5.2.1 Configure Motion Detection.
6. You can also choose the PTZ linking for the alarm input. Check the relative checkbox and
select the No. to enable Preset Calling, Patrol Calling or Pattern Calling.
7. You can copy your settings to other alarm inputs.
54
8. Click .
Figure 5-17 Linkage Method

5.2.4 Configure Alarm Output

Steps:
1. Go to the. Alarm Output settings interface:
Configuration> Event > Basic Event > Alarm Output
2. Select one alarm output channel in the Alarm Output dropdown list.
3. Set a name in for the alarm output
(optional).
4. The Delay time can be set to 5sec, 10sec, 30sec, 1min, 2min, 5min, 10min or Manual. The
delay time refers to the time duration that the alarm output remains in effect after alarm
occurs.
5. .Select the Alarm Type. The alarm type can be NO (Normally Open) and NC (Normally
Closed)
6. Click tab to go to the. arming schedule setting interface. The time
schedule configuration is the same as the settings of the arming schedule for motion
detection. Refer to Section 5.2.1 Configure Motion Detection.
55
Figure 5-18 Alarm Output Settings
7. You can copy the settings to other alarm outputs.
8. Click .

5.2.5 Handle Exception

The exception type can be HDD full, HDD error, network disconnected, IP address conflicted and
illegal login to the devices.
Steps:
1. Go to the. Exception settings interface:
Configuration > Event > Basic Event > Exception
2. Check to set the actions taken for the Exception alarm. Refer to Section 5.2.1 Configure
Motion Detection.
56
Figure 5-19 Exception Settings
3. Click .

5.2.6 Configure Burning-Prevention

Purpose:
This function enable the movement of lens to protect it from high temperature damage.
Steps:
1. Go to Burning-Prevention interface.
2. Check Enable.
3. Set the protection mode as Lens Movement.
4. Set the protection duration.
5. Click Save.
57
Figure 5-20 Burning-Prevention

5.2.7 Detect Audio Exception

Purpose:
When you enable this function and audio exception occurs, the alarm actions will be triggered.
Steps:
1. Go to the video audio exception detection interface:
Configuration > Event > Smart Event > Audio Exception Detection
Figure 5-21 Audio Exception Detection
2. Check Audio Loss Detection to enable the audio input exception detection.
3. Check Sudden Increase of Sound Intensity Detection to enable the sudden rise detection.
Sensitivity: Range [1-100], the smaller the value the more severe the sound change will
58
trigger the detection.
Sound Intensity Threshold: Range [1-100], it can filter the sound in the environment, the
louder the environment sound, the higher the value should be. You can adjust it according
to the actual environment.
4. Check Sudden Decrease of Sound Intensity Detection to enable the sudden drop detection.
Sensitivity: Range [1-100], the smaller the value the more severe the sound change will
trigger the detection.
5. Click tab to go to the. arming schedule setting interface. The time
schedule configuration is the same as the settings of the arming schedule for motion
detection. Refer to Section 5.2.1 Configure Motion Detection.
6. Click tab to select the linkage method taken for the audio input exception,
Notify Surveillance Center, Send Email, Trigger Alarm Output and Trigger Recording are
selectable. Refer to Section 5.2.1 Configure Motion Detection.
7. Click .

5.3 Fire Source Detection Configuration

The functions vary depending on the models of device.
59
If GPS information is required for
platform accessing?
Start
YES NO
Enable GPS of Position
Settings
Set the application scene
and zoom parameters.
Set the VCA resource to
Fire Detection
Enable Fire Detection
(Event > Dynamic Fire Source Detection)
If the PTZ function is supported by the
camera?
YES
END
NO
Enable Fire Detection Shield.
Enable the
patrol/park/linear scan.
Set the north as the
Initial Position
Enable the fire point in
the Local Settings.

5.3.1 Configure Initial Position

Purpose:
The initial position is the origin of PTZ coordinates. It can be the factory default initial position.
You can also customize the initial position according to your own demand.
If you connect the device to the system platform, the platform can mark all the fire positions.
Steps:
60
1. Go to the. Position Settings interface:
Configuration > PTZ > Position Settings.
Figure 5-22 Position Settings
2. Set the compass parameters. (1) Select PT Mode as Manual. (2) Click the PTZ control buttons to find the north direction; you can also call a defined
preset and set it as the north direction.
(3) Click Set as North to save the position. (4) Optionally, you can click Point to North to move the device to the north direction if the
north direction was once saved.
3. Set the sensitivity of Vandal-proof Alarm. The higher the value is, more easily the alarm will
be triggered.
4. Enable or disable the alarm uploading and alarm voice warning function.
5. Set GPS settings. (4) Select Longitude-Latitude Mode as Manual. (5) Select longitude and latitude as East or West according to the actual position. (6) Input the value of longitude and latitude in three textboxes.
6. Click Point to North and save.
7. Go to the Initial Position Configuration interface:
Configuration > PTZ > Initial Position
61
Figure 5-23 PTZ Configuration
8. Click the PTZ control buttons to find a position as the initial position of the device; you can
also call a defined preset and set it as the initial position of the device.
9. Click Set to save the position.
Call/delete an Initial Position:
You can click to call the initial position. You can click to delete the initial position and
restore the factory default initial position.

5.3.2 Configure Dynamic Fire Source Detection

Purpose:
When you enable this function and fire source or smoke is detected, the alarm actions will be
triggered. You can set different detection mode, fire source zoom mode, and so on.
Steps:
1. Enter Configuration>Advanced Configuration>System>VCA Resource Type to select Fire and
Smoke Detection as VCA Resource Type.
2. Go to the. fire and smoke detection interface:
Configuration > Event > Smart Event > Dynamic Fire Source Detection
62
Figure 5-24 Dynamic Fire Source Detection
3. Check Enable Dynamic Fire Source Detection.
The function of dynamic fire source detection can only be enabled for camera 2.
4. Check Display Fire Source Info on Stream to add fire source information on stream, and the
overlay will be displayed in live view.
5. Select the Application Scene from the list. Forest-Fire Prevention, Straw Burning,
High-building, and Indoor/Perimeter are selectable. Set the Installation Height for scene if
required.
6. Set the fire detection parameters:
Detection Mode: Select detection mode as by Multiple Frame, and the system alarms
with high accuracy. Select detection mode as by Single Frame, and the system alarms with
short delay.
Sensitivity: Set the detection sensitivity and verification sensitivity of fire detection. The
smaller the value is, the lower temperature the fire souce can be detected.
Hold-and-Alarm Mode: The system will stop when it detects the fire source. You can set
the duration while it keeps still.
- In Auto mode, you can set the dwell time, range [0-120]. During the dwell time the
camera stays still where it detects the fire source when performing auto scan,
patrol, pattern, scheduled task, and park action.
- In Manual Mode, the device stays still where it detects the fire source, until you
manually moves the camera.
63
Fire Source Zoom Ratio: Set the zoom ratio of the optical channel when it detects the fire
source. In Auto mode, the optical channel changes its zoom ratio until two channels have
the same field of view. In Manual mode, you can set the optical zoom ratio.
Cancel Repeated Alarm: Enable this function to trigger alarm only once for same place
during one day.
7. Check Display Fire Source Frame on Stream to display a red frame around the fire source on
stream when fire occurs. (Optional)
8. Check to select the linkage method taken for the alarm input. Refer to Step 3 in Section 5.2.1
Configure Motion Detection. In the field of Other Linkage, you can check to enable the
alarm output (The alarm output number varies depending on device ability).
9. Click .

5.3.3 Configure Fire Source Detection Shield

Purpose:
Fire Source Shield enables you to shield certain areas from being detected in fire source
detection.
The privacy mask function is supported by the optical lens only.
Steps:
1. Go to the. Fire Source Detection Shield Setting interface:
Configuration > Event > Smart Event > Fire Source Detection Shield
64
Figure 5-25 Fire Source Detection Shield
2. Click the PTZ control buttons to find the area you want to shield from the smoke detection.
3. Click Draw Area and drag the mouse in the live video window to draw the area.
4. You can drag the corners of the red rectangle area to change its shape and size.
5. Click Stop Drawing to finish drawing or click Clear All to clear all of the areas you set without
saving them.
6. Set the value of Active Zoom Ratio on your demand, and then the shield will only appear
when the zoom ratio is greater than the predefined value.
7. Click Add to save the smoke detection shield, and it will be listed in the Fire Source
Detection Shield List area; you can select a region and click Delete to delete it from the list;
you can also define the color of the regions.
8. Check Enable Fire Source Detection Shield to enable this function.
You are allowed to draw up to 24 areas on the same image.
9. Click .
For some models, the smoke detection function is not supported and you cannot
select Fire and Smoke Detection Mode.
65

5.4 Temperature Measurement

Purpose:
When you enable this function, it measures the actual temperature of the spot being monitored.
The device alarms when temperature exceeds the temperature threshold value.
Before You Start:
Enter Configuration > Advanced Configuration > System > VCA Resource Type to select
Temperature Measurement + Behavior Analysis as VCA Resource Type.

5.4.1 Configure Temperature Measurement

Steps:
1. Go to Configuration > Temperature Measurement > Basic Settings.
Figure 5-26 Dynamic Fire Source Detection
2. Set the temperature measurement configurations.
Enable Temperature Measurement: Check to enable temperature measurement function. Enable Color-Temperature: Check to display Temperature-Color Ruler in live view. Display Temperature Info. on Stream: Check to display temperature information on the
stream.
66
Display Temperature in Optical Channel: Check to display thermal channel temperature
information in the optical channel.
Display Max. Temperature: Check to display maximum temperature information in
thermal view when the temperature measurement rule is line or area.
Display Min. Temperature: Check to display minimum temperature information in
thermal view when the temperature measurement rule is line or area.
Display Average Temperature: Check to display average temperature information in
thermal view when the temperature measurement rule is line or area.
Position of Thermometry Info: Select the position of temperature measurement
information showed on the live view interface. Select Top Left to display the information
on the top left of screen. Select Near Target to display the information around the
temperature measurement rule.
Add Original Data on Capture: Check to add original data on capture. Add Original Data on Stream: Check to add original data on stream. Data Refresh Interval: Select the data refresh interval from 1s to 5s. Unit: Display temperature with Degree Celsius (°C)/Degree Fahrenheit (°F)/Degree Kelvin
(K）.
Temperature Range: Set the temperature range. Version: View the version of current algorithm.
3. Clcik Save .

5.4.2 Temperature Measurement and Alarm

Purpose:
This function is used for measuring the temperature of detected spot and the device compares
temperature of selected regions and alarms.
Steps:
Normal Mode
1. Go to Configuration > Temperature Measurement > Advanced Settings.
2. Select the temperature measurement and alarm configuration as Normal.
3. Configure the parameters.
67
Figure 5-27 Temperature Measurement Configuration
Emissivity: Set the emissivity of your target.
The emissivity of each object is different.
Distance (m): The straight-line distance between the target and the device.
Pre-Alarm: When the temperature of target exceeds the Pre-Alarm Threshold, and
this status keeps NOT shorter than the Filtering Time, it triggers the Pre-Alarm.
Check Pre-Alarm Output to set link the pre-alarm with the connected alarm device.
Alarm: When the temperature of target exceeds the Alarm Threshold, and this status
keeps NOT shorter than the Filtering Time, it triggers the Alarm.
Check Alarm Output to set link the pre-alarm with the connected alarm device.
4. Click Save.
Expert Mode:
1. Enter Configuration > Temperature Measurement > Advanced Settings.
2. Select the temperature measurement and alarm configuration as Expert.
3. Adjust the PTZ.
68
Figure 5-28 Temperature Measurement Configuration
4. Adjust the image to the scene for temperature measurement with the PTZ control
panel. Save current scene as certain preset.
You can set the preset in live view interface before and call the preset in the
temperature measurement and alarm interface.
You can set/ call/ clear the preset in temperature measurement interface. Click Synchronize FOV this button to synchronize the FOV of thermal light channel
and optical light channel.
5. Configure the parameters.
1) Set the alarm rule: Select a temperature measurement rule from the rule list and
configure the parameters.
Name: You can customize the rule name.
Type: Select Point, Line, or Area as rule type.
Emissivity: Set the emissivity of your target. The emissivity of each object is different,
you can refer to the Quick Start Guide Appendix for details.
Distance (m): The straight-line distance between the target and the device.
Reflective Temperature: If there is any target with high emissivity in the scene, check
and set the reflective temperature to correct the temperature. If no such target exists,
69
uncheck the checkbox.
Tolerance Temperature: The device judges whether the triggered alarm stops until
the device temperature/temperature difference is lower than rule temperature by
tolerance temperature. E.g., set tolerance temperature as 3°C, set alarm temperature
as 55°C, and set pre-alarm temperature as 50°C. The device sends pre-alarm when its
temperature reaches 50°C and it alarms when its temperature reaches 55°C and only
when the device temperature is lower than 52°C will the alarm be cancelled.
2) Set the alarm rules.
For Point Rule:
a) Click to show the Alarm Rule setting interface.
Figure 5-29 Alarm Rule Settings (Point)
b) Set the alarm rule. c) Set the Alarm Temperature, Pre-Alarm Temperature, and Tolerance Temperature. d) Set the Pre-Alarm Output and Alarm Output with the connected alarm sensor and
alarm device.
E.g., select Alarm Rule as Above (Average Temperature), and set the Alarm
Temperature to 50 °C, and the device alarms when its average temperature is higher
than 50 °C.
For Line Rule:
a) Click to show the Alarm Rule setting interface.
70
Figure 5-30 Alarm Rule Settings (Line)
b) Set the alarm rule. c) Set the Alarm Temperature, Pre-Alarm Temperature, and Tolerance Temperature. d) Set the Pre-Alarm Output and Alarm Output with the connected alarm sensor and
alarm device.
E.g., select Alarm Rule as Above (Max. Temperature) and set the Alarm Temperature
to 40 °C, and the device alarms when the maximum temperature is higher than 40 °C.
For Area Rule:
Task 1.
a) Click to show the Alarm Rule setting interface.
Figure 5-31 Alarm Rule Settings (Area)
b) Set the alarm rule. c) Set the Alarm Temperature, Pre-Alarm Temperature, and Tolerance Temperature. d) Set the Pre-Alarm Output and Alarm Output with the connected alarm sensor and
alarm device.
E.g., select Alarm Rule as Above (Max. Temperature) and set the Alarm Temperature
to 40 °C, and the device alarms when the maximum temperature is higher than 40 °C.
Task 2.
71
For two alarm rules of area, you can set the alarm for area temperature difference.
a) Set the area alarm rules.
b) Click to show the area temperature
difference alarm interface.

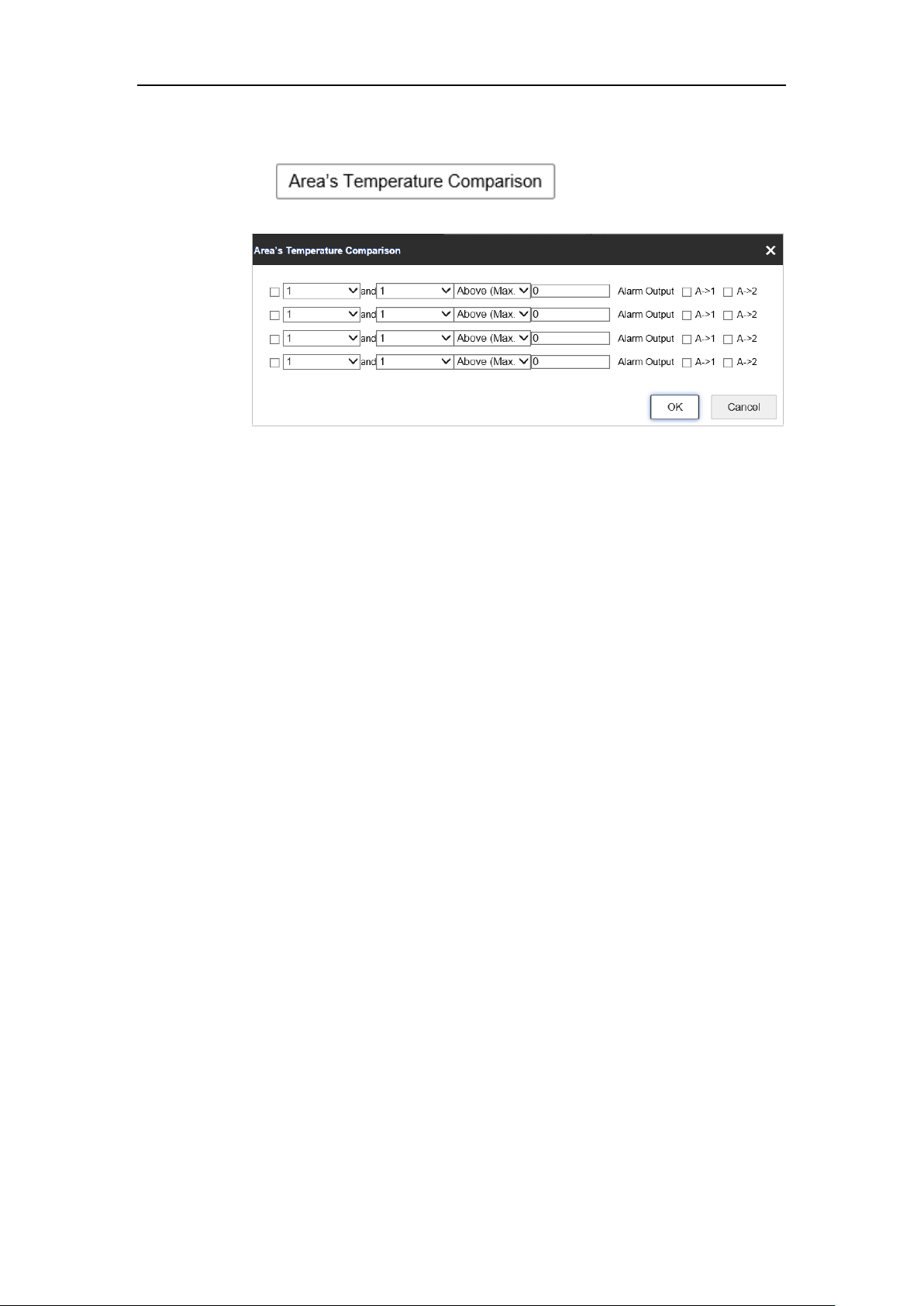

Figure 5-32 Area Temperature Difference Alarm
c) Select two rules to compare the saved areas. d) Set the alarm rules and the temperature.
E.g., select Area 1 and Area 2, and set the comparison rule as Above (Max.
Temperature), and set the temperature difference threshold to 5 °C. The device
alarms when the difference of two areas' maximum temperature is above 5 °C.
e) Set the Alarm Output with the connected alarm sensor and alarm device.

5.4.3 Linkage Method

Purpose:
Set the linkage method of the alarm.
Steps:
1. Go to Configuration > Temperature Measurement > Linkage Method.
2. Set the arming schedule and linkage method.
Arming Schedule: Click on the time bar and drag the mouse to select the time period. Linkage Method: Click Linkage Method and check to select the linkage method. Audible
warning, notify surveillance center, send email, upload to FTP, trigger channel and
trigger alarm output are selectable. You can specify the linkage method when an event
occurs.
3. Click Save.
After the settings, you can view the current temperature and humidity on the top of this
interface.

5.4.4 Search History Temperature

Purpose:
Search the history temperature and generate the temperature/time graphic.
Steps:
72
1. Select the camera channel, preset point, rule and display time interval from the drop-down
list.
2. Set the start time.
3. Click Search to generate the graphic.
4. Click Export to download the graphic.

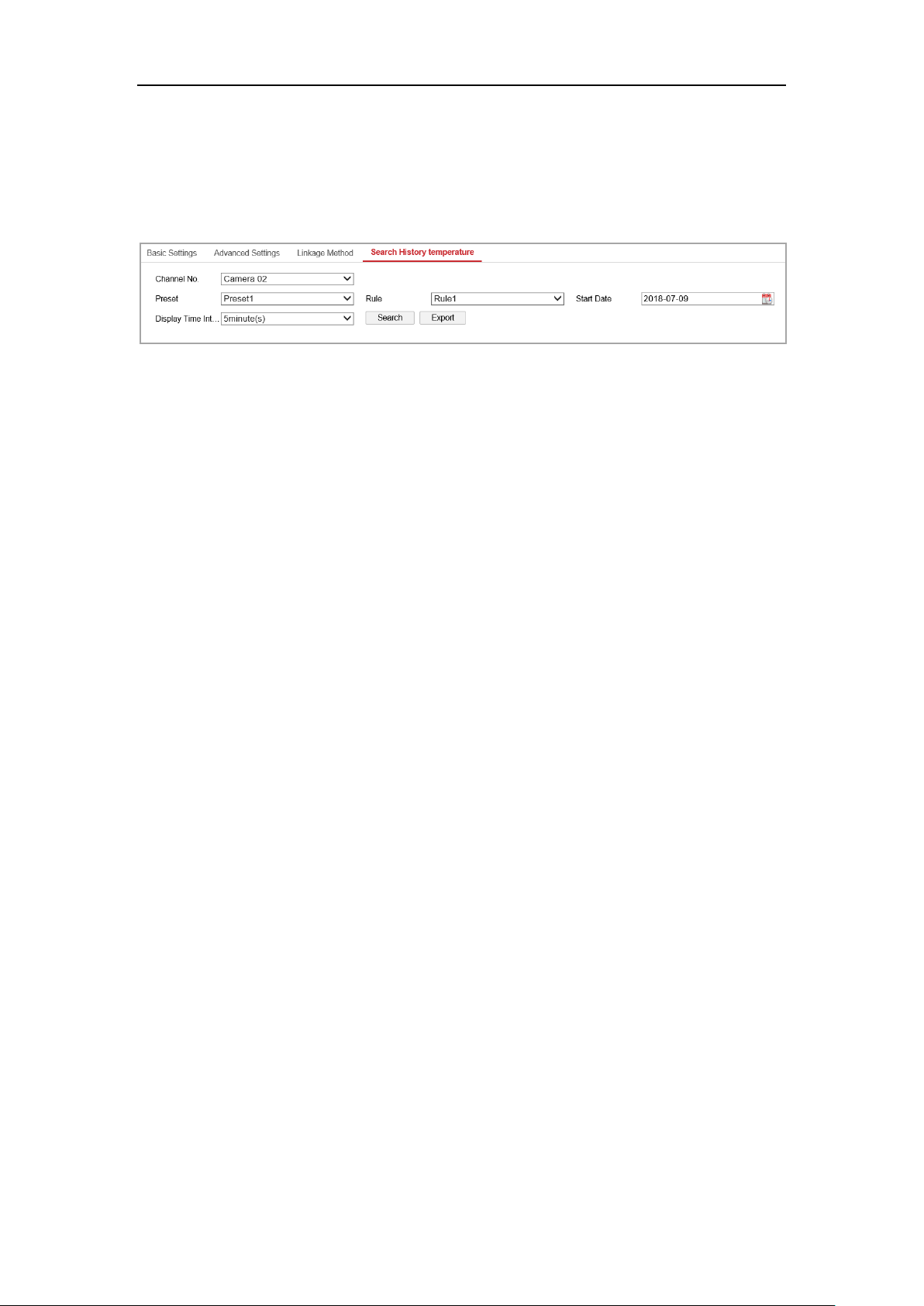

Figure 5-33 History Temperature Graphic Configuration
73

5.5 PTZ Configuration

On the event configuration page, click to show the PTZ control panel or click to hide it. Click the direction buttons to control the pan/tilt movements. Click the zoom/iris/focus buttons to realize lens control. The functions vary depending on the models of device.

5.5.5 Configure Basic PTZ Parameters

Purpose:
You can configure the basic PTZ parameters, including proportional pan, preset freezing, preset
speed, etc.
4. Go to the. Basic PTZ Parameter Configuration interface:
Configuration > PTZ > Basic Settings
Figure 5-34 Basic PTZ Configuration Interface
5. Configure the following settings:
Basic Parameters: Enable/disable proportional pan and preset freezing, set the preset speed,
keyboard control speed, and auto scan speed.
74
Proportional Pan: If you enable this function, the pan/tilt speeds change according to
the amount of zoom. When there is a large amount of zoom, the pan/tilt speed will be
slower for keeping the image from moving too fast on the live view image.
Preset Freezing: This function enables the live view to switch directly from one scene
defined by a preset to another, without showing the middle areas between these two, to
ensure the surveillance efficiency. It can also reduce the use of bandwidth in a digital
network system.
Preset freezing function is invalid when you calling a pattern.
Preset Speed: You can set the speed of a defined preset from 1 to 8. Manual Control Speed: The device provides 5 control speed modes: Compatible,
Pedestrian, Non-motor Vehicle, Motor Vehicle and Auto. Select it from the dropdown list.
Keyboard Control Speed: Define the speed of PTZ control by a keyboard as Low, Medium
or High.
Auto Scan Speed: The scan speed can be set from level 1 to 40. Auto Flip : Select auto flip mode as ON/OFF. Max. Tilt-angle: Set the tilt-angle of the device from the dropdown list. Zooming Speed: The speed of zooming is adjustable.
PTZ OSD: Set the on-screen display duration of the PTZ status.
Zoom Status: Set the OSD duration of zooming status as 2 seconds, 5 seconds, 10
seconds, Always Close or Always Open.
PT Status: Set the azimuth angle display duration while panning and tilting as 2 seconds,
5 seconds, 10 seconds, Always Close or Always Open.
Position Display Format: Set the position display format as PT or Direction and the
position parameter displays in corresponding format.
Preset Status: Set the preset name display duration while calling the preset as 2 seconds,
5 seconds, 10 seconds, Always Close or Always Open.
Action Status Display: Display the current status of device in optical channel or not. Such as patrol, fire
detection, etc.
Power-off Memory: The device can resume its previous PTZ status or actions after it
restarted from a power-off. You can set the time point of which the device resumes its PTZ
status. You can set it to resume the status of 30 seconds, 60 seconds, 300 seconds or 600
seconds before power-off.
Linkage Control: Check Synchronized Zoom to zoom the thermal lens and optical lens at the
same time. The image of these two channels will be consistent.
6. Click .

5.5.6 Configure PTZ Limits

Purpose:
The device can be programmed to move within the configurable PTZ limits (left/right, up/down).
Steps:
5. Go to the. Limit configuration interface:
75
Configuration > PTZ > Limit
Figure 5-35 Configure the PTZ Limit
6. Click Enable Limit and choose the limit type as manual stops or scan stops.
Manual Stops:
When manual limit stops are set, you can operate the PTZ control panel manually only in the
limited surveillance area.
Scan Stops:
When scan limit stops are set, the random scan, frame scan, auto scan, tilt scan, panorama
scan is performed only in the limited surveillance area.
Manual Stops of Limit Type is prior to Scan Stops. When you set these two limit types at the
same time, Manual Stops is valid and Scan Stops is invalid.
7. Click the PTZ control buttons to find the left/right/up/down limit stops; you can also call the
defined presets and set them as the limits of the device.
8. Click Set to save the limits or click Clear to clear the limits.

5.5.7 Configure Park Actions

Purpose:
This feature allows the device to start a predefined park action (scan, preset, pattern and etc.)
automatically after a period of inactivity (park time).
Scheduled Tasks function is prior to Park Action function. When these two functions are set
at the same time, only the Scheduled Tasks function takes effect.
Pattern function varies depending on device models.
76
Steps:
7. Go to the. Park Action settings interface:
Configuration > PTZ > Park Action
Figure 5-36 Set the Park Action
8. Check Enable Park Action.
9. Set the Park Time as the inactivity time of the device before it starts the park actions.
10. Choose Action Type the from the dropdown list.
Figure 5-37 Action Types
11. Select the Action Type ID from the dropdown list.
12. Click .

5.5.8 Configure Privacy Mask

Purpose:
Privacy mask enables you to cover certain areas on the live video to prevent certain spots in the
surveillance area from being live viewed and recorded.
Steps:
8. Go to the. Privacy Mask settings interface:
Configuration > PTZ > Privacy Mask
77
Figure 5-38 Draw the Privacy Mask
9. Click the PTZ control buttons to find the area you want to set the privacy mask.
10. Click ; click and drag the mouse in the live video window to draw the area.
11. You can drag the corners of the red rectangle area to draw a polygon mask.
12. Click to finish drawing or click to clear all of the areas you set without
saving them.
13. Click to save the privacy mask, and it will be listed in the Privacy Mask List area; set
the value of Active Zoom Ratio on your demand, and then the mask will only appear when
the zoom ratio is greater than the predefined value.
Figure 5-39 Privacy Mask List
14. Check Enable Privacy Mask.
You are allowed to draw up to 8 areas for the device.
78

5.5.9 Configure Scheduled Tasks

Purpose:
You can configure the network device to perform a certain action automatically in a user-defined
time period.
Steps:
8. Go to the. Scheduled Task settings interface:
Configuration> PTZ > Scheduled Tasks
Figure 5-40 Configure Scheduled Tasks
9. Check Enable Scheduled Task.
10. Set the Park Time. You can set the park time (a period of inactivity) before the device starts
the scheduled tasks.
11. Select the task type from the dropdown list. You can choose scan, preset, pattern and etc.
Figure 5-41 Task Types
12. Select the timeline of a certain day, click and drag the the mouse to set the recording
schedule (the start time and end time of the recording task).
13. After you set the scheduled task, you can click and copy the task to other days
(optional).
79
Figure 5-42 Edit the Schedule and Task Type
The time of each task cannot be overlapped. Up to 10 tasks can be configured for each
day.
14. Click .

5.5.10 Clear PTZ Configurations

Purpose:
You can clear PTZ configurations in this interface, including all presets, patrols, privacy masks, PTZ
limits, scheduled tasks and park actions.
Pattern function varies depending on device models.
Steps:
4. Go to the. Clearing Configuration interface:
Configuration > PTZ > Clear Config
5. Select the items you want to clear.
6. Click .

5.5.11 Prioritize PTZ

Steps:
5. Go to the Prioritize PTZ interface:
Configuration > PTZ > Prioritize PTZ.
80
Figure 5-43 Position Settings
6. Select Network or RS-485 from the dropdown list
7. Set the delay time (Range 2-200s).
8. Click .

5.5.12 Position and Vandal-Resistance Alarm Settings

Steps:
5. Go to the. Position Settings interface:
Configuration > PTZ > Position Settings.
The actual interface may vary from model to model.
Figure 5-44 Position Settings
6. Set the vandal-resistance alarm. (4) Slide the bar to adjust the sensitivity of vandal-resistance detection. (5) Check Upload Vandal-Resistance Alarm to upload the vandal-resistance alarm. (6) Check Enable Vandal-Resistance Alarm Voice Warning to enable the voice warning of
vandal-resistance alarm.
81
7. Set GPS settings. (7) Select Longitude-Latitude Mode as Manual. (8) Select longitude and latitude as East or West according to the actual position. (9) Input the value of longitude and latitude in three textboxes.
8. Click .

5.5.13 Configure Linear Scan

Steps:
10. Go to the linear scan interface:
Configuration > Advanced Configuration> PTZ > Linear Scan.
Figure 5-45 Linear Scan
11. Select Camera 1 or Camera 2 from the Channel No. list.
12. Zoom in and zoom out the camera to the appropriate zoom ratio.
13. Click Save Ratio.
14. Optionally, you can click Enable Saved Ratio to set the camera to the saved zoom ratio.
15. Click Set Scan Area and set the left/right/up/down limits with the PTZ control panel and
Iris+/- button.
16. Optionally, you can click Clear to delete the saved scan area.
17. Click Save and the Linear Scan Area shows Scan area saved.
18. Click Start Linear Scan and Stop Linear Scan to start and stop the saved linear scan.
82

Chapter 6 VCA Configuration

Before you start:
Go to Configuration > System > Maintenance > VCA Resource Type and select the VCA Resource
as Temperature Measurement + Behavior Analysis.
Purpose:
You can do intelligent analysis, such as behavior analysis, with the device. Multiple rules can be
configured for different requirements.
The VCA (Video Content Analysis) function only supported by the thermal channel.

6.1 Configure VCA Information

Steps:
1. Go to the. VCA Information Configuration interface:
Configuration > VCA Configuration > VCA Info.
Figure 6-1 VCA Information
2. Check to enable the Intelligent Analysis. And you can view the current version for the
behavior analysis.
3. Set the display information:
If you select to display the target info and rule info on the alarm picture are supported;
you can enable the functions by ticking the corresponding checkbox on your demand.
And if you tick display target info and rule on stream, the information will be added to
the video stream, and the overlay will be displayed if you get live view or play back by
the VS Player.
83
4. Set the Snapshot:
You can configure the Notify Surveillance Center function which is used for uploading
the picture to the surveillance center when and VCA alarm occurs.
You can also set the quality and resolution of the picture separately.
5. Click .

6.2 Advanced Configuration

All the parameters for both behavior analysis and face capture are collected in the advanced
configuration page. You can configure these parameters for different VCA types on your demand.
Steps:
1. Go to the. Advanced Configuration interface:
Configuration > VCA > Advanced Configuration

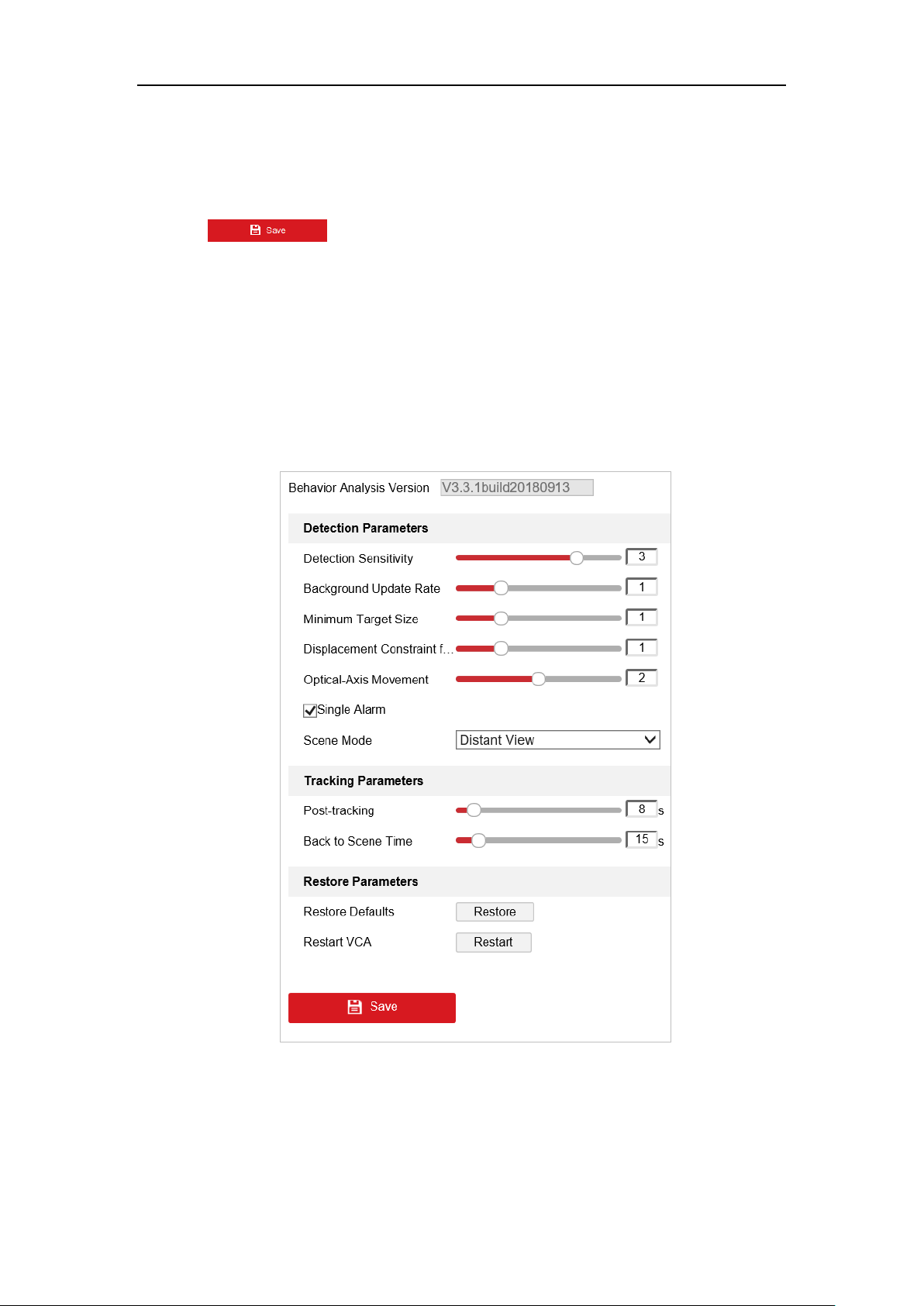

Figure 6-2 Advanced Configuration
2. Adjust the Detection Parameters.
Detection Sensitivity: Range [0-4], the higher the sensitivity is, the easier the target will be
detected.
Background Update Rate: Range [0-4], if a detected target remains in the monitoring scene
84
for a certain time, the system will count the target as the background automatically. The
greater the value is, the faster the target will be counted as the background.
Minimum Target Size: Range [0-4], The system will filter out the object smaller than the
minimum target size.
Displacement Constraint for Target Generation: Range [0-4], the higher the value is, the
slower the target is generated, and the higher accuracy the analysis will get.
Scene Modes: The scene mode is set to be General by default. Select Distant View when you
are far from the targets. Select Indoor when you are indoor.
Optical-axis Movement: Check when the target moves in the direction of camera's optical
-axis.
Single Alarm: You can enable Single Alarm, and the system only sends alarm once for one
target triggering. Otherwise, the alarm will be triggered continuously until the target
disappears.
3. Adjust the Tracking Parameters.
Post-Tracking: Range [2-600], you can configure the tracking duration after the target is still.
Back to Scene Time: Set the duration of the camera move back to original scene after
manually interrupting behavior analysis.
Restore Default: Click Restore to restore the parameters to the default.
Restart VCA: Click Restart to restart the VCA function.

6.3 Behavior Analysis

Purpose:
The device supports patrol tracking for multiple scenes. At most 8 rules can be configured for a
single scene. You can configure the rules for the scene on your demand.
Steps:
1. Configure the VCA Info: For details, see 7.2 Configure VCA Information.
2. Configure the Zooming Ratio parameters: Set the appropriate tracking zooming ratio with
the PTZ control panel. Click on .
The optical camera will track the target when the VCA rule is triggered which is configured on
the thermal camera.
85
Figure 6-3 Zoom Ratio
3. Configure the Scene:
Go to VCA > Scene Configuration > Scene Parameters
At most 10 scenes can be added. Different rules and properties can be configured for each
scene.
Figure 6-4 Scene Parameters
86
Create a Scene:
1) Add New Scene: Click to create a new scene.
2) Control the PTZ to get the required scene.
3) Set the scene parameters:
Scene Name: Enter a custom scene name.
Patrol Sequence: Set the sequence for the scene when doing patrol tracking. If the
sequence is selected as 0, this scene will not be configured for patrol tracking.
Duration: Set the dwell time of the scene when doing patrol tracking. The intelligent
analysis will be enabled during the period. If the alarm is triggered, the device will start
to track automatically.
Enable Track: Check to enable the tracking function for the scene.
Tracking Duration: Set the duration of the tracking. If the value is selected as 0, the
tracking duration will not be limited.
Limited Tracking: You can check to enable/disable the function. If the function is
enabled, you can set the limited position for the tracking.
4) Click . Rule Configuration:
At most 8 rules can be configured for a single scene. Follow the steps below to configure
the rule for the scene.
1) Click the Rule tab to go to the. rule settings interface.
2) Create new rule: Click on the button to add a new rule.
3) Select rule type: Click the dropdown menu to select the rule type. Line Crossing,
Intrusion, Region Entrance, and Region Exiting are selectable.
Figure 6-5 Rule List
4) Configure the rule area: Click the Draw Line or Draw Area button on the tool bar of the
live view panel. Click the mouse on the live view panel. Right click the mouse to finish
drawing. For details, see 6.4 Rule Configuration Demonstration.
5) Configure the filtering size: The filtering function is supported for all rules. You can set
the minimum and maximum size of the object needs to be filtered. The system will only
detect the object in a size between the configured minimum and maximum value. For
details, see6.4 Rule Configuration Demonstration.
6) Configure the Duration: Set the dwell time of the target cross the line or area. The
intelligent analysis will be enabled during the period.
7) Configure the Sensitivity: The higher the value is, more easily the alarm will be
87
triggered.
8) Configure the Detection Target.
9) Enable rules: Check the Enable checkbox of each rule in the rule list to enable the rule.
10) Click .
Create multiple rules: You can create more rules by repeating the above steps.
Configure Arming schedule:
1) Click the Arming Schedule tab.
2) Select a rule from the rule list.
Figure 6-6 Arming Schedule
3) Click on the Edit button to edit the arming time segment.
88
Figure 6-7 Schedule Time
You can select to copy the settings to whole week or are specific days of the week. At
most 8 segments can be configured.
4) Click .
Configure Arming schedule:
1) Click the Alarm Linkage tab.
2) Select a rule from the rule list.
Figure 6-8 Alarm Linkage
3) Check corresponding linkage actions to enable it.
4. Advanced Configuration: For details, see section 6.2 Advanced Configuration. Click
.

6.4 Rule Configuration Demonstration

Purpose:
This section provides detailed configuration steps for each rule.

6.4.1 Line Crossing

Purpose:
89
This function can be used for detecting people, vehicles and objects traversing a set virtual plane.
The traversing direction can be set as bidirectional, from left to right or from right to left. The
alarm will be triggered if the rule is broken.
Steps:
1. Create new rule: Click on the button to add a new rule.
2. Select rule type: Click the dropdown menu and select Line Crossing as the rule type.
Figure 6-9 Select Rule Type
3. (Optional) Configure the size filter, if you want to narrow the detection target to a desired
range.
a. Check the Filter by, and only filer by pixel is available.
b. Click the button and draw a rectangle on the live view image as the Min. size
filter.
c. Click the button and draw a rectangle on the live view image as the Max. size
filter.
4. Configure the rule area:
Click on the tool bar of the live view panel. Specify a point of the line by clicking the
mouse on the live view image, and then specify the other one.
90
Figure 6-10 Draw Line
5. Click the dropdown menu in the Line Crossing to select the crossing direction.
6. Set the sensitivity of detecting a target. The higher the value is, the easier a target would be
recognized, and the higher possibility of misinformation would be.
7. Click the dropdown list of Detection Target to select the target.
8. Enable rules.
9. Click .

6.4.2 Intrusion

Purpose:
This function can be used for detecting whether there are people, vehicles and objects intrude
into the pre-defined region longer than the set duration. The alarm will be triggered if the rule is
broken.
Steps:
1. Create new rule: Click on the button to add a new rule.
2. Select rule type: Click the dropdown menu and select Intrusion as the rule type.
3. Configure the filtering size: for details, see step 3 in section 6.4.1 Line Crossing.
4. Configure the rule area:
Click on the tool bar of the live view panel. Click the mouse on the live view image to
specify a corner of the area. After you specify all the corners, right click the mouse to
91
connect the first corner and the last corner, which means the polygonal area is drawn.
Figure 6-11 Draw Area
5. Set the duration from 1 to 100.
6. Set the sensitivity of detecting a target. The higher the value is, the easier a target would be
recognized, and the higher possibility of misinformation would be.
7. Click the dropdown list of Detection Target to select the target.
8. Enable rules.
9. Click .

6.4.3 Enter Region

Purpose:
This function can be used for detecting people, vehicles and objects entering the pre-defined
region. The alarm will be triggered if the rule is broken.
Steps:
1. Create new rule: Click on the button to add a new rule.
2. Select rule type: Click the dropdown menu and select Region Entrance as the rule type.
3. Configure the rule area:
Click on the tool bar of the live view panel. Click the mouse on the live view panel.
Right click the mouse to finish drawing.
4. Configure the filtering size: for details, see step 3 in section 6.4.1 Line Crossing.
92
5. Click the dropdown list of Detection Target to select the target.
6. Enable rules.
7. Click .

6.4.4 Exit Region

Purpose:
This function can be used for detecting people, vehicles and objects exiting the pre-defined
region. The alarm will be triggered if the rule is broken.
Steps:
1. Create new rule: Click on the button to add a new rule.
2. Select rule type: Click the dropdown menu and select Region Exiting as the rule type.
3. Configure the rule area:
Click on the tool bar of the live view panel. Click the mouse on the live view panel.
Right click the mouse to finish drawing.
Figure 6-12 Draw Area
4. Configure the filtering size: for details, see step 3 in section 6.4.1 Line Crossing.
5. Click the dropdown list of Detection Target to select the target.
93
6. Enable rules.
7. Click .
94

Chapter 7 Device Configuration

7.1 Configure Network Settings

The functions vary depending on the models of device.

7.1.1 Basic Settings

Configure TCP/IP
Purpose:
TCP/IP settings must be properly configured before you operate the device over network. IPv4
and IPv6 are both supported.
Steps:
1. Enter TCP/IP settings interface:
Configuration > Network > Basic Settings > TCP/IP
Figure 7-1 TCP/IP Settings
2. Configure the NIC settings, including the IPv4 (IPv6) Address, IPv4 (IPv6) Subnet Mask and
IPv4(IPv6) Default Gateway.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
