Thermal Bi-spectrum
Network Positioning System
User Manual
COPYRIGHT © 2018 Hangzhou Hikvision Digital Technology Co., Ltd.
User Manual of Thermal Bi-spectrum Network Positioning System
© Hikvision
i
User Manual
COPYRIGHT © 2018 Hangzhou Hikvision Digital Technology Co., Ltd.
ALL RIGHTS RESERVED.
Any and all information, including, among others, wordings, pictures, graphs are the properties
of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be
“Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced,
changed, translated, or distributed, partially or wholly, by any means, without the prior written
permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties,
guarantees or representations, express or implied, regarding to the Manual.
About this Manual
This Manual is applicable to Thermal Bi-spectrum Network Positioning System.
The Manual includes instructions for using and managing the product. Pictures, charts,
images and all other information hereinafter are for description and explanation only. The
information contained in the Manual is subject to change, without notice, due to firmware
updates or other reasons. Please find the latest version in the company website
(http://overseas.hikvision.com/en/).
Please use this user manual under the guidance of professionals.
Trademarks Acknowledgement
and other Hikvision’s trademarks and logos are the properties of
Hikvision in various jurisdictions. Other trademarks and logos mentioned below are the
properties of their respective owners.
Legal Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED,
WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS
AND ERRORS, AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A
PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL
HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR
ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG
OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS
OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF
HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE
WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR
ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM
CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY
RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN
User Manual of Thermal Network Positioning system
© Hikvision
ii
YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR
USE CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT
THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW,
THE LATER PREVAILS.
User Manual of Thermal Network Positioning system
© Hikvision
iii
Regulatory Information
FCC Information
Please take attention that changes or modification not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
FCC compliance: This equipment has been tested and found to comply with the limits for
a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may
cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked
with "CE" and comply therefore with the applicable harmonized European
standards listed under the Low Voltage Directive 2006/95/EC, the EMC
Directive 2014/30/EU, the RoHS Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products marked with this symbol cannot
be disposed of as unsorted municipal waste in the European Union. For
proper recycling, return this product to your local supplier upon the
purchase of equivalent new equipment, or dispose of it at designated
collection points. For more information see: www.recyclethis.info.
2006/66/EC (battery directive): This product contains a battery that cannot
be disposed of as unsorted municipal waste in the European Union. See
the product documentation for specific battery information. The battery is
marked with this symbol, which may include lettering to indicate cadmium
(Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or
to a designated collection point. For more information see: www.recyclethis.info.
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.
User Manual of Thermal Network Positioning system
© Hikvision
iv
Safety Instruction
These instructions are intended to ensure that the user can use the product correctly to
avoid danger or property loss.
The precaution measure is divided into ‘Warnings’ and ‘Cautions’:
Warnings: Serious injury or death may be caused if any of these warnings are neglected.
Cautions: Injury or equipment damage may be caused if any of these cautions are
neglected.
Warnings Follow these safeguards to
prevent serious injury or death.
Cautions Follow these precautions to
prevent potential injury or material damage.
Warnings
The device should be used in compliance with local laws and electrical safety regulations. Refer to the
appropriate documentation for detailed information.
The input voltage should conform to IEC60950-1 standard: SELV (Safety Extra Low Voltage) and the
Limited Power Source (24 VAC/12 VDC). Refer to the appropriate documentation for detailed
information.
DO NOT connect multiple devices to one power adapter, to avoid over-heating or fire hazards caused
by overload.
Make sure the plug is properly connected to the power socket.
If smoke, odor, or noise arises from the device, immediately turn off the power, unplug the power cable,
and contact the service center.
The installer and user are responsible for password and security configuration and its settings.
Both internal and external grounds should be connected properly. (The cross section area of the
grounding wire must be no less than 4 mm2, and no less than that of the phase connector).
Cautions
Do not drop the device or subject it to physical shock.
Wipe the device gently with a clean cloth and a small quantity of ethanol, if necessary.
Do not aim the lens at the sun or any other bright light.
When any laser equipment is in use, make sure that the device lens is not exposed to the laser beam,
or it may burn out.
Do not expose the device to high electromagnetic radiation or extremely hot, cold, dusty, or damp
environments.
Place the device in a dry and well-ventilated environment.
Keep non-waterproof devices away from liquids.
Keep the device in original or similar packaging while transporting it.
A few device components (e.g., electrolytic capacitor) require regular replacement. The average
lifespan varies, so periodic checking is recommended. Contact your dealer for details.
Improper use or replacement of the battery may result in explosion hazard. Replace with the same or
equivalent type only. Dispose of used batteries in conformance with the instructions provided by the
battery manufacturer.
Never attempt to disassemble the device.
0505401080709
User Manual of Thermal Network Positioning system
© Hikvision
v
Table of Contents
Chapter 1 Overview .......................................................... 1
1.1 Overview ................................................................ 1
1.2 System Requirement ...................................................... 1
1.3 Functions ................................................................ 1
Chapter 2 Network Connection ................................................ 5
2.1 Setting the Network Positioning System over the LAN .......................... 5

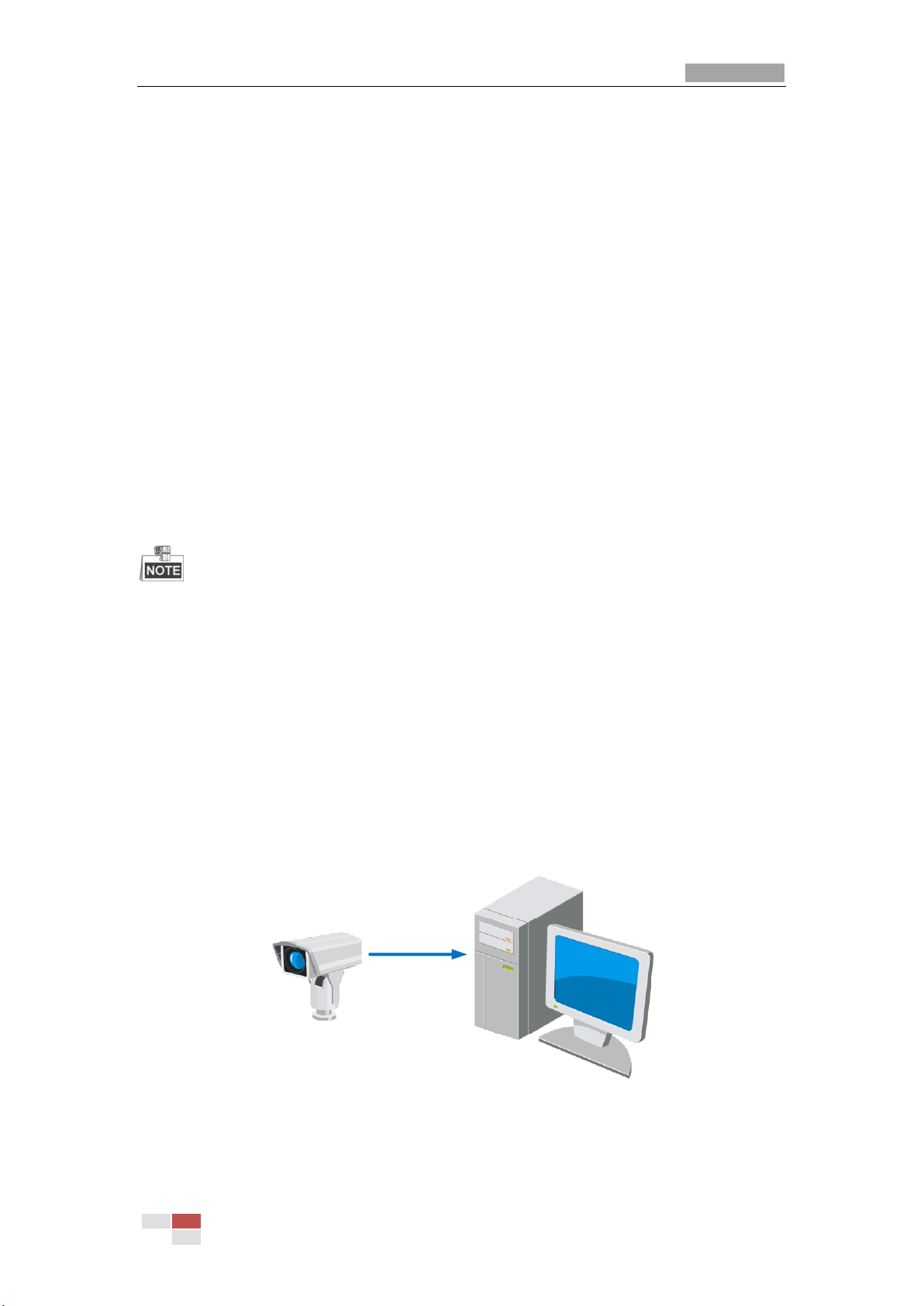

2.1.1 Wiring over the LAN
...................................................... 5

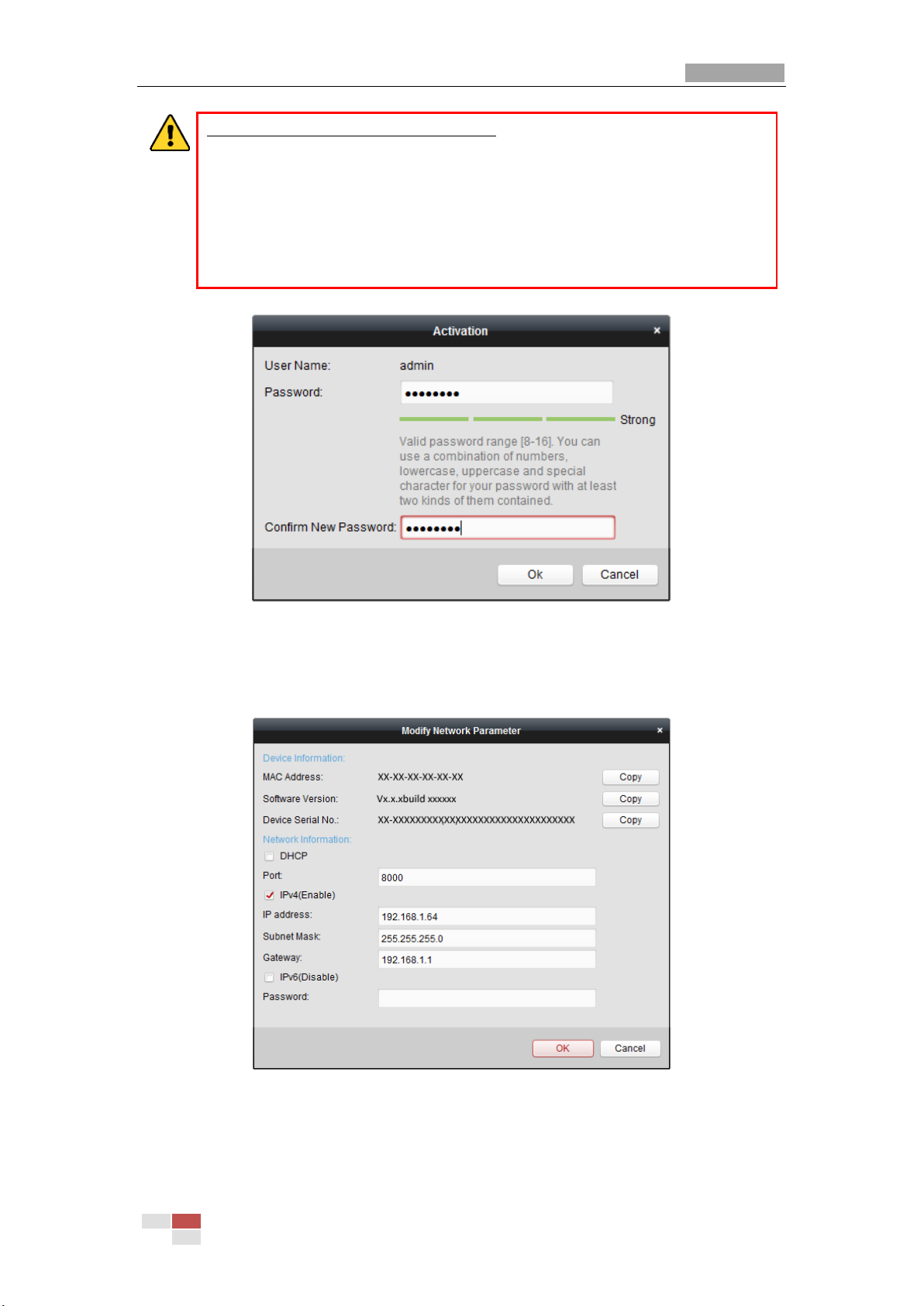

2.1.2 Activating the Positioning system
........................................... 6
2.2 Setting the Network Positioning system over the WAN ........................ 11

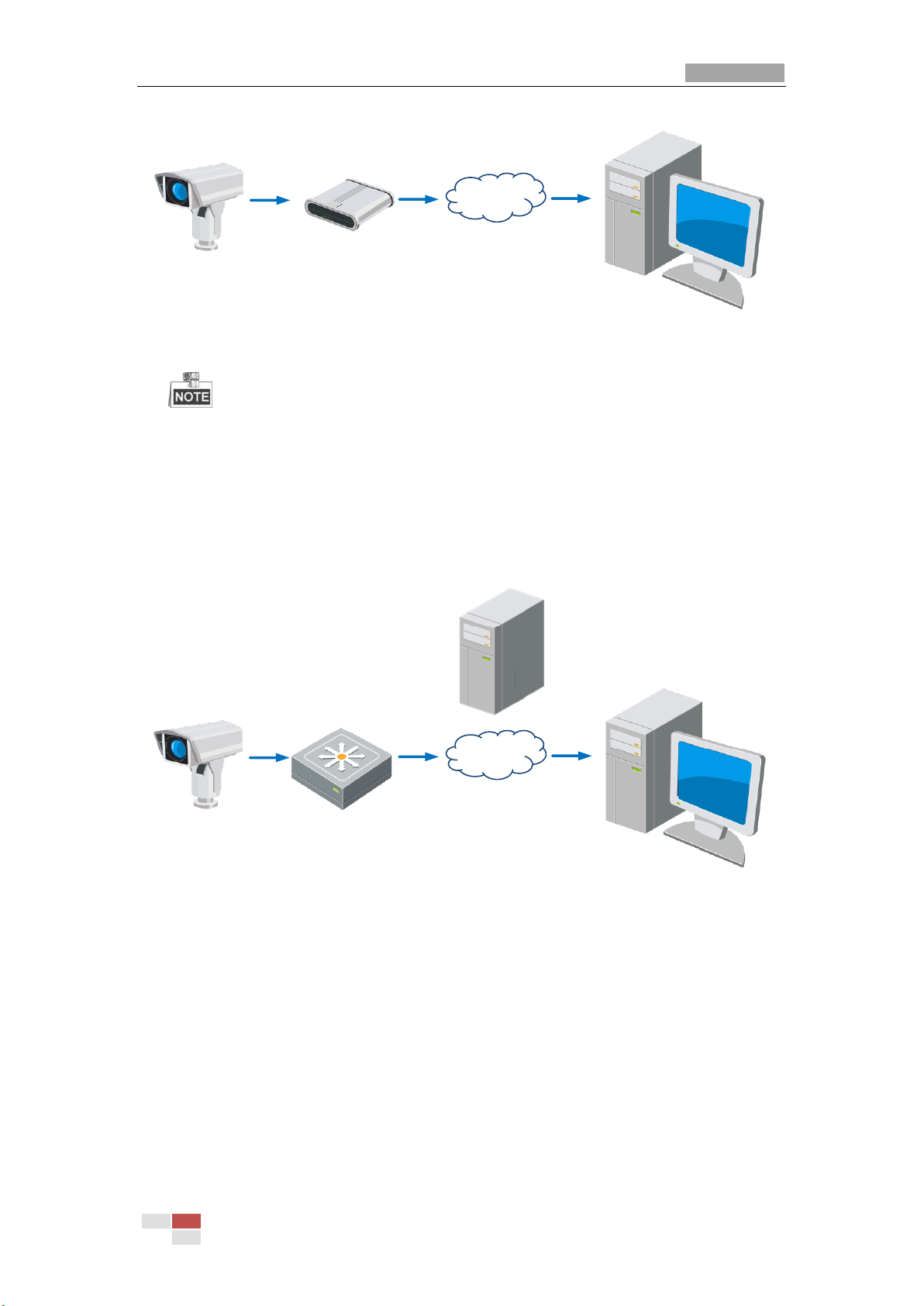

2.2.1 Static IP Connection
..................................................... 11

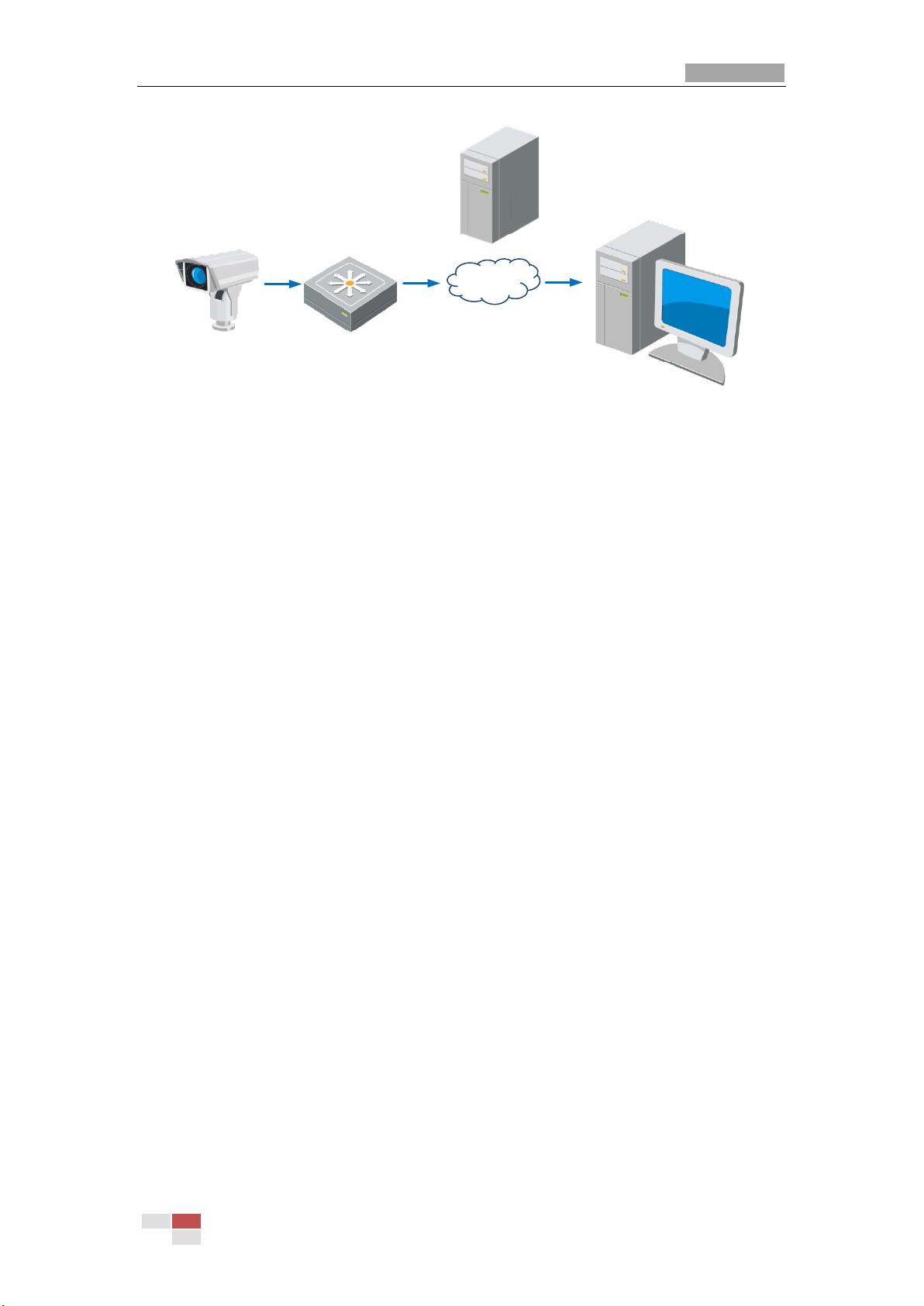

2.2.2 Dynamic IP Connection
.................................................. 12
Chapter 3 Access to the Network Positioning system ............................. 15

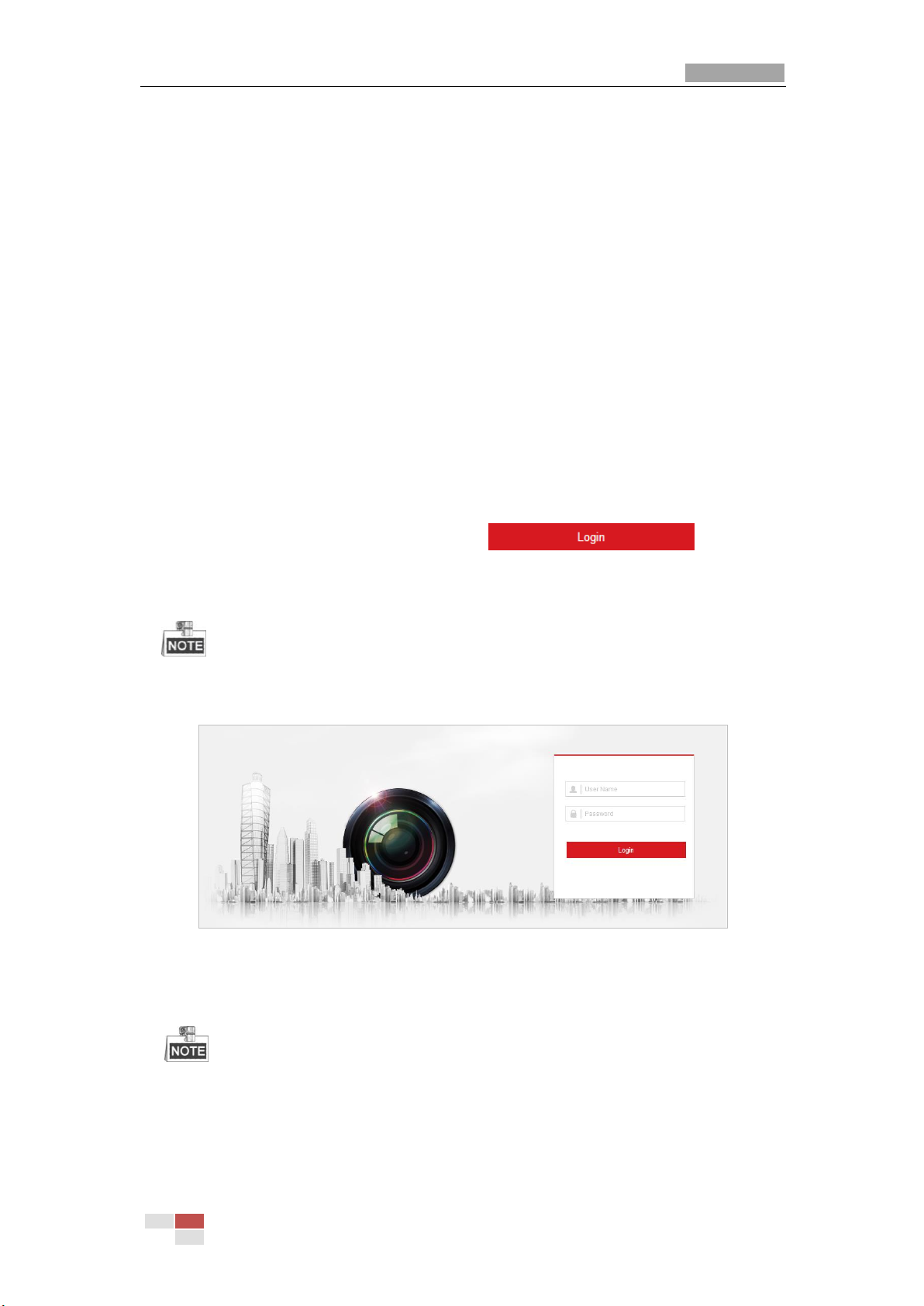

3.1 Accessing by Web Browsers ............................................... 15

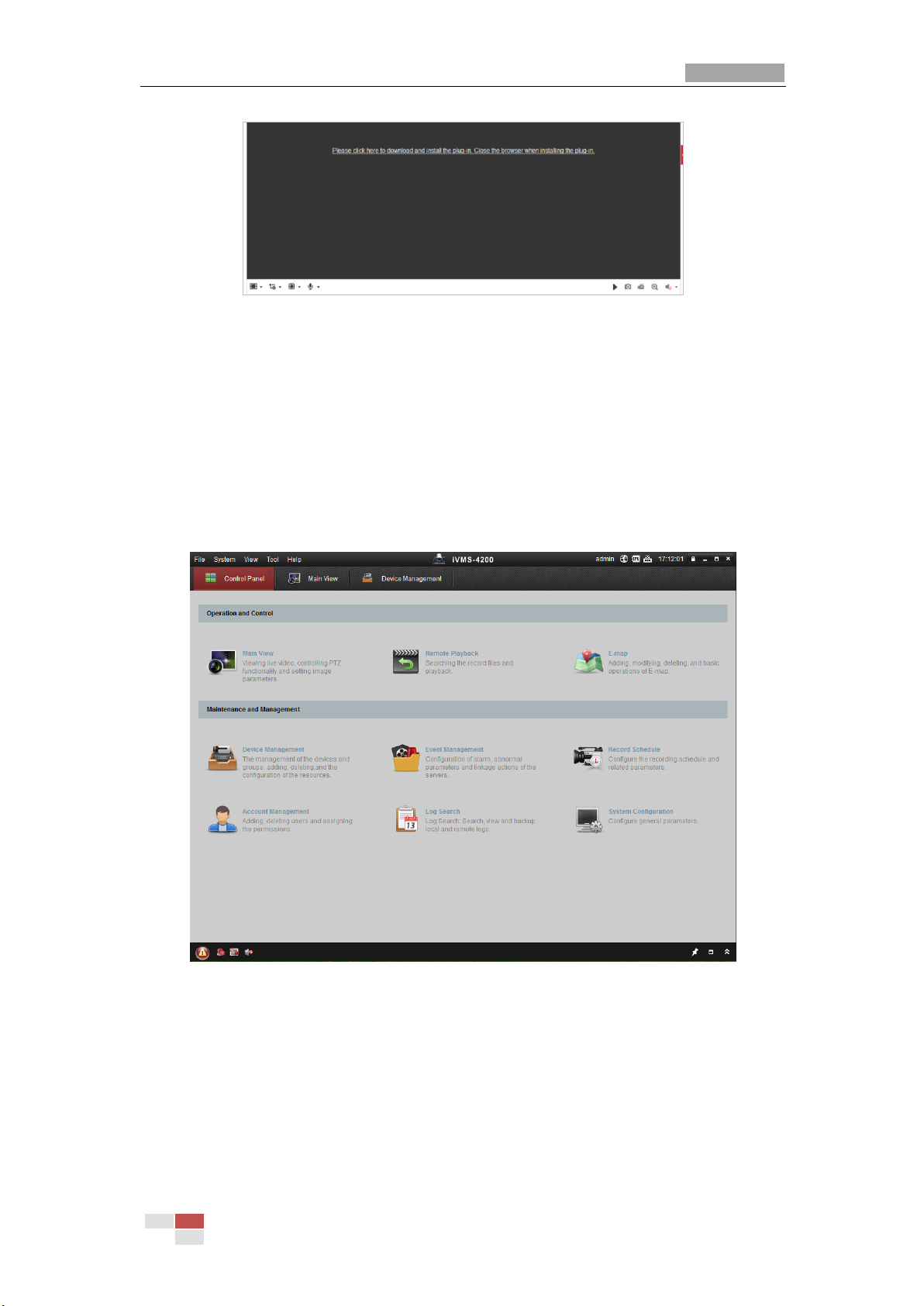

3.2 Accessing by Client Software .............................................. 16
Chapter 4 Basic Operations .................................................. 18
4.1 Configuring Local Parameters ............................................. 18
4.2 Live View Page .......................................................... 20
4.3 Starting Live View ........................................................ 21
4.3.1 Toolbar Description
..................................................... 21
4.4 Operating PTZ Control .................................................... 23
4.4.1 PTZ Control Panel
...................................................... 23
4.4.2 Auxiliary Functions
...................................................... 25
4.4.3 Setting / Calling a Preset
................................................. 26
4.4.4 Setting / Calling a Patrol
................................................. 29
4.4.5 One-touch Patrol
....................................................... 30
4.4.6 Setting / Calling a Pattern
................................................ 31
4.5 Playback ............................................................... 32
4.5.1 Play Back Video Files
.................................................... 32
4.5.2 Downloading Video Files
................................................. 35
4.6 Pictures ................................................................ 36
Chapter 5 System Configuration .............................................. 38
5.1 Storage Settings ......................................................... 38
5.1.1 Configuring Recording Schedule
........................................... 38
5.1.2 Configuring Capture Schedule
............................................. 40
5.1.3 Configuring Net HDD
.................................................... 42
5.2 Event Configuration ...................................................... 44
5.2.1 Configuring Motion Detection
............................................. 44
5.2.2 Configuring Video Tampering Alarm
........................................ 49
User Manual of Thermal Network Positioning system
© Hikvision
vi
5.2.3 Configuring Alarm Input
.................................................. 50
5.2.4 Configuring Alarm Output
................................................ 52
5.2.5 Handling Exception
..................................................... 53
5.2.1 Detecting Audio Exception
................................................ 53
5.3 Fire Source Detection Configuration ........................................ 55
5.3.1 Configuring Initial Position
................................................ 56
5.3.2 Configuring Dynamic Fire Source Detection
.................................. 57
5.3.3 Configuring Fire Source Detection Shield
.................................... 59
5.4 Temperature Measurement ............................................... 61
5.4.1 Temperature Measurement Configuration
................................... 61
5.4.2 Configuring Temperature Measurement Rule
................................. 62
5.4.3 Linkage Method
........................................................ 67
5.4.4 Search History Temperature
.............................................. 67
5.4.5 VCA Rule Display
....................................................... 68
Chapter 6 VCA Configuration ................................................. 69
6.1 Configuring VCA Information .............................................. 69
6.2 Advanced Configuration .................................................. 70
6.3 Behavior Analysis ........................................................ 71
6.4 Rule Configuration Demonstration .......................................... 75
6.4.1 Line Crossing
.......................................................... 75
6.4.2 Intrusion
.............................................................. 77
6.4.3 Region Entrance
........................................................ 78
6.4.4 Region Exiting
......................................................... 78
Chapter 7 Positioning System Configuration .................................... 80
7.1 Configuring Network Settings .............................................. 80
7.1.1 Basic Settings
......................................................... 80
7.1.2 Advanced Settings
...................................................... 86
7.2 Configuring Video and Audio Settings ....................................... 96
7.2.1 Configuring Video Settings
............................................... 96
7.2.2 Configuring Audio Settings
............................................... 98
7.2.3 Configuring ROI Settings
................................................. 99
7.3 PTZ Configuration ...................................................... 101
7.3.1 Configuring Basic PTZ Parameters
........................................ 101
7.3.2 Configuring PTZ Limits
................................................. 103
7.3.3 Configuring Park Actions
................................................ 104
7.3.4 Configuring Privacy Mask
............................................... 105
7.3.5 Configuring Scheduled Tasks
............................................ 107
7.3.6 Clearing PTZ Configurations
............................................. 108
7.3.7 Prioritize PTZ
......................................................... 108
7.3.8 Position and Vandal-Resistance Alarm Settings
.............................. 109
7.3.9 Configuring Linear Scan
................................................. 110
7.4 Configuring Image Settings ............................................... 112
7.4.1 Configuring Display Settings
............................................. 112
User Manual of Thermal Network Positioning system
© Hikvision
vii
7.4.2 Configuring OSD Settings
............................................... 121
7.4.3 Configuring Text Overlay Settings
......................................... 122
7.4.4 Configuring DPC Settings
............................................... 122
7.4.5 Picture in Picture
...................................................... 123
7.5 Configuring System Settings ............................................. 124
7.5.1 System Settings
....................................................... 124
7.5.2 Maintenance
.......................................................... 128
7.5.3 Security
.............................................................. 133
7.5.4 User Management
..................................................... 135
Appendix .................................................................... 140
SADP Software Introduction .................................................... 140
User Manual of Thermal Bi-spectrum Network Positioning System
© Hikvision
1
Chapter 1 Overview
1.1 Overview
Thermal bi-spectrum network positioning system (named as positioning system in the
chapters below) integrates the function of the decoder, thermal camera, and the
high-definition zoom camera. It performs temperature measurement, dynamic fire source
detection and other smart detections in the remote surveillance of the power system,
metallurgy system, and petrochemical engineering, and so on.
You can get a high-quality live view via web browser or client software.
The figure below shows one type of the positioning system series.
Figure 1-1 Overview of Thermal Positioning System
1.2 System Requirement
System requirement of web browser accessing is as follows:
Operating System: Microsoft Windows XP SP1 and above version / Vista / Win7 / Server
2003 / Server 2008 32bits
CPU: Intel Pentium IV 3.0 GHz or higher
RAM: 1G or higher
Display: 1024× 768 resolution or higher
Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.02 and above
version, Mozilla Firefox 5 and above version and Google Chrome 18 and above versions.
1.3 Functions
The main functions of this camera is fire source detection, and temperature measurement,
User Manual of Thermal Network Positioning system
© Hikvision
2
and VCA (video content analysis) functions.
Fire Detection
Fire Source Detection Shield enables you to shield certain areas from being detected
in fire source detection.
For fire detection, refer to Section 5.3 Fire Source Detection Configuration
.
Temperature Measurement
When you enable this function, it measures the actual temperature of the spot being
monitored. The device alarms when temperature exceeds the temperature threshold
value.
For temperature measurement, refer to Section 5.4 Temperature Measurement.
VCA function
You can do intelligent analysis, such as behavior analysis. Multiple rules can be
configured for different requirements.
For VCA function, refer to Chapter 6
User Manual of Thermal Network Positioning system
© Hikvision
3
VCA Configuration.
Alarm Input and Output

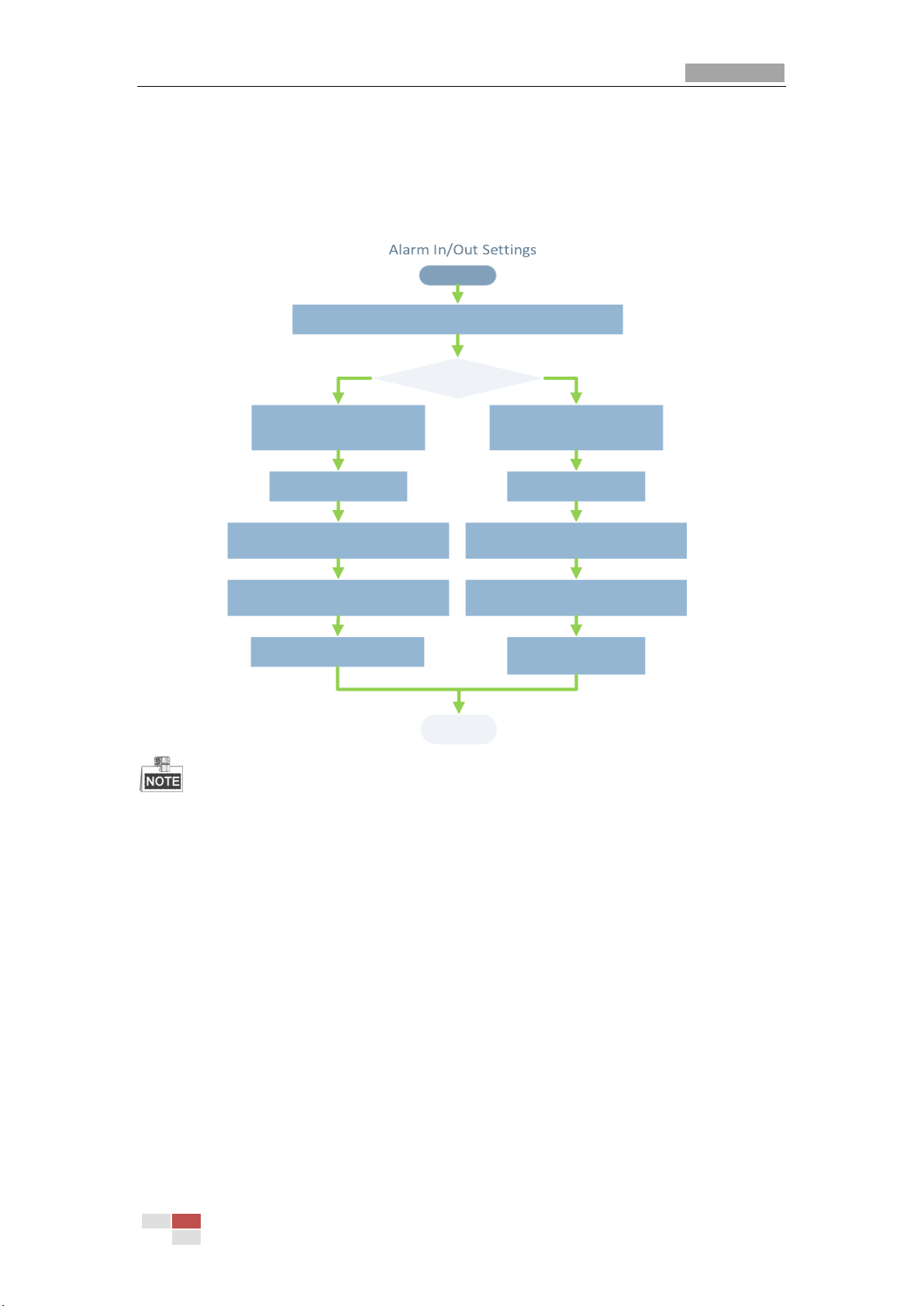

Refer to the figure below to configure the alarm devices and sensors.
Alarm Device /Alarm
Sensor?
Start
Alarm Device
(e.g., siren)
Alarm Sensor (e.g.,
gas detector)
Connect to Alarm Output
Terminal (labeled ALARM OUT)
END
Connect your camera with the alarm device(s).
Connect to Alarm Input
Terminal (labeled ALARM IN)
Turn on the Camera. Turn on the Camera.
Go to Event>Basic Event>Alarm Output
and set the alarm.
Go to Event>Basic Event>Alarm Input
and set the alarm.
Set the schedule for the alarm device. Set the schedule for the sensor.
Link the alarm to e-mail,
center, alarm out , etc.
Set Alarm Linkage for events.
The functions vary depending on the models of positioning system.
Bi-spectrum
The positioning system has two lens, an optical one and a thermal one, and two images
are respectively provided by each lens.
PTZ Limits
The positioning system can be programmed to move within the PTZ limits (left/right,
up/down).
Scan Modes
The positioning system provides 5 scan modes: auto scan, tilt scan, frame scan, random
scan and panorama scan.
Presets
A preset is a predefined image position. When the preset is called, the positioning system
will automatically move to the defined position. The presets can be added, modified,
deleted and called.
Label Display
The on-screen label of the preset title, azimuth/elevation, zoom, time and positioning
system name can be displayed on the monitor. The displays of time and positioning
User Manual of Thermal Network Positioning system
© Hikvision
4
system name can be programmed.
Auto Flips
In manual tracking mode, when a target object goes directly beneath the positioning
system, the video will automatically flips 180 degrees in horizontal direction to maintain
continuity of tracking. This function can also be realized by auto mirror image depending
on different camera models.
Privacy Mask
This function allows you to block or mask certain area of a scene, for preventing the
personal privacy from recording or live viewing. A masked area will move with pan and tilt
functions and automatically adjust in size as the lens zooms telephoto and wide.
3D Positioning
In the client software, use the left key of mouse to click on the desired position in the video
image and drag a rectangle area in the lower right direction, then the positioning system
will move the position to the center and allow the rectangle area to zoom in. Use the left
key of mouse to drag a rectangle area in the upper left direction to move the position to
the center and allow the rectangle area to zoom out.
Proportional Pan/Tilt
Proportional pan/tilt automatically reduces or increases the pan and tilt speeds according
to the amount of zoom. At telephoto zoom settings, the pan and tilt speeds will be slower
than at wide zoom settings. This keeps the image from moving too fast on the live view
image when there is a large amount of zoom.
Auto Focus
The auto focus enables the camera to focus automatically to maintain clear video images.
Day/Night Auto Switch
The positioning systems deliver color images during the day. And as light diminishes at
night, the positioning systems switch to night mode and deliver black and white images
with high quality.
Slow Shutter
In slow shutter mode, the shutter speed will automatically slow down in low illumination
conditions to maintain clear video images by extending the exposure time. The feature
can be enabled or disabled.
Backlight Compensation (BLC)
If you focus on an object against strong backlight, the object will be too dark to be seen
clearly. The BLC (Backlight Compensation) function can compensate light to the object in
the front to make it clear, but this causes the over-exposure of the background where the
light is strong.
Wide Dynamic Range (WDR)
The wide dynamic range (WDR) function helps the camera provide clear images even
under back light circumstances. When there are both very bright and very dark areas
simultaneously in the field of view, WDR balances the brightness level of the whole image
and provide clear images with details.
White Balance (WB)
White balance can remove the unrealistic color casts. White balance is the white rendition
function of the camera to adjust the color temperature according to the environment
User Manual of Thermal Network Positioning system
© Hikvision
5
automatically.
Patrol
A patrol is a memorized series of pre-defined preset function. The scanning speed
between two presets and the dwell time at the preset are programmable.
Pattern
A pattern is a memorized series of pan, tilt, zoom, and preset functions. By default the
focus and iris are in auto status during the pattern is being memorized.
Power Off Memory
The positioning system supports the power off memory capability with the predefined
resume time. It allows the positioning system to resume its previous position after power
is restored.
Scheduled Task
A time task is a preconfigured action that can be performed automatically at a specific
date and time. The programmable actions include: auto scan, random scan, patrol
1-8 ,pattern 1-4, preset 1-8,frame scan, panorama scan, tilt scan, day, night, reboot, PT
adjust, Aux Output, etc.
Park Action
This feature allows the positioning system to start a predefined action automatically after
a period of inactivity.
3D Digital Noise Reduction
Comparing with the general 2D digital noise reduction, the 3D digital noise reduction
function processes the noise between two frames besides processing the noise in one
frame. The noise will be much less and the video will be clearer.
User Manual of Thermal Bi-spectrum Network Positioning System
© Hikvision
6
Chapter 2 Network Connection
Before you start:
If you want to set the network positioning system via a LAN (Local Area Network),
please refer to Section 2.1.
If you want to set the network positioning system via a WAN (Wide Area Network),
please refer to Section 2.2.
2.1 Setting the Network Positioning System over
the LAN
Purpose:
To view and configure the positioning system via a LAN, you need to connect the network
positioning system in the same subnet with your computer, and install the SADP or client
software to search and change the IP of the network positioning system.
For the detailed introduction of SADP, please refer to Appendix.
2.1.1 Wiring over the LAN
The following figures show the two ways of cable connection of a network positioning
system and a computer:
Purpose:
To test the network positioning system, you can directly connect the network
positioning system to the computer with a network cable as shown in Figure 2-1.
Refer to the Figure 2-2 to set the network positioning system over the LAN via a
switch or a router.
Network Cable
PT Camera
Figure 2-1 Connecting Directly
User Manual of Thermal Network Positioning system
© Hikvision
7
Network Cable
Switch or Router
PC
Network Cable
PT Camera
Figure 2-2 Connecting via a Switch or a Router
2.1.2 Activating the Positioning system
Purpose:
You are required to activate the positioning system first before you can use the
positioning system.
Activation via Web Browser, Activation via SADP, and Activation via client software are
supported. In the following sections, activation via web browser and SADP will be taken as
examples. You may refer to the user manual of the positioning system for the details of
activation via client software.
Activation via Web Browser
Steps:
1. Power on the positioning system, and connect the positioning system to the network.
2. Input the IP address into the address bar of the web browser, and click Enter to enter
the activation interface.
The default IP address of the positioning system is 192.168.1.64.
Figure 2-3 Activation Interface(Web)
3. Create a password and input the password into the password field.
User Manual of Thermal Network Positioning system
© Hikvision
8
STRONG PASSWORD RECOMMENDED–We highly recommend you create a
strong password of your own choosing (Using a minimum of 8 characters, including
at least three of the following categories: upper case letters, lower case letters,
numbers, and special characters.) in order to increase the security of your product.
And we recommend you reset your password regularly, especially in the high
security system, resetting the password monthly or weekly can better protect your
product.
4. Confirm the password.
5. Click OK to activate the positioning system and enter the live view interface.
Activation via SADP Software
SADP software is used for detecting the online device, activating the device, and resetting
the password.
Get the SADP software from the supplied disk or the official website, and install the SADP
according to the prompts. Follow the steps to activate the positioning system.
Steps:
1. Run the SADP software to search the online devices.
2. Check the device status from the device list, and select an inactive device.
Select inactive device.
Input and confirm
password.
Figure 2-4 SADP Interface
3. Create a password and input the password in the password field, and confirm the
password.
STRONG PASSWORD RECOMMENDED–We highly recommend you create a
strong password of your own choosing (Using a minimum of 8 characters,
including at least three of the following categories: upper case letters, lower case
letters, numbers, and special characters.) in order to increase the security of your
product. And we recommend you reset your password regularly, especially in the
high security system, resetting the password monthly or weekly can better protect
your product.
4. Click OK to save the password.
User Manual of Thermal Network Positioning system
© Hikvision
9
You can check whether the activation is completed on the popup window. If activation
failed, please make sure that the password meets the requirement and then try again.
5. Change the device IP address to the same subnet with your computer by either
modifying the IP address manually or checking the checkbox of Enable DHCP.
Figure 2-5 Modify the IP Address
6. Input the password and click Save to activate your IP address modification.
Activation via Client Software
The client software is versatile video management software for multiple kinds of devices.
Get the client software from the supplied disk or the official website, and install the
software according to the prompts. Follow the steps to activate the camera.
Steps:
1. Run the client software and the control panel of the software pops up, as shown in
the figure below.
User Manual of Thermal Network Positioning system
© Hikvision
10
Figure 2-6 Control Panel
2. Click Device Management to enter the Device Management interface, as shown in the
figure below.
Figure 2-7 Device Management Interface
3. Check the device status from the device list, and select an inactive device.
4. Click Activate to pop up the Activation interface.
5. Create a password and input the password in the password field, and confirm the
password.
User Manual of Thermal Network Positioning system
© Hikvision
11
STRONG PASSWORD RECOMMENDED–We highly recommend you create a
strong password of your own choosing (Using a minimum of 8 characters,
including at least three of the following categories: upper case letters, lower case
letters, numbers, and special characters.) in order to increase the security of your
product. And we recommend you reset your password regularly, especially in the
high security system, resetting the password monthly or weekly can better protect
your product.
Figure 2-8 Activation Interface
6. Click OK to start activation.
7. Click Modify Netinfo to pop up the Network Parameter Modification interface, as
shown in the figure below.
Figure 2-9 Modifying the Network Parameters
8. Change the device IP address to the same subnet with your computer by either
modifying the IP address manually or checking the checkbox of Enable DHCP.
9. Input the password to activate your IP address modification.
User Manual of Thermal Network Positioning system
© Hikvision
12
2.2 Setting the Network Positioning system over the
WAN
Purpose:
This section explains how to connect the network positioning system to the WAN with a
static IP or a dynamic IP.
2.2.1 Static IP Connection
Before you start:
Please apply a static IP from an ISP (Internet Service Provider). With the static IP address,
you can connect the network positioning system via a router or connect it to the WAN
directly.
Connecting the network positioning system via a router
Steps:
1. Connect the network positioning system to the router.
2. Assign a LAN IP address, the subnet mask and the gateway. Refer to Section 2.1.2 for
detailed IP address configuration of the positioning system.
3. Save the static IP in the router.
4. Set port mapping, E.g., 80, 8000 and 554 ports. The steps for port mapping vary
depending on different routers. Please call the router manufacturer for assistance with
port mapping.
5. Visit the network positioning system through a web browser or the client software
over the internet.
Positioning
System
Network
Cable
Router with Static IP
PC
Network
Cable
Network
Cable
Internet
Figure 2-10 Accessing the Positioning system through Router with Static IP
Connecting the network positioning system with static IP directly
You can also save the static IP in the positioning system and directly connect it to the
internet without using a router. Refer to Section 2.1.2 for detailed IP address configuration
of the positioning system.
User Manual of Thermal Network Positioning system
© Hikvision
13
Positioning
System
PC
Network
Cable
Network
Cable
Internet
Figure 2-11 Accessing the Positioning system with Static IP Directly
2.2.2 Dynamic IP Connection
Before you start:
Please apply a dynamic IP from an ISP. With the dynamic IP address, you can connect the
network positioning system to a modem or a router.
Connecting the network positioning system via a router
Steps:
1. Connect the network positioning system to the router.
2. In the positioning system, assign a LAN IP address, the subnet mask and the gateway.
Refer to Section 2.1.2 for detailed LAN configuration.
3. In the router, set the PPPoE user name, password and confirm the password.
For your privacy and to better protect your system against security risks, we strongly
recommend the use of strong passwords for all functions and network devices. The
password should be something of your own choosing (using a minimum of 8
characters, including upper case letters, lower case letters, numbers and special
characters) in order to increase the security of your product.
Proper configuration of all passwords and other security settings is the responsibility of
the installer and/or end-user.
4. Set port mapping. E.g. 80, 8000 and 554 ports. The steps for port mapping vary
depending on different routers. Please call the router manufacturer for assistance with
port mapping.
5. Apply a domain name from a domain name provider.
6. Configure the DDNS settings in the setting interface of the router.
7. Visit the positioning system via the applied domain name.
Connecting the network positioning system via a modem
Purpose:
This positioning system supports the PPPoE auto dial-up function. The positioning system
gets a public IP address by ADSL dial-up after the positioning system is connected to a
modem. You need to configure the PPPoE parameters of the network positioning system.
Refer to Section 7.1.1 Configuring PPPoE Settings for detailed configuration.
User Manual of Thermal Network Positioning system
© Hikvision
14
Positioning
System
Network
Cable
Modem
PC
Network
Cable
Network
Cable
Internet
Figure 2-12 Accessing the Positioning system with Dynamic IP
The obtained IP address is dynamically assigned via PPPoE, so the IP address always
changes after rebooting the positioning system. To solve the inconvenience of the
dynamic IP, you need to get a domain name from the DDNS provider (E.g.
DynDns.com). Please follow below steps for normal domain name resolution and
private domain name resolution to solve the problem.
Normal Domain Name Resolution
Positioning
System
Network
Cable
Router with Static IP
PC
Network
Cable
Network
Cable
Internet
(Port Mapping)
Domain Name
Resolution Server
Figure 2-13 Normal Domain Name Resolution
Steps:
1. Apply a domain name from a domain name provider.
2. Configure the DDNS settings in the DDNS Settings interface of the network positioning
system. Refer to Section 7.1.1 Configuring DDNS Settings for detailed configuration.
3. Visit the positioning system via the applied domain name.
Private Domain Name Resolution
User Manual of Thermal Network Positioning system
© Hikvision
15
Positioning
System
Network
Cable
Router with Static IP
PC
Network
Cable
Network
Cable
Internet
(Port Mapping)
PC + IP Server + Staic IP
Figure 2-14 Private Domain Name Resolution
Steps:
1. Install and run the IP Server software in a computer with a static IP.
2. Access the network positioning system through the LAN with a web browser or the
client software.
3. Enable DDNS and select IP Server as the protocol type. Refer to Section 7.1.1
Configuring DDNS Settings for detailed configuration.
User Manual of Thermal Bi-spectrum Network Positioning System
© Hikvision
16
Chapter 3 Access to the Network
Positioning system
3.1 Accessing by Web Browsers
Steps:
1. Open the web browser.
2. In the address field, input the IP address of the network positioning system, e.g.,
192.168.1.64 and press the Enter key to enter the login interface.
3. Activate the positioning system for the first time using, refer to the section 2.1.2
Activating the Positioning system.
4. Select English as the interface language on the top-right of login interface.
5. Input the user name and password and click .
The admin user should configure the device accounts and user/operator permissions
properly. Delete the unnecessary accounts and user/operator permissions.
The device IP address gets locked if the admin user performs 7 failed password
attempts (5 attempts for the user/operator).
Figure 3-1 Login Interface
6. Install the plug-in before viewing the live video and operating the positioning system.
Please follow the installation prompts to install the plug-in.
You may have to close the web browser to install the plug-in. Please reopen the web
browser and log in again after installing the plug-in.
User Manual of Thermal Network Positioning system
© Hikvision
17
Figure 3-2 Download and Install Plug-in
3.2 Accessing by Client Software
The product CD contains the client software. You can view the live video and manage the
positioning system with the client software.
Follow the installation prompts to install the client software and WinPcap. The
configuration interface and live view interface of client software are shown below.
Figure 3-3 iVMS-4200 Control Panel
User Manual of Thermal Network Positioning system
© Hikvision
18
Figure 3-4 iVMS-4200 Live View Interface
If you use third party VMS software, please contact technical support of our branch
for camera firmware.
For detailed information about client software of our company, please refer to the
user manual of the software. This manual mainly introduces accessing to the network
positioning system by web browser.
User Manual of Thermal Bi-spectrum Network Positioning System
© Hikvision
19
Chapter 4 Basic Operations
In this and the following chapters, operation of the positioning system by the web browser
will be taken as an example.
4.1 Configuring Local Parameters
The local configuration refers to the parameters of the live view and other operations
using the web browser.
Steps:
1. Enter the Local Configuration interface:
Configuration > Local
Figure 4-1 Local Configuration Interface
2. Configure the following settings:
Live View Parameters: Set the protocol type, play performance, rules and image
User Manual of Thermal Network Positioning system
© Hikvision
20
format.
Protocol Type: TCP, UDP, MULTICAST and HTTP are selectable.
TCP: Ensures complete delivery of streaming data and better video quality, yet the
real-time transmission will be affected.
UDP: Provides real-time audio and video streams.
MULTICAST: It’s recommended to select the protocol type to MULTICAST when
using the Multicast function.
HTTP: Allows the same quality as of TCP without setting specific ports for
streaming under some network environments.
Play Performance: Set the play performance to Shortest Delay, or Auto.
Rules: It refers to the rules on your local browser, select enable or disable to
display or not display the colored marks when the motion detection, fire detection,
or intrusion detection is triggered. E.g., enabled as the rules are, and the fire
detection is enabled as well, when a fire is detected, it will be marked with a green
rectangle on the live view.
Image Format: The captured pictures can be saved as different format. JPEG and
BMP are available.
Fire Point: Locate Highest Temperature Point, and Frame Fire Point are selectable.
Display the highest temperature area as point or frame.
Display Temperature Info.: Display temperature information or not with
temperature measurement rule configured.
Display Temperature Info. on Capture: Display temperature information on the
capture or not.
Record File Settings: Set the saving path of the video files.
Record File Size: Select the packed size of manually recorded and downloaded
video files. The size can be set to 256M, 512M or 1G.
Save record files to: Set the saving path for the manually recorded video files.
Save downloaded files to: Set the saving path for the downloaded video files in
interface.
Picture and Clip Settings: Set the saving paths of the captured pictures and clipped
video files.
Save snapshots in live view to: Set the saving path of the manually captured
pictures in interface.
Save snapshots when playback to: Set the saving path of the captured pictures in
interface.
Save clips to: Set the saving path of the clipped video files in
interface.
You can click Browse to change the directory for saving video files, clips and
User Manual of Thermal Network Positioning system
© Hikvision
21
pictures.
You can click Open to directly open the video files, clips and pictures.
3. Click to save the settings.
4.2 Live View Page
Purpose:
The live video page allows you to view live video, capture images, realize PTZ control,
set/call presets and configure video parameters.
Log in the network positioning system to enter the live view page, or you can click
on the menu bar of the main page to enter the live view page.
Descriptions of the live view page:
Live View
Parameters
Live View Window
Toolbar
Show or hide
PTZ control
panel
PTZ Control
Preset/Patrol/Pattern
Menu Bar
Figure 4-2 Live View Page
Menu Bar:
Click each tab to enter Live View, Playback, Picture, and Configuration page respectively.
Click to display the help file of the positioning system.
Click to logout the system.
Live View Window:
Display the live video.
Toolbar:
Operations on the live view page, e.g., live view, capture, record, audio on/off, regional
exposure, regional focus, etc.
User Manual of Thermal Network Positioning system
© Hikvision
22
PTZ Control:
Panning, tilting, focusing and zooming actions of the positioning system. The lighter, wiper,
one-touch focus and lens initialization control.
Preset/patrol/pattern:
Set and call the preset/patrol/pattern for the positioning system.
Pattern function varies depending on the models of positioning system.
Live View Parameters:
Configure the image size, stream type, plug-in type, and two-way audio of the live video.
4.3 Starting Live View
In the live view window as shown in Figure 4-3, click on the toolbar to start the live
view of the positioning system.
Figure 4-3 Start Live View
4.3.1 Toolbar Description
Table 4-1 Descriptions of the Toolbar
Icon
Description
Icon
Description
/
Start/Stop Live view.
Manually capture the
pictures.
