Hikvision DS-2DE5174-A, DS-2DF6236V-AEL User Manual

Network Speed Dome

User Manual

UD.6L0201D1599A01

User Manual of Network Speed Dome

Thank you for purchasing our product. If there are any questions, or requests, please do not hesitate to contact the dealer. This manual applies to Network Speed Dome. This manual may contain several technical or printing errors, and the content is subject to change without notice. The updates will be added to the new version of this manual. We will readily improve or update the products or procedures described in the manual.

DISCLAIMER STATEMENT

“Underwriters Laboratories Inc. (“UL”) has not tested the performance or reliability

of the security or signaling aspects of this product. UL has only tested for fire, shock or casualty hazards as outlined in UL’s Standard(s) for Safety, UL60950-1. UL Certification does not cover the performance or reliability of the security or signaling aspects of this product. UL MAKES NO REPRESENTATIONS, WARRANTIES OR CERTIFICATIONS WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY OF ANY SECURITY OR SIGNALING RELATED FUNCTIONS OF THIS PRODUCT.”

0502041041008

User Manual of Network Speed Dome

Regulatory Information

FCC Information FCC compliance: This equipment has been tested and found to comply with the

limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the Low Voltage Directive 2006/95/EC, the EMC Directive 2004/108/EC, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at

designated collection points. For more information see: www.recyclethis.info.

2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information.

The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info.

User Manual of Network Speed Dome

Warnings Follow these safeguards to

prevent serious injury or death.

Cautions Follow these precautions to

prevent potential injury or material damage.

Safety Instruction

These instructions are intended to ensure that the user can use the product correctly to avoid danger or property loss.

The precaution measure is divided into ‘Warnings’ and ‘Cautions’:

Warnings: Serious injury or death may be caused if any of these warnings are

neglected.

Cautions: Injury or equipment damage may be caused if any of these cautions are

neglected.

Warnings:

 Please adopt the power adapter which can meet the safety extra low voltage

(SELV) standard. The power consumption cannot be less than the required value.

 Do not connect several devices to one power adapter as an adapter overload may

cause over-heating and can be a fire hazard.

 When the product is installed on a wall or ceiling, the device should be firmly

fixed.

 To reduce the risk of fire or electrical shock, do not expose the indoor used

product to rain or moisture.

 This installation should be made by a qualified service person and should

conform to all the local codes.

 Please install blackouts equipment into the power supply circuit for convenient

supply interruption.

 If the product does not work properly, please contact your dealer or the nearest

service center. Never attempt to disassemble the product yourself. (We shall not

assume any responsibility for problems caused by unauthorized repair or

maintenance.)

User Manual of Network Speed Dome

Cautions:

 Make sure the power supply voltage is correct before using the product.  Do not drop the product or subject it to physical shock. Do not install the product

on vibratory surface or places.

 Do not expose it to high electromagnetic radiating environment.  Do not aim the lens at the strong light such as sun or incandescent lamp. The

strong light can cause fatal damage to the product.

 The sensor may be burned out by a laser beam, so when any laser equipment is

being used, make sure that the surface of the sensor not be exposed to the laser

beam.

 For working temperature, please refer to the specification manual for details.  To avoid heat accumulation, good ventilation is required for a proper operating

environment.

 While shipping, the product should be packed in its original packing.  Please use the provided glove when open up the product cover. Do not touch the

product cover with fingers directly, because the acidic sweat of the fingers may

erode the surface coating of the product cover.

 Please use a soft and dry cloth when clean inside and outside surfaces of the

product cover. Do not use alkaline detergents.

 Improper use or replacement of the battery may result in hazard of explosion.

Please use the manufacturer recommended battery type.

User Manual of Network Speed Dome

Table of Contents

Chapter 1 Overview.................................................................................................................... 8

1.1 System Requirement ................................................................................................................ 8

1.2 Functions.................................................................................................................................. 8

Chapter 2 Network Connection ................................................................................................ 11

2.1 Setting the Network Speed Dome over the LAN .................................................................... 11

2.1.1 Wiring over the LAN .......................................................................................................... 11

2.1.2 Detecting and Changing the IP Address ............................................................................. 12

2.2 Setting the Network Speed Dome over the WAN .................................................................. 13

2.2.1 Static IP Connection ........................................................................................................... 13

2.2.2 Dynamic IP Connection ...................................................................................................... 14

Chapter 3 Access to the Network Speed Dome ......................................................................... 17

3.1 Accessing by Web Browsers ................................................................................................... 17

3.2 Accessing by Client Software ................................................................................................. 19

Chapter 4 Live View .................................................................................................................. 21

4.1 Power-up Action .................................................................................................................... 21

4.2 Live View Page ....................................................................................................................... 21

4.3 Starting Live View................................................................................................................... 22

4.4 Recording and Capturing Pictures Manually .......................................................................... 25

4.5 Operating PTZ Control ............................................................................................................ 25

4.5.1 PTZ Control Panel ............................................................................................................... 25

4.5.2 Setting / Calling a Preset .................................................................................................... 26

4.5.3 Setting / Calling a Patrol..................................................................................................... 28

4.5.4 Setting / Calling a Pattern .................................................................................................. 30

4.6 Configuring Live View Parameters ......................................................................................... 31

Chapter 5 PTZ Configuration ..................................................................................................... 32

5.1 Configuring Initial Position ..................................................................................................... 32

5.2 Configuring Basic PTZ Parameters ......................................................................................... 32

5.3 Configuring PTZ Limit Stops ................................................................................................... 34

5.4 Configuring Scheduled Tasks .................................................................................................. 35

5.5 Configuring Park Actions ........................................................................................................ 37

5.6 Configuring Privacy Mask ....................................................................................................... 38

5.7 Configuring Smart Tracking .................................................................................................... 39

5.8 Configuring PTZ Control Priority ............................................................................................ 40

5.9 Clearing PTZ Configurations ................................................................................................... 40

Chapter 6 Speed Dome Configuration ...................................................................................... 42

6.1 Configuring Local Parameters ................................................................................................ 42

6.2 Configuring Time Settings ...................................................................................................... 43

6.3 Configuring Network Settings ................................................................................................ 46

User Manual of Network Speed Dome

6.3.1 Configuring TCP/IP Settings ............................................................................................... 46

6.3.2 Configuring Port Settings ................................................................................................... 48

6.3.3 Configuring PPPoE Settings ................................................................................................ 48

6.3.4 Configuring DDNS Settings................................................................................................. 49

6.3.5 Configuring SNMP Settings ................................................................................................ 51

6.3.6 Configuring 802.1X Settings ............................................................................................... 52

6.3.7 Configuring QoS Settings ................................................................................................... 54

6.3.8 Configuring FTP Settings .................................................................................................... 55

6.3.9 Configuring UPnP™ Settings .............................................................................................. 56

6.3.10 Configuring NAT (Network Address Translation) Settings.............................................. 56

6.3.11 Configuring Email Settings ............................................................................................. 57

6.3.12 Configuring HTTPS Settings ........................................................................................... 59

6.4 Configuring Video and Audio Settings ................................................................................... 61

6.4.1 Configuring Video Settings ................................................................................................ 61

6.4.2 Configuring Audio Settings ................................................................................................ 62

6.4.3 Configuring ROI Settings .................................................................................................... 63

6.5 Configuring Image Settings .................................................................................................... 65

6.5.1 Configuring Display Settings .............................................................................................. 65

6.5.2 Configuring OSD Settings ................................................................................................... 72

6.5.3 Configuring Text Overlay Settings ...................................................................................... 74

6.6 Configuring and Handling Alarms .......................................................................................... 74

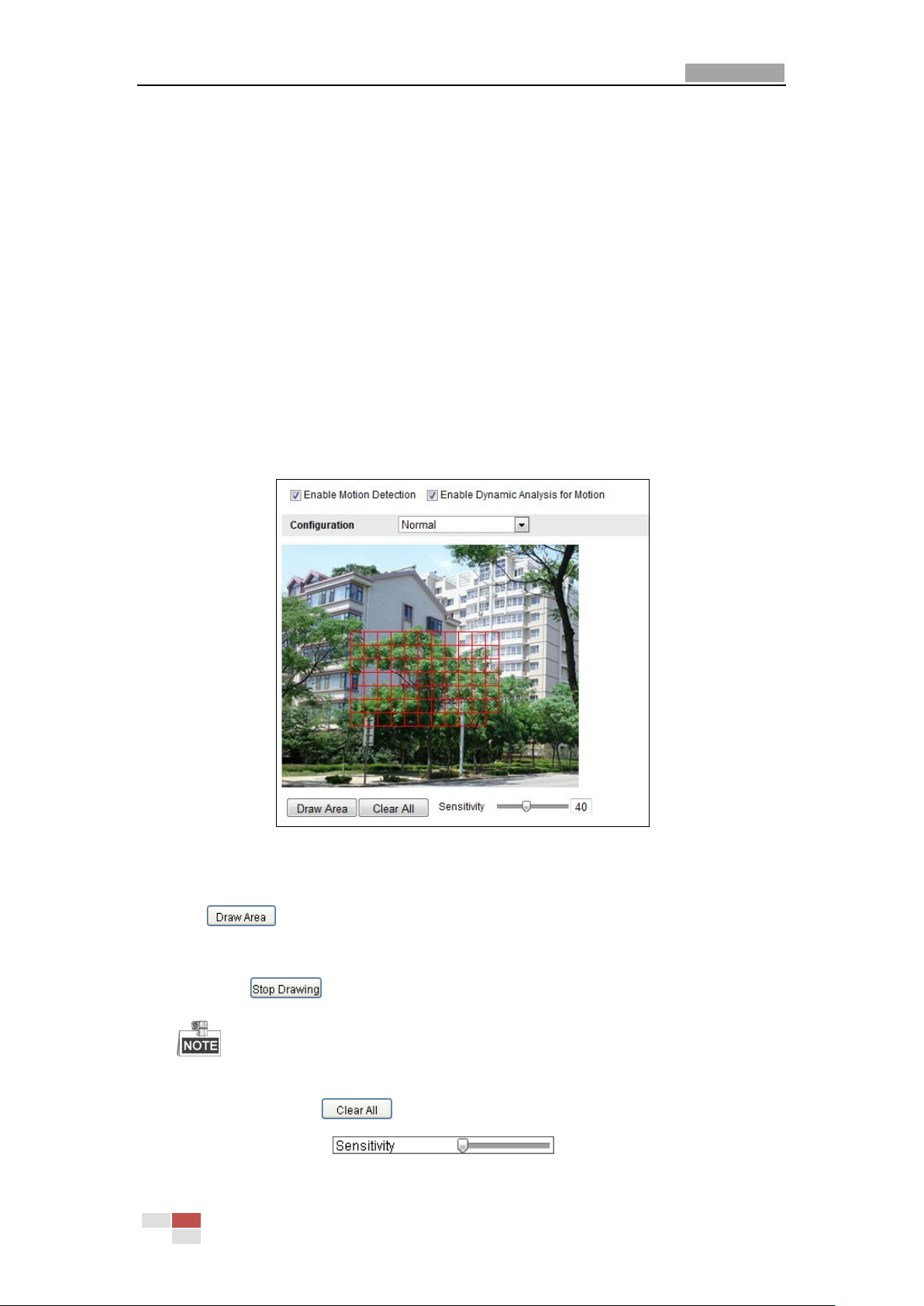

6.6.1 Configuring Motion Detection ........................................................................................... 75

6.6.2 Configuring Video Loss Alarm ............................................................................................ 79

6.6.3 Configuring Video Tampering Alarm .................................................................................. 79

6.6.4 Configuring External Alarm Input ...................................................................................... 80

6.6.5 Configuring Alarm Output ................................................................................................. 82

6.6.6 Handling Exception ............................................................................................................ 83

6.6.7 Detecting Audio Exception ................................................................................................ 84

6.6.8 Configuring Dual-VCA ........................................................................................................ 85

6.6.9 Configuring Intrusion Detection ........................................................................................ 85

6.6.10 Configuring Line Crossing Detection .............................................................................. 87

6.6.11 Configuring Face Detection ........................................................................................... 89

6.6.12 Region Entrance Detection ............................................................................................ 89

6.6.13 Region Exiting Detection ............................................................................................... 91

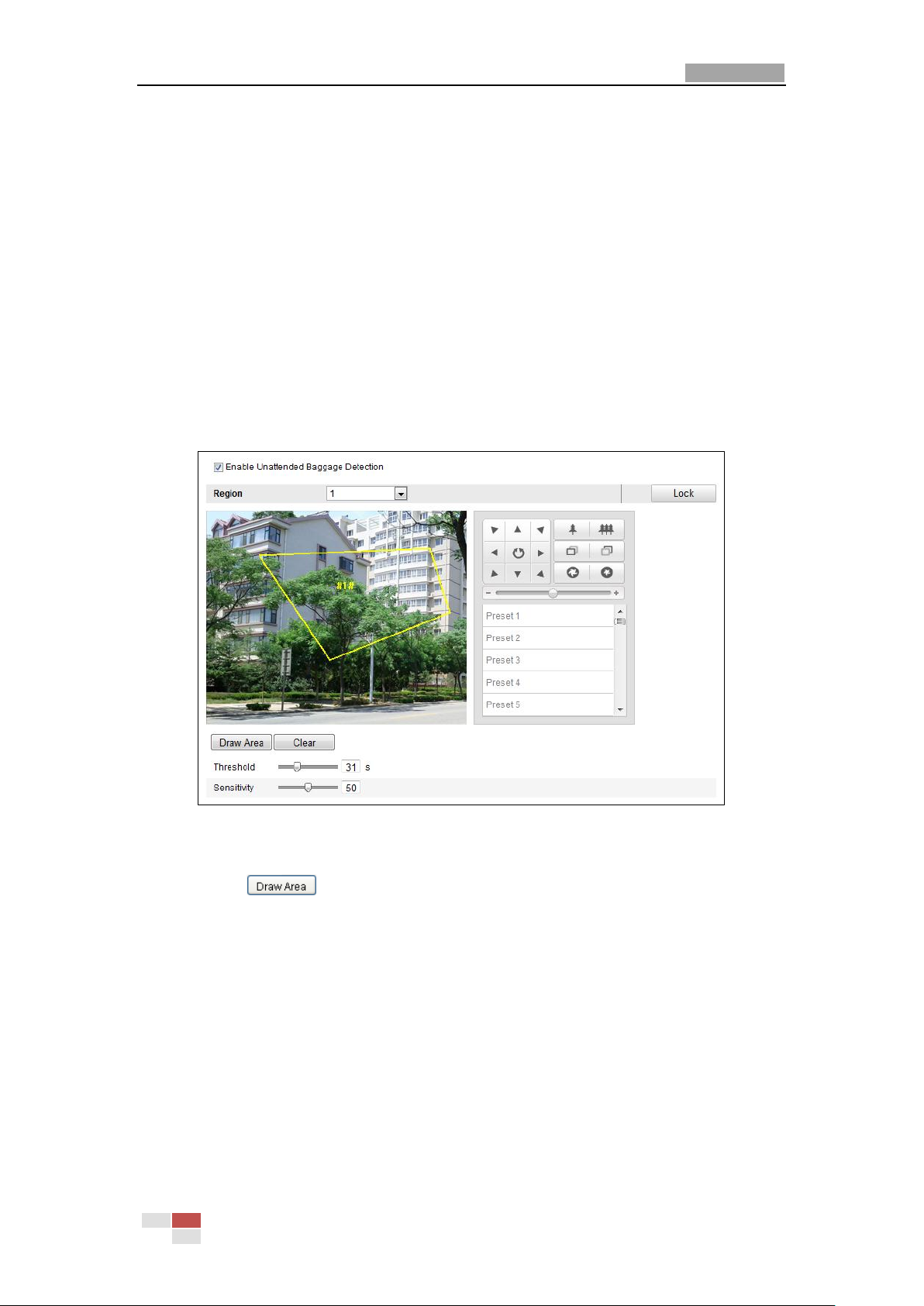

6.6.14 Unattended Baggage Detection..................................................................................... 92

6.6.15 Object Removal Detection ............................................................................................. 93

Chapter 7 Record Settings ........................................................................................................ 94

7.1 Configuring NAS Settings ....................................................................................................... 94

7.2 Initializing and Configuring Storage ....................................................................................... 95

7.3 Configuring Recording Schedule ............................................................................................ 96

7.4 Configuring Snapshot Settings ............................................................................................... 99

Chapter 8 Playback ................................................................................................................. 102

Chapter 9 Log Searching ......................................................................................................... 106

User Manual of Network Speed Dome

Chapter 10 Others .................................................................................................................... 107

10.1 Managing User Accounts ..................................................................................................... 107

10.2 Configuring RTSP Authentication ......................................................................................... 108

10.3 Configuring Anonymous Visit ............................................................................................... 109

10.4 Configuring IP Address Filter ................................................................................................ 109

10.5 Configuring Security Service Settings................................................................................... 110

10.6 Viewing Device Information ................................................................................................. 110

10.7 Maintenance ........................................................................................................................ 111

10.7.1 Rebooting the Speed Dome ......................................................................................... 111

10.7.2 Restoring Default Settings ........................................................................................... 111

10.7.3 Importing/Exporting Configuration File ...................................................................... 112

10.7.4 Upgrading the System.................................................................................................. 112

10.8 Configuring RS-485 .............................................................................................................. 113

10.9 Configuring IR Light .............................................................................................................. 114

10.10 Configuring Remote Connection...................................................................................... 114

Appendix ....................................................................................................................................... 115

Appendix 1 SADP Software Introduction .......................................................................................... 115

Appendix 2 Port Mapping ................................................................................................................. 117

Appendix 3 Statics, Interference Lightning and Surge Protection .................................................... 119

Appendix 4 Waterproof .................................................................................................................... 123

Appendix 5 Bubble Maintenance ..................................................................................................... 124

Appendix 6 RS485 Bus Connection ................................................................................................... 125

Appendix 7 24VAC Wire Gauge & Transmission Distance ................................................................ 128

Appendix 6 Table of Wire Gauge Standards ..................................................................................... 129

Appendix 7 Alarm In/Out Connections ............................................................................................ 130

User Manual of Network Speed Dome

Chapter 1 Overview

1.1 System Requirement

System requirement of web browser accessing is as follows: Operating System: Microsoft Windows XP SP1 and above version / Vista / Win7 / Server 2003 / Server 2008 32bits

CPU: Intel Pentium IV 3.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 7.0 and above version, Apple Safari 5.02 and above

version, Mozilla Firefox 5 and above version and Google Chrome8 and above versions.

1.2 Functions

The functions vary depending on the models of speed dome.

 Limit Stops

The dome can be programmed to move within the limit stops (left/right, up/down).

 Scan Modes

The dome provides 5 scan modes: auto scan, tilt scan, frame scan, random scan and panorama scan.

 Preset Freezing

This feature freezes the scene on the monitor when the dome is moving to a preset. This allows for smooth transition from one preset scene to another. It also guarantees that masked area will not be revealed when the dome is moving to a preset.

 Presets

A preset is a predefined image position. When the preset is called, the dome will automatically move to the defined position. The presets can be added, modified, deleted and called.

 Label Display

The on-screen label of the preset title, azimuth/elevation, zoom, time and dome name can be displayed on the monitor. The displays of time and speed dome name can be programmed.

 Auto Flips

In manual tracking mode, when a target object goes directly beneath the dome, the video will automatically flips 180 degrees in horizontal direction to maintain

User Manual of Network Speed Dome

continuity of tracking. This function can also be realized by auto mirror image depending on different camera models.

 Privacy Mask

This function allows you to block or mask certain area of a scene, for preventing the personal privacy from recording or live viewing. A masked area will move with pan and tilt functions and automatically adjust in size as the lens zooms telephoto and wide.

 3D Positioning

In the client software, use the left key of mouse to click on the desired position in the video image and drag a rectangle area in the lower right direction, then the dome system will move the position to the center and allow the rectangle area to zoom in. Use the left key of mouse to drag a rectangle area in the upper left direction to move the position to the center and allow the rectangle area to zoom out.

 Proportional Pan/Tilt

Proportional pan/tilt automatically reduces or increases the pan and tilt speeds according to the amount of zoom. At telephoto zoom settings, the pan and tilt speeds will be slower than at wide zoom settings. This keeps the image from moving too fast on the live view image when there is a large amount of zoom.

 Auto Focus

The auto focus enables the camera to focus automatically to maintain clear video images.

 Day/Night Auto Switch

The speed domes deliver color images during the day. And as light diminishes at night, the speed domes switch to night mode and deliver black and white images with high quality.

 Slow Shutter

In slow shutter mode, the shutter speed will automatically slow down in low illumination conditions to maintain clear video images by extending the exposure time. The feature can be enabled or disabled.

 Backlight Compensation (BLC)

If you focus on an object against strong backlight, the object will be too dark to be seen clearly. The BLC (Backlight Compensation) function can compensate light to the object in the front to make it clear, but this causes the over-exposure of the background where the light is strong.

 Wide Dynamic Range (WDR)

The wide dynamic range (WDR) function helps the camera provide clear images even under back light circumstances. When there are both very bright and very dark areas simultaneously in the field of view, WDR balances the brightness level of the whole image and provide clear images with details.

This feature varies depending on speed dome models.

 White Balance (WB)

White balance can remove the unrealistic color casts. White balance is the white

User Manual of Network Speed Dome

rendition function of the camera to adjust the color temperature according to the environment automatically.

 Patrol

A patrol is a memorized series of pre-defined preset function. The scanning speed between two presets and the dwell time at the preset are programmable.

 Pattern

A pattern is a memorized series of pan, tilt, zoom, and preset functions. By default the focus and iris are in auto status during the pattern is being memorized.

 Power Off Memory

The dome supports the power off memory capability with the predefined resume time. It allows the dome to resume its previous position after power is restored.

 Time Task

A time task is a preconfigured action that can be performed automatically at a specific date and time. The programmable actions include: auto scan, random scan, patrol 1-8 ,pattern 1-4, preset 1-8,frame scan, panorama scan, tilt scan, day, night, reboot, PT adjust, Aux Output, etc.

 Park Action

This feature allows the dome to start a predefined action automatically after a period of inactivity.

 User Management

The dome allows you to edit users with different levels of permission, in the admin login status. Multiple users are allowed to access and control the same network speed dome via network simultaneously.

 3D Digital Noise Reduction

Comparing with the general 2D digital noise reduction, the 3D digital noise reduction function processes the noise between two frames besides processing the noise in one frame. The noise will be much less and the video will be clearer.

 Dual-VCA

Combine the detected VCA information into the video stream, which can be used for the second-time analysis on the back-end device.

User Manual of Network Speed Dome

Network Cable

Chapter 2 Network Connection

Before you start:

 If you want to set the network speed dome via a LAN (Local Area Network),

please refer to Section 2.1 Setting the Network Speed Dome over the LAN.

 If you want to set the network speed dome via a WAN (Wide Area Network),

please refer to Section 2.2 Setting the Network Speed Dome over the WAN.

2.1 Setting the Network Speed Dome over the LAN

Purpose:

To view and configure the speed dome via a LAN, you need to connect the network speed dome in the same subnet with your computer, and install the SADP or client software to search and change the IP of the network speed dome.

For the detailed introduction of SADP, please refer to Appendix 1.

2.1.1 Wiring over the LAN

The following figures show the two ways of cable connection of a network speed dome and a computer:

Purpose:

 To test the network speed dome, you can directly connect the network speed

dome to the computer with a network cable as shown in Figure 2-1.

 Refer to the Figure 2-2 to set the network speed dome over the LAN via a switch

or a router.

Figure 2-1 Connecting Directly

User Manual of Network Speed Dome

Speed Dome

Network Cable

Switch or Router

Network Cable

Figure 2-2 Connecting via a Switch or a Router

2.1.2 Detecting and Changing the IP Address

You need the IP address to visit the network speed dome.

Steps:

1. To get the IP address, you can choose either of the following methods:

 Use SADP, a software tool which can automatically detect the online

network speed domes in the LAN and list the device information including IP address, subnet mask, port number, device serial number, device version, etc., shown in Figure 2-3.

 Use the client software to list the online devices. Please refer to the user

manual of client software for detailed information.

2. Change the IP address and subnet mask to the same subnet as that of your

computer.

3. Enter the IP address of network speed dome in the address field of the web

browser to view the live video.

 The default IP address is 192.0.0.64. The default user name is admin, and

password is 12345.

 For accessing the network speed dome from different subnets, please set the

gateway for the network speed dome after you logged in. For detailed information, please refer to Section 6.3.1 Configuring TCP/IP Settings.

User Manual of Network Speed Dome

Figure 2-3 SADP Interface

2.2 Setting the Network Speed Dome over the WAN

Purpose:

This section explains how to connect the network speed dome to the WAN with a static IP or a dynamic IP.

2.2.1 Static IP Connection

Before you start:

Please apply a static IP from an ISP (Internet Service Provider). With the static IP address, you can connect the network speed dome via a router or connect it to the WAN directly.

 Connecting the network speed dome via a router

Steps:

1. Connect the network speed dome to the router.

2. Assign a LAN IP address, the subnet mask and the gateway. Refer to Section 2.1.2

Detecting and Changing the IP Address for detailed IP address configuration of the speed dome.

3. Save the static IP in the router.

4. Set port mapping, E.g., 80, 8000 and 554 ports. The steps for port mapping vary

depending on different routers. Please call the router manufacturer for assistance with port mapping.

Refer to Appendix 2 for detailed information about port mapping.

User Manual of Network Speed Dome

Speed Dome

Network Cable

Router with Static IP

Network Cable

Internet

Speed Dome

Network Cable

Internet

5. Visit the network speed dome through a web browser or the client software over

the internet.

Figure 2-4 Accessing the Speed Dome through Router with Static IP

 Connecting the network speed dome with static IP directly

You can also save the static IP in the speed dome and directly connect it to the internet without using a router. Refer to Section 2.1.2 Detecting and Changing the IP Address for detailed IP address configuration of the speed dome.

Figure 2-5 Accessing the Speed Dome with Static IP Directly

2.2.2 Dynamic IP Connection

Before you start:

Please apply a dynamic IP from an ISP. With the dynamic IP address, you can connect the network speed dome to a modem or a router.

 Connecting the network speed dome via a router

Steps:

1. Connect the network speed dome to the router.

2. In the speed dome, assign a LAN IP address, the subnet mask and the gateway.

Refer to Section 2.1.2 Detecting and Changing the IP Address for detailed LAN configuration.

3. In the router, set the PPPoE user name, password and confirm the password.

4. Set port mapping. E.g. 80, 8000 and 554 ports. The steps for port mapping vary

depending on different routers. Please call the router manufacturer for assistance

User Manual of Network Speed Dome

with port mapping.

Refer to Appendix 2 for detailed information about port mapping.

5. Apply a domain name from a domain name provider.

6. Configure the DDNS settings in the setting interface of the router.

7. Visit the speed dome via the applied domain name.

 Connecting the network speed dome via a modem

Purpose:

This speed dome supports the PPPoE auto dial-up function. The speed dome gets a public IP address by ADSL dial-up after the speed dome is connected to a modem. You need to configure the PPPoE parameters of the network speed dome. Refer to Section 6.3.3 Configuring PPPoE Settings for detailed configuration.

Figure 2-6 Accessing the Speed Dome with Dynamic IP

The obtained IP address is dynamically assigned via PPPoE, so the IP address always changes after rebooting the speed dome. To solve the inconvenience of the dynamic IP, you need to get a domain name from the DDNS provider (E.g. DynDns.com). Please follow below steps for normal domain name resolution and private domain name resolution to solve the problem.

 Normal Domain Name Resolution

Figure 2-7 Normal Domain Name Resolution

Steps:

1. Apply a domain name from a domain name provider.

User Manual of Network Speed Dome

2. Configure the DDNS settings in the DDNS Settings interface of the network speed

dome. Refer to Section 6.3.4 Configuring DDNS Settings for detailed configuration.

3. Visit the speed dome via the applied domain name.

 Private Domain Name Resolution

Figure 2-8 Private Domain Name Resolution

Steps:

1. Install and run the IP Server software in a computer with a static IP.

2. Access the network speed dome through the LAN with a web browser or the

client software.

3. Enable DDNS and select IP Server as the protocol type. Refer to Section 6.3.4

Configuring DDNS Settings for detailed configuration.

User Manual of Network Speed Dome

Chapter 3 Access to the Network

Speed Dome

3.1 Accessing by Web Browsers

Steps:

1. Open the web browser.

2. In the address field, input the IP address of the network speed dome, e.g.,

192.0.0.64 and press the Enter key to enter the login interface.

3. Select English as the interface language on the top-right of login interface.

4. Input the user name and password and click .

 The default user name is admin, password is 12345.  You are highly recommended to change the initial password right after the

first login to avoid safety problem.

Figure 3-1 Login Interface

5. Install the plug-in before viewing the live video and operating the speed dome.

Please follow the installation prompts to install the plug-in.

User Manual of Network Speed Dome

Figure 3-2 Download and Install Plug-in

Figure 3-3 Install Plug-in (1)

Figure 3-4 Install Plug-in (2)

User Manual of Network Speed Dome

Figure 3-5 Install Plug-in (3)

You may have to close the web browser to install the plug-in. Please reopen the web browser and log in again after installing the plug-in.

3.2 Accessing by Client Software

The product CD contains the client software. You can view the live video and manage the speed dome with the client software. Follow the installation prompts to install the client software and WinPcap. The configuration interface and live view interface of client software are shown below.

Figure 3-6 iVMS-4200 Control Panel

User Manual of Network Speed Dome

Figure 3-7 iVMS-4200 Live View Interface

 If you use third party VMS software, please contact technical support of our

branch for camera firmware.

 For detailed information about client software of our company, please refer to

the user manual of the software. This manual mainly introduces accessing to the network speed dome by web browser.

User Manual of Network Speed Dome

Model XX-XXXXXX-X Address 0 Communication 0000,0,0,0 Software Version Vx.x.x Camera Version Vx.xx Language English

Chapter 4 Live View

In this and the following chapters, operation of the speed dome by the web browser R will be taken as an example.

4.1 Power-up Action

After the power is applied, the speed dome will perform self-test actions. It begins with lens actions and then pan and tilt movement. After the power-up self-test actions, the information as shown in Figure 4-1 will be displayed on screen for 40 seconds. The System Information displayed on the screen includes the dome model, address, protocol, version and other information. The COMMUNICATION refers to the baud rate, parity, data bit and stop bit of the dome. e.g., “2400, N, 8, 1” indicates the dome is configured with the baud rate of 2400, no parity, 8 data bits and 1 stop bit.

4.2 Live View Page

Purpose:

The live video page allows you to view live video, capture images, realize PTZ control, set/call presets and configure video parameters. Log in the network speed dome to enter the live view page, or you can click

Figure 4-1 Power-up Information

on the menu bar of the main page to enter the live view page.

User Manual of Network Speed Dome

Menu Bar

Live View

Parameters

Live View Window

Toolbar

Show or hide PTZ control panel

PTZ Control

Preset/Patrol/Pattern

Descriptions of the live view page:

Figure 4-2 Live View Page

Menu Bar: Click each tab to enter Live View, Playback, Log and Configuration page respectively.

Live View Window: Display the live video. Toolbar:

Operations on the live view page, e.g., live view, capture, record, audio on/off, two-way audio, etc.

PTZ Control:

Panning, tilting, focusing and zooming actions of the speed dome. The lighter, wiper, one-touch focus and lens initialization control.

Preset/patrol/pattern: Set and call the preset/patrol/pattern for the speed dome. Live View Parameters:

Configure the image size and stream type of the live video.

4.3 Starting Live View

In the live view window as shown in Figure 4-3, click on the toolbar to start the

live view of the speed dome.

User Manual of Network Speed Dome

Icon

Description

Icon

Description

Start/Stop Live view

Manually capture the pictures

Manual recording off/on

Mute / Audio on and adjust volume

Two-way audio off/on/

Enable / Disable Regional Focus

Enable / Disable Regional Exposure

3D zoom

Manual tracking

Table 4-1 Descriptions of the Toolbar

Figure 4-3 Start Live View

 Not all the speed dome models support the above functions. Please take the

browser interface of the actual product as standard.

 Before enabling the two-way audio or recording with audio functions, please

set the Stream Type to Video & Audio referring to Section 6.4.1 Configuring

Video Settings.

Full-screen Mode:

You can double-click on the live video to switch the current live view into full-screen or return to normal mode from the full-screen.

Regional Focus:

Steps:

User Manual of Network Speed Dome

1. Click the on the toolbar to enter the regional focus operation mode.

2. Click-and-drag the mouse to draw a rectangle on the image as the desired focus

region.

3. Click the to exit the regional focus operation mode.

Regional Exposure:

Steps:

1. Click the on the toolbar to enter the regional exposure operation mode.

2. Click-and-drag the mouse to draw a rectangle on the image as the desired

exposure region.

3. Click the to exit the regional exposure operation mode.

3D Positioning:

Steps:

1. Click on the toolbar of live view interface.

2. Operate the 3D positioning function:

 Left click a position of the live video. The corresponding position will be

moved to the center of the live video.

 Hold down the left mouse button and drag the mouse to the lower right on

the live video. The corresponding position will be moved to the center of the live video and zoomed in.

 Hold down the left mouse button and drag the mouse to the upper left on

the live video. The corresponding position will be moved to the center of the live video and zoomed out.

Manual Tracking:

Before you start:

Please enter the Smart Tracking settings interface and enable smart tracking first. Configuration > Advanced Configuration> PTZ > Smart Tracking

Steps:

1. Click on the toolbar of live view interface.

2. Click a moving object in the live video.

The speed dome will track the object automatically.

User Manual of Network Speed Dome

Please refer to the following sections for more information:

 Configuring remote recording in Section 7.3 Configuring Recording Schedule.  Setting the image quality of the live video in Section 6.1 Configuring Local

Parameters and Section 6.4.1 Configuring Video Settings.

 Setting the OSD text on live video in Section 6.5.2 Configuring OSD Settings.

4.4 Recording and Capturing Pictures Manually

In the live view interface, click on the toolbar to capture the live pictures and

the captured image will be saved as a JPEG file in your computer by default.

You can click to record the live video.

The local saving paths of the captured pictures and clips can be set in the Configuration > Local Configuration interface and the image format can also be edited in that interface. To configure remote automatic recording, please refer to Section 7.3 Configuring Recording Schedule.

4.5 Operating PTZ Control

Purpose:

In the live view interface, you can use the PTZ control buttons to control panning, tilting and zooming.

4.5.1 PTZ Control Panel

On the live view page, click to show the PTZ control panel or click to hide it. Click the direction buttons to control the pan/tilt movements. Click the zoom/iris/focus buttons to realize lens control.

Figure 4-4 PTZ Control Panel

User Manual of Network Speed Dome

Button

Description

Zoom in/out

Focus near/far

Iris +/-

Adjust speed of pan/tilt movements

Table 4-2 Descriptions of PTZ Control Panel

4.5.2 Setting / Calling a Preset

Purpose:

A preset is a predefined image position. For the defined preset, you can click the calling button to quickly view the desired image position.

 Setting a Preset:

Steps:

1. In the PTZ control panel, select a preset number from the preset list.

Figure 4-5 Setting a Preset

2. Use the PTZ control buttons to move the lens to the desired position.

 Pan the speed dome to the right or left.  Tilt the speed dome up or down.  Zoom in or out.  Refocus the lens.

3. Click to finish the setting of the current preset.

4. You can click to delete the preset.

You can configure up to 300 presets.

User Manual of Network Speed Dome

Special

Preset

Function

Special

Preset

Function

Auto flip

Set limit stops manually

Back to initial position

Remote reboot

Call patrol 1

Call OSD menu

Call patrol 2

Stop a scan

Call patrol 3

Start random scan

Call patrol 4

Start frame scan

IR cut filter in

Start auto scan

IR cut filter out

100

Start tilt scan

Call pattern 1

101

Start panorama scan

Call pattern 2

102

Call patrol 5

Call pattern 3

103

Call patrol 6

Call pattern 4

104

Call patrol 7

Automatically Create Patrol

105

Call patrol 8

 Calling a Preset:

In the PTZ control panel, select a defined preset from the list and click to call the preset.

Figure 4-6 Calling a Preset

For convenient preset selection, refer to the following steps to navigate to the preset you want.

Steps:

1. Select any preset from the list.

2. Click the preset number you need on the keyboard.

The following presets are predefined with special commands. You can only call them but not configure them. For instance, preset 99 is the “Start auto scan”. If you call the preset 99, the speed dome starts auto scan function.

Table 4-3 Special Presets

User Manual of Network Speed Dome

Start to set limit stops

Figure 4-7 Special Preset

You may need to use the OSD (On Screen Display) menu when controlling the speed dome remotely. To display the OSD menu on the live view screen, you can call the preset number 95.

4.5.3 Setting / Calling a Patrol

Purpose:

A patrol is a memorized series of preset function. It can be configured and called on the patrol settings interface. There are up to 8 patrols for customizing. A patrol can be configured with 32 presets.

Before you start:

Please make sure that the presets you want to add into a patrol have been defined.

 Setting a Patrol:

Steps:

1. In the PTZ control panel, click to enter the patrol settings interface.

2. Select a patrol number from .

3. Click to enter the adding interface of preset, as shown in Figure 4-8.

Figure 4-8 Adding Presets

User Manual of Network Speed Dome

Name

Description

Patrol Time

It is the duration staying on one patrol point. The speed dome moves to another patrol point after the patrol time.

Patrol Speed

It is the speed of moving from one preset to another.

Buttons

Description

Save a patrol

Call a patrol

Stop a patrol

Enter the adding interface of preset

Modify a preset

Delete a preset

Delete all the presets in the selected patrol

4. Configure the preset number, patrol time and patrol speed.

5. Click to save a preset into the patrol.

6. Repeat the steps from 3 to 5 to add more presets.

7. Click to save all the patrol settings.

 Calling a Patrol:

In the PTZ control panel, select a defined patrol from and click to

call the patrol, as shown in Figure 4-9.

Figure 4-9 Calling a Patrol

 Buttons on the Patrols interface:

User Manual of Network Speed Dome

Buttons

Description

Start to record a pattern.

Stop recording a pattern.

Call the current pattern.

Stop the current pattern.

Delete the current pattern.

4.5.4 Setting / Calling a Pattern

Purpose:

A pattern is a memorized series of pan, tilt, zoom, and preset functions. It can be called on the pattern settings interface. There are up to 4 patterns for customizing.

 Setting a Pattern:

Steps:

1. In the PTZ control panel, click to enter the pattern settings interface.

2. Select a pattern number from the list as shown in Figure 4-10.

Figure 4-10 Patterns Settings Interface

3. Click to enable recording the panning, tilting and zooming actions.

4. Use the PTZ control buttons to move the lens to the desired position after the

information of Program Pattern Remaining Memory (%) is displayed on the screen.

• Pan the speed dome to the right or left.

• Tilt the speed dome up or down.

• Zoom in or out.

• Refocus the lens.

5. Click to save all the pattern settings.

 Buttons on the Patterns interface:

 These 4 patterns can be operated separately and with no priority level.

User Manual of Network Speed Dome

 When configuring and calling the pattern, proportional pan is valid; the limit

stops and auto flip will be invalid; and the 3D positioning operation is not supported.

4.6 Configuring Live View Parameters

 Main stream/Sub-stream:

You can select , or as the stream type of live viewing.

The main stream is with a relatively high resolution and needs much bandwidth. The sub-stream is with a low resolution and needs less bandwidth. The resolution of third stream is between that of main stream and sub stream. The default setting of stream

type is .

Please refer to Section 6.4.1 Configuring Video Settings for more detailed parameter settings of the main stream and sub-stream respectively.

 Image Size:

You can scale up/down the live view image by clicking , , , . The image

size can be 4:3, 16:9, original or auto.

User Manual of Network Speed Dome

Chapter 5 PTZ Configuration

5.1 Configuring Initial Position

Purpose:

The initial position is the origin of PTZ coordinates. It can be the factory default initial position. You can also customize the initial position according to your own demand.

 Customize an Initial Position:

Steps:

1. Enter the Initial Position Configuration interface:

Configuration > Advanced Configuration > PTZ > Initial Position

Figure 5-1 PTZ Configuration

2. Click the PTZ control buttons to find a position as the initial position of the dome;

you can also call a defined preset and set it as the initial position of the dome.

3. Click Set to save the position.

 Call/delete an Initial Position:

You can click to call the initial position. You can click to delete the

initial position and restore the factory default initial position.

5.2 Configuring Basic PTZ Parameters

Purpose:

User Manual of Network Speed Dome

You can configure the basic PTZ parameters, including proportional pan, preset freezing, preset speed, etc.

1. Enter the Basic PTZ Parameter Configuration interface:

Configuration > Advanced Configuration > PTZ > Basic

Figure 5-2 Basic PTZ Configuration Interface

2. Configure the following settings:

 Basic Parameters: Enable/disable proportional pan and preset freezing, set the

preset speed, keyboard control speed, and auto scan speed.

 Proportional Pan: If you enable this function, the pan/tilt speeds change

according to the amount of zoom. When there is a large amount of zoom, the pan/tilt speed will be slower for keeping the image from moving too fast on the live view image.

 Preset Freezing: This function enables the live view to switch directly from

one scene defined by a preset to another, without showing the middle areas between these two, to ensure the surveillance efficiency. It can also reduce the use of bandwidth in a digital network system.

Preset freezing function is invalid when you calling a pattern.

 Preset Speed: You can set the speed of a defined preset from 1 to 8.  Keyboard Control Speed: Define the speed of PTZ control by a keyboard as

Low, Normal or High.

 Auto Scan Speed: The dome provides 5 scan modes: auto scan, tilt scan,

frame scan, random scan and panorama scan. The scan speed can be set from level 1 to 40.

 Zooming Speed: The zoom speed is adjustable from level 1 to 3.

 PTZ OSD: Set the on-screen display duration of the PTZ status.

 Zoom Status: Set the OSD duration of zooming status as 2 seconds, 5 seconds,

10 seconds, Always Close or Always Open.

User Manual of Network Speed Dome

 PT Status: Set the azimuth angle display duration while panning and tilting as

2 seconds, 5 seconds, 10 seconds, Always Close or Always Open.

 Preset Status: Set the preset name display duration while calling the preset as

2 seconds, 5 seconds, 10 seconds, Always Close or Always Open.

 Power-off Memory: The dome can resume its previous PTZ status or actions after

it restarted from a power-off. You can set the time point of which the dome resumes its PTZ status. You can set it to resume the status of 30 seconds, 60 seconds, 300 seconds or 600 seconds before power-off.

3. Click to save the settings.

5.3 Configuring PTZ Limit Stops

Purpose:

The dome can be programmed to move within the configurable limit stops (left/right, up/down).

Steps:

1. Enter the Limit Configuration interface:

Configuration > Advanced Configuration > PTZ > Limit

Figure 5-3 Configure the PTZ Limit

2. Click the checkbox of Enable Limit and choose the limit type as manual stops or

scan stops.

 Manual Stops:

When manual limit stops are set, you can operate the PTZ control panel

User Manual of Network Speed Dome

manually only in the limited surveillance area.

 Scan Stops:

When scan limit stops are set, the random scan, frame scan, auto scan, tilt scan, panorama scan is performed only in the limited surveillance area.

Manual Stops of Limit Type is prior to Scan Stops. When you set these two limit types at the same time, Manual Stops is valid and Scan Stops is invalid.

3. Click the PTZ control buttons to find the left/right/up/down limit stops; you can

also call the defined presets and set them as the limits of the dome.

4. Click Set to save the limits or click Clear to clear the limits.

5.4 Configuring Scheduled Tasks

Purpose:

You can configure the network dome to perform a certain action automatically in a user-defined time period.

Steps:

1. Enter the Scheduled Task Settings interface:

Configuration> Advanced Configuration> PTZ > Scheduled Tasks

Figure 5-4 Configure Scheduled Tasks

2. Check the checkbox of Enable Scheduled Task.

3. Set the Park Time. You can set the park time (a period of inactivity) before the

dome starts the scheduled tasks.

4. Set the schedule and task details.

Steps:

(1) Click to edit the task schedule.

User Manual of Network Speed Dome

Figure 5-5 Edit the Schedule and Task Type

(2) Choose the day you want to set the task schedule. (3) Click All Day to set the schedule as all day; or click Customize and input the

Start Time and End Time for each task, and click Enter on your keyboard to enter the time.

(4) Choose the task type from the drop-down list. You can choose scan, preset,

pattern and etc.

Figure 5-6 Task Types

(5) After you set the scheduled task, you can copy the task to other days

(Optional).

(6) Click to save the settings.

The time of each task cannot be overlapped. Up to 10 tasks can be configured for each day.

5. Click to save the settings.

User Manual of Network Speed Dome

5.5 Configuring Park Actions

Purpose:

This feature allows the dome to start a predefined park action (scan, preset, pattern and etc.) automatically after a period of inactivity (park time).

Scheduled Tasks function is prior to Park Action function. When these two functions are set at the same time, only the Scheduled Tasks function takes effect.

Steps:

1. Enter the Park Action Settings interface:

Configuration > Advanced Configuration> PTZ > Park Action

Figure 5-7 Set the Park Action

2. Check the checkbox of Enable Park Action.

3. Set the Park Time as the inactivity time of the dome before it starts the park

actions.

4. Choose Action Type the from the drop-down list.

Figure 5-8 Action Types

5. Click to save the settings.

User Manual of Network Speed Dome

5.6 Configuring Privacy Mask

Purpose:

Privacy mask enables you to cover certain areas on the live video to prevent certain spots in the surveillance area from being live viewed and recorded.

Steps:

1. Enter the Privacy Mask Settings interface:

Configuration > Advanced Configuration> PTZ > Privacy Mask

Figure 5-9 Draw the Privacy Mask

2. Click the PTZ control buttons to find the area you want to set the privacy mask.

3. Click ; click and drag the mouse in the live video window to draw the

area. You can drag the corners of the red rectangle area to draw a polygon mask.

4. Click to finish drawing or click to clear all of the areas you

set without saving them.

5. Click to save the privacy mask, and it will be listed in the Privacy Mask

List area; set the value of Active Zoom Ratio on your demand, and then the mask will only appear when the zoom ratio is greater than the predefined value.

Figure 5-10 Privacy Mask List

6. you can also define the color of the masks.

User Manual of Network Speed Dome

Figure 5-11 Define Mask Color

7. You can select a mask and click to delete it from the list.

8. Check the checkbox of Enable Privacy Mask to enable this function.

You are allowed to draw up to 24 areas on the same image.

5.7 Configuring Smart Tracking

Purpose:

The speed dome tracks the moving objects automatically after you configure this function.

Steps:

1. Enter the Smart Tracking Settings interface:

Configuration > Advanced Configuration> PTZ > Smart Tracking

Figure 5-12 Configure Smart Tracking

2. Check the check box to enable smart tracking function.

3. Click the PTZ buttons to select an object.

User Manual of Network Speed Dome

4. Click to set the current zoom ratio as the tracking zoom ratio.

5. Set the tracking duration. The speed dome stops tracking when the duration time

is up. The duration ranges from 0 to 300 seconds.

 Setting the duration to 0 means that there’s no duration when speed dome

tracks.

 Not all the speed dome models support this function. Please take the browser

interface of the actual product as standard.

5.8 Configuring PTZ Control Priority

Steps:

1. Get to the configuration interface:

Configuration > Advanced Configuration> PTZ > Prioritize PTZ.

 The speed dome can be controlled by network and RS-485 signals. You can set

the control priority of these two signals.

 The operation of Operator is prior to that of User. When the Operator is

controlling the speed dome, the User cannot control it. When the Operator finishes, the User can control the speed dome after the Delay time. The Delay time can be set in Priority PTZ interface as shown follows.

Figure 5-13 PTZ Priority

2. Click to activate the settings.

5.9 Clearing PTZ Configurations

Purpose:

You can clear PTZ configurations in this interface, including all presets, patrols, patterns, privacy masks, PTZ limits and scheduled tasks.

Steps:

1. Enter the Clearing Configuration interface:

Configuration > Advanced Configuration> PTZ > Clear Config

2. Check the checkbox of the items you want to clear.

User Manual of Network Speed Dome

3. Click to clear the settings.

User Manual of Network Speed Dome

Chapter 6 Speed Dome Configuration

6.1 Configuring Local Parameters

The local configuration refers to the parameters of the live view and other operations using the web browser.

Steps:

1. Enter the Local Configuration interface:

Configuration > Local Configuration

Figure 6-1 Local Configuration Interface

2. Configure the following settings:

 Live View Parameters: Set the protocol type, stream type, image size and live

view performance.

 Protocol Type: TCP, UDP, MULTICAST and HTTP are selectable.

TCP: Ensures complete delivery of streaming data and better video quality,

yet the real-time transmission will be affected.

UDP: Provides real-time audio and video streams. HTTP: Allows the same quality as of TCP without setting specific ports for

streaming under some network environments.

MULTICAST: It’s recommended to select the protocol type to

when using the Multicast function. For other information about Multicast, refer to Section 6.3.1 Configuring TCP/IP Settings.

User Manual of Network Speed Dome

 Live View Performance: Set the live view performance to Least Delay,

Balanced or Best Fluency.

Please set Live View Performance as Best Fluency for the high frame rate speed dome.

 Rules: You can enable or disable the rules of dynamic analysis for events here.  Image Format: The captured pictures can be saved as different format. JPEG

and BMP are available.

 Record File Settings: Set the saving path of the video files.

 Record File Size: Select the packed size of manually recorded and downloaded

video files. The size can be set to 256M, 512M or 1G.

 Save record files to: Set the saving path for the manually recorded video files.  Save downloaded files to: Set the saving path for the downloaded video files

in interface.

 Picture and Clip Settings: Set the saving paths of the captured pictures and

clipped video files.

 Save snapshots in live view to: Set the saving path of the manually captured

pictures in interface.

 Save snapshots when playback to: Set the saving path of the captured

pictures in interface.

 Save clips to: Set the saving path of the clipped video files in

interface.

You can click to change the directory for saving video files, clips

and pictures.

3. Click to save the settings.

6.2 Configuring Time Settings

Purpose:

You can follow the instructions in this section to configure the time which can be displayed on the video. There are Time Zone, Time Synchronization, Daylight Saving Time (DST) functions for setting the time. Time Synchronization consists of auto mode by Network Time Protocol (NTP) server and manual mode.

User Manual of Network Speed Dome

To enter the Time Settings interface:

Configuration > Basic Configuration > System > Time Settings

Or Configuration > Advanced Configuration > System > Time Settings

Figure 6-2 Time Settings

 Configuring Time Synchronization by NTP Server

Steps:

(1) Check the radio button to enable the NTP function. (2) Configure the following settings:

Server Address: IP address of NTP server. NTP Port: Port of NTP server. Interval: The time interval between the two synchronizing actions by NTP server.

It can be set from 1 to 10080 minutes.

Figure 6-3 Time Sync by NTP Server

(3) You can click the button to check whether the confguration is

succeeded.

If the speed dome is connected to a public network, you should use a NTP server that has a time synchronization function, such as the server at the National Time Center (IP Address: 210.72.145.44). If the speed dome is set in a customized network, NTP software can be used to establish a NTP

User Manual of Network Speed Dome

server for time synchronization.

 Configuring Time Synchronization Manually

Steps:

(1) Check the Manual Time Sync radio button. (2) Click to set the system time from the pop-up calendar.

(3) Click to save the settings.

You can also check the Sync. with computer time checkbox to synchronize the time of the speed dome with the time of your computer.

Figure 6-4 Time Sync Manually

 Select the Time Zone

Purpose:

When the speed dome is taken to another time zone, you can use the Time Zone function to adjust the time. The time will be adjusted according to the original time and the time difference between the two time zones.

From the Time Zone drop-down menu as shown in Figure 6-5, select the Time Zone in which the speed dome locates.

Figure 6-5 Time Zone Settings

 Configuring Daylight Saving Time (summer time)

Purpose:

If there is the habit of adjusting clocks forward in your country in certain time period of a year, you can turn this function on. The time will be adjusted automatically when the Daylight Saving Time(DST) comes.

Steps:

User Manual of Network Speed Dome

(1) Enter the DST interface by Configuration > Advanced Configuration >

System > DST

(2) Check to enable the DST function. (3) Set the date of the DST period.

(4) Click to save the settings.

Figure 6-6 DST Settings

6.3 Configuring Network Settings

6.3.1 Configuring TCP/IP Settings

Purpose:

TCP/IP settings must be properly configured before you operate the speed dome over network. IPv4 and IPv6 are both supported.

Steps:

1. Enter TCP/IP Settings interface:

Configuration > Basic Configuration > Network > TCP/IP Or Configuration > Advanced Configuration > Network > TCP/IP

User Manual of Network Speed Dome

Figure 6-7 TCP/IP Settings

2. Configure the NIC settings, including the IPv4(IPv6) Address, IPv4(IPv6) Subnet

Mask and IPv4(IPv6) Default Gateway.

3. Click to save the above settings.

 If the DHCP server is available, you can check to automatically obtain

an IP address and other network settings from that server.

 If the IP address is set manually, you can click to check whether the

IP address is already used to prevent the IP address confliction.

 The valid value range of Maximum Transmission Unit (MTU) is 500 ~ 9676. The

default value is 1500.

 The Multicast sends a stream to the multicast group address and allows multiple

clients to acquire the stream at the same time by requesting a copy from the multicast group address. Before utilizing this function, you have to enable the Multicast function of your router and configure the gateway of the network speed dome.

 If the DNS server settings are required for some applications (e.g., sending

email), you should properly configure the Preferred DNS Server and Alternate DNS server.

 Check the checkbox of Enable Multicast Discovery, and then the speed dome

can be detected by client software in the LAN.

User Manual of Network Speed Dome

Figure 6-8 DNS Server Settings

The router must support the route advertisement function if you select

Route Advertisement as the IPv6 mode.

6.3.2 Configuring Port Settings

Purpose:

If there is a router and you want to access the speed dome through Wide Area Network (WAN), you need to forward the 3 ports for the speed dome.

Steps:

1. Enter the Port Settings interface:

Configuration > Basic Configuration > Network > Port

Or Configuration > Advanced Configuration > Network > Port

Figure 6-9 Port Settings

2. Set the HTTP port, RTSP port, HTTPS port and port of the speed dome.

HTTP Port: The default port number is 80. RTSP Port: The default port number is 554. HTTPS Port: The default port number is 443. Server Port: The default port number is 8000.

3. Click to save the settings.

6.3.3 Configuring PPPoE Settings

Purpose:

If you have no router but only a modem, you can use Point-to-Point Protocol over Ethernet (PPPoE) function.

User Manual of Network Speed Dome

Steps:

1. Enter the PPPoE Settings interface:

Configuration >Advanced Configuration > Network > PPPoE

Figure 6-10 PPPoE Settings

2. Check the Enable PPPoE checkbox to enable this feature.

3. Enter User Name, Password, and Confirm password for PPPoE access.

The User Name and Password should be assigned by your ISP.

4. Click to save and exit the interface.

6.3.4 Configuring DDNS Settings

Purpose:

If your speed dome is set to use PPPoE as its default network connection, you can use the Dynamic DNS (DDNS) for network access.

Before you start:

Registration on the DDNS server is required before configuring the DDNS settings of the speed dome.

Steps:

1. Enter the DDNS Settings interface:

Configuration > Advanced Configuration > Network > DDNS

Figure 6-11 DDNS Settings

2. Check the Enable DDNS checkbox to enable this feature.

3. Select DDNS Type. Three DDNS types are selectable: IPServer, HiDDNS, NO-IP

and DynDNS.

User Manual of Network Speed Dome

 DynDNS:

Steps:

(1) Enter Server Address of DynDNS (e.g. members.dyndns.org). (2) In the Domain text field, enter the domain name obtained from the DynDNS

website.

(3) Enter the Port of DynDNS server. (4) Enter the User Name and Password registered on the DynDNS website. (5) Click to save the settings.

Figure 6-12 DynDNS Settings

 IP Server:

Steps:

(1) Enter the Server Address of the IP Server. (2) Click to save the settings.

The Server Address should be entered with the static IP address of the computer that runs the IP Server software. For the IP Server, you have to apply a static IP, subnet mask, gateway and preferred DNS from the ISP.

Figure 6-13 IPServer Settings

 HiDDNS:

Steps:

(1) Enter the Server Address: www.hik-online.com. (2) Enter the Domain name of the camera. The domain is the same with the

device alias in the HiDDNS server.

(3) Click to save the settings.

User Manual of Network Speed Dome

Figure 6-14 HiDDNS Settings

 NO-IP:

Steps:

(1) Enter Server Address of NO-IP. (2) In the Domain text field, enter the domain name obtained from the NO-IP

website.

(3) Enter the Port of NO-IP server. (4) Enter the User Name and Password registered on the NO-IP website.

(5) Click to save the settings.

6.3.5 Configuring SNMP Settings

Purpose:

You can use SNMP to get speed dome status and parameters related information. Before you start: Before setting the SNMP, please use the SNMP software and manage to receive the speed dome information via SNMP port. By setting the Trap Address, the speed dome can send the alarm event and exception messages to the surveillance center.

The SNMP version you select should be the same as that of the SNMP software.

Steps:

1. Enter the SNMP Settings interface:

Configuration > Advanced Configuration > Network > SNMP

User Manual of Network Speed Dome

Figure 6-15 SNMP Settings

2. Check the corresponding version checkbox (Enable SNMP v1, Enable SNMP v2c,

Enable SNMP v3) to enable the feature.

3. Configure the SNMP settings.

The configuration of the SNMP software should be the same as the settings you configure here.

4. Click to save and finish the settings.

6.3.6 Configuring 802.1X Settings

Purpose:

The speed dome supports IEEE 802.1X standard. IEEE 802.1X is a port-based network access control. It enhances the security level of

User Manual of Network Speed Dome

Speed Dome

Network Switch

Internet

RADIUS Server

Authenticator

Authentication Server

the LAN. When devices connect to this network with IEEE 802.1X standard, the authentication is needed. If the authentication fails, the devices don’t connect to the network.

The protected LAN with 802.1X standard is shown as follows:

Figure 6-16 Protected LAN

 Before connecting the Network Camera to the protected LAN, please apply a

digital certificate from a Certificate Authority.

 The network camera requests access to the protected LAN via the

authenticator (a switch).

 The switch forwards the identity and password to the authentication server

(RADIUS server).

 The switch forwards the certificate of authentication server to the network

camera.

 If all the information is validated, the switch allows the network access to

the protected network.

Steps:

1. Connect the network camera to your PC directly with a network cable.

2. Enter the 802.1X Settings interface:

Configuration > Advanced Configuration > Network > 802.1X

Figure 6-17 802.1X Settings

User Manual of Network Speed Dome

3. Check the Enable IEEE 802.1X checkbox to enable it.

4. Configure the 802.1X settings, including user name and password.

The EAP-MD5 version must be identical with that of the router or the switch.

5. Enter the user name and password (issued by the CA) to access the server.

6. Click to finish the settings.

The camera reboots when you save the settings.

7. After the configuration, connect the camera to the protected network.

6.3.7 Configuring QoS Settings

Purpose:

QoS (Quality of Service) can help solve the network delay and network congestion by configuring the priority of data sending.

Steps:

1. Enter the QoS Settings interface:

Configuration >Advanced Configuration > Network > QoS

Figure 6-18 QoS Settings

2. Configure the QoS settings, including video / audio DSCP, event / alarm DSCP and

Management DSCP. The valid DSCP value ranges from 0 to 63. The DSCP value is bigger, the priority is higher.

3. Click to save the settings.

 Make sure that you enable the QoS function of your network device (such as a

router).

 It will ask for a reboot for the settings to take effect.

User Manual of Network Speed Dome

6.3.8 Configuring FTP Settings

Purpose:

You can set a FTP server and configure the following parameters for uploading captured pictures. Steps:

1. Enter the FTP Settings interface:

Configuration >Advanced Configuration > Network > FTP

Figure 6-19 FTP Settings

2. Configure the FTP settings, including server address, port, user name, password,

directory and upload type.

 Setting the directory in FTP server for saving files:

In the Directory Structure field, you can select the root directory, parent directory and child directory.

 Root directory: The files will be saved in the root of FTP server.  Parent directory: The files will be saved in a folder in FTP server. The

name of folder can be defined as shown in following Figure 6-20.

Figure 6-20 Parent Directory

 Child directory: It is a sub-folder which can be created in the parent

directory. The files will be saved in a sub-folder in FTP server. The name of folder can be defined as shown in following Figure 6-21.

Figure 6-21 Child Directory

User Manual of Network Speed Dome

 Upload type: To enable uploading the captured picture to the FTP server.

3. Click to save the settings.

If you want to upload the captured pictures to FTP server, you also have to enable the continuous snapshot or event-triggered snapshot in Snapshot interface. For detailed information, please refer to the Section 7.4 Configuring Snapshot Settings.

6.3.9 Configuring UPnP™ Settings

Purpose:

Universal Plug and Play (UPnP™) is a networking architecture that provides compatibility among networking equipment, software and other hardware devices. The UPnP protocol allows devices to connect seamlessly and to simplify the implementation of networks in the house and corporate environments. With the function enabled, you don’t need to configure the port mapping for each port, and the camera is connected to the Wide Area Network via the router.

Steps:

1. Enter the UPnP™ settings interface.

Configuration >Advanced Configuration > Network > UPnP™

2. Check the checkbox to enable the UPnP™ function.

You can edit the Friendly Name of the speed dome. This name can be detected by corresponding device, such as a router.

Figure 6-22 Configure UPnP Settings

6.3.10 Configuring NAT (Network Address Translation) Settings

Steps:

1. Set the port mapping mode:

To port mapping with the default port numbers:

Choose

To port mapping with the customized port numbers:

User Manual of Network Speed Dome

Choose

And you can customize the value of the port No. by yourself.

Figure 6-23 Configure the Port No.

2. Click to save the settings.

6.3.11 Configuring Email Settings

Purpose:

The system can be configured to send an Email notification to all designated receivers if an alarm event is detected, e.g., motion detection event, video loss, tamper-proof, etc.

Before you start:

Please configure the DNS Server settings under Basic Configuration > Network > TCP/IP or Advanced Configuration > Network > TCP/IP before using the Email

function.

Steps:

1. Enter the Email Settings interface:

Configuration > Advanced Configuration > Network > Email

User Manual of Network Speed Dome

Figure 6-24 Email Settings

2. Configure the following settings:

Sender: The name of the email sender. Sender’s Address: The email address of the sender. SMTP Server: The SMTP Server IP address or host name (e.g.,

smtp.263xmail.com).

SMTP Port: The SMTP port. The default TCP/IP port for SMTP is 25. Enable SSL: Check the checkbox to enable SSL if it is required by the SMTP

server. Attached Image: Check the checkbox of Attached Image if you want to send emails with attached alarm images. Interval: The interval refers to the time between two actions of sending attached pictures. Authentication (optional): If your email server requires authentication, check this checkbox to use authentication to log in to this server and enter the login user name and password. Receiver: Select the receiver to which the email is sent. Up to 2 receivers can be configured.

Receiver: The name of the user to be notified. Receiver’s Address: The email address of user to be notified.

You can click to check whether the setting is invalid after the

required parameters are configured.

User Manual of Network Speed Dome

3. Click to save the settings.

6.3.12 Configuring HTTPS Settings

Purpose:

HTTPS provides authentication of the web site and associated web server that one is communicating with, which protects against Man-in-the-middle attacks. Perform the following steps to set the port number of https.

Example:

If you set the port number as 443 and the IP address is 192.0.0.64, you may access the device by inputting https://192.0.0.64:443 via the web browser.

Steps:

1. Enter the HTTPS settings interface.

Configuration > Advanced Configuration > Network > HTTPS

2. Create the self-signed certificate or authorized certificate.

Figure 6-25 HTTPS Settings

OPTION 1: Create the self-signed certificate

1) Click the Create button to create the following dialog box.

User Manual of Network Speed Dome

Figure 6-26 Create Self-signed Certificate

2) Enter the country, host name/IP, validity and other information.

3) Click OK to save the settings.

OPTION 2: Create the authorized certificate

1) Click the Create button to create the certificate request, and fulfill the

required information.

2) Download the certificate request and submit it to the trusted certificate

authority for signature.

3) After receiving the signed valid certificate, import the certificate to the

device.

3. There will be the certificate information after you successfully create and install

the certificate.

Figure 6-27 Installed Certificate Property

You can click configure the HTTPS port No. on your demand; refer to Section

6.3.2 Configuring Port Settings for details.

User Manual of Network Speed Dome

6.4 Configuring Video and Audio Settings

6.4.1 Configuring Video Settings

Steps:

1. Enter the Video Settings interface:

Configuration >Basic Configuration > Video / Audio > Video

Or Configuration > Advanced Configuration > Video / Audio > Video

Figure 6-28 Configure Video Settings

2. Select the Stream Type of the speed dome to main stream (normal) or

sub-stream. The main stream is usually for recording and live viewing with good bandwidth, and the sub-stream can be used for live viewing when the bandwidth is limited. Refer to the Section 6.1 Configuring Local Parameters for switching the main stream and sub-stream for live viewing.

3. You can customize the following parameters for the selected main stream or

sub-stream: Video Type: Select the stream type to video stream, or video & audio composite stream. The audio signal will be recorded only when the Video Type is Video&Audio. Resolution: Select the resolution of the video output. Bitrate Type: Select the bitrate type to constant or variable. Video Quality: When bitrate type is selected as Variable, 6 levels of video quality are selectable.

Frame Rate:

The frame rate is to describe the frequency at which the video stream is updated

User Manual of Network Speed Dome

and it is measured by frames per second (fps). A higher frame rate is advantageous when there is movement in the video stream, as it maintains image quality throughout. Max. Bitrate: Set the max. bitrate to 32~16384 Kbps. The higher value corresponds to the higher video quality, and the higher bandwidth is required as well. Video Encoding: The Video Encoding standard can be set to H.264 or MJPEG. Profile: You can set the profile level to High Profile, Main Profile or Basic Profile.

I Frame Interval:

Set the I-Frame interval from 1 to 400.

SVC:

SVC is a video encoding technology. It extracts frames from the original video and sends these frames to a video recorder which also supports SVC function when the network bandwidth is insufficient.

Smoothing:

Drag the to adjust the value of video smoothing on your demand.

4. Click to save the settings.

6.4.2 Configuring Audio Settings

Steps:

1. Enter the Audio Settings interface

Configuration > Basic Configuration > Video / Audio > Audio Or Configuration > Advanced Configuration > Video / Audio > Audio

Figure 6-29 Audio Settings

2. Configure the following settings.

Audio Encoding: G.722.1, G.711ulaw, G.711alaw, MP2L2, G.726 and AAC selectable. Audio Stream Bitrate: When the Audio Encoding is selected as AAC, you can configure the Audio Stream Bitrate in the dropdown list: 8kbps, 16kbps, 32kbps, and 64kbps are selectable. The greater the value is, the better the audio quality

User Manual of Network Speed Dome

will be. Sampling Rate: When the Audio Encoding is selected as AAC, you can configure the Sampling Rate in the dropdown list: 16kHz and 32kHz are selectable. The greater the value is, the better the audio quality will be. Audio Input: When an intercom is connected to the speed dome, you need to set this option to LineIn. When a microphone is connected to the speed dome, you need to set this option to MicIn. Input Volume: Slid the bar to turn up/down the volume. The value ranges from 0 to 100. Environmental Noise Filter: When the monitoring environment is very noisy, you can enable this function to reduce part of the noise.

3. Click to save the settings.

6.4.3 Configuring ROI Settings

Before you start:

ROI (Region of Interest) encoding is used to enhance the quality of images which are specified in advance. Enter the RIO Settings interface:

Configuration > Advanced Configuration > Video / Audio > ROI

User Manual of Network Speed Dome

Figure 6-30 Region of Interest

Stream Type:

You can set the ROI function for main stream or substream. Select a stream type and then configure the ROI settings.

 Fixed Region: The fixed region encoding is the ROI encoding for the manually

configured area. And you can choose the Image Quality Enhancing level for ROI encoding, and you can also name the ROI area.

Steps:

1. Select a Region No..

2. Check the checkbox of Enable under Fixed Region.

3. Select the region from the dropdown list for ROI settings. There are four fixed

regions selectable.

4. Click the button, and then click-and-drag the mouse to draw the

region of interest on the live video.

5. Adjust the ROI level from 1 to 6. The higher the value, the better image quality

in the red frame.

6. Enter a Region Name and click Save to save the settings.

 Dynamic Region: The device can automatically calculate the region with motion.

Set the Image Quality Enhancing level for ROI encoding.

Steps:

User Manual of Network Speed Dome

1. Check the checkboxes of desired functions, including Target Tracking, Face

Tracking and License Plate Tracking.

 Target Tracking: When a smart event is detected, e.g. line crossing

detection, the object which trigger the pre-defined rule will be automatically tracked, and the image quality of the tracking target will be increased.

 Face Tracking: When the face detection is triggered, the image quality of

the face will be increased.

• To enable target tracking function, at least one smart event should be

enabled.

• To enable face tracking function, the face detection function should be

supported and enabled.

2. Respectively set the ROI level. The higher the value, the better image quality in

the red frame.

3. Click Save to save the settings.

6.5 Configuring Image Settings

6.5.1 Configuring Display Settings

Purpose:

You can set the image quality of the speed dome, including brightness, contrast, saturation, sharpness, etc.

 The parameters in Display Settings interface vary depending on the models of

speed dome.

 You can double click the live view to enter full screen mode and double click it

again to exit.

Steps:

1. Enter the Display Settings interface:

Configuration > Basic Configuration> Image> Display Settings Or Configuration > Advanced Configuration> Image> Display Settings

2. You can select the Mounting Scenario in the dropdown list with different

predefined image parameters.

3. Set the image parameters of the speed dome.

User Manual of Network Speed Dome

Figure 6-31 Display Settings

Image Adjustment

 Brightness

This feature is used to adjust brightness of the image. The value ranges from 0 to

100.

 Contrast

This feature enhances the difference in color and light between parts of an image. The value ranges from 0 to 100.

 Saturation

This feature is used to adjust color saturation of the image. The value ranges from 0 to 100.

 Sharpness

Sharpness function enhances the detail of the image by sharpening the edges in the image. The value ranges from 0 to 100.

This function varies depending on the models of speed dome.

Exposure Settings

 Exposure Mode

The Exposure Mode can be set to Auto, Iris Priority, Shutter Priority, Manual.

 Auto:

User Manual of Network Speed Dome

The iris, shutter and gain values will be adjusted automatically according to the brightness of the environment.

 Iris Priority:

The value of iris needs to be adjusted manually. The shutter and gain values will be adjusted automatically according to the brightness of the environment.

Figure 6-32 Manual Iris

 Shutter Priority:

The value of shutter needs to be adjusted manually. The iris and gain values will be adjusted automatically according to the brightness of the environment.

Figure 6-33 Manual Shutter

 Gain Priority:

The value of gain needs to be adjusted manually. The shutter and iris values will be adjusted automatically according to the brightness of the environment.

Figure 6-34 Manual Gain

 Manual:

In Manual mode, you can adjust the values of Gain, Shutter, Iris manually.

This function varies depending on the models of speed dome.

 Limit Gain

This feature is used to adjust gain of the image. The value ranges from 0 to 100.

 Slow Shutter

This function can be used in underexposure condition. It lengthens the shutter time to ensure full exposure. The slow shutter value can be set to Slow Shutter*2, *4, *6, *12, *16, *24 and *32.

Figure 6-35 Slow Shutter

Focus Settings

 Focus Mode

The Focus Mode can be set to Auto, Manual, Semi-auto.

User Manual of Network Speed Dome

 Auto:

The speed dome focuses automatically at any time according to objects in the scene.

 Semi-auto:

The speed dome focuses automatically only once after panning, tilting and zooming.

 Manual:

In Manual mode, you need to use on the control panel to focus manually.

 Min. Focus Distance

This function is used to limit the minimum focus distance.

The minimum focus value varies depending on the models of speed dome.

Day/Night Switch

The IR light related function introduced below is supported by IR speed domes only.

 Day/Night Switch

The Day/Night Switch mode can be set to Auto, Day and Night.

 Auto:

In Auto mode, the day mode and night mode can switch automatically according to the light condition of environment. The switching sensitivity can be set to Low, Normal, High.

Figure 6-36 Auto Mode Sensitivity

 Day:

In Day mode, the speed dome displays color image. It is used for normal lighting conditions.

 Night:

In Night mode, the image is black and white. Night mode can increase the sensitivity in low light conditions.

 Schedule

In Schedule mode, you can set the time schedule for day mode as shown in Figure 6-37. The rest time out of the schedule is for night mode.

This function varies depending on the models of speed dome.

User Manual of Network Speed Dome

Figure 6-37 Day Night Schedule

 Smart IR

If the IR light is on and the image center is overexposure, you can enable this function.

 IR Light Mode

IR light mode can be set to Auto and Manual.

 Auto: The brightness of the infrared light will be adjusted automatically. IR

Light Sensitivity value ranges from 0 to 100. Trigger Mode can be set to Camera or Photosensitive.

 Manual: you need to adjust the brightness value of infrared light manually.

Brightness Limit value ranges from 0 to 100.

 The IR related functions are supported by the IR speed dome only.  For detailed parameters configuration of IR light, you can enter the OSD menu by

calling the special preset 95.

 When the IR Light Mode is auto, the day/night mode is adjusted automatically

according to the IR Light Mode. Manually setting the day/night mode is invalid.

 When the IR Light Mode is manual and the Brightness Limit is 0, you can set the

day/night mode manually.

 When the IR Light Mode is manual and the Brightness Limit is not 0, the night

mode is set as the default mode. Manually setting the day/night mode is invalid.

Backlight Settings

 BLC

If there’s a bright backlight, the subject in front of the backlight appears silhouetted or dark. Enabling BLC(back light compensation) function can correct the exposure of the subject. But the backlight environment is washed out to white.

 WDR (Wide Dynamic Range)

User Manual of Network Speed Dome

dynamic level ranges from 0 to 100.

Figure 6-38 WDR

This function varies depending on the models of speed dome.

 HLC

HLC (High Light Compensation) makes the camera identify and suppress the strong light sources that usually flare across a scene. This makes it possible to see the detail of the image that would normally be hidden.

White Balance

The White Balance mode can be set to Auto, MWB, Outdoor, Indoor, Fluorescent Lamp, Sodium Lamp and Auto-Track.

 Auto:

In Auto mode, the camera retains color balance automatically according to the current color temperature.

 MWB:

In MWB (Manual White Balance) mode, you can adjust the color temperature manually to meet your own demand as shown in Figure 6-39.

Figure 6-39 Manual White Balance

 Outdoor

You can select this mode when the speed dome is installed in outdoor environment.

 Indoor

You can select this mode when the speed dome is installed in indoor environment.

 Fluorescent Lamp

You can select this mode when there are fluorescent lamps installed near the speed dome.

 Sodium Lamp

You can select this mode when there are sodium lamps installed near the speed dome.

 Auto-Track

In Auto-Track mode, white balance is continuously being adjusted in real-time according to the color temperature of the scene illumination.

User Manual of Network Speed Dome

This function varies depending on the models of speed dome.

Image Enhancement

 Digital Noise Reduction

The digital noise reduce function processes the noise in the video signal. You can set Digital Noise Reduction function to ON and adjust the Noise Reduction Level as shown in Figure 6-40. The level ranges from 0 to 100.

Figure 6-40 Digital Noise Reduction

This function varies depending on the models of speed dome.

 Defog Mode

When there is fog in the image, you can enable this function to get clear image.

 EIS

The live view image would be trembled and dim when the camera is shocked slightly in some monitoring conditions. And the electronic image stabilization (EIS) function is used to overcome this problem to ensure a steady and clear image.

 Chroma Suppress

The Chroma Suppress level ranges from 0 to 100 as shown in Figure 6-41.

Figure 6-41 Chroma Suppress

This function varies depending on the models of speed dome.

Video Adjustment

 Mirror

If you turn the MIRROR function on, the image will be flipped. It is like the image in

the mirror. The flip direction can be set to OFF, LEFT/RIGHT, UP/DOWN or CENTER.

This function varies depending on the models of speed dome.

 Video Standard

You can set the Video Standard to 50hz(PAL) or 60hz(NTSC) according to the video system in your country.

User Manual of Network Speed Dome

This function varies depending on the models of speed dome.

Capture Mode: You can set the Capture Mode to OFF, 1280*720@25fps, and 1280*960@25fps.

Other

 Lens Initialization

The lens operates the movements for initialization when you check the check box of Lens Initialization.

 Zoom Limit

You can set Zoom Limit value to limit the maximum value of zooming. The value can be set to 20, 40, 80, 160 and 320.

This function varies depending on the models of speed dome.

 Local Output

You can enable or disable the video output through the CVBS interface on your demand.

6.5.2 Configuring OSD Settings

Purpose:

The speed dome supports following on screen displays:

Zoom: Identifies the amount of magnification. Direction: Displays panning and tilting direction, with the format of PXXX TXXX. The

XXX following P indicates the degrees in pan direction, while the XXX following T indicates the degrees in tilt position.

Time: Supports for time display. Preset Title: Identifies preset being called. Camera Name: Identifies the name of speed dome.

You can customize the on screen display of time.

Steps:

1. Enter the OSD Settings interface:

Configuration > Advanced Configuration > Image > OSD Settings

User Manual of Network Speed Dome

Figure 6-42 OSD Settings

2. Check the corresponding checkbox to select the display of speed dome name,

date or week if required.

3. Edit the speed dome name in the text field of Camera Name.

4. Select from the drop-down list to set the time format, date format and display

mode.

5. You can use the mouse to click and drag the text frame in the live view

window to adjust the OSD position.

Figure 6-43 Adjust OSD Location

6. The font color can also be customized, select the Custom in the drop down list

and select the font color on your demand.

7. Click to activate above settings.

User Manual of Network Speed Dome

6.5.3 Configuring Text Overlay Settings

Purpose:

You can customize the text overlay.

Steps:

1. Enter the Text Overlay Settings interface:

Configuration > Advanced Configuration > Image > Text Overlay

2. Check the checkbox in front of textbox to enable the on-screen display.

3. Input the characters in the textbox.

4. Use the mouse to click and drag the red text frame in the live view

window to adjust the text overlay position.

5. Click .

There are up to 8 text overlays configurable.

Figure 6-44 Text Overlay Settings

6.6 Configuring and Handling Alarms

Purpose:

This section explains how to configure the network speed dome to respond to alarm events, including motion detection, external alarm input, video loss, tamper-proof and exception. These events can trigger the alarm actions, such as Notify Surveillance Center, Send Email, Trigger Alarm Output, etc. For example, when an external alarm is triggered, the network speed dome sends a notification to an e-mail address.

User Manual of Network Speed Dome

6.6.1 Configuring Motion Detection

Purpose:

Motion detection is a feature which can trigger alarm actions and actions of recording videos when the motion occurred in the surveillance scene.

Steps:

1. Enter the motion detection setting interface:

Configuration > Advanced Configuration> Basic Event > Motion Detection

2. Check the checkbox of the Enable Motion Detection to enable this function.

You can check the Enable Dynamic Analysis for Motion checkbox if you want the detected object get marked with rectangle in the live view.

3. Select the configuration mode as Normal or Expert and set the corresponding

motion detection parameters.

 Normal

Figure 6-45 Motion Detection Settings-Normal

Steps:

(1) . Click and drag the mouse on the live video image to draw a

motion detection area.

(2) Click to finish drawing.

• You can draw up to 8 motion detection areas on the same image.

• You can click to clear all of the areas.

(3) Move the slider to set the sensitivity of the

detection.

User Manual of Network Speed Dome

 Expert

Figure 6-46 Motion Detection Settings-Expert

Steps:

(1) Set the Day&Night switch mode, there are OFF, Auto-Switch and

Scheduled-Switch selectable. If the Day&Night switch mode is enabled, you can configure the detection rule for the day and night separately.

OFF: Disable the day and night switch. Auto-Switch: Switch the day and night mode according to the illumination

automatically. Scheduled-Switch: Switch to the day mode at 6:00 a.m., and switch to the night mode at 18:00 p.m..

(2) Select Area No. to configure in the dropdown list. (3) Set the values of sensitivity and proportion of object on area.

Sensitivity: The greater the value is, the easier the alarm will be triggered. Proportion of Object on Area: When the size proportion of the moving

object exceeds the predefined value, the alarm will be triggered. The less the value is, the easier the alarm will be triggered.

4. Set the Arming Schedule for Motion Detection.

(1) Click in Figure 6-47.

User Manual of Network Speed Dome

Figure 6-47 Arming Schedule

(2) Choose the day you want to set the arming schedule as shown in Figure

6-48.

Figure 6-48 Arming Time Schedule

(3) Click to set the time period for the arming schedule. (4) (Optional) After you set the arming schedule, you can click to copy

the schedule to other days.

(5) Click to save the settings.

The time of each period cannot be overlapped. Up to 8 periods can be configured for each day.

5. Set the Alarm Actions for Motion Detection.

You can specify the linkage method when an event occurs. The following contents are about how to configure the different types of linkage method.

User Manual of Network Speed Dome

Check the checkbox to select the linkage method. Notify surveillance center, send email, upload to FTP, trigger channel and trigger alarm output are selectable.

 Notify Surveillance Center

Send an exception or alarm signal to remote management software when an event occurs.

 Send Email

Send an email with alarm information to a user or users when an event occurs.

Figure 6-49 Linkage Method

To send the Email when an event occurs, you need to refer to Section

6.3.11 Configuring Email Settings to set the Email parameters.

 Upload to FTP

Capture the image when an alarm is triggered and upload the picture to a FTP server.

You need a FTP server and set FTP parameters first. Refer to Section

6.3.8 Configuring FTP Settings for setting FTP parameters.

 Trigger Channel

Record a video when an event occurs.

You have to set the recording schedule to realize this function. Please refer to Section 7.3 Configuring Recording Schedule for settings the recording schedule.

 Trigger Alarm Output

Trigger one or more external alarm outputs when an event occurs.

To trigger an alarm output when an event occurs, please refer to Section 6.6.5 Configuring Alarm Output to set the alarm output parameters.

User Manual of Network Speed Dome

6.6.2 Configuring Video Loss Alarm

Steps:

1. Enter the Video Loss Setting interface:

Configuration > Advanced Configuration> Basic Event > Video Loss

Figure 6-50 Video Loss

2. Check the Enable Video Loss Detection checkbox to enable the video loss

detection.

3. Click to edit the arming schedule for video loss detection. The arming

schedule configuration is the same as the setting of the arming schedule for motion detection. Refer to Step 2 in Section 6.6.1 Configuring Motion Detection.

4. Check the checkbox to select the linkage method taken for the video loss alarm,

notify surveillance center, send email and trigger alarm output are selectable. Please Step 3 in Section 6.6.1 Configuring Motion Detection.

5. Click to save the settings.

6.6.3 Configuring Video Tampering Alarm

Purpose:

User Manual of Network Speed Dome

You can configure the speed dome to trigger the alarm actions when the lens is covered.

Steps:

1. Enter the video tampering Settings interface:

Configuration > Advanced Configuration > Basic Event > Video Tampering

Figure 6-51 Tampering Alarm

2. Check Enable Video Tampering checkbox to enable the tampering detection.

3. Set the tampering area. Refer to Step 1 in Section 6.6.1 Configuring Motion

Detection.

4. Click to edit the arming schedule for tampering. The arming schedule

configuration is the same as the setting of the arming schedule for motion detection. Refer to Step 2 in Section 6.6.1 Configuring Motion Detection.

5. Check the checkbox to select the linkage method taken for the tampering. Notify

surveillance center, send email, trigger channel and trigger alarm output are selectable. Please refer to Step 3 in Section 6.6.1 Configuring Motion Detection.

6. Click to save the settings.

6.6.4 Configuring External Alarm Input

Steps:

1. Enter the Alarm Input Settings interface:

Configuration > Advanced Configuration> Events > Alarm Input:

User Manual of Network Speed Dome

2. Choose the alarm input No. and the Alarm Type. The alarm type can be NO

(Normally Open) and NC (Normally Closed).

3. Edit the name in to set a

name for the alarm input (optional).

Figure 6-52 Alarm Input Settings

4. Click to set the arming schedule for the alarm input. Refer to Step 2

in Section 6.6.1 Configuring Motion Detection.

5. Check the checkbox to select the linkage method taken for the alarm input. Refer

to Step 3 in Section 6.6.1 Configuring Motion Detection.

6. You can also choose the PTZ linking for the alarm input. Check the relative

checkbox and select the No. to enable Preset Calling, Patrol Calling or Pattern Calling.

7. You can copy your settings to other alarm inputs.

8. Click to save the settings.

User Manual of Network Speed Dome

Figure 6-53 Linkage Method

6.6.5 Configuring Alarm Output

Steps:

1. Enter the Alarm Output Settings interface:

Configuration>Advanced Configuration> Events > Alarm Output

2. Select one alarm output channel in the Alarm Output drop-down list.

3. Set a name in for the

alarm output (optional).

4. The Delay time can be set to 5sec, 10sec, 30sec, 1min, 2min, 5min, 10min or

Manual. The delay time refers to the time duration that the alarm output remains in effect after alarm occurs.

5. Click to enter the Edit Schedule Time interface. The time schedule

configuration is the same as the settings of the arming schedule for motion detection. Refer to Step 2 in Section 6.6.1 Configuring Motion Detection.

User Manual of Network Speed Dome

Figure 6-54 Alarm Output Settings

6. You can copy the settings to other alarm outputs.

7. Click to save the settings.

6.6.6 Handling Exception

The exception type can be HDD full, HDD error, network disconnected, IP address conflicted and illegal login to the speed domes.

Steps:

1. Enter the Exception Settings interface:

Configuration > Advanced Configuration> Events > Exception

2. Check the checkbox to set the actions taken for the Exception alarm. Refer to

Step 3 in Section 6.6.1 Configuring Motion Detection.

Figure 6-55 Exception Settings

3. Click to save the settings.

User Manual of Network Speed Dome

6.6.7 Detecting Audio Exception

Purpose:

When you enable this function and audio exception occurs, the alarm actions will be triggered.

Steps:

1. Enter the video audio exception detection interface:

Configuration > Advanced Configuration > Smart Event > Audio Exception Detection

Figure 6-56 Audio Exception Detection

2. Check the checkbox of Audio Loss Detection to enable the audio input exception

detection.

3. Check the checkbox of Sudden Increase of Sound Intensity Detection checkbox

to enable the sudden rise detection.

 Sensitivity: Range [1-100], the smaller the value the more severe the sound

change will trigger the detection.

 Sound Intensity Threshold: Range [1-100], it can filter the sound in the

environment, the louder the environment sound, the higher the value should be. You can adjust it according to the actual environment.

4. Check the checkbox of Sudden Decrease of Sound Intensity Detection checkbox

to enable the sudden drop detection. Sensitivity: Range [1-100], the smaller the value the more severe the sound change will trigger the detection.

5. Click to edit the arming schedule. The arming schedule configuration

is the same as the setting of the arming schedule for motion detection. Refer to Step 2 in Section 6.6.1 Configuring Motion Detection.

6. Check the checkbox to select the linkage method taken for audio exception.

User Manual of Network Speed Dome

Notify surveillance center, send email, trigger alarm output, etc. are selectable. Please refer to Step 3 in Section 6.6.1 Configuring Motion Detection.

7. Click to save the settings.

6.6.8 Configuring Dual-VCA

Purpose:

Enabling the Dual-VCA function will send the VCA event information (e.g. intrusion

detection, line crossing detection, face detection, etc.) to the connected back-end

device for the second-time analysis.

Steps:

1. Enter the Dual-VCA function configuration interface.

Configuration> Advanced Configuration> Video/Audio> Display Info. on Stream

2. Check the Enable Dual-VCA checkbox.

3. Click to save the settings.

6.6.9 Configuring Intrusion Detection

Intrusion detection can set an area in the surveillance scene and once the area is entered, a set of alarm action is triggered.

Steps:

1. Enter the intrusion detection interface:

Configuration > Advanced Configuration > Events > Intrusion Detection

2. Check the Enable Intrusion Detection checkbox.

User Manual of Network Speed Dome

Figure 6-57 Configuring Intrusion Area

3. The event triggered and park action related PTZ movement will be locked for 180

seconds after you enter the intrusion detection interface. Optionally, you can

click the button to manually activate the movement, or lock the

movement when the button turns to by clicking it.

4. Draw area.

(1) Select the Region No.in dropdown list. (2) Click to draw a rectangle on the image as a defense region.

(3) Click on the image to specify a corner of the rectangle, and right-click the

mouse after four corners are configured.

Up to four areas are supported.

You can click to clear the areas you drawn.

5. Configure the parameters for each defense region separately.

 Threshold: Range [0-10s], the threshold for the time of the object loitering in

the region. If you set the value as 0, alarm is triggered immediately after the

object entering the region.

 Sensitivity: Range [1-100]. The value of the sensitivity defines the size of the

object which can trigger the alarm, when the sensitivity is high, a very small

object can trigger the alarm.

6. Click to edit the arming schedule for tampering. The arming schedule

User Manual of Network Speed Dome

configuration is the same as the setting of the arming schedule for motion

detection. Refer to Step 2 in Section 6.6.1 Configuring Motion Detection.

7. Check the checkbox to select the linkage method taken for the intrusion

detection. Notify surveillance center, send email, trigger channel, smart tracking

and trigger alarm output are selectable. Please refer to Step 3 in Section 6.6.1

Configuring Motion Detection.

8. Click to save the settings.

6.6.10 Configuring Line Crossing Detection

The virtual plane detection can be adopted for the intrusion detection. Once the virtual plane is detected being traversed according to the configured direction, a set of alarm action is triggered.

Steps:

1. Enter the Line Crossing Detection interface:

Configuration > Advanced Configuration > Events > Line Crossing Detection

2. Check the Line Crossing Detection checkbox.

3. Select the Line in dropdown list to configure.

4. The event triggered and park action related PTZ movement will be locked for 180

seconds after you enter the line crossing detection interface. Optionally, you can

click the button to manually activate the movement, or lock the

movement when the button turns to by clicking it.

User Manual of Network Speed Dome

5. Draw area.

Figure 6-58 Configuring Line

(1) Click to draw a line on the image. (2) Click the line to switch to the editing mode.

Click and drag an end to the desired place to adjust the length and angle of

the line. And click and drag the line to adjust the location.

Up to four lines are supported.

6. Configure the parameters for each defense region separately.

 Direction: Select the detection direction in the dropdown list, there are A<->B,

A->B and B->A selectable.

 Sensitivity: Range [1-100]. The value of the sensitivity defines the size of the

object which can trigger the alarm, when the sensitivity is high, a very small object can trigger the alarm.

7. Click to edit the arming schedule for line crossing detection. The

arming schedule configuration is the same as the setting of the arming schedule

for motion detection. Refer to Step 2 in Section 6.6.1 Configuring Motion

Detection.

8. Check the checkbox to select the linkage method taken for the line crossing

detection. Notify surveillance center, send email, upload to FTP, trigger channel,

smart tracking and trigger alarm output are selectable. Please refer to Step 3 in

Section 6.6.1 Configuring Motion Detection.

User Manual of Network Speed Dome

9. Click to save the settings.

6.6.11 Configuring Face Detection

Purpose:

After the face detection is enabled, a face appears in the surveillance area, it will be

detected and certain actions may be triggered by the detection.

Steps:

1. Check the Enable Face Detection checkbox.

2. (Optional) You can check the Enable Dynamic Analysis for Face Detection

checkbox if you want the detected face get marked with rectangle in the live view.

Figure 6-59 Configuring Face Detection

3. Configure the sensitivity for face detection.

Sensitivity: Range [1-5]. The value of the sensitivity defines the size of the object which can trigger the alarm, when the sensitivity is high, a very small object can trigger the alarm.

4. Click to edit the arming schedule for face detection. The arming

schedule configuration is the same as the setting of the arming schedule for motion detection. Refer to Step 2 in Section 6.6.1 Configuring Motion Detection.

5. Check the checkbox to select the linkage method taken for the face detection.

Notify surveillance center, send email, upload to FTP, trigger channel, smart tracking and trigger alarm output are selectable. Please refer to Step 3 in Section

6.6.1 Configuring Motion Detection.

6. Click to save the settings.

6.6.12 Region Entrance Detection

Purpose:

User Manual of Network Speed Dome

Region entrance detection function detects people, vehicle or other objects which

enter a pre-defined virtual region from the outside place, and some certain actions

can be taken when the alarm is triggered.

Steps:

1. Enter the Region Entrance Detection settings interface:

Configuration> Advanced Configuration> Smart Event> Region Entrance Detection

2. Check the checkbox of Enable Region Entrance Detection to enable the

function.

Figure 6-60 Configuring Region Entrance Detection

3. Select the region from the dropdown list for detection settings.

4. Click the button to start the region drawing.

5. Click on the live video to specify the four vertexes of the detection region, and

right click to complete drawing. Repeat the step to configure other regions. Up to 4 regions can be set. You can

click the button to clear all pre-defined regions.

6. Click the button to set the arming schedule. Refer to Step 2 in

Section 6.6.1 Configuring Motion Detection.

7. Select the linkage methods for region entrance detection, including Notify

Surveillance Center, Send Email, Upload to FTP, Trigger Channel and Trigger Alarm Output. Please refer to Step 3 in Section 6.6.1 Configuring Motion Detection.

8. Click button to save the settings.

User Manual of Network Speed Dome

6.6.13 Region Exiting Detection

Purpose:

Region exiting detection function detects people, vehicle or other objects which exit

from a pre-defined virtual region, and some certain actions can be taken when the

alarm is triggered.

Steps:

1. Enter the Region Exiting Detection settings interface:

Configuration> Advanced Configuration> Smart Event> Region Exiting Detection

2. Check the checkbox of Enable Region Exiting Detection to enable the function.

Figure 6-61 Configuring Region Exiting Detection

3. Select the region from the dropdown list for detection settings.

4. Click the button to start the region drawing.

5. Click on the live video to specify the four vertexes of the detection region, and

right click to complete drawing. Repeat the step to configure other regions. Up to 4 regions can be set. You can

click the button to clear all pre-defined regions.

6. Click the button to set the arming schedule. Refer to Step 2 in

Section 6.6.1 Configuring Motion Detection.

7. Select the linkage methods for region exiting detection, including Notify

Surveillance Center, Send Email, Upload to FTP, Trigger Channel and Trigger Alarm Output. Please refer to Step 3 in Section 6.6.1 Configuring Motion Detection.

8. Click button to save the settings.

User Manual of Network Speed Dome

6.6.14 Unattended Baggage Detection

Purpose:

Unattended baggage detection function detects the objects left over in the

pre-defined region such as the baggage, purse, dangerous materials, etc., and a

series of actions can be taken when the alarm is triggered.

Steps:

1. Enter the Unattended Baggage Detection settings interface:

Configuration> Advanced Configuration> Smart Event> Unattended Baggage Detection

2. Check the checkbox of Enable Unattended Baggage Detection to enable the

function.

Figure 6-62 Configuring Unattended Baggage Detection

3. Select the region from the drop-down list for detection settings.

4. Click the button to start the region drawing.

5. Click on the live video to specify the four vertexes of the detection region, and

right click to complete drawing.

6. Set the time threshold and detection sensitivity for unattended baggage

detection. Threshold: Range [1-100]s, the threshold for the time of the objects left over in the region. If you set the value as 10, alarm is triggered after the object is left and stay in the region for 10s. Sensitivity: Range [1-100]. The value of the sensitivity defines the similarity degree of the background image. Usually, when the sensitivity is high, a very small object left in the region can trigger the alarm.

7. Repeat the above steps to configure other regions. Up to 4 regions can be set.

User Manual of Network Speed Dome

You can click the button to clear all pre-defined regions.

8. Click the button to set the arming schedule. Refer to Step 2 in

Section 6.6.1 Configuring Motion Detection.

9. Select the linkage methods for unattended baggage detection, including Notify

Surveillance Center, Send Email, Upload to FTP, Trigger Channel and Trigger Alarm Output. Please refer to Step 3 in Section 6.6.1 Configuring Motion Detection.

10. Click to save the settings.

6.6.15 Object Removal Detection

Purpose:

Object removal detection function detects the objects removed from the pre-defined

region, such as the exhibits on display, and a series of actions can be taken when the

alarm is triggered.

Steps:

1. Enter the Object Removal Detection settings interface:

Configuration> Advanced Configuration> Smart Event> Object Removal Detection

2. Check the checkbox of Enable Object Removal Detection to enable the function.

3. Select the region from the drop-down list for detection settings.

4. Click the button to start the region drawing.

5. Click on the live video to specify the four vertexes of the detection region, and

right click to complete drawing.

6. Set the time threshold and detection sensitivity for object removal detection.

Threshold: Range [5-100]s, the threshold for the time of the objects removed from the region. If you set the value as 10, alarm is triggered after the object disappears from the region for 10s. Sensitivity: Range [1-100]. The value of the sensitivity defines the similarity degree of the background image. Usually, when the sensitivity is high, a very small object taken from the region can trigger the alarm.

7. Repeat the above steps to configure other regions. Up to 4 regions can be set.

You can click the button to clear all pre-defined regions.

8. Click the button to set the arming schedule.

9. Select the linkage methods for object removal detection, including Notify

Surveillance Center, Send Email, Upload to FTP, Trigger Channel and Trigger Alarm Output.

10. Click to save the settings.

User Manual of Network Speed Dome

Chapter 7 Record Settings

Before you start:

To configure record settings, please make sure that you have the network storage device within the network or the storage card has been inserted in the corresponding card slot. Refer to the installation guide for the location of the storage card slot.

7.1 Configuring NAS Settings

Before you start:

The network disk should be available within the network and properly configured to store the recorded files, log files, etc.

Steps:

1. Enter the NAS (Network-Attached Storage) Settings interface:

Configuration > Advanced Configuration > Storage > NAS

2. Select the NAS type as NFS or SMB/CIFS. If you select SMB/CIFS, you need to enter

the User Name and Password.

Figure 7-1 Select NAS Type

3. Enter the IP address of the network disk. The default NFS storage format of file

path is /dvr/test as shown in Figure 7-2. And the default SMB/CIFS storage format of file path is /test.

Figure 7-2 Add Network Disk

4. Click to add the network disk.

Up to 8 NAS disks can be connected to the speed dome.

User Manual of Network Speed Dome

7.2 Initializing and Configuring Storage

Steps:

1. Initialize the local disk or added network disk.

(1) Enter the HDD Settings interface (Advanced Configuration > Storage >

Storage Management), in which you can view the capacity, free space, status, type and property of the disk.

(2) If the status of the disk is Uninitialized as shown in Figure 7-3, check the

corresponding checkbox to select the disk and click to start initializing the disk.

Figure 7-3 Initialize Disk

Figure 7-4 Initializing

When the initialization completed, the status of disk will become Normal as shown in Figure 7-5.

Figure 7-5 View Disk Status

2. Configure the quota for saving the video and picture.

Enter the percentage for picture and record in the text filed, and the total percentage must be 100%.

Figure 7-6 Setting Quota

User Manual of Network Speed Dome

7.3 Configuring Recording Schedule

Before you start:

Please make sure a local storage card is inserted in the speed dome or the network storage is added to the speed dome, and the

Purpose:

There are two kinds of recording for the speed domes: manual recording and scheduled recording. For the manual recording, refer to Section 4.4 Recording and Capturing Pictures Manually. In this section, you can follow the instructions to configure the scheduled recording. By default, the record files of scheduled recording are stored in the SD card (if supported) or in the network disk.

Steps:

1. Enter the Record Schedule Settings interface:

Configuration > Advanced Configuration> Storage > Record Schedule

Figure 7-7 Recording Schedule Interface

2. Check the checkbox of Enable Record Schedule to enable scheduled recording.

3. Set the record parameters of the speed dome.

Figure 7-8 Record Parameters

 Pre-record: The time you set to start recording before the scheduled time or

User Manual of Network Speed Dome

the event. For example, if an alarm triggers recording at 10:00, and the pre-record time is set as 5 seconds, the speed dome starts to record at 9:59:55. The Pre-record time can be configured as No Pre-record, 5 s, 10 s, 15 s, 20 s, 25 s, 30 s or not limited.

The pre-record time changes according to the video bitrate.

 Post-record: The time you set to stop recording after the scheduled time or

the event. For example, if an alarm triggered recording ends at 11:00, and the post-record time is set as 5 seconds, the speed dome records until 11:00:05. The Post-record time can be configured as 5 s, 10 s, 30 s, 1 min, 2 min, 5 min or 10 min.

The Pre-record and Post-record parameters vary depending on the speed dome model.

 Overwrite: If you enable this function and the HDD is full, the new record

files overwrite the oldest record files automatically.

 Recording Stream: You can select the stream type for recording; Main stream

and Sub Stream are selectable. If you select the sub stream, you can record for a longer time with the same storage capacity.

4. Click to edit the record schedule.

Figure 7-9 Record Schedule

5. Choose the day to set the record schedule.

(1) Set all-day record or segment record:

User Manual of Network Speed Dome

 If you want to configure the all-day recording, please check the All Day

checkbox.

 If you want to record in different time sections, check the Customize

checkbox. Set the Start Time and End Time.

The time of each segment cannot be overlapped. Up to 8 segments can be configured for each day.

(2) Select a Record Type. The record type can be Continuous, Motion Detection,

Alarm, Motion | Alarm, Motion & Alarm, Face Detection, Intrusion Detection, Line Crossing Detection, Audio Exception Detection and All events.

 Continuous

If you select Continuous, the video will be recorded automatically according to the time of the schedule.

 Record Triggered by Motion Detection

If you select Motion Detection, the video will be recorded when the motion is detected. Besides configuring the recording schedule, you have to set the motion detection area and check the checkbox of Trigger Channel in the Linkage Method of Motion Detection Settings interface. For detailed information, please refer to the Step 1 in the Section 6.6.1 Configuring Motion Detection.

 Record Triggered by Alarm

If you select Alarm, the video will be recorded when the alarm is triggered via the external alarm input channels. Besides configuring the recording schedule, you have to set the Alarm Type and check the checkbox of Trigger Channel in the Linkage Method of Alarm

Input Settings interface. For detailed information, please refer to Section

6.6.4 Configuring External Alarm Input.

 Record Triggered by Motion & Alarm

If you select Motion & Alarm, the video will be recorded when the motion and alarm are triggered at the same time. Besides configuring the recording schedule, you have to configure the settings on the Motion Detection and Alarm Input Settings interfaces. Please refer to Section 6.6.1 and Section 6.6.4 for detailed information.

 Record Triggered by Motion | Alarm

If you select Motion | Alarm, the video will be recorded when the external alarm is triggered or the motion is detected. Besides configuring the recording schedule, you have to configure the settings on the Motion Detection and Alarm Input Settings interfaces. Please refer to Section 6.6.1 and Section 6.6.4 for detailed information.

 Record Triggered by Audio Exception Detection

If you select Audio Exception Detection, the video will be recorded when the audio exception is detected. Besides configuring the recording schedule, you have to configure the

User Manual of Network Speed Dome

settings on the Audio Exception Detection interface. Please refer to Section

6.6.7 for detailed information.

 Record Triggered by All Events

If you select All Events, the video will be recorded when any event is detected.

(3) Check the checkbox and click to copy settings of this

day to the whole week. You can also check any of the checkboxes before the date and click .

(4) Click to save the settings and exit the Edit Record Schedule

interface.

6. Click to save the settings.

7.4 Configuring Snapshot Settings

Purpose:

You can configure the scheduled snapshot and event-triggered snapshot. You can upload the captured pictures to a FTP server.

 Basic Settings

Steps:

1. Enter the Snapshot Settings interface:

Configuration > Advanced Configuration > Storage > Snapshot

Hikvision DS-2DE5174-A, DS-2DF6236V-AEL User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Chapter 1 Overview

1.1 System Requirement

1.2 Functions

Chapter 2 Network Connection
