Hikvision DS-2DE4225IW-DE Service Manual

Download

E Series Network Speed Dome

User Manual

UD02316B

User Manual of E Series Network Speed Dome

User Manual

Any and all information, including, among others, wordings, pictures, graphs are the properties of

Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be

“Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced,

changed, translated, or distributed, partially or wholly, by any means, without the prior written

permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties,

guarantees or representations, express or implied, regarding to the Manual.

About this Manual

This Manual is applicable to E Series Network Speed Dome.

The Manual includes instructions for using and managing the product. Pictures, charts, images and all

other information hereinafter are for description and explanation only. The information contained in

the Manual is subject to change, without notice, due to firmware updates or other reasons. Please

find the latest version in the company website (http://overseas.hikvision.com/en/).

Please use this user manual under the guidance of professionals.

Trademarks Acknowledgement

and other Hikvision’s trademarks and logos are the properties of Hikvision in various

jurisdictions. Other trademarks and logos mentioned below are the properties of their respective

owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS

HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS, AND

HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,

MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND

NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS,

EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR

INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS,

BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE

OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT

YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION,

PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS

INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY

TECHNICAL SUPPORT IF REQUIRED.

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR

JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE

APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH

ILLEGITIMATE PURPOSES.

User Manual of E Series Network Speed Dome

IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER

PREVAILS.

User Manual of E Series Network Speed Dome

iii

Regulatory Information

FCC Information

Please take attention that changes or modification not expressly approved by the party

responsible for compliance could void the user’s authority to operate the equipment.

FCC compliance: This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this equipment in a residential area

is likely to cause harmful interference in which case the user will be required to correct the

interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause

undesired operation.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with

"CE" and comply therefore with the applicable harmonized European standards

listed under the Low Voltage Directive 2006/95/EC, the EMC Directive 2014/30/EU,

the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol cannot be

disposed of as unsorted municipal waste in the European Union. For proper

recycling, return this product to your local supplier upon the purchase of

equivalent new equipment, or dispose of it at designated collection points. For

more information see: www.recyclethis.info.

2006/66/EC (battery directive): This product contains a battery that cannot be

disposed of as unsorted municipal waste in the European Union. See the product

documentation for specific battery information. The battery is marked with this

symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or

mercury (Hg). For proper recycling, return the battery to your supplier or to a designated

collection point. For more information see: www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

User Manual of E Series Network Speed Dome

Warnings Follow these safeguards to prevent

serious injury or death.

Cautions Follow these precautions to prevent

potential injury or material damage.

Safety Instruction

These instructions are intended to ensure that the user can use the product correctly to avoid

danger or property loss.

The precaution measure is divided into ‘Warnings’ and ‘Cautions’:

Warnings: Serious injury or death may be caused if any of these warnings are neglected.

Cautions: Injury or equipment damage may be caused if any of these cautions are neglected.

Warnings:

 Please adopt the power adapter which can meet the safety extra low voltage (SELV) standard.

The power consumption cannot be less than the required value.

 Do not connect several devices to one power adapter as an adapter overload may cause

over-heating and can be a fire hazard.

 When the product is installed on a wall or ceiling, the device should be firmly fixed.  To reduce the risk of fire or electrical shock, do not expose the indoor used product to rain or

moisture.

 This installation should be made by a qualified service person and should conform to all the

local codes.

 Please install blackouts equipment into the power supply circuit for convenient supply

interruption.

 If the product does not work properly, please contact your dealer or the nearest service

center. Never attempt to disassemble the product yourself. (We shall not assume any

responsibility for problems caused by unauthorized repair or maintenance.)

Cautions:

 Make sure the power supply voltage is correct before using the product.  Do not drop the product or subject it to physical shock. Do not install the product on

vibratory surface or places.

 Do not expose it to high electromagnetic radiating environment.  Do not aim the lens at the strong light such as sun or incandescent lamp. The strong light can

cause fatal damage to the product.

User Manual of E Series Network Speed Dome

 The sensor may be burned out by a laser beam, so when any laser equipment is being used,

make sure that the surface of the sensor not be exposed to the laser beam.

 For working temperature, please refer to the specification manual for details.  To avoid heat accumulation, good ventilation is required for a proper operating environment.  While shipping, the product should be packed in its original packing.  Please use the provided glove when open up the product cover. Do not touch the product

cover with fingers directly, because the acidic sweat of the fingers may erode the surface

coating of the product cover.

 Please use a soft and dry cloth when clean inside and outside surfaces of the product cover.

Do not use alkaline detergents.

 Improper use or replacement of the battery may result in hazard of explosion. Please use the

manufacturer recommended battery type.

0504081070104

User Manual of E Series Network Speed Dome

Table of Contents

CHAPTER 1 OVERVIEW ................................................................................................................. 1

1.1 SYSTEM REQUIREMENT .................................................................................................................. 1

1.2 FUNCTIONS .................................................................................................................................. 1

CHAPTER 2 NETWORK CONNECTION ............................................................................................ 4

2.1 SETTING THE NETWORK SPEED DOME OVER THE LAN .......................................................................... 4

2.1.1 Wiring over the LAN ............................................................................................................ 4

2.1.2 Activating the Speed Dome .................................................................................................. 5

2.2 SETTING THE NETWORK SPEED DOME OVER THE WAN ........................................................................ 9

2.2.1 Static IP Connection ............................................................................................................. 9

2.2.2 Dynamic IP Connection ...................................................................................................... 10

CHAPTER 3 ACCESS TO THE NETWORK SPEED DOME .................................................................. 12

3.1 ACCESSING BY WEB BROWSERS ..................................................................................................... 12

3.2 ACCESSING BY CLIENT SOFTWARE ................................................................................................... 13

CHAPTER 4 BASIC OPERATIONS .................................................................................................. 15

4.1 CONFIGURING LOCAL PARAMETERS ................................................................................................ 15

4.2 LIVE VIEW PAGE ......................................................................................................................... 16

4.3 STARTING LIVE VIEW ................................................................................................................... 17

4.4 OPERATING PTZ CONTROL ........................................................................................................... 19

4.4.1 PTZ Control Panel ............................................................................................................... 20

4.4.2 Auxiliary Functions ............................................................................................................. 21

4.4.3 Setting / Calling a Preset .................................................................................................... 23

4.4.4 Setting / Calling a Patrol .................................................................................................... 25

4.4.5 One-touch Patrol ................................................................................................................ 26

4.4.6 Setting / Calling a Pattern .................................................................................................. 27

4.5 PLAYBACK .................................................................................................................................. 28

4.5.1 Play Back Video Files ......................................................................................................... 28

4.5.2 Downloading Video Files ................................................................................................... 30

4.6 PICTURES .................................................................................................................................. 31

CHAPTER 5 SYSTEM CONFIGURATION ......................................................................................... 33

5.1 STORAGE SETTINGS ..................................................................................................................... 33

5.1.1 Configuring Recording Schedule ........................................................................................ 33

5.1.2 Configuring Capture Schedule ........................................................................................... 35

5.1.3 Configuring Net HDD ......................................................................................................... 37

5.2 BASIC EVENT CONFIGURATION ....................................................................................................... 39

5.2.1 Configuring Motion Detection ........................................................................................... 39

5.2.2 Configuring Video Tampering Alarm ................................................................................. 44

5.2.3 Configuring Alarm Input .................................................................................................... 45

5.2.4 Configuring Alarm Output ................................................................................................. 47

5.2.5 Handling Exception ............................................................................................................ 48

User Manual of E Series Network Speed Dome

vii

5.3 SMART EVENT CONFIGURATION ..................................................................................................... 48

5.3.1 Detecting Audio Exception ................................................................................................. 49

5.3.2 Configuring Face Detection ................................................................................................ 50

5.3.3 Configuring Intrusion Detection ......................................................................................... 50

5.3.4 Configuring Line Crossing Detection .................................................................................. 52

5.3.5 Region Entrance Detection ................................................................................................. 54

5.3.6 Region Exiting Detection .................................................................................................... 55

5.4 PTZ CONFIGURATION .................................................................................................................. 56

5.4.1 Configuring Basic PTZ Parameters ..................................................................................... 56

5.4.2 Configuring PTZ Limits ....................................................................................................... 58

5.4.3 Configuring Initial Position................................................................................................. 59

5.4.4 Configuring Park Actions.................................................................................................... 60

5.4.5 Configuring Privacy Mask .................................................................................................. 60

5.4.6 Configuring Scheduled Tasks .............................................................................................. 62

5.4.7 Clearing PTZ Configurations ............................................................................................... 63

5.4.8 Configuring Smart Tracking ............................................................................................... 63

5.4.9 Prioritize PTZ ...................................................................................................................... 64

CHAPTER 6 SPEED DOME CONFIGURATION ................................................................................ 65

6.1 CONFIGURING NETWORK SETTINGS ................................................................................................ 65

6.1.1 Basic Settings ..................................................................................................................... 65

6.1.2 Advanced Settings .............................................................................................................. 70

6.2 CONFIGURING VIDEO AND AUDIO SETTINGS ..................................................................................... 78

6.2.1 Configuring Video Settings ................................................................................................ 78

6.2.2 Configuring Audio Settings ................................................................................................ 80

6.2.3 Configuring ROI Settings .................................................................................................... 80

6.2.4 Dual-VCA Settings .............................................................................................................. 82

6.3 CONFIGURING IMAGE SETTINGS ..................................................................................................... 82

6.3.1 Configuring Display Settings .............................................................................................. 83

6.3.2 Configuring OSD Settings ................................................................................................... 89

6.3.3 Configuring Text Overlay Settings ...................................................................................... 90

6.3.4 Configuring Image Parameters Switch............................................................................... 91

6.4 CONFIGURING SYSTEM SETTINGS ................................................................................................... 92

6.4.1 System Settings .................................................................................................................. 92

6.4.2 Maintenance ...................................................................................................................... 96

6.4.3 Security .............................................................................................................................. 99

6.4.4 User Management ........................................................................................................... 101

APPENDIX ...................................................................................................................................... 105

SADP SOFTWARE INTRODUCTION ............................................................................................................ 105

User Manual of E Series Network Speed Dome

Chapter 1 Overview

1.1 System Requirement

System requirement of web browser accessing is as follows:

Operating System: Microsoft Windows XP SP1 and above version / Vista / Win7 / Server 2003 /

Server 2008 32bits

CPU: Intel Pentium IV 3.0 GHz or higher

RAM: 1G or higher

Display: 1024×768 resolution or higher

Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.02 and above version,

Mozilla Firefox 5 and above version and Google Chrome 18 and above versions.

1.2 Functions

The functions vary depending on the models of speed dome.

 PTZ Limits

The speed dome can be programmed to move within the PTZ limits (left/right, up/down).

 Scan Modes

The speed dome provides 5 scan modes: auto scan, tilt scan, frame scan, random scan and

panorama scan.

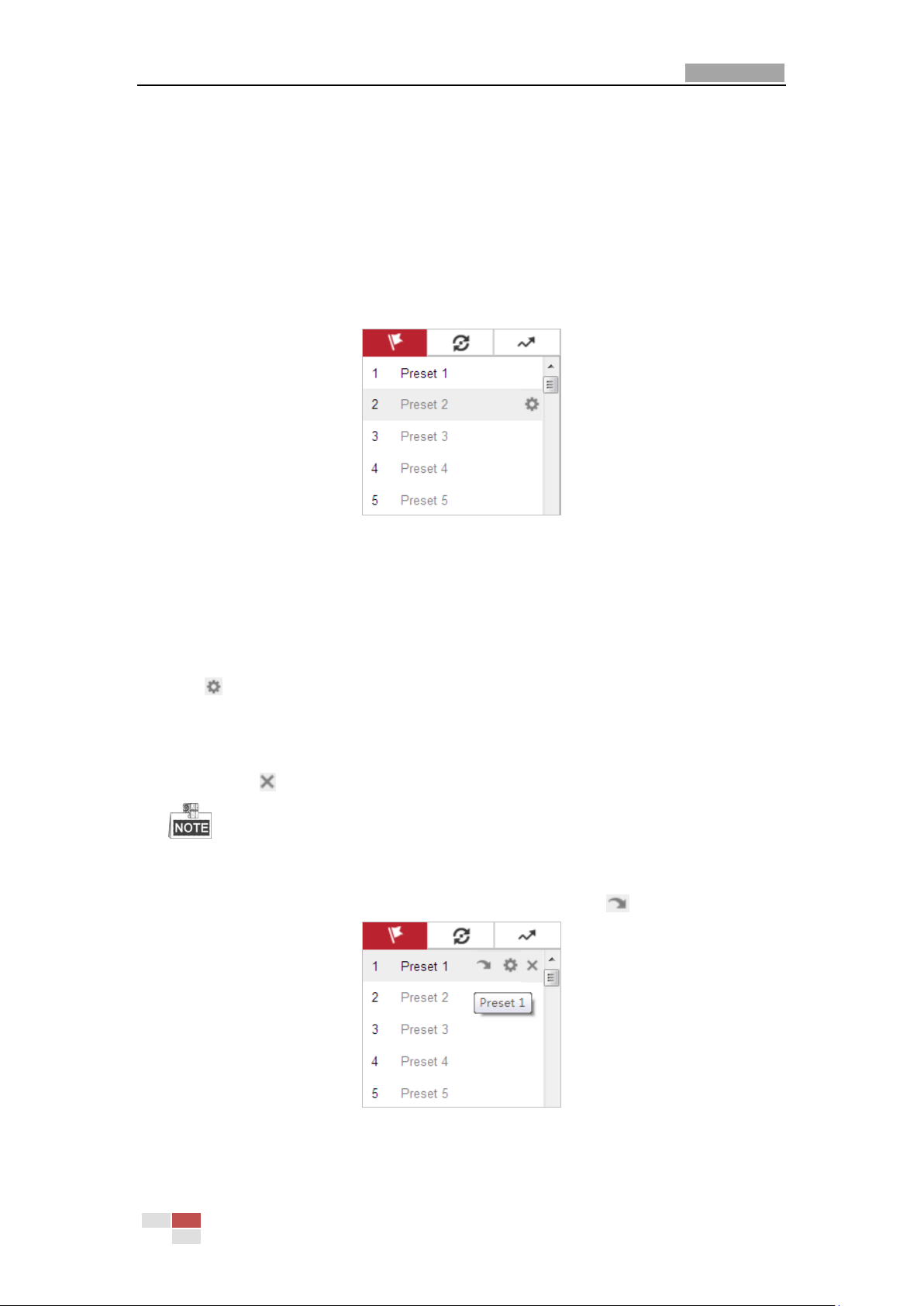

 Presets

A preset is a predefined image position. When the preset is called, the speed dome will

automatically move to the defined position. The presets can be added, modified, deleted and

called.

 Label Display

The on-screen label of the preset title, azimuth/elevation, zoom, time and speed dome name can

be displayed on the monitor. The displays of time and speed dome name can be programmed.

 Auto Flips

In manual tracking mode, when a target object goes directly beneath the speed dome, the video

will automatically flips 180 degrees in horizontal direction to maintain continuity of tracking. This

function can also be realized by auto mirror image depending on different camera models.

 Privacy Mask

This function allows you to block or mask certain area of a scene, for preventing the personal

privacy from recording or live viewing. A masked area will move with pan and tilt functions and

automatically adjust in size as the lens zooms telephoto and wide.

 3D Positioning

In the client software, use the left key of mouse to click on the desired position in the video

image and drag a rectangle area in the lower right direction, then the speed dome system will

User Manual of E Series Network Speed Dome

move the position to the center and allow the rectangle area to zoom in. Use the left key of

mouse to drag a rectangle area in the upper left direction to move the position to the center and

allow the rectangle area to zoom out.

 Proportional Pan/Tilt

Proportional pan/tilt automatically reduces or increases the pan and tilt speeds according to the

amount of zoom. At telephoto zoom settings, the pan and tilt speeds will be slower than at wide

zoom settings. This keeps the image from moving too fast on the live view image when there is a

large amount of zoom.

 Auto Focus

The auto focus enables the camera to focus automatically to maintain clear video images.

 Day/Night Auto Switch

The speed domes deliver color images during the day. And as light diminishes at night, the speed

domes switch to night mode and deliver black and white images with high quality.

 Slow Shutter

In slow shutter mode, the shutter speed will automatically slow down in low illumination

conditions to maintain clear video images by extending the exposure time. The feature can be

enabled or disabled.

 Backlight Compensation (BLC)

If you focus on an object against strong backlight, the object will be too dark to be seen clearly.

The BLC (Backlight Compensation) function can compensate light to the object in the front to

make it clear, but this causes the over-exposure of the background where the light is strong.

 Wide Dynamic Range (WDR)

The wide dynamic range (WDR) function helps the camera provide clear images even under back

light circumstances. When there are both very bright and very dark areas simultaneously in the

field of view, WDR balances the brightness level of the whole image and provide clear images

with details.

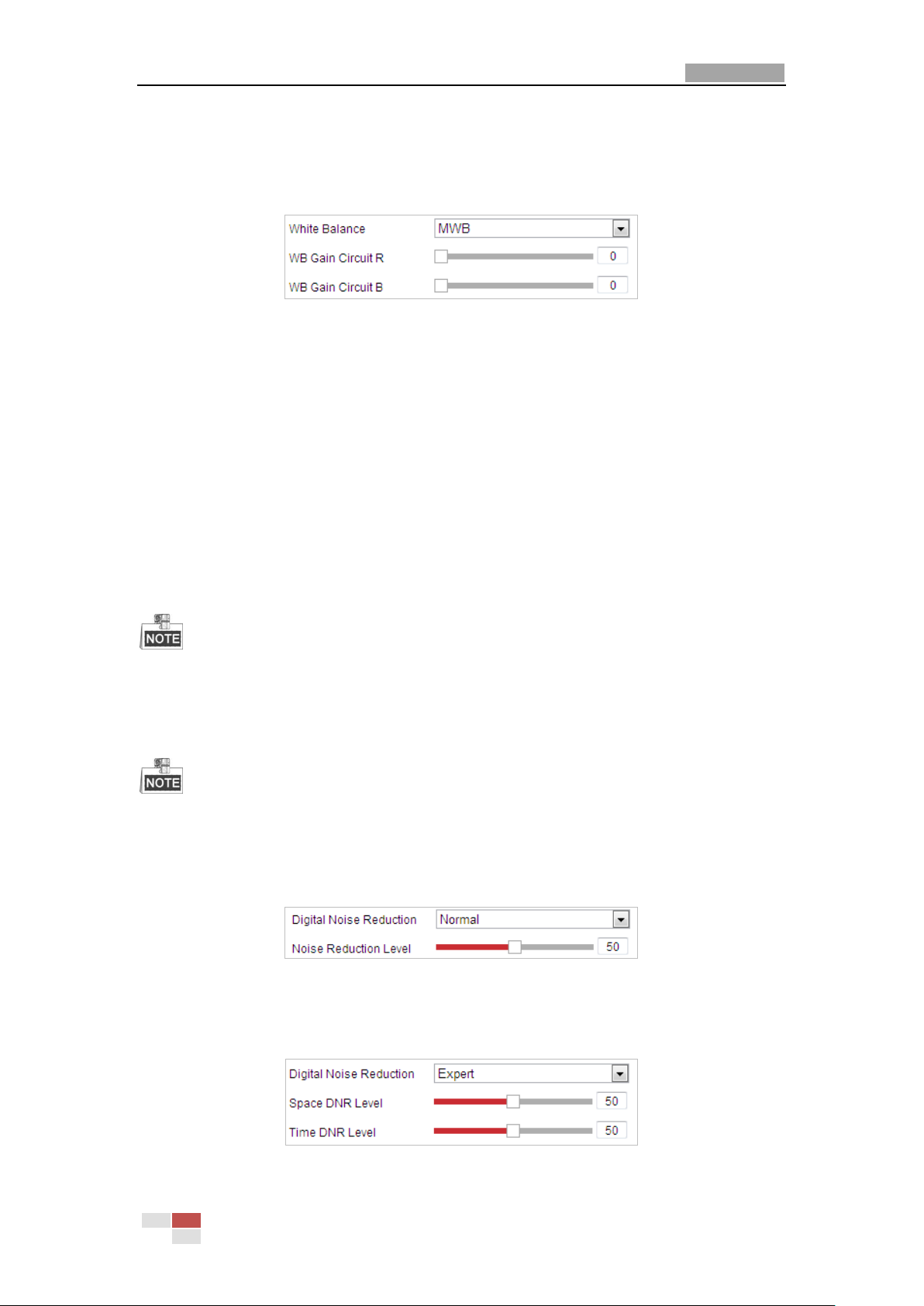

 White Balance (WB)

White balance can remove the unrealistic color casts. White balance is the white rendition

function of the camera to adjust the color temperature according to the environment

automatically.

 Patrol

A patrol is a memorized series of pre-defined preset function. The scanning speed between two

presets and the dwell time at the preset are programmable.

 Pattern

A pattern is a memorized series of pan, tilt, zoom, and preset functions. By default the focus and

iris are in auto status during the pattern is being memorized.

 Power Off Memory

The speed dome supports the power off memory capability with the predefined resume time. It

allows the speed dome to resume its previous position after power is restored.

 Scheduled Task

A time task is a preconfigured action that can be performed automatically at a specific date and

time. The programmable actions include: auto scan, random scan, patrol 1-8 ,pattern 1-4, preset

1-8,frame scan, panorama scan, tilt scan, day, night, reboot, PT adjust, Aux Output, etc.

 Park Action

User Manual of E Series Network Speed Dome

This feature allows the speed dome to start a predefined action automatically after a period of

inactivity.

 User Management

The speed dome allows you to edit users with different levels of permission, in the admin login

status. Multiple users are allowed to access and control the same network speed dome via

network simultaneously.

 3D Digital Noise Reduction

Comparing with the general 2D digital noise reduction, the 3D digital noise reduction function

processes the noise between two frames besides processing the noise in one frame. The noise

will be much less and the video will be clearer.

User Manual of E Series Network Speed Dome

Network Cable

Speed Dome

Network Cable

Switch or Router

Network Cable

Chapter 2 Network Connection

Before you start:

 If you want to set the network speed dome via a LAN (Local Area Network), please refer to

Section 2.1.

 If you want to set the network speed dome via a WAN (Wide Area Network), please refer to

Section 2.2.

2.1 Setting the Network Speed Dome over the LAN

Purpose:

To view and configure the speed dome via a LAN, you need to connect the network speed dome

in the same subnet with your computer, and install the SADP or client software to search and

change the IP of the network speed dome.

For the detailed introduction of SADP, please refer to Appendix.

2.1.1 Wiring over the LAN

The following figures show the two ways of cable connection of a network speed dome and a

computer:

Purpose:

 To test the network speed dome, you can directly connect the network speed dome to the

computer with a network cable as shown in Figure 2-1.

 Refer to the Figure 2-2 to set the network speed dome over the LAN via a switch or a router.

Figure 2-1 Connecting Directly

Figure 2-2 Connecting via a Switch or a Router

User Manual of E Series Network Speed Dome

2.1.2 Activating the Speed Dome

Purpose:

You are required to activate the speed dome first before you can use the speed dome.

Activation via Web Browser, Activation via SADP, and Activation via client software are supported.

In the following sections, activation via web browser and SADP will be taken as examples. You

may refer to the user manual of the speed dome for the details of activation via client software.

 Activation via Web Browser

Steps:

1. Power on the speed dome, and connect the speed dome to the network.

2. Input the IP address into the address bar of the web browser, and click Enter to enter the

activation interface.

The default IP address of the speed dome is 192.168.1.64.

Figure 2-3 Activation Interface(Web)

3. Create a password and input the password into the password field.

STRONG PASSWORD RECOMMENDED–We highly recommend you create a strong

password of your own choosing (Using a minimum of 8 characters, including at least

three of the following categories: upper case letters, lower case letters, numbers, and

special characters.) in order to increase the security of your product. And we

recommend you reset your password regularly, especially in the high security system,

resetting the password monthly or weekly can better protect your product.

4. Confirm the password.

5. Click OK to activate the speed dome and enter the live view interface.

 Activation via SADP Software

SADP software is used for detecting the online device, activating the device, and resetting the

password.

Get the SADP software from the supplied disk or the official website, and install the SADP

according to the prompts. Follow the steps to activate the speed dome.

Steps:

User Manual of E Series Network Speed Dome

1. Run the SADP software to search the online devices.

2. Check the device status from the device list, and select an inactive device.

Figure 2-4 SADP Interface

3. Create a password and input the password in the password field, and confirm the password.

STRONG PASSWORD RECOMMENDED–We highly recommend you create a strong

password of your own choosing (Using a minimum of 8 characters, including at least

three of the following categories: upper case letters, lower case letters, numbers,

and special characters.) in order to increase the security of your product. And we

recommend you reset your password regularly, especially in the high security system,

resetting the password monthly or weekly can better protect your product.

4. Click OK to save the password.

You can check whether the activation is completed on the popup window. If activation failed,

please make sure that the password meets the requirement and then try again.

5. Change the device IP address to the same subnet with your computer by either modifying

the IP address manually or checking the checkbox of Enable DHCP.

User Manual of E Series Network Speed Dome

Figure 2-5 Modify the IP Address

6. Input the password and click Save to activate your IP address modification.

 Activation via Client Software

The client software is versatile video management software for multiple kinds of devices.

Get the client software from the supplied disk or the official website, and install the software

according to the prompts. Follow the steps to activate the camera.

Steps:

1. Run the client software and the control panel of the software pops up, as shown in the

figure below.

Figure 2-6 Control Panel

2. Click Device Management to enter the Device Management interface, as shown in the figure

User Manual of E Series Network Speed Dome

below.

Figure 2-7 Device Management Interface

3. Check the device status from the device list, and select an inactive device.

4. Click Activate to pop up the Activation interface.

5. Create a password and input the password in the password field, and confirm the password.

STRONG PASSWORD RECOMMENDED–We highly recommend you create a strong

password of your own choosing (Using a minimum of 8 characters, including at least

three of the following categories: upper case letters, lower case letters, numbers, and

special characters.) in order to increase the security of your product. And we

recommend you reset your password regularly, especially in the high security system,

resetting the password monthly or weekly can better protect your product.

Figure 2-8 Activation Interface

6. Click OK to start activation.

User Manual of E Series Network Speed Dome

7. Click Modify Netinfo to pop up the Network Parameter Modification interface, as shown in

the figure below.

Figure 2-9 Modifying the Network Parameters

8. Change the device IP address to the same subnet with your computer by either modifying

the IP address manually or checking the checkbox of Enable DHCP.

9. Input the password to activate your IP address modification.

2.2 Setting the Network Speed Dome over the WAN

Purpose:

This section explains how to connect the network speed dome to the WAN with a static IP or a

dynamic IP.

2.2.1 Static IP Connection

Before you start:

Please apply a static IP from an ISP (Internet Service Provider). With the static IP address, you can

connect the network speed dome via a router or connect it to the WAN directly.

 Connecting the network speed dome via a router

Steps:

1. Connect the network speed dome to the router.

2. Assign a LAN IP address, the subnet mask and the gateway. Refer to Section 2.1.2 for detailed

IP address configuration of the speed dome.

3. Save the static IP in the router.

4. Set port mapping, E.g., 80, 8000 and 554 ports. The steps for port mapping vary depending

on different routers. Please call the router manufacturer for assistance with port mapping.

5. Visit the network speed dome through a web browser or the client software over the

User Manual of E Series Network Speed Dome

Speed Dome

Network Cable

Router with Static IP

Network Cable

Internet

Speed Dome

Network Cable

Internet

internet.

Figure 2-10 Accessing the Speed Dome through Router with Static IP

 Connecting the network speed dome with static IP directly

You can also save the static IP in the speed dome and directly connect it to the internet without

using a router. Refer to Section 2.1.2 for detailed IP address configuration of the speed dome.

Figure 2-11 Accessing the Speed Dome with Static IP Directly

2.2.2 Dynamic IP Connection

Before you start:

Please apply a dynamic IP from an ISP. With the dynamic IP address, you can connect the network

speed dome to a modem or a router.

 Connecting the network speed dome via a router

Steps:

1. Connect the network speed dome to the router.

2. In the speed dome, assign a LAN IP address, the subnet mask and the gateway. Refer to

Section 2.1.2 for detailed LAN configuration.

3. In the router, set the PPPoE user name, password and confirm the password.

 For your privacy and to better protect your system against security risks, we strongly

recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product.

User Manual of E Series Network Speed Dome

 Proper configuration of all passwords and other security settings is the responsibility of

the installer and/or end-user.

4. Set port mapping. E.g. 80, 8000 and 554 ports. The steps for port mapping vary depending on

different routers. Please call the router manufacturer for assistance with port mapping.

5. Apply a domain name from a domain name provider.

6. Configure the DDNS settings in the setting interface of the router.

7. Visit the speed dome via the applied domain name.

 Connecting the network speed dome via a modem

Purpose:

This speed dome supports the PPPoE auto dial-up function. The speed dome gets a public IP

address by ADSL dial-up after the speed dome is connected to a modem. You need to configure

the PPPoE parameters of the network speed dome. Refer to Section 6.1.1 Configuring PPPoE

Settings for detailed configuration.

Figure 2-12 Accessing the Speed Dome with Dynamic IP

The obtained IP address is dynamically assigned via PPPoE, so the IP address always changes

after rebooting the speed dome. To solve the inconvenience of the dynamic IP, you need to

get a domain name from the DDNS provider (E.g. DynDns.com). Please follow below steps for

normal domain name resolution and private domain name resolution to solve the problem.

 Normal Domain Name Resolution

Figure 2-13 Normal Domain Name Resolution

Steps:

1. Apply a domain name from a domain name provider.

2. Configure the DDNS settings in the DDNS Settings interface of the network speed dome.

Refer to Section 6.1.1 Configuring DDNS Settings for detailed configuration.

3. Visit the speed dome via the applied domain name.

User Manual of E Series Network Speed Dome

Chapter 3 Access to the Network

Speed Dome

3.1 Accessing by Web Browsers

Steps:

1. Open the web browser.

2. In the address field, input the IP address of the network speed dome, e.g., 192.168.1.64 and

press the Enter key to enter the login interface.

3. Activate the speed dome for the first time using, refer to the section 2.1.2 Activating the

Speed Dome.

4. Select English as the interface language on the top-right of login interface.

5. Input the user name and password and click .

The admin user should configure the device accounts and user/operator permissions properly.

Delete the unnecessary accounts and user/operator permissions.

The device IP address gets locked if the admin user performs 7 failed password attempts (5

attempts for the user/operator).

Figure 3-1 Login Interface

6. Install the plug-in before viewing the live video and operating the speed dome. Please follow

the installation prompts to install the plug-in.

You may have to close the web browser to install the plug-in. Please reopen the web browser

and log in again after installing the plug-in.

User Manual of E Series Network Speed Dome

Figure 3-2 Download and Install Plug-in

3.2 Accessing by Client Software

The product CD contains the client software. You can view the live video and manage the speed

dome with the client software.

Follow the installation prompts to install the client software and WinPcap. The configuration interface and live view interface of client software are shown below.

Figure 3-3 iVMS-4200 Control Panel

User Manual of E Series Network Speed Dome

Figure 3-4 iVMS-4200 Live View Interface

 If you use third party VMS software, please contact technical support of our branch for

camera firmware.

 For detailed information about client software of our company, please refer to the user

manual of the software. This manual mainly introduces accessing to the network speed dome by

web browser.

User Manual of E Series Network Speed Dome

Chapter 4 Basic Operations

In this and the following chapters, operation of the speed dome by the web browser will be taken

as an example.

4.1 Configuring Local Parameters

The local configuration refers to the parameters of the live view and other operations using the

web browser.

Steps:

1. Enter the Local Configuration interface:

Configuration > Local

Figure 4-1 Local Configuration Interface

2. Configure the following settings:

 Live View Parameters: Set the protocol type, play performance, rules and image format.

 Protocol Type: TCP, UDP, MULTICAST and HTTP are selectable.

TCP: Ensures complete delivery of streaming data and better video quality, yet the

real-time transmission will be affected.

UDP: Provides real-time audio and video streams.

MULTICAST: It’s recommended to select the protocol type to MULTICAST when using

the Multicast function.

HTTP: Allows the same quality as of TCP without setting specific ports for streaming

under some network environments.

 Play Performance: Set the play performance to Shortest Delay, or Auto.  Rules: You can enable or disable the rules of dynamic analysis for motion here.

User Manual of E Series Network Speed Dome

 Image Format: The captured pictures can be saved as different format. JPEG and BMP are

available.

 Record File Settings: Set the saving path of the video files.

 Record File Size: Select the packed size of manually recorded and downloaded video files.

The size can be set to 256M, 512M or 1G.

 Save record files to: Set the saving path for the manually recorded video files.  Save downloaded files to: Set the saving path for the downloaded video files in

interface.

 Picture and Clip Settings: Set the saving paths of the captured pictures and clipped video

files.

 Save snapshots in live view to: Set the saving path of the manually captured pictures in

interface.

 Save snapshots when playback to: Set the saving path of the captured pictures in

interface.

 Save clips to: Set the saving path of the clipped video files in interface.

 You can click Browse to change the directory for saving video files, clips and pictures.  You can click Open to directly open the video files, clips and pictures.

3. Click to save the settings.

4.2 Live View Page

Purpose:

The live video page allows you to view live video, capture images, realize PTZ control, set/call

presets and configure video parameters.

menu bar of the main page to enter the live view page.

User Manual of E Series Network Speed Dome

Menu Bar

Live View

Parameters

Live View Window

Toolbar

Show or hide PTZ

control panel

PTZ Control

Preset/Patrol/Patt ern

Descriptions of the live view page:

Figure 4-2 Live View Page

Menu Bar:

Click each tab to enter Live View, Playback, Picture, and Configuration page respectively.

Click to display the help file of the speed dome.

Click to logout the system.

Live View Window:

Display the live video.

Toolbar:

Operations on the live view page, e.g., live view, capture, record, audio on/off, regional exposure,

regional focus, etc.

PTZ Control:

Panning, tilting, focusing and zooming actions of the speed dome. The lighter, wiper, one-touch

focus and lens initialization control.

Preset/patrol/pattern:

Set and call the preset/patrol/pattern for the speed dome.

Pattern function varies depending on the models of speed dome.

Live View Parameters:

Configure the image size, stream type, plug-in type, and two-way audio of the live video.

4.3 Starting Live View

In the live view window as shown in Figure 4-3, click on the toolbar to start the live view of

the speed dome.

User Manual of E Series Network Speed Dome

Icon

Description

Icon

Description

Start/Stop Live view.

Manually capture the pictures.

/ /

Display in 4:3/16:9/original/

Self-adaptive window size.

/ /

Live view with the

main/sub/third stream.

Play via webcomponents/

quick time.

Start/Stop Two-way Audio.

Manual start/stop recording.

Mute/Audio on and adjust

volume

Start/stop digital zoom.

Enable/Disable Regional

Exposure

Enable / Disable Regional

Focus

Figure 4-3 Start Live View

Table 4-1 Descriptions of the Toolbar

 Double-click on the live video to switch the current live view into full-screen or return to

normal mode from the full-screen.

 Click to select from and display live video in 4:3/16:9/

original/self-adaptive window size.

 Click to select from and display live video with the main/ sub/third

stream. The main stream is with a relatively high resolution and needs much bandwidth. The

default setting of stream type is .

User Manual of E Series Network Speed Dome

 Click to select between and play the live video via player Webcomponents

or Quick Time. The live video is played via webcomponents by default, and other types of

players are supported for the browser, such as MJPEG, and VLC. You are required to download

and install the player to play the live video.

 Click and it displays . Click to enable two-way audio and the icon turns

into . Click the icon again to stop two-way audio.

 Click to start live view and the icon turns into . Click the icon again to stop live view.  Click to capture the picture.  Click to start recording and the icon turns into . Click the icon again to stop

recording.

 Click to enable digital zoom function and the icon turns into . Then click and drag

the mouse towards low right direction to draw a rectangle on the image as the desired zoom.

After viewing it you can click any place of the picture to get back to normal picture.

 Click the on the toolbar to enter the regional exposure operation mode and the icon

turns into . Then click and drag the mouse to draw a rectangle on the image as the

desired exposure region.

 Click the on the toolbar to enter the regional focus operation mode and the icon turns

into . Then click and drag the mouse to draw a rectangle on the image as the desired

focus region.

 Click to display the . Drag the slider to adjust the volumn.

Before using the two-way audio or recording with audio functions, please set the Stream Type to

Video & Audio referring to Section 6.2.1 Configuring Video Settings.

Please refer to the following sections for more information:

 Configuring remote recording in Section 5.1.1 Configuring Recording Schedule.  Setting the image quality of the live video in Section 6.3 Configuring Image Settings and

Section 6.2.1 Configuring Video Settings.

 Setting the OSD text on live video in Section 6.3.2 Configuring OSD Settings.

4.4 Operating PTZ Control

Purpose:

In the live view interface, you can use the PTZ control buttons to control panning, tilting and

zooming.

User Manual of E Series Network Speed Dome

Button

Name

Description

PTZ Control Panel

Hold and press the direction button

to pan/tilt the speed dome.

Click and the speed dome keeps

panning, the icon turns into .

Click the icon again to stop the speed

dome.

Zoom out/in

Click , the lens zooms in, click

, and the lens zooms out.

4.4.1 PTZ Control Panel

On the live view page, click to show the PTZ control panel or click to hide it. Click the direction buttons to control the pan/tilt movements.

Click the zoom/iris/focus buttons to realize lens control.

Figure 4-4 PTZ Control Panel

Table 4-2 Descriptions of PTZ Control Panel

User Manual of E Series Network Speed Dome

Button

Name

Description

Focus near/far

Click , the lens focus far and the

items far away gets clear. Click ,

the lens focus near and the items

nearby gets clear.

Iris close/open

When the image is too dark, click

to open the iris. When the

image is too bright, click to

close the iris.

Auxiliary Functions

The auxiliary functions include light,

wiper, auxiliary focus, lens

initialization, manual tracking, 3D

positioning, one-touch patrol, and

one-touch park.

Speed Adjustment

Adjust speed of pan/tilt movements.

Preset

Refer to 4.4.3 for detailed

information of setting preset.

Patrol

Refer to 4.4.4 for detailed

information of setting patrol.

Pattern

Refer to4.4.6 for detailed

information of setting pattern.

Buttons

Description

Start the selected patrol/pattern.

Stop current patrol/pattern.

Set the selected preset/patrol.

Delete the selected preset/patrol/pattern.

Start recording a pattern.

Stop recording the pattern.

 Buttons on the Preset/Patrol/Patterns interface:

4.4.2 Auxiliary Functions

The Auxiliary functions panel is shown in the figure below:

Table 4-3 Descriptions of Buttons

User Manual of E Series Network Speed Dome

Figure 4-5 Auxiliary Functions

 Light

Click to enable/disable the light supplement of the speed dome. This function is reserved.

 Wiper

Click to move the wiper once.

 Auxiliary Focus

The auxiliary focus function is reserved.

 Manual Tracking

Before you start:

Please enter the Smart Tracking settings interface and enable smart tracking first.

Configuration > PTZ > Smart Tracking

Steps:

1. Click on the toolbar of live view interface.

2. Click a moving object in the live video.

The speed dome will track the object automatically.

 3D Positioning

Steps:

1. Click on the toolbar of live view interface.

2. Operate the 3D positioning function:  Click a position of the live video. The corresponding position will be moved to the center of

the live video.

 Hold down the left mouse button and drag the mouse to the lower right on the live video.

The corresponding position will be moved to the center of the live video and zoomed in.

 Hold down the left mouse button and drag the mouse to the upper left on the live video.

The corresponding position will be moved to the center of the live video and zoomed out.

 One-touch Patrol

Click to call one-touch patrol. For detailed information of setting one-touch patrol, refer to 4.4.5 One-touch Patrol.

 One-touch Park

Click to save the current view as the preset No. 32 and start park at the the current position.

User Manual of E Series Network Speed Dome

4.4.3 Setting / Calling a Preset

Purpose:

A preset is a predefined image position. For the defined preset, you can click the calling button to

quickly view the desired image position.

 Setting a Preset:

Steps:

1. In the PTZ control panel, select a preset number from the preset list.

Figure 4-6 Setting a Preset

2. Use the PTZ control buttons to move the lens to the desired position.

• Pan the speed dome to the right or left.

• Tilt the speed dome up or down.

• Zoom in or out.

• Refocus the lens.

3. Click to finish the setting of the current preset.

4. Edit a preset name by double clicking on the default name such as preset 1. (The pre-defined presets are named already and not configurable. Please refer to the user manual for detailed function description.)

5. You can click to delete the preset.

You can configure up to 256 presets.

 Calling a Preset:

In the PTZ control panel, select a defined preset from the list and click to call the preset.

Figure 4-7 Calling a Preset

For convenient preset selection, refer to the following steps to navigate to the preset you want.

User Manual of E Series Network Speed Dome

Preset

Function

Preset

Function

Auto flip

Start to set limit stops

Back to initial position

Set limit stops manually

Call patrol 1

Remote reboot

Call patrol 2

Call OSD menu

Call patrol 3

Stop a scan

Call patrol 4

Start random scan

Day mode (IR cut filter in)

Start frame scan

Night mode (IR cut filter out)

Start auto scan

Call pattern 1

100

Start tilt scan

Call pattern 2

101

Start panorama scan

Call pattern 3

102

Call patrol 5

Call pattern 4

103

Call patrol 6

One-touch Patrol

104

Call patrol 7

Wiper

105

Call patrol 8

Steps:

1. Select any preset from the list.

2. Click the preset number you need on the keyboard.

 The following presets are predefined with special commands. You can only call them but not

configure them. For instance, preset 99 is the “Start auto scan”. If you call the preset 99, the

speed dome starts auto scan function.

 Pattern function varies depending on the models of speed dome.

Table 4-4 Special Presets

Figure 4-8 Special Preset

User Manual of E Series Network Speed Dome

Name

Description

Patrol Time

It is the duration staying on one patrol point. The speed dome

moves to another patrol point after the patrol time.

Patrol Speed

It is the speed of moving from one preset to another.

You may need to use the OSD (On Screen Display) menu when controlling the speed dome

remotely. To display the OSD menu on the live view screen, you can call the preset number

95.

4.4.4 Setting / Calling a Patrol

Purpose:

A patrol is a memorized series of preset function. It can be configured and called on the patrol

settings interface. There are up to 8 patrols for customizing. A patrol can be configured with 32

presets.

Before you start:

Please make sure that the presets you want to add into a patrol have been defined.

 Setting a Patrol:

Steps:

1. In the PTZ control panel, click to enter the patrol settings interface.

2. Select a patrol number from the list and click .

3. Click to enter the adding interface of preset, as shown in Figure 4-9.

Figure 4-9 Adding Presets

4. Configure the preset number, patrol time and patrol speed.

5. Click OK to save a preset into the patrol.

6. Repeat the steps from 3 to 5 to add more presets.

User Manual of E Series Network Speed Dome

7. Click OK to save all the patrol settings.

 Calling a Patrol:

In the PTZ control panel, select a defined patrol from the list and click to call the patrol, as

shown in Figure 4-10.

Figure 4-10 Calling a Preset

4.4.5 One-touch Patrol

Purpose:

One-touch patrol is an automatically created patrol. The system automatically add preset No.1 to

No.32 to the patrol path 8. You can call the one-touch patrol and the speed dome moves as the

patrol path 8 automatically.

Steps:

1. Set preset No.1 to No.32. Refer to 4.4.3 Setting / Calling a Preset for detailed information of

setting preset.

2. Call preset No. 45, and the speed dome moves as patrol path 8.

3. Click to enter the patrol settings interface and start/stop one-touch patrol, edit the

patrol time and the speed.

4. You can click of the PTZ control panel to start one-touch patrol.

User Manual of E Series Network Speed Dome

Figure 4-11 Patrol Path 8

4.4.6 Setting / Calling a Pattern

Purpose:

A pattern is a memorized series of pan, tilt, zoom, and preset functions. It can be called on the

pattern settings interface. There are up to 4 patterns for customizing.

Pattern function varies depending on speed dome models.

 Setting a Pattern:

Steps:

1. In the PTZ control panel, click to enter the pattern settings interface.

2. Select a pattern number from the list as shown in Figure 4-12.

Figure 4-12 Patterns Settings Interface

3. Click to enable recording the panning, tilting and zooming actions.

4. Use the PTZ control buttons to move the lens to the desired position after the information of

PROGRAM PATTERN REMAINNING MEMORY(%) is displayed on the screen.

 Pan the speed dome to the right or left.  Tilt the speed dome up or down.  Zoom in or out.

User Manual of E Series Network Speed Dome

Buttons

Description

Start the selected patrol/pattern.

Stop current patrol/pattern. Set the selected preset/patrol.

Delete the selected preset/patrol/pattern.

Start recording a pattern.

Stop recording the pattern.

 Refocus the lens.

5. Click to save all the pattern settings.

 Buttons on the Patterns interface:

 These 4 patterns can be operated separately and with no priority level.  When configuring and calling the pattern, proportional pan is valid; the limit stops and auto

flip will be invalid; and the 3D positioning operation is not supported.

4.5 Playback

Purpose:

This section explains how to view the video files stored in the network disks or memory cards.

4.5.1 Play Back Video Files

Steps:

1. Click on the menu bar to enter playback interface.

User Manual of E Series Network Speed Dome

Figure 4-13 Playback Interface

2. Select the date and click .

Figure 4-14 Search Video

3. Click to play the video files found on this date.

The toolbar on the bottom of Playback interface can be used to control playing process.

Figure 4-15 Playback Toolbar

User Manual of E Series Network Speed Dome

Button

Operation

Button

Operation

Play

Capture a picture

Pause

Start/Stop clipping

video files

Stop

Audio on and adjust

volume/Mute

Speed down

Download

Speed up

Playback by frame

Enable/Disable

digital zoom

Table 4-5 Description of the buttons

You can choose the file paths locally for downloaded playback video files and pictures in Local

Configuration interface. Please refer to Section 4.1 Configuring Local Parameters for details.

Drag the progress bar with the mouse to locate the exact playback point. You can also input the

time and click to locate the playback point in the Set playback time field. You can also

click to zoom out/in the progress bar.

Figure 4-16 Set Playback Time

Figure 4-17 Progress Bar

The different colors of the video on the progress bar stand for the different video types as shown

in Figure 4-18.

Figure 4-18 Video Types

4.5.2 Downloading Video Files

Steps:

1. Click on the playback interface. The pop-up menu is shown in Figure 4-19.

User Manual of E Series Network Speed Dome

2. Set the start time and end time. Click Search. The corresponding video files are listed on the

left.

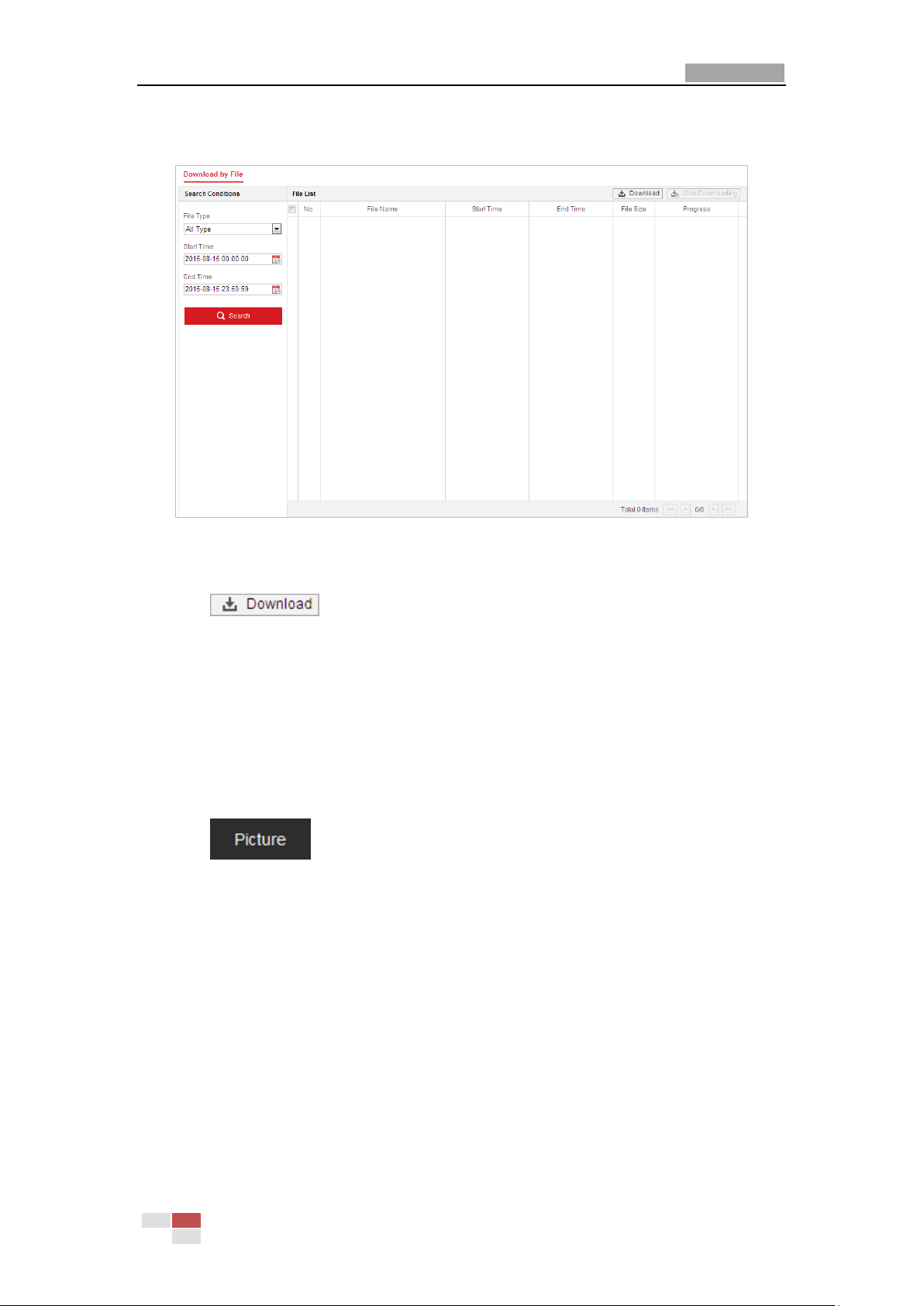

Figure 4-19 Video Downloading interface

3. Check the checkbox in front of the video files that you need to download.

4. Click to download the video files.

4.6 Pictures

Purpose:

This section explains how to view the captured picture files stored in the network disks or the

memory cards and download the captured pictures.

Steps:

1. Click on the menu bar to enter picture interface.

User Manual of E Series Network Speed Dome

Figure 4-20 Picture Interface

2. Select the file type of capturing the pictures from the list as timing, alarm, motion, etc.

3. Set the start time and end time. Click Search. The corresponding picture files will be listed.

4. Check the checkbox in front of the files that you need to download.

5. Click to download the files.

User Manual of E Series Network Speed Dome

Chapter 5 System Configuration

5.1 Storage Settings

Before you start:

To configure record settings, please make sure that you have the network storage device within

the network or the memory card inserted in your speed dome.

5.1.1 Configuring Recording Schedule

Purpose:

There are two kinds of recording for the speed domes: manual recording and scheduled recording.

In this section, you can follow the instructions to configure the scheduled recording. By default,

the record files of scheduled recording are stored in the memory card (if supported) or in the

network disk.

Steps:

1. Enter the Record Schedule settings interface:

Configuration > Storage > Schedule Settings > Record Schedule

Figure 5-1 Recording Schedule Interface

2. Check the checkbox of Enable to enable scheduled recording.

3. To set the advanced settings of the speed dome, click to enter the advanced

settings interface.

User Manual of E Series Network Speed Dome

Figure 5-2 Record Parameters

 Pre-record: The time you set to start recording before the scheduled time or the event.

For example, if an alarm triggers recording at 10:00, and the pre-record time is set as 5

seconds, the speed dome starts to record at 9:59:55.

The Pre-record time can be configured as No Pre-record, 5 s, 10 s, 15 s, 20 s, 25 s, 30 s or

not limited.

The pre-record time changes according to the video bitrate.

 Post-record: The time you set to stop recording after the scheduled time or the event.

For example, if an alarm triggered recording ends at 11:00, and the post-record time is

set as 5 seconds, the speed dome records until 11:00:05.

The Post-record time can be configured as 5 s, 10 s, 30 s, 1 min, 2 min, 5 min or 10 min.

 Stream Type: You can select the stream type for recording; Main Stream, Sub Stream

and Third Stream are selectable. If you select the sub stream, you can record for a longer

time with the same storage capacity.

The Pre-record and Post-record parameters vary depending on the models of speed

dome.

4. Click OK to save the advanced setting.

5. Select a Record Type. The record type can be Continuous, Motion, Alarm, Motion | Alarm,

Motion & Alarm, and Event.

 Normal: If you select Continuous, the video will be recorded automatically according to

the time of the schedule.

 Record Triggered by Motion Detection: If you select Motion, the video will be recorded

when the motion is detected. Besides configuring the recording schedule, you have to

set the motion detection area and check the checkbox of Trigger Channel in the Linkage

Method of Motion Detection settings interface. For detailed information, please refer to

Section Motion Detection.

 Record Triggered by Alarm: If you select Alarm, the video will be recorded when the

alarm is triggered via the external alarm input channels. Besides configuring the

recording schedule, you have to set the Alarm Type and check the checkbox of Trigger

Channel in the Linkage Method of Alarm Input settings interface. For detailed

User Manual of E Series Network Speed Dome

information, please refer to Section Alarm Input.

 Record Triggered by Motion & Alarm: If you select Motion & Alarm, the video will be

recorded when the motion and alarm are triggered at the same time. Besides

configuring the recording schedule, you have to configure the settings on the Motion

Detection and Alarm Input settings interfaces.

 Record Triggered by Motion | Alarm: If you select Motion | Alarm, the video will be

recorded when the external alarm is triggered or the motion is detected. Besides

configuring the recording schedule, you have to configure the settings on the Motion

Detection and Alarm Input settings interfaces.

 Record Triggered by VCA events: If you select VCA, the video will be recorded when the

either of the VCA events is triggered. Besides configuring the recording schedule, you

have to configure the settings on the VCA interface.

VCA function varies depending on the models of speed dome.

 Record Triggered by Event: If you select to record by event, the video will be recorded

when any of the events is triggered.

6. Click to save the settings.

5.1.2 Configuring Capture Schedule

Purpose:

You can configure the scheduled snapshot and event-triggered snapshot. The captured picture

can be stored in the local storage or network storage.

Steps:

1. Enter the Snapshot settings interface:

Configuration > Storage > Storage Settings > Capture

Figure 5-3 Snapshot Settings

User Manual of E Series Network Speed Dome

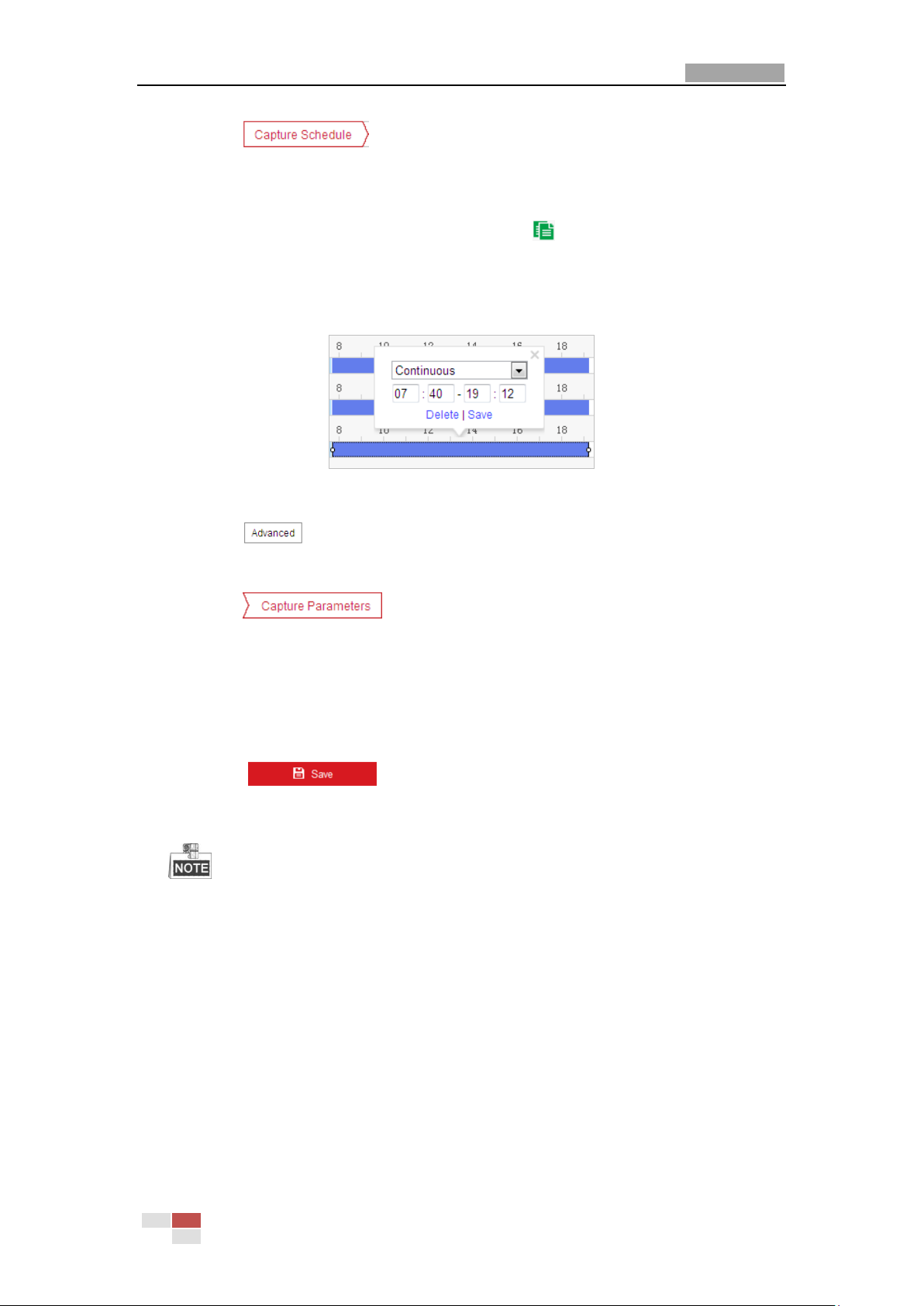

2. Click to enter the Capture Schedule interface.

3. Select the timeline of a certain day, click and drag the left button of the mouse to set

the capture schedule (the start time and end time of the recording task).

4. After you set the scheduled task, you can click and copy the task to other days

(optional).

5. After setting the capture schedule, you can click a capture segment to display the

segment capture settings interface to edit the segment capture parameters. (optional)

Figure 5-4 Segment Snapshot Settings

6. Click to enter the advanced setting interface. You can select the stream type

of the capture.

7. Click to enter the Capture Parameters Interface.

8. Check the Enable Timing Snapshot checkbox to enable continuous snapshot, and

configure the schedule of timing snapshot. Check the Enable Event-triggered Snapshot

checkbox to enable event-triggered snapshot.

9. Select the format, resolution, quality of the snapshot.

10. Set the time interval between two snapshots.

11. Click to save the settings.

Uploading to FTP

Please make sure that the FTP server is online.

You can follow below configuration instructions to upload the snapshots to FTP.

 Upload continuous snapshots to FTP

Steps:

1) Configure the FTP settings and check Upload Picture checkbox in FTP Settings interface.

Please refer to Section 6.1.2 Configuring FTP Settings for more details to configure FTP

parameters.

2) Check the Enable Timing Snapshot checkbox.

3) Click Edit to set the snapshot schedule. Refer to Section 5.2.1 Configuring Motion

Detection.

 Upload event-triggered snapshots to FTP

User Manual of E Series Network Speed Dome

Steps:

1) Configure the FTP settings and check Upload Picture checkbox in FTP Settings interface.

Please refer to Section 6.1.2 Configuring FTP Settings for more details to configure FTP

parameters.

2) Check Upload to FTP checkbox in Motion Detection Settings or Alarm Input interface. Refer

to Section 5.2.1 Configuring Motion Detection.

3) Check the Enable Event-triggered Snapshot checkbox.

5.1.3 Configuring Net HDD

Before you start:

The network disk should be available within the network and properly configured to store the

recorded files, log files, etc.

Steps:

 Add the network disk

1. Enter the NAS (Network-Attached Storage) settings interface:

Configuration > Storage > Storage Management > Net HDD

Figure 5-5 Select Net HDD Type

2. Enter the IP address and the file path of the network disk.

3. Select the mounting type. NFS and SMB/CIFS are selectable. You can set the user name and

password to guarantee the security if SMB/CIFS is selected.

Please refer to the NAS User Manual for creating the file path.

 For your privacy and to better protect your system against security risks, we strongly

 Proper configuration of all passwords and other security settings is the responsibility of

the installer and/or end-user.

User Manual of E Series Network Speed Dome

4. Click to add the network disk.

After having saved successfully, you need to reboot the speed dome to activate the settings.

 Initialize the added network disk.

1. Enter the HDD settings interface (Configuration > Storage > Storage Management > HDD

Management), in which you can view the capacity, free space, status, type and property of

the disk.

Figure 5-6 Storage Management Interface

2. If the status of the disk is Uninitialized, check the corresponding checkbox to select the disk

and click Format to start initializing the disk.

3. When the initialization completed, the status of disk will become Normal as shown in Figure

5-7.

Figure 5-7 View Disk Status

 Define the Quota for Record and Pictures

1. Input the quota percentage for picture and for record.

2. Click Save and refresh the browser page to activate the settings.

Figure 5-8 Quota Settings

User Manual of E Series Network Speed Dome

 Up to 8 NAS disks can be connected to the speed dome.  To initialize and use the memory card after insert it to the speed dome, please refer to the

steps of NAS disk initialization

5.2 Basic Event Configuration

Purpose:

This section explains how to configure the network speed dome to respond to alarm events,

including motion detection, video tampering alarm input, alarm output and exception. These

events can trigger the alarm actions, such as Send Email, Notify Surveillance Center, etc.

For example, when motion detection is triggered, the network speed dome sends a notification

to an e-mail address.

 On the event configuration page, click to show the PTZ control panel or click to hide it.  Click the direction buttons to control the pan/tilt movements.  Click the zoom/iris/focus buttons to realize lens control.  The functions vary depending on the models of speed dome.

5.2.1 Configuring Motion Detection

Purpose:

Motion detection is a feature which can trigger alarm actions and actions of recording videos

when the motion occurred in the surveillance scene.

Steps:

1. Enter the motion detection setting interface:

Configuration > Event > Basic Event > Motion Detection

2. Check the checkbox of the Enable Motion Detection to enable this function.

You can check the Enable Dynamic Analysis for Motion checkbox if you want the detected

object get marked with rectangle in the live view.

3. Select the configuration mode as Normal or Expert and set the corresponding motion

detection parameters.

 Normal

User Manual of E Series Network Speed Dome

Figure 5-9 Motion Detection Settings-Normal

Steps:

(1) Click and drag the mouse on the live video image to draw a motion

detection area.

(2) Click to finish drawing.

 You can draw up to 8 motion detection areas on the same image.

 You can click to clear all of the areas.

(3) Move the slider to set the

sensitivity of the detection.

User Manual of E Series Network Speed Dome

 Expert

Figure 5-10 Motion Detection Settings-Expert

Steps:

(1) Set the Schedule Image Settings, there are OFF, Auto-Switch and Scheduled-Switch

selectable. If the schedule image switch mode is enabled, you can configure the

detection rule for the day and night separately.

OFF: Disable the day and night switch.

Auto-Switch: Switch the day and night mode according to the illumination

automatically.

Scheduled-Switch: Switch to the day mode at 6:00 a.m., and switch to the night mode

at 18:00 p.m..

(2) Select Area No. to configure in the dropdown list. (3) Set the values of sensitivity and proportion of object on area.

Sensitivity: The greater the value is, the easier the alarm will be triggered.

Proportion of Object on Area: When the size proportion of the moving object exceeds

the predefined value, the alarm will be triggered. The less the value is, the easier the

alarm will be triggered.

4. Set the Arming Schedule for Motion Detection.

(1) Click tab to enter the arming schedule setting interface.

User Manual of E Series Network Speed Dome

Figure 5-11 Arming Schedule

(2) Select the timeline of a certain day, click and drag the mouse to set the arming

schedule (the start time and end time of the arming task).

(3) After you set the scheduled task, you can click and copy the task to other days

(optional).

Figure 5-12 Arming Time Schedule

(4) After setting the arming schedule, you can click a segment to display the segment

arming settings interface to edit the segment record parameters (optional).

Figure 5-13 Segment Arming Settings

(5) Click to save the settings.

User Manual of E Series Network Speed Dome

The time of each period cannot be overlapped. Up to 8 periods can be configured for each

day.

5. Set the Alarm Actions for Motion Detection.

Click tab to enter the Linkage Method interface.

You can specify the linkage method when an event occurs. The following contents are about

how to configure the different types of linkage method.

Figure 5-14 Linkage Method

Check the checkbox to select the linkage method. Notify Surveillance Center, Send

Email, Upload to FTP/Memory/NAS, Trigger Alarm Output and Trigger Recording are

selectable.

 Notify Surveillance Center

Send an exception or alarm signal to remote management software when an event

occurs.

 Send Email

Send an email with alarm information to a user or users when an event occurs.

To send the Email when an event occurs, you need to refer to Section Configuring Email

Settings to set the Email parameters.

 Upload to FTP/Memory/NAS

Capture the image when an alarm is triggered and upload the picture to a FTP server.

User Manual of E Series Network Speed Dome

You need a FTP server and set FTP parameters first. Refer to Section Configuring FTP

Settings for setting FTP parameters.

 Trigger Alarm Output

Trigger one or more external alarm outputs when an event occurs.

To trigger an alarm output when an event occurs, please refer to Section 5.2.4

Configuring Alarm Output to set the alarm output parameters.

 Trigger Recording

Record a video when an event occurs.

You have to set the recording schedule to realize this function. Please refer to Section

5.1.1 Configuring Recording Schedule for settings the recording schedule.

5.2.2 Configuring Video Tampering Alarm

Purpose:

You can configure the speed dome to trigger the alarm actions when the lens is covered.

Steps:

1. Enter the Video Tampering settings interface :

Configuration > Event > Basic Event > Video Tampering

User Manual of E Series Network Speed Dome

Figure 5-15 Tampering Alarm

2. Check Enable checkbox to enable the tampering detection.

3. Click tab to enter the arming schedule setting interface. The arming

schedule configuration is the same as the setting of the arming schedule for motion detection.

Refer to Section 5.2.1 Configuring Motion Detection.

4. Click tab to select the linkage method taken for tampering, notify

surveillance center, send email and trigger alarm output are selectable. Refer to Section 5.2.1

Configuring Motion Detection.

5. Click to save the settings.

5.2.3 Configuring Alarm Input

Steps:

1. Enter the Alarm Input settings interface:

Configuration > Event > Basic Event > Alarm Input

2. Choose the alarm input No. and the Alarm Type. The alarm type can be NO (Normally Open)

and NC (Normally Closed).

3. Edit the name in to set a name for the

User Manual of E Series Network Speed Dome

alarm input (optional).

Figure 5-16 Alarm Input Settings

4. Click tab to enter the arming schedule setting interface. The arming

schedule configuration is the same as the setting of the arming schedule for motion detection.

Refer to Section 5.2.1 Configuring Motion Detection.

5. Click tab to select the linkage method taken for alarm input, including

Notify Surveillance Center, Send Email, Upload to FTP/Memory Card/NAS, Trigger Alarm

Output and Trigger Recording. Refer to Section 5.2.1 Configuring Motion Detection.

6. You can also choose the PTZ linking for the alarm input. Check the relative checkbox and

select the No. to enable Preset Calling, Patrol Calling or Pattern Calling.

7. You can copy your settings to other alarm inputs.

8. Click to save the settings.

Figure 5-17 Linkage Method

User Manual of E Series Network Speed Dome

5.2.4 Configuring Alarm Output

Steps:

1. Enter the Alarm Output settings interface:

Configuration> Event > Basic Event > Alarm Output

2. Select one alarm output channel in the Alarm Output dropdown list.

3. Set a name in for the alarm output

(optional).

4. The Delay time can be set to 5sec, 10sec, 30sec, 1min, 2min, 5min, 10min or Manual. The

delay time refers to the time duration that the alarm output remains in effect after alarm

occurs.

5. Click tab to enter the arming schedule setting interface. The time

schedule configuration is the same as the settings of the arming schedule for motion

detection. Refer to Section 5.2.1 Configuring Motion Detection.

Figure 5-18 Alarm Output Settings

6. You can copy the settings to other alarm outputs.

7. Click to save the settings.

User Manual of E Series Network Speed Dome

5.2.5 Handling Exception

The exception type can be HDD full, HDD error, network disconnected, IP address conflicted and

illegal login to the speed domes.

Steps:

1. Enter the Exception settings interface:

Configuration > Event > Basic Event > Exception

2. Check the checkbox to set the actions taken for the Exception alarm. Refer to Section 5.2.1

Configuring Motion Detection.

Figure 5-19 Exception Settings

3. Click to save the settings.

5.3 Smart Event Configuration

The functions vary depending on the models of speed dome.

User Manual of E Series Network Speed Dome

5.3.1 Detecting Audio Exception

Purpose:

When you enable this function and audio exception occurs, the alarm actions will be triggered.

Steps:

1. Enter the video audio exception detection interface:

Configuration > Event > Smart Event > Audio Exception Detection

Figure 5-20 Audio Exception Detection

2. Check the checkbox of Audio Loss Detection to enable the audio input exception detection.

3. Check the checkbox of Sudden Increase of Sound Intensity Detection checkbox to enable

the sudden rise detection.

 Sensitivity: Range [1-100], the smaller the value the more severe the sound change will

trigger the detection.

 Sound Intensity Threshold: Range [1-100], it can filter the sound in the environment, the

louder the environment sound, the higher the value should be. You can adjust it according

to the actual environment.

4. Check the checkbox of Sudden Decrease of Sound Intensity Detection checkbox to enable

the sudden drop detection.

Sensitivity: Range [1-100], the smaller the value the more severe the sound change will

trigger the detection.

5. Click tab to enter the arming schedule setting interface. The time

schedule configuration is the same as the settings of the arming schedule for motion

User Manual of E Series Network Speed Dome

detection. Refer to Section 5.2.1 Configuring Motion Detection.

6. Click tab to select the linkage method taken for the audio input exception,

Notify Surveillance Center, Send Email, Trigger Alarm Output and Trigger Recording are

selectable. Refer to Section 5.2.1 Configuring Motion Detection.

7. Click to save the settings.

5.3.2 Configuring Face Detection

Purpose:

After the face detection is enabled, a face appears in the surveillance area, it will be detected and

certain actions may be triggered by the detection.

Steps:

1. Check the Enable Face Detection checkbox.

2. (Optional) You can check the Enable Dynamic Analysis for Face Detection checkbox if you want

the detected face get marked with rectangle in the live view.

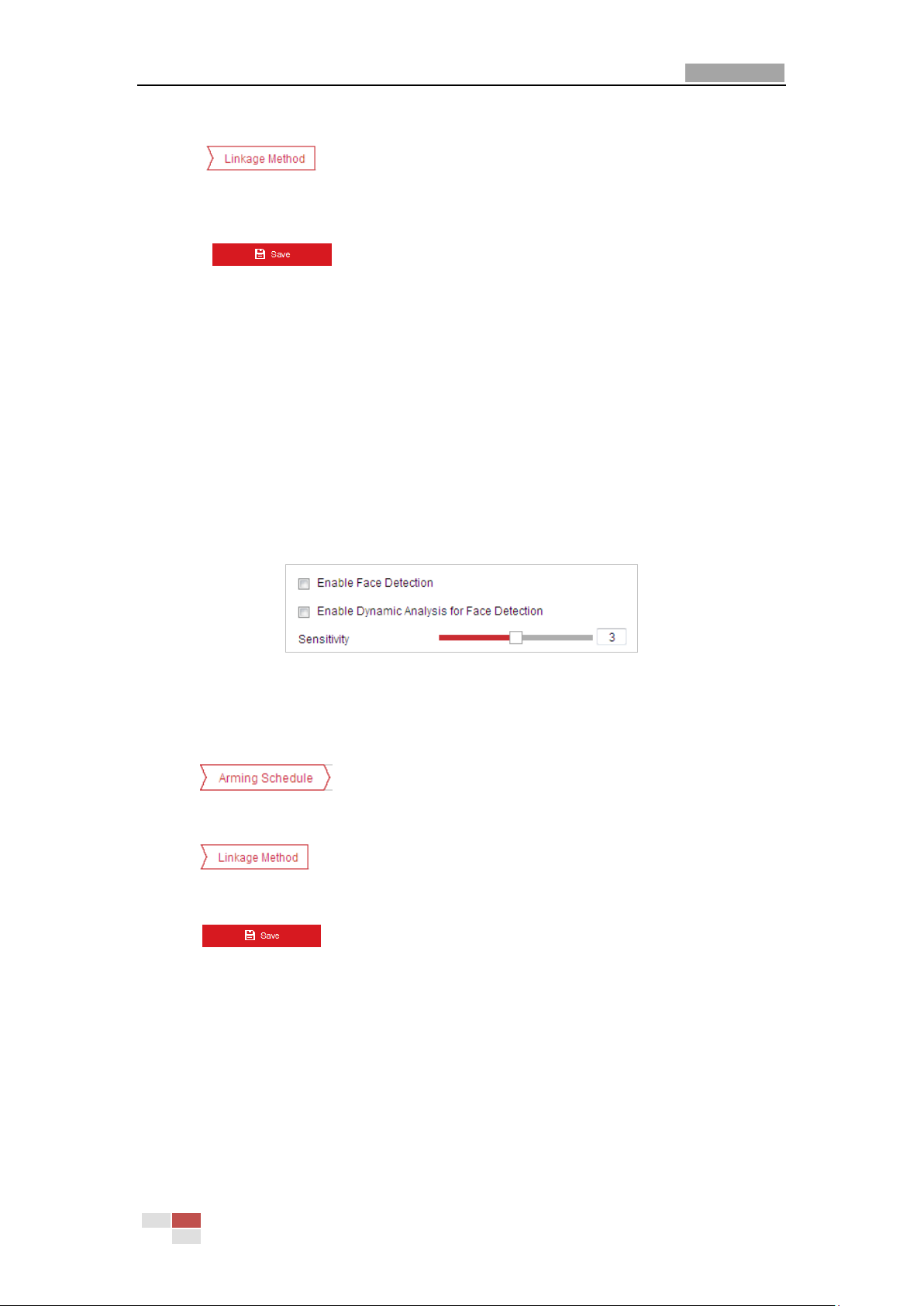

Figure 5-21 Configuring Face Detection

3. Configure the sensitivity for face detection.

Sensitivity: Range [1-5]. The value of the sensitivity defines the size of the object which can

trigger the alarm, when the sensitivity is high, a very small object can trigger the alarm.

4. Click tab to enter the arming schedule setting interface. The time

schedule configuration is the same as the settings of the arming schedule for motion detection. Refer to Section 5.2.1 Configuring Motion Detection.

5. Click tab to select the linkage method taken for the video loss alarm, Notify

surveillance center, send email, upload to FTP, trigger channel, smart tracking and trigger alarm output are selectable. Refer to Section 5.2.1 Configuring Motion Detection.

6. Click to save the settings.

5.3.3 Configuring Intrusion Detection

Intrusion detection can set an area in the surveillance scene and once the area is entered, a set of alarm action is triggered.

Steps:

1. Enter the intrusion detection interface:

Configuration > Events > Smart Event >Intrusion Detection

User Manual of E Series Network Speed Dome

2. Check the Enable Intrusion Detection checkbox.

Figure 5-22 Configuring Intrusion Area

3. The event triggered and park action related PTZ movement will be locked for 180 seconds

after you enter the intrusion detection interface. Optionally, you can click the

button to manually activate the movement, or lock the movement

when the button turns to by clicking it.

4. Draw area.

1) Select the Region No.in dropdown list.

2) Click to draw a rectangle on the image as a defense region.

3) Click on the image to specify a corner of the rectangle, and right-click the mouse after

four corners are configured.

Up to four areas are supported. You can click to clear the areas you drawn.

5. Configure the parameters for each defense region separately.

 Threshold: Range [0-10s], the threshold for the time of the object loitering in the region. If

you set the value as 0, alarm is triggered immediately after the object entering the region.

 Sensitivity: Range [1-100]. The value of the sensitivity defines the size of the object which

can trigger the alarm, when the sensitivity is high, a very small object can trigger the

User Manual of E Series Network Speed Dome

alarm.

6. Click tab to enter the arming schedule setting interface. The time

schedule configuration is the same as the settings of the arming schedule for motion

detection. Refer to Section 5.2.1 Configuring Motion Detection.

7. Click tab to select the linkage method taken for intrusion detection, Notify

Surveillance Center, Send Email, Upload to FTP/Memory Card/NAS, Trigger Alarm Output and

Trigger Recording are selectable. Refer to Section 5.2.1 Configuring Motion Detection.

8. Click to save the settings.

5.3.4 Configuring Line Crossing Detection

The virtual plane detection can be adopted for the intrusion detection. Once the virtual plane is detected being traversed according to the configured direction, a set of alarm action is triggered.

Steps:

1. Enter the Line Crossing Detection interface:

Configuration >Event > Smart Event > Line Crossing Detection

2. Check the Enable checkbox to enable the line crossing detection function.

3. Select the Line in dropdown list to configure.

4. The event triggered and park action related PTZ movement will be locked for 180 seconds

after you enter the line crossing detection interface. Optionally, you can click the

button to manually activate the movement, or lock the movement

when the button turns to by clicking it.

User Manual of E Series Network Speed Dome

Figure 5-23 Configuring Line

5. Draw area.

1) Click to draw a line on the image.

2) Click the line to switch to the editing mode.

Click and drag an end to the desired place to adjust the length and angle of the line. And

click and drag the line to adjust the location.

Up to four lines are supported.

6. Configure the parameters for each defense region separately.

 Direction: Select the detection direction in the dropdown list, there are A<->B, A->B and

B->A selectable.

 Sensitivity: Range [1-100]. The value of the sensitivity defines the size of the object which

can trigger the alarm, when the sensitivity is high, a very small object can trigger the

alarm.

7. Click tab to enter the arming schedule setting interface. The time

schedule configuration is the same as the settings of the arming schedule for motion

detection. Refer to Section 5.2.1 Configuring Motion Detection.

8. Click tab to select the linkage method taken for the line crossing detection,

Notify Surveillance Center, Send Email, Upload to FTP/Memory Card/NAS, Trigger Alarm

Output and Trigger Recording are selectable. Refer to Section 5.2.1 Configuring Motion

Detection.

User Manual of E Series Network Speed Dome

9. Click to save the settings.

5.3.5 Region Entrance Detection

Purpose:

Region entrance detection function detects people, vehicle or other objects which enter a

pre-defined virtual region from the outside place, and some certain actions can be taken when

the alarm is triggered.

Steps:

1. Enter the Region Entrance Detection settings interface:

Configuration> Event > Smart Event> Region Entrance Detection

2. Check the checkbox of Enable to enable the Region Entrance Detection function.

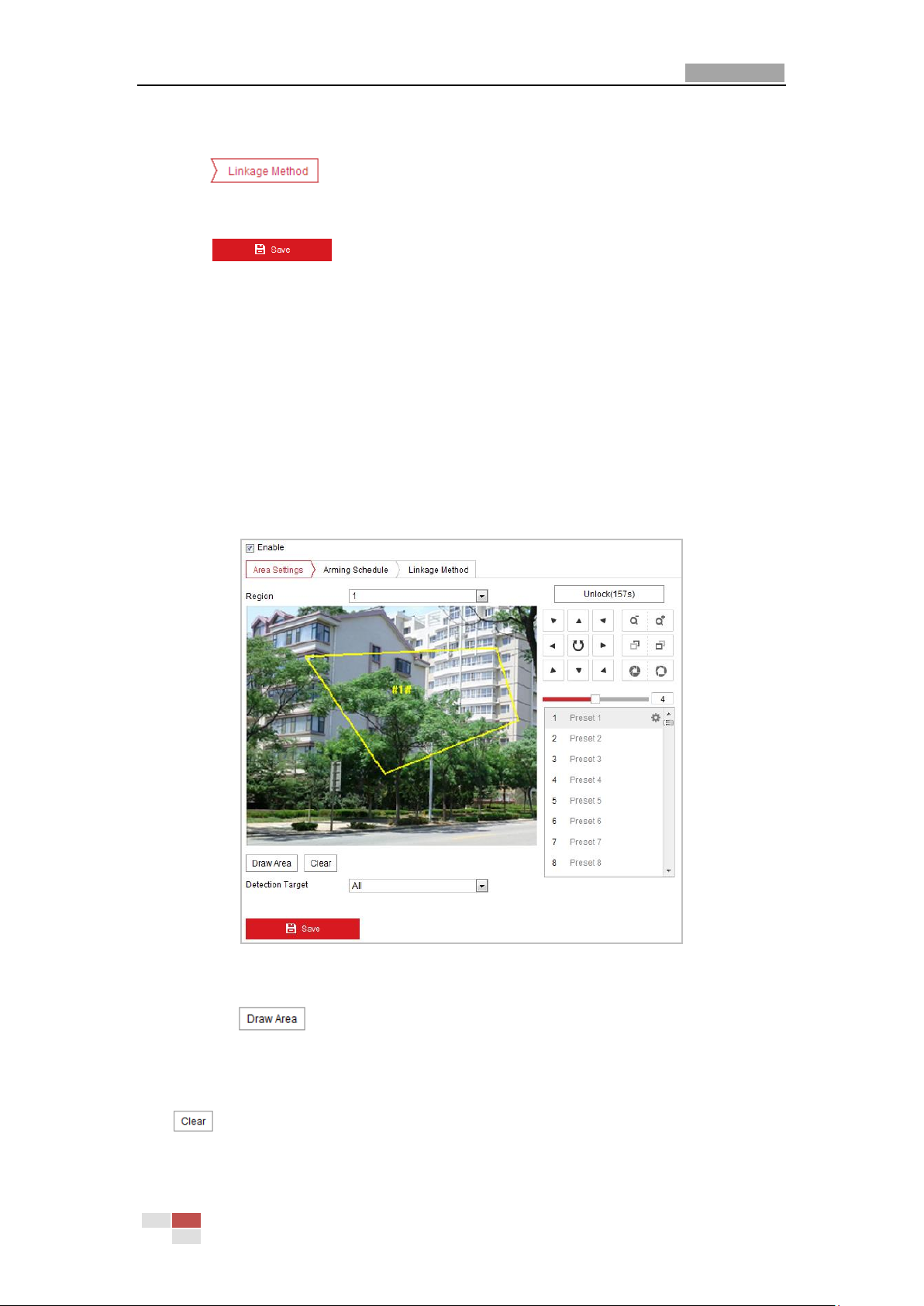

Figure 5-24 Configuring Region Entrance Detection

3. Select the region from the dropdown list for detection settings.

4. Click the button to start the region drawing.

5. Click on the live video to specify the four vertexes of the detection region, and right click to

complete drawing. Repeat the step to configure other regions. Up to 4 regions can be set. You can click the

button to clear all pre-defined regions.

6. Set the detection target for the region entrance detection. You can select human, vehicle, or

all (human &vehicle) as the detection target from the dropdown list. If Human is selected, only human beings will be identified as detection objects and as well as Vehicle.

7. Click tab to enter the arming schedule setting interface. The time

User Manual of E Series Network Speed Dome

schedule configuration is the same as the settings of the arming schedule for motion detection. Refer to Section 5.2.1 Configuring Motion Detection.

8. Click tab to select the linkage method taken for the video loss alarm,

Notify surveillance center, send email, upload to FTP, trigger channel, smart tracking and trigger alarm output are selectable. Refer to Section 5.2.1 Configuring Motion Detection.

9. Click to save the settings

5.3.6 Region Exiting Detection

Purpose:

Region exiting detection function detects people, vehicle or other objects which exit from a

pre-defined virtual region, and some certain actions can be taken when the alarm is triggered.

Steps:

1. Enter the Region Exiting Detection settings interface:

Configuration> Event > Smart Event> Region Exiting Detection

2. Check the checkbox of Enable to enable the Region Exiting Detection function.

Figure 5-25 Configuring Region Exiting Detection

3. Select the region from the dropdown list for detection settings.

4. Click the button to start the region drawing.

5. Click on the live video to specify the four vertexes of the detection region, and right click to

complete drawing. Repeat the step to configure other regions. Up to 4 regions can be set. You can click the

button to clear all pre-defined regions.

6. Set the detection target for the region entrance detection. You can select human, vehicle, or

all (human &vehicle) as the detection target from the dropdown list. If Human is selected,

User Manual of E Series Network Speed Dome

only human beings will be identified as detection objects and as well as Vehicle.

7. Click tab to enter the arming schedule setting interface. The time

schedule configuration is the same as the settings of the arming schedule for motion detection. Refer to Section 5.2.1 Configuring Motion Detection.

8. Click tab to select the linkage method taken for the video loss alarm,

Notify surveillance center, send email, upload to FTP, trigger channel, smart tracking and trigger alarm output are selectable. Refer to Section 5.2.1 Configuring Motion Detection.

9. Click button to save the settings

5.4 PTZ Configuration

5.4.1 Configuring Basic PTZ Parameters

Purpose:

You can configure the basic PTZ parameters, including proportional pan, preset freezing, preset

speed, etc.

1. Enter the Basic PTZ Parameter Configuration interface:

Configuration > PTZ > Basic Settings

User Manual of E Series Network Speed Dome

Figure 5-26 Basic PTZ Configuration Interface

2. Configure the following settings:

 Basic Parameters: Enable/disable PTZ control, proportional pan and preset freezing, set the

preset speed, keyboard control speed, and auto scan speed.

 PTZ Control: By default, PTZ Control function is enabled .You can uncheck the checkbox

to disable the PTZ control function.

The PTZ Control function varies depending on the models of speed dome.

 Proportional Pan: If you enable this function, the pan/tilt speeds change according to

the amount of zoom. When there is a large amount of zoom, the pan/tilt speed will be

slower for keeping the image from moving too fast on the live view image.

 Preset Freezing: This function enables the live view to switch directly from one scene

defined by a preset to another, without showing the middle areas between these two, to

ensure the surveillance efficiency. It can also reduce the use of bandwidth in a digital

network system.

Preset freezing function is invalid when you calling a pattern.

 Preset Speed: You can set the speed of a defined preset from 1 to 8.  Manual Control Speed: The speed dome provides 5 control speed modes: Compatible,

Pedestrian, Non-motor Vehicle, Motor Vehicle and Auto. Select it from the dropdown list.

 Keyboard Control Speed: Define the speed of PTZ control by a keyboard as Low, Medium

or High.

 Auto Scan Speed: The scan speed can be set from level 1 to 40.  Max. Tilt-angle: Set the tilt-angle of the speed dome from the dropdown list.

User Manual of E Series Network Speed Dome

 Zooming Speed: The speed of zooming is adjustable.

 PTZ OSD: Set the on-screen display duration of the PTZ status.

 Zoom Status: Set the OSD duration of zooming status as 2 seconds, 5 seconds, 10

seconds, Always Close or Always Open.

 PT Status: Set the azimuth angle display duration while panning and tilting as 2 seconds,

5 seconds, 10 seconds, Always Close or Always Open.

 Preset Status: Set the preset name display duration while calling the preset as 2 seconds,

5 seconds, 10 seconds, Always Close or Always Open.

 Power-off Memory: The speed dome can resume its previous PTZ status or actions after it

restarted from a power-off. You can set the time point of which the speed dome resumes its

PTZ status. You can set it to resume the status of 30 seconds, 60 seconds, 300 seconds or 600

seconds before power-off.

3. Click to save the settings.

5.4.2 Configuring PTZ Limits

Purpose:

The speed dome can be programmed to move within the configurable PTZ limits (left/right,

up/down).

Steps:

1. Enter the Limit configuration interface:

Configuration > PTZ > Limit

Figure 5-27 Configure the PTZ Limit

2. Click the checkbox of Enable Limit and choose the limit type as manual stops or scan stops.

User Manual of E Series Network Speed Dome

 Manual Stops:

When manual limit stops are set, you can operate the PTZ control panel manually only in the

limited surveillance area.

 Scan Stops:

When scan limit stops are set, the random scan, frame scan, auto scan, tilt scan, panorama

scan is performed only in the limited surveillance area.

Manual Stops of Limit Type is prior to Scan Stops. When you set these two limit types at the

same time, Manual Stops is valid and Scan Stops is invalid.

3. Click the PTZ control buttons to find the left/right/up/down limit stops; you can also call the

defined presets and set them as the limits of the speed dome.

4. Click Set to save the limits or click Clear to clear the limits.

5.4.3 Configuring Initial Position

Purpose:

The initial position is the origin of PTZ coordinates. It can be the factory default initial position.

You can also customize the initial position according to your own demand.

 Customize an Initial Position:

Steps:

1. Enter the Initial Position Configuration interface:

Configuration > PTZ > Initial Position

Figure 5-28 PTZ Configuration

2. Click the PTZ control buttons to find a position as the initial position of the speed dome; you

can also call a defined preset and set it as the initial position of the speed dome.

User Manual of E Series Network Speed Dome

3. Click Set to save the position.

 Call/delete an Initial Position:

You can click to call the initial position. You can click to delete the initial position and

restore the factory default initial position.

5.4.4 Configuring Park Actions

Purpose:

This feature allows the speed dome to start a predefined park action (scan, preset, pattern and

etc.) automatically after a period of inactivity (park time).

 Scheduled Tasks function is prior to Park Action function. When these two functions are set

at the same time, only the Scheduled Tasks function takes effect.

 Pattern function varies depending on speed dome models.

Steps:

1. Enter the Park Action settings interface:

Configuration > PTZ > Park Action

Figure 5-29 Set the Park Action

2. Check the checkbox of Enable Park Action.

3. Set the Park Time as the inactivity time of the speed dome before it starts the park actions.

4. Choose Action Type the from the dropdown list.

Figure 5-30 Action Types

5. Select the Action Type ID from the dropdown list.

6. Click to save the settings.

5.4.5 Configuring Privacy Mask

Purpose:

Privacy mask enables you to cover certain areas on the live video to prevent certain spots in the

User Manual of E Series Network Speed Dome

surveillance area from being live viewed and recorded.

Steps:

1. Enter the Privacy Mask settings interface:

Configuration > PTZ > Privacy Mask

Figure 5-31 Draw the Privacy Mask

2. Click the PTZ control buttons to find the area you want to set the privacy mask.

3. Click ; click and drag the mouse in the live video window to draw the area.

4. You can drag the corners of the red rectangle area to draw a polygon mask.

5. Click to finish drawing or click to clear all of the areas you set without

saving them.

6. Click to save the privacy mask, and it will be listed in the Privacy Mask List area; set

the value of Active Zoom Ratio on your demand, and then the mask will only appear when

the zoom ratio is greater than the predefined value.

Figure 5-32 Privacy Mask List

User Manual of E Series Network Speed Dome

7. Check the checkbox of Enable Privacy Mask to enable this function.

You are allowed to draw up to 8 areas for the speed dome.

5.4.6 Configuring Scheduled Tasks

Purpose:

You can configure the network speed dome to perform a certain action automatically in a

user-defined time period.

Steps:

1. Enter the Scheduled Task settings interface:

Configuration> PTZ > Scheduled Tasks

Figure 5-33 Configure Scheduled Tasks

2. Check the checkbox of Enable Scheduled Task.

3. Set the Park Time. You can set the park time (a period of inactivity) before the speed dome

starts the scheduled tasks.

4. Select the task type from the dropdown list. You can choose scan, preset, pattern and etc.

Figure 5-34 Task Types

5. Select the timeline of a certain day, click and drag the the mouse to set the recording

schedule (the start time and end time of the recording task).

6. After you set the scheduled task, you can click and copy the task to other days

(optional).

User Manual of E Series Network Speed Dome

Figure 5-35 Edit the Schedule and Task Type

The time of each task cannot be overlapped. Up to 10 tasks can be configured for each

day.

7. Click to save the settings.

5.4.7 Clearing PTZ Configurations

Purpose:

You can clear PTZ configurations in this interface, including all presets, patrols, privacy masks, PTZ

limits, scheduled tasks and park actions.

Pattern function varies depending on speed dome models.

Steps:

1. Enter the Clearing Configuration interface:

Configuration > PTZ > Clear Config

2. Check the checkbox of the items you want to clear.

3. Click to clear the settings.

5.4.8 Configuring Smart Tracking

Purpose:

The speed dome tracks the moving objects automatically after you configure this function.

Steps:

1. Enter the Smart Tracking settings interface:

User Manual of E Series Network Speed Dome

Configuration > PTZ > Smart Tracking

Figure 5-36 Configure Smart Tracking

2. Check the check box to enable smart tracking function.

3. Click the PTZ buttons to select an object.

4. Click to set the current zoom ratio as the tracking zoom ratio.

5. Set the tracking duration. The speed dome stops tracking when the duration time is up. The

duration ranges from 0 to 300 seconds.

 Setting the duration to 0 means that there’ no duration when speed dome tracks.  Not all the speed dome models support this function. Please take the browser interface of

the actual product as standard.

5.4.9 Prioritize PTZ

Steps:

1. Enter the Prioritize PTZ interface:

Configuration > PTZ > Prioritize PTZ.

Figure 5-37 Position Settings

2. Select Network or RS-485 from the dropdown list

3. Set the delay time (Range 2-200s).

4. Click to save the settings.

User Manual of E Series Network Speed Dome

Chapter 6 Speed Dome Configuration

6.1 Configuring Network Settings

The functions vary depending on the models of speed dome.

6.1.1 Basic Settings

Configuring TCP/IP Settings

Purpose:

TCP/IP settings must be properly configured before you operate the speed dome over network.

IPv4 and IPv6 are both supported.

Steps:

1. Enter TCP/IP settings interface:

Configuration > Network > Basic Settings > TCP/IP

Figure 6-1 TCP/IP Settings

2. Configure the NIC settings, including the IPv4(IPv6) Address, IPv4(IPv6) Subnet Mask and

IPv4(IPv6) Default Gateway.

User Manual of E Series Network Speed Dome

3. Click to save the above settings.

You can click Test to make sure that the IP address is valid.

 If the DHCP server is available, you can check to automatically obtain an IP

address and other network settings from that server.

 The valid value range of Maximum Transmission Unit (MTU) is 500 ~ 1500. The default value

is 1500.

 The Multicast sends a stream to the multicast group address and allows multiple clients to

acquire the stream at the same time by requesting a copy from the multicast group address.

Before utilizing this function, you have to enable the Multicast function of your router and

configure the gateway of the network speed dome.

 If the DNS server settings are required for some applications (e.g., sending email), you

should properly configure the Preferred DNS Server and Alternate DNS server.

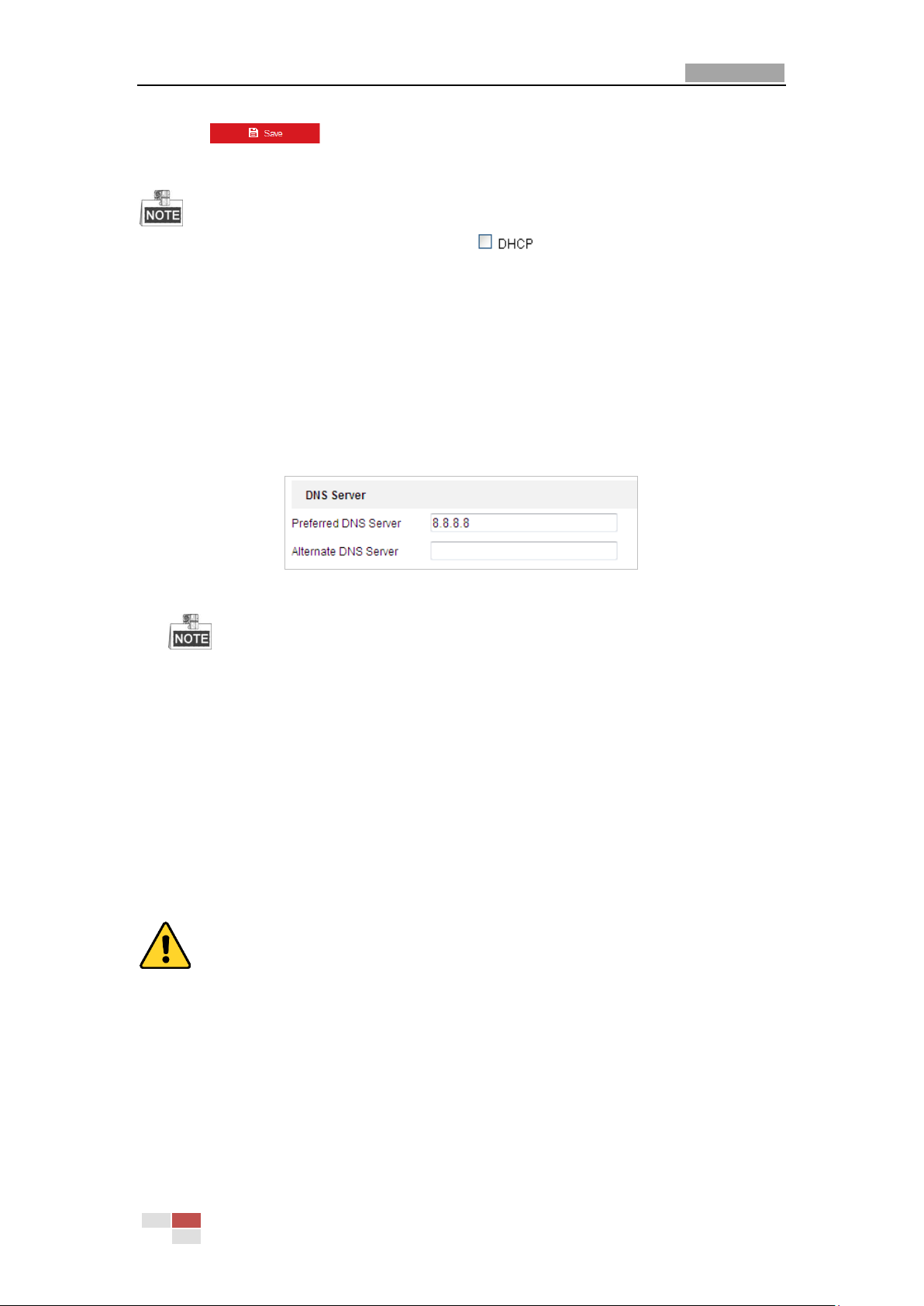

Figure 6-2 DNS Server Settings

The router must support the route advertisement function if you select Route

Advertisement as the IPv6 mode.

Configuring DDNS Settings

Purpose:

If your speed dome is set to use PPPoE as its default network connection, you can use the

Dynamic DNS (DDNS) for network access.

Before you start:

Registration on the DDNS server is required before configuring the DDNS settings of the speed

dome.

 For your privacy and to better protect your system against security risks, we strongly

 Proper configuration of all passwords and other security settings is the responsibility of the

installer and/or end-user.

Steps:

1. Enter the DDNS settings interface:

User Manual of E Series Network Speed Dome

Configuration > Network > Basic Settings > DDNS

2. Check the Enable DDNS checkbox to enable this feature.

3. Select DDNS Type. Two DDNS types are selectable: DynDNS and NO-IP.

 DynDNS:

Steps:

(1) Enter Server Address of DynDNS (e.g. members.dyndns.org). (2) In the Domain text field, enter the domain name obtained from the DynDNS website. (3) Enter the Port of DynDNS server. (4) Enter the User Name and Password registered on the DynDNS website.

(5) Click to save the settings.

Figure 6-3 DynDNS Settings

 NO-IP:

Steps:

(1) Enter Server Address of NO-IP. (2) In the Domain text field, enter the domain name obtained from the NO-IP website. (3) Enter the Port of NO-IP server. (4) Enter the User Name and Password registered on the NO-IP website.

(5) Click to save the settings.

Configuring PPPoE Settings

Purpose:

If you have no router but only a modem, you can use Point-to-Point Protocol over Ethernet

(PPPoE) function.

Steps:

1. Enter the PPPoE settings interface:

Configuration > Network > Basic Settings > PPPoE

User Manual of E Series Network Speed Dome

Figure 6-4 PPPoE Settings

2. Check the Enable PPPoE checkbox to enable this feature.

3. Enter User Name, Password, and Confirm password for PPPoE access.

The User Name and Password should be assigned by your ISP.

 For your privacy and to better protect your system against security risks, we strongly

 Proper configuration of all passwords and other security settings is the responsibility of

the installer and/or end-user.

4. Click to save and exit the interface.

Configuring Port Settings

Purpose:

If there is a router and you want to access the speed dome through Wide Area Network (WAN),

you need to forward the 3 ports for the speed dome.

Steps:

1. Enter the Port settings interface:

Configuration > Network > Basic Settings > Port

Figure 6-5 Port Settings

2. Set the HTTP port, RTSP port and port of the speed dome.

HTTP Port: The default port number is 80.

RTSP Port: The default port number is 554.

HTTPS Port: The default port number is 443.

User Manual of E Series Network Speed Dome

Server Port: The default port number is 8000.

3. Click to save the settings.

Configuring NAT (Network Address Translation) Settings

Purpose:

Universal Plug and Play (UPnP™) is a networking architecture that provides compatibility among

networking equipment, software and other hardware devices. The UPnP protocol allows devices

to connect seamlessly and to simplify the implementation of networks in the house and

corporate environments.

With the function enabled, you don’t need to configure the port mapping for each port, and the

camera is connected to the Wide Area Network via the router.

Steps:

1. Enter the UPnP™ settings interface.

Configuration >Network > Basic Settings > NAT

2. Check the checkbox to enable the UPnP™ function.

You can edit the Friendly Name of the speed dome. This name can be detected by

corresponding device, such as a router.

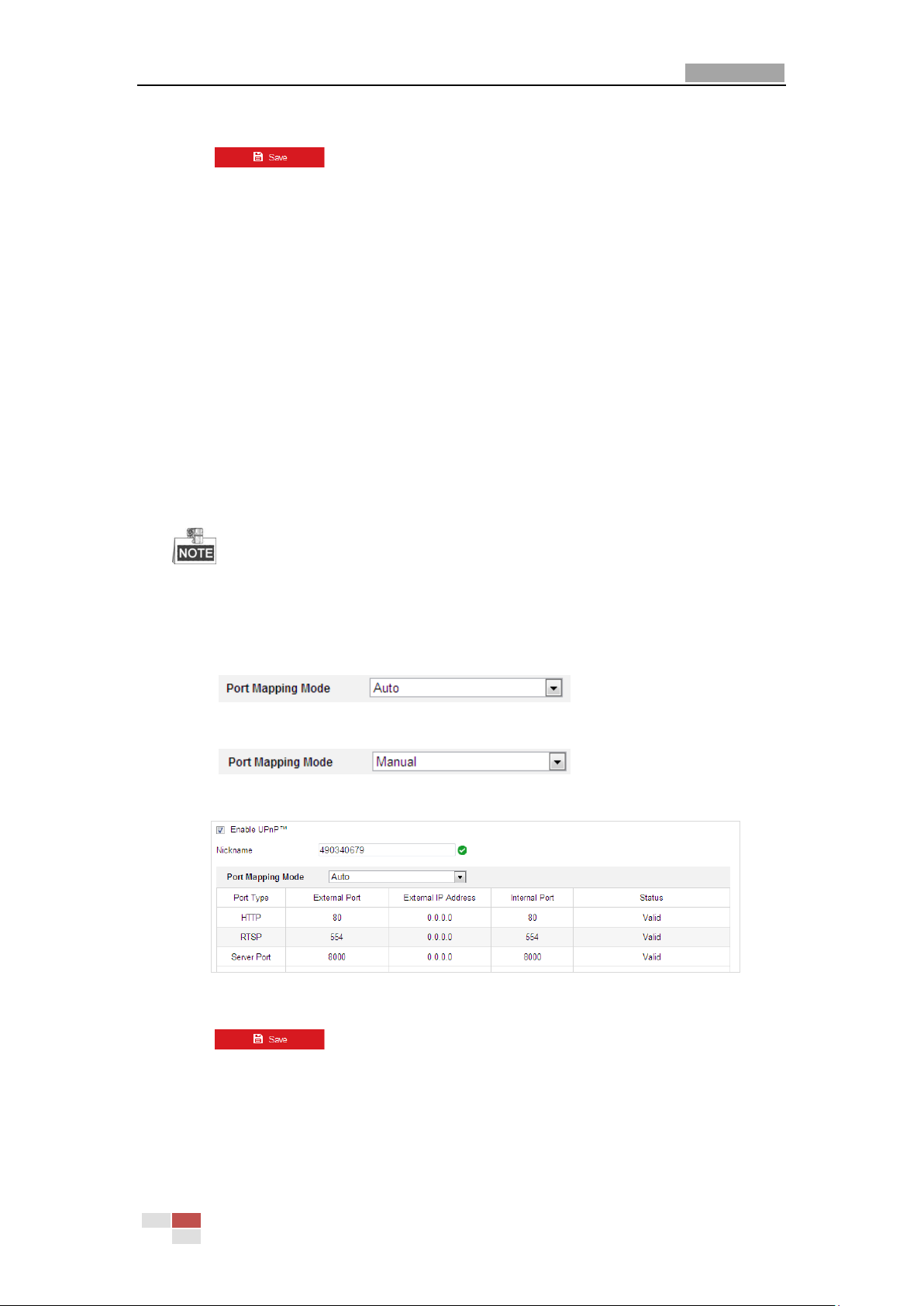

3. Set the port mapping mode:

To port mapping with the default port numbers:

Choose

To port mapping with the customized port numbers:

Choose

And you can customize the value of the port number by yourself.

Figure 6-6 Port Mapping Mode

4. Click to save the settings.

User Manual of E Series Network Speed Dome

6.1.2 Advanced Settings

Configuring SNMP Settings

Purpose:

You can use SNMP to get speed dome status and parameters related information.

Before you start:

Before setting the SNMP, please use the SNMP software and manage to receive the speed dome

information via SNMP port. By setting the Trap Address, the speed dome can send the alarm

event and exception messages to the surveillance center.

The SNMP version you select should be the same as that of the SNMP software.

Steps:

1. Enter the SNMP settings interface:

Configuration > Network > Advanced Settings > SNMP

Figure 6-7 SNMP Settings

User Manual of E Series Network Speed Dome

2. Check the corresponding version checkbox (Enable SNMP v1, Enable SNMP v2c, Enable

SNMP v3) to enable the feature.

3. Configure the SNMP settings.

The configuration of the SNMP software should be the same as the settings you configure

here.

4. Click to save and finish the settings.

Configuring FTP Settings

Purpose:

You can set a FTP server and configure the following parameters for uploading captured pictures.

Steps:

1. Enter the FTP settings interface:

Configuration > Network > Advanced Settings > FTP

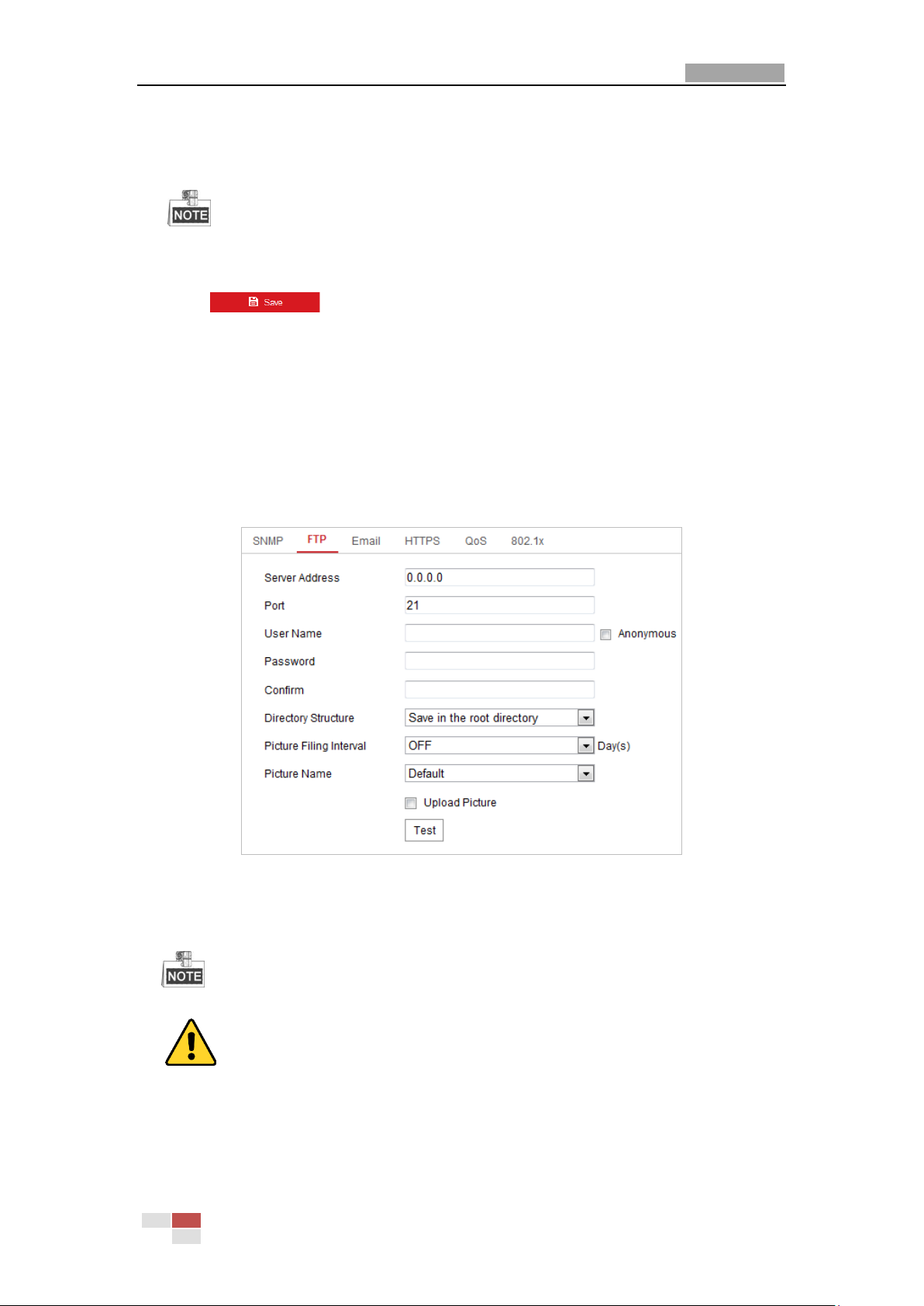

Figure 6-8 FTP Settings

2. Configure the FTP settings, including server address, port, user name, password, directory,

and upload type.

The server address supports both the domain name and IP address formats.

 For your privacy and to better protect your system against security risks, we strongly

User Manual of E Series Network Speed Dome

 Proper configuration of all passwords and other security settings is the responsibility of

the installer and/or end-user.

 Setting the directory in FTP server for saving files:

In the Directory Structure field, you can select the root directory, parent directory and

child directory.

 Root directory: The files will be saved in the root of FTP server.  Parent directory: The files will be saved in a folder in FTP server. The name of folder can

be defined as shown in following Figure 6-9.

Figure 6-9 Parent Directory

 Child directory: It is a sub-folder which can be created in the parent directory. The files

will be saved in a sub-folder in FTP server. The name of folder can be defined as shown

in following Figure 6-10.

Figure 6-10 Child Directory

 Upload type: To enable uploading the captured picture to the FTP server.

3. Click to save the settings.

4. You can click Test to confirm the configuration.

If you want to upload the captured pictures to FTP server, you also have to enable the

continuous snapshot or event-triggered snapshot in Snapshot interface.

Configuring Email Settings

Purpose:

The system can be configured to send an Email notification to all designated receivers if an alarm

event is detected, e.g., motion detection event, video loss, video-tampering, etc.

Before you start:

Please configure the DNS Server settings under Configuration> Network > Basic Settings >

TCP/IP before using the Email function.

Steps:

1. Enter the Email settings interface:

Configuration> Network > Advanced Settings > Email

User Manual of E Series Network Speed Dome

Figure 6-11 Email Settings

2. Configure the following settings:

Sender: The name of the email sender.

Sender’s Address: The email address of the sender.

SMTP Server: The SMTP Server IP address or host name (e.g., smtp.263xmail.com).

SMTP Port: The SMTP port. The default TCP/IP port for SMTP is 25.

E-mail encryption: None, SSL, and TLS are selectable. When you select SSL or TLS and disable

STARTTLS, e-mails will be sent after encrypted by SSL or TLS. The SMTP port should be set as

465 for this encryption method. When you select SSL or TLS and enable STARTTLS, emails will

be sent after encrypted by STARTTLS, and the SMTP port should be set as 25.

STARTTLS protocol must be supported by the email server for e-mail encryption with

STARTTLS. When it is not supported by the email server and the checkbox of Enable STARTTLS

is checked, the email will not be encrypted.

Attached Image: Check the checkbox of Attached Image if you want to send emails with

attached alarm images.

Interval: The interval refers to the time between two actions of sending attached pictures.

Authentication (optional): If your email server requires authentication, check this checkbox to

use authentication to log in to this server and enter the login user name and password.

 For your privacy and to better protect your system against security risks, we strongly

 Proper configuration of all passwords and other security settings is the responsibility of

the installer and/or end-user.

Receiver: Select the receiver to which the email is sent. Up to 2 receivers can be configured.

Receiver: The name of the user to be notified.

User Manual of E Series Network Speed Dome

Receiver’s Address: The email address of user to be notified. (Optional: click Test to make sure

that the email server can send email out.)

3. Click to save the settings.

Configuring Platform Access

Purpose:

Platform access provides you an option to manage the devices via platform.

Steps:

1. Enter the Platform Access interface.

Configuration > Network > Advanced Settings > Platform Access

Figure 6-12 Platform Access Settings

2. Check the checkbox of Enable to enable the platform access function of the device.

3. Select the Platform Access Mode from the dropdown list.

4. Set the Server IP.

5. Click to save the settings

Configuring HTTPS Settings

Purpose:

HTTPS is consisted by SSL&HTTP. It is used for encryption transmission, identity authentication

network protocol which enhances the security of WEB accessing.

 For your privacy and to better protect your system against security risks, we strongly

 Proper configuration of all passwords and other security settings is the responsibility of the

installer and/or end-user.

Steps:

1. Enter the HTTPS settings interface.

Configuration > Network > Advanced Settings > HTTPS

2. Create the self-signed certificate or authorized certificate.

User Manual of E Series Network Speed Dome

Figure 6-13 Create Certificate

OPTION 1: Create the self-signed certificate

1) Select Create Self-signed Certificate.

2) Click Create to create the following dialog box.

Figure 6-14 Create Self-signed Certificate

3) Enter the country, host name/IP, validity and other information.

4) Click OK to save the settings.

OPTION 2: Start the installation when signed certificate is available.

1) Select Signed certificate is available, Start the installation directly.

2) Click Browse to upload the available certificate.

3) Click Install button to install the certificate.

4) Click OK to save the settings.

OPTION 3: Create certificate request first and continue the installation.

1) Select Create certificate request first and continue the installation.

2) Click Create to create the certificate request, and fulfill the required information.

3) Download the certificate request and submit it to the trusted certificate authority for

signature.

4) After receiving the signed valid certificate, import the certificate to the device.

5) Click OK to save the settings.

3. There will be the certificate information after you successfully create and install the

certificate.

User Manual of E Series Network Speed Dome

Figure 6-15 Installed Certificate Property

 The default port number of HTTPS is 443. The port value ranges from 1 to 65535.  When the port number is the default number 443, the format of the URL is https://IP address,

eg., https://192.168.1.64.

 When the port number is not the default number 443, the format of the URL is https://IP

address:port number, eg., https://192.168.1.64:81.

Configuring QoS Settings

Purpose:

QoS (Quality of Service) can help solve the network delay and network congestion by configuring

the priority of data sending.

Steps:

1. Enter the QoS settings interface:

Configuration >Advanced Configuration > Network > QoS

Figure 6-16 QoS Settings

2. Configure the QoS settings, including video / audio DSCP, event / alarm DSCP and

Management DSCP.

The valid DSCP value ranges from 0 to 63. The DSCP value is bigger, the priority is higher.

3. Click to save the settings.

 Make sure that you enable the QoS function of your network device (such as a router).  It will ask for a reboot for the settings to take effect.

Configuring 802.1X Settings

Purpose:

The speed dome supports IEEE 802.1X standard.

User Manual of E Series Network Speed Dome

Speed Dome

Network Switch

Internet

RADIUS Server

Authenticator

Authentication Server

IEEE 802.1X is a port-based network access control. It enhances the security level of the LAN.

When devices connect to this network with IEEE 802.1X standard, the authentication is needed. If

the authentication fails, the devices don’t connect to the network.

The protected LAN with 802.1X standard is shown as follows:

Figure 6-17 Protected LAN

 Before connecting the Network Camera to the protected LAN, please apply a digital

certificate from a Certificate Authority.

 The network camera requests access to the protected LAN via the authenticator (a

switch).

 The switch forwards the identity and password to the authentication server (RADIUS

server).

 The switch forwards the certificate of authentication server to the network camera.  If all the information is validated, the switch allows the network access to the protected

network.

 For your privacy and to better protect your system against security risks, we strongly

 Proper configuration of all passwords and other security settings is the responsibility of the

installer and/or end-user.

Steps:

1. Connect the network camera to your PC directly with a network cable.

2. Enter the 802.1X settings interface:

Configuration > Network > Advanced Settings > 802.1X

User Manual of E Series Network Speed Dome

Figure 6-18 802.1X Settings

3. Check the Enable IEEE 802.1X checkbox to enable it.

4. Configure the 802.1X settings, including user name and password.

The EAP-MD5 version must be identical with that of the router or the switch.

5. Click to finish the settings.

The camera reboots when you save the settings.

6. After the configuration, connect the camera to the protected network.

6.2 Configuring Video and Audio Settings

6.2.1 Configuring Video Settings

Steps:

1. Enter the Video settings interface:

Configuration > Video/Audio > Video

Figure 6-19 Configure Video Settings

User Manual of E Series Network Speed Dome

2. Select the Stream Type of the speed dome to main stream (normal), sub-stream or third

stream. The main stream is usually for recording and live viewing with good bandwidth, and

the sub-stream can be used for live viewing when the bandwidth is limited. Refer to the

Section 4.1 Configuring Local Parameters for switching the main stream and sub-stream for

live viewing.

3. You can customize the following parameters for the selected stream.

The parameters vary depending on the models of the speed dome.

Video Type:

Select the stream type to video stream, or video & audio composite stream. The audio signal

will be recorded only when the Video Type is Video & Audio.

Resolution:

Select the resolution of the video output.

Bitrate Type:

Select the bitrate type to constant or variable.

Video Quality:

When bitrate type is selected as Variable, 6 levels of video quality are selectable.

Frame Rate:

The frame rate is to describe the frequency at which the video stream is updated and it is

measured by frames per second (fps). A higher frame rate is advantageous when there is

movement in the video stream, as it maintains image quality throughout.

Max. Bitrate:

Set the max. bitrate. The higher value corresponds to the higher video quality, but the higher

bandwidth is required.

Video Encoding:

Select Video Encoding from the dropdown list for different stream type.

H.265+/H.264+:

Set it as ON or OFF.

Profile:

Basic Profile, Main Profile and High Profile are selectable.

I Frame Interval:

Set the I-Frame interval from 1 to 400.

SVC:

Scalable Video Coding is an extension of the H.264/AVC standard. Select OFF/ON to

disable/enable the SVC function. Select Auto, and the device will automatically extract frames

from the original video when the network bandwidth is insufficient.

Smoothing:

It refers to the smoothness of the stream. The higher value of the smoothing, the better

fluency of the stream, though, the video quality may not be so satisfied. The lower value of

the smoothing, the higher quality of the stream, though it may appear not fluent.

4. Click to save the settings.

User Manual of E Series Network Speed Dome

6.2.2 Configuring Audio Settings

Steps:

1. Enter the Audio settings interface

Configuration > Video/Audio > Audio

Figure 6-20 Audio Settings

2. Configure the following settings.

Audio Encoding: G.722.1, G.711ulaw, G.711alaw, MP2L2, G.726 and PCM are selectable.

Audio Input: When an intercom is connected to the speed dome, you need to set this option

to LineIn. When a microphone is connected to the speed dome, you need to set this option to

MicIn.

Audio Stream Bitrate: When the Audio Encoding is selected as MP2L2, you can configure the

Audio Stream Bitrate in the dropdown list. The greater the value is, the better the audio

quality will be.

Sampling Rate: When the Audio Encoding is selected as MP2L2, you can configure the

Sampling Rate in the dropdown list. The greater the value is, the better the audio quality will

be.

Input Volume: Slid the bar to turn up/down the volume. The value ranges from 0 to 100.

Environmental Noise Filter: Select ON or OFF in the dropdown list to enable or disable the

function. It’s recommended to enable the function when the sampling rate is lower than

32kHz.

3. Click to save the settings.

6.2.3 Configuring ROI Settings

Purpose:

ROI (Region of Interest) encoding is used to enhance the quality of images which are specified in

advance. There are two different ROI methods: Fixed Region and Dynamic Region. When Fixed

Region is enabled, image quality of ROI area will be enhanced and image quality of other areas

will be reduced. When Dynamic Region is enabled, image quality of tracking target will be

enhanced.

ROI function varies depending on the models of speed dome.

User Manual of E Series Network Speed Dome

Enter the ROI settings interface:

Configuration >Video/Audio > ROI

 ROI for Fixed Region

Figure 6-21 Region of Interest (1)

Figure 6-22 Region of Interest (2)

Steps:

1. Check Enable checkbox to enable the Fixed Region function.

2. Select a stream type. You can set the ROI function for main stream, sub stream or third

stream.

3. Click and then click-and-drag the mouse to draw a red frame in the live view

image. You can click to clear it.

User Manual of E Series Network Speed Dome

The number of areas supported in ROI function varies depending on the models of speed

dome.

4. Select the Region No. from the dropdown list.

5. Adjust the ROI level from 1 to 6. The higher the value, the better image quality in the red

frame.

6. Enter a Region Name.

 ROI for Dynamic Region

1. Check Enable Face Tracking checkbox to enable face tracking, and the captured face picture

is set as region of interest. Adjust the ROI level from 1 to 6.

2. Check Enable Target Tracking checkbox to enable target tracking, and the target is set as

region of interest. Adjust the ROI level from 1 to 6.

3. Click Save to save the settings.

6.2.4 Dual-VCA Settings

Steps:

1. Enter the Dual-VCA settings interface:

Configuration > Video/Audio > Display Info. on Stream

2. Check the checkbox to enable the function of Dual-VCA which can be used cooperatively

with NVR to implement dual-VCA retrieval during playback.

Figure 6-23 Enable Dual-VCA

3. Click to save the settings.

6.3 Configuring Image Settings

User Manual of E Series Network Speed Dome

6.3.1 Configuring Display Settings

Purpose:

You can set the image quality of the speed dome, including brightness, contrast, saturation,

sharpness, etc.

 The parameters in Display Settings interface vary depending on the models of speed dome.  You can double click the live view to enter full screen mode and double click it again to exit.

Steps:

1. Enter the Display settings interface:

Configuration > Image> Display Settings

2. You can select the Scene in the dropdown list with different predefined image parameters.

3. Set the image parameters of the speed dome.

Figure 6-24 Display Settings

Image Adjustment

 Brightness

This feature is used to adjust brightness of the image. The value ranges from 0 to 100.

 Contrast

This feature enhances the difference in color and light between parts of an image. The value

ranges from 0 to 100.

 Saturation

This feature is used to adjust color saturation of the image. The value ranges from 0 to 100.

 Sharpness

Sharpness function enhances the detail of the image by sharpening the edges in the image. The

value ranges from 0 to 100.

User Manual of E Series Network Speed Dome

The parameters vary depending on the models of speed dome.

Exposure Settings

 Exposure Mode

The Exposure Mode can be set to Auto, Iris Priority, Shutter Priority, and Manual.

 Auto:

The iris, shutter and gain values will be adjusted automatically according to the brightness

of the environment.

 Iris Priority:

The value of iris needs to be adjusted manually. The shutter and gain values will be

adjusted automatically according to the brightness of the environment.

Figure 6-25 Manual Iris

 Shutter Priority:

The value of shutter needs to be adjusted manually. The iris and gain values will be

adjusted automatically according to the brightness of the environment.

Figure 6-26 Manual Shutter

 Manual:

In Manual mode, you can adjust the values of Gain, Shutter, Iris manually.

 Limit Gain

This feature is used to adjust gain of the image. The value ranges from 0 to 100.

 Slow Shutter

This function can be used in underexposure condition. It lengthens the shutter time to

ensure full exposure.

 Slow Shutter Level

User Manual of E Series Network Speed Dome

When slow shutter is set as ON, you can select the slow shutter level from the

dropdown list. The slow shutter lever can be set to Slow Shutter*2, *3, *4, *6, *8.

Figure 6-27 Slow Shutter

The parameters vary depending on the models of speed dome.

Focus Settings

 Focus Mode

The Focus Mode can be set to Auto, Manual, Semi-auto.

 Auto:

The speed dome focuses automatically at any time according to objects in the scene.

 Semi-auto:

The speed dome focuses automatically only once after panning, tilting and zooming.

 Manual:

In Manual mode, you need to use on the control panel to focus manually.

 Min. Focus Distance

This function is used to limit the minimum focus distance. The value can be set to 10cm, 50cm,

1.0m, 1.5m, 3m, 6m, 10m and 20m.

The minimum focus value varies depending on the models of speed dome.

Day/Night Switch

 Day/Night Switch

The Day/Night Switch mode can be set to Auto, Day, Night and Scheduled-Switch.

This function varies depending on the models of speed dome.

 Auto:

In Auto mode, the day mode and night mode can switch automatically according to the

light condition of environment.

Figure 6-28 Auto Mode Sensitivity

 Day:

In Day mode, the speed dome displays color image. It is used for normal lighting conditions.

User Manual of E Series Network Speed Dome

 Night:

In Night mode, the image is black and white. Night mode can increase the sensitivity in low

light conditions.

 Scheduled-Switch:

In Schedule mode, you can set the time schedule for day mode as shown in Figure 6-29.

The rest time out of the schedule is for night mode.

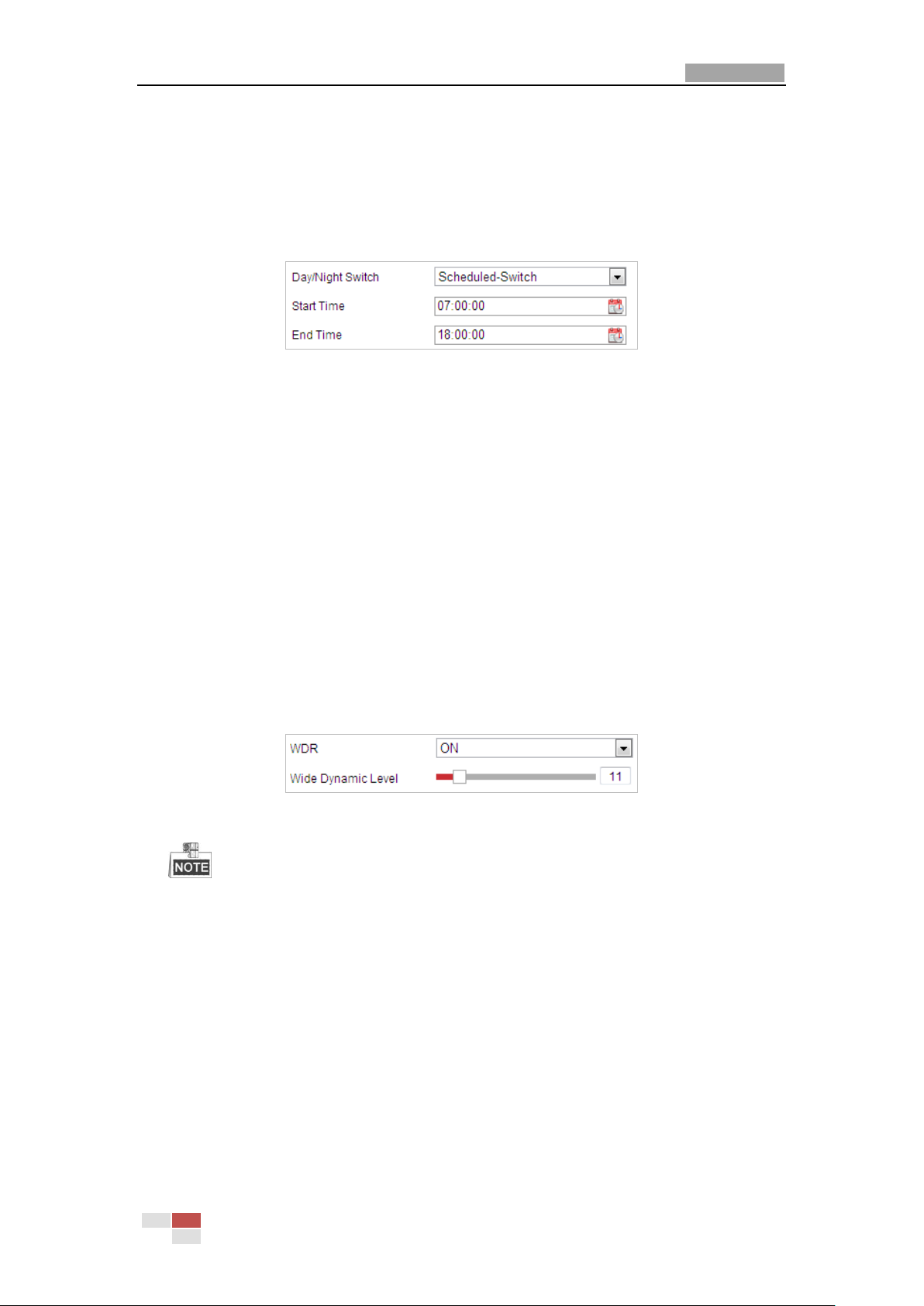

Figure 6-29 Day Night Schedule

Backlight Settings

 BLC (Back Light Compensation)

If there’s a bright backlight, the subject in front of the backlight appears silhouetted or dark.

Enabling BLC(back light compensation) function can correct the exposure of the subject. But the

backlight environment is washed out to white.

 WDR (Wide Dynamic Range)

The wide dynamic range (WDR) function helps the camera provide clear images even under back

light circumstances. When there are both very bright and very dark areas simultaneously in the

field of view, WDR balances the brightness level of the whole image and provide clear images

with details.

You can enable or disable the WDR function as shown in Figure 6-30. The wide dynamic level

ranges from 0 to 100.

Figure 6-30 WDR

This function varies depending on the models of speed dome.

 HLC

HLC (High Light Compensation) makes the camera identify and suppress the strong light sources

that usually flare across a scene. This makes it possible to see the detail of the image that would

normally be hidden.

White Balance

The White Balance mode can be set to Auto, MWB, Outdoor, Indoor, Fluorescent Lamp, Sodium

Lamp and Auto-Tracking.

 Auto:

In Auto mode, the camera retains color balance automatically according to the current color

User Manual of E Series Network Speed Dome

temperature.

 Manual White Balance:

In MWB mode, you can adjust the color temperature manually to meet your own demand as

shown in Figure 6-31.

Figure 6-31 Manual White Balance

 Outdoor

You can select this mode when the speed dome is installed in outdoor environment.

 Indoor

You can select this mode when the speed dome is installed in indoor environment.

 Fluorescent Lamp

You can select this mode when there are fluorescent lamps installed near the speed dome.

 Sodium Lamp

You can select this mode when there are sodium lamps installed near the speed dome.

 Auto-Tracking

In Auto-Tracking mode, white balance is continuously being adjusted in real-time according to

the color temperature of the scene illumination.

This function varies depending on the models of speed dome.

Image Enhancement

This function varies depending on the models of speed dome.

 3D Digital Noise Reduction

You can set Digital Noise Reduction function to Normal and adjust the Noise Reduction Level as

shown in Figure 6-32. The level ranges from 0 to 100.

Figure 6-32 3D Digital Noise Reduction

If you are a professional technician, you can set it to Expert Mode then adjust Space DNR Level

and Time DNR Level. The level ranges from 0 to 100.

Figure 6-33 Expert Mode

User Manual of E Series Network Speed Dome

 Defog Mode

You can set the Defog Mode to ON or OFF as you need.

Figure 6-34 Defog Mode

 EIS (Electronic Image Stabilization)

You can set theEIS to ON or OFF as you need.

Figure 6-35 Electronic Image Stabilization

Video Adjustment

 Mirror

If you turn the MIRROR function on, the image will be flipped. It is like the image in the mirror.

The flip direction can be set to OFF or CENTER.

This function varies depending on the models of speed dome.

 Video Standard

You can set the Video Standard to 50hz(PAL) or 60hz(NTSC) according to the video system in your

country.

This function varies depending on the models of speed dome.

 Capture Mode

You can disable this function or select the capture mode from the list..

This function varies depending on the models of speed dome.

Other

 Lens Initialization

The lens operates the movements for initialization when you check the check box of Lens

Initialization.

 Zoom Limit

You can set Zoom Limit value to limit the maximum value of zooming. The value can be selected

from the list.

The functions vary depending on the models of speed dome.

User Manual of E Series Network Speed Dome

6.3.2 Configuring OSD Settings

Purpose:

The speed dome supports following on screen displays:

Time: Supports for time display.

Camera Name: Identifies the name of speed dome.

You can customize the on screen display of time.

Steps:

1. Enter the OSD settings interface:

Configuration > Image > OSD Settings

Figure 6-36 OSD Settings

2. Check the corresponding checkbox to select the display of speed dome name, date or week if

required.

3. Edit the speed dome name in the text field of Camera Name.

4. Select from the dropdown list to set the time format, date format, display mode, OSD size and

Font color.

5. You can use the mouse to click and drag the text frame IPdome in the live view window to

adjust the OSD position.

User Manual of E Series Network Speed Dome

Figure 6-37 Adjust OSD Location

6. Click to activate above settings.

6.3.3 Configuring Text Overlay Settings

Purpose:

You can customize the text overlay.

Steps:

1. Enter the Text Overlay settings interface:

Configuration > Image > OSD Settings

2. Check the checkbox in front of textbox to enable the on-screen display.

3. Input the characters in the textbox.

4. Use the mouse to click and drag the red text frame Text in the live view window to adjust the

text overlay position.

5. Click to save the settings.

There are up to 4 text overlays configurable. When the video resolution is 1080p, only one

text overlay is supported. When PTZ direction, preset OSDs are displayed, the text overlay is

disabled.

User Manual of E Series Network Speed Dome

Figure 6-38 Text Overlay Settings

6.3.4 Configuring Image Parameters Switch

This function varies depending on the network speed dome model.

Purpose:

You can configure Link to Preset or Scheduled-Switch in this interface. Link to Preset: Set the

time period and linked scene for the preset and check the corresponding checkbox to go to the

linked scene in the configured time period. Scheduled-Switch: Set the time period and linked

scene and it will go to the linked scene in the configured time period when you check the

corresponding checkbox.

Steps:

1. Enter the Image Parameters Switch interface:

Configuration > Image > Image Parameters Switch

2. Check the checkbox of Link to Preset or Scheduled-Switch to enable the function. (Only one

function can be enabled in the same time.)

3. When you enable the function of Link to Preset, select one preset from the dropdown list,

check the corresponding checkbox, set the time period and the linked scene for the selected

preset. (Up to 4 periods can be configured for one preset.)

Figure 6-39 Link to Preset

Figure 6-40 Linked Scene

User Manual of E Series Network Speed Dome

4. When you enable the function of Scheduled-Switch, check the corresponding checkbox, set

the time period and the linked scene.

Figure 6-41 Schedule-Switch

5. Click to save the settings.

The two functions are not enabled by default.

6.4 Configuring System Settings

6.4.1 System Settings

Viewing Basic Information

Enter the Device Information interface:

Configuration > System > System Settings > Basic Information

In the Basic Information interface, you can edit the Device Name and Device No..

Other information of the network zoom camera, such as Model, Serial No., Firmware Version,

Encoding Version, Web Version, Plugin Version, Number of Channels, Number of HDDs, Number

of Alarm Input and Number of Alarm Output are displayed. The information cannot be changed in

this menu. It is the reference for maintenance or modification in future.

Figure 6-42 Device Information
