Hikvision DS-2DE4220-AE, DS-2DE4225W-DE, DS-2DE4225W-DE3, DS-2DE5130W-AE, DS-2DE5130W-AE3 User Manual

...

Download

E Series Network Speed Dome

User Manual

UD.6L0201D1823A01

User Manual of E Series Network Speed Dome

User Manual

Any and all information, including, among others, wordings, pictures, graphs are the properties of

Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be

“Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced,

changed, translated, or distributed, partially or wholly, by any means, without the prior written

permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties,

guarantees or representations, express or implied, regarding to the Manual.

About this Manual

This Manual is applicable to E Series Network Speed Dome.

The Manual includes instructions for using and managing the product. Pictures, charts, images and all

other information hereinafter are for description and explanation only. The information contained in

the Manual is subject to change, without notice, due to firmware updates or other reasons. Please

find the latest version in the company website (http://overseas.hikvision.com/en/).

Please use this user manual under the guidance of professionals.

Trademarks Acknowledgement

and other Hikvision’s trademarks and logos are the properties of Hikvision in various

jurisdictions. Other trademarks and logos mentioned below are the properties of their respective

owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS

HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS, AND

HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,

MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND

NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS,

EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR

INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS,

BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE

OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT

YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION,

PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS

INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY

TECHNICAL SUPPORT IF REQUIRED.

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR

JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE

APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH

ILLEGITIMATE PURPOSES.

User Manual of E Series Network Speed Dome

IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER

PREVAILS.

0503001050325

User Manual of E Series Network Speed Dome

iii

Regulatory Information

FCC Information

FCC compliance: This equipment has been tested and found to comply with the limits for a digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at his own

expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause

undesired operation.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with

"CE" and comply therefore with the applicable harmonized European standards

listed under the EMC Directive 2004/108/EC, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol cannot be

disposed of as unsorted municipal waste in the European Union. For proper

recycling, return this product to your local supplier upon the purchase of

equivalent new equipment, or dispose of it at designated collection points. For

more information see: www.recyclethis.info.

2006/66/EC (battery directive): This product contains a battery that cannot be

disposed of as unsorted municipal waste in the European Union. See the product

documentation for specific battery information. The battery is marked with this

symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or

mercury (Hg). For proper recycling, return the battery to your supplier or to a designated

collection point. For more information see: www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

User Manual of E Series Network Speed Dome

Warnings Follow these safeguards to prevent

serious injury or death.

Cautions Follow these precautions to prevent

potential injury or material damage.

Safety Instruction

These instructions are intended to ensure that the user can use the product correctly to avoid

danger or property loss.

The precaution measure is divided into ‘Warnings’ and ‘Cautions’:

Warnings: Serious injury or death may be caused if any of these warnings are neglected.

Cautions: Injury or equipment damage may be caused if any of these cautions are neglected.

Warnings:

 Please adopt the power adapter which can meet the safety extra low voltage (SELV) standard.

The power consumption cannot be less than the required value.

 Do not connect several devices to one power adapter as an adapter overload may cause

over-heating and can be a fire hazard.

 When the product is installed on a wall or ceiling, the device should be firmly fixed.  To reduce the risk of fire or electrical shock, do not expose the indoor used product to rain or

moisture.

 This installation should be made by a qualified service person and should conform to all the

local codes.

 Please install blackouts equipment into the power supply circuit for convenient supply

interruption.

 If the product does not work properly, please contact your dealer or the nearest service

center. Never attempt to disassemble the product yourself. (We shall not assume any

responsibility for problems caused by unauthorized repair or maintenance.)

User Manual of E Series Network Speed Dome

Cautions:

 Make sure the power supply voltage is correct before using the product.  Do not drop the product or subject it to physical shock. Do not install the product on

vibratory surface or places.

 Do not expose it to high electromagnetic radiating environment.  Do not aim the lens at the strong light such as sun or incandescent lamp. The strong light can

cause fatal damage to the product.

 The sensor may be burned out by a laser beam, so when any laser equipment is being used,

make sure that the surface of the sensor not be exposed to the laser beam.

 For working temperature, please refer to the specification manual for details.  To avoid heat accumulation, good ventilation is required for a proper operating environment.  While shipping, the product should be packed in its original packing.  Please use the provided glove when open up the product cover. Do not touch the product

cover with fingers directly, because the acidic sweat of the fingers may erode the surface

coating of the product cover.

 Please use a soft and dry cloth when clean inside and outside surfaces of the product cover.

Do not use alkaline detergents.

 Improper use or replacement of the battery may result in hazard of explosion. Please use the

manufacturer recommended battery type.

User Manual of E Series Network Speed Dome

Table of Contents

Chapter 1 Overview .................................................................................................................... 1

1.1 System Requirement ................................................................................................................ 1

1.2 Functions.................................................................................................................................. 1

Chapter 2 Network Connection .................................................................................................. 4

2.1 Setting the Network Speed Dome over the LAN...................................................................... 4

2.1.1 Wiring over the LAN ............................................................................................................ 4

2.1.2 Activating the Speed Dome ................................................................................................. 5

2.2 Setting the Network Speed Dome over the WAN .................................................................. 10

2.2.1 Static IP Connection ........................................................................................................... 10

2.2.2 Dynamic IP Connection ...................................................................................................... 11

Chapter 3 Access to the Network Speed Dome ......................................................................... 14

3.1 Accessing by Web Browsers ................................................................................................... 14

3.2 Accessing by Client Software ................................................................................................. 15

Chapter 4 Live View ................................................................................................................. 17

4.1 Live View Page ....................................................................................................................... 17

4.2 Starting Live View .................................................................................................................. 18

4.3 Recording and Capturing Pictures Manually .......................................................................... 19

4.4 Operating PTZ Control ............................................................................................................ 20

4.4.1 PTZ Control Panel ............................................................................................................... 20

4.4.2 Setting / Calling a Preset .................................................................................................... 20

4.4.3 Setting / Calling a Patrol..................................................................................................... 22

4.4.4 Setting / Calling a Pattern .................................................................................................. 24

4.5 Configuring Live View Parameters ......................................................................................... 25

Chapter 5 PTZ Configuration ..................................................................................................... 26

5.1 Configuring Initial Position ..................................................................................................... 26

5.2 Configuring Basic PTZ Parameters.......................................................................................... 26

5.3 Configuring PTZ Limits ........................................................................................................... 28

5.4 Configuring Scheduled Tasks .................................................................................................. 29

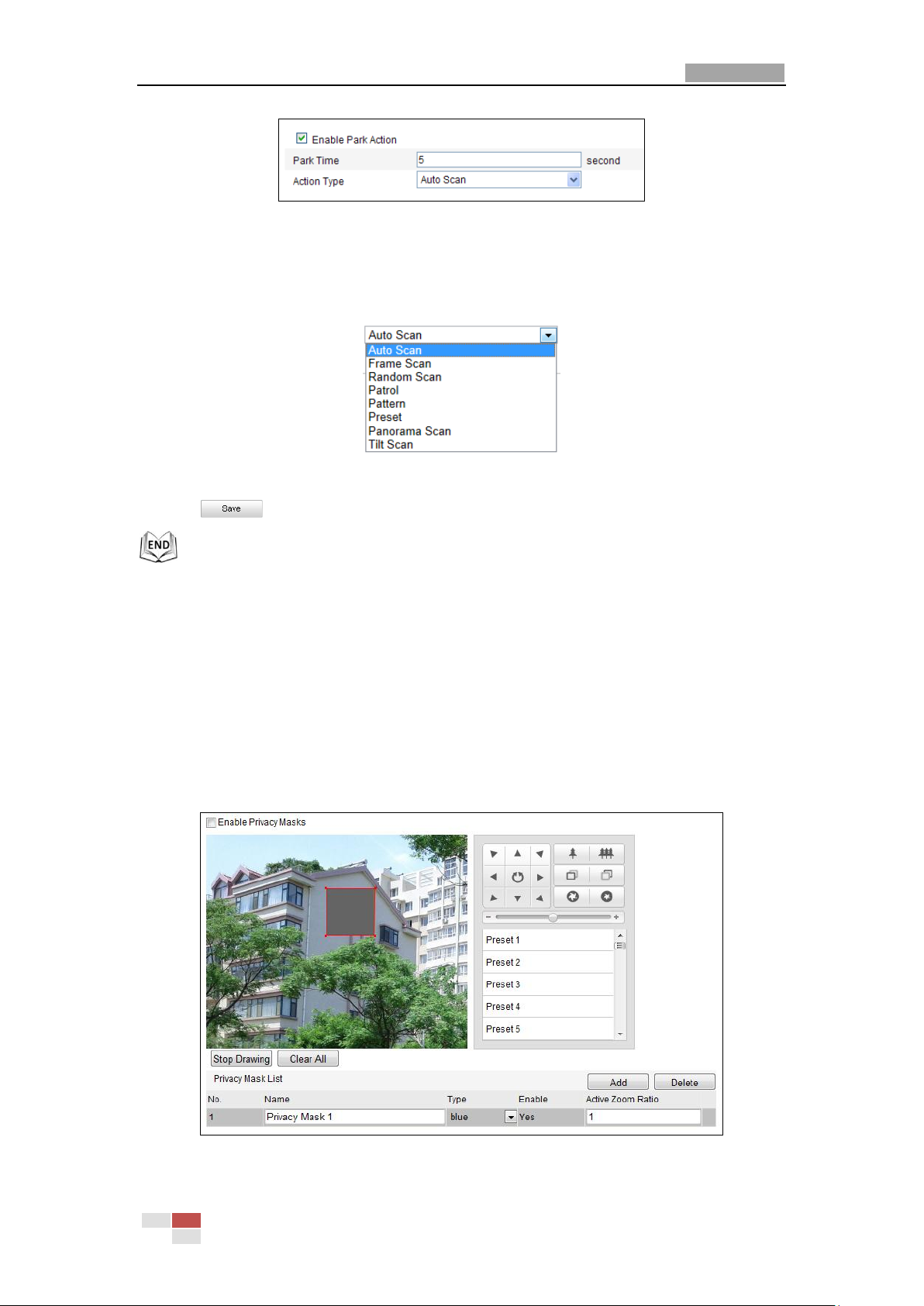

5.5 Configuring Park Actions ........................................................................................................ 30

5.6 Configuring Privacy Mask ....................................................................................................... 31

5.7 Clearing PTZ Configurations ................................................................................................... 32

Chapter 6 Speed Dome Configuration ...................................................................................... 33

6.1 Configuring Local Parameters ................................................................................................ 33

6.2 Configuring Time Settings ...................................................................................................... 34

6.3 Configuring Network Settings ................................................................................................ 37

6.3.1 Configuring TCP/IP Settings ............................................................................................... 37

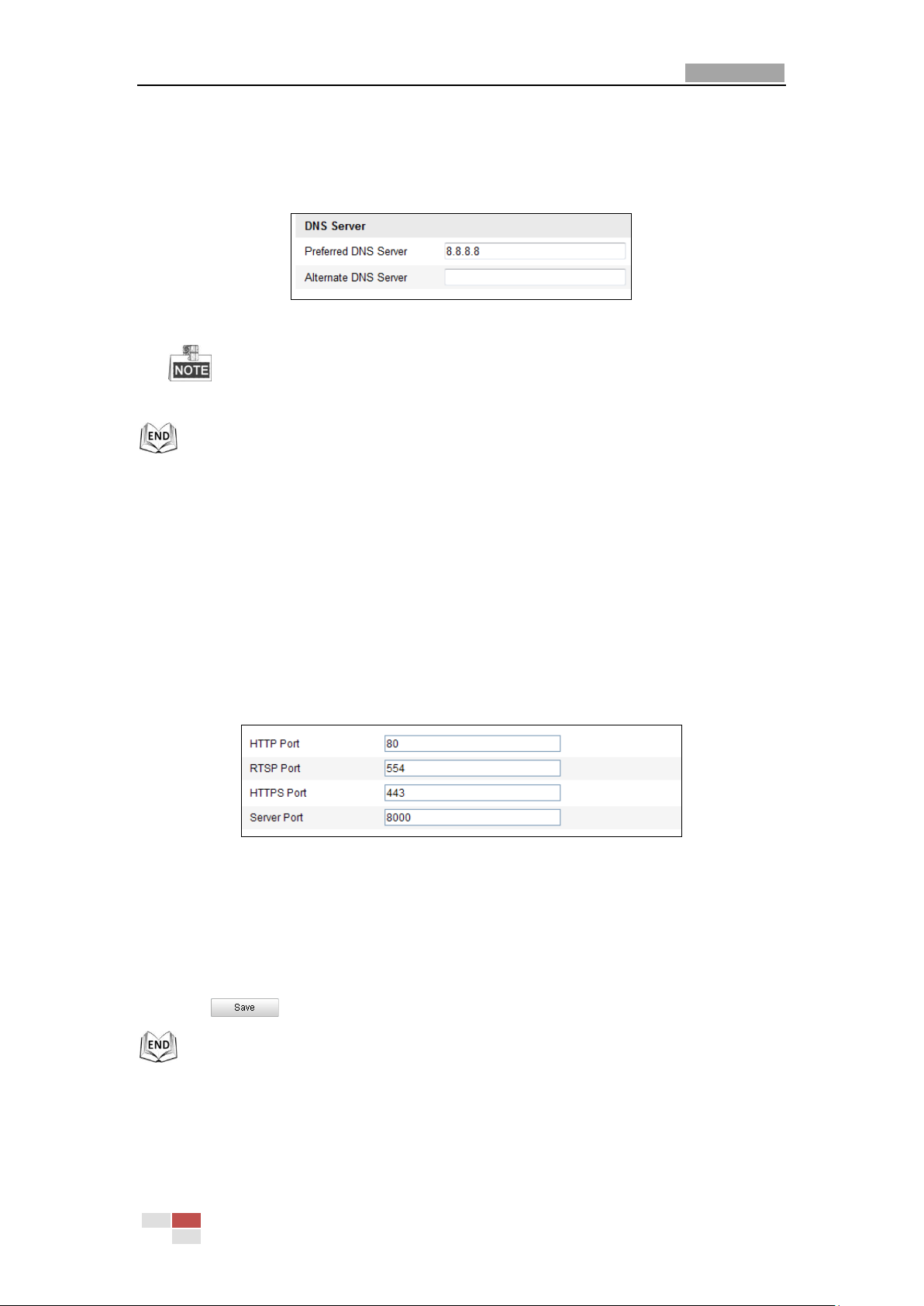

6.3.2 Configuring Port Settings ................................................................................................... 38

6.3.3 Configuring PPPoE Settings ................................................................................................ 38

User Manual of E Series Network Speed Dome

vii

6.3.4 Configuring DDNS Settings................................................................................................. 39

6.3.5 Configuring SNMP Settings ................................................................................................ 41

6.3.6 Configuring 802.1X Settings ............................................................................................... 42

6.3.7 Configuring QoS Settings ................................................................................................... 44

6.3.8 Configuring FTP Settings .................................................................................................... 44

6.3.9 Configuring UPnP™ Settings .............................................................................................. 46

6.3.10 Configuring NAT (Network Address Translation) Settings .............................................. 46

6.3.11 Configuring Email Settings ............................................................................................. 47

6.3.12 Configuring Platform Access Settings ............................................................................ 48

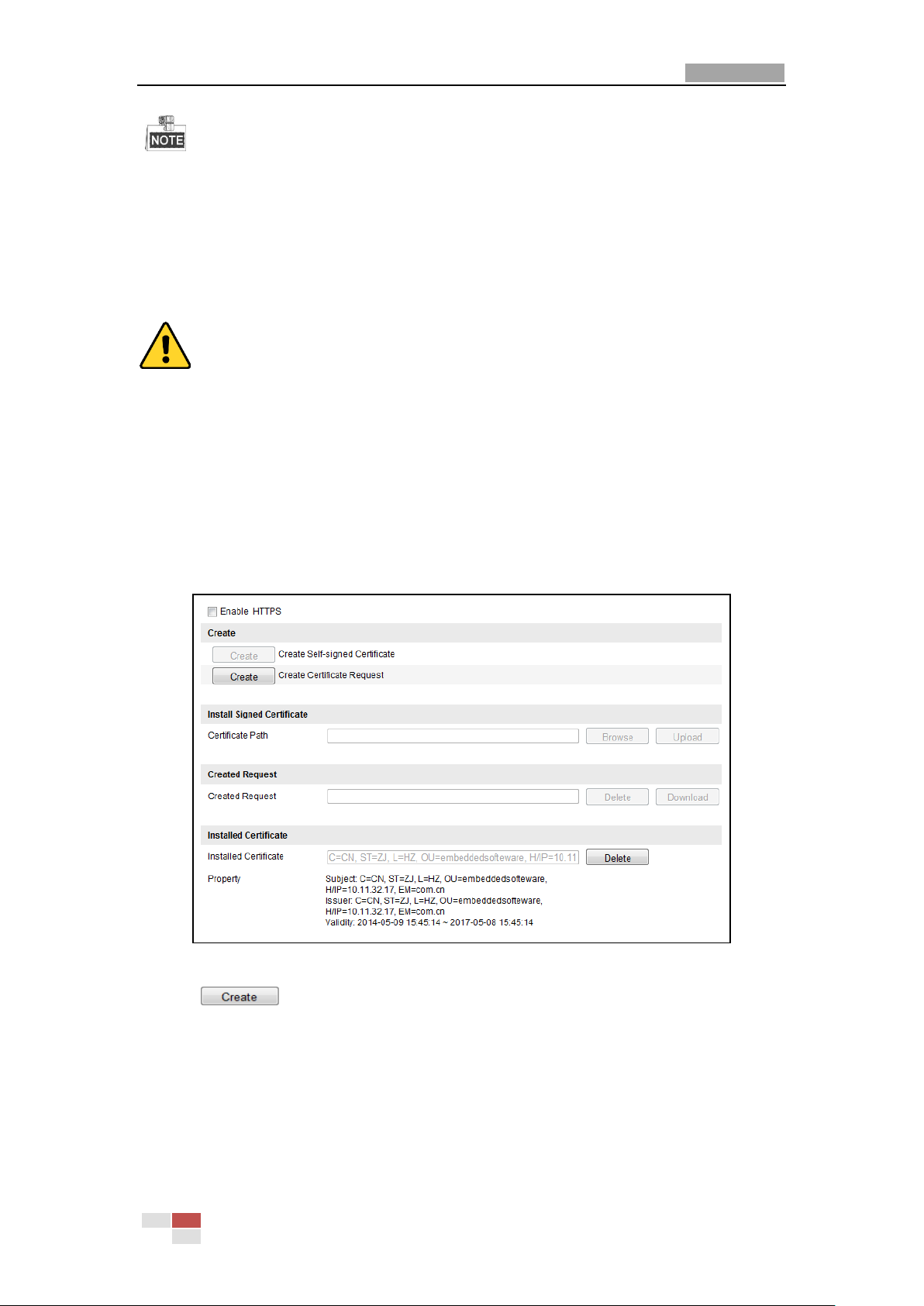

6.3.13 Configuring HTTPS Settings ........................................................................................... 49

6.4 Configuring Video and Audio Settings ................................................................................... 51

6.4.1 Configuring Video Settings ................................................................................................ 51

6.4.2 Configuring Audio Settings ................................................................................................ 52

6.4.3 Configuring ROI Settings .................................................................................................... 53

6.5 Configuring Image Settings .................................................................................................... 54

6.5.1 Configuring Display Settings .............................................................................................. 54

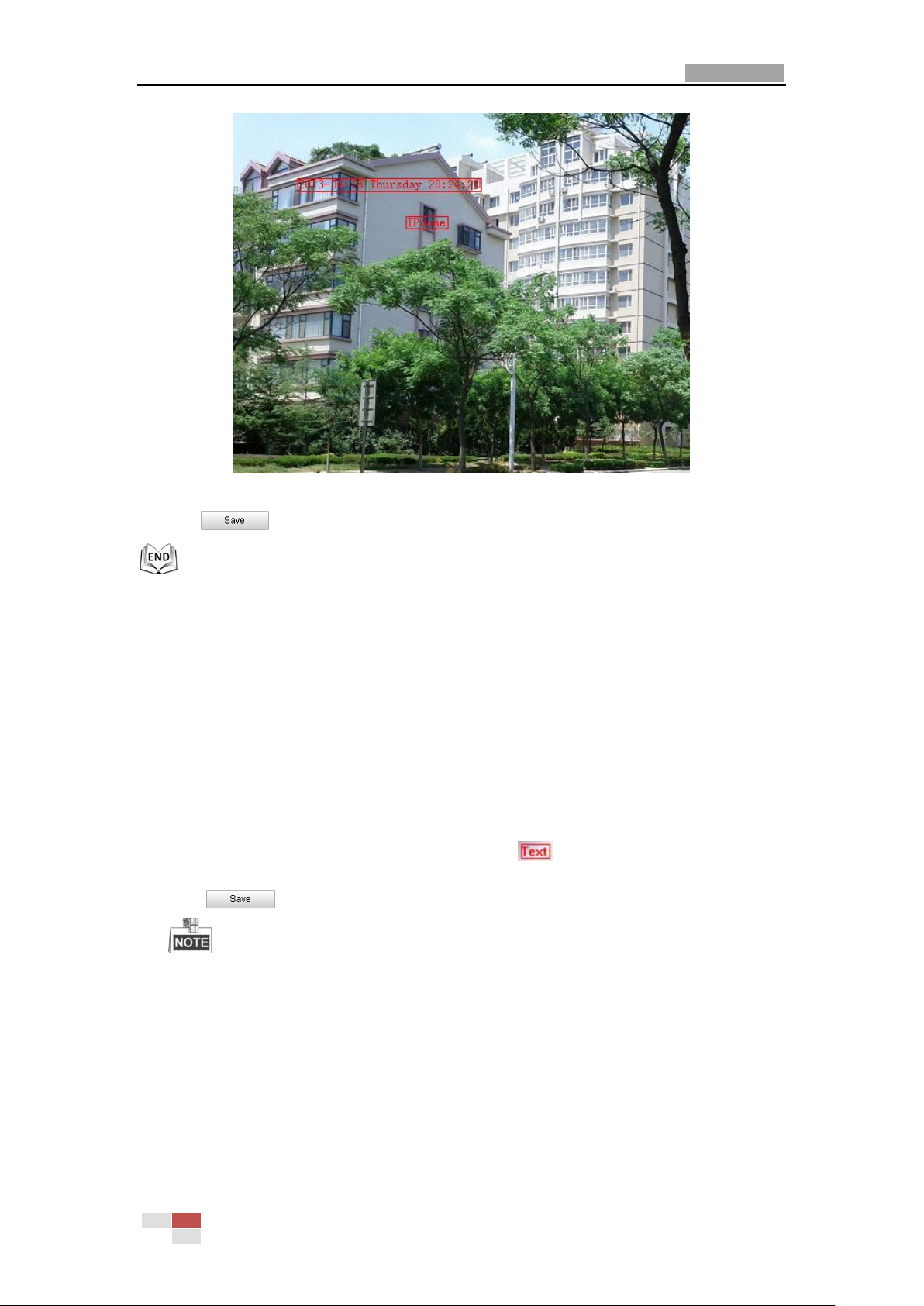

6.5.2 Configuring OSD Settings ................................................................................................... 60

6.5.3 Configuring Text Overlay Settings ...................................................................................... 61

6.6 Configuring and Handling Alarms .......................................................................................... 62

6.6.1 Configuring Motion Detection ........................................................................................... 62

6.6.2 Configuring Video Tampering Alarm ................................................................................. 66

6.6.3 Configuring External Alarm Input ...................................................................................... 67

6.6.4 Configuring Alarm Output ................................................................................................. 68

6.6.5 Handling Exception ............................................................................................................ 69

6.6.6 Detecting Audio Exception ................................................................................................ 70

6.6.7 Configuring Dual-VCA ........................................................................................................ 71

6.6.8 Configuring Intrusion Detection ........................................................................................ 71

6.6.9 Configuring Line Crossing Detection .................................................................................. 72

Chapter 7 Record Settings ........................................................................................................ 75

7.1 Configuring NAS Settings ....................................................................................................... 75

7.2 Configuring Recording Schedule ............................................................................................ 77

7.3 Configuring Snapshot Settings ............................................................................................... 80

Chapter 8 Playback ................................................................................................................... 83

Chapter 9 Log Searching ........................................................................................................... 87

Chapter 10 Others ...................................................................................................................... 88

10.1 Managing User Accounts ....................................................................................................... 88

10.2 Configuring Authentication Security ...................................................................................... 90

10.3 Configuring Anonymous Visit ................................................................................................ 90

10.4 Configuring IP Address Filter.................................................................................................. 91

10.5 Security Service ...................................................................................................................... 91

10.6 Viewing Device Information .................................................................................................. 91

10.7 Maintenance .......................................................................................................................... 92

User Manual of E Series Network Speed Dome

viii

10.7.1 Rebooting the Speed Dome ........................................................................................... 92

10.7.2 Restoring Default Settings ............................................................................................. 92

10.7.3 Importing/Exporting Configuration File ........................................................................ 93

10.7.4 Upgrading the System .................................................................................................... 93

10.8 Configuring RS-485 ................................................................................................................ 94

10.9 Configuring IR Light ................................................................................................................ 95

10.10 Configuring Remote Connection........................................................................................ 95

Appendix ......................................................................................................................................... 96

Appendix 1 SADP Software Introduction ............................................................................................ 96

Appendix 2 Port Mapping ................................................................................................................... 98

User Manual of E Series Network Speed Dome

Chapter 1 Overview

1.1 System Requirement

System requirement of web browser accessing is as follows:

Operating System: Microsoft Windows XP SP1 and above version / Vista / Win7 / Server 2003 /

Server 2008 32bits

CPU: Intel Pentium IV 3.0 GHz or higher

RAM: 1G or higher

Display: 1024×768 resolution or higher

Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.02 and above version,

Mozilla Firefox 5 and above version and Google Chrome 18 and above versions.

1.2 Functions

The functions vary depending on the models of speed dome.

 PTZ Limits

The dome can be programmed to move within the PTZ limits (left/right, up/down).

 Scan Modes

The dome provides 5 scan modes: auto scan, tilt scan, frame scan, random scan and panorama

scan.

 Presets

A preset is a predefined image position. When the preset is called, the dome will automatically

move to the defined position. The presets can be added, modified, deleted and called.

 Label Display

The on-screen label of the preset title, azimuth/elevation, zoom, time and dome name can be

displayed on the monitor. The displays of time and speed dome name can be programmed.

 Auto Flips

In manual tracking mode, when a target object goes directly beneath the dome, the video will

automatically flips 180 degrees in horizontal direction to maintain continuity of tracking. This

function can also be realized by auto mirror image depending on different camera models.

 Privacy Mask

This function allows you to block or mask certain area of a scene, for preventing the personal

privacy from recording or live viewing. A masked area will move with pan and tilt functions and

automatically adjust in size as the lens zooms telephoto and wide.

 3D Positioning

In the client software, use the left key of mouse to click on the desired position in the video

image and drag a rectangle area in the lower right direction, then the dome system will move the

position to the center and allow the rectangle area to zoom in. Use the left key of mouse to drag

User Manual of E Series Network Speed Dome

a rectangle area in the upper left direction to move the position to the center and allow the

rectangle area to zoom out.

 Proportional Pan/Tilt

Proportional pan/tilt automatically reduces or increases the pan and tilt speeds according to the

amount of zoom. At telephoto zoom settings, the pan and tilt speeds will be slower than at wide

zoom settings. This keeps the image from moving too fast on the live view image when there is a

large amount of zoom.

 Auto Focus

The auto focus enables the camera to focus automatically to maintain clear video images.

 Day/Night Auto Switch

The speed domes deliver color images during the day. And as light diminishes at night, the speed

domes switch to night mode and deliver black and white images with high quality.

 Slow Shutter

In slow shutter mode, the shutter speed will automatically slow down in low illumination

conditions to maintain clear video images by extending the exposure time. The feature can be

enabled or disabled.

 Backlight Compensation (BLC)

If you focus on an object against strong backlight, the object will be too dark to be seen clearly.

The BLC (Backlight Compensation) function can compensate light to the object in the front to

make it clear, but this causes the over-exposure of the background where the light is strong.

 Wide Dynamic Range (WDR)

The wide dynamic range (WDR) function helps the camera provide clear images even under back

light circumstances. When there are both very bright and very dark areas simultaneously in the

field of view, WDR balances the brightness level of the whole image and provide clear images

with details.

This feature varies depending on speed dome models.

 White Balance (WB)

White balance can remove the unrealistic color casts. White balance is the white rendition

function of the camera to adjust the color temperature according to the environment

automatically.

 Patrol

A patrol is a memorized series of pre-defined preset function. The scanning speed between two

presets and the dwell time at the preset are programmable.

 Pattern

A pattern is a memorized series of pan, tilt, zoom, and preset functions. By default the focus and

iris are in auto status during the pattern is being memorized.

 Power Off Memory

The dome supports the power off memory capability with the predefined resume time. It allows

the dome to resume its previous position after power is restored.

 Scheduled Task

A time task is a preconfigured action that can be performed automatically at a specific date and

time. The programmable actions include: auto scan, random scan, patrol 1-8 ,pattern 1-4, preset

1-8,frame scan, panorama scan, tilt scan, day, night, reboot, PT adjust, Aux Output, etc.

User Manual of E Series Network Speed Dome

 Park Action

This feature allows the dome to start a predefined action automatically after a period of

inactivity.

 User Management

The dome allows you to edit users with different levels of permission, in the admin login status.

Multiple users are allowed to access and control the same network speed dome via network

simultaneously.

 3D Digital Noise Reduction

Comparing with the general 2D digital noise reduction, the 3D digital noise reduction function

processes the noise between two frames besides processing the noise in one frame. The noise

will be much less and the video will be clearer.

User Manual of E Series Network Speed Dome

Network Cable

Chapter 2 Network Connection

Before you start:

 If you want to set the network speed dome via a LAN (Local Area Network), please refer to

Section 2.1.

 If you want to set the network speed dome via a WAN (Wide Area Network), please refer to

Section 2.2.

2.1 Setting the Network Speed Dome over the LAN

 You shall acknowledge that the use of the product with Internet access might be under

network security risks. For avoidance of any network attacks and information leakage, please

strengthen your own protection. If the product does not work properly, please contact with

your dealer or the nearest service center.

 To ensure the network security of the speed dome, we recommend you to have the speed

dome assessed and maintained termly. You can contact us if you need such service.

Purpose:

To view and configure the speed dome via a LAN, you need to connect the network speed dome

in the same subnet with your computer, and install the SADP or client software to search and

change the IP of the network speed dome.

For the detailed introduction of SADP, please refer to Appendix 1.

2.1.1 Wiring over the LAN

The following figures show the two ways of cable connection of a network speed dome and a

computer:

Purpose:

 To test the network speed dome, you can directly connect the network speed dome to the

computer with a network cable as shown in Figure 2-1.

 Refer to the Figure 2-2 to set the network speed dome over the LAN via a switch or a router.

Figure 2-1 Connecting Directly

User Manual of E Series Network Speed Dome

Speed Dome

Network Cable

Switch or Router

Network Cable

Figure 2-2 Connecting via a Switch or a Router

2.1.2 Activating the Speed Dome

Purpose:

You are required to activate the speed dome first before you can use the speed dome.

Activation via Web Browser, Activation via SADP, and Activation via client software are supported.

In the following sections, activation via web browser and SADP will be taken as examples. You

may refer to the user manual of the speed dome for the details of activation via client software.

 Activation via Web Browser

Steps:

1. Power on the speed dome, and connect the speed dome to the network.

2. Input the IP address into the address bar of the web browser, and click Enter to enter the

activation interface.

The default IP address of the speed dome is 192.168.1.64.

Figure 2-3 Activation Interface(Web)

3. Create a password and input the password into the password field.

User Manual of E Series Network Speed Dome

STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong

password of your own choosing (using a minimum of 8 characters, including upper

case letters, lower case letters, numbers, and special characters) in order to increase

the security of your product. And we recommend you reset your password regularly,

especially in the high security system, resetting the password monthly or weekly can

better protect your product.

4. Confirm the password.

5. Click OK to activate the speed dome and enter the live view interface.

 Activation via SADP Software

SADP software is used for detecting the online device, activating the device, and resetting the

password.

Get the SADP software from the supplied disk or the official website, and install the SADP

according to the prompts. Follow the steps to activate the speed dome.

Steps:

1. Run the SADP software to search the online devices.

2. Check the device status from the device list, and select an inactive device.

Figure 2-4 SADP Interface

3. Create a password and input the password in the password field, and confirm the password.

STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong

password of your own choosing (using a minimum of 8 characters, including upper

case letters, lower case letters, numbers, and special characters) in order to increase

the security of your product. And we recommend you reset your password regularly,

especially in the high security system, resetting the password monthly or weekly can

better protect your product.

User Manual of E Series Network Speed Dome

4. Click OK to save the password.

You can check whether the activation is completed on the popup window. If activation failed,

please make sure that the password meets the requirement and then try again.

5. Change the device IP address to the same subnet with your computer by either modifying

the IP address manually or checking the checkbox of Enable DHCP.

Figure 2-5 Modify the IP Address

6. Input the password and click the Save button to activate your IP address modification.

 Activation via Client Software

The client software is versatile video management software for multiple kinds of devices.

Get the client software from the supplied disk or the official website, and install the software

according to the prompts. Follow the steps to activate the camera.

Steps:

1. Run the client software and the control panel of the software pops up, as shown in the

figure below.

User Manual of E Series Network Speed Dome

Figure 2-6 Control Panel

2. Click the Device Management icon to enter the Device Management interface, as shown in

the figure below.

Figure 2-7 Device Management Interface

3. Check the device status from the device list, and select an inactive device.

4. Click the Activate button to pop up the Activation interface.

5. Create a password and input the password in the password field, and confirm the password.

User Manual of E Series Network Speed Dome

STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong

password of your own choosing (using a minimum of 8 characters, including upper

case letters, lower case letters, numbers, and special characters) in order to increase

the security of your product. And we recommend you reset your password regularly,

especially in the high security system, resetting the password monthly or weekly can

better protect your product.

Figure 2-8 Activation Interface

6. Click OK button to start activation.

7. Click the Modify Netinfo button to pop up the Network Parameter Modification interface, as

shown in the figure below.

Figure 2-9 Modifying the Network Parameters

8. Change the device IP address to the same subnet with your computer by either modifying

the IP address manually or checking the checkbox of Enable DHCP.

9. Input the password to activate your IP address modification.

User Manual of E Series Network Speed Dome

Speed Dome

Network Cable

Router with Static IP

Network Cable

Internet

2.2 Setting the Network Speed Dome over the WAN

Purpose:

This section explains how to connect the network speed dome to the WAN with a static IP or a

dynamic IP.

2.2.1 Static IP Connection

Before you start:

Please apply a static IP from an ISP (Internet Service Provider). With the static IP address, you can

connect the network speed dome via a router or connect it to the WAN directly.

 Connecting the network speed dome via a router

Steps:

1. Connect the network speed dome to the router.

2. Assign a LAN IP address, the subnet mask and the gateway. Refer to Section 2.1.2 for detailed

IP address configuration of the speed dome.

3. Save the static IP in the router.

4. Set port mapping, E.g., 80, 8000 and 554 ports. The steps for port mapping vary depending

on different routers. Please call the router manufacturer for assistance with port mapping.

Refer to Appendix 2 for detailed information about port mapping.

5. Visit the network speed dome through a web browser or the client software over the

internet.

Figure 2-10 Accessing the Speed Dome through Router with Static IP

 Connecting the network speed dome with static IP directly

You can also save the static IP in the speed dome and directly connect it to the internet without

using a router. Refer to Section 2.1.2 for detailed IP address configuration of the speed dome.

User Manual of E Series Network Speed Dome

Speed Dome

Network Cable

Internet

Figure 2-11 Accessing the Speed Dome with Static IP Directly

2.2.2 Dynamic IP Connection

Before you start:

Please apply a dynamic IP from an ISP. With the dynamic IP address, you can connect the network

speed dome to a modem or a router.

 Connecting the network speed dome via a router

Steps:

1. Connect the network speed dome to the router.

2. In the speed dome, assign a LAN IP address, the subnet mask and the gateway. Refer to

Section 2.1.2 for detailed LAN configuration.

3. In the router, set the PPPoE user name, password and confirm the password.

 For your privacy and to better protect your system against security risks, we strongly

recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product.

 Proper configuration of all passwords and other security settings is the responsibility of

the installer and/or end-user.

4. Set port mapping. E.g. 80, 8000 and 554 ports. The steps for port mapping vary depending on

different routers. Please call the router manufacturer for assistance with port mapping.

Refer to Appendix 2 for detailed information about port mapping.

5. Apply a domain name from a domain name provider.

6. Configure the DDNS settings in the setting interface of the router.

7. Visit the speed dome via the applied domain name.

User Manual of E Series Network Speed Dome

 Connecting the network speed dome via a modem

Purpose:

This speed dome supports the PPPoE auto dial-up function. The speed dome gets a public IP

address by ADSL dial-up after the speed dome is connected to a modem. You need to configure

the PPPoE parameters of the network speed dome. Refer to Section 6.3.3 Configuring PPPoE

Settings for detailed configuration.

Figure 2-12 Accessing the Speed Dome with Dynamic IP

The obtained IP address is dynamically assigned via PPPoE, so the IP address always changes

after rebooting the speed dome. To solve the inconvenience of the dynamic IP, you need to

get a domain name from the DDNS provider (E.g. DynDns.com). Please follow below steps for

normal domain name resolution and private domain name resolution to solve the problem.

 Normal Domain Name Resolution

Figure 2-13 Normal Domain Name Resolution

Steps:

1. Apply a domain name from a domain name provider.

2. Configure the DDNS settings in the DDNS Settings interface of the network speed dome.

Refer to Section 6.3.4 Configuring DDNS Settings for detailed configuration.

3. Visit the speed dome via the applied domain name.

 Private Domain Name Resolution

User Manual of E Series Network Speed Dome

Figure 2-14 Private Domain Name Resolution

Steps:

1. Install and run the IP Server software in a computer with a static IP.

2. Access the network speed dome through the LAN with a web browser or the client software.

3. Enable DDNS and select IP Server as the protocol type. Refer to Section 6.3.4 Configuring

DDNS Settings for detailed configuration.

User Manual of E Series Network Speed Dome

Chapter 3 Access to the Network

Speed Dome

3.1 Accessing by Web Browsers

Steps:

1. Open the web browser.

2. In the address field, input the IP address of the network speed dome, e.g., 192.168.1.64 and

press the Enter key to enter the login interface.

3. Activate the speed dome for the first time using, refer to the section 2.1.2 Activating the

Speed Dome.

4. Select English as the interface language on the top-right of login interface.

5. Input the user name and password and click .

The admin user should configure the device accounts and user/operator permissions properly.

Delete the unnecessary accounts and user/operator permissions.

The device IP address gets locked if the admin user performs 7 failed password attempts (5

attempts for the user/operator).

Figure 3-1 Login Interface

6. Install the plug-in before viewing the live video and operating the speed dome. Please follow

the installation prompts to install the plug-in.

User Manual of E Series Network Speed Dome

Figure 3-2 Download and Install Plug-in

Figure 3-3 Install Plug-in

You may have to close the web browser to install the plug-in. Please reopen the web

browser and log in again after installing the plug-in.

3.2 Accessing by Client Software

The product CD contains the client software. You can view the live video and manage the speed

dome with the client software.

Follow the installation prompts to install the client software and WinPcap. The configuration interface and live view interface of client software are shown below.

User Manual of E Series Network Speed Dome

Figure 3-4 iVMS-4200 Control Panel

Figure 3-5 iVMS-4200 Live View Interface

 If you use third party VMS software, please contact technical support of our branch for

camera firmware.

 For detailed information about client software of our company, please refer to the user

manual of the software. This manual mainly introduces accessing to the network speed dome by web browser.

User Manual of E Series Network Speed Dome

Menu Bar

Live View

Parameters

Live View Window

Toolbar

Show or hide PTZ control panel

PTZ Control

Preset/Patrol/Pattern

Chapter 4 Live View

4.1 Live View Page

Purpose:

The live video page allows you to view live video, capture images, realize PTZ control, set/call

presets and configure video parameters.

menu bar of the main page to enter the live view page.

Descriptions of the live view page:

Figure 4-1 Live View Page

Menu Bar:

Click each tab to enter Live View, Playback, Log and Configuration page respectively.

Live View Window:

Display the live video.

Toolbar:

Operations on the live view page, e.g., live view, capture, record, audio on/off, two-way audio,

etc.

PTZ Control:

Panning, tilting, focusing and zooming actions of the speed dome. The lighter, wiper, one-touch

focus and lens initialization control.

Preset/patrol/pattern:

Set and call the preset/patrol/pattern for the speed dome.

Live View Parameters:

Configure the image size and stream type of the live video.

User Manual of E Series Network Speed Dome

Icon

Description

Icon

Description

Start/Stop Live view

Manually capture the

pictures

Manual recording off/on

Mute / Audio on and adjust

volume

Two-way audio off/on/

3D positioning

Enable / Disable Regional

Exposure

Enable / Disable Regional

Focus

4.2 Starting Live View

In the live view window as shown in Figure 4-2, click on the toolbar to start the live view of

the speed dome.

Figure 4-2 Start Live View

Table 4-1 Descriptions of the Toolbar

Before using the two-way audio or recording with audio functions, please set the

Stream Type to Video & Audio referring to Section 6.4.1 Configuring Video Settings.

Full-screen Mode:

You can double-click on the live video to switch the current live view into full-screen or return to

normal mode from the full-screen.

Regional Focus:

User Manual of E Series Network Speed Dome

Steps:

1. Click the on the toolbar to enter the regional focus operation mode.

2. Click-and-drag the mouse to draw a rectangle on the image as the desired focus region.

3. Click the to exit the regional focus operation mode.

Regional Exposure:

Steps:

1. Click the on the toolbar to enter the regional exposure operation mode.

2. Click-and-drag the mouse to draw a rectangle on the image as the desired exposure region.

3. Click the to exit the regional exposure operation mode.

3D Positioning:

Steps:

1. Click on the tool bar of live view interface.

2. Operate the 3D positioning function:  Left click a position of the live video. The corresponding position will be moved to the

center of the live video.

 Hold down the left mouse button and drag the mouse to the lower right on the live

video. The corresponding position will be moved to the center of the live video and

zoomed in.

 Hold down the left mouse button and drag the mouse to the upper left on the live

video. The corresponding position will be moved to the center of the live video and

zoomed out.

Please refer to the following sections for more information:

 Configuring remote recording in Section 7.2 Configuring Recording Schedule.  Setting the image quality of the live video in Section 6.1 Configuring Local Parameters and

Section 6.4.1 Configuring Video Settings.

 Setting the OSD text on live video in Section 6.5.2 Configuring OSD Settings.

4.3 Recording and Capturing Pictures Manually

In the live view interface, click on the toolbar to capture the live pictures or click to

record the live video. The local saving paths of the captured pictures and clips can be set in the

Configuration > Local Configuration interface.

To configure remote automatic recording, please refer to Section 7.2 Configuring Recording

Schedule.

User Manual of E Series Network Speed Dome

Button

Description

Zoom in/out

Focus near/far

Iris Open/Close

Adjust speed of pan/tilt movements

You can configure the format of the picture to save in your computer as JPEG or BMP,

refer to the section 6.1 Configuring Local Parameters.

4.4 Operating PTZ Control

Purpose:

In the live view interface, you can use the PTZ control buttons to control panning, tilting and

zooming.

4.4.1 PTZ Control Panel

On the live view page, click to show the PTZ control panel or click to hide it.

Click the direction buttons to control the pan/tilt movements.

Click the zoom/iris/focus buttons to realize lens control.

Figure 4-3 PTZ Control Panel

Table 4-2 Descriptions of PTZ Control Panel

4.4.2 Setting / Calling a Preset

Purpose:

A preset is a predefined image position. For the defined preset, you can click the calling button to

quickly view the desired image position.

 Setting a Preset:

Steps:

User Manual of E Series Network Speed Dome

1. In the PTZ control panel, select a preset number from the preset list.

Figure 4-4 Setting a Preset

2. Use the PTZ control buttons to move the lens to the desired position.

• Pan the speed dome to the right or left.

• Tilt the speed dome up or down.

• Zoom in or out.

• Refocus the lens.

3. Click to finish the setting of the current preset.

4. You can click to delete the preset.

You can configure up to 256 presets.

 Calling a Preset:

In the PTZ control panel, select a defined preset from the list and click to call the preset.

Figure 4-5 Calling a Preset

For convenient preset selection, refer to the following steps to navigate to the preset you want.

Steps:

1. Select any preset from the list.

2. Click the preset number you need on the keyboard.

The following presets are predefined with special commands. You can only call them but

not configure them. For instance, preset 99 is the “Start auto scan”. If you call the preset 99, the

User Manual of E Series Network Speed Dome

Preset No.

Function

Preset No.

Function

Auto flip

Set limit stops manually

Back to initial position

Remote reboot

Call patrol 1

Stop a scan

Call patrol 2

Start random scan

Call patrol 3

Start frame scan

Call patrol 4

Start auto scan

IR cut filter in

100

Start tilt scan

IR cut filter out

101

Start panorama scan

Call pattern 1

102

Call patrol 5

Call pattern 2

103

Call patrol 6

Call pattern 3

104

Call patrol 7

Call pattern 4

105

Call patrol 8

One-touch patrol

106

Fan On

Start to set limit stops

107

Fan Off

108

Fan On By Temperature

Control

speed dome starts auto scan function.

Table 4-3 Special Presets

Figure 4-6 Special Preset

When you calling preset 45 (one-touch patrol), the speed dome patrols from the

preset 1 to 32. Before you enable this function, please set the preset 1 to 32 first.

4.4.3 Setting / Calling a Patrol

Purpose:

A patrol is a memorized series of preset function. It can be configured and called on the patrol

settings interface. There are up to 8 patrols for customizing. A patrol can be configured with 32

presets.

Before you start:

Please make sure that the presets you want to add into a patrol have been defined.

 Setting a Patrol:

Steps:

1. In the PTZ control panel, click to enter the patrol settings interface.

2. Select a patrol number from .

User Manual of E Series Network Speed Dome

Name

Description

Patrol Time

It is the duration staying on one patrol point. The speed dome

moves to another patrol point after the patrol time.

Patrol Speed

It is the speed of moving from one preset to another.

Buttons

Description

Save a patrol

3. Click to enter the adding interface of preset as shown in Figure 4-7.

Figure 4-7 Adding Presets

4. Configure the preset number, patrol time and patrol speed.

5. Click to save a preset into the patrol.

6. Repeat the steps from 3 to 5 to add more presets.

7. Click to save all the patrol settings.

 Calling a Patrol:

In the PTZ control panel, select a defined patrol from and click to call the patrol as shown in Figure 4-8.

Figure 4-8 Calling a Preset

 Buttons on the Patrols interface:

User Manual of E Series Network Speed Dome

Call a patrol

Stop a patrol

Enter the adding interface of preset

Modify a preset Delete a preset

Delete all the presets in one patrol

Buttons

Description

Start to record a pattern.

Stop recording a pattern.

Call the current pattern.

Stop the current pattern.

Delete the current pattern.

4.4.4 Setting / Calling a Pattern

Purpose:

A pattern is a memorized series of pan, tilt, zoom, and preset functions. It can be called on the

pattern settings interface. There are up to 4 patterns for customizing.

 Setting a Pattern:

Steps:

1. In the PTZ control panel, click to enter the pattern settings interface.

2. Select a pattern number from the list as shown in Figure 4-9.

Figure 4-9 Patterns Settings Interface

3. Click to enable recording the panning, tilting and zooming actions.

4. Use the PTZ control buttons to move the lens to the desired position after the information of

PROGRAM PATTERN REMAINNING MEMORY(%) is displayed on the screen.

• Pan the speed dome to the right or left.

• Tilt the speed dome up or down.

• Zoom in or out.

• Refocus the lens.

5. Click to save all the pattern settings.

 Buttons on the Patterns interface:

User Manual of E Series Network Speed Dome

 These 4 patterns can be operated separately and with no priority level.  When configuring and calling the pattern, proportional pan is valid; the limit stops and

auto flip will be invalid; and the 3D positioning operation is not supported.

4.5 Configuring Live View Parameters

 Main stream/Sub-stream:

You can select or as the stream type of live viewing. The main stream is with a relatively high resolution and needs much bandwidth. The sub-stream is with a low

resolution and needs less bandwidth. The default setting of stream type is .

Please refer to Section 6.4.1 Configuring Video Settings for more detailed parameter

settings of the main stream and sub-stream respectively.

 Image Size:

You can scale up/down the live view image by clicking . the image size can be 4:3,

16:9, original or auto.

User Manual of E Series Network Speed Dome

Chapter 5 PTZ Configuration

5.1 Configuring Initial Position

Purpose:

The initial position is the origin of PTZ coordinates. It can be the factory default initial position.

You can also customize the initial position according to your own demand.

 Customize an Initial Position:

Steps:

1. Enter the Initial Position Configuration interface:

Configuration > Advanced Configuration > PTZ > Initial Position

Figure 5-1 PTZ Configuration

2. Click the PTZ control buttons to find a position as the initial position of the dome; you can

also call a defined preset and set it as the initial position of the dome.

3. Click Set to save the position.

 Call/delete an Initial Position:

You can click to call the initial position. You can click to delete the initial position and restore the factory default initial position.

5.2 Configuring Basic PTZ Parameters

Purpose:

You can configure the basic PTZ parameters, including proportional pan, preset freezing, preset

speed, etc.

User Manual of E Series Network Speed Dome

1. Enter the Basic PTZ Parameter Configuration interface:

Configuration > Advanced Configuration > PTZ > Basic

Figure 5-2 Basic PTZ Configuration Interface

2. Configure the following settings:

 Basic Parameters: Enable/disable proportional pan and preset freezing, set the preset speed,

keyboard control speed, and auto scan speed.

 Proportional Pan: If you enable this function, the pan/tilt speeds change according to

the amount of zoom. When there is a large amount of zoom, the pan/tilt speed will be

slower for keeping the image from moving too fast on the live view image.

 Preset Speed: You can set the speed of a defined preset from 1 to 8.  Keyboard Control Speed: Define the speed of PTZ control by a keyboard as Low, Normal

or High.

 Auto Scan Speed: The dome provides 5 scan modes: auto scan, tilt scan, frame scan,

random scan and panorama scan. The scan speed can be set from level 1 to 40.

 Zooming Speed: The speed of zooming is adjustable.  Manual Control Speed: The manual control speed can be set as Compatible, Pedestrian,

Non-motor Vehicle, Motor Vehicle or Self-adaptive.

 Compatible: The control speed is same as the Keyboard Control Speed.  Pedestrian: Choose the Pedestrian when you monitor the pedestrians.  Non-motor Vehicle: Choose the Non-motor Vehicle when you monitor the

non-motor vehicles.

 Motor Vehicle: Choose the Motor Vehicle when you monitor the motor vehicles.  Self-adaptive: You are recommended to set the Self-adaptive when the application

scene of the speed dome is complicated.

 PTZ OSD: Set the on-screen display duration of the PTZ status.

 Zoom Status: Set the OSD duration of zooming status as 2 seconds, 5 seconds, 10

seconds, Always Close or Always Open.

 PT Status: Set the azimuth angle display duration while panning and tilting as 2 seconds,

User Manual of E Series Network Speed Dome

5 seconds, 10 seconds, Always Close or Always Open.

 Preset Status: Set the preset name display duration while calling the preset as 2 seconds,

5 seconds, 10 seconds, Always Close or Always Open.

 Power-off Memory: The dome can resume its previous PTZ status or actions after it restarted

from a power-off. You can set the time point of which the dome resumes its PTZ status. You

can set it to resume the status of 30 seconds, 60 seconds, 300 seconds or 600 seconds before

power-off.

3. Click to save the settings.

5.3 Configuring PTZ Limits

Purpose:

The dome can be programmed to move within the configurable PTZ limits (left/right, up/down).

Steps:

1. Enter the Limit Configuration interface:

Configuration > Advanced Configuration > PTZ > Limit

Figure 5-3 Configure the PTZ Limit

2. Click the checkbox of Enable Limit and choose the limit type as manual stops or scan stops.

 Manual Stops:

When manual limit stops are set, you can operate the PTZ control panel manually only in the

limited surveillance area.

 Scan Stops:

When scan limit stops are set, the random scan, frame scan, auto scan, tilt scan, panorama

scan is performed only in the limited surveillance area.

Manual Stops of Limit Type is prior to Scan Stops. When you set these two limit

types at the same time, Manual Stops is valid and Scan Stops is invalid.

User Manual of E Series Network Speed Dome

3. Click the PTZ control buttons to find the left/right/up/down limit stops; you can also call the

defined presets and set them as the limits of the dome.

4. Click Set to save the limits or click Clear to clear the limits.

5.4 Configuring Scheduled Tasks

Purpose:

You can configure the network dome to perform a certain action automatically in a user-defined

time period.

Steps:

1. Enter the Scheduled Task Settings interface:

Configuration> Advanced Configuration> PTZ > Scheduled Tasks

Figure 5-4 Configure Scheduled Tasks

2. Check the checkbox of Enable Scheduled Task.

3. Set the Park Time. You can set the park time (a period of inactivity) before the dome starts

the scheduled tasks.

4. Set the schedule and task details. (1) Click to edit the task schedule.

User Manual of E Series Network Speed Dome

Figure 5-5 Edit the Schedule and Task Type

(2) Choose the day you want to set the task schedule. (3) Click All Day to set the schedule as all day; or click Customize and input the Start Time

and End Time for each task, and click Enter on your keyboard to enter the time.

(4) Choose the task type from the drop-down list. You can choose scan, preset, pattern, etc. (5) (Optional) After you set the scheduled task, you can copy the task to other days. (6) Click to save the settings.

The time of each task can’t be overlapped. Up to 10 tasks can be configured for each

day.

5. Click to save the settings.

5.5 Configuring Park Actions

Purpose:

This feature allows the dome to start a predefined park action (scan, preset, pattern and etc.)

automatically after a period of inactivity (park time).

Scheduled Tasks function is prior to Park Action function. When these two functions

are set at the same time, only the Scheduled Tasks function takes effect.

Steps:

1. Enter the Park Action Settings interface:

Configuration > Advanced Configuration> PTZ > Park Action

User Manual of E Series Network Speed Dome

Figure 5-6 Set the Park Action

2. Check the checkbox of Enable Park Action.

3. Set the Park Time as the inactivity time of the dome before it starts the park actions.

4. Choose Action Type the from the drop-down list.

Figure 5-7 Action Types

5. Click to save the settings.

5.6 Configuring Privacy Mask

Purpose:

Privacy mask enables you to cover certain areas on the live video to prevent certain spots in the

surveillance area from being live viewed and recorded.

Steps:

1. Enter the Privacy Mask Settings interface:

Configuration > Advanced Configuration> PTZ > Privacy Mask

Figure 5-8 Draw the Privacy Mask

User Manual of E Series Network Speed Dome

2. Click the PTZ control buttons to find the area you want to set the privacy mask.

3. Click ; click and drag the mouse in the live video window to draw the area.

4. You can drag the corners of the red rectangle area to draw a polygon mask.

5. Click to finish drawing or click to clear all of the areas you set without

saving them.

6. Click to save the privacy mask, and it will be listed in the Privacy Mask List area;

you can select a mask and click to delete it from the list.

Figure 5-9 Privacy Mask List

7. Check the checkbox of Enable Privacy Mask to enable this function.

You are allowed to draw up to 8 areas for the speed dome.

5.7 Clearing PTZ Configurations

Purpose:

You can clear PTZ configurations in this interface, including all presets, patrols, patterns, privacy

masks, PTZ limits, scheduled tasks and park actions.

Steps:

1. Enter the Clearing Configuration interface:

Configuration > Advanced Configuration> PTZ > Clear Config

2. Check the checkbox of the items you want to clear.

3. Click to clear the settings.

User Manual of E Series Network Speed Dome

Chapter 6 Speed Dome Configuration

6.1 Configuring Local Parameters

The local configuration refers to the parameters of the live view and other operations

using the web browser.

Steps:

1. Enter the Local Configuration interface:

Configuration > Local Configuration

Figure 6-1 Local Configuration Interface

2. Configure the following settings:

 Live View Parameters: Set the protocol type, stream type, image size and live view

performance.

 Protocol Type: TCP, UDP, MULTICAST and HTTP are selectable.

TCP: Ensures complete delivery of streaming data and better video quality, yet the

real-time transmission will be affected.

UDP: Provides real-time audio and video streams.

HTTP: Allows the same quality as of TCP without setting specific ports for streaming

under some network environments.

MULTICAST: It’s recommended to select the protocol type to when using the Multicast function. For other information about Multicast, refer to Section 6.3.1

Configuring TCP/IP Settings.

 Live View Performance: Set the live view performance to Shortest Delay, or Auto.  Rules: You can enable or disable the rules of dynamic analysis for motion here.  Image Format: The captured pictures can be saved as different format. JPEG and BMP are

User Manual of E Series Network Speed Dome

available.

 Record File Settings: Set the saving path of the video files.

 Record File Size: Select the packed size of manually recorded and downloaded video files.

The size can be set to 256M, 512M or 1G.

 Save record files to: Set the saving path for the manually recorded video files.  Save downloaded files to: Set the saving path for the downloaded video files in

interface.

 Picture and Clip Settings: Set the saving paths of the captured pictures and clipped video

files.

 Save snapshots in live view to: Set the saving path of the manually captured pictures in

interface.

 Save snapshots when playback to: Set the saving path of the captured pictures in

interface.

 Save clips to: Set the saving path of the clipped video files in interface.

You can click to change the directory for saving video files, clips and

pictures.

3. Click to save the settings.

6.2 Configuring Time Settings

Purpose:

You can follow the instructions in this section to configure the time which can be displayed on the

video. There are Time Zone, Time Synchronization, Daylight Saving Time (DST) functions for

setting the time. Time Synchronization consists of auto mode by Network Time Protocol (NTP)

server and manual mode.

To enter the Time Settings interface:

Configuration > Basic Configuration > System > Time Settings

Or Configuration > Advanced Configuration > System > Time Settings

User Manual of E Series Network Speed Dome

Figure 6-2 Time Settings

 Configuring Time Synchronization by NTP Server

Steps:

(1) Check the radio button to enable the NTP function. (2) Configure the following settings:

Server Address: IP address of NTP server.

NTP Port: Port of NTP server.

Interval: The time interval between the two synchronizing actions by NTP server. It can be

set from 1 to 10080 minutes.

Figure 6-3 Time Sync by NTP Server

You can click Test to make sure that the NTP server is connected.

If the speed dome is connected to a public network, you should use a NTP server that

has a time synchronization function, such as the server at the National Time Center (IP

Address: 210.72.145.44). If the speed dome is set in a customized network, NTP software can

be used to establish a NTP server for time synchronization.

 Configuring Time Synchronization Manually

Steps:

(1) Check the Manual Time Sync radio button. (2) Click to set the system time from the pop-up calendar.

(3) Click to save the settings.

You can also check the Sync with local time checkbox to synchronize the time of the

speed dome with the time of your computer.

User Manual of E Series Network Speed Dome

Figure 6-4 Time Sync Manually

 Select the Time Zone

Purpose:

When the speed dome is taken to another time zone, you can use the Time Zone function to

adjust the time. The time will be adjusted according to the original time and the time

difference between the two time zones.

From the Time Zone drop-down menu as shown in Figure 6-5, select the T ime Zone in which

the speed dome locates.

Figure 6-5 Time Zone Settings

 Configuring Daylight Saving Time (summer time)

Purpose:

If there is the habit of adjusting clocks forward in your country in certain time period of a

year, you can turn this function on. The time will be adjusted automatically when the

Daylight Saving Time(DST) comes.

Steps:

(1) Enter the DST interface by Configuration > Advanced Configuration > System > DST (2) Check to enable the DST function.

(3) Set the date of the DST period. (4) Click to save the settings.

Figure 6-6 DST Settings

User Manual of E Series Network Speed Dome

6.3 Configuring Network Settings

6.3.1 Configuring TCP/IP Settings

Purpose:

TCP/IP settings must be properly configured before you operate the speed dome over network.

IPv4 and IPv6 are both supported.

Steps:

1. Enter TCP/IP Settings interface:

Configuration > Basic Configuration > Network > TCP/IP

Or Configuration > Advanced Configuration > Network > TCP/IP

Figure 6-7 TCP/IP Settings

2. Configure the NIC settings, including the IPv4(IPv6) Address, IPv4(IPv6) Subnet Mask and

IPv4(IPv6) Default Gateway.

3. Click to save the above settings.

You can click Test to make sure that the IP address is valid.

 If the DHCP server is available, you can check to automatically obtain an IP

address and other network settings from that server.

 The valid value range of Maximum Transmission Unit (MTU) is 500 ~ 1500. The default value

is 1500.

 The Multicast sends a stream to the multicast group address and allows multiple clients to

acquire the stream at the same time by requesting a copy from the multicast group address.

User Manual of E Series Network Speed Dome

Before utilizing this function, you have to enable the Multicast function of your router and

configure the gateway of the network speed dome.

 If the DNS server settings are required for some applications (e.g., sending email), you

should properly configure the Preferred DNS Server and Alternate DNS server.

Figure 6-8 DNS Server Settings

The router must support the route advertisement function if you select Route

Advertisement as the IPv6 mode.

6.3.2 Configuring Port Settings

Purpose:

If there is a router and you want to access the speed dome through Wide Area Network (WAN),

you need to forward the 3 ports for the speed dome.

Steps:

1. Enter the Port Settings interface:

Configuration > Basic Configuration > Network > Port

Or Configuration > Advanced Configuration > Network > Port

Figure 6-9 Port Settings

2. Set the HTTP port, RTSP port and port of the speed dome.

HTTP Port: The default port number is 80.

RTSP Port: The default port number is 554.

HTTPS Port: The default port number is 443. Server Port: The default port number is 8000.

3. Click to save the settings.

6.3.3 Configuring PPPoE Settings

Purpose:

User Manual of E Series Network Speed Dome

If you have no router but only a modem, you can use Point-to-Point Protocol over Ethernet

(PPPoE) function.

Steps:

1. Enter the PPPoE Settings interface:

Configuration >Advanced Configuration > Network > PPPoE

Figure 6-10 PPPoE Settings

2. Check the Enable PPPoE checkbox to enable this feature.

3. Enter User Name, Password, and Confirm password for PPPoE access.

The User Name and Password should be assigned by your ISP.

 For your privacy and to better protect your system against security risks, we strongly

 Proper configuration of all passwords and other security settings is the responsibility of

the installer and/or end-user.

4. Click to save and exit the interface.

6.3.4 Configuring DDNS Settings

Purpose:

If your speed dome is set to use PPPoE as its default network connection, you can use the

Dynamic DNS (DDNS) for network access.

Before you start:

Registration on the DDNS server is required before configuring the DDNS settings of the speed

dome.

 For your privacy and to better protect your system against security risks, we strongly

recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, including

User Manual of E Series Network Speed Dome

upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product.

 Proper configuration of all passwords and other security settings is the responsibility of the

installer and/or end-user.

Steps:

1. Enter the DDNS Settings interface:

Configuration > Advanced Configuration > Network > DDNS

Figure 6-11 DDNS Settings

2. Check the Enable DDNS checkbox to enable this feature.

3. Select DDNS Type. Three DDNS types are selectable: IPServer, HiDDNS, NO-IP and DynDNS.

 DynDNS:

Steps:

(1) Enter Server Address of DynDNS (e.g. members.dyndns.org). (2) In the Domain text field, enter the domain name obtained from the DynDNS website. (3) Enter the Port of DynDNS server. (4) Enter the User Name and Password registered on the DynDNS website. (5) Click to save the settings.

Figure 6-12 DynDNS Settings

 IP Server:

Steps:

(1) Enter the Server Address of the IP Server. (2) Click to save the settings.

The Server Address should be entered with the static IP address of the computer that

runs the IP Server software. For the IP Server, you have to apply a static IP, subnet mask,

gateway and preferred DNS from the ISP.

User Manual of E Series Network Speed Dome

Figure 6-13 IPServer Settings

 HiDDNS:

Steps:

(1) Enter the Server Address: www.hik-online.com. (2) Enter the Domain name of the camera. The domain is the same with the device alias in

the HiDDNS server.

(3) Click to save the settings.

Figure 6-14 HiDDNS Settings

 NO-IP:

Steps:

(1) Enter Server Address of NO-IP. (2) In the Domain text field, enter the domain name obtained from the NO-IP website. (3) Enter the Port of NO-IP server. (4) Enter the User Name and Password registered on the NO-IP website. (5) Click to save the settings.

6.3.5 Configuring SNMP Settings

Purpose:

You can use SNMP to get speed dome status and parameters related information.

Before you start:

Before setting the SNMP, please use the SNMP software and manage to receive the speed dome information via SNMP port. By setting the Trap Address, the speed dome can send the alarm event and exception messages to the surveillance center.

The SNMP version you select should be the same as that of the SNMP software.

Steps:

User Manual of E Series Network Speed Dome

1. Enter the SNMP Settings interface:

Configuration > Advanced Configuration > Network > SNMP

Figure 6-15 SNMP Settings

2. Check the corresponding version checkbox ( , ,

) to enable the feature.

3. Configure the SNMP settings.

The configuration of the SNMP software should be the same as the settings you

configure here.

4. Click to save and finish the settings.

6.3.6 Configuring 802.1X Settings

Purpose:

The speed dome supports IEEE 802.1X standard.

IEEE 802.1X is a port-based network access control. It enhances the security level of the LAN.

When devices connect to this network with IEEE 802.1X standard, the authentication is needed. If

the authentication fails, the devices don’t connect to the network.

User Manual of E Series Network Speed Dome

Speed Dome

Network Switch

Internet

RADIUS Server

Authenticator

Authentication Server

The protected LAN with 802.1X standard is shown as follows:

Figure 6-16 Protected LAN

 Before connecting the Network Camera to the protected LAN, please apply a digital

certificate from a Certificate Authority.

 The network camera requests access to the protected LAN via the authenticator (a

switch).

 The switch forwards the identity and password to the authentication server (RADIUS

server).

 The switch forwards the certificate of authentication server to the network camera.  If all the information is validated, the switch allows the network access to the protected

network.

 For your privacy and to better protect your system against security risks, we strongly

 Proper configuration of all passwords and other security settings is the responsibility of the

installer and/or end-user.

Steps:

1. Connect the network camera to your PC directly with a network cable.

2. Enter the 802.1X Settings interface:

Configuration > Advanced Configuration > Network > 802.1X

User Manual of E Series Network Speed Dome

Figure 6-17 802.1X Settings

3. Check the Enable IEEE 802.1X checkbox to enable it.

4. Configure the 802.1X settings, including user name and password.

The EAP-MD5 version must be identical with that of the router or the switch.

5. Click to finish the settings.

The camera reboots when you save the settings.

6. After the configuration, connect the camera to the protected network.

6.3.7 Configuring QoS Settings

Purpose:

QoS (Quality of Service) can help solve the network delay and network congestion by configuring

the priority of data sending.

Steps:

1. Enter the QoS Settings interface:

Configuration >Advanced Configuration > Network > QoS

Figure 6-18 QoS Settings

2. Configure the QoS settings, including video / audio DSCP, event / alarm DSCP and

Management DSCP.

The valid DSCP value ranges from 0 to 63. The DSCP value is bigger, the priority is higher.

3. Click to save the settings.

 Make sure that you enable the QoS function of your network device (such as a router).  It will ask for a reboot for the settings to take effect.

6.3.8 Configuring FTP Settings

Purpose:

You can set a FTP server and configure the following parameters for uploading captured pictures.

Steps:

1. Enter the FTP Settings interface:

User Manual of E Series Network Speed Dome

Configuration >Advanced Configuration > Network > FTP

Figure 6-19 FTP Settings

2. Configure the FTP settings, including server address, port, user name, password, directory and

upload type.

The server address supports both the domain name and IP address formats.

 For your privacy and to better protect your system against security risks, we strongly

 Proper configuration of all passwords and other security settings is the responsibility of

the installer and/or end-user.

 Setting the directory in FTP server for saving files:

In the Directory Structure field, you can select the root directory, parent directory and

child directory.

 Root directory: The files will be saved in the root of FTP server.  Parent directory: The files will be saved in a folder in FTP server. The name of folder can

be defined as shown in following Figure 6-20.

Figure 6-20 Parent Directory

 Child directory: It is a sub-folder which can be created in the parent directory. The files

will be saved in a sub-folder in FTP server. The name of folder can be defined as shown

in following Figure 6-21.

User Manual of E Series Network Speed Dome

Figure 6-21 Child Directory

 Upload type: To enable uploading the captured picture to the FTP server.

3. Click to save the settings.

4. You can click Test to confirm the configuration.

If you want to upload the captured pictures to FTP server, you also have to enable the

continuous snapshot or event-triggered snapshot in Snapshot interface. For detailed

information, please refer to the Section 7.3 Configuring Snapshot Settings.

6.3.9 Configuring UPnP™ Settings

Universal Plug and Play (UPnP™) is a networking architecture that provides compatibility among

networking equipment, software and other hardware devices. The UPnP protocol allows devices

to connect seamlessly and to simplify the implementation of networks in the house and

corporate environments.

With the function enabled, you don’t need to configure the port mapping for each port, and the

camera is connected to the Wide Area Network via the router.

Steps:

1. Enter the UPnP™ settings interface.

Configuration >Advanced Configuration > Network > UPnP

2. Check the checkbox to enable the UPnP™ function.

You can edit the Friendly Name of the speed dome. This name can be detected by

corresponding device, such as a router.

Figure 6-22 Configure UPnP Settings

6.3.10 Configuring NAT (Network Address Translation) Settings

Steps:

1. Set the port mapping mode:

To port mapping with the default port numbers:

Choose

To port mapping with the customized port numbers:

Choose

User Manual of E Series Network Speed Dome

And you can customize the value of the port number by yourself.

2. Click to save the settings.

6.3.11 Configuring Email Settings

Purpose:

The system can be configured to send an Email notification to all designated receivers if an alarm

event is detected, e.g., motion detection event, video loss, tamper-proof, etc.

Before you start:

Please configure the DNS Server settings under Basic Configuration > Network > TCP/IP or

Advanced Configuration > Network > TCP/IP before using the Email function.

Steps:

1. Enter the Email Settings interface:

Configuration > Advanced Configuration > Network > Email

User Manual of E Series Network Speed Dome

Figure 6-23 Email Settings

2. Configure the following settings:

Sender: The name of the email sender.

Sender’s Address: The email address of the sender.

SMTP Server: The SMTP Server IP address or host name (e.g., smtp.263xmail.com).

SMTP Port: The SMTP port. The default TCP/IP port for SMTP is 25.

Enable SSL: Check the checkbox to enable SSL if it is required by the SMTP server.

Attached Image: Check the checkbox of Attached Image if you want to send emails with

attached alarm images.

Interval: The interval refers to the time between two actions of sending attached pictures.

Authentication (optional): If your email server requires authentication, check this checkbox to

use authentication to log in to this server and enter the login user name and password.

 For your privacy and to better protect your system against security risks, we strongly

 Proper configuration of all passwords and other security settings is the responsibility of

the installer and/or end-user.

Receiver: Select the receiver to which the email is sent. Up to 2 receivers can be configured.

Receiver: The name of the user to be notified.

Receiver’s Address: The email address of user to be notified. (Optional: click Test to make sure

that the email server can send email out.)

3. Click to save the settings.

6.3.12 Configuring Platform Access Settings

 Configuring EZVIZ Cloud P2P

Purpose:

EZVIZ Cloud P2P provides the mobile phone application and as well the service platform page to access and manage your connected NVR, which enables you to get a convenient remote access to the surveillance system.

Steps:

1. Enter the Platform Access configuration interface.

Configuration > Advanced Configuration > Network > Platform Access

2. Check the checkbox of the Enable.

3. Select the Platform Type as the EZVIZ Cloud P2P in the dropdown list.

4. Click the Save button to activate the settings.

You can view the register status of the device in the corresponding text.

User Manual of E Series Network Speed Dome

Among the EZVIZ Cloud P2P and DDNS, you can only select one of them to enable.

6.3.13 Configuring HTTPS Settings

Purpose:

HTTPS is consisted by SSL&HTTP. It is used for encryption transmission, identity authentication

network protocol which enhances the security of WEB accessing.

 For your privacy and to better protect your system against security risks, we strongly

 Proper configuration of all passwords and other security settings is the responsibility of the

installer and/or end-user.

 To Create Self-signed Certificate:

Steps:

Figure 6-24 HTTPS Settings

1. Click on the left of Create Self-signed Certificate.

2. In the pop-up interface, input the Country, Hostname/IP, Validity, Password, etc.. Click OK.

The Self-signed Certificate information is displayed under Installed Certificate. If you need to

disable this certificate, click Delete on the right of Installed Certificate.

3. Check the checkbox of Enable HTTPS and click the Save button.

 To Install Authoritative Certificate:

For more secure HTTPS access, you can purchase an authoritative certificate from a CA

User Manual of E Series Network Speed Dome

(Certificate Authority). Install this certificate to the device.

Steps:

1. Click on the left of Create Certificate Request.

2. In the pop-up interface, input the Country, Hostname/IP, Validity, Password, etc.. Click OK.

3. Check the checkbox of Enable HTTPS and click the Save button.

 To access the speed dome via HTTPS:

Steps:

1. Open the web browser.

2. Input the IP address of the network speed dome and press the Enter key to enter the login

interface.

 The default port number of HTTPS is 443. The port value ranges from 1 to 65535.  When the port number is the default number 443, the format of the URL is https://IP address,

eg., https://192.168.1.64.

 When the port number is not the default number 443, the format of the URL is https://IP

address:port number, eg., https://192.168.1.64:81.

User Manual of E Series Network Speed Dome

6.4 Configuring Video and Audio Settings

6.4.1 Configuring Video Settings

Steps:

1. Enter the Video Settings interface:

Configuration >Basic Configuration > Video / Audio > Video

Or Configuration > Advanced Configuration > Video / Audio > Video

Figure 6-25 Configure Video Settings

2. Select the Stream Type of the speed dome to main stream (normal) or sub-stream.

The main stream is usually for recording and live viewing with good bandwidth, and the

sub-stream can be used for live viewing when the bandwidth is limited. Refer to the Section

6.1 Configuring Local Parameters for switching the main stream and sub-stream for live

viewing.

3. You can customize the following parameters for the selected main stream or sub-stream:

Video Type:

Select the stream type to video stream, or video & audio composite stream. The audio signal

will be recorded only when the Video Type is Video & Audio.

Resolution:

Select the resolution of the video output.

Bitrate Type:

Select the bitrate type to constant or variable.

Video Quality:

When bitrate type is selected as Variable, 6 levels of video quality are selectable.

Frame Rate:

The frame rate is to describe the frequency at which the video stream is updated and it is

measured by frames per second (fps). A higher frame rate is advantageous when there is

movement in the video stream, as it maintains image quality throughout.

Max. Bitrate:

Set the max. bitrate to 32~12288Kbps. The higher value corresponds to the higher video

User Manual of E Series Network Speed Dome

quality, but the higher bandwidth is required.

Video Encoding:

The Video Encoding standard can be set to H.264.

I Frame Interval:

Set the I-Frame interval from 2 to 250.

SVC:

SVC(Scalable video coding technology) is for storing videos when the bandwidth is limited. To

use this function, a specified H.264 encoding storage device is necessary.

4. Click to save the settings.

6.4.2 Configuring Audio Settings

Steps:

1. Enter the Audio Settings interface

Configuration > Basic Configuration > Video / Audio > Audio

Or Configuration > Advanced Configuration > Video / Audio > Audio

Figure 6-26 Audio Settings

2. Configure the following settings.

Audio Encoding: G.722.1, G.711ulaw, G.711alaw, MP2L2 and G.726 selectable.

Audio Input: When an intercom is connected to the speed dome, you need to set this option

to LineIn. When a microphone is connected to the speed dome, you need to set this option to

MicIn.

Audio Stream Bitrate: When the Audio Encoding is selected as MP2L2, you can configure the

Audio Stream Bitrate in the dropdown list. The greater the value is, the better the audio

quality will be.

Sampling Rate: When the Audio Encoding is selected as MP2L2, you can configure the

Sampling Rate in the dropdown list. The greater the value is, the better the audio quality will

be.

Input Volume: Slid the bar to turn up/down the volume. The value ranges from 0 to 100.

Environmental Noise Filter: Select ON or OFF in the dropdown list to enable or disable the

function. It’s recommended to enable the function when the sampling rate is lower than

32kHz.

3. Click to save the settings.

User Manual of E Series Network Speed Dome

6.4.3 Configuring ROI Settings

Before you start:

ROI (Region of Interest) encoding is used to enhance the quality of images which are specified in

advance.

Stream Type:

You can set the ROI function for main stream or sub stream. Select a stream type and then

configure the ROI settings.

 Fixed Region: The fixed region encoding is the ROI encoding for the manually configured

area. And you can choose the Image Quality Enhancing level for ROI encoding, and you can also

name the ROI area.

Steps:

1. Select a Region No..

2. Check the checkbox of Enable under Fixed Region.

3. Click and draw a red frame in the live view image.

4. Adjust the ROI level from 1 to 6. The higher the value, the better image quality in the red

frame.

5. Enter a Region Name and click Save to save the settings.

Figure 6-27 Region of Interest

User Manual of E Series Network Speed Dome

6.5 Configuring Image Settings

6.5.1 Configuring Display Settings

Purpose:

You can set the image quality of the speed dome, including brightness, contrast, saturation,

sharpness, etc.

 The parameters in Display Settings interface vary depending on the models of speed

dome.

 You can double click the live view to enter full screen mode and double click it again to

exit.

Steps:

1. Enter the Display Settings interface:

Configuration > Basic Configuration> Image> Display Settings

Or Configuration > Advanced Configuration> Image> Display Settings

2. You can select the Mounting Scenario in the dropdown list with different predefined image

parameters.

3. Set the image parameters of the speed dome.

User Manual of E Series Network Speed Dome

Figure 6-28 Display Settings

Image Adjustment

 Brightness

This feature is used to adjust brightness of the image. The value ranges from 0 to 100.

 Contrast

This feature enhances the difference in color and light between parts of an image. The value

ranges from 0 to 100.

 Saturation

This feature is used to adjust color saturation of the image. The value ranges from 0 to 100.

 Sharpness

Sharpness function enhances the detail of the image by sharpening the edges in the image. The

value ranges from 0 to 100.

This function varies depending on the models of speed dome.

Exposure Settings

 Exposure Mode

The Exposure Mode can be set to Auto, Iris Priority, Shutter Priority, Manual.

 Auto:

The iris, shutter and gain values will be adjusted automatically according to the brightness

of the environment. You can set the iris range and shutter ranges by setting the Max. Iris

Limit, Min. Iris Limit, Max. Shutter Limit, and Min. Shutter Limit respectively.

 Iris Priority:

The value of iris needs to be adjusted manually. The shutter and gain values will be adjusted

automatically according to the brightness of the environment.

Figure 6-29 Manual Iris

 Shutter Priority:

The value of shutter needs to be adjusted manually. The iris and gain values will be adjusted

automatically according to the brightness of the environment.

Figure 6-30 Manual Shutter

 Gain Priority:

The value of gain needs to be adjusted manually. The shutter and iris values will be adjusted

automatically according to the brightness of the environment.

User Manual of E Series Network Speed Dome

Figure 6-31 Manual Gain

 Manual:

In Manual mode, you can adjust the values of Gain, Shutter, Iris manually.

This function varies depending on the models of speed dome.

 Limit Gain

This feature is used to adjust gain of the image. The value ranges from 0 to 100.

 Slow Shutter

This function can be used in underexposure condition. The slow shutter value can be set to Slow

Shutter*2, *4, *6, *12, *16, *24 and *32.

Figure 6-32 Slow Shutter

Focus Settings

 Focus Mode

The Focus Mode can be set to Auto, Manual, Semi-auto.

 Auto:

The speed dome focuses automatically at any time according to objects in the scene.

 Semi-auto:

The speed dome focuses automatically only once after panning, tilting and zooming.

 Manual:

In Manual mode, you need to use on the control panel to focus manually.

 Min. Focus Distance

This function is used to limit the minimum focus distance. The value can be set to 1.5m, 3m,

6m, 10cm and 50cm.

The minimum focus value varies depending on the models of speed dome.

Day/Night Switch

 Day/Night Switch

The Day/Night Switch mode can be set to Auto, Day and Night.

 Auto:

In Auto mode, the day mode and night mode can switch automatically according to the

light condition of environment. The switching sensitivity can be set to Low, Normal, High.

User Manual of E Series Network Speed Dome

Figure 6-33 Auto Mode Sensitivity

 Day:

In Day mode, the speed dome displays color image. It is used for normal lighting conditions.

 Night:

In Night mode, the image is black and white. Night mode can increase the sensitivity in low

light conditions.

 Schedule:

In Schedule mode, you can set the time schedule for day mode as shown in Figure 6-34.

The rest time out of the schedule is for night mode.

This function varies depending on the models of speed dome.

Figure 6-34 Day Night Schedule

 IR Light Mode

IR light mode can be set to Auto and Manual.

 Auto: The brightness of the infrared light will be adjusted automatically. IR Light

Sensitivity value ranges from 0 to 100. Trigger Mode can be set to Camera or

Photosensitive.

 Manual: you need to adjust the brightness value of infrared light manually. IR Light

Bright value ranges from 0 to 100.

Only the IR speed domes support IR Light Mode.

 When the IR Light Mode is auto, the day/night mode is adjusted automatically according to

the IR Light Mode. Manually setting the day/night mode is invalid.

 When the IR Light Mode is manual and the IR Light Bright is 0, you can set the day/night

mode manually.

 When the IR Light Mode is manual and the IR Light Bright is not 0, the night mode is set as

the default mode. Manually setting the day/night mode is invalid.

Backlight Settings

 BLC

If there’s a bright backlight, the subject in front of the backlight appears silhouetted or dark.

Enabling BLC(back light compensation) function can correct the exposure of the subject. But the

User Manual of E Series Network Speed Dome

backlight environment is washed out to white.

 WDR (Wide Dynamic Range)

The wide dynamic range (WDR) function helps the camera provide clear images even under back

light circumstances. When there are both very bright and very dark areas simultaneously in the

field of view, WDR balances the brightness level of the whole image and provide clear images

with details.

You can enable or disable the WDR function as shown in Figure 6-35. The wide dynamic level

ranges from 0 to 100.

Figure 6-35 WDR

This function varies depending on the models of speed dome.

 HLC

HLC (High Light Compensation) makes the camera identify and suppress the strong light sources

that usually flare across a scene. This makes it possible to see the detail of the image that would

normally be hidden.

White Balance

The White Balance mode can be set to Auto, MWB, Outdoor, Indoor, Fluorescent Lamp, Sodium

Lamp and Auto-Track.

 Auto:

In Auto mode, the camera retains color balance automatically according to the current color

temperature.

 Manual White Balance:

In MWB mode, you can adjust the color temperature manually to meet your own demand as

shown in Figure 6-36.

Figure 6-36 Manual White Balance

 Outdoor

You can select this mode when the speed dome is installed in outdoor environment.

 Indoor

You can select this mode when the speed dome is installed in indoor environment.

 Fluorescent Lamp

You can select this mode when there are fluorescent lamps installed near the speed dome.

 Sodium Lamp

You can select this mode when there are sodium lamps installed near the speed dome.

 Auto-Track

User Manual of E Series Network Speed Dome

In Auto-Track mode, white balance is continuously being adjusted in real-time according to the

color temperature of the scene illumination.

This function varies depending on the models of speed dome.

Image Enhancement

 3D Digital Noise Reduction

You can enable or disable the 3D Digital Noise Reduction function as shown in Figure 6-37. The

level ranges from 0 to 100.

Figure 6-37 3D Digital Noise Reduction

This function varies depending on the models of speed dome.

Video Adjustment

 Mirror

If you turn the MIRROR function on, the image will be flipped. It is like the image in the mirror.

The flip direction can be set to OFF or CENTER.

This function varies depending on the models of speed dome.

 Video Standard

You can set the Video Standard to 50hz(PAL) or 60hz(NTSC) according to the video system in your

country.

This function varies depending on the models of speed dome.

 Capture Mode

You can disable this function or set the value as 1280*720@30fps or 1280*960@30fps.

This function varies depending on the models of speed dome.

Other

 Lens Initialization

The lens operates the movements for initialization when you check the check box of Lens

Initialization.

 Zoom Limit

You can set Zoom Limit value to limit the maximum value of zooming. The value can be set to 20,

40, 80, 160 and 320.

User Manual of E Series Network Speed Dome

This function varies depending on the models of speed dome.

6.5.2 Configuring OSD Settings

Purpose:

The speed dome supports following on screen displays:

Time: Supports for time display.

Camera Name: Identifies the name of speed dome.

You can customize the on screen display of time.

Steps:

1. Enter the OSD Settings interface:

Configuration > Advanced Configuration > Image > OSD Settings

Figure 6-38 OSD Settings

2. Check the corresponding checkbox to select the display of speed dome name, date or week if

required.

3. Edit the speed dome name in the text field of Camera Name.

4. Select from the drop-down list to set the time format, date format, display mode, OSD size

and Font color.

5. You can use the mouse to click and drag the text frame in the live view window to

adjust the OSD position.

User Manual of E Series Network Speed Dome

Figure 6-39 Adjust OSD Location

6. Click to activate above settings.

6.5.3 Configuring Text Overlay Settings

Purpose:

You can customize the text overlay.

Steps:

1. Enter the Text Overlay Settings interface:

Configuration > Advanced Configuration > Image > Text Overlay

2. Check the checkbox in front of textbox to enable the on-screen display.

3. Input the characters in the textbox.

4. Use the mouse to click and drag the red text frame in the live view window to adjust

the text overlay position.

5. Click .

There are up to 4 text overlays configurable. When the video resolution is 1080p,

only one text overlay is supported. When PTZ direction, preset OSDs are displayed, the text

overlay is disabled.

User Manual of E Series Network Speed Dome

Figure 6-40 Text Overlay Settings

6.6 Configuring and Handling Alarms

Purpose:

This section explains how to configure the network speed dome to respond to alarm events,

including motion detection, video tampering and exception. These events can trigger the alarm

actions, such as Notify Surveillance Center, Send Email, Trigger, etc.

For example, when motion detection is triggered, the network speed dome sends a notification

to an e-mail address.

6.6.1 Configuring Motion Detection

Purpose:

Motion detection is a feature which can trigger alarm actions and actions of recording videos

when the motion occurred in the surveillance scene.

Steps:

1. Enter the motion detection setting interface:

Configuration > Advanced Configuration> Basic Event > Motion Detection

2. Check the checkbox of the Enable Motion Detection to enable this function.

You can check the Enable Dynamic Analysis for Motion checkbox if you want the detected

object get marked with rectangle in the live view.

3. Select the configuration mode as Normal or Expert and set the corresponding motion

detection parameters.

 Normal

User Manual of E Series Network Speed Dome

Figure 6-41 Motion Detection Settings-Normal

Steps:

(1) . Click and drag the mouse on the live video image to draw a motion detection

area.

(2) Click to finish drawing.

• You can draw up to 8 motion detection areas on the same image.

• You can click to clear all of the areas.

(3) Move the slider to set the sensitivity of the

detection.

 Expert

Figure 6-42 Motion Detection Settings-Expert

Steps:

User Manual of E Series Network Speed Dome

(1) Set the Day&Night switch mode, there are OFF, Auto-Switch and Scheduled-Switch

selectable. If the Day&Night switch mode is enabled, you can configure the detection

rule for the day and night separately.

OFF: Disable the day and night switch.

Auto-Switch: Switch the day and night mode according to the illumination

automatically.

Scheduled-Switch: Switch to the day mode at 6:00 a.m., and switch to the night mode

at 18:00 p.m..

(2) Select Area No. to configure in the dropdown list. (3) Set the values of sensitivity and proportion of object on area.

Sensitivity: The greater the value is, the easier the alarm will be triggered.

Proportion of Object on Area: When the size proportion of the moving object exceeds

the predefined value, the alarm will be triggered. The less the value is, the easier the

alarm will be triggered.

4. Set the Arming Schedule for Motion Detection.

(1) Click to pop .

Figure 6-43 Arming Schedule

(2) Choose the day you want to set the arming schedule.

Figure 6-44 Arming Time Schedule

User Manual of E Series Network Speed Dome

(3) Click to set the time period for the arming schedule. (4) (Optional) After you set the arming schedule, you can click to copy the

schedule to other days.

(5) Click to save the settings.

The time of each period cannot be overlapped. Up to 8 periods can be configured for

each day.

5. Set the Alarm Actions for Motion Detection.

You can specify the linkage method when an event occurs. The following contents are about

how to configure the different types of linkage method.

Figure 6-45 Linkage Method

Check the checkbox to select the linkage method. Notify surveillance center, send email,

upload to FTP, trigger channel and trigger alarm output are selectable.

 Notify Surveillance Center

Send an exception or alarm signal to remote management software when an event

occurs.

 Send Email

Send an email with alarm information to a user or users when an event occurs.

To send the Email when an event occurs, you need to refer to Section 6.3.11

Configuring Email Settings to set the Email parameters.

 Upload to FTP

Capture the image when an alarm is triggered and upload the picture to a FTP server.

You need a FTP server and set FTP parameters first. Refer to Section 6.3.8

Configuring FTP Settings for setting FTP parameters.

 Trigger Channel

Record a video when an event occurs.

You have to set the recording schedule to realize this function. Please refer to

Section 7.2 Configuring Recording Schedule for settings the recording schedule.

 Trigger Alarm Output

Trigger one or more external alarm outputs when an event occurs.

User Manual of E Series Network Speed Dome

To trigger an alarm output when an event occurs, please refer to Section 6.6.4

Configuring Alarm Output to set the alarm output parameters.

6.6.2 Configuring Video Tampering Alarm

Purpose:

You can configure the speed dome to trigger the alarm actions when the lens is covered.

Steps:

1. Enter the Video Tampering Settings interface :

Configuration > Advanced Configuration > Basic Event > Video Tampering

Figure 6-46 Tampering Alarm

2. Check Enable Video Tampering checkbox to enable the tampering detection.

3. Set the tampering area. Refer to Step 1 Set the Motion Detection Area in Section 6.6.1

Configuring Motion Detection.

4. Click to edit the arming schedule for tampering. The arming schedule

configuration is the same as the setting of the arming schedule for motion detection. Refer to

Step 2 Set the Arming Schedule for Motion Detection in Section 6.6.1 Configuring Motion

Detection.

5. Check the checkbox to select the linkage method taken for the tampering. Notify surveillance

center, send email and trigger alarm output are selectable. Please refer to Step 3 Set the

Alarm Actions for Motion Detection in Section 6.6.1 Configuring Motion Detection.

6. Click to save the settings.

User Manual of E Series Network Speed Dome

6.6.3 Configuring External Alarm Input

Steps:

1. Enter the Alarm Input Settings interface:

Configuration > Advanced Configuration> Basic Event > Alarm Input:

2. Choose the alarm input No. and the Alarm Type. The alarm type can be NO (Normally Open)

and NC (Normally Closed).

3. Edit the name in to set a name for the

alarm input (optional).

Figure 6-47 Alarm Input Settings

4. Click to set the arming schedule for the alarm input. Refer to Step 2 Set the

Arming Schedule for Motion Detection in Section 6.6.1 Configuring Motion Detection.

5. Check the checkbox to select the linkage method taken for the alarm input. Refer to Step 3 Set

the Alarm Actions for Motion Detection in Section 6.6.1 Configuring Motion Detection.

6. You can also choose the PTZ linking for the alarm input. Check the relative checkbox and

select the No. to enable Preset Calling, Patrol Calling or Pattern Calling.

7. You can copy your settings to other alarm inputs.

8. Click to save the settings.

User Manual of E Series Network Speed Dome

Figure 6-48 Linkage Method

6.6.4 Configuring Alarm Output

Steps:

1. Enter the Alarm Output Settings interface:

Configuration>Advanced Configuration> Basic Event > Alarm Output

2. Select one alarm output channel in the Alarm Output drop-down list.

3. Set a name in for the alarm output

(optional).

4. The Delay time can be set to 5sec, 10sec, 30sec, 1min, 2min, 5min, 10min or Manual. The

delay time refers to the time duration that the alarm output remains in effect after alarm

occurs.

5. Click to enter the Edit Schedule Time interface. The time schedule configuration

is the same as the settings of the arming schedule for motion detection. Refer to Step 2 Set

the Arming Schedule for Motion Detection in Section 6.6.1 Configuring Motion Detection.

6. You can copy the settings to other alarm outputs.

7. Click to save the settings.

User Manual of E Series Network Speed Dome

Figure 6-49 Alarm Output Settings

6.6.5 Handling Exception

The exception type can be HDD full, HDD error, network disconnected, IP address conflicted and

illegal login to the speed domes.

Steps:

1. Enter the Exception Settings interface:

Configuration > Advanced Configuration> Basic Event > Exception

2. Check the checkbox to set the actions taken for the Exception alarm. Refer to Step 3 Set the

Alarm Actions Taken for Motion Detection in Section 6.6.1 Configuring Motion Detection.

Figure 6-50 Exception Settings

3. Click to save the settings.

User Manual of E Series Network Speed Dome

6.6.6 Detecting Audio Exception

Purpose:

When you enable this function and audio exception occurs, the alarm actions will be triggered.

Steps:

1. Enter the video audio exception detection interface:

Configuration > Advanced Configuration > Smart Event > Audio Exception Detection

Figure 6-51 Audio Exception Detection

2. Check the checkbox of Audio Loss Detection to enable the audio input exception detection.

3. Check the checkbox of Sudden Increase of Sound Intensity Detection checkbox to enable

the sudden rise detection.

 Sensitivity: Range [1-100], the smaller the value the more severe the sound change will

trigger the detection.

 Sound Intensity Threshold: Range [1-100], it can filter the sound in the environment, the

louder the environment sound, the higher the value should be. You can adjust it according

to the actual environment.

4. Check the checkbox of Sudden Decrease of Sound Intensity Detection checkbox to enable

the sudden drop detection.

Sensitivity: Range [1-100], the smaller the value the more severe the sound change will

trigger the detection.

5. Click to edit the arming schedule. The arming schedule configuration is the same

as the setting of the arming schedule for motion detection. Refer to Step 2 in Section 6.6.1.

6. Check the checkbox to select the linkage method taken for audio exception. Notify

surveillance center, send email, trigger alarm output, etc. are selectable. Please refer to Step

3 in Section 6.6.1.

7. Click to save the settings.

User Manual of E Series Network Speed Dome

6.6.7 Configuring Dual-VCA

Purpose:

Enable the VCA function and then the information of the objects (e.g. human, vehicle, etc.) will be marked in the video stream and you can set rules on the connected back-end device to detect the events including line crossing, intrusion, etc..

Steps:

1. Enter the Dual-VCA function configuration interface.

Configuration> Advanced Configuration> Video/Audio> Display Info. on Stream

2. Check the Enable Dual-VCA checkbox.

3. Click to save the settings.

6.6.8 Configuring Intrusion Detection

Intrusion detection can set an area in the surveillance scene and once the area is entered, a set of alarm action is triggered.

Steps:

1. Enter the intrusion detection interface:

Configuration > Advanced Configuration > Events > Intrusion Detection

2. Check the Enable Intrusion Detection checkbox.

Figure 6-52 Configuring Intrusion Area

3. The event triggered and park action related PTZ movement will be locked for 180 seconds

after you enter the intrusion detection interface. Optionally, you can click the

button to manually activate the movement, or lock the movement when the button turns to

User Manual of E Series Network Speed Dome

by clicking it.

4. Draw area.

1) Select the Region No.in dropdown list.

2) Click to draw a rectangle on the image as a defense region.

3) Click on the image to specify a corner of the rectangle, and right-click the mouse after

four corners are configured.

Up to four areas are supported.

You can click to clear the areas you drawn.

5. Configure the parameters for each defense region separately.

 Threshold: Range [0-10s], the threshold for the time of the object loitering in the region. If

you set the value as 0, alarm is triggered immediately after the object entering the region.

 Sensitivity: Range [1-100]. The value of the sensitivity defines the size of the object which

can trigger the alarm, when the sensitivity is high, a very small object can trigger the

alarm.

6. Click to edit the arming schedule for tampering. The arming schedule

configuration is the same as the setting of the arming schedule for motion detection. Refer to

Step 2 in Section 6.6.1 Configuring Motion Detection

7. Check the checkbox to select the linkage method taken for the intrusion detection. Notify

surveillance center, send email, trigger channel, smart tracking and trigger alarm output are

selectable. Please refer to Step 3 in Section 6.6.1 Configuring Motion Detection.

8. Click to save the settings.

6.6.9 Configuring Line Crossing Detection

The virtual plane detection can be adopted for the intrusion detection. Once the virtual plane is detected being traversed according to the configured direction, a set of alarm action is triggered.

Steps:

1. Enter the Line Crossing Detection interface:

Configuration > Advanced Configuration > Events > Line Crossing Detection

2. Check the Line Crossing Detection checkbox.

3. Select the Line in dropdown list to configure.

4. The event triggered and park action related PTZ movement will be locked for 180 seconds

User Manual of E Series Network Speed Dome

after you enter the line crossing detection interface. Optionally, you can click the

button to manually activate the movement, or lock the movement when the button turns to

by clicking it.

Figure 6-53 Configuring Line

5. Draw area.

1) Click to draw a line on the image.

2) Click the line to switch to the editing mode.

Click and drag an end to the desired place to adjust the length and angle of the line. And

click and drag the line to adjust the location.

Up to four lines are supported.

6. Configure the parameters for each defense region separately.

 Direction: Select the detection direction in the dropdown list, there are A<->B, A->B and

B->A selectable.

 Sensitivity: Range [1-100]. The value of the sensitivity defines the size of the object which

can trigger the alarm, when the sensitivity is high, a very small object can trigger the

alarm.

7. Click to edit the arming schedule for line crossing detection. The arming schedule

configuration is the same as the setting of the arming schedule for motion detection. Refer to

Step 2 in Section 6.6.1 Configuring Motion Detection.

8. Check the checkbox to select the linkage method taken for the line crossing detection. Notify

surveillance center, send email, upload to FTP, trigger channel, smart tracking and trigger

alarm output are selectable. Please refer to Step 3 in Section 6.6.1 Configuring Motion

User Manual of E Series Network Speed Dome

Detection.

9. Click to save the settings.

User Manual of E Series Network Speed Dome

Chapter 7 Record Settings

Before you start:

To configure record settings, please make sure that you have the network storage device within

the network or the Micro SD card inserted in your speed dome.

7.1 Configuring NAS Settings

Before you start:

The network disk should be available within the network and properly configured to store the

recorded files, log files, etc.

Steps:

1. Add the network disk

(1) Enter the NAS (Network-Attached Storage) Settings interface:

Configuration > Advanced Configuration > Storage > NAS

(2) Select the NAS type as NFS or SMB/CIFS. If you select SMB/CIFS, you need to enter the

User Name and Password.

 For your privacy and to better protect your system against security risks, we strongly

 Proper configuration of all passwords and other security settings is the responsibility of

the installer and/or end-user.

Figure 7-1 Select NAS Type

(3) Enter the IP address of the network disk. The default NFS storage format of file path is

/dvr/test as shown in Figure 7-2. And the default SMB/CIFS storage format of file path is

/test.

(4) Click Test to make sure that the NAS is connected successfully.(Optional)

User Manual of E Series Network Speed Dome

Figure 7-2 Add Network Disk

The network disk file path name share is user-defined while creating the DVR

network storage. Please refer to the User Manual of NAS for creating the file path.

(5) Click to add the network disk.

After having saved successfully, you need to reboot the speed dome to activate the

settings.

2. Initialize the added network disk. (1) Enter the HDD Settings interface (Advanced Configuration > Storage > Storage

Management), in which you can view the capacity, free space, status, type and property

of the disk.

(2) If the status of the disk is Uninitialized as shown in Figure 7-3, check the corresponding

checkbox to select the disk and click to start initializing the disk.

Figure 7-3 Initialize Disk

Figure 7-4 Initializing

When the initialization completed, the status of disk will become Normal as shown in

Figure 7-5.

Figure 7-5 View Disk Status

Quota:

In Storage Management interface, you can predefine the storage space for storing the pictures

and videos by configuring the Percentage of Picture and Percentage of Record manually.

 Up to 8 NAS disks can be connected to the speed dome.  To initialize and use the SD card after insert it to the speed dome, please refer to the steps

of NAS disk initialization.

User Manual of E Series Network Speed Dome

7.2 Configuring Recording Schedule

Purpose:

There are two kinds of recording for the speed domes: manual recording and scheduled recording.

For the manual recording, refer to Section 4.4 Recording and Capturing Pictures Manually. In

this section, you can follow the instructions to configure the scheduled recording. By default, the

record files of scheduled recording are stored in the SD card (if supported) or in the network disk.

Steps:

1. Enter the Record Schedule Settings interface:

Configuration > Advanced Configuration> Storage > Record Schedule

Figure 7-6 Recording Schedule Interface

2. Check the checkbox of Enable Record Schedule to enable scheduled recording.

3. Set the record parameters of the speed dome.

Figure 7-7 Record Parameters

 Pre-record: The time you set to start recording before the scheduled time or the event.

For example, if an alarm triggers recording at 10:00, and the pre-record time is set as 5

seconds, the speed dome starts to record at 9:59:55.

The Pre-record time can be configured as No Pre-record, 5 s, 10 s, 15 s, 20 s, 25 s, 30 s or

not limited.

User Manual of E Series Network Speed Dome

The pre-record time changes according to the video bitrate.

 Post-record: The time you set to stop recording after the scheduled time or the event.

For example, if an alarm triggered recording ends at 11:00, and the post-record time is

set as 5 seconds, the speed dome records until 11:00:05.

The Post-record time can be configured as 5 s, 10 s, 30 s, 1 min, 2 min, 5 min or 10 min.

 Overwrite: If you enable his function and the HDD is full, the new record files overwrite

the oldest record files automatically.

 Recording Stream: You can select the stream type for recording; Main stream and Sub

Stream are selectable. If you select the sub stream, you can record for a longer time with

the same storage capacity.

The Pre-record and Post-record parameters vary depending on the speed dome

model.

4. Click to edit the record schedule.

Figure 7-8 Record Schedule

5. Choose the day to set the record schedule. (1) Set all-day record or segment record:

 If you want to configure the all-day recording, please check the All Day checkbox.  If you want to record in different time sections, check the Customize checkbox. Set the

Start Time and End Time.

The time of each segment can’t be overlapped. Up to 8 segments can be

User Manual of E Series Network Speed Dome

configured.

(2) Select a Record Type. The record type can be Normal, Motion Detection, Alarm, Motion

| Alarm, Motion & Alarm.

 Normal

If you select Normal, the video will be recorded automatically according to the time of

the schedule.

 Record Triggered by Motion Detection

If you select Motion Detection, the video will be recorded when the motion is

detected.

Besides configuring the recording schedule, you have to set the motion detection area

and check the checkbox of Trigger Channel in the Linkage Method of Motion Detection

Settings interface. For detailed information, please refer to the Step 1 Set the Motion

Detection Area in the Section 6.6.1 Configuring Motion Detection.

 Record Triggered by Alarm

If you select Alarm, the video will be recorded when the alarm is triggered via the

external alarm input channels.

Besides configuring the recording schedule, you have to set the Alarm Type and check

the checkbox of Trigger Channel in the Linkage Method of Alarm Input Settings

interface. For detailed information, please refer to Section 6.6.4 Configuring External

Alarm Input.

 Record Triggered by Motion & Alarm

If you select Motion & Alarm, the video will be recorded when the motion and alarm

are triggered at the same time.

Besides configuring the recording schedule, you have to configure the settings on the

Motion Detection and Alarm Input Settings interfaces. Please refer to Section 6.6.1

and Section 6.6.4 for detailed information.

 Record Triggered by Motion | Alarm

If you select Motion | Alarm, the video will be recorded when the external alarm is

triggered or the motion is detected.

Besides configuring the recording schedule, you have to configure the settings on the

Motion Detection and Alarm Input Settings interfaces. Please refer to Section 6.6.1

and Section 6.6.4 for detailed information.

User Manual of E Series Network Speed Dome

Figure 7-9 Edit Record Schedule

(3) Check the checkbox and click to copy settings of this day to

the whole week. You can also check any of the checkboxes before the date and click

(4) Click to save the settings and exit the Edit Record Schedule interface.

6. Click to save the settings.

7.3 Configuring Snapshot Settings

Purpose:

You can configure the scheduled snapshot and event-triggered snapshot. You can upload the

captured pictures to a FTP server.

Basic Settings

Steps:

1. Enter the Snapshot Settings interface:

Configuration > Advanced Configuration > Storage > Snapshot

2. Check the Enable Timing Snapshot checkbox to enable continuous snapshot. Check the

Enable Event-triggered Snapshot checkbox to check event-triggered snapshot.

3. Select the quality of the snapshot.

4. Set the time interval between two snapshots.

5. Click to save the settings.

User Manual of E Series Network Speed Dome

Uploading to FTP

Please make sure that the FTP server is online.

You can follow below configuration instructions to upload the snapshots to FTP.

 Upload continuous snapshots to FTP

Steps:

1) Configure the FTP settings and check checkbox in FTP Settings interface.

Please refer to Section 6.3.8 Configuring FTP Settings for more details to configure FTP

parameters.

2) Check the Enable Timing Snapshot checkbox.

3) Click Edit to set the snapshot schedule. Refer to Step 2 Set the Arming Schedule for Motion

Detection in Section 6.6.1 Configuring Motion Detection.

 Upload event-triggered snapshots to FTP

Steps:

1) Configure the FTP settings and check checkbox in FTP Settings

interface. Please refer to Section 6.3.8 Configuring FTP Settings for more details to configure

FTP parameters.

2) Check checkbox in Motion Detection Settings or Alarm Input interface.

Please refer to Step 3 Set the Alarm Actions Taken for Motion Detection in Section 6.6.1

Configuring Motion Detection, or Step 4 Configuring External Alarm Input in Section 6.6.1

Configuring Motion Detection.

3) Check the Enable Event-triggered Snapshot checkbox.

User Manual of E Series Network Speed Dome

Figure 7-10 Snapshot Settings

User Manual of E Series Network Speed Dome

Chapter 8 Playback

Purpose:

This section explains how to view the remotely recorded video files stored in the network disks or

SD cards.

Task 1: To play back the video files

Steps:

1. Click on the menu bar to enter playback interface.

Figure 8-1 Playback Interface

2. Select the date and click .

Figure 8-2 Search Video

3. Click to play the video files found on this date.

User Manual of E Series Network Speed Dome

Button

Operation

Button

Operation

Play

Capture a picture

Pause

Start/Stop clipping video

files

Stop

Audio on and adjust

volume/Mute

Speed down

Download video files

Speed up

Download captured

pictures

Display playback status

Playback by frame

The toolbar on the bottom of Playback interface can be used to control playing process.

Figure 8-3 Playback Toolbar

Table 8-1 Description of the buttons

You can choose the file paths locally for downloaded playback video files and pictures

in Local Configuration interface. Please refer to Section 6.1 Configuring Local Parameters for

details.

Drag the progress bar with the mouse to locate the exact playback point. You can also input the

time and click to locate the playback point in the Set playback time field. You can also

click to zoom out/in the progress bar.

Figure 8-4 Set Playback Time

Figure 8-5 Progress Bar

The different colors of the video on the progress bar stand for the different video types as shown

in Figure 8-6.

Figure 8-6 Video Types

User Manual of E Series Network Speed Dome

Task 2: To download the video files

Steps:

1. Click on the playback interface. The pop-up menu is shown in Figure 8-7.

2. Set the start time and end time. Click Search. The corresponding video files are listed on the

left.

Figure 8-7 Video Downloading interface

3. Check the checkbox in front of the video files that you need to download.

4. Click to download the video files.

 The progress ratio displays the downloading ratio of the video file.  You can click to stop the downloading.

 The total number displays the amount of the video files.  The video files are not all listed on one page. You can click

to turn pages.

Task 3: To download the captured pictures

Steps:

1. Click on the playback interface. The pop-up menu is shown in Figure 8-8.

2. Set the linkage type of capturing the pictures as timing, alarm, motion, etc..

3. Set the start time and end time. Click Search. The corresponding picture files are listed on

the left.

4. Check the checkbox in front of the files that you need to download.

5. Click to download the files.

User Manual of E Series Network Speed Dome

Figure 8-8 Picture Downloading interface

User Manual of E Series Network Speed Dome

Chapter 9 Log Searching

Purpose:

The operation, alarm, exception and information of the speed dome can be stored in log files. You

can also export the log files on your demand.

Before you start:

Please configure network storage for the speed dome or insert a SD card in the speed dome.

Steps:

1. Click on the menu bar to enter log searching interface.

Figure 9-1 Log Searching Interface

2. Set the log search conditions to specify the search, including the Major Type, Minor Type,

Start Time and End Time as shown in Figure 9-2.

3. Click to search log files. The matched log files will be displayed on the Log

interface.

Figure 9-2 Log Searching

4. To export the log files, click to save the log files in your computer.

User Manual of E Series Network Speed Dome

Chapter 10 Others

10.1 Managing User Accounts

Enter the User Management interface:

Configuration >Basic Configuration> Security > User

Or Configuration > Advanced Configuration> Security > User

The admin user has access to create, modify or delete other accounts. Up to 32 user accounts can

be created.

Figure 10-1 User Information

 Add a User

Steps:

1. Click to add a user.

2. Input the new User Name, select Level and input Password.

The level indicates the permissions you give to the user. You can define the user as

Operator or User.

3. In the Basic Permission field and Camera Configuration field, you can check or uncheck the

permissions for the new user.

4. Click to finish the user addition.

Figure 10-2 Add a User

User Manual of E Series Network Speed Dome

 Modify a User

Steps:

1. Left-click to select the user from the list and click .

2. Modify the User Name, Level or Password.

3. In the Basic Permission field and Camera Configuration field, you can check or uncheck the

permissions.

4. Click to finish the user modification.

Figure 10-3 Modify a User

 Delete a User

Steps:

1. Left-click the user name you want to delete and click .

2. Click on the pop-up dialogue box to delete the user.

Figure 10-4 Delete a User

User Manual of E Series Network Speed Dome

10.2 Configuring Authentication Security

Purpose:

You can specifically secure the stream data of live view.

Steps:

1. Enter the Authentication interface:

Configuration> Advanced Configuration> Security > Authentication

2. Set the authentication mode for each authentication type.

RTSP Authentication: Select the authentication mode as basic or disable in the dropdown list

to enable or disable the RTSP authentication.

3. Click to save the settings.

10.3 Configuring Anonymous Visit

Enabling this function allows visit for whom doesn’t have the user name and password of the

device.

Only live view is available for the anonymous user.

Steps:

1. Enter the Anonymous Visit interface:

Configuration> Advanced Configuration> Security > Anonymous Visit

Figure 10-5 Anonymous Visit

2. Set the Anonymous Visit permission Enable or Disable in the drop-down list to enable or

disable the anonymous visit.

3. Click Save to save the settings.

There will be a checkbox of Anonymous by the next time you logging in.

Figure 10-6 Login Interface with an Anonymous Checkbox

4. Check the checkbox of Anonymous and click Login.

By permitting the Anonymous “Live View” function, you may enable others to access your speed

dome and view live images without providing login credentials. It therefore is critical when

User Manual of E Series Network Speed Dome

Filter Type

Description

Forbidden

Forbid the IP addresses added in the IP Address Filter

interface to log in.

Allowed

Allow only the IP addresses added in the IP Address Filter

interface to log in.

permitting the Anonymous "Live View" function to ensure that your camera's field of view does

not impact the privacy of individuals whose images might be captured without authorization.

Given its inherent intrusiveness, video surveillance is inappropriate in areas where people have a

higher expectation of privacy.

10.4 Configuring IP Address Filter

With this function on, the camera allows certain IP addresses whether to log in or not.

Figure 10-7 IP Address Filter

10.5 Security Service

Steps:

1. Enter the Security Service interface:

Configuration> Advanced Configuration> Security > Security Service

2. Check the checkbox to enable the SSH function.

Enable SSH: Enabling SSH (Secure Shell) function is to encrypt and compress the data and to

reduce the transmission time.

10.6 Viewing Device Information

Enter the Device Information interface:

Configuration > Basic Configuration> System > Device Information

Or Configuration > Advanced Configuration> System > Device Information

In the Device Information interface, you can edit the Device Name.

Other information of the network speed dome, such as Model, Serial No., Firmware Version,

Hikvision DS-2DE4220-AE, DS-2DE4225W-DE, DS-2DE4225W-DE3, DS-2DE5130W-AE, DS-2DE5130W-AE3 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Chapter 1 Overview

1.1 System Requirement

1.2 Functions

Chapter 2 Network Connection
