Hikvision DS-2CE56D8T-IT3ZE User Manual

Key Feature

 2 MP, 1920 × 1080 resolution
 Ultra-Low Light
 130 dB true WDR, 3D DNR
 2.7 mm to 13.5 mm varifocal lens, auto focus
 Smart IR, up to 60 m IR distance
 Power over coaxial
 IP67

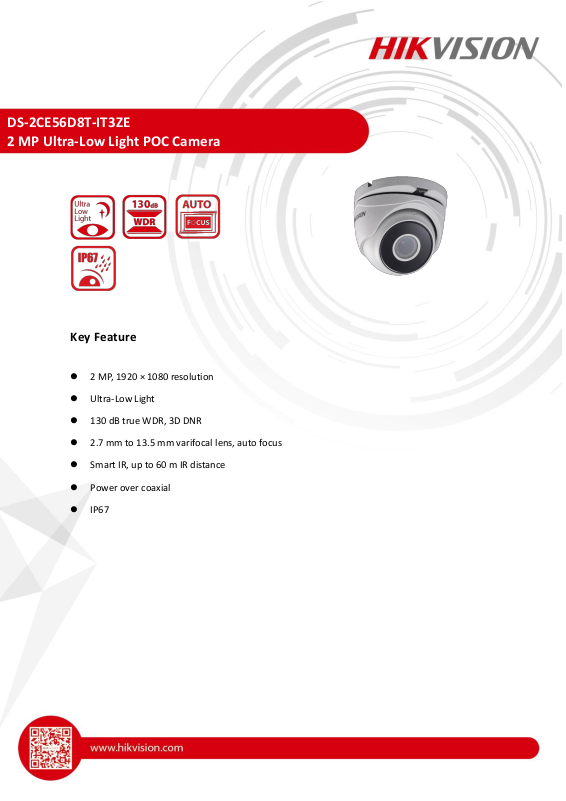

DS-2CE56D8T-IT3ZE
2 MP Ultra-Low Light POC Camera

Camera

Image Sensor

2 MP CMOS

Signal System

PAL/NTSC

Frame Rate

PAL: 1080p@25fps
NTSC: 1080p@30fps

Resolution

1920 (H) × 1080 (V)

Min. Illumination

0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s

Slow Shutter

Max. 16 times

Lens

2.7 mm to 13.5 mm motorized, auto focus

Horizontal Field of View

103° to 32.1°

Lens Mount

Φ14

Day & Night

ICR

WDR (Wide Dynamic Range)

≥130 dB

Angle Adjustment

Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°

Menu

Image Mode

STD/HIGH-SAT

AGC

Yes

Day/Night Mode

Auto/Color/BW (Black and White)

White Balance

Auto/Manual

AE (Auto Exposure) Mode

WDR/BLC/HLC/Global

Privacy Mask

4 programmable privacy masks

Motion Detection

4 programmable motion areas

Noise Reduction

3D DNR

Language

English

Function

Brightness, Sharpness, Mirror, Smart IR

Interface

Video Output

1 HD analog output

General

Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)

Power Supply

12 VDC ± 25%/PoC.at

Power Consumption

Max. 8.2 W

Protection Level

IP67

Material

Metal

IR Range

Up to 60 m

Communication

HIKVISION-C

Dimensions

134.3 mm × 111.35 mm (5.29" × 4.38")

Weight

Approx. 610 g (1.34 lb.)

Specification
