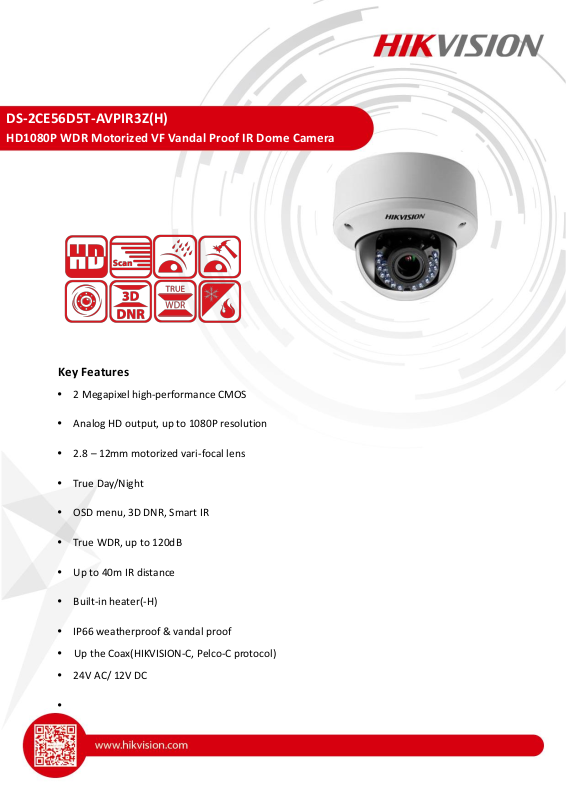

DS-2CE56D5T-AVPIR3Z(H)

HD1080P WDR Motorized VF Vandal Proof IR Dome Camera

 2 Megapixel high-performance CMOS

 Analog HD output, up to 1080P resolution

 2.8 – 12mm motorized vari-focal lens

 True Day/Night

 OSD menu, 3D DNR, Smart IR

 True WDR, up to 120dB

 Up to 40m IR distance

 Built-in heater(-H)

 IP66 weatherproof & vandal proof
 Up the Coax(HIKVISION-C, Pelco-C protocol)
 24V AC/ 12V DC



Key Features

Specifications

Camera

Image Sensor

2MP CMOS Image Sensor

Signal System

PAL/NTSC

Effective Pixels

1944(H)*1092(V)

Min. illumination

0.01 Lux @ (F1.2,AGC ON),0 Lux with IR; 0.014 Lux @ (F1.4,AGC ON),0 Lux with IR

Shutter Time

1/25(1/30)s to 1/50,000s

Lens
Motorized VF lens; 2.8 - 12 mm @ F1.4

Angle of view: 103°- 32.1°

Lens Mount

φ14

Day & Night

ICR

Angle Adjustment

Pan: 0 - 355°, Tilt: 0 - 75°, Rotation: 0 - 355°

Synchronization

Internal synchronization

WDR

120dB

Video Frame Rate

1080p@25fps/1080p@30fps

HD Video Output

1 Analog HD output

CVBS Output

1Vp-p Composite Output(75Ω/BNC)

S/N Ratio

＞62dB

Menu

Scene

Indoor, Outdoor, Indoor1, LOW-LIGHT

Camera ID

On/off (15 characters, position programmable)

AGC

Support

D/N Mode

Color/BW/EXT

White Balance

ATW, AWC-SET, Manual

Privacy Mask

On/Off, maximum 8 zones

Motion Detection

On/Off, maximum 4 zones

BLC

Support

Anti-flicker

On/Off

Language

English, Japanese, CHN1, CHN2, Korean, German, French, Italian, Spanish, Polish, Russian, Portuguese,
Dutch, Turkish, Hebrew and Arabic

Functions

HSBLC, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction,
SMART D-ZOOM

General

Operating Conditions

-30 °C – 60 °C (-22 °F – 140 °F), Humidity 90% or less (non-condensing)

-H:-40 °C - 60 °C (-40 °F - 140 °F), Humidity 90% or less (non-condensing)

Power Supply

12 VDC±15%, 24 VAC±15%, Heater is available with 24VAC only

Power Consumption

Max. 6W, -H: Max. 12W

Protection Level

IP66

IR Range

Up to 40m

Heater

Optional

Impact Protection

IK10

Communication

Up the coax, Protocol: Pelco-C(CVBS output), HIKVISION-C(TVI output)

Dimensions

Φ 145.3 × 124.2 mm (Φ 5.72” × 4.89”)

Weight

1350 g
