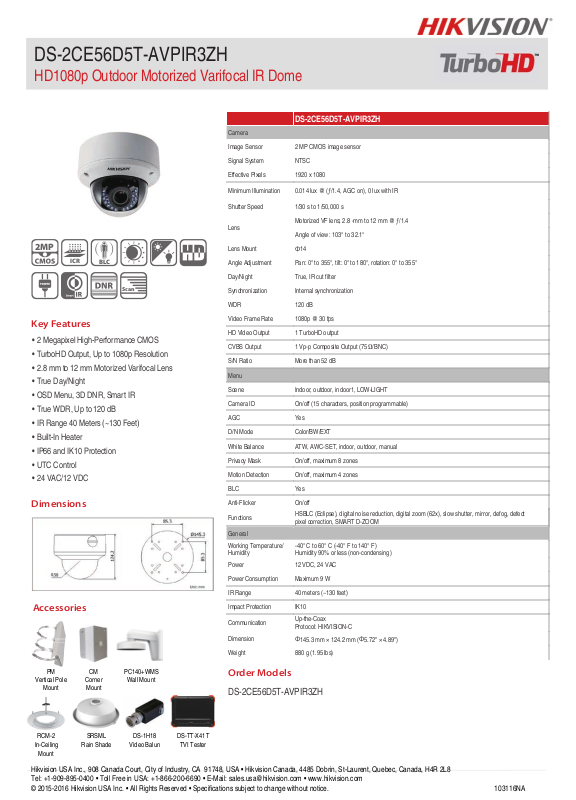

Hikvision DS-2CE56D5T-AVPIR3ZH Specsheet
DS-2CE56D5T-AVPIR3ZH
HD1080p Outdoor Motorized Varifocal IR Dome
Camera
Image Sensor 2 MP CMOS image sensor
Signal System NTSC
Effective Pixels 1920 x 1080
Minimum Illumination 0.014 lux @ (ƒ/1.4, AGC on), 0 lux with IR
Shutter Speed 1/30 s to 1/50,000 s
Lens
2MP
ICR
BLC
Scan
Key Features
• 2 Megapixel High-Performance CMOS
• TurboHD Output, Up to 1080p Resolution
• 2.8 mm to 12 mm Motorized Varifocal Lens
• True Day/Night
• OSD Menu, 3D DNR, Smart IR
• True WDR, Up to 120 dB
• IR Range 40 Meters (~130 Feet)
• Built-In Heater
• IP66 and IK10 Protection
• UTC Control
• 24 VAC/12 VDC
Dimensions
Accessories
Lens Mount
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 180°, rotation: 0° to 355°
Day/Night True, IR cut filter
Synchronization Internal synchronization
WDR 120 dB
Video Frame Rate 1080p @ 30 fps
HD Video Output 1 TurboHD output
CVBS Output 1 Vp-p Composite Output (75 Ω/BNC)
S/N Ratio More than 52 dB
Menu
Scene Indoor, outdoor, indoor1, LOW-LIGHT
Camera ID On/off (15 characters, position programmable)
AGC Yes
D/N Mode Color/BW/EXT
White Balance ATW, AWC-SET, indoor, outdoor, manual
Privacy Mask On/off, maximum 8 zones
Motion Detection On/off, maximum 4 zones
BLC Yes
Anti-Flicker On/off
Functions
General
Working Temperature/
Humidity
Power 12 VDC, 24 VAC
Power Consumption Maximum 9 W
IR Range 40 meters (~130 feet)
Impact Protection IK10
Communication
Dimension
Weight 880 g (1.95 lbs)
DS-2CE56D5T-AVPIR3ZH
Motorized VF lens; 2.8 -mm to 12 mm @ ƒ/1.4
Angle of view: 103° to 32.1°
Φ
14
HSBLC (Eclipse), digital noi
pixel correction, SMART D-ZOOM
-40° C to 60° C (-40° F to 140° F)
Humidity 90% or less (non-condensing)
Up-the-Coax
Protocol: HIKVISION-C
Φ
145.3 mm × 124.2 mm (Φ5.72" × 4.89")
se reduction, digital zoom (62x), slow shutter, mirror, defog, defect
PM
Vertical Pole
Mount
RCM-2
In-Ceiling
Mount
CM
Corner
Mount
SRSML
Rain Shade
PC140+WMS
Wall Mount
DS-1H18
Video Balun
DS-TT-X41T
TVI Tester
Order
Models
DS-2CE56D5T-AVPIR3ZH
Hikvision USA Inc., 908 Canada Court, City of Industry, CA 91748, USA • Hikvision Canada, 4485 Dobrin, St-Laurent, Quebec, Canada, H4R 2L8
Tel: +1-909-895-0400 • Toll Free in USA: +1-866-200-6690 • E-Mail: sales.usa@hikvision.com • www.hikvision.com
© 2015-2016 Hikvision USA Inc. • All Rights Reserved • Specifications subject to change without notice.
103116NA
