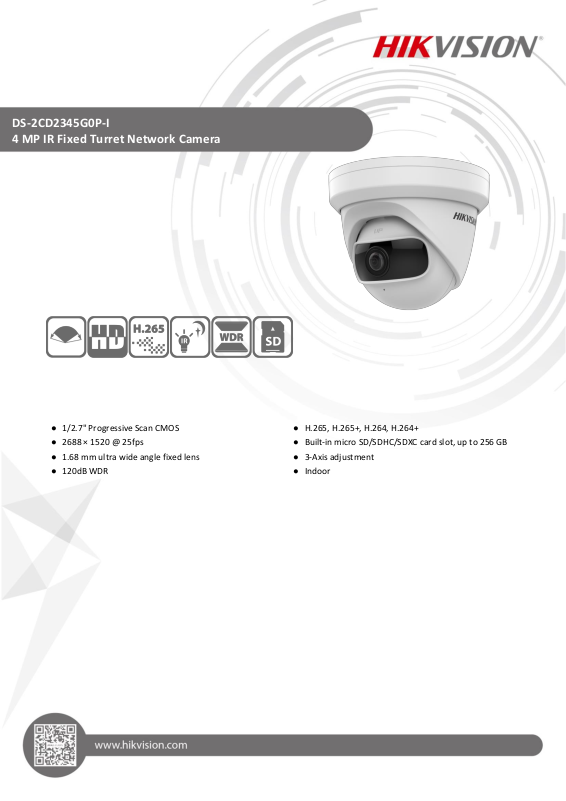

DS-2CD2345G0P-I
4 MP IR Fixed Turret Network Camera

● 1/2.7" Progressive Scan CMOS

● 2688 × 1520 @ 25fps

● 1.68 mm ultra wide angle fixed lens

● 120dB WDR

● H.265, H.265+, H.264, H.264+

● Built-in micro SD/SDHC/SDXC card slot, up to 256 GB

● 3-Axis adjustment

● Indoor

Specifications

Camera

Image Sensor

1/2.7" Progressive Scan CMOS

Min. Illumination

Color: 0.028 Lux @ (F2.0, AGC ON)
B&W: 0.0028 Lux @ (F2.0, AGC ON), 0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Day & Night

IR Cut Filter

WDR

120 dB

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

Lens Type

Fixed lens, 1.68 mm

Aperture

F2.0

FOV

1.68 mm, horizontal FOV: 180° , vertical FOV: 101° , diagonal FOV: 180°

Lens Mount

M12

Illuminator

IR Range

Up to 10 m

Wavelength

850 nm

Video

Max. Resolution

2688 × 1520

Main Stream

50Hz: 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 24fps (2688 × 1520), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)

Sub Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Video Compression

Main stream: H.265+/H.264+/H.265/H.264
Sub-stream: H.265/H.264/MJPEG

H.264 Type

Main Profile/High Profile

H.265 Type

Main Profile

Video Bit Rate

32 Kbps to 16 Mbps

Scalable Video Coding (SVC)

H.264 and H.265 encoding support

Smart Feature-Set

Smart Event

Line crossing detection, intrusion detection, unattended baggage detection, object
removal detection, face detection, scene change detection

Basic Event

Motion detection, video tampering alarm, exception (network disconnected, IP
address conflict, illegal login, HDD full, HDD error)

Linkage Method

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger
recording, trigger capture

Region of Interest

1 fixed region for main stream and sub-stream


Image Enhancement

BLC, HLC, 3D DNR
