DS-2CD2343G0-I
4 MP IR Fixed Turret Network Camera
BLC/3D DNR/ROI
IP67
Built-in micro SD/SDHC/SDXC card slot,
up to 128 GB
3-Axis adjustment
1/3" Progressive Scan CMOS
2560 × 1440@30fps
2.8/4/6/8 mm fixed lens
Color: 0.01 Lux @ (F1.2, AGC ON),
0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
H.265+, H.265, H.264+, H.264
Three streams
120dB WDR
2 Behavior analyses, and face detection
Key Features
Specifications
Camera
Image Sensor
1/3" Progressive Scan CMOS
Min. Illumination
Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed
1/3 s to 1/100,000 s
Slow Shutter
Yes
Auto-Iris
No
Day & Night
IR Cut Filter
Digital Noise Reduction
3D DNR
WDR
120dB
3-Axis Adjustment
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Focal length
2.8/4/6/8 mm
Aperture
F1.6
Focus
Manual
FOV
2.8 mm: horizontal FOV: 98°, vertical FOV: 55°, diagonal FOV: 114°
4 mm: horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 93°
6 mm: horizontal FOV: 48°, vertical FOV: 27°, diagonal FOV: 54°
8 mm: horizontal FOV: 37°, vertical FOV: 21°, diagonal FOV: 44°
Lens Mount
M12
IR
IR Range
Up to 30 m
Wavelength
850nm
Compression Standard
Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type
Main Profile/High Profile
H.264+
Main stream and sub-stream support
H.265 Type
Main Profile
H.265+
Main stream and sub-stream support
Video Bit Rate
32 Kbps to 16 Mbps
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection
Face Detection
Yes
Region of Interest
1 fixed region for main stream and sub-stream
Max. Resolution
2560 × 1440
Main Stream
50Hz:25fps (2560 × 1440, 2304 × 1296, 1920 × 1080)
60Hz: 30fps (2560 × 1440, 2304 × 1296, 1920 × 1080)
Sub-Stream
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream
50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Image Enhancement
BLC/3D DNR
Image Setting
Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web
browser
Target Cropping
No
Day/Night Switch
Auto/Schedule
Network
Network Storage
Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD
full, HDD error
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP,
SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function
One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filter
Firmware Version
V5.5.2
API
ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View
Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client
iVMS-4200, Hik-Connect, iVMS-5200
Web Browser
IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port
On-board storage
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
SVC
H.264 and H.265 encoding
Reset Button
Yes
General
Operating Conditions
-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, Φ 5.5 mm coaxial power plug
PoE (802.3af, class 3)
Power Consumption and
Current
12 VDC, 0.5A, max. 6W
PoE (802.3af, 37V to 57V), 0.2A to 0.1A, max. 7.5W
Protection Level
IP67
TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material
Metal
Dimensions
Camera: Φ 127.3 × 95.9 mm (Φ 5.0" × 3.8")
Package: 150 × 150 × 141 mm (5.9" × 5.9" × 5.6")
Weight
Camera: Approx. 610 g (1.3 lb.)
With Package: Approx. 880 g (1.9 lb.)
Available Model:
DS-2CD2343G0-I (2.8/4/6/8 mm)
DS-1273ZJ-130-TRL
Wall Mount
DS-1275ZJ
Vertical Pole Mount
DS-1276ZJ
Corner Mount
DS-1280ZJ-DM8
Junction Box
DS-1281ZJ-M
Inclined Ceiling Mount
Accessories

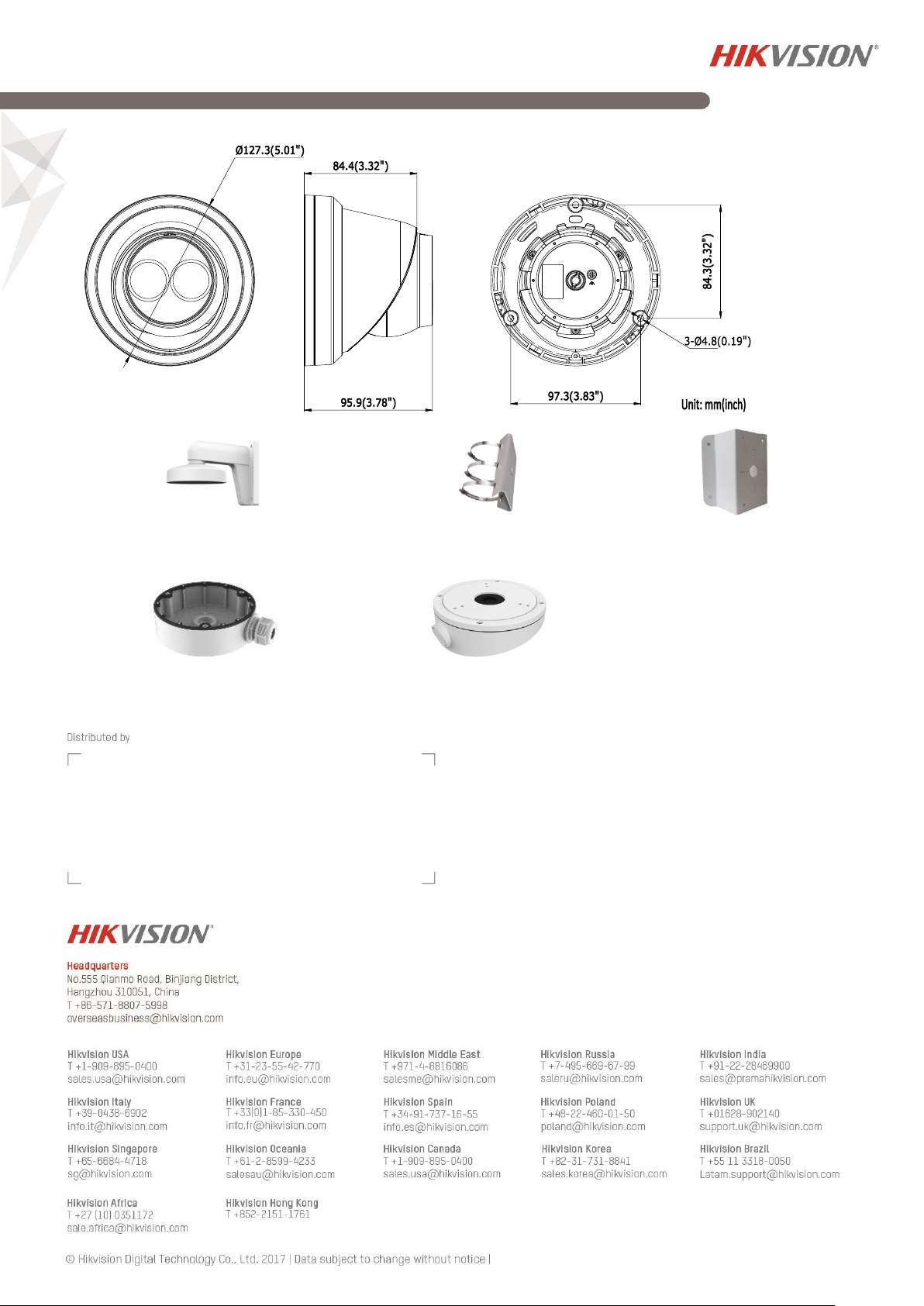

Dimensions
