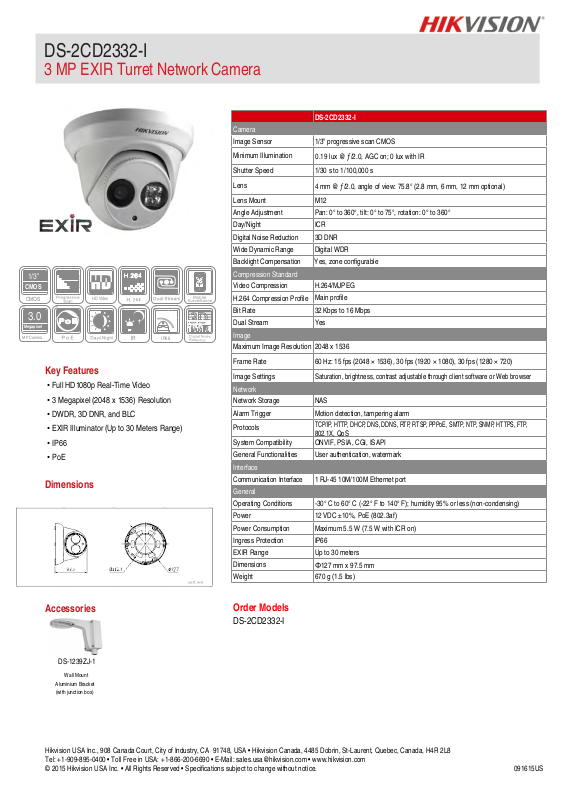

Hikvision DS-2CD2332-I-2, DS-2CD2332-I-4 Specsheet
DS-2CD2332-I
3 MP EXIR Turret Network Camera
1/3”
CMOS
CMOS
3.0
Megapixel
MP Camera
Key Features
• Full HD1080p Real-Time Video
• 3 Megapixel (2048 x 1536) Resolution
• DWDR, 3D DNR, and BLC
• EXIR Illuminator (Up to 30 Meters Range)
• IP66
• PoE
Dimensions
HD Video
3D
IR
IP66
DS-2CD2332-I
Camera
Image Sensor 1/3" progressive scan CMOS
Minimum Illumination
Shutter Speed 1/30 s to 1/100,000 s
Lens
Lens Mount M12
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°
Day/Night ICR
Digital Noise Reduction 3D DNR
Wide Dynamic Range Digital WDR
Backlight Compensation
Compression Standard
Video Compression H.264/MJPEG
H.264 Compression Profile
Bit Rate 32 Kbps to 16 Mbps
Dual Stream Yes
Maximum Image Resolution 2048 x 1536
Frame Rate 60 Hz: 15 fps (2048 × 1536), 30 fps (1920 × 1080), 30 fps (1280 × 720)
Image Settings
Network
Network Storage NAS
Alarm Trigger Motion detection, tampering alarm
Protocols
System Compatibility ONVIF, PSIA, CGI, ISAPI
General Functionalities User authentication, watermark
Interface
Communication Interface 1 RJ-45 10M/100M Ethernet port
General
Operating Conditions -30° C to 60° C (-22° F to 140° F); humidity 95% or less (non-condensing)
Power 12 VDC ±10%, PoE (802.3af)
Power Consumption Maximum 5.5 W (7.5 W with ICR on)
Ingress Protection IP66
EXIR Range Up to 30 meters
Dimensions
Weight 670 g (1.5 lbs)
0.19 lux @ ƒ/2.0, AGC on; 0 lux with IR
4 mm @ ƒ/2.0, angle of view: 75.8° (2.8 mm, 6 mm, 12 mm optional)
Yes, zone configurable
Main profile
Saturation, brightness, contrast adjustable through client software or Web browser
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP,
802.1X, QoS
Φ
127 mm x 97.5 mm
Accessories
Order Models
DS-2CD2332-I
DS-1239ZJ-1
Wall Mount
Aluminium Bracket
(with junction box)
Hikvision USA Inc., 908 Canada Court, City of Industry, CA 91748, USA • Hikvision Canada, 4485 Dobrin, St-Laurent, Quebec, Canada, H4R 2L8
Tel: +1-909-895-0400 • Toll Free in USA: +1-866-200-6690 • E-Mail: sales.usa@hikvision.com • www.hikvision.com
© 2015 Hikvision USA Inc. • All Rights Reserved • Specifications subject to change without notice. 091615US
