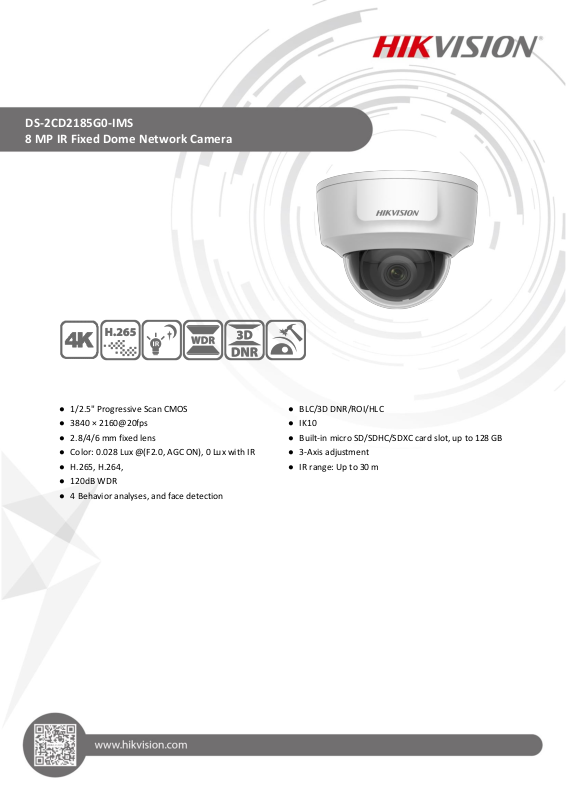

DS-2CD2185G0-IMS
8 MP IR Fixed Dome Network Camera
● 1/2.5" Progressive Scan CMOS
● 3840 × 2160@20fps
● 2.8/4/6 mm fixed lens
● Color: 0.028 Lux @(F2.0, AGC ON), 0 Lux with IR
● H.265, H.264,
● 120dB WDR
● 4 Behavior analyses, and face detection
● BLC/3D DNR/ROI/HLC
● IK10
● Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
● 3-Axis adjustment
● IR range: Up to 30 m
Specifications
Camera
Image Sensor
1/2.5" Progressive Scan CMOS
Min. Illumination
Color: 0.028 Lux @(F2.0, AGC ON), 0 Lux with IR
Shutter Speed
1/3 s to 1/100,000 s
Slow Shutter
Yes
Day & Night
IR Cut Filter
WDR
120 dB
Angle Adjustment
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
Lens Type
2.8/4/6 mm
Aperture
F2.0
FOV
2.8 mm, horizontal FOV: 102°, vertical FOV: 53°, diagonal FOV: 124°
4 mm, horizontal FOV: 79°, vertical FOV: 42°, diagonal FOV: 95°
6 mm, horizontal FOV: 50° , vertical FOV: 28° , diagonal FOV: 59°
Lens Mount
M12
Illuminator
IR Range
Up to 30 m
Wavelength
850 nm
Video
Max. Resolution
3840 × 2160
Main Stream
50Hz: 20fps (3840 × 2160), 25fps (3072 × 1728, 1920 × 1080, 1280 × 720)
60Hz: 20fps (3840 × 2160, 3072 × 1728, 1920 × 1080, 1280 × 720)
Sub Stream
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 20fps (640 × 480, 640 × 360, 320 × 240)
Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
H.264 Type
Main Profile/High Profile
H.264+
No
H.265 Type
Main Profile
H.265+
No
Video Bit Rate
32 Kbps to 16 Mbps
* When the main stream resolution is 3840 × 2160, max frame rate is 20 fps for all streams.
Audio
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM/MP3
Audio Bit Rate
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8-320Kbps(
MP3)
Environment Noise Filtering
Yes
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Smart Feature-Set
Smart Event
Line crossing detection, intrusion detection, unattended baggage detection,
object removal detection, face detection, scene change detection
Basic Event
Motion detection, video tampering alarm, exception (network disconnected, IP
address conflict, illegal login, HDD full, HDD error)
Face Detection
Yes
Linkage Method
Trigger recording: memory card, network storage, pre-record and post-record
Trigger captured pictures uploading: FTP, HTTP, NAS, Email
Trigger notification: HTTP, ISAPI, Email
Region of Interest
1 fixed region for main stream and sub-stream
Image Enhancement
BLC, HLC, 3D DNR
Image Setting
Saturation, brightness, contrast, sharpness, AGC, and white balance are
adjustable by client software or web browser
Day/Night Switch
Day/Night/Auto/Schedule/Triggered by Alarm In
Network
Network Storage
microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR
Together with high-end Hikvision memory card, memory card encryption and
health detection are supported.
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,
UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
API
ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
Security
Password protection, complicated password, HTTPS encryption, 802.1X
authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter,
basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication
for ONVIF, TLS1.2
Simultaneous Live View
Up to 6 channels
User/Host
Up to 32 users, 3 levels: administrator, operator and user
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE8+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
Local Service: Chrome 41.0+, Firefox 30.0+
Interface
Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port
Audio
1 input (line in/mic in, terminal block), 1 output ( two-core terminal block), mono
sound
Alarm
1 input, 1 output (max. 12VDC, 30 mA)
Video Output
1 HDMI™, type D, female plug (-M)
On-board storage
Built-in micro SD/SDHC/SDXC slot, up to 128 GB
HDMI Output
1920 × 1080 @50/60 fps(50/60 Hz), 1280 × 720 @50/60 fps(50/60 Hz)
General
Web Client Language
32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech,
Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish,
Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional
Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function
Anti-flicker, heartbeat, mirror, privacy masks, password reset via e-mail, pixel
counter, HTTP listening
Reset
Reset via reset button on camera body, web browser and client software
Startup and Operating
Conditions
IR on: -10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing)
IR off: -10 °C to 50 °C (14 °F to 122 °F), humidity 95% or less (non-condensing)
Storage Conditions
-10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing)
Power Supply
Socket style interface: 12 VDC ± 25%, Φ 5.5 mm coaxial power plug; reverse
polarity protection; PoE (802.3af, class 3)
Pigtail style interface: 12 VDC ± 25%, two-core terminal block; reverse polarity
protection; PoE (802.3af, class 3)
Power Consumption and
Current
12 VDC, 0.6 A, max. 7 W; PoE (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 8. 5W
Material
Metal
Dimensions
Camera: Φ 119 × 90 mm (Φ 4.7" × 3.5")
Weight
Camera: Approx. 520 g (1.1 lb.)
With package: Approx. 750 g (1.7 lb.)
Approval
EMC
47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3:
2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6,
2016; KN 32: 2015, KN 35: 2015
Safety
UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am
1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015
Chemistry
2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
Protection
Ingress protection: IP42(IEC 60529-2013), IK10 (IEC 62262:2002)
* Listed resolutions are only selectable options. It does not mean that all streams can work at their maximum
resolution at the same time.
Available Model
DS-2CD2185G0-IMS (2.8/4/6 mm)
Dimension
05060020191207
Accessory
DS-1271ZJ-120
Pendant Mount
DS-1272ZJ-120B
Wall Mount
DS-1272ZJ-120-TR15
Wall Mount
DS-1280ZJ-DM46
Junction Box
