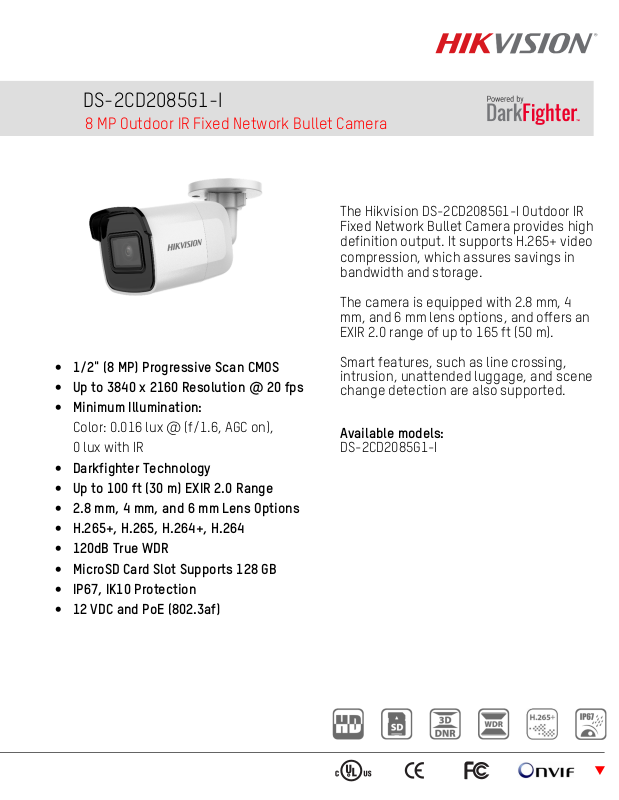

Hikvision DS-2CD2085G1-I-2-8MM, DS-2CD2085G1-I-4MM, DS-2CD2085G1-I-6MM Specsheet

DS-2CD2085G1-I

8 MP Outdoor IR Fixed Network Bullet Camera

• 1/2" (8 MP) Progressive Scan CMOS

• Up to 3840 x 2160 Resolution @ 20 fps

• Minimum Illumination:

Color: 0.016 lux @ (f/1.6, AGC on),
0 lux with IR

• Darkfighter Technology

• Up to 100 ft (30 m) EXIR 2.0 Range

• 2.8 mm, 4 mm, and 6 mm Lens Options

• H.265+, H.265, H.264+, H.264

• 120dB True WDR

• MicroSD Card Slot Supports 128 GB

• IP67, IK10 Protection

• 12 VDC and PoE (802.3af)

The Hikvision DS-2CD2085G1-I Outdoor IR
Fixed Network Bullet Camera provides high
definition output. It supports H.265+ video
compression, which assures savings in
bandwidth and storage.

The camera is equipped with 2.8 mm, 4
mm, and 6 mm lens options, and offers an
EXIR 2.0 range of up to 165 ft (50 m).

Smart features, such as line crossing,
intrusion, unattended luggage, and scene
change detection are also supported.

Available models:

DS-2CD2085G1-I



Specifications

DS-2CD

2085G1-I

Camera

Image Sensor

1/2" progressive scan CMOS

Minimum Illumination

Color:

0.016

lux @ (f/1.6, AGC

on

), 0 lux with IR

Shutter

Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Focal length

2.8 mm, 4 mm, 6 mm

Focus

Fixed

FOV

2.8 mm, horizontal FOV: 102°, vertical FOV: 55°, diagonal FOV: 120°

6 mm, horizontal FOV: 50°, vertical FOV: 27°, diagonal FOV: 59°

Lens Mount

M12

Iris

f/1.6

Day/

Night

IR cut filter

DNR

3D DNR

Wide Dynamic Range

120dB

3-Axis Adjustment (bracket)

Pan: 0° to 360°, tilt: 0° to

9

0°,

rotate: 0° to 360°

Compression Standard

Video Compression

Main stream: H.265+/H.265/H.264+/H.264

; s

ub stream:

H.265+/H.265/H.264+/H.264

/MJPEG

; t

hird stream:

H.265+/H.265/H.264+/H.264

H.264 Type

Main p

rofile/

high p

rofile

H.264+

Main stream supported

H.265 Type

Main profile

H.265+

Main stream supported

Video Bit Rate

32 Kbps to 16 Mbps


Maximum Resolution

3

840 × 2160

Main Stream

20 fps (3840 × 2160), 30fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)

Sub Stream

30 fps (640 × 480, 640

× 360, 320 × 240)

Third Stream

30 fps (1280 × 720, 640 × 360, 352 × 240)

Image Enhancement

BLC/3D DNR

Image Setting

Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser

Region of Interest (ROI)

Supports one fixed region for main and sub streams

Day/Night Switch

Day/night/auto/schedule

Network

Network Storage

Support

s microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

Alarm Trigger

Motion detection, tampering alarm,

network disconnected, IP address conflict, illegal login, HDD full, HDD error

Protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6

Standard

ONVIF (PROFILE S, PROFILE G),

ISAPI

General Function

One-key reset, anti

-

flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address f

ilter

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Simultaneous Live View

Up to six channels

User/Host

Up to 32 users

, three

levels: administrator, o

perator

, and u

ser

Client

iVMS-4200, Hik

-

Connect

Web Browser

IE8+, Chrome 31.0

-

44, Firefox 30.0

-

51, Safari 8.0+

Interface

Communication Interface

1-port RJ45 10M/100M self

-

adaptive Ethernet port

On-Board Storage

Built-in

microSD/SDHC/SDXC slot, up to 128 GB

Reset Button

Yes

SVC

H.265 and H.264 encoding support

Smart Features

Behavior Analysis

Line crossing detection, intrusion detection, unattended baggage detection, object removal detection

Exception Detection

Scene change detection

Face Detection

Yes

General

Operating Conditions

-

22° F to 140

° F (-30°

C to 60

° C),

humidity 95% or less (non

-

condensing)

Power Supply

12 VDC ± 25%, PoE

(802.3af, class 3)

,

5.5 mm coaxial power plug

Power Consumption

12 VDC, 0.5 A, max

imum: 6 W,

PoE: (802.3af, 36 VDC to 57 VDC), 0.

2 A to 0.1 A, max

imum: 7

.5 W

IR Range

Up to 1

00 ft (30 m)

Wavelength

850 nm

Protection Level

IP67

, IK10

Dimensions

2.8

" ×

2.7"× 6.7" (70 mm × 68 mm ×

171)

Weight

1.50 lbs (0.70 kg)

4 mm, horizontal FOV: 78°, vertical FOV: 43°, diagonal FOV: 92°

Accessories

CBXS

Conduit Base
