User Manual Of Induction Cooktop
Model: M-ID185
Thank you for purchasing HIGH POINTE' s induction cooker.
Please thoroughly read through this instruction manual
before use and store it carefully for future use.
CONTENTS
IMPORTANT SAFEGUARDS................................2-3
SAFETY INSTRUCTIONS....................................4-7
PRODUCT INTRODUCTION................................8-9
OPERATION INSTRUCTIONS..........................10-11
INSTALLATION REQUIREMENTS..........................12
COMPATIBLE COOKWARE...................................13
CLEANING AND MAINTENANCE ...........................13
TROUBLE SHOOTING..
WARRANTY..........................................................15
DISCLAIMER........................................................15
1
........................................14
IMPORTANT SAFEGUARDS
Do not touch hot sur faces.
To protect against electrical shock do not immerse cord/plugs in
water or other liquid.
Close supervision is necessary when any ap pliance is used by or nea r
children.
Do not operate any appliance with a damage d cord or plug , after th e
appliance malfunctions or has been damaged in any ma nner. Return
appliance to the nearest authorized servic e facility for examinatio n,
repair, or adjustment.
To disconnect, turn any control to “ OFF ”, then remove plug from wall outlet.
Do not use appliance for other than intended use.
POLARIZED PLUG: This appliance has a polarized plug (one blade is wider
than the other). As a safety feature, this plug will fit in a polarized outlet
only.
Be cautious when open ing any lid while cooking.
Do Not Cook on Broken Cook-Top. If cook-top sh ould break; cle aning
solutions and spillovers may penetrate the broken cook-to p and crea te
a risk of electric shock.
Clean Cook-Top with Caution. If a wet spo nge or cloth is used to w ipe
spills on a hot cooking area, be careful to avoid steam b urn, some
cleaners can produce noxious fumes if applied to a hot surface.
Do not place metallic objects such as knives, forks, spoo ns and lid s on
the Ta ble Stove since they can get hot.
SAVE THESE INSTRUCTIONS.
2
IMPORTANT SAFEGUARDS
Operation is subject to the following two conditions: (1) This device may not
cause harmful interference. (2) this device must accept any interference
received, including interference that may cause undesired operation.
CAUTION: Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
product.
NOTE: This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accor dance with the instructions,
may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation.
If thi s equ ipmen t doe s cau se ha rmful interference to rad io or te levisio n
reception, which can be determined by turning the equipment off and on.
The user is encouraged to try to correct the interference by one or more of
the following measures:
Reorientate or relocate the receiving antenna.
Increas e the sepa ratio n bet ween the equipment and re ce iv er.
Connect the equip ment into an ou tlet on a circuit differ ent from that to
which t he re ceive r is conne cted. Cons ult the dealer or an ex perienced
radio/T V tec hnici an fo r help.
3
SAVE THESE INSTRUCTIONS.
SAFETY INSTRUCTIONS
1. For safety reasons and to avoid damage to the appliance or
injuries to people, please abide by all the safety instructions below.
2. Ignoring safety warnings may result in injuries.
3. This appliance does not take into consideration the following
situations:
— use by children or disabled people without supervision;
— children treating it as a toy.
Symbo ls:
Never heat food in sealed containers, such
as compresse d products, cans, or coff ee
pots, to avo id explosion caused by he at
expansion.
To avoid affecting product performance and
to prevent i njury, do not heat empty pots.
When in use, do not leave the applian ce
without supe rvision for a long time.
Forbidden
Mandatory
Do not direc tly rinse this induction cooker
under water. Do not spill water or soup into
the internal parts of the induction c ooker.
To avoid injuries such as scalding, do not
let children operate the appliance alone.
Warning
Attention
4
SAFETY INSTRUCTIONS

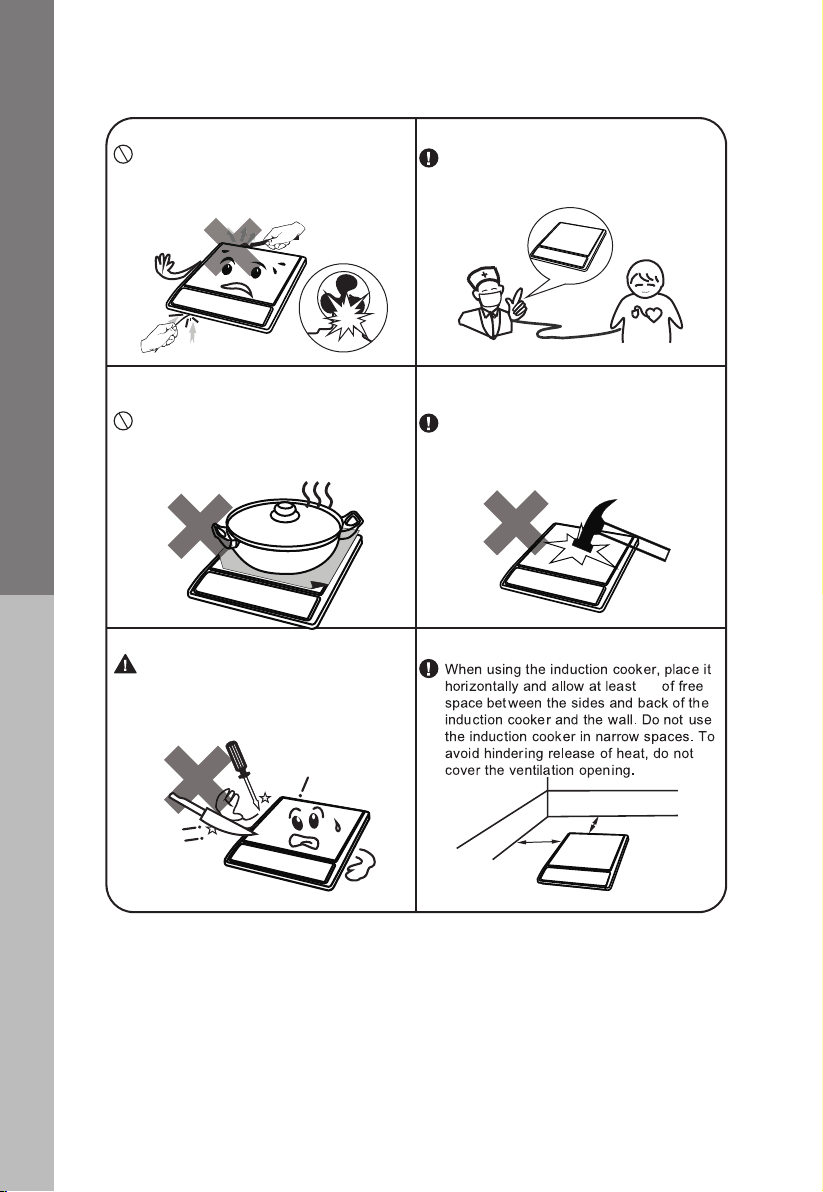

To avoid danger, do not insert any foreign
object, such as iron wire, nor block the air
ventilation opening or air entry port.
To avoid danger, do n ot pl ace p aper,
alu minium foil, c loth or o ther unsui table
articles ont o the induction cooker he ating
plate for in direct heating.
To avoid cracks a nd o ther damag es,
ple ase do not to uch t he pr oduct with
sha rp objects. If a c rack is fo und, turn
off the appliance to avoid any electrical
shock that might occur.
Peop le wi th heart pace make rs s hould
consult a do ctor. Only use the applia nce
after confirming that it does no t affect t he
pacemaker.
Avoid impact damage to the heating plate
If damaged, please stop using it and tak
it to a maintenance and repair site to have
it replaced.
.
2"
e
>
2"
>
2"
5
SAFETY INSTRUCTIONS
The cooker cannot be overl oaded .
Ove rloading the p late may damag e th e
pla stic cover and c ooke r p la te.
Whe n oper ati ng t he app li an ce or afte r
Danger o f
scaldin g
moving the pot, the cooking area will remain
hot for a period of time. Do not touch it. Be
careful of scalding caused by the high
temperature.
Pleas e use a ded icated and hi gh q ualit y
power outlet, with high power rating, equal
to or above 15 A.
≥ 15A
Please keep the Induction Cooker clean.
Protect t he induction cooker from bugs,
dust and humidity.
Metal objects, such as knives, forks, spoons
and lids, should not be put on the surface of
the cooking area, since they can become
heated.
6
SAFETY INSTRUCTIONS
Keep electrical appliance out of
reach from children.
Do not let them use the appliances
without supervision.
War n i n g
The i nstruct ions sh all state t hat
appliances are not intended to be
operated by means of an externa
timer or separate remote-control
system.
War n i n g
Never operate the induction cooker
to cook wi th an
otherw ise its operational
performance may be affected and
danger may happen.
Note: All the test and authentication
of this product is based on the
l
SUS430 cookware(bottom diameter
7" ± 0.4").The other cookwares
can not guarantee the best results
and performance.
empty
Man d ato r y
po
t,
7
PRODUCT INTRODUCTION
The induction cooker is able to meet various kinds of cooking
demands by electromagnetic heating. High thermal efficiency,
is safe and reliable, and easy to clean.
Performance Parameters
Model
M-ID185
Applied
voltage/frequency
120Vac,6 0Hz 1800W 24.4"x15"x2.6" 61500W1500W
Product Sketch Map
Ai r v en t
Left
Rated power
Rated power
Po w er c or d
Right
All
Rated power
Dimension
"
)
(
Weight
( kg )
Cer ami c p l at e
in d i c at o r
ne Coo k i n g zo
Ai r e n t ry
Co n tr o l p anel
8
PRODUCT INTRODUCTION
Control Panel
3
4
5
1. ON/OFF 2. Power regulating / Childproof Lock
3. Timer
5. Temperature
Before using
Read this guide, and take special note of the “Saf ety Warnings” section.
Remove any protective film that may still be on your ceramic plate.
New Induction cooker
4. Heating
2
1
Using the Touch Controls
The controls resp ond t o touch, so you don't need to apply any pressure.
Use the ball of your finger, not its tip.
You wil l hear a be ep each t ime a tou ch is reg ister ed.
Make sure the controls ar e always cle an, dry, and that there is no
object (e.g. a utensil or a cloth) covering them.
Even a thin fi lm o f wa ter may make the controls difficult to operate.
Put the pot on the ceramic plate
Make sure the air ve nts are not blocked and ke ep utensils away from
the
immediate surrounds of the ceramic plate.
Make sure the cookware which has food or liquid is placed in
the
center of ceramic plate.
9
OPERATION INSTRUCTIONS
Plug in
After the power supply is connected, a beep will sound.
The LED indicator flash 1 second.
Turn on
After pressing the " ON/ OFF" button, the buzzer will ring once.
The induction cooker is ready for heating.
After pressing the " ON/ OFF" button, if there is no operation for 10
seconds, the induction cooker will switch off automatically.
After pressing the heating button, if there is no proper pot on the ceramic
plate, the induction cooker will not heat up. The alarm will sound and the
LED will display "U" symbol to indicate that a pot is required. Ten seconds
later, it will switch off automatically..
Temperature mode
Press the " ON/ OFF" button, choose " TEMP" function.
The buzzer sounds once, the " ON/ OFF" and the " TEMP" indicator
lamps light up, the induction cooker enters into the temperature mode.
In temperature mode, the default temperature level is level 5, you can
make adjustments by pressing the " " or " " button.
Heating mode
Press the " ON/ OFF" button, choose " HEAT" function.
The buzzer sounds once, the "ON/ OFF" and the " HEAT" indicator
lamps light up, the induction cooker enters into the heating mode.
In heating mode, the default heat level is level 5, you can make adjustmens
by pressing the " " or " " button.
Timer mode
In temperature mode or heating mode, press the " TIMER" button, the
buzzer sounds once, the " TIMER" indicator lamp lights up, the induction
cooker enters into the timer mode. When " 0:00" blinks on the display,
press " " or " " button to adjust the time duration. Each time Long
press the button when adjusting 10 minutes, short press when adjusting
1 minute. Adjustable timer can adjust from 1 minute to 3 hours.
When the adjustment is finished, the number on the display will show after
blinking for several seconds. The induction cooks starts counting down.
When the counting down is over, the induction cooker automatically stops
heating and switches off.
The induction cooker will shut down when the default timer is reached
unless the user sets the timer himself.
10
OPERATION INSTRUCTIONS
Heating
The default timer of each level are as follow:
Level
Default t i me
Childproof Lock
Press the " " and " " button at the same time to start childproof lock
function, the " Lock" indicator lights up. Then only the " ON/ OFF" button
can be used to switch off the induction cooker, all the other operations are
forbidden.
Press the " " and " " button at the same time for several seconds
to quit the childproof lock function, the " Lock" indicator turns off.
Switch Off
When the operating time is over, the induction cooker switches off
automatically.
If switch-off is need ed in adv ance, p ress th e “ON/O FF” button to
turn the appliance off.
10
2
11
INSTALLATION REQUIREMENTS

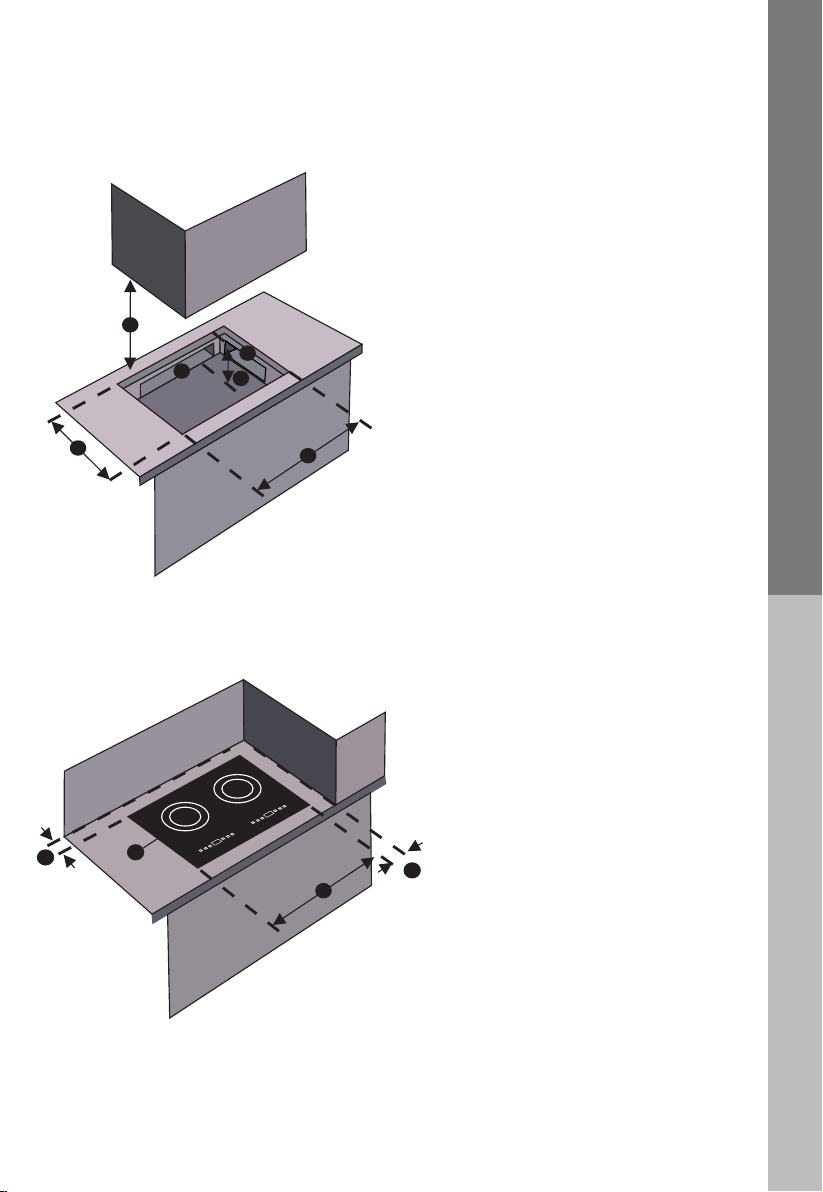

① Minimum distance from
cook- top any object above
must be at least 18"
1
5
3
5
2
4
② Minimum distance from
cook- top to any surface
below must be at least 3.25 "
③ Cut- out width:14.3"
④ Cut- out length:23.8"
⑤ Ventilation cut- outs
⑥ There must be at least 2"
from the edge of the cook-
6
7
4
top to any walls or cabinets
⑦ Sealing strip around the
6
edge of the cut- out
12
COMPATIBLE COOKWARE
Stainless steel Iron pan Iron kettle
13
Enamel stainl ess
st eel kettle
Induction-compatible cookware contains ferromagnetic
materials. In other words, it contains iron, or has a layer with
magnetic properties.
Cookware must have a flat smooth bottom with the diamete
more
After the first use, some white spots would appear at th
bottom of the pot. This is normal.
Please pour some vinegar into the pot, heat it at about
140-176 °F, then wipe the spots away with brush.
Aluminum, copper or glass cookware will not work unless they
have a layer on the bottom with magnetic properties.
If the pot is removed the induction cooker will stop heating
immediately. A buzzer sounds for 10 seconds, then it will go into
standby mode automatically. Note: To tell if a pot or pan is
induction-compatible, hold a magnet to the bottom. If it clings,
the cookware will work on an induction cooktop.
Before cleaning, please switch off the appliance first.
Wait till the cooker plate of the induction cooker is not hot
then you may start cleaning.
After using the induction cooker for a long time, the
opening of air inlet/air outlet will pile up with dust or other
dirt, please wipe it with a soft dry cloth. Dust in the air inlet
and outlet can be cleaned by using a soft brush or a mini
vacuum cleaner.
Note: Please do not rinse it with water.
than 5" and less than 8".
EANING AND MAINTENANCE
CL
Enamel cooking
utensil
Iron plate
r
e
TROUBLE SHOOTING
Abnormalities
Plug the power cord and press the “ON/OFF” key,
but the indicator and display do not light up.
The “ON/OFF” indicator lights up and the display
works normally, but heating does not start.
Heating suddenly stops during the process.
The main sensor is open circuit. If keep abnormal, please take the appliance to a repairing
E1
and maintenance site to be fixed.
The main sensor is short circuit. If keep abnormal, please take the appliance to a repairing and
E2
code of failure
maintenance site to be fixed.
The main sensor is hot. Is the ceramic plate hot ? If it ile it is cool it will recover normal. is, wh ,
E3
If keep abnormal, please take the appliance to a repairing and maintenance site to be fixed.
The IGBT sensor is open circuit. If keep abnormal, please take the appliance to a repairing and
E4
maintenance site to be fixed.
The IGBT sensor is short circuit. If keep abnormal, please take the appliance to a repairing and
E5
maintenance site to be fixed.
The IGBT sensor is hot. Is the heat dissipation poor? If it is, while it is cool it will recover normal. ,
E6
If keep abnormal, please take the appliance to a repairing and maintenance site to be fixed.
The voltage is lower, check the voltage. If keep abnormal, please take the appliance to a
E7
repairing and maintenance site to be fixed.
The voltage is higher, check the voltage. If keep abnormal, please take the appliance to a
E8
repairing and maintenance site to be fixed.
Dry burning protect, check it. If keep abnormal, please take the appliance to a repairing and
EA
maintenance site to be fixed.
The main sensor is invalid.
EB
maintenance site to be fixed.
The fan is abnormal. If keep abnormal, please take the appliance to a repairing and maintenance
EC
site to be fixed.
If keep abnormal, please take the appliance to a repairing and
Key checking points and trouble shooting
* Is the power plug properly connected?
* Is the switch, power outlet, fuse or power cord
damaged?
* Is the cookware compatible. Refer to page 13.
* For other causes, please take the appliance to a
repairing and maintenance site to be fix
* Is the temperature of the oil too high when frying dishes?
* Is the temperature of the surroundings very high?
* Is the air inlet or air outlet of the induction cooker blocked?
* Is the default heating time of the induction cooker ove
* The self-safety protection of the induction cooker starts, wait
for several minutes and connect power to use it.
ed.
r?
Instruction
Low voltage protection:80± 10V Low voltage recovery: 90± 10V
High voltage protection:140± 10V High voltage recovery: 130± 10V
Emergency
During use if there are some abnormal cases, please unplug immediately and
disconnect power.
Voltage range:
14
DISCLAIMER
15
Inform atio n in this Use r's Manua l is subject to change without not ice.H igh
P ointe assume s no responsibil ity for any inaccuracies that may be contained
in this Use r's Manual. If yo u fin d inform atio n in t his manual that is incorrect,
misleading,or incompl ete, we woul d appreci ate your comments and suggestions
Loading...
