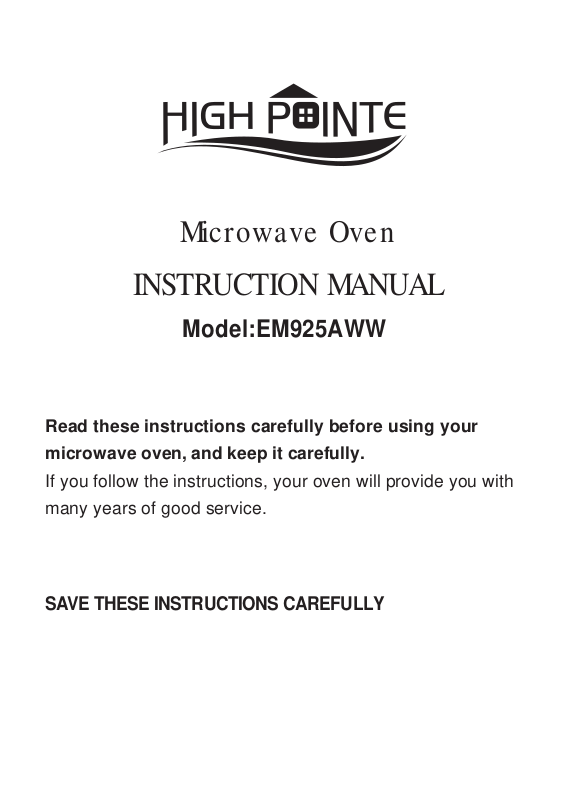

MICROWA VE OVE N
INSTRUCTION MANUAL
Model:EM925AWW
Read these instructions carefully before using your
microwave oven, and keep it carefully.
If you follow the instructions, your oven will provide you with
many years of good service.
SAVE THESE INSTRUCTIONS CAREFULLY
P R E C A U T I O N S TO AV O I D P O S S I B L E
E X P O S U R E TO E X C E S S I V E M I C R O WAV E E N E R G Y
(a)Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
(b)Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c)Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the:
(1)DOOR (bent)
(2)HINGES AND LATCHES (broken or loosened)
(3)DOOR SEALS AND SEALING SURFACE
(d)The oven should not be adjusted or repaired by anyone except properly qualified service personnel.
Specifications
Model: |
EM925AWW |
|
|
Rated Voltage: |
120V~ 60Hz |
|
|
Rated Input Power(Microwave): |
1350 W |
|
|
Rated Output Power(Microwave): |
900 W |
|
|
Oven Capacity: |
1.0 Cu.ft. |
|
|
Turntable Diameter: |
10.6 inch |
External Dimensions: |
19.1X15.4X11.7 inch (485X390X296mm) |
|
|
Net Weight: |
Approx. 29.8 Lbs(13.5kg) |
2
IMPORTANT SAFETY INSTRUCTIONS
WARNING |
To reduce the risk of burns, electric shock, fire,injury to |
||
persons or exposure to excessive microwave oven energy |
|||
|
|||
|
when using your appliance, follow basic safety precautions, |
||
|
including the following: |
||
1. Read all instructions before using the |
8. Use this appliance only for its intended |
||
appliance. |
|
uses as described in this manual. Do |
|
2. Read and follow the specific: "PRECAU- |
not use corrosive chemicals or vapors |
||
TIONS TO AVOID POSSIBLE EXPOSURE |
in this appliance. This oven is |
||
TO EXCESSIVE MICROWAVE ENERGY" |
specifically designed to heat or cook |
||
found on page 2. |
|
or dry food. It is not designed for |
|
3. As with most cooking appliances, close |
industrial or laboratory use. |
||
supervision is necessary to reduce the risk |
9. As with any appliance, close |
||
of a fire in the oven cavity. |
|
supervision is necessary when used |
|
4.To reduce the risk of fire in the oven |
by children. |
||
|
|||
cavity:
10. Do not operate this oven if it has a
i). Do not overcook food. Carefully attend
damaged cord or plug, if it is not
the appliance when paper, plastic, or
working properly or if it has been
other combustible materials are placed
damaged or dropped.
inside the oven to facilitate cooking.
11. This appliance should be serviced only
ii).Remove wire twist-ties and metal
by qualified service technicians.
handles from paper or plastic
Contact the nearest authorized service
containers/bags before placing them in
facility for examination, repair or
the oven.
adjustment.
iii). If materials inside the oven ignite,
12. Do not cover or block any openings on
keep the oven door closed. Turn the
the oven.
oven off, and unplug the appliance.
13. Do not store or use this appliance
Disconnect the power cord, shut off
outdoors.
power at the fuse or circuit breaker panel.
14. Do not use this oven near water, for
iv). Do not use the oven cavity for storage
example, near a kitchen sink, in a wet
purposes. Do not leave paper products,
basement, near a swimming pool, or
cooking utensils, or food in the cavity
similar locations.
when not in use.
15. Do not immerse cord or plug in water.
5. This oven must be grounded. Connect
16. Keep cord away from heated surfaces.
only to properly grounded outlet. See
17. Do not let cord hang over edge of
"GROUNDING INSTRUCTIONS" found
table or counter.
on page 5.
18. When cleaning surfaces of door and
6. Install or locate this oven only in
oven that comes together on closing
accordance with the installation
the door, use only mild, nonabrasive
instructions provided.
soaps or detergents applied with a
7. Some products such as whole eggs and sealed containers-for example, closed glass jars-are able to explode and should not be heated in the oven.
sponge or soft cloth.
3
19.Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN
VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID.
i)Do not overheat the liquid.
ii)Stir the liquid both before and halfway through heating it.
iii)Do not use straight-sided containers with narrow necks.
iv)After heating, allow the container to stand in the microwave oven for a short time before removing the container.
v)Use extreme care when inserting a spoon or other utensil into the container.
SAVE THESE INSTRUCTIONS
GROUNDING DANGER
Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.
WARNING
Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.
Three-pronged (grounding) plug
INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.
Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-pronged grounding plug, and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord shall be equal to or greater than the electrical rating of the appliance.
4
