Hexagon Mining 360A Technical Reference Manual
Access Point 360A
Technical Reference Manual
Software Version: v1.19
Version No.2.0 Issued October
2015 English
MINING OPERATIONS
Devex Mining is committed to providing only the highest standards in technical
documentation and training.
Through a continual process of review and renewal, based on industry standards, client
feedback and best practice, we ensure our products are supported by quality documentation
and training.
From product offerings to customer support, Devex Mining is governed by the overarching
principal that the customer comes first. We offer comprehensive documentation and training;
ensuring client needs are met and exceeded.
Devex Mining is a division of Hexagon Mining
Devex Mining delivers leading solutions for fleet management and production optimization,
machine maintenance, business intelligence and analytics.
Devex Mining is part of Hexagon Mining, the only global provider of surface and underground
smart mining solutions that integrate design, planning, and operations technologies for safer,
more productive mines. Learn more at hexagonmining.com.
Devex AP360 Technical Reference v2.0
This document and any information or descriptive matter contained therein is communicated
in confidence and is the copyright property of Devex Mining Neither the whole, nor any
extract may be disclosed, loaned, copied, or used in manufacturing or tendering purposes
without their written consent.
© Copyright [2011-2015] Devex Mining. All rights reserved. Devex Mining is part of
Hexagon. Devex Mining and the Devex Mining logo are the registered trademarks of Devex
Mining. All trademarks or service marks used herein are property of their respective owners.
Devex Mining makes no representation or warranty regarding the accuracy of the information
in this publication. This document gives only a general description of the product(s) or
service(s) offered by Devex Mining and, except where expressly provided otherwise, shall
not form part of any contract. Such information, the products and conditions of supply is
subject to change without notice.
Disclaimer: Illustrations, descriptions, and technical specifications in this document are not
binding and are subject to change without notice.
This document is optimized for printing on A4 paper.
Devex Mining is focused on providing you with low maintenance products that
have competent back-up support, when you need it, 24/7 every day of the year.
For further information contact your local Devex Mining office or go to
www.devexmining.com
ii © Devex Mining
Revision History
Date
Document
Version
Software
Version
Author
Revision
21 JUL
2015
1
1.19
Gustavo
Henrique
L.Severino
Initial Document Release
13 OCT
2015
2
1.19
Marco
Antonio
Santuci
Carvalho
Modifications in label
documentation
© Leica Geosystems Commercial in Confidence iii
Table Of Contents
1 Document Introduction .............................................................................. 1
1.1 Contacting Support ...................................................................................................... 1
1.2 Document Conventions ................................................................................................ 1
2 Access Point 360 Overview ....................................................................... 2
2.1 System Information ...................................................................................................... 2
2.2 Product Faceplate Description ..................................................................................... 2
2.3 Labels ........................................................................................................................... 2
2.3.1 Labels Location .................................................................................................. 2
2.3.2 Access Point 360 FCC Certification Label ......................................................... 4
2.3.3 Access Point 360 Serial Number Label ............................................................. 4
3 AP Commissioning .................................................................................... 5
3.1 Commissioning Workflow ............................................................................................. 5
4 Hardware Installation ................................................................................. 6
4.1 Before Installation ........................................................................................................ 6
4.2 Access Point Installation .............................................................................................. 6

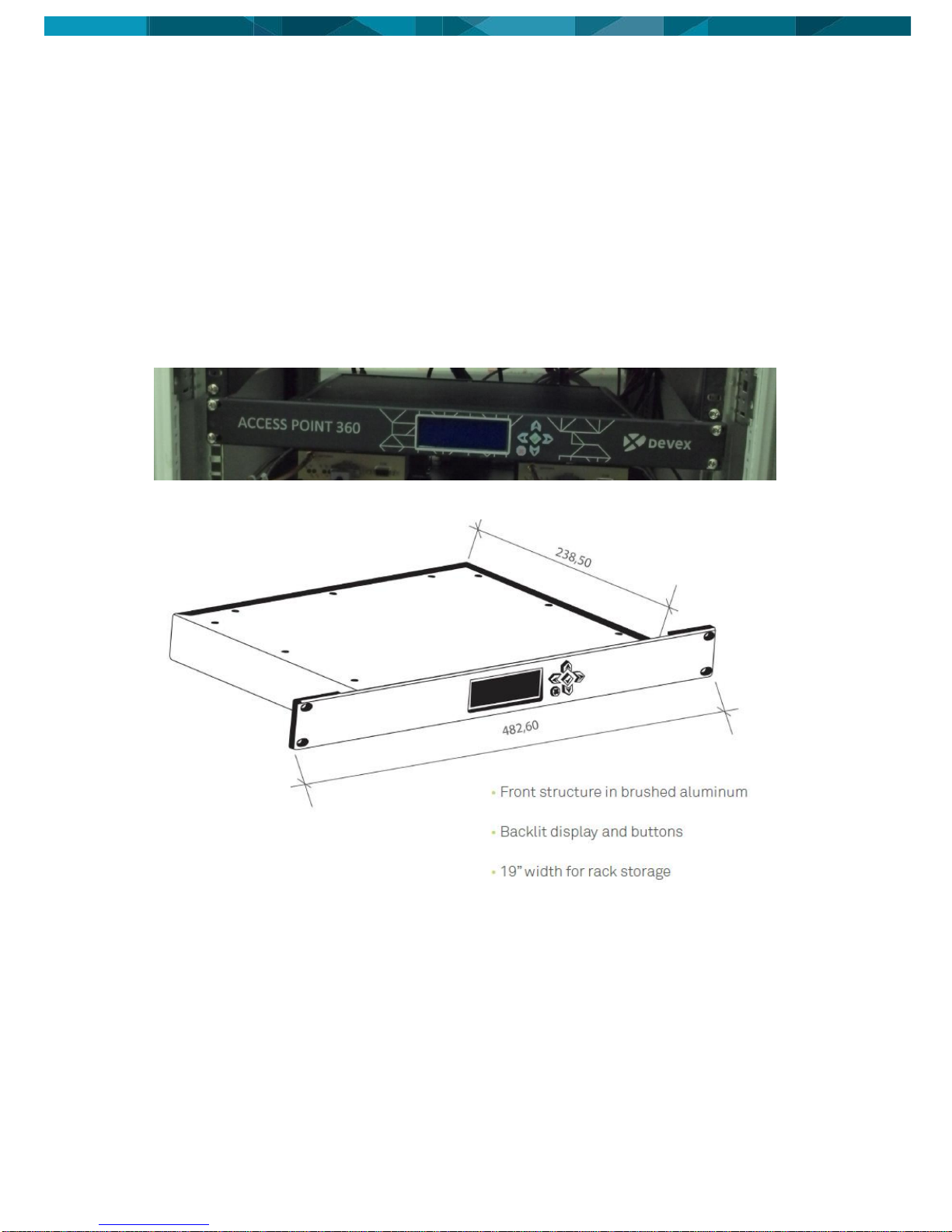

4.2.1 Front View .......................................................................................................... 6
4.2.2 Rear View .......................................................................................................... 7
4.3 Data Head End – DHE ................................................................................................. 8
4.4 Power Cable Installation .............................................................................................. 8
4.5 Communication Cable Installation ............................................................................... 9
4.6 Ethernet Cable Installation ........................................................................................... 9
4.7 Final Assembly ........................................................................................................... 10
5 Software Installation ................................................................................ 11

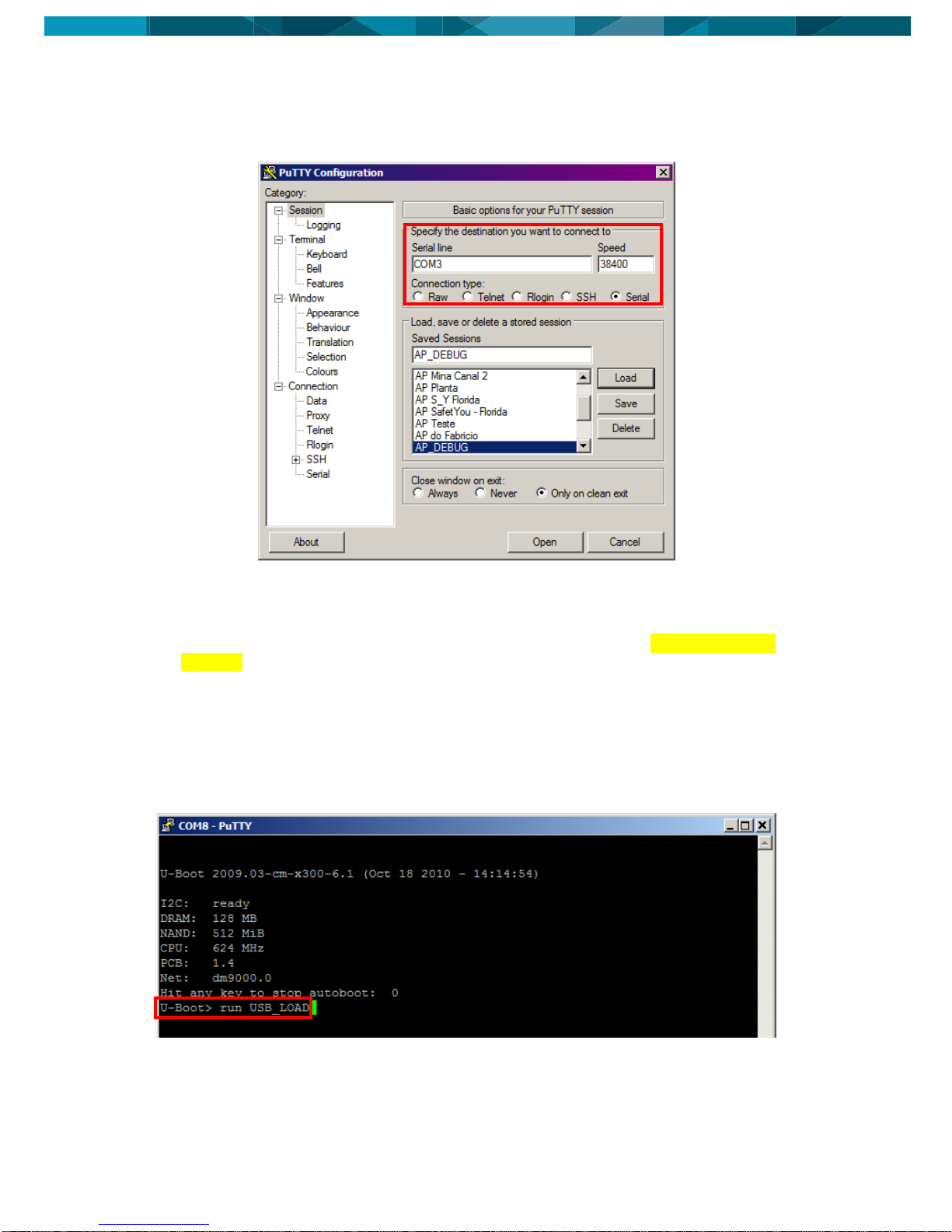

5.1 Update Accesst Point 360 using debug cable ........................................................... 11

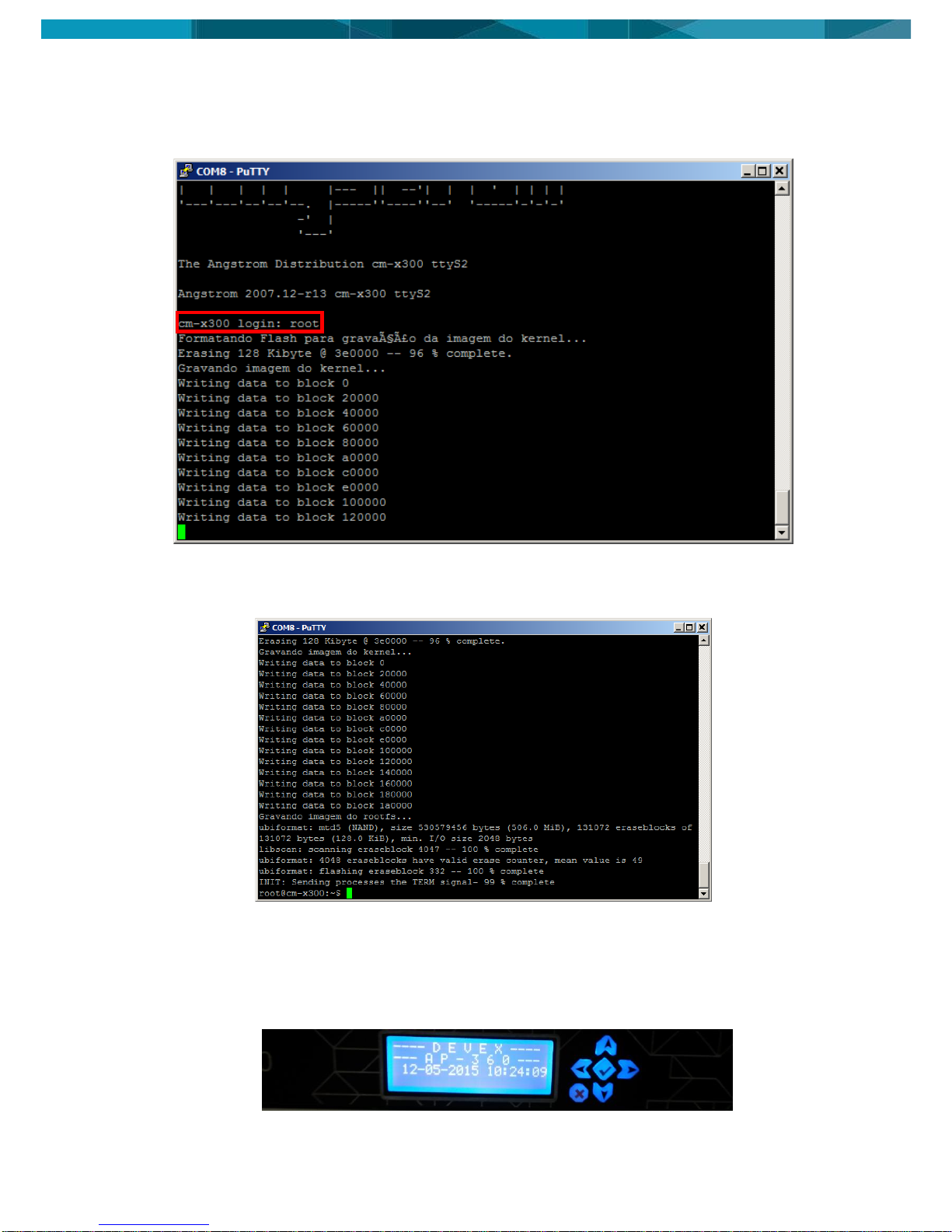

5.2 Installation and Configuration Verification.................................................................. 13
6 Technical Data .......................................................................................... 15
6.1 Design ........................................................................................................................ 15
6.1.1 User interface................................................................................................... 15
6.1.2 Dimensions ...................................................................................................... 15
6.1.3 Weight .............................................................................................................. 15
6.1.4 Power ............................................................................................................... 15
6.2 Envionmental Specifications ...................................................................................... 15
6.2.1 Temperature .................................................................................................... 15
6.2.2 Protection Against Water, Dust and Sand ....................................................... 15
6.2.3 Humidity ........................................................................................................... 15
6.3 Communication Interfaces ......................................................................................... 15
6.4 FCC Statement (Applicable for U.S.) ......................................................................... 16
7 Glossary .................................................................................................... 17
© Leica Geosystems Commercial in Confidence 1
1 Document Introduction
The AP360 (Access Point) Technical Reference Manual is part of the Devex Mining´s reference
manual suite.
This manual is for internal use only and is intended to serve as a commissioning and
maintenance guide for the AP360 product when used within a Smartmine system.
The AP360 Technical Reference Manual is to be used as a supplement to the AP360 User
Reference Manual. The AP360 User Reference Manual covers the process of how to set up the
Smartmine network.
WARNING:
Operators must be aware of the physical surroundings of their equipment and
drive to conditions and mine requirements at all times.
It is assumed an operator using this manual is familiar with:
Site-specific safety procedures, Safe Work Procedures (SWPs) and Standard Operating
Procedures (SOPs).
Note:
The document uses generic images to show general layout and generic information
for various procedures. The site-specific screen layout, menu, and procedure
information may vary from what is displayed in the manual.
1.1 Contacting Support
For all Devex Mining product support:
Contact Method
Details
Web portal
http://devexmining.com/smartmine/suporte-eservicos/suporte-tecnico and select Suporte ao Cliente
Devex
1.2 Document Conventions
This document uses basic conventions to indicate actions:
Convention Example
Description
See xxx
Refer to
“See” indicates a reference to another section of this
document.
“Refer to” indicates reference to another document.
WARNING
Warnings alert the user to dangerous procedures which could
cause injury or death.
CAUTION
Cautions alert the user to dangerous procedures which could
cause damage to equipment.
Note
Notes supply important information about a procedure which is
not covered in the procedure text.
2 © Devex Mining
2 Access Point 360 Overview
The Access Point 360 is a communication controller between static and remote device (Data
head End - DHE and Trackers360) and the management system SmartMine|UG.
2.1 System Information
Note:
The document uses generic images to show general layout and generic information
for various procedures. The site-specific screen layout, menu, and procedure
information may vary from what is displayed in the manual.
Access Point 360 performs the following functions:
Transmits dispatch orders and messages sent by operator’s SmartMine|UG.
Receives from operators an indication of the situation and current state of the equipment
and its appropriation of hours, for example: Maintenance, Queues, etc.
Receives data stored in the Trackers360, related to remote operations executed in event
transfer windows provided by the SmartMine|UG.
Receives and transmits to the SmartMine|UG system alarms generated by the operator
regarding the speeding, improper operations, unjustified stops, etc.
Receives and transmits to the SmartMine|UG tags's values which informs the equipament’s
location.
Access Point 360 software provides:
Intutive setup and use
Command line configuration

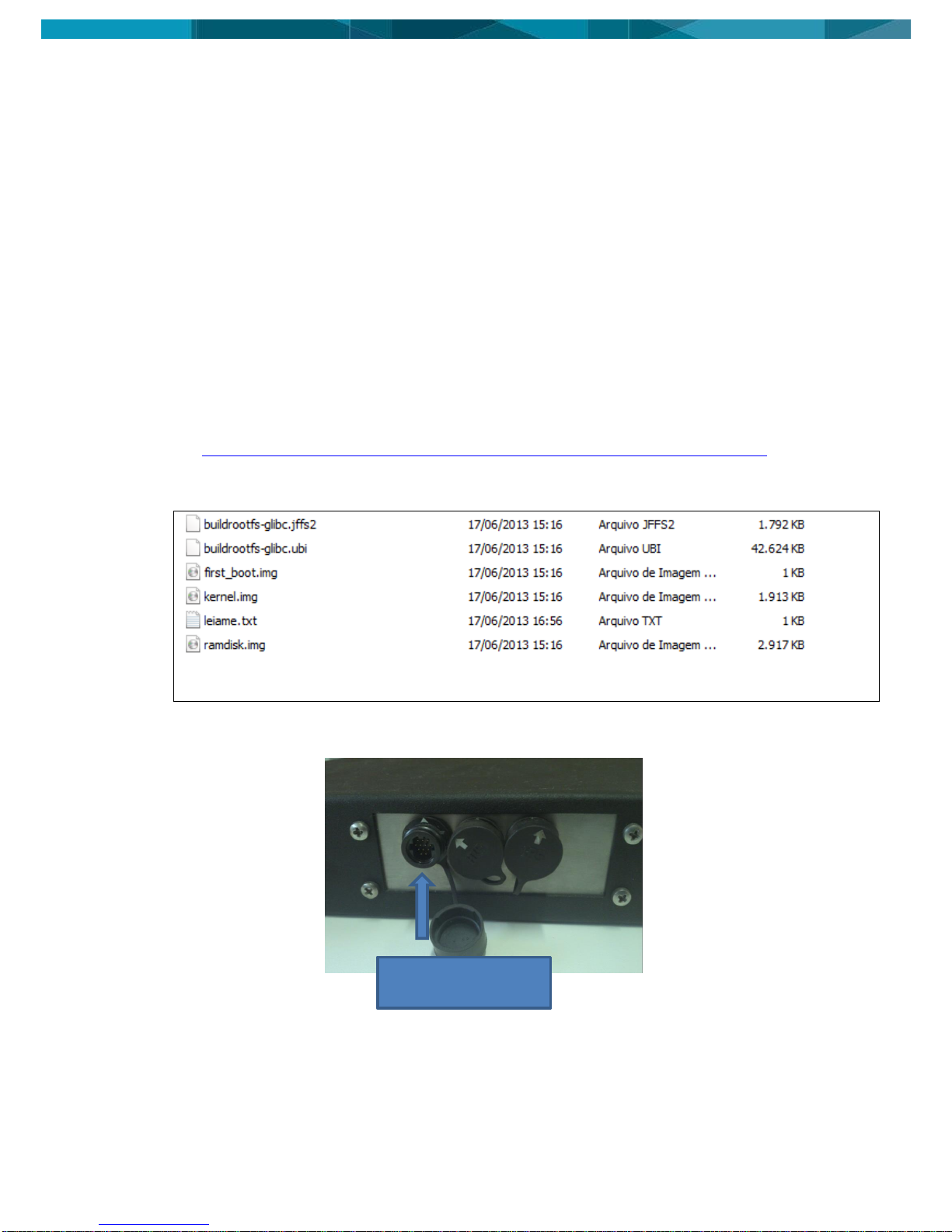

Upgrade through debug cable
See Software Installation for more information

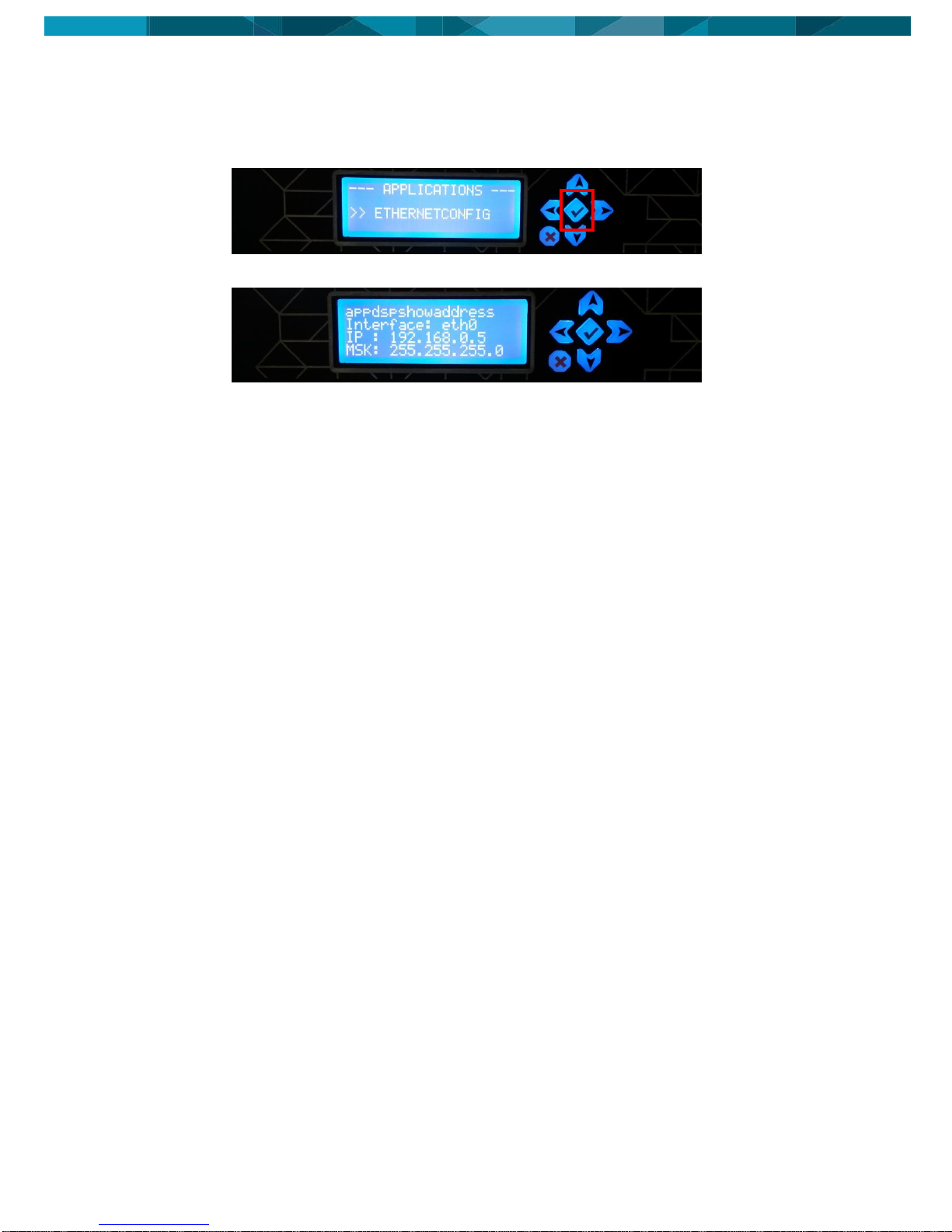

2.2 Product Faceplate Description
The display is responsible for showing the expected settings and the keyboard is used to choose
what is displayed. Section 5.2 will explain how to use them.
2.3 Labels

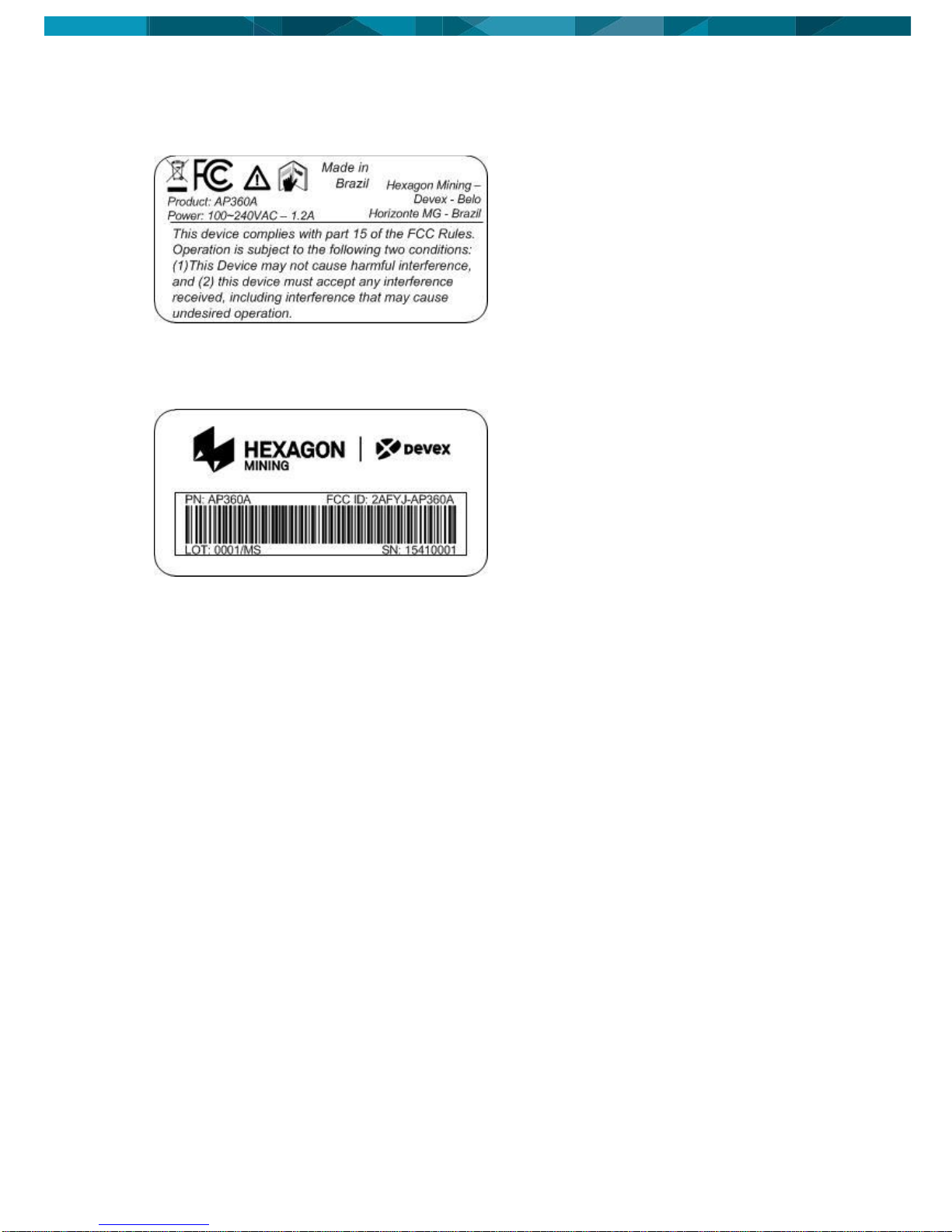

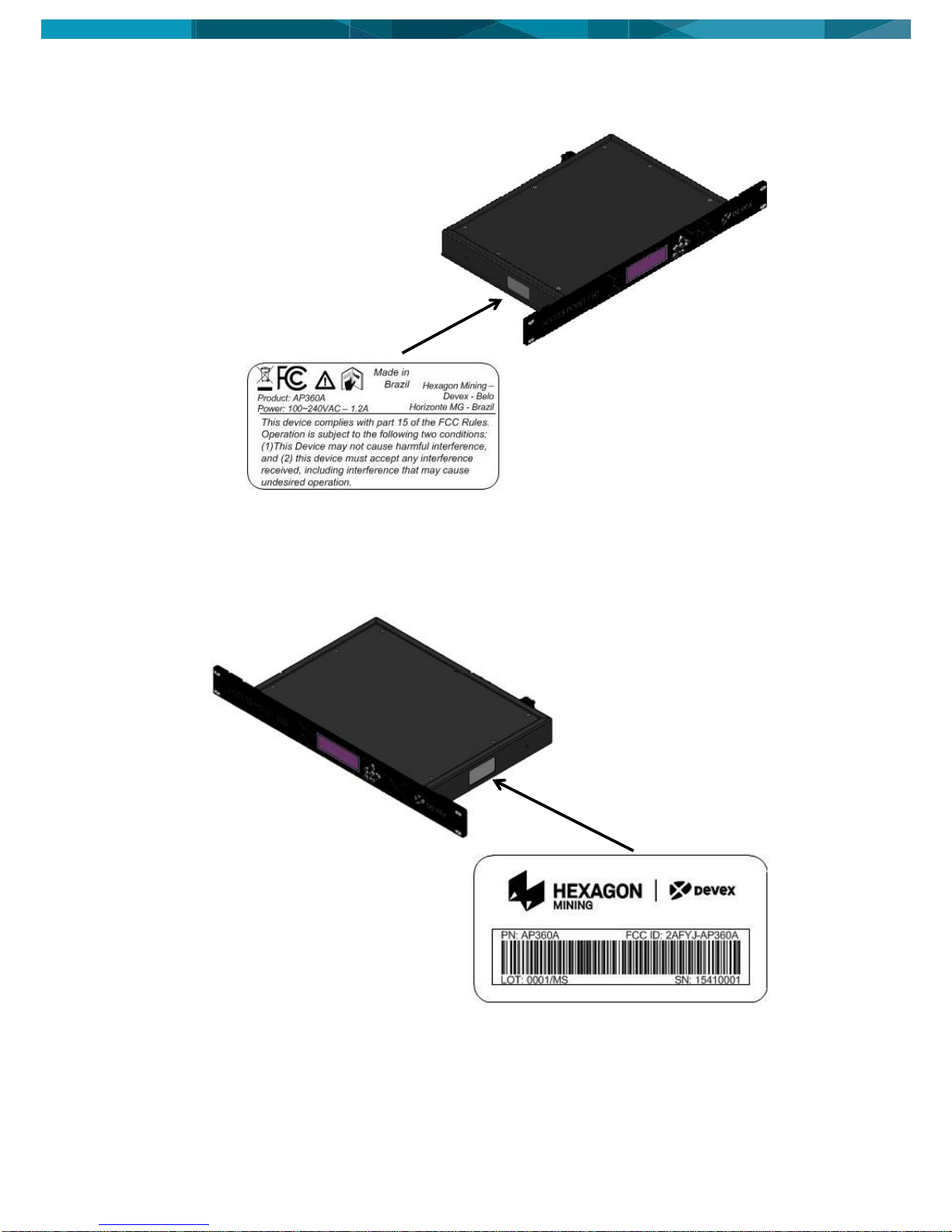

2.3.1 Labels Location
Compliance labels are located on all Access Point 360 in the following locations:

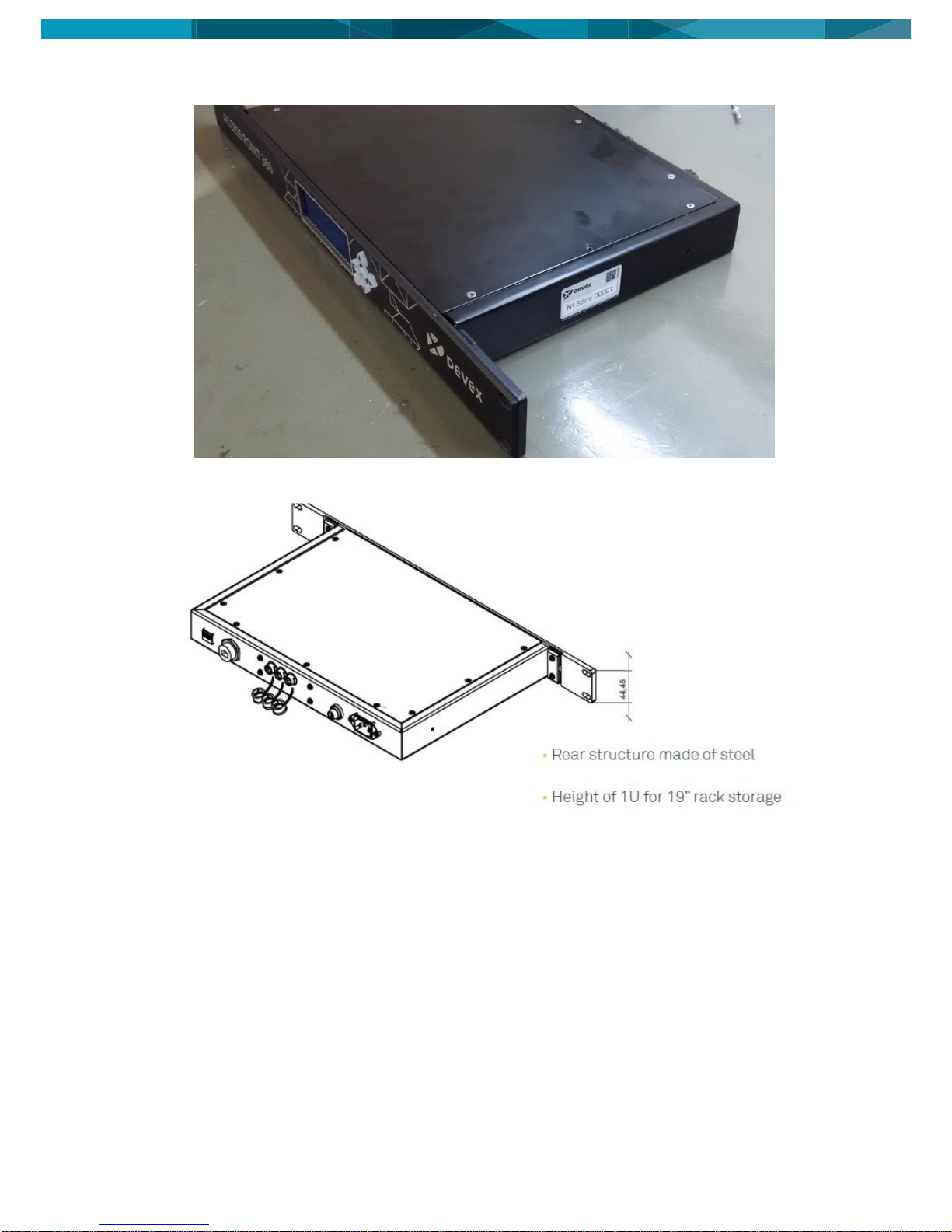

FCC Certification Label and Serial Number Label Locations
DISPLAY
KEYBOARD
