Hercules VirtualDJ 6 LE TC User Manual

VirtualDJ 6 LE TC
CONTENTS
a) PC ............................................................................................................................... 3
b) Mac ............................................................................................................................. 4
a) Timecode configurations............................................................................................. 4
i) Timecoded CDs configuration......................................................................... 4
ii) Timecoded vinyl records configuration ........................................................... 7
b) Configuring timecode settings................................................................................... 10

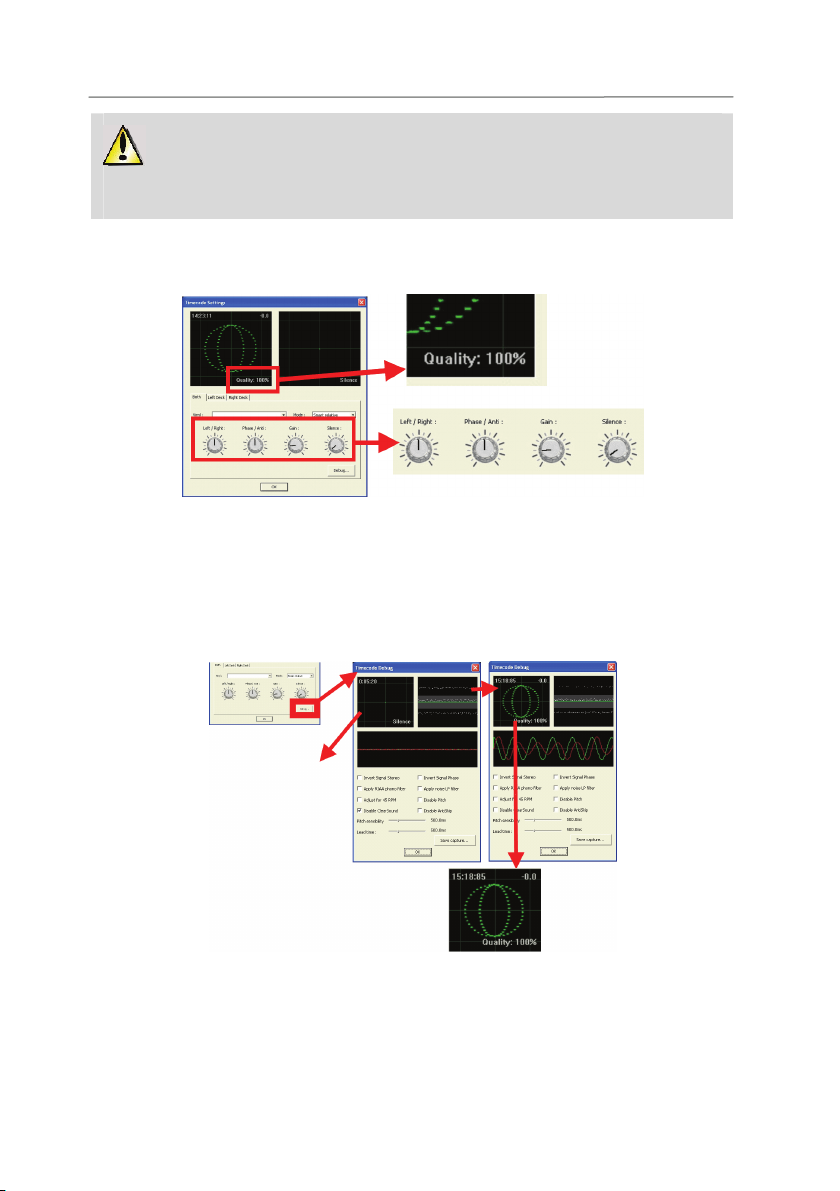

i) Advanced timecode settings ......................................................................... 12

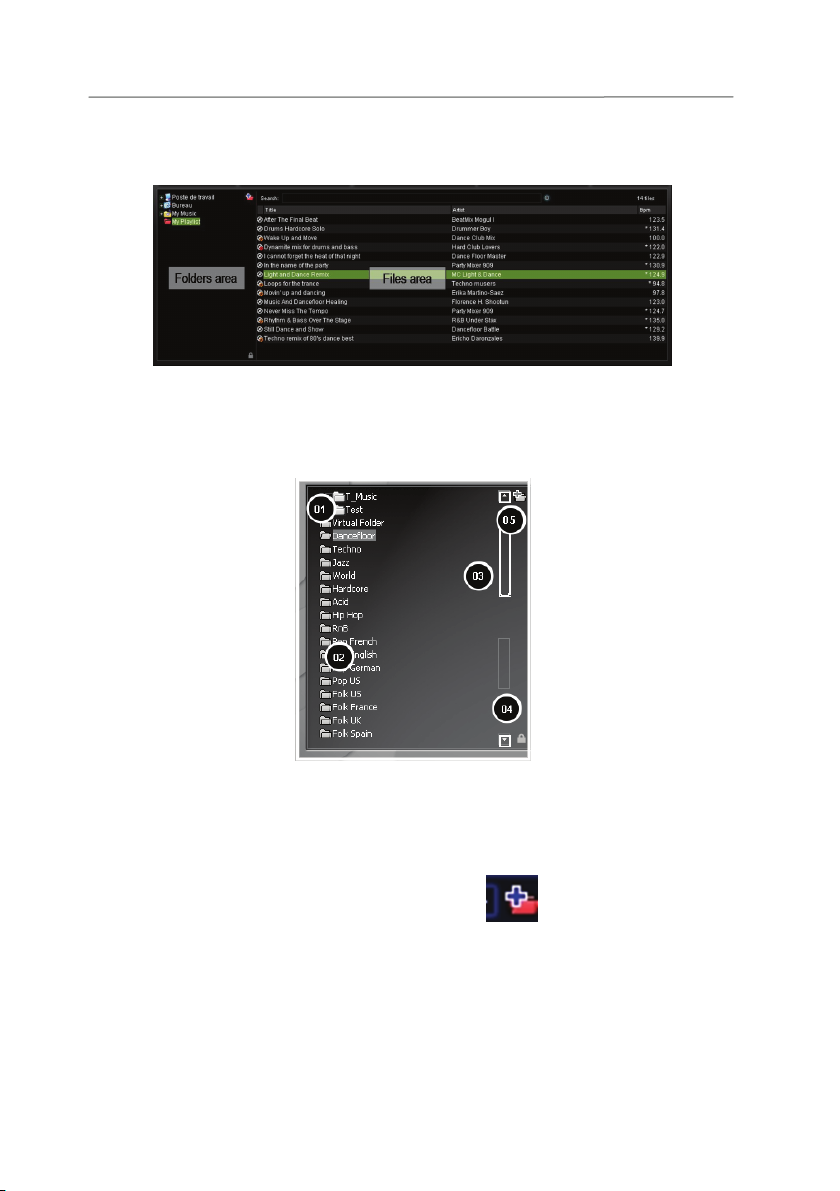

a) Browser: folders area + files area ............................................................................. 13
b) Deck A....................................................................................................................... 14

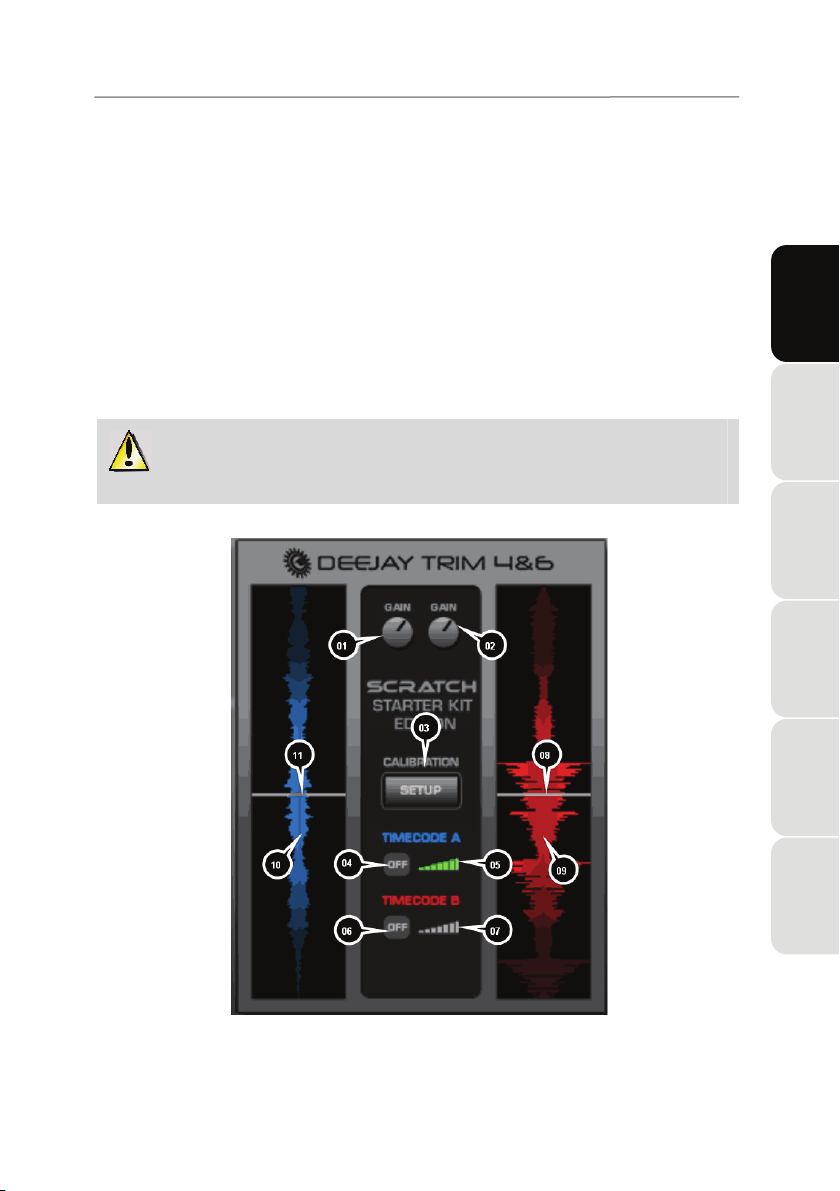

c) Timecode settings ..................................................................................................... 15
d) Deck B....................................................................................................................... 16

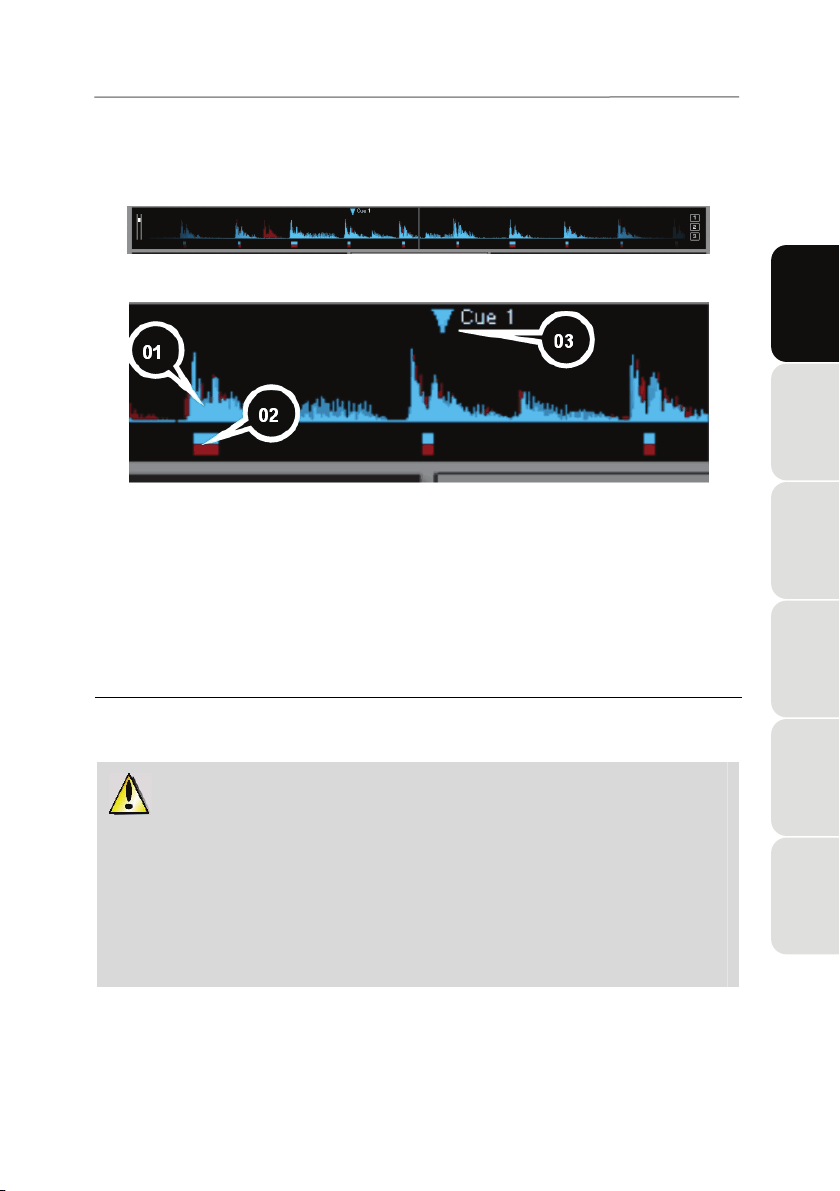

e) Waveform.................................................................................................................. 17
a) Serial number............................................................................................................ 17
b) Browser area............................................................................................................. 18
i) Folders area .................................................................................................. 18
ii) Files area ...................................................................................................... 19
iii) BPM (Beats Per Minute) rate of your music files .......................................... 19
iv) Information on music tracks.......................................................................... 20
v) Sorting the music files................................................................................... 21
vi) Searching...................................................................................................... 21
DEUTSCH
NEDERLANDS ENGLISH FRANÇAIS
ITALIANO
a) Loading and playing an audio file ............................................................................. 22
i) Double-click the file in the browser area ....................................................... 22
ii) Drag and drop ............................................................................................... 22
b) Play and Pause buttons ............................................................................................ 22
c) Supported formats .................................................................................................... 23
i) File extensions .............................................................................................. 23
ii) DRM-protected files ...................................................................................... 23
iii) If you encounter an issue with an audio format ............................................ 23
User Manual – 1/30
ESPAÑOL
VirtualDJ 6 LE TC
d) Previewing and moving within a music track.............................................................23
e) Using a Cue point......................................................................................................23
i) Placing a Cue point .......................................................................................23
a) Adjusting pitch in timecode mode ............................................................................. 24
b) Pitch scale.................................................................................................................24
c) Calibrating the pitch...................................................................................................25
d) Pitch controls.............................................................................................................25
i) Pitch fader overview ......................................................................................25
ii) SYNC button in VirtualDJ (= beat-match)...................................................... 27
User Manual – 2/30
VirtualDJ 6 LE TC

1) INTRODUCTION

VirtualDJ 6 LE TC is a dedicated version of VirtualDJ, developed by Atomix Productions, tailored for Hercules DeeJay TRIM 4&6 and timecoded CDs and/or vinyl records. Atomix Productions and its suppliers retain all intellectual property rights to the software.
The first time you run VirtualDJ 6 LE TC, you are asked to enter a serial number.
This serial number is found on the envelope of your installation CD. This serial number belongs to you: you cannot change it, and you must not share it with any other user of VirtualDJ; otherwise, you won't be able to register on the VirtualDJ website, which will not let you access VirtualDJ service updates, plug-ins, or upgrades. Keep both the CD envelope and the installation CD in a safe place, since both the serial number and the installation CD are required if you re-install your system, or change your computer. The serial number format is xxxx-xxxx-xxxxx / TRIM.
Welcome to VirtualDJ 6 LE TC
This powerful DJ mixing software is adapted to your Hercules DeeJay TRIM 4&6, offering instant access to scratching functions and deep integration of the software with the hardware in the Windows XP®, Vista®, 7™ and Mac OS® environments.
This dedicated version of VirtualDJ requires Hercules DeeJay TRIM 4&6 to be installed and connected to the computer’s USB port. Therefore, before running VirtualDJ 6 LE TC, Hercules DeeJay TRIM 4&6 must be installed and connected to your computer’s USB port.
In Windows XP, Vista and 7: if you see the Hercules DeeJay TRIM 4&6 icon in your taskbar with no red X over it, then the audio interface is properly connected and detected.
DEUTSCH
NEDERLANDS ENGLISH FRANÇAIS
If you see the DeeJay TRIM 4&6 icon in your taskbar with a red X over it your controller is not detected on any of your PC’s USB ports, so running VirtualDJ 6 LE TC is not possible until this red X disappears.
, this means that

2) SYSTEM REQUIREMENTS

a) PC

• Desktop/laptop PC with Intel Pentium 4 / Athlon 2GHz processor or higher
• 2GB RAM
• Operating system: Microsoft Windows XP, Vista or 7
• USB 2.0 port (high-speed port)
• CD-ROM or DVD-ROM drive
• 24-bit, 1024x768 video resolution or higher
User Manual – 3/30
ITALIANO
ESPAÑOL
VirtualDJ 6 LE TC

b) Mac

• Desktop/laptop Mac with 2GHz processor or higher
• 2GB RAM
• Operating system: Mac OS 10.4, 10.5 or 10.6
• USB 2.0 port (high-speed port)
• CD-ROM or DVD-ROM drive
• 24-bit, 1024x768 video resolution or higher

3) HARDWARE SETUP

a) Timecode configurations

2 different timecode configurations are possible: with CD players, and with vinyl turntables.

i) Timecoded CDs configuration

2 timecoded CDs and 2 audio cables are included in your package, to control Virtual DJ 6 LE TC.
User Manual – 4/30
The standard setup to mix with timecoded CDs is as follows:
VirtualDJ 6 LE TC
01: Computer (with VirtualDJ Scratch Starter Kit)
02: Hercules DeeJay TRIM 4&6 03: Analog mixer 04: CD player (deck A) 05: CD player (deck B)
1. Connect Deejay TRIM 4&6 to your computer via the USB cable.
2. On DeeJay TRIM 4&6, set the 2 phono/line switches (for inputs 1-2 and inputs 3-4) to the Line position.
3. Place a CD player with a scratch-capable jog wheel to the LEFT of your mixer.
Take one of the two RCA audio cables (2 RCA to 4 RCA), and:
• Connect the cable’s two RCA input connectors (labeled IN) to the CD player’s stereo
output plugs (red connector [right channel] to the red plug, white connector [left channel] to the white plug).
• Connect two of the cable’s output connectors (labeled OUT) to inputs 1-2 on your
DeeJay TRIM 4&6 (red connector [right channel] to the red plug, white connector [left channel] to the white plug).
If your mixer has 2 stereo inputs
:
• Leave the cable’s other two output connectors unplugged.
If your mixer has 4 stereo inputs:
• Connect the cable’s other two output connectors (labeled OUT) to inputs 3-4 (or Stereo 2) on the mixer, and use this channel on your mixer only if you are playing
audio CDs (as opposed to timecoded CDs) on your CD player.
User Manual – 5/30
DEUTSCH
NEDERLANDS ENGLISH FRANÇAIS
ITALIANO
ESPAÑOL
VirtualDJ 6 LE TC
4. Place a CD player with a scratch-capable jog wheel to the RIGHT of your mixer.
Take the other RCA audio cable (2 RCA to 4 RCA), and:
• Connect the cable’s two RCA input connectors (labeled IN) to the CD player’s stereo
output plugs (red connector [right channel] to the red plug, white connector [left channel] to the white plug).
• Connect two of the cable’s output connectors (labeled OUT) to inputs 3-4 on your
DeeJay TRIM 4&6 (red connector [right channel] to the red plug, white connector [left channel] to the white plug).
If your mixer has 2 stereo inputs
• Leave the cable’s other two output connectors unplugged.
If your mixer has 4 stereo inputs
• Connect the cable’s other two output connectors (labeled OUT) to inputs 7-8 (or Stereo 4) on the mixer, and use this channel on your mixer only if you are playing
audio CDs (as opposed to timecoded CDs) on your CD player.
With a 2-channel mixer:
:
:
Note:
RCA cables not included
User Manual – 6/30
With a 4-channel mixer:
VirtualDJ 6 LE TC
Note:
“Y” RCA cables included
Note:
RCA cables not included
5. Connect your DeeJay TRIM 4&6 outputs 1-2 to your mixer’s inputs 1-2 (audio cable not
included: use the cable you normally use to connect your left CD player to the mixer).
6. Connect your DeeJay TRIM 4&6 outputs 3-4 to inputs 3-4 (or Stereo 2) on your 2-stereo­channel mixer, or to inputs 5-6 (or Stereo 3) on your 4-stereo-channel mixer (audio cable not included: use the cable you normally use to connect your right CD player to the mixer).

ii) Timecoded vinyl records configuration

2 timecoded vinyl records are included in your package, to control VirtualDJ 6 LE TC.
The standard setup to mix with timecoded vinyl records is as follows:
DEUTSCH
NEDERLANDS ENGLISH FRANÇAIS
ITALIANO
ESPAÑOL
User Manual – 7/30
VirtualDJ 6 LE TC
01: Computer (with VirtualDJ Scratch Starter Kit)
02: Hercules DeeJay TRIM 4&6
03: Analog mixer 04: Vinyl turntable (deck
A) 05: Vinyl turntable (deck B)
1. Connect Deejay TRIM 4&6 to your computer via the USB cable.
2. If your turntables have a ground cable in addition to right (red) and left (white) plugs: on your
DeeJay TRIM 4&6, set the 2 phono/line switches (for inputs 1-2 and inputs 3-4) to the Phono position.
If your turntables have no ground cable: on your DeeJay TRIM 4&6, set the 2 phono/line switches (for inputs 1-2 and inputs 3-4) to the Line position.
3. Place a turntable to the LEFT of your mixer.
If your mixer has 2 stereo inputs
• Connect the 2 RCA connectors on your turntable’s audio cable to inputs 1-2 on your DeeJay TRIM 4&6 (red connector [right channel] to the red plug, white connector [left channel] to the white plug).
If your mixer has 4 stereo inputs
Take one of the two RCA audio cables (2 RCA [labeled IN] to 4 RCA [labeled OUT]), and two (of four) RCA-to-RCA female adapters, and:
• Connect the cable’s two RCA input connectors (labeled IN) to the turntable’s stereo output plugs, using the RCA-to-RCA female adapters (red connector [right channel] to the red plug, white connector [left channel] to the white plug).
• Connect two of the cable’s output connectors (labeled OUT) to inputs 1-2 on your DeeJay TRIM 4&6 (red connector [right channel] to the red plug, white connector [left channel] to the white plug).
:
:
User Manual – 8/30
VirtualDJ 6 LE TC
• Connect the cable’s other two output connectors (labeled OUT) to inputs 3-4 (or Stereo 2) on the mixer, and use this channel on your mixer only if you are playing
audio vinyl records (as opposed to timecoded vinyl records) on your turntable.
4. Place a turntable to the RIGHT of your mixer.
If your mixer has 2 stereo inputs
• Connect the 2 RCA connectors on your turntable’s audio cable directly to inputs 3-4 on your DeeJay TRIM 4&6 (red connector [right channel] to the red plug, white connector [left channel] to the white plug).
If your mixer has 4 stereo inputs
Take the other RCA audio cable (2 RCA [labeled IN] to 4 RCA [labeled OUT]), and two (of four) RCA-to-RCA female adapters, and:
• Connect the cable’s two RCA input connectors (labeled IN) to the turntable’s stereo output plugs, using the RCA-to-RCA female adapters (red connector [right channel] to the red plug, white connector [left channel] to the white plug).
• Connect two of the cable’s output connectors (labeled OUT) to inputs 3-4 on your DeeJay TRIM 4&6 (red connector [right channel] to the red plug, white connector [left channel] to the white plug).
• Connect the cable’s other two output connectors (labeled OUT) to inputs 7-8 (or Stereo 4) on the mixer, and use this channel on your mixer only if you are playing
audio vinyl records (as opposed to timecoded vinyl records) on your turntable.
With a 2-channel mixer:
:
:
DEUTSCH
User Manual – 9/30
Note:
RCA cables not included
NEDERLANDS ENGLISH FRANÇAIS
ITALIANO
ESPAÑOL
