Triangle Head Bolt
NORMA L
Installation&Maintenance Instructions
3.
A
4xM12 Nuts
2.
A
S17
29,5 lb ft
1 4
A
Mm/ Inch B Mm/ Inch C Mm/ Inch D Mm/ Inch
500 Min 72 350 330
19 11/16 Min 2 53/
B
C
A
1.
D
13 25/32 12 63/64
64
D
2 5
S9
1,1 lb ft
2020-0/07.07.2020
4xM12 Washers
8xM12 Nuts
S17
29,5 lb ft
3
S9
6
2xM4 Flat Head Screws
1,1 lb ft
2xM4 Head Bolt
S3
1,4 lb ft
7
8
1,1 lb ft
S3
2,9 lb ft
1,1 lb ft
4xM5 Button Head Screws
10
11
13
14
9
S3
2,9 lb ft
6xM5 Button Head Screws
12
15
English

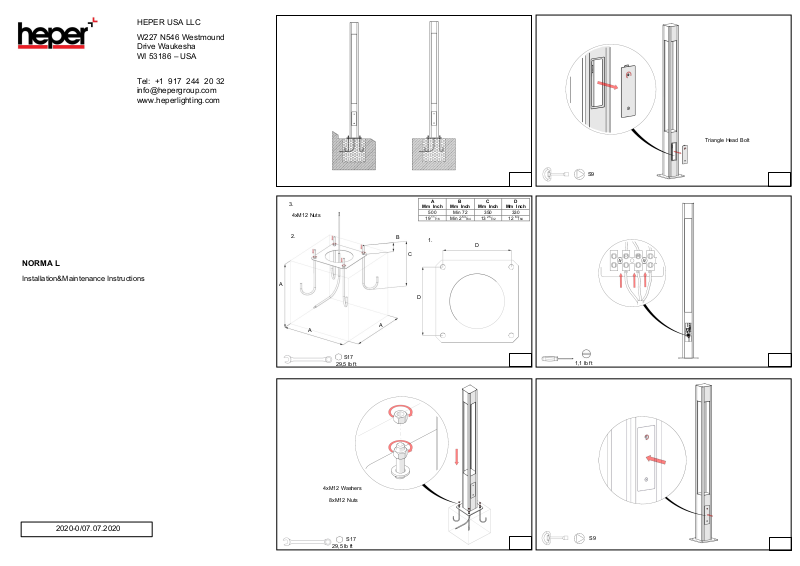

ASSEMBLY INSTRUCTIONS
To mount the Bollard onto the ground;
1. The floor on which Bollard will be mounted must be flat.
2. Gap on the ground is adjusted according to the given concrete dimensions.
2.1. The template plate is used to align the connection holes of the product.(Hole Center: 250 mm)
2.2. The anchor bolts are embedded in the concrete, using a template plate, with a minimum height of
72mm.
Note:After the concrete is poured and when the studs are fixed, the anchor plate for
the alignment is removed.
2.3. Nuts are attached to the anchor bolts. (4xM12 Nuts)
3. After the flange of the bollard is adjusted, bolts are screwed applying with 29,5 lb ft
torque.During this operation, washers must be used. (8xM12)
4. The fuse cover triangle head bolt is loosened. The fuse cover is removed.(1xTriangle Head Bolt)
5. Mains cable is connected to the terminals on the cartridge group.
6. The fuse cover is seated. Triangular head bolt is tightened.
To reach the LED Driver;
Note: Electrical connection to the product must be disconnected before starting this process.
7. By following step 4, the fuse cover is removed. Mains cables are disconnected.
8. The bolts holding the cartridge assembly are removed. (2xM4 Imbus Bolt)
by putting washers under them.
9. The LED driver group is removed from the fuse cover. The socket is removed.
driver replacement.
10. Removal of the LED driver;
10.1. The cables from the LED driver, fuse and terminal are disconnected.
are fixed with a torque of 1,1 lb ft.
10.2. The bolts holding the LED driver are removed. (2xM4 Star Cylinder Head Bolt)
11. Bolts are removed and the cover is removed.(4xM4 round head bolt)
Note:While replacing the cartridge group, it is fixed with 1,4 lb ft torque in place
Note: Make sure the socket is fully seated when installing the socket after the LED
Note: Dismantled cables during cable assembly are installed in place and the bolts
Note: When mounting the LED driver in place, the bolts should be tightened with a
torque of 1,1 lb ft.
Note: Make sure that the LED driver's sockets are not damaged. Make sure that the
sockets are fully seated.
To replace LED module;
A
(Inch)
98 27/64 29 17/32 7 3/32 49,6
157 31/64 47 1/4 7 3/32 73,9
B
(Inch)
C
(Inch)
WEIGHT
(lb)
BOLARD
CODE
LB6055.510
LB6056.510
Note:When mounting the top cover, the bolts are fixed in place with 2,9 lb ft torque.
12. The module holding sheet bolts are removed and the sheet holding the module is
removed.(6xM4 Round Head Bolts)
Note:When mounting the sheet holding the module, the bolts are screwed applying
with 2,9 lb ft.
13. The module socket is removed. (Make sure that the socket is fully seated when replacing it.)
14. The LED lighting module is carefully removed. When remounting the LED lighting module, it
is needed to ensure that the socket (resistant to water and dust) that provides electricity
transmission is not damaged and fits properly.
15. LED Module view is shown.
WARNINGS AND REMARKS FOR
INSTALLATION AND MAINTENANCE
Safety Instructions
• The light source contained in this luminaire shall only be replaced by the manufacturer or his
service agent or a similar qualified person. Always switch off the power prior to installation,
maintenance or repair activities.
• The manufacturer is then discharged from liability when damage is caused by improper use or
installation.
•
If any luminaire is subsequently modified, the persons responsible for the modification shall be
considered as manufacturer.
•
To reduce the risk of death, personal injury or property damage from fire, electric shock, falling
parts, cuts, abrasions and other hazards, please read all warnings and instructions included
with the luminaire, on the luminaire’s packaging and affixed to the luminaire itself..
Installatio n
LEDs are high-quality electronic components! Please avoid contacting the light output opening
•
of the LED directly during installation or relamping.
IMPORTANT
To ensure secure connection, the luminaire housing must be positioned precisely in relation to
•
the mounting plate.
Cleaning And Maintenance
• Clean luminaire regularly with solvent-free cleaners from dirt. Please do not do not clean the
luminaire with using high-pressure liquids.
