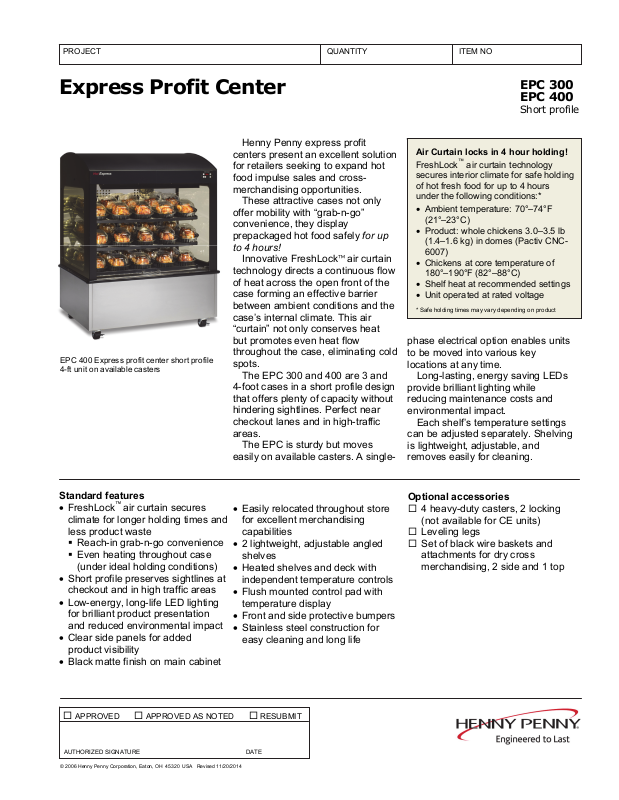

PROJECT QUANTITY ITEM NO

Express Profit Center

Henny Penny express profit centers present an excellent solution for retailers seeking to expand hot food impulse sales and crossmerchandising opportunities.

These attractive cases not only offer mobility with “grab-n-go” convenience, they display prepackaged hot food safely for up to 4 hours!

Innovative FreshLock™ air curtain technology directs a continuous flow of heat across the open front of the case forming an effective barrier between ambient conditions and the case’s internal climate. This air “curtain” not only conserves heat but promotes even heat flow

EPC 400 Express profit center short profile 4-ft unit on available casters

throughout the case, eliminating cold spots.

The EPC 300 and 400 are 3 and 4-foot cases in a short profile design that offers plenty of capacity without hindering sightlines. Perfect near checkout lanes and in high-traffic areas.

The EPC is sturdy but moves easily on available casters. A single-

EPC 300 EPC 400

Short profile

ir Curtain locks in 4 hour holding!

FreshLock secures interior climate for safe holding of hot fresh food for up to 4 hours under the following conditions:*

• Ambient temperature: 70°–74°F (21°–23°C)

• Product: whole chickens 3.0–3.5 lb (1.4–1.6 kg) in domes (Pactiv CNC-

6007)

• Chickens at core temperature of 180°–190°F (82°–88°C)

• Shelf heat at recommended settings

• Unit operated at rated voltage

* Safe holding times may vary depending on product

phase electrical option enables units to be moved into various key locations at any time.

Long-lasting, energy saving LEDs provide brilliant lighting while reducing maintenance costs and environmental impact.

Each shelf’s temperature settings can be adjusted separately. Shelving is lightweight, adjustable, and removes easily for cleaning.

™

air curtain technology

Standard features

• FreshLock climate for longer holding times and less product waste

 Reach-in grab-n-go convenience  Even heating throughout case

(under ideal holding conditions)

• Short profile preserves sightlines at checkout and in high traffic areas

• Low-energy, long-life LED lighting for brilliant product presentation and reduced environmental impact

• Clear side panels for added

™

air curtain secures

• Easily relocated throughout store for excellent merchandising capabilities

• 2 lightweight, adjustable angled shelves

• Heated shelves and deck with independent temperature controls

• Flush mounted control pad with temperature display

• Front and side protective bumpers

• Stainless steel construction for

easy cleaning and long life

product visibility

• Black matte finish on main cabinet

 APPROVED  APPROVED AS NOTED  RESUBMIT

AUTHORIZED SIGNATURE DATE

Optional accessories

 4 heavy-duty casters, 2 locking

(not available for CE units)

 Leveling legs  Set of black wire baskets and

attachments for dry cross merchandising, 2 side and 1 top

PROJECT ITEM NO

Express profit center

EPC 300 EPC 400

Dimensions

Height 56.50 in (1435 mm) 56.50 in (1435 mm)

60.25 in (1530 mm) with casters 60.25 in (1530 mm) with casters Width 40.00 in (1016 mm) 47.75 in (1213 mm) Depth 35.25 in (895 mm) 35.25 in (895 mm)

Crated

Length 43 in (1090 mm) 51 in (1295 mm) Depth 41 in (1040 mm) 41 in (1040 mm) Height 69 in (1750 mm) 69 in (1750 mm) Volume 71 ft Weight 483 lb (219 kg) 531 lb (241 kg)

Capacity Per shelf/deck 31.00 x 21.50 in (787 x 546 mm)

Total 13.9 ft2 (1.29 m2)

Electrical

Volts Phase Hertz kW Amps kW Amps Wire

208 1 60 3.57 17.2 4.58 22.0 2+G 240 1 60 3.58 15.7 4.60 20.0 2+G 208 3 60 3.57 14.8 4.58 19.0 3+G 240 3 60 3.58 12.8 4.60 16.5 3+G 400 3 50–60 3.58 8.5 4.60 7.5 3NG

Laboratory certifications

EPC 300

40.00 in (1016mm)

(2.0 m3) 84 ft3 (2.4 m3)

8 chicken domes

24 chicken domes

EPC 300 EPC 400

EPC 400

56.50 in (1435 mm)

47.75 in (1213 mm)

38.75 x 21.50 (984 x 546 mm) 10 chicken domes

17.4 ft2 (1.61 m2) 30 chicken domes

1 Phase NEMA 6-20P

3 Phase NEMA 15-20P

3.75 in (95 mm)

35.25 in (895 mm)

Heat

Duty cycle: 0%–100%

Required clearances

Back 4 in (102 mm) for power cord

Bidding specifications

Provide Henny Penny model EPC 300 or EPC 400 express profit center short profile heated self-serve merchandiser designed to hold and display prepackaged hot food items safely for up to 4 hours under ideal holding conditions.

Unit shall incorporate:

• FreshLock for maintaining safe holding temperatures

• Lower height to preserve sightlines at checkout

• Adjustable shelving with separate temperature

controls for each shelf

• 2 angled shelves plus flat deck

• Energy-saving bright LED lighting

• Stainless steel exterior

• Protective bumper front and sides

• Choice of single or 3-phase electrical connection

• Choice of casters, 2 locking (not available for CE

units), or leveling legs

NEMA 6-30P

NEMA 15-30P

™

air curtain technology to secure climate

EPC 300 EPC 400

Short profile

Power cord exit

Continuing product improvement may subject specifications to change without notice.
