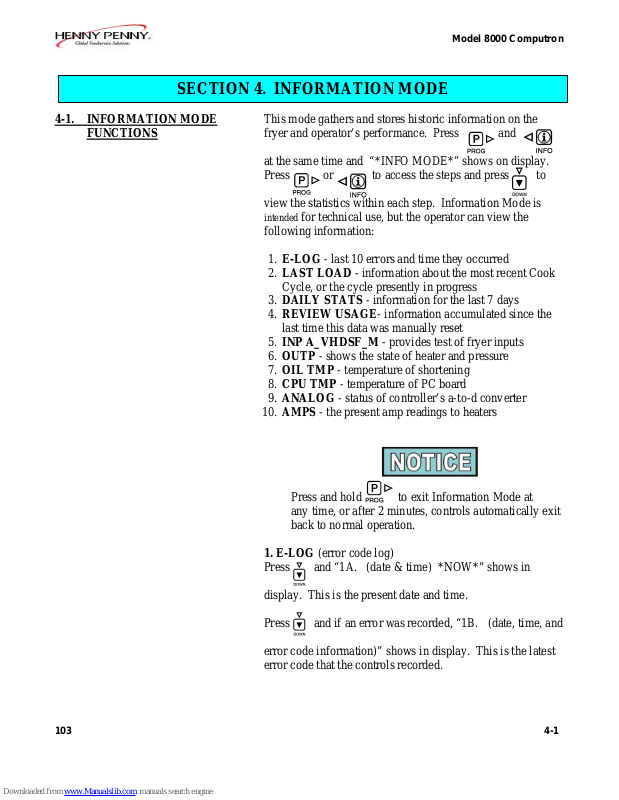

Page 1
Model 8000 Computron
SECTION 4. INFORMATION MODE
4-1. INFORMATION MODE This mode gathers and stores historic information on the
FUNCTIONS fryer and operator’s performance. Press and
at the same time and “*INFO MODE*” shows on display.
Press or to access the steps and press to
view the statistics within each step. Information Mode is
intended for technical use, but the operator can view the
following information:
1. E-LOG - last 10 errors and time they occurred
2. LAST LOAD - information about the most recent Cook
Cycle, or the cycle presently in progress
3. DAILY STATS - information for the last 7 days
4. REVIEW USAGE- information accumulated since the
last time this data was manually reset
5. INP A_VHDSF_M - provides test of fryer inputs
6. OUTP - shows the state of heater and pressure
7. OIL TMP - temperature of shortening
8. CPU TMP - temperature of PC board
9. ANALOG - status of controller’s a-to-d converter
10. AMPS - the present amp readings to heaters
103 4-1
Press and hold to exit Information Mode at
any time, or after 2 minutes, controls automatically exit
back to normal operation.
1. E-LOG (error code log)
Press and “1A. (date & time) *NOW*” shows in
display. This is the present date and time.
Press and if an error was recorded, “1B. (date, time, and
error code information)” shows in display. This is the latest
error code that the controls recorded.
Page 2
Model 8000 Computron
4-1. INFORMATION MODE Press and the next latest error code information can be
FUNCTIONS (Continued)
seen. Up to 10 error codes (1B to 1K) can be stored in the
E-LOG section.
Press to continue to LAST LOAD.
2. LAST LOAD
Press to view the following information from the most
recent Cook Cycle.
FUNCTION DISPLAY EX:
Time of day the last Cook Cycle was started
Product (Last product cooked)
Ready? (Was fryer Ready before start?)
Stopped: Time remaining, or secs past Done
Actual Elapsed cook Time (Real seconds)
Programmed cook Time
Actual Time vs. Prog time (Percentage)
Max Temp during Cook Cycle
Min Temp during Cook Cycle
Avg Temp during Cook Cycle
Heat On (percentage) during Cook Cycle
STARTED 10.25A
PRODUCT -2READY? YES
*DONE* + 9 SECS
ACTUAL TIME 7:38
PROG TIME 7:00
ACT / PROG 109%
MAX TEMP 327°F
MIN TEMP 313°F
AVG TEMP 322°F
HEAT ON 73%
Only if Presently Cooking:
Present cook step, setpoint, and time rem.
Actual shortening temp, deg below load comp
avg, present stretch time (real secs / ck sec)
Press to continue to DAILY STATS.
STEP 1:325°F 6:47
313°F LC-12° 1.06
4-2 602
Page 3
Model 8000 Computron
4-1. INFORMATION MODE 3. DAILY STATS (reset each day)
FUNCTIONS (Continued) Press to view the following operation information for any
of the last 7 days. Press to select which day.
FUNCTION DISPLAY EX:
Day this data was recorded for
Number of Hours:Minutes the fryer was on
Number of times shortening was filtered that
day
Total number of Cook Cycles that day
Cook Cycles for product #1
Cook Cycles for product #2
Cook Cycles for product #3
Cook Cycles for product #4
Cook Cycles for product #5
Cook Cycles for product #6
Cook Cycles for product #7
Cook Cycles for product #8
Cook Cycles for product #9
Cook Cycles for product #0
TUE* APR-30
TUE* ON HRS 13:45
TUE* FILTERED 3
TUE* TOTAL CK 38
TUE* COOK -1- 17
TUE* COOK -2- 9
TUE* COOK -3- 5
TUE* COOK -4- 0
TUE* COOK -5- 0
TUE* COOK -6- 6
TUE* COOK -7- 0
TUE* COOK -8- 0
TUE* COOK -9- 1
TUE* COOK -0- 0
Press to continue to REVIEW USAGE.
4. REVIEW USAGE
Press to view the accumulated information since the data
was manually reset:
FUNCTION DISPLAY EX:
Day the usage data was previously reset
Number of hours the fryer was on
Number of times shortening was filtered
Total number of Cook Cycles
Cook Cycles for product #1
Cook Cycles for product #2
Cook Cycles for product #3
Cook Cycles for product #4
Cook Cycles for product #5
Cook Cycles for product #6
Cook Cycles for product #7
Cook Cycles for product #8
Cook Cycles for product #9
Cook Cycles for product #0
Reset usage data:
Enter the Mgr Code (1, 2, 3 unless changed)
on this step to zero out all the usage
information
SINCE APR-19
PWR ON HRS 165
FILTERED 34
TOTAL CK 462
COOKED -1- 193
COOKED -2- 107
COOKED -3- 58
COOKED -4- 0
COOKED -5- 13
COOKED -6- 69
COOKED -7- 0
COOKED -8- 7
COOKED -9- 15
COOKED -0- 0
RESET USG /
ENTER CODE ------
602 4-3
Press to continue to INP A_VHDSF_M.
Page 4
4-1. INFORMATION MODE 5. INP A_VHDSF_M
FUNCTIONS (Continued) Press to view the status of components and inputs. If the
input signal is detected, an identifying letter is displayed (see
below). If the signal is not detected, “_” is displayed.
With the COOK/PUMP switch in the COOK position, and all
inputs detected, “H_ P_ A_VHDSF_M” shows in the
display. See below for definition of codes.
A = COOK/PUMP switch in COOK position
B = COOK/PUMP switch in PUMP position
V = Volts – 24-VAC detected
H = High Limit - If “H” is present, the high limit is good;
if “H” is missing, the high limit is tripped (overheated) or
faulty
D = DRAIN SWITCH-If “D” is present, the drain handle is
Closed; if “D” is missing, the drain is open or faulty
S = COOK/PUMP switch on interlock circuit: If “S” is
present, the COOK/PUMP switch is in the COOK position;
if the “S” is missing, the power switch is either off, failed, or
wired incorrectly
F = FAN
P = PV – Detects 24 V jumper to PV terminal – gas fryers only
M = MV – Detects 24 V jumper to MV terminal – electric
fryers only
Model 8000 Computron
Press to view the specific status of each input. An
underscore (“_”) indicates the input is not presently detected.
A checkmark (“v” ) indicates the signal is detecting a normal
input. A blinking (“X”) indicates the signal is presently
detected, but is detected as a half-wave (partially failed)
input.
The V, H, D, S, F, P and M signals below are wired in
series. The first signal missing out of this sequence
generally causes all signals to the right of it to be
missing as well.
Press to continue on to OUTP H* P_.
4-4 103
Page 5
Model 8000 Computron
4-1. INFORMATION MODE 6. OUTP H* P_ (F*H*P_ for gas units)
FUNCTIONS (Continued) This mode displays the status of components and outputs. If
the output signal is detected, an identifying letter is displayed
(see below), followed by an “*”. If the output is off, “_” is
displayed.
F = Fan output (gas only)
H = Heat output
P = Pressure output
On gas units, if fan is on, “F*” shows in display. If fan is
off, “F_” shows in display. If controls sense a problem with
the fan output, “F*” shows in display, with the “*” flashing.
If heat is on, “H*” shows in display. If heat is off, “H_”
shows in display. If controls sense a problem with the heat
output, “H*” shows in display, with the “*” flashing.
If pressure is on, “P*” shows in display. If pressure is off,
“P_” shows in display. If controls sense a problem with the
pressure output, “P*” shows in display, with the “*” flashing.
Press to view the amp “DRAW” status of each output.
“F v”, “H v” and “P v” in the display means the amps are
good. A flashing “X” behind the F, H or P means too much
current.
Press to view the No Connect/Ground (“NC/GND”)
status of each output. This monitors a possible problem with
the relays on the output PC board.
“F v”, “H v” and “P v” in the display means everything on
the output PC board is good. A flashing “X” behind the F, H
or P means a problem exists.
Press to view the outputs and inputs (see step 10)
together.
Press to continue onto the OIL TMP reading.
7. OIL TMP
This step shows the present peanut shortening temperature.
The display shows “7. OIL TMP (temp.)”.
902 4-5
Press to continue onto the CPU TMP reading.
Page 6
Model 8000 Computron
4-1. INFORMATION MODE 8. CPU TMP
FUNCTIONS (Continued) This step shows the present PC board temperature.
Press to continue on to the ANALOG reading.
9. ANALOG <1> 2.86V
This step displays the present status of any channel of the
controller’s a to d converter. This feature may be useful to a
technician troubleshooting a problem with the fryer or
controller.
The displayed value can be toggled between volts and bits
by pressing . If the displayed value has a decimal point,
it is voltage (0 to 5 VDC). If no decimal point is shown, the
value is a-to-d bits (0 - 4095).
Press to continue onto AMPS reading.
10. AMPS 33 33 33
This display shows the present readings from the fryer’s amps
sensors, which monitor the electrical current supplied to the
heaters.
These values indicate the current through each supply leg to
the heaters. These values do not necessarily correspond
directly to the current through an individual heater coil.
The AMPS values should normally cycle on and off with
the heat light, and all three values should be about the same.
Press and hold to exit Information Mode at any
time, or after 2 minutes, controls automatically exit
back to normal operation.
4-6 103
