Henny Penny BCF-65 User Manual
Model BCF-24/65/110, BCM-110
SECTION 2. INST ALLA TION
2-1. INTRODUCTION This section provides the installation for the Henny Penny
Blast Chiller/Freezer .
Installation of this unit should be performed only by a
qualified service technician.
Do not puncture the unit with any objects such as
drills or screws, or component damage or electrical
shock could result.
2-2. UNP ACKING The Henny Penny Blast Chiller/Freezer has been tested, inspected,
and expertly packed to ensure arrival at its destination in the best
possible condition. The rack supports are secured inside the unit
with cardboard, and the slides for the racks are packed inside the
unit. The cabinet rests on a wooden skid and is then packed inside
a heavy cardboard carton with sufficient padding to withstand
normal shipping treatment.
To avoid damage to the components, do not lay the unit
on its side. If the unit has been on its side, the unit must
be in an upright position for at least an hour before
power is applied to the unit.
Check all components for signs of being loose or damaged, and make sure the system has refrigerant.
Any shipping damage should be noted in the presence of
the delivery agent and signed prior to his or her departure.
T o remove the Henny Penny Blast Chiller/Freezer from the carton,
you should:
1. Carefully cut banding straps.
2. Lift the carton off the unit.
3. Lift the unit off the skid.
503 2-1
Model BCF-24/65/110, BCM-110
2-2. UNP ACKING
(Continued)
The BCF-24 weighs about 250 lbs (112.5 kg), the
BCF-65 about 340 lbs (153 kg), and the BCF/BCM-110
about 364 lbs (165 kg). Care should be taken when
lifting unit to prevent personal injury .
4. Open door and remove packing from racks and the horizontal slides from the inside of the unit.
5. Peel off any protective covering from the exterior of the
cabinet.
6. Install the slides onto the vertical racks.
7. Y our blast chiller/freezer is now ready for operation.
2-3. ELECTRICAL The blast chiller/freezer is available as a 208, 230, or 200 VAC, 50
or 60 Hz, single phase unit, both for domestic and international use.
The data plate, located on the left side of the unit, will specify the
correct electrical supply . The BCF-24 and 65 are shipped with a
6 foot, 7 inch (2 m) cord and plug, and requires a grounded
receptacle with a separate electrical line protected by a fuse or
circuit breaker of the proper rating. The NEMA number for the
plug is NEMA 6-20P.
This unit must be adequately and safely grounded.
Refer to local electrical codes for correct grounding
procedures. If unit is not adequately grounded, electri-
Electrical Box Location cal shock could result.
T o avoid electrical shock, this appliance must be
equipped with an external circuit breaker which will
disconnect all ungrounded (unearthed) conductors.
Refer to the table below for electrical ratings:
Model No. Volts Watts Amps Freq. Phase
BCF-24 208-240 2300 4.3 60 1
230 1800 9 50 1
200 1800 1 1 50 1
BCF-65 208-240 3000 7 60 1
230 2900 13 50 1
200 2500 12 50 1
BCF-110 208-240 4600 17 60 3
and 400 3100 9 50 3
BCM-110 200 3800 17 50/60 3
2-2 1105
Model BCF-24/65/110, BCM-110

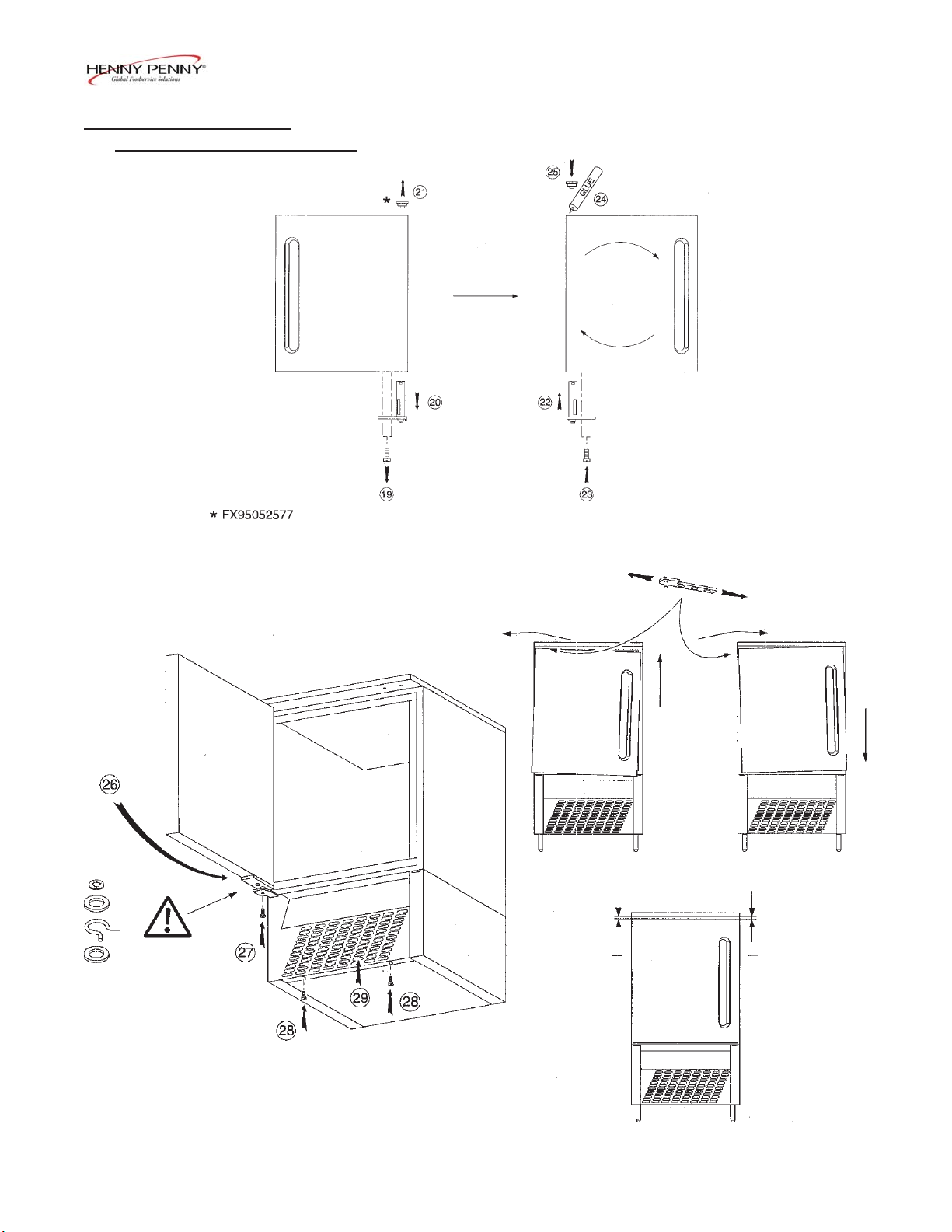

2-4. LOCA TION The BCF-24, BCF-65, and BCF/BCM-110 should be placed in
an area where the doors can be opened, for loading and unloading,
without interruption.
For proper operation, and the door to seal properly , the cabinet
must be level, and can be leveled by means of the adjustable legs.
For maximum efficiency , if the air temperature of the premises
is more than 100° F (38° C), the room should have adequate
ventilation, taking into account for the heat emitted by the unit.
Minimum clearances around the unit, especially from sources
of heat, are shown in the diagrams below:
505 2-3
