Heatmiser Slimline-E User Manual

1Model: PRT-E

Model: Slimline-E

Slimline Series

Model: Slimline-E

Slimline Series1

2Model: Slimline-E

Table of Contents

1

2

3-4

5-6

7-8

9

10

11-12

13

14

15

16

17

18

19-22

23

24

25-27

Product Image

Table of Contents

What is a Programmable Room Thermostat?

Installation Procedure

LCD Display

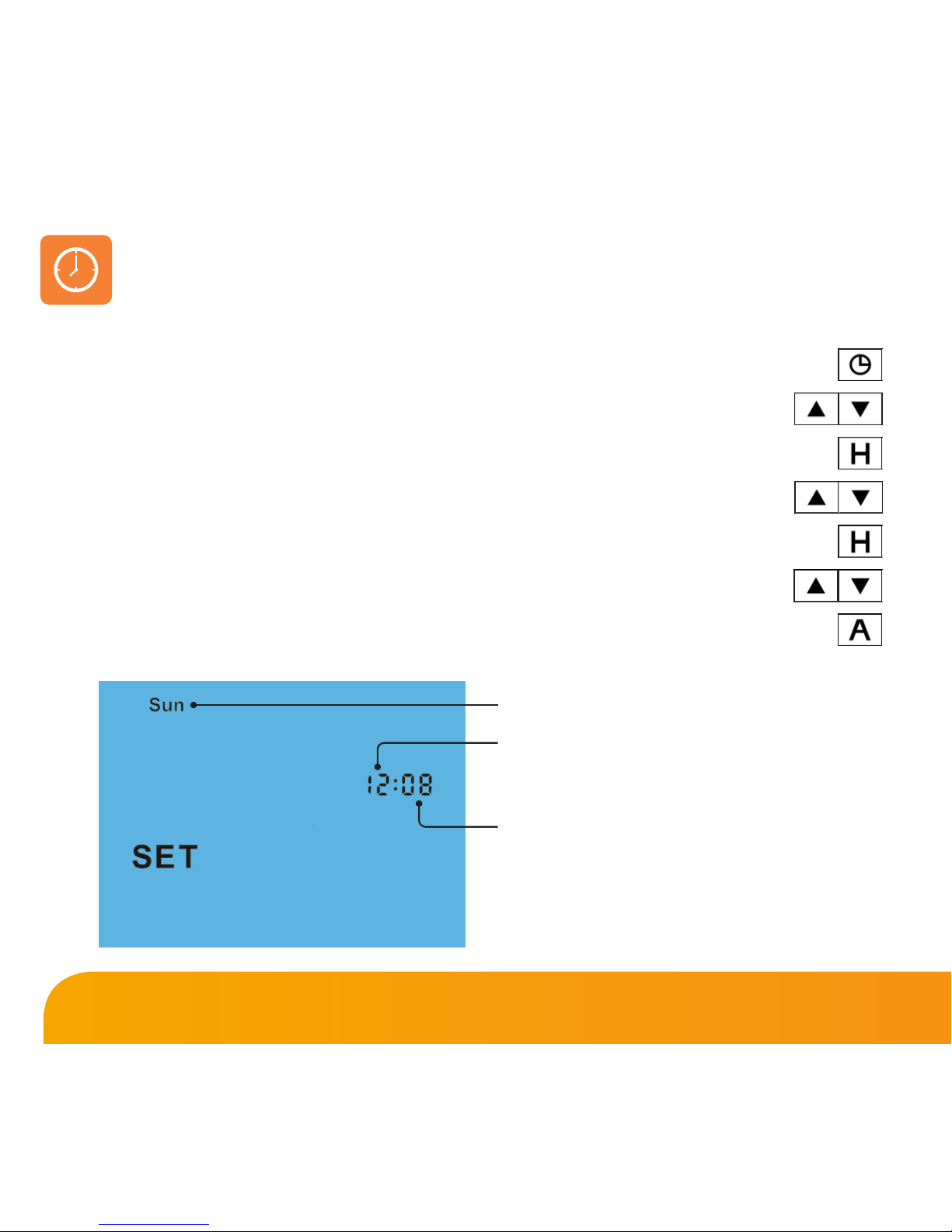

Setting the Clock

Temperature Display

Setting the Comfort Levels

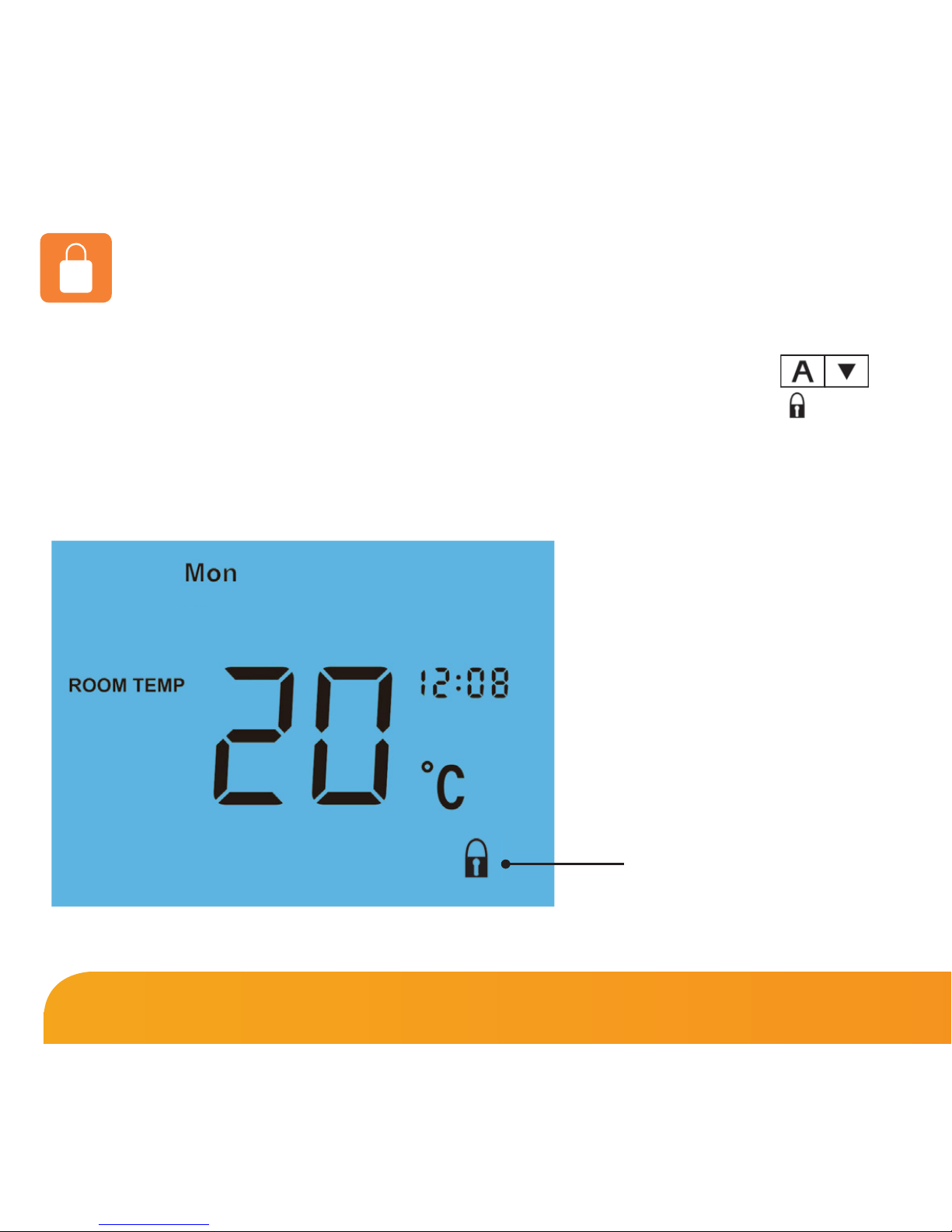

Locking the Thermostat

Setting the Temperature

Temperature Hold

Holiday Programming

Frost Protection

Power On / Off

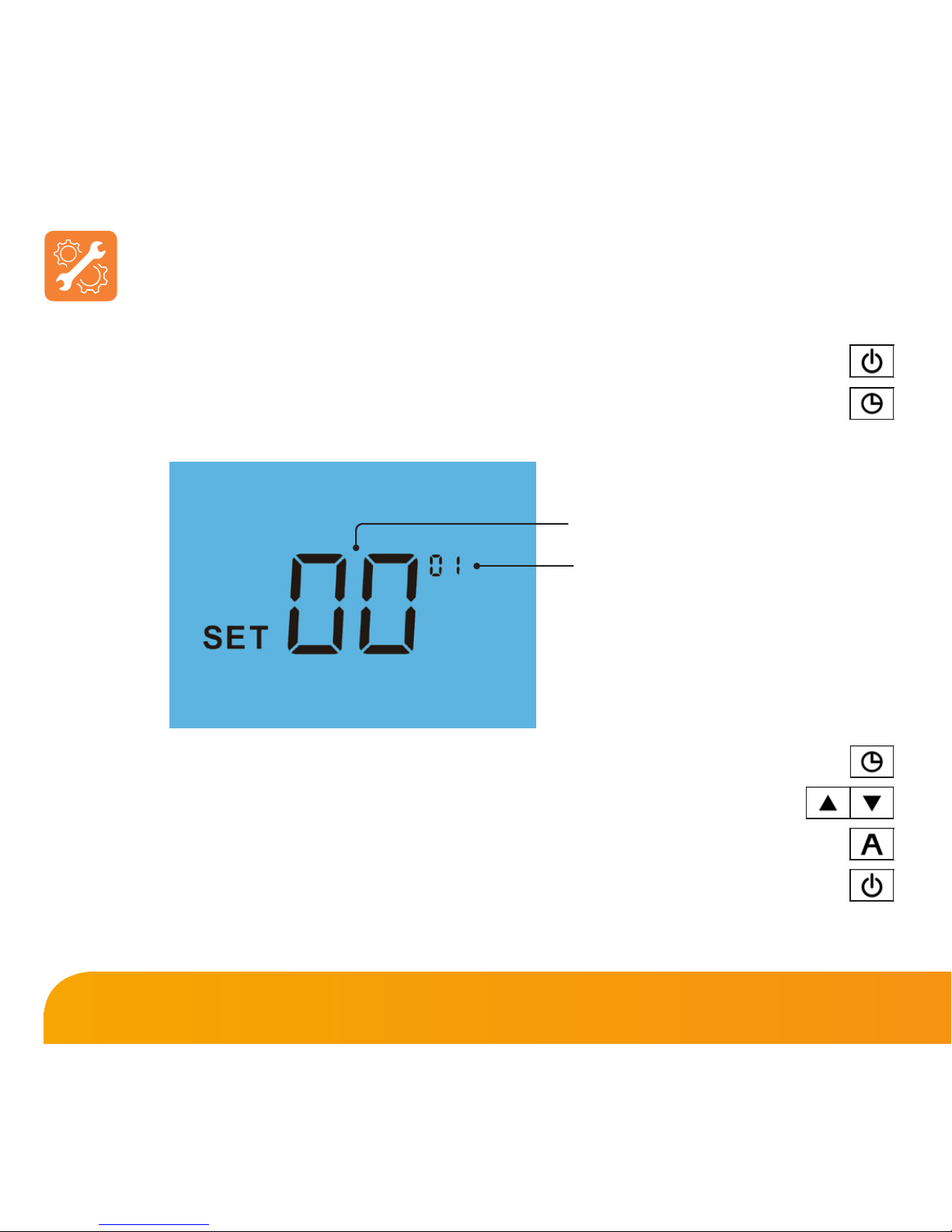

Optional Features

Re-calibrating the Thermostat

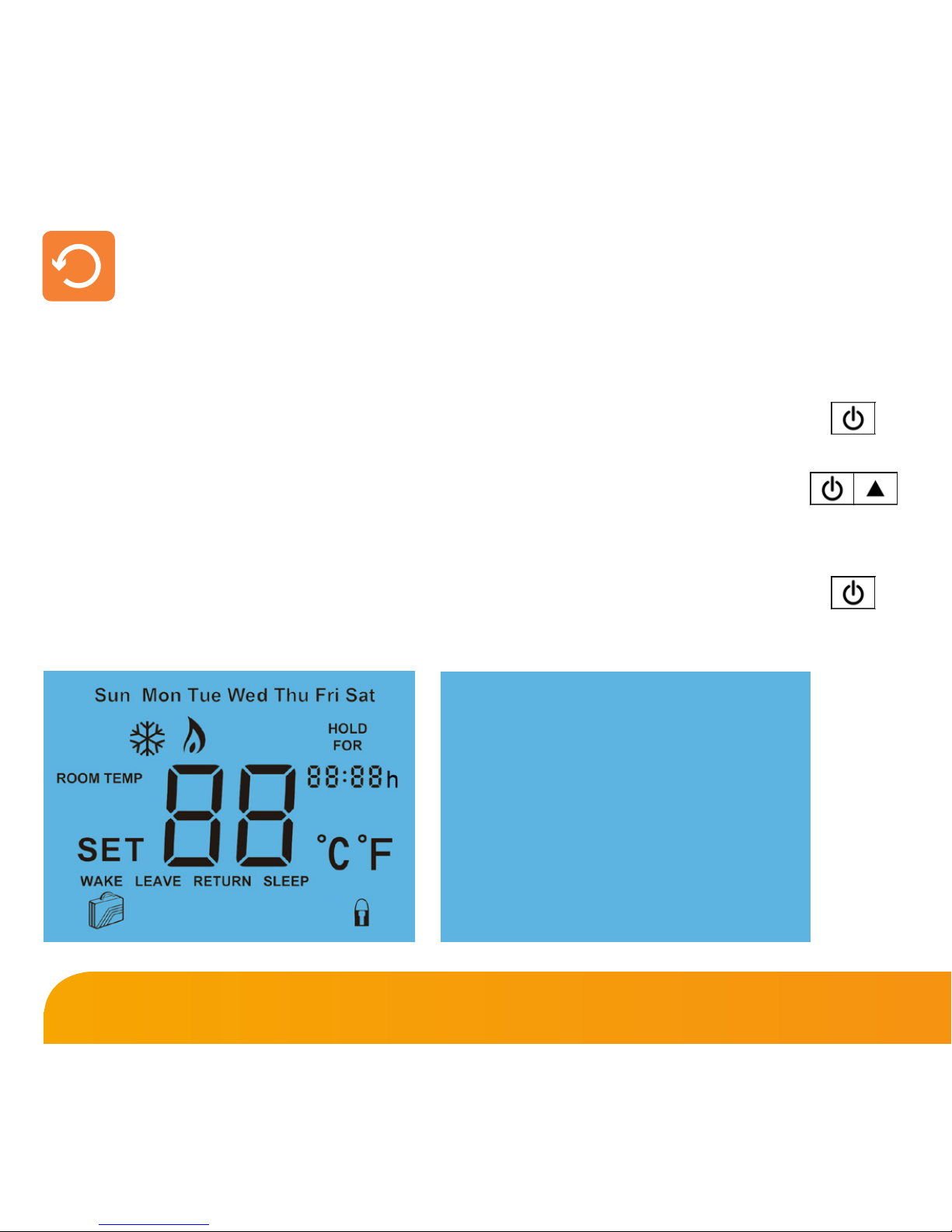

Factory Reset

Wiring Diagrams

Table of Contents

1

2

3-4

5-6

7-8

9

10

11-12

13

14

15

16

17

18

19-22

23

24

25

26

Product Image

Table of Contents

What is a Programmable Room Thermostat?

Installation Procedure

LCD Display

Setting the Clock

Temperature Display

Setting the Comfort Levels

Locking the Thermostat

Temperature Control

Temperature Hold

Holiday Mode

Frost Protection

Heating On/Off

Optional Features Explained

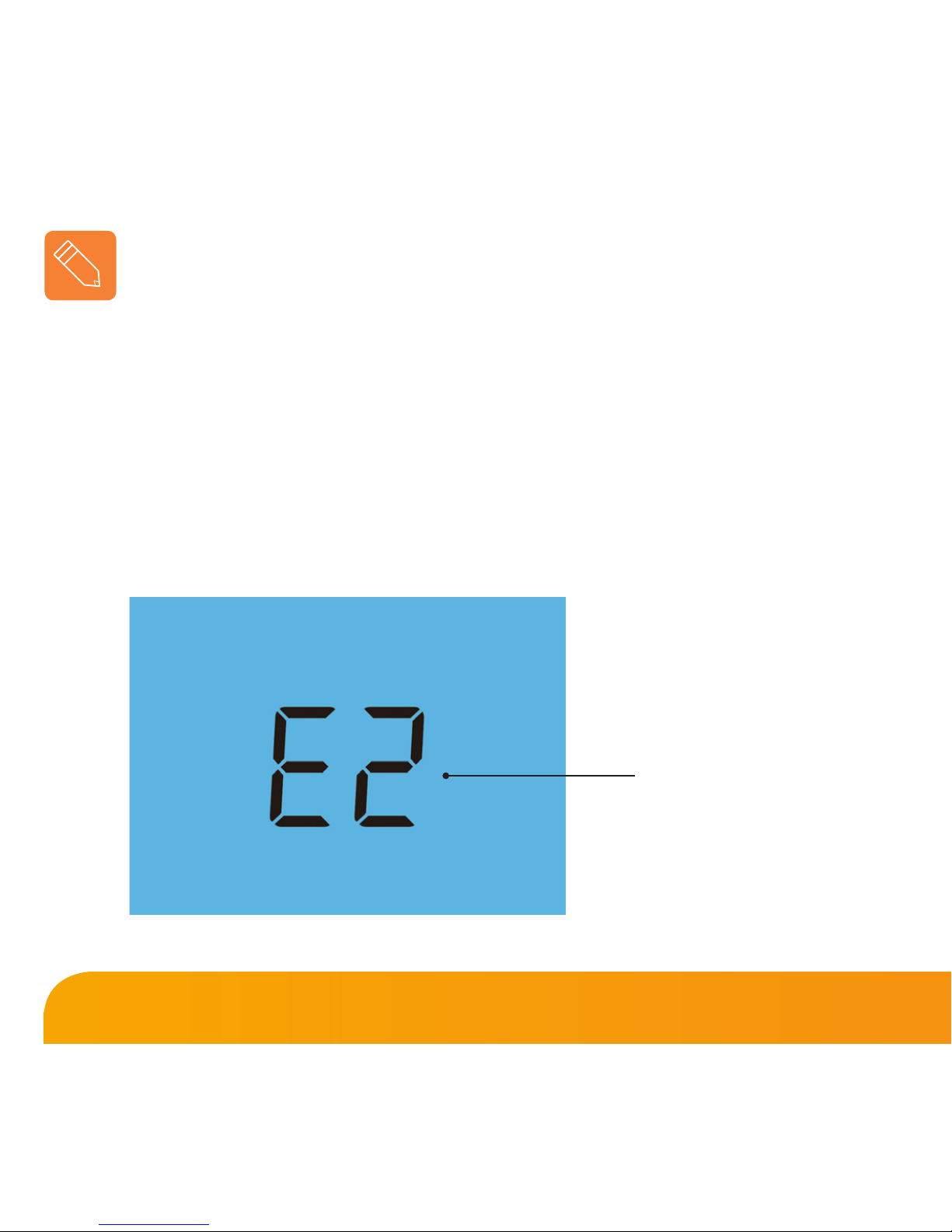

Error Codes

Re-calibrating the Thermostat

Factory Reset

Wiring Diagram

3 Slimline Series

What is a Programmable Room Thermostat?

A programmable room thermostat is both a programmer and a room thermostat.

A programmer allows you to set “On” and “Off” periods to suit your own lifestyle.
A room thermostat works by sensing the air temperature, switching on the heating when
the air temperature falls below the thermostat setting, and switching it off once this set
temperature has been reached.

So a programmable room thermostat lets you choose what times you want the heating
to be on, and what temperature it should reach while it is on. It will allow you to select
different temperatures in your home at different times of the day (and days of the week)
to meet your particular needs and preferences.

Setting a programmable room thermostat to a higher temperature will not make the
room heat up any faster. How quickly the room heats up depends on the design and size
of the floor heating system.

Similarly reducing the temperature setting does not affect how quickly the room cools
down. Setting a programmable room thermostat to a lower temperature will result in the
room being controlled at a lower temperature, and saves energy.

4

The way to set and use your programmable room thermostat is to find the lowest
temperature settings that you are comfortable with at the different times you have
chosen, and then leave it alone to do its job.

The best way to do this is to set the room thermostat to a low temperature
– say 18°C, and then turn it up by 1°C each day until you are comfortable with the
temperature. You won’t have to adjust the thermostat further. Any adjustment above
this setting will waste energy and cost you more money.

You are able to temporarily adjust the heating program by overriding or using the
temperature hold feature. These features are explained further on pages 14 and 15 of
this manual.

Programmable room thermostats need a free flow of air to sense the temperature,
so they must not be covered by curtains or blocked by furniture. Nearby electric
fires, televisions, wall or table lamps may also prevent the thermostat from working
properly.

Model: Slimline-E

5 Slimline Series

Installation Procedure

This Slimline Series thermostat is designed to be flush mounted and requires a back
box of 35mm (minimum depth) to be sunk into the wall prior to installation.

Step 1

Carefully separate the front half of the thermostat from the back plate by placing a
small flat head terminal driver into the slots on the bottom face of the thermostat.

Step 2

Place the thermostat front somewhere safe.

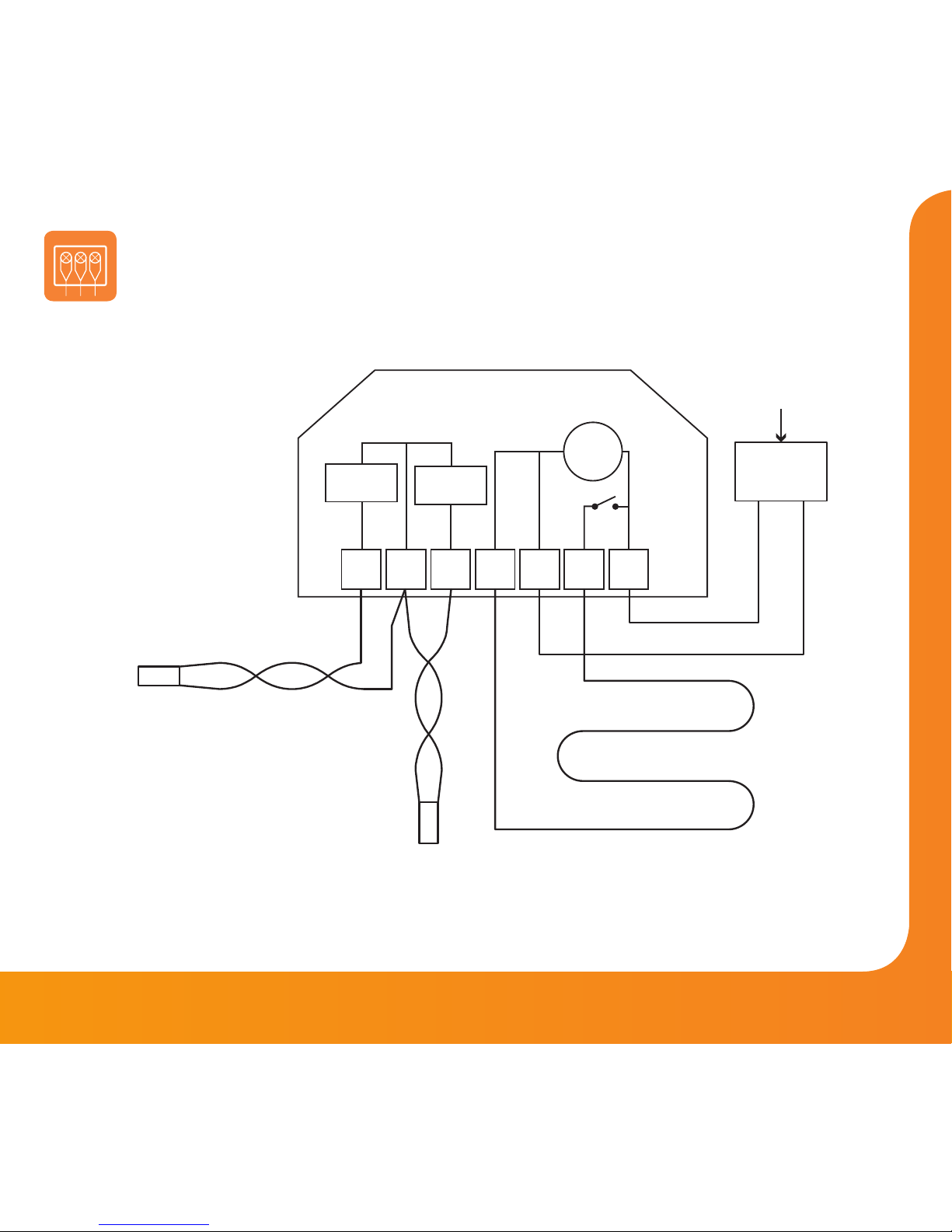

Terminate the thermostat as shown in the diagram on page 26 of this booklet.

Step 3

Screw the thermostat back plate securely into the back box.

Step 4

Clip the front of the thermostat back onto the thermostat back plate.

Do

Mount the thermostat at eye level.
Read the instructions fully so you get the best from our product.

Don’t

Do not install near to a direct heat source as this will affect functionality. Do
not push hard on the LCD screen as this may cause irreparable damage.

6

1 2

3 4

Model: Slimline-E

7 Slimline Series

1 2 3 4 6

7 8 9 10 11 12

13

5

8

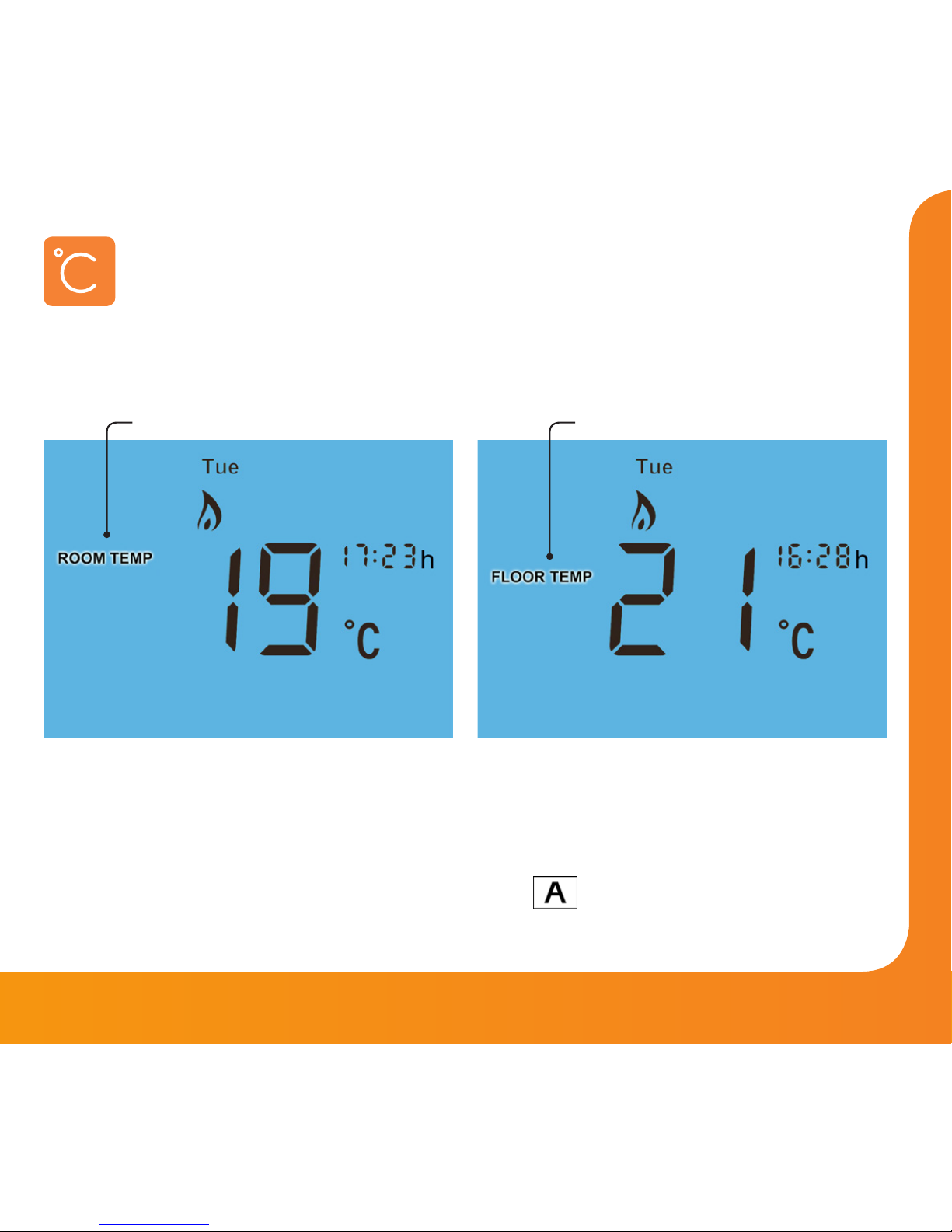

1. Room/Floor Temp - Indicates the current temperature sensor mode.

2. Day Indicator - Displays the current day.

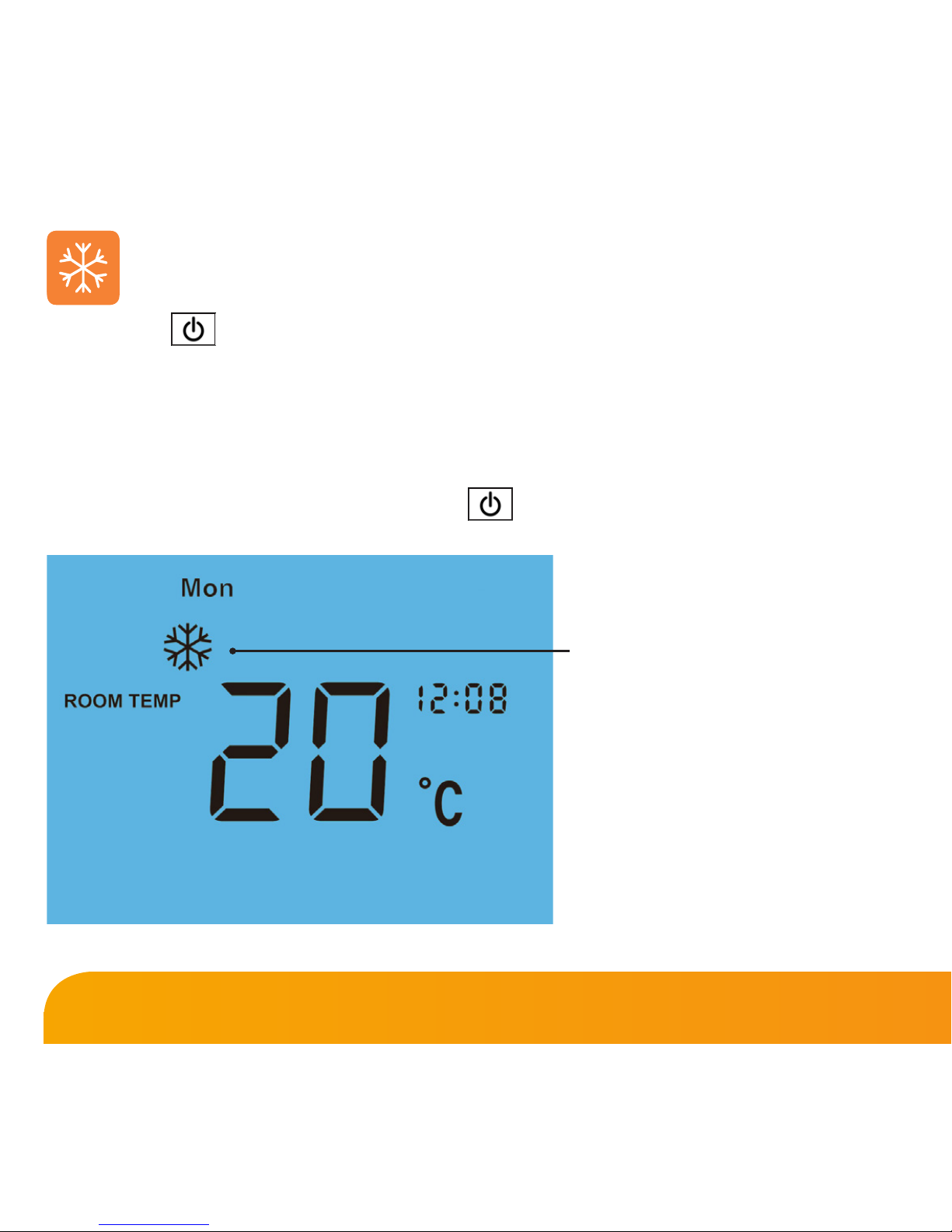

3. Frost Icon - Displayed when the thermostat is in frost protection mode.

4. Flame Icon - Displayed when the thermostat is calling for heat, the flame icon
will flash when the optimum start function is in operation.

5. Floor Temp Limit Icon - Displayed when the floor sensor probe has reached the
temperature limit set on feature 09.

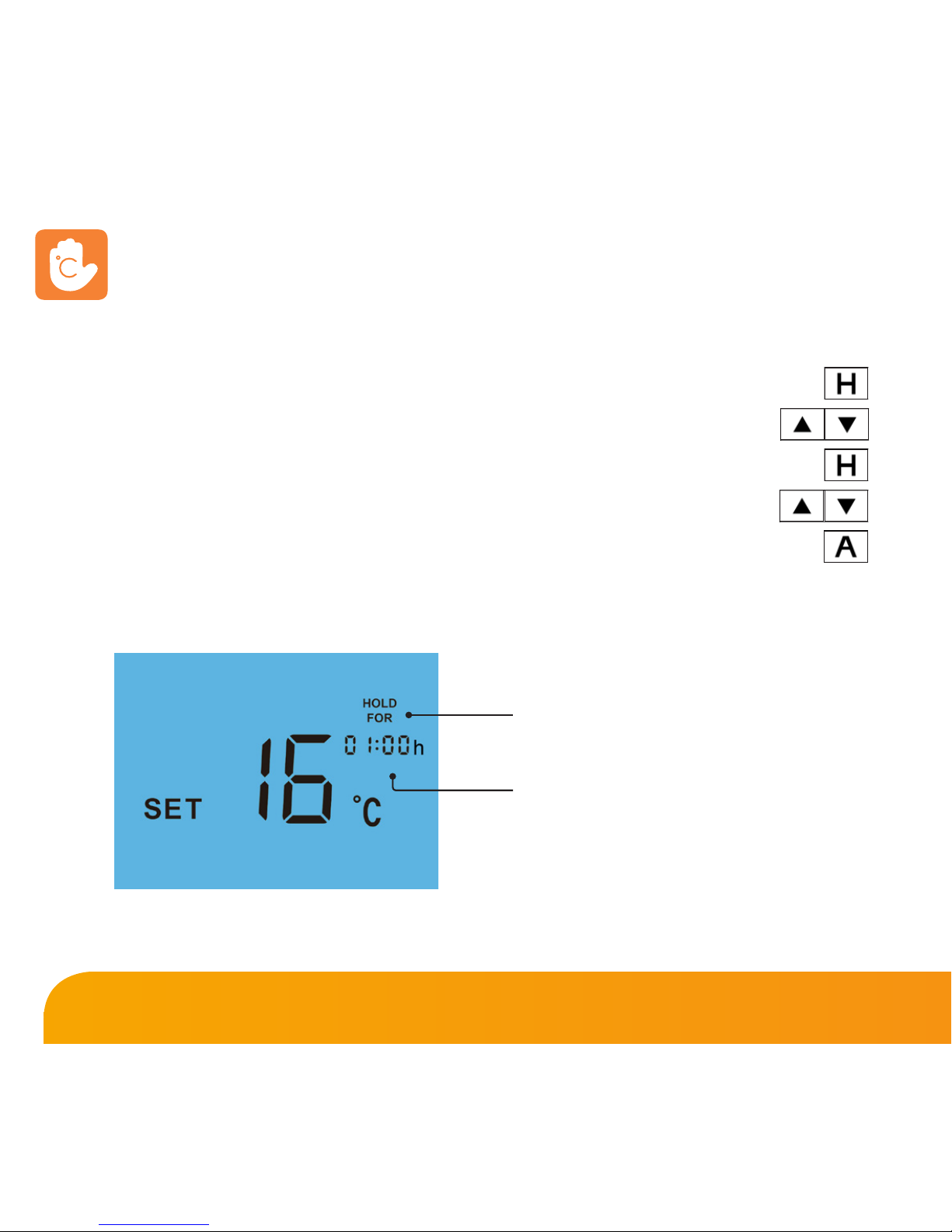

6. Temperature Hold - When a Temp Hold is active, HOLD FOR and the remaining
time period is displayed.

7. Set - Indicates when changes are being made to programs or temperature set
points.

8. Holiday Indicator - Displayed when the thermostat is in holiday mode.

9. Current Temp - Indicates the current sensor temperature.

10. Program Cycle Indicator - Displayed during programming only to show which
period is being altered.

11. Keypad Lock Indicator - Displayed when the keypad is locked.

12. Units of Temperature - Degrees Celsius or Fahrenheit.

13. Clock - Digital clock display in 24h format.

LCD Display

Model: Slimline-E
