Heatmiser Slimline User Manual

Model: Slimline

Slimline Series

22

Table of Contents

Product Image

Table of Contents

What is a Programmable Room Thermostat?

Installation Procedure

LCD Display

Setting the Clock

Temperature Display

Setting the Comfort Levels

Locking the Thermostat

Setting the Temperature

Temperature Hold

Holiday Programming

Frost Protection

Power On / Off

Optional Features

Re-calibrating the Thermostat

Factory Reset

Wiring Diagrams

1

2

3-4

5-6

7-8

10

11-12

13

14

15

16

17

18

19-22

23

24

24Factory Reset

25-27

9

Model: Slimline

2

What is a Programmable Room Thermostat?

A programmable room thermostat is both a programmer and a room thermostat.

The programmer allows you to set “On” and “Off” periods to suit your own lifestyle. The room thermostat works by sensing the air temperature, switching on the heating when the air temperature falls below the thermostat setting, and switching it off once this set temperature has been reached.

So a programmable room thermostat lets you choose what times you want the heating to be on, and what temperature it should reach while it is on. It will allow you to select different temperatures in your home at different times of the day (and days of the week) to meet your particular needs and preferences.

Setting a programmable room thermostat to a higher temperature will not make the room heat up any faster. How quickly the room heats up depends on the design & size of the heating system.

Similarly reducing the temperature setting does not affect how quickly the room cools down. Setting a programmable room thermostat to a lower temperature will result in the room being controlled at a lower temperature, and saves energy.

The way to set and use your programmable room thermostat is to find the lowest temperature settings that you are comfortable with at the different times you have chosen, and then leave it alone to do its job.

3

Slimline Series

The best way to do this is to set the room thermostat to a low temperature – say 18°C , and then turn it up by 1°C each day until you are comfortable with the temperature. You won’t have to adjust the thermostat further. Any adjustment above this setting will waste energy and cost you more money.

If your heating system is a boiler with radiators, there will usually be only one programmable room thermostat to control the whole house. But you can have different temperatures in individual rooms by installing thermostatic radiator valves (TRVs) on individual radiators.

If you don’t have TRVs, you should choose a temperature that is reasonable for the whole house. If you do have TRVs, you can choose a slightly higher setting to make sure that even the coldest room is comfortable, then prevent any overheating in other rooms by adjusting the TRVs.

You are able to temporarily adjust the heating program by overriding or using the temperature hold feature. These features are explained further on pages 14 and 15 of this manual.

Programmable room thermostats need a free flow of air to sense the temperature, so they must not be covered by curtains or blocked by furniture. Nearby electric fires, televisions, wall or table lamps may also prevent the thermostat from working properly.

Model: Slimline

4

Installation Procedure

Do

Mount the thermostat at eye level. Read the instructions fully so you get the best from our product.

Don’t

Do not install near to a direct heat source as this will affect functionality. Do not push hard on the LCD screen as this may cause irreparable damage.

This Slimline Series thermostat is designed to be flush mounted and requires a back box of 35mm (minimum depth) to be sunk into the wall prior to installation.

Step 1

Carefully separate the front half of the thermostat from the back plate by placing a small flat head terminal driver into the slots on the bottom face of the thermostat.

Step 2

Place the thermostat front somewhere safe.

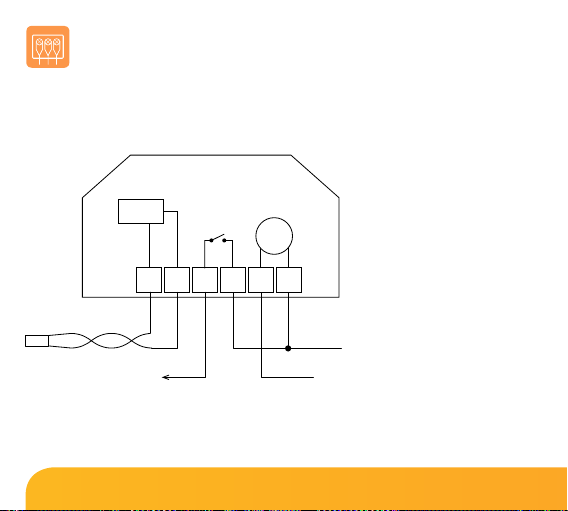

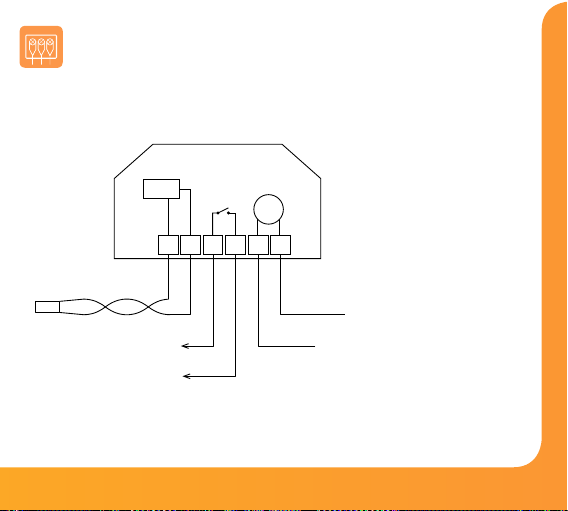

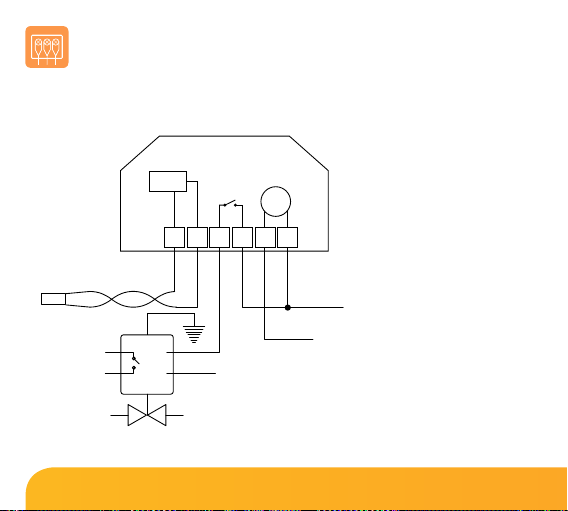

Terminate the thermostat as shown in the diagrams on pages 25-27 of this booklet.

Step 3

Screw the thermostat back plate securely into the back box.

Step 4

Clip the front of the thermostat back onto the thermostat back plate.

5

Slimline Series

1 2

3 4

Model: Slimline

6

1 2 3 4 5

6 7 8 9 10 11

12

7

Slimline Series

LCD Display

1. Room Temp - Indicates the current temperature sensor mode.

2. Day Indicator - Displays the current day.

3. Frost Icon - Displayed when the thermostat is in frost protection mode.

4. Flame Icon - Displayed when the thermostat is calling for heat, the flame icon will flash when the optimum start function is in operation.

5. Temperature Hold - When a Temp Hold is active, HOLD FOR and the remaining time period is displayed.

6. Set - Indicates when changes are being made to programs or temperature set points.

7. Holiday Indicator - Displayed when the thermostat is in holiday mode.

8. Current Temp - Indicates the current sensor temperature.

9. Program Cycle Indicator - Displayed during programming only to show which period is being altered.

10. Keypad Lock Indicator - Displayed when the keypad is locked.

11. Units of Temperature - Degrees Celsius or Fahrenheit.

12. Clock - Digital clock display in 24h format.

Model: Slimline

8

Setting the Clock

To set the clock, follow these steps.

• With the thermostat turned ON, press the Clock key twice ................................

• Use the Up/Down keys to set the hours .............................................................

• Press H to confirm settings ...............................................................................................

• Use the Up/Down keys to set the minutes ........................................................

• Press H to confirm settings ..............................................................................................

• Use the Up/Down keys to set the day of the week .........................................

• Press A to confirm settings and return to main display .........................................

Day

Hours

Minutes

9

Slimline Series

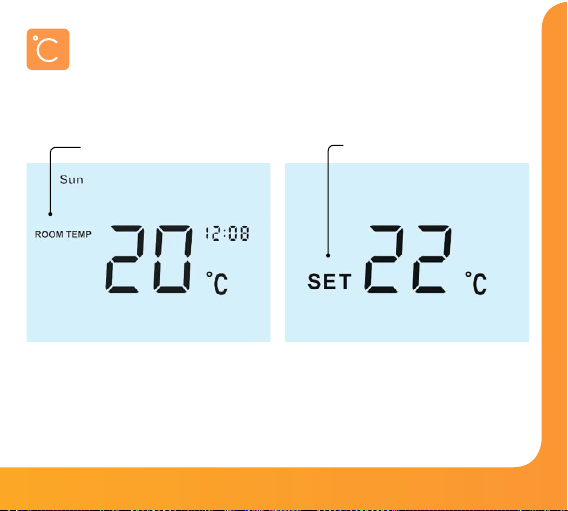

Temperature Display

The temperature display information is driven by two different inputs; the sensor measurement and the target temperature you have set.

Room Temperature Set Temperature

This is the current room temperature. This is the temperature you are trying to

achieve in your home.

Model: Slimline

10

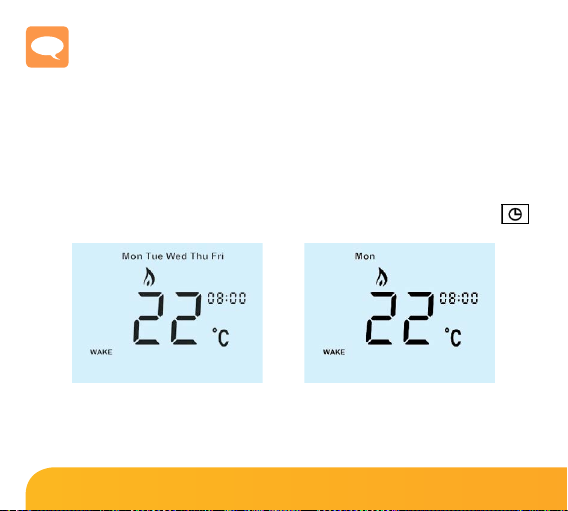

Comfort Levels Explained

The thermostat offers the following program mode options;

Non-Programmable – Basic up/down override temperature control.

5/2 Day Programming – 4 levels for the weekdays and 4 different levels for the weekend.

7 Day Programming – 4 levels for each day.

Consult the ‘Optional Features’ section to select the required mode.

• To program comfort levels, press Clock once ..............................................................

For Weekday/Weekend programming,

Mon Tue Wed Thu Fri

are displayed on screen.

11

Slimline Series

For 7 Day programming,

only Mon is displayed

in the day indicator field.

• Use the Up/Down keys to enter the required WAKE time ......................

• Press H to confirm settings .........................................................................................

• Use the Up/Down keys to enter the required WAKE temperature .......

• Press H to confirm settings .........................................................................................

• You will now see “LEAVE” displayed on screen.

• Repeat the programming steps for each period until complete.

• For unused periods enter --.-- and the thermostat will ignore the setting.

• Press A to confirm settings and return to main display ....................................

Note:

• In 7 Day programming mode you can repeat for each day independently.

• In Weekday/Weekend programming mode you will see Sat Sun displayed on screen and can repeat for the weekend.

• To change the programming mode please refer to pages 21-22.

Model: Slimline

12

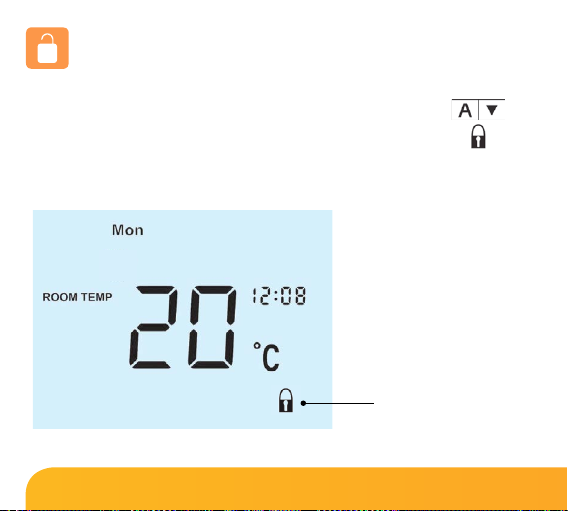

Locking the Thermostat

The thermostat has a keypad lock facility. To activate the lock follow these steps.

• Press and hold the A and Down keys together for 10 seconds .........

• You will see the lock symbol appear on screen .............................................

• To unlock, repeat the steps above until the lock symbol disappears.

Note: The keypad lock indicator is only displayed when the lock is active.

Keypad Lock Indicator

13

Slimline Series

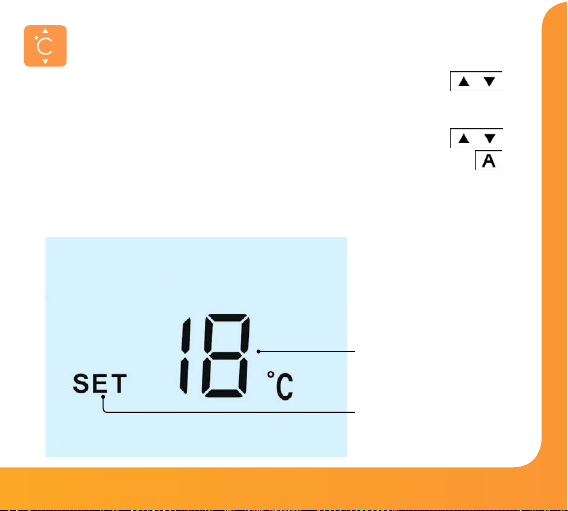

Temperature Control

The Up/Down keys allow you to adjust the set temperature .......................

When you press either key, you will see the word SET and the desired temperature will be displayed on screen.

Use the Up/Down keys to adjust the SET value .................................................

Press A to confirm settings and return to main display .............................................

Note: In programmable mode, this new temperature is maintained only until the next programmed comfort level. In non-programmable mode, this temperature will be constantly maintained.

Set Temperature

Set Icon

Model: Slimline

14

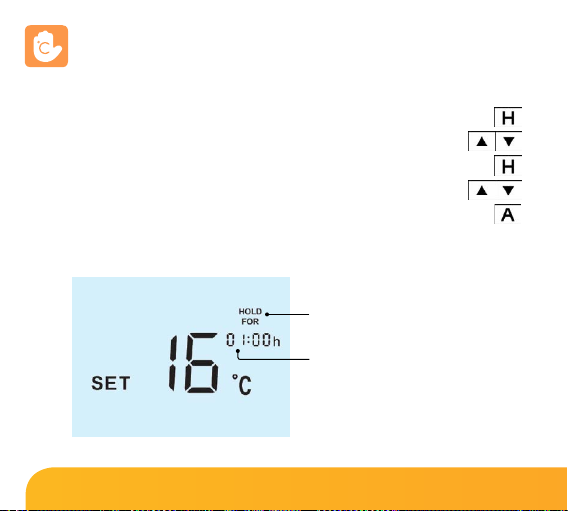

Temperature Hold

The temperature hold function allows you to manually override the current operating program and set a different temperature for a desired period.

• Press H to commence temperature hold ..................................................................

• Use the Up/Down keys to enter the required Hold time .............................

• Press H to confirm settings .............................................................................................

• Use the Up/Down keys to enter the required Hold temperature .............

• Press A to confirm settings and return to main display .......................................

You will see the Hold For indication is displayed on screen. The time will countdown the set duration and then revert to the normal program.

Hold ON Indicator

Hold Time Remaining

To cancel temperature hold, follow the same steps but reduce the Hold time to 00:00 hours.

15

Slimline Series

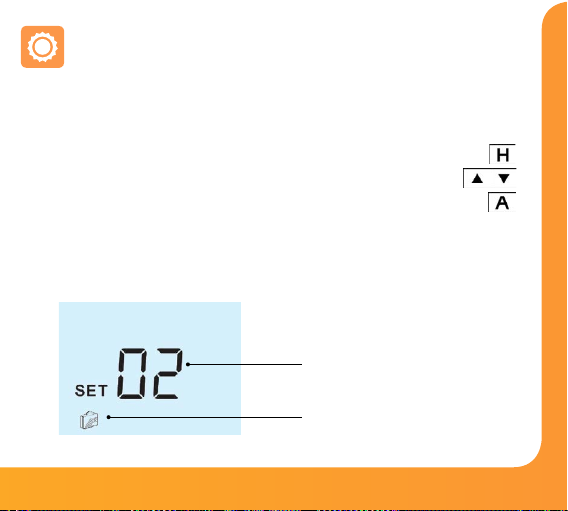

Holiday

The holiday function reduces the set temperature in your home to the frost protection temperature setting (see page 19). The thermostat will maintain this temperature for the duration of the holiday and will then automatically return to the program mode on your return.

• Press H three times (until you see the suitcase on screen) ................................

• Use the Up/Down keys to enter the number of days holiday ..................

• Press A to confirm settings and return to main display ......................................

The display will show a suitcase indicating the thermostat is in holiday mode.

Note: A holiday period does not start until 00:00 the next day. For example, if you set a holiday period on Friday for 2 days, Saturday will be counted as the first day and the thermostat will revert back to the programmed schedule at 00:00 on Monday.

Holiday Days Holiday

ON Indicator

To cancel, follow the same steps but reduce the Holiday duration to 00 days.

Model: Slimline

16

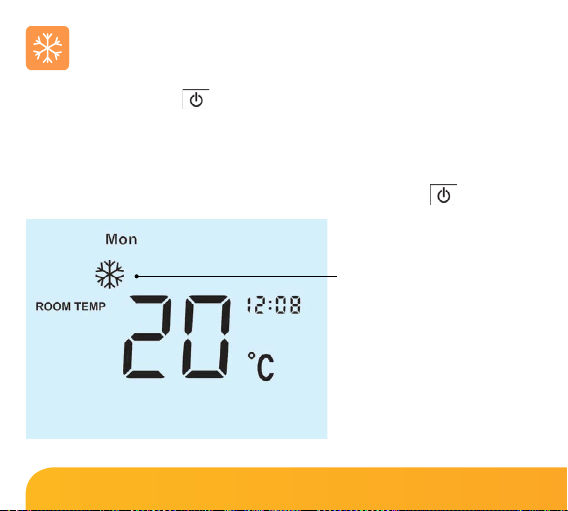

Frost Mode

Pressing the Power button once will place the thermostat in frost protect mode. In

this mode, the thermostat will display the frost icon and will only turn the heating

on should the room temperature drop below the set frost temperature (see page 19).

Should the heating be turned on whilst in frost mode, the flame icon will be displayed.

To cancel the frost protect mode, press the Power button once again.

Frost Protection Mode Enabled

17

Slimline Series

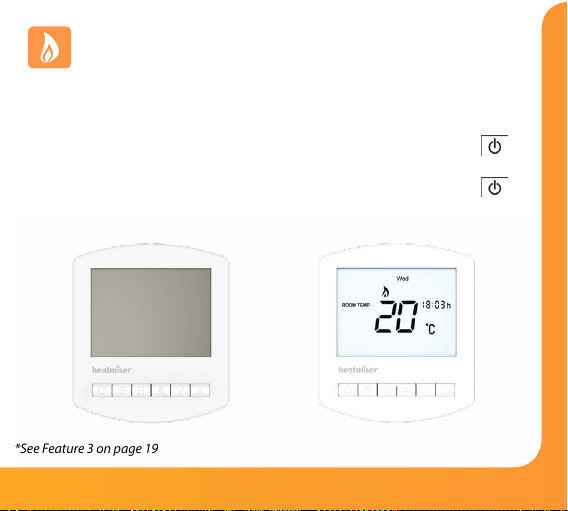

Heating On/Off

The heating is indicated ON when the flame icon is displayed.

When the flame icon is absent, there is no requirement for heating to achieve the set temperature but the thermostat remains active.

To turn the thermostat OFF completely, press and hold the Power button ..........

The display and heating output will be turned OFF completely.*

To turn the thermostat back ON, press the Power button once again ...................

Thermostat completely OFF Thermostat powered ON

*See Feature 3 on page 19

Model: Slimline

18

Optional Features Explained

THE FOLLOWING SETTINGS ARE OPTIONAL AND IN MOST CASES NEED NOT BE ADJUSTED

Feature 01 – Temperature Format: This function allows you to select between °C and °F.

Feature 02 – Switching Differential: This function allows you to increase the switching

differential of the thermostat. The default is 1°C which means that with a set temperature of 20°C, the thermostat will switch the heating on at 19°C and off at 20°C. With a 2°C differential, the heating will switch on at 18°C and off at 20°C.

Feature 03 – Frost Protect: You can set whether the thermostat will maintain the frost temperature when the thermostat display is turned off. As a default, this is enabled.

Feature 04 – Frost Protect Temperature: This is the temperature maintained when the thermostat is in frost mode. The range is 07 - 17°C. The default is 12°C and is suitable for most applications.

Feature 05 – Output Delay: To prevent rapid switching, an output delay can be entered. This can be set from 00 - 15 minutes. The default is 00 which means there is no delay.

Feature 06 – Communication Address: Not used on this model.

Feature 07 – Temperature Up/Down Limit: This function allows you to limit the use of the

up and down keys. This limit is also applicable when the thermostat is locked and so allows you to give others limited control over the heating system.

19

Slimline Series

Feature 08 – Sensor Selection: On this thermostat you can select which sensor should be used. Built in sensor or remote air sensor.

Feature 09 – Floor Temp Limit: This function is not available on this model.

Feature 10 – Optimum Start: Optimum start will delay the start up of the heating

system to the latest possible moment to avoid unnecessary heating and ensure the building is warm at the programmed time. The thermostat uses the rate of change information to calculate how long the heating needs to raise the building temperature 1°C (with a rate of change of 20, the thermostat has calculated the heating needs 20 minutes to raise the building temperature 1°C) and starts the heating accordingly.

Feature 11 – Rate Of Change: This is the number of minutes the thermostat has calculated it takes to raise your building temperature 1°C. The thermostat will continue to monitor and learn the heat up time of your home to optimise heating efficiency.

Feature 12 – Programming Mode: The following program modes are available; Non-Programmable – Basic up/down override temperature control. 5/2 Day Programming – 4 levels for the weekdays and 4 different levels for the weekend. 7 Day Programming – 4 levels for each day.

Model: Slimline

20

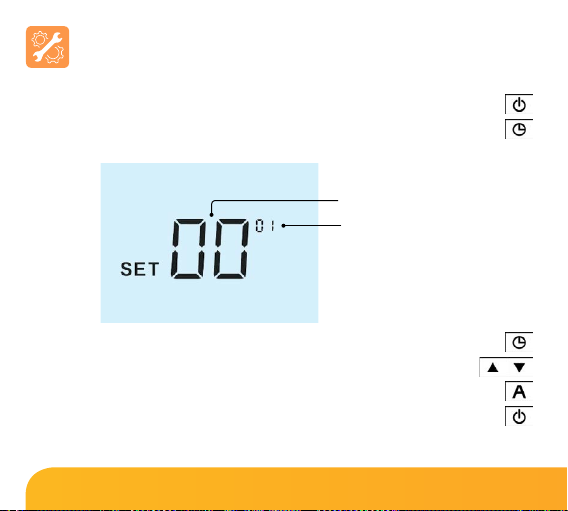

Adjusting the Optional Settings

To adjust the optional settings, follow these steps.

• Press and hold the Power button to turn the thermostat OFF ..............................

• Press and hold the Clock key until the display appears as shown below .........

Setting Value

Feature Number

• Use the Clock key to cycle through the features ........................................................

• Use the Up/Down keys to change the setting ...................................................

• Press A to confirm settings .................................................................................................

• Press the Power button once again to turn the thermostat back ON .................

21

Slimline Series

Optional Settings - Feature Table

FEATURE

01

02

03

04

05

06

07

08

09

10

11

12

DESCRIPTION

Temperature Format

Switching Differential

Frost Mode

Frost Protection Temperature

Temperature Output Delay

Output Delay

Communications ID No.

Down Temperature Limit

Up/Down Temperature Limit

Sensor Selection

Floor Temperature Limit

Optimum Start

Rate of Change

Program Mode

Model: Slimline

SETTING

00 = oC, 01 = oF (°C = Default)

00 = °C, 01 = °F (°C = Default)

01° - 03°C (01°C = Default)

00 = Enabled, 01 = Disabled (00 = Default)

07° - 17°C (12°C = Default)

00 - 15 Minutes (00 = Default)

Not used on this model

00° - 10°C (00 = Default)

00o - 10oC (00 = Default)

00 = Built in Air Sensor 01= Remote Air Sensor

Not used on this model

00 - 03 Hours (00 = Default)

Minutes to raise by 1°C

Minutes to raise by 1oC

00 = Non-Programmable 01 = 5/2 Day Programming 02 = 7 Day Programming

22

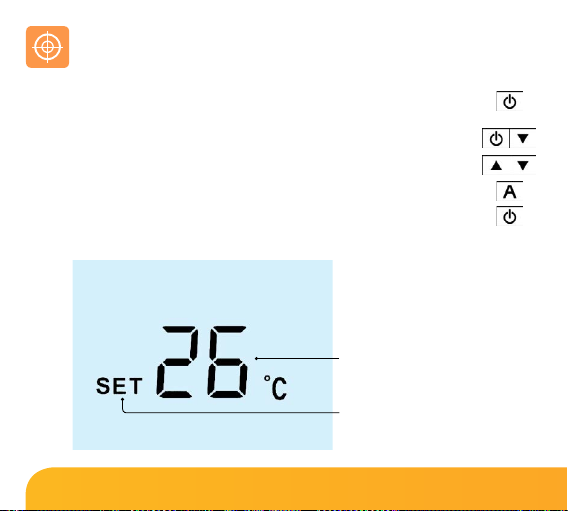

Re-calibrating the Thermostat

If you need to re-calibrate the thermostat, follow these steps.

• Press and hold the Power button to turn the thermostat OFF ............................

• Press and hold BOTH the Power and Down keys together until the

temperature appears on the screen ........................................................................

• Use the Up/Down keys to configure the new temperature ..........................

• Press A to confirm settings ..............................................................................................

• Press the Power button once to turn the thermostat back ON ..........................

Calibration Temperature Setting

Set Icon

23

Slimline Series

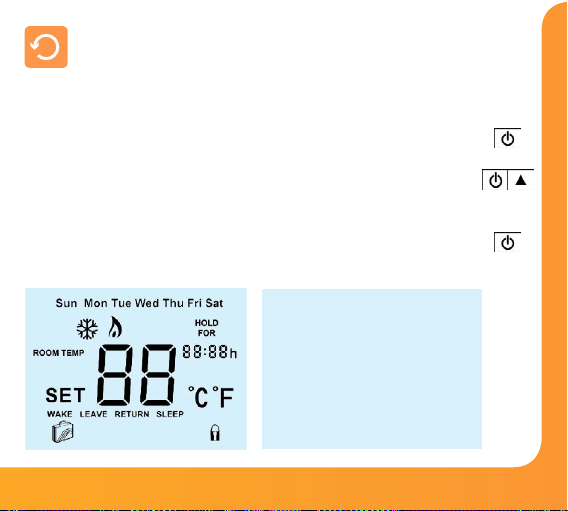

Factory Reset

The thermostat has a reset function to restore all settings to their factory defaults.

To perform a factory reset, follow these steps.

• Press and hold the Power button to turn the thermostat OFF ..........................

• Press and hold the Power and Up keys together until the LCD powers up.

All of the icons will be displayed on screen .........................................................

• When the icons have disappeared from the screen, the thermostat has been successfully reset.

• Press the Power button once to turn the thermostat back ON .........................

All icons displayed simultaneously. Factory reset is complete.

Model: Slimline

24

Wiring Diagram - Slimline to Boiler 230v

THIS UNIT MUST BE PROTECTED BY A FUSE OR RCD

Slimline

230V AC 50/60Hz

Remote

Air Sensor

230VAC

TO CONNECT BOILER CONSULT

-RT A2 A1 N L

BOILER MAKERS DIAGRAM

REMOTE PROBE

SWITCHED LIVE TO BOILER

25

NEUTRAL

Slimline Series

LIVE

230V SUPPLY IN

Wiring Diagram - Slimline to Boiler Voltfree

THIS UNIT MUST BE PROTECTED BY A FUSE OR RCD

Slimline

230V AC 50/60Hz

Remote

Air Sensor

RT - A2 A1 N L

230VAC

TO CONNECT BOILER CONSULT BOILER MAKERS DIAGRAM

REMOTE PROBE

VOLT FREE TO BOILER

LR

LS

LS & LR ARE NORMALLY THE ROOM THERMOSTAT CONNECTIONS

NEUTRAL

Model: Slimline

LIVE

230V SUPPLY IN

26

Wiring Diagram - Slimline to Spring Return Valve

THIS UNIT MUST BE PROTECTED BY A FUSE OR RCD

Slimline

230V AC 50/60Hz

Remote

Air Sensor

230VAC

NA1A2-RT L

TO CONNECT BOILER CONSULT BOILER MAKERS DIAGRAM

REMOTE PROBE

TO BOILER

27

LS

LR

HEATING VALVE

LIVE

230V SUPPLY IN

L

N

NEUTRAL

LS & LR ARE NORMALLY THE ROOM THERMOSTAT CONNECTIONS

Slimline Series

Notes

.........................................................................................................................................................................

Model: Slimline

28

Notes

.........................................................................................................................................................................

29

Model: Manual REF

Slimline Series

29

Notes

.........................................................................................................................................................................

Model: Slimline

30

Want More Information?

Rev.2.2

Call our support team on: +44 (0)1254 669090 Or view technical specifications directly on our website:

www.heatmiser.com

PDF FAQ

Twitter: @heatmiseruk Facebook: facebook.com/thermostats

VIDEO
