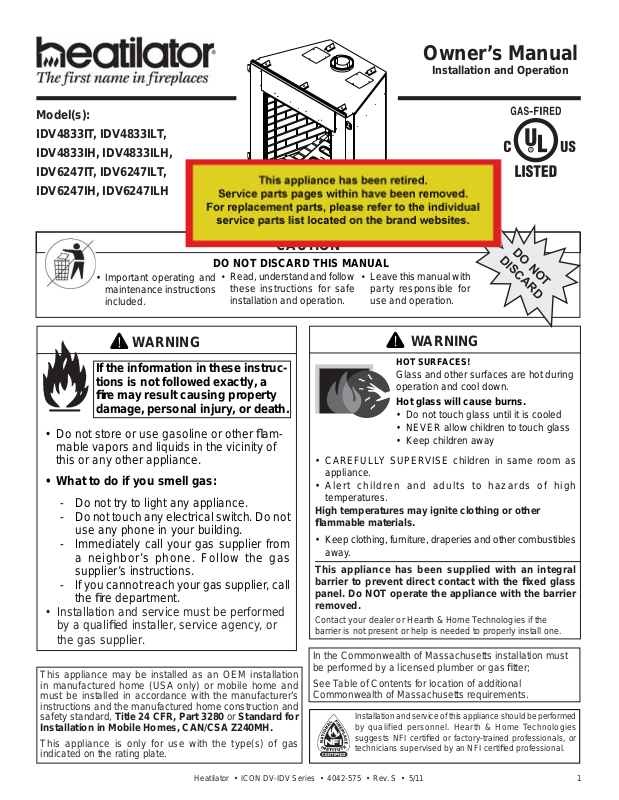

Heatiator IDV4833IT User Manual

Model(s):
IDV4833IT, IDV4833ILT,
IDV4833IH, IDV4833ILH,
IDV6247IT, IDV6247ILT,
IDV6247IH, IDV6247ILH

Owner’s Manual

Installation and Operation

CAUTION

DO NOT DISCARD THIS MANUAL

•

• Important operating and
maintenance instructions
included.

Read, understand and follow
these instructions for safe
installation and operation.

WARNING

If the information in these instruc­tions is not followed exactly, a
fi re may result causing property
damage, personal injury, or death.

• Do not store or use gasoline or other fl am-
mable vapors and liquids in the vicinity of
this or any other appliance.

• What to do if you smell gas:

- Do not try to light any appliance.

- Do not touch any electrical switch. Do not
use any phone in your building.

- Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.

- If you cannot reach your gas supplier, call
the fi re department.

• Installation and service must be performed
by a qualifi ed installer, service agency, or

the gas supplier.

This appliance may be installed as an OEM installation
in manufactured home (USA only) or mobile home and
must be installed in accordance with the manufacturer’s
instructions and the manufactured home construction and
safety standard, Title 24 CFR, Part 3280 or Standard for

Installation in Mobile Homes, CAN/CSA Z240MH.

This appliance is only for use with the type(s) of gas
indicated on the rating plate.

DO NOT

DISCARD

•

Leave this manual with
party responsible for
use and operation.

WARNING

HOT SURFACES!

Glass and other surfaces are hot during
operation and cool down.

Hot glass will cause burns.

• Do not touch glass until it is cooled

• NEVER allow children to touch glass

• Keep children away

• CAREFULLY SUPERVISE children in same room as
appliance.

• Alert children and adults to hazards of high
temperatures.

High temperatures may ignite clothing or other
fl ammable materials.

• Keep clothing, furniture, draperies and other combustibles
away.

This appliance has been supplied with an integral
barrier to p revent direct contact with the fi xed glass
panel. Do NOT operate t he appliance with the bar rier
removed.

Contact your dealer or Hearth & Home Technologies if the
barrier is not present or help is needed to properly install one.

In the Commonwealth of Massachusetts installation must
be performed by a licensed plumber or gas fi tter;

See Table of Contents for location of additional
Commonwealth of Massachusetts requirements.

Installation and service of this appliance should be performed
by qualified personnel. Hearth & Home Technologies
suggests NFI certifi ed or factory-trained professionals, or
technicians supervised by an NFI certifi ed professional.

Heatilator • ICON DV-IDV Series • 4042-575 • Rev. S • 5/11 1

Read this manual before installing or operating this appliance.

Please retain this owner’s manual for future reference.

A. Congratulations

Congratulations on selecting a Heatilator gas fi replace, an
elegant and clean alternative to wood burning fi replaces.
The Heatilator gas fi replace you have selected is designed
to provide the utmost in safety, reliability, and effi ciency .

As the owner of a new fi replace, you’ll want to read and
carefully follow all of the instructions contained in this
owner’s manual. Pay special attention to all cautions and
warnings.

Homeowner Reference Information

This owner’s manual should be retained for future reference.
We suggest that you keep it with your other important
documents and product manuals.

The information contained in this owner’s manual, unless
noted otherwise, applies to all models and gas control
systems.

Your new Heatilator gas fi replace will give you years of
durable use and trouble-free enjoyment. Welcome to the
Heatilator family of fi replace products!

We recommend that you record the following pertinent
information about your fi replace.

Model Name: ___________________________________________ Date purchased/installed: __________________
Serial Number: __________________________________________ Location on fi replace: _____________________
Dealership purchased from: _______________________________ Dealer Phone: __________________________
Notes: _______________________________________________________________________________________
_____________________________________________________________________________________________

Listing Label Information/Location

Type of Gas

Not Not for for use use with with solid solid fuel.fuel.
((Ne Ne doit doit pas pas entre entre utilise utilise avec avec un un combustible combustible solide).solide).

Type Type o f of Gas Gas (Sorte (Sorte De De Gaz)Gaz)::

NNAATURALTURAL GASGAS

Gas and Electric
Information

Minimum Minimum Permissible Permissible Gas Gas Supply Supply for for Purposes Purposes of of Input Input Adjustment.Adjustment.
Approved Approved Minimum Minimum (De (De Gaz) Gaz) AcceptableAcceptable 0.00.0 in in w.c .w.c. (Po. (Po. Col. Col. d’eau)d’eau)
Maximum Maximum Pressure Pressure (Pression)(Pression) 0.00.0 in in w.c.w.c. (Po. (Po. Col. Col. d’eau)d’eau)
Maximum Maximum Manifold Manifold Pressure Pressure (Pression)(Pression) 0.00.0 in in w.c.w.c. (Po. (Po. Col. Col. d’eau)d’eau)
Minimum Minimum Manifold Manifold Pressure Pressure (Pression)(Pression) 0.00.0 in in w.c.w.c. (Po. (Po. Col. Col. d’eau)d’eau)
Total Total Electrical Electrical Requirements: Requirements: 000Vac, 000Vac, 00Hz., 00Hz., less less than than 00 00 AmperesAmperes

ALTITUDE:ALTITUDE: 0-0000 0-0000 FT.FT. 0000-0000FT.0000-0000FT.
MAX. MAX. INPUT INPUT BTUH:BTUH: 00,00000,000 00,00000,000
MIN. MIN. INPUT INPUT BTUH:BTUH: 00,00000,000 00,00000,000
ORIFICE ORIFICE SIZE:SIZE: #XXXXX#XXXXX #XXXXX#XXXXX

The model information regarding your specifi c fi replace can be found on
the rating plate usually located in the control area of the fi replace.

Heatilator, a brand of Hearth & Home Technologies, Inc.
7571 215th Street West, Lakeville, MN 55044

This This appliance appliance must must be be installed installed in in accordance accordance with with local local codes, codes, if if any; any; if if not, not, follow follow ANSI ANSI Z223.1Z223.1
in in the the USA USA or or CAN/CGA CAN/CGA B149 B149 installation installation codes. codes. (Installer (Installer l’appareil l’appareil selon selon les les codes codes ou ou reglementsreglements

locaux locaux ou, ou, en en l’absence l’absence de de tels tels reglements, reglements, selon selon les les codes codes d’installation d’installation CAN/CGA-B149.)CAN/CGA-B149.)

ANSI ANSI Z21XX-XXXX Z21XX-XXXX · · CSA CSA 2.XX-MXX 2.XX-MXX · · UL307BUL307B

IN IN CANADACANADA

Model:Model:

(Modele):(Modele):

SerialSerial

(Serie):(Serie):

XXXXXXXXXXXXXXXX

XXXXXXXXXXXXXXXX

MADE MADE IN IN USAUSA

Model Number

Serial Number

Heatilator • ICON DV-IDV Series • 4042-575 • Rev. S • 5/112

Safety Alert Key:

• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.

• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.

• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

• NOTICE: Used to address practices not related to personal injury.

Table of Contents

A. Congratulations 2
B. Limited Lifetime Warranty 5

1 Listing and Code Approvals

A. Appliance Certifi cation 7
B. Tempered Glass Specifi cations 7
C. BTU Specifi cations 7
D. High Altitude Installations 7
E. Non-Combustible Materials Specifi cation 7
F. Combustible Materials Specifi cation 7
G. Electrical Codes 7
H. Requirements for the Commonwealth
of Massachusetts 8

User Guide

2 Operating Instructions

A. Gas Fireplace Safety 9
B. Your Fireplace 9
C. Clear Space 10
D. Decorative Doors and Fronts 10

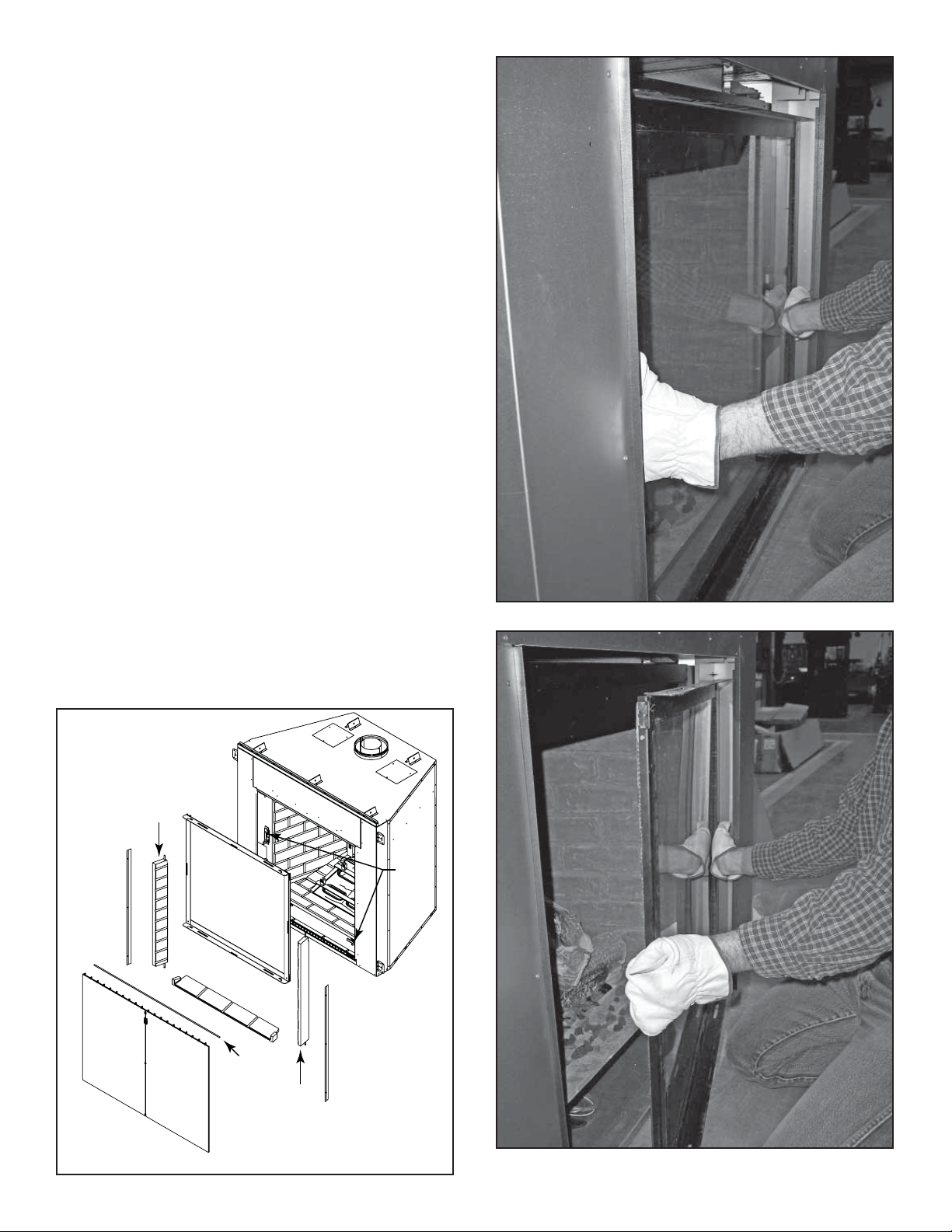

E. Fixed Glass Assembly 10
F. Remote Controls, Wall Controls and Wall Switches 10
G. Before Lighting Fireplace 10



H. Lighting Instructions (IPI) 11
I. After Fireplace is Lit 12
J. Flame Adjustment Control 12
K. Frequently Asked Questions 12

3 Maintenance and Service

A. Maintenance Tasks-Homeowner 13
B. Maintenance Tasks-Qualifi ed Service Technician 14

Installer Guide

4 Getting Started

A. Typical Appliance System 15
B. Design and Installation Considerations 16
C. Tools and Supplies Needed 16
D. Inspect Appliance and Components 16

5 Framing and Clearances

A. Select Appliance Location 17
B. Construct the Appliance Chase 18
C. Clearances 18

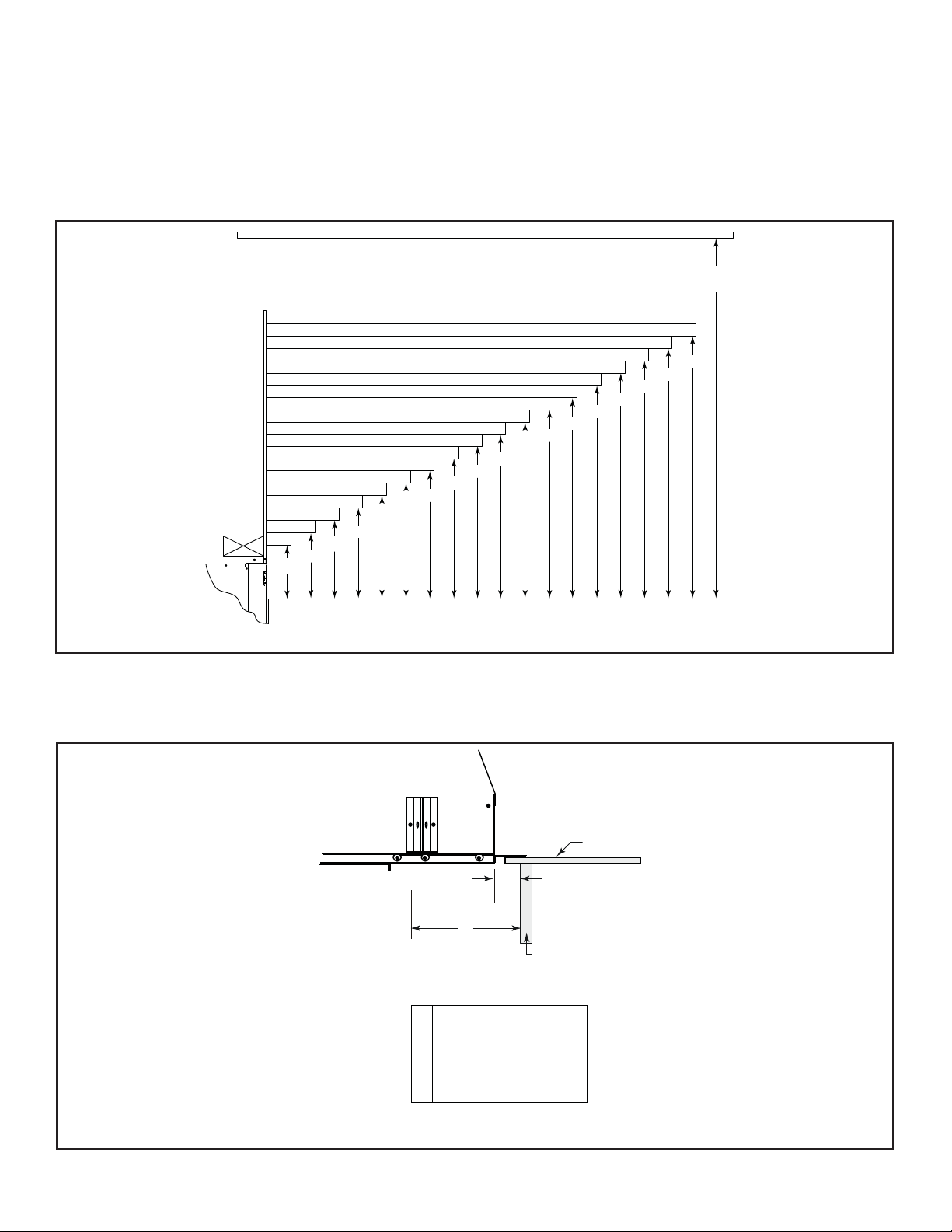

D. Mantel and Wall Projections 19

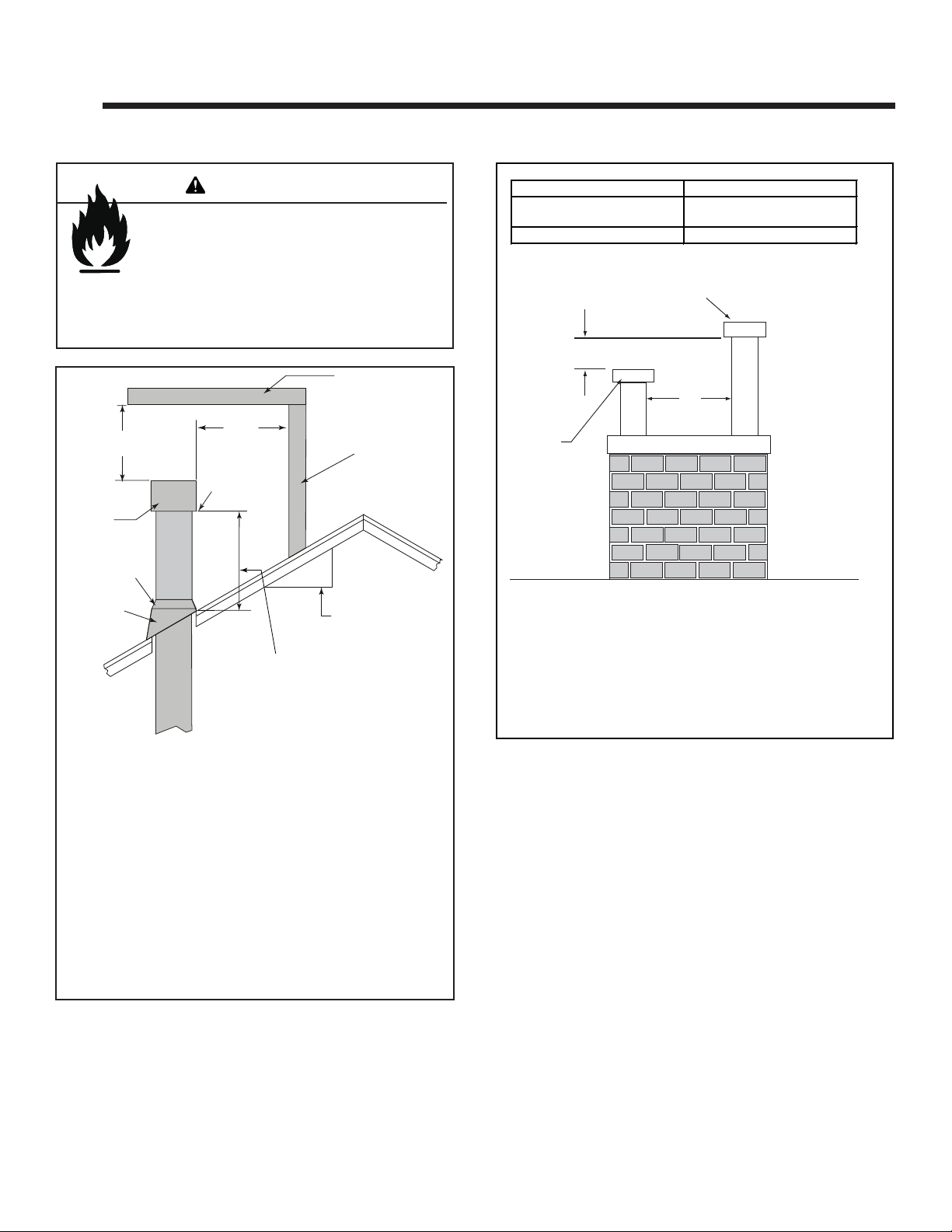

6 Termination Locations

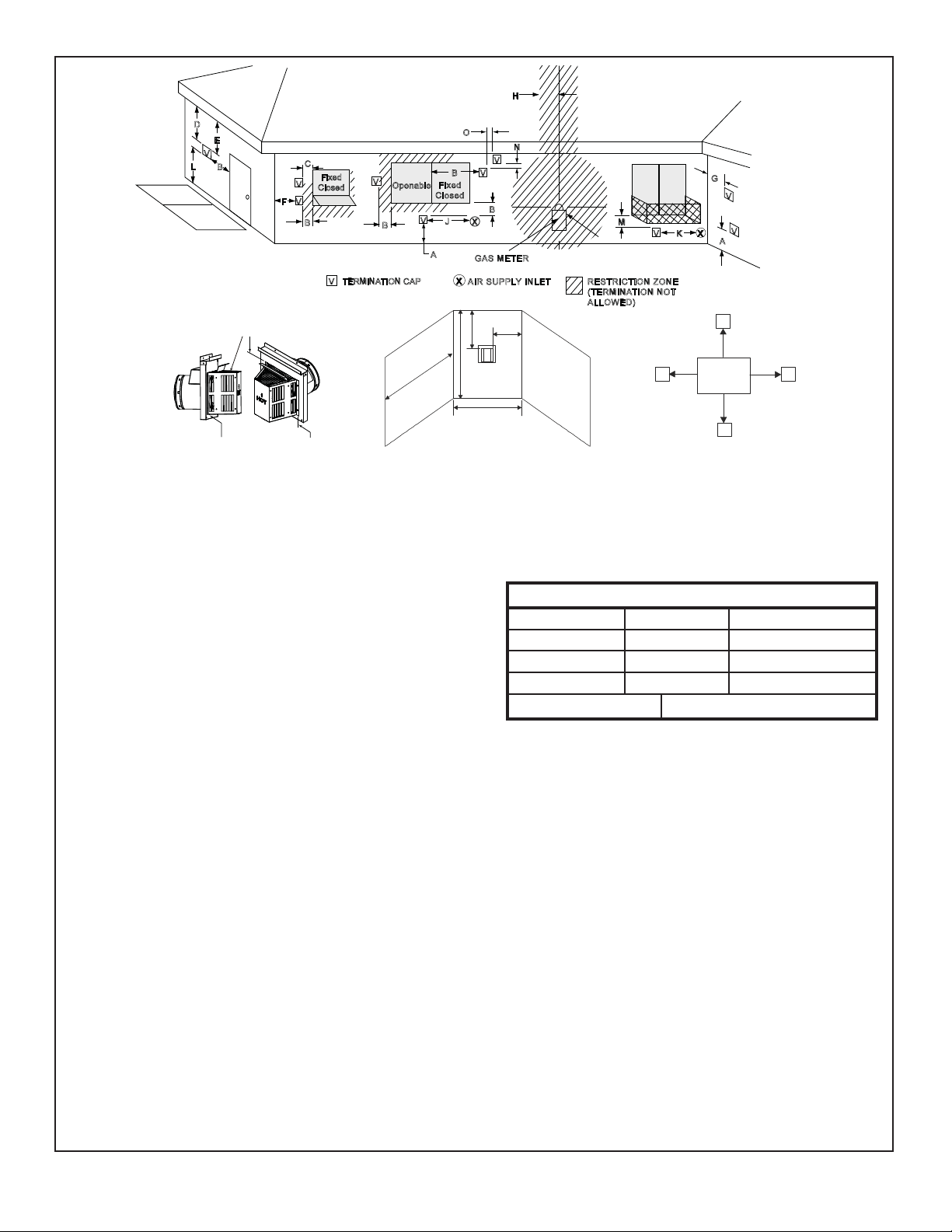

A. Vent Termination Minimum Clearances 20

7 Vent Information and Diagrams

A. Approved Pipe 22
B. Vent Table Key 22

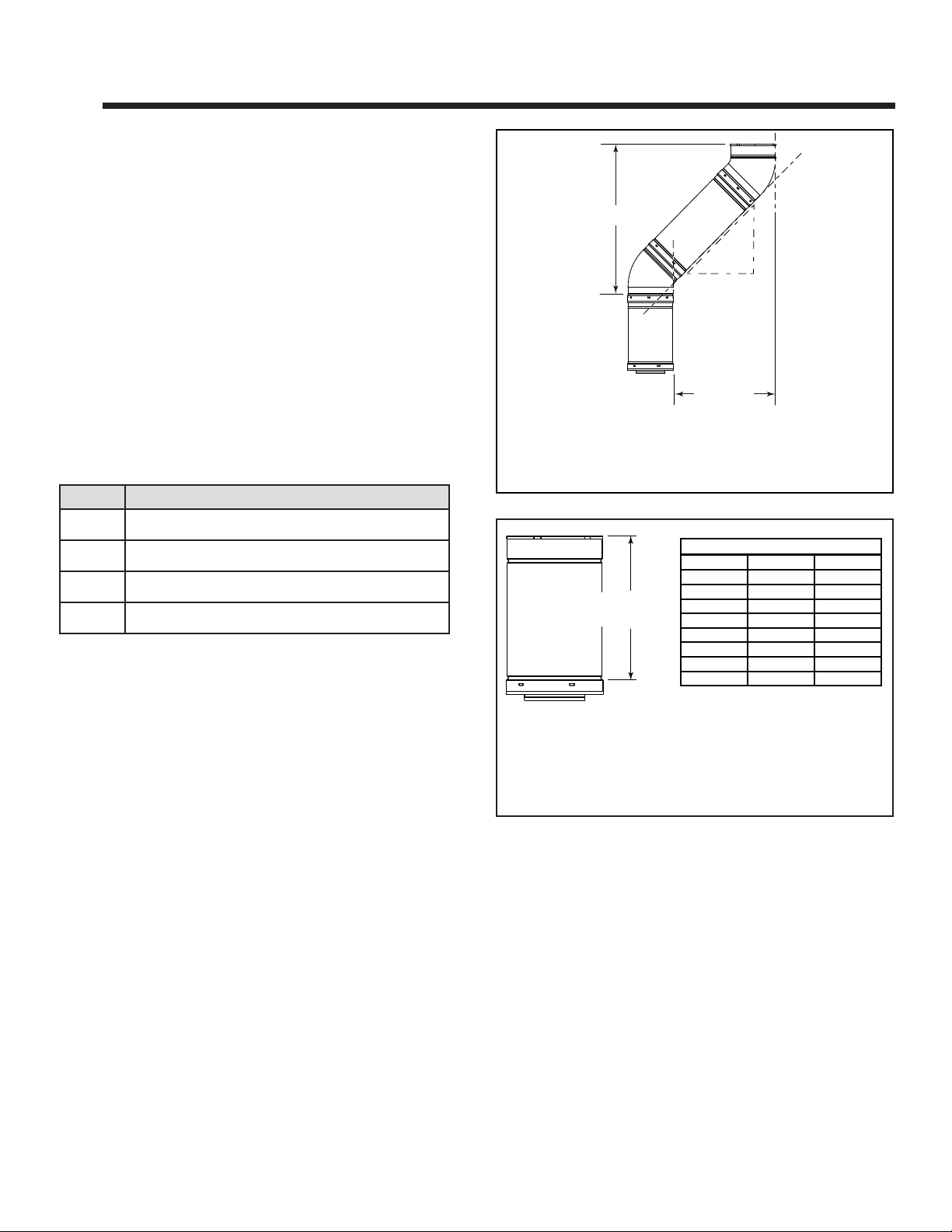

C. Use of Elbows 22
D. Measuring Standards 22

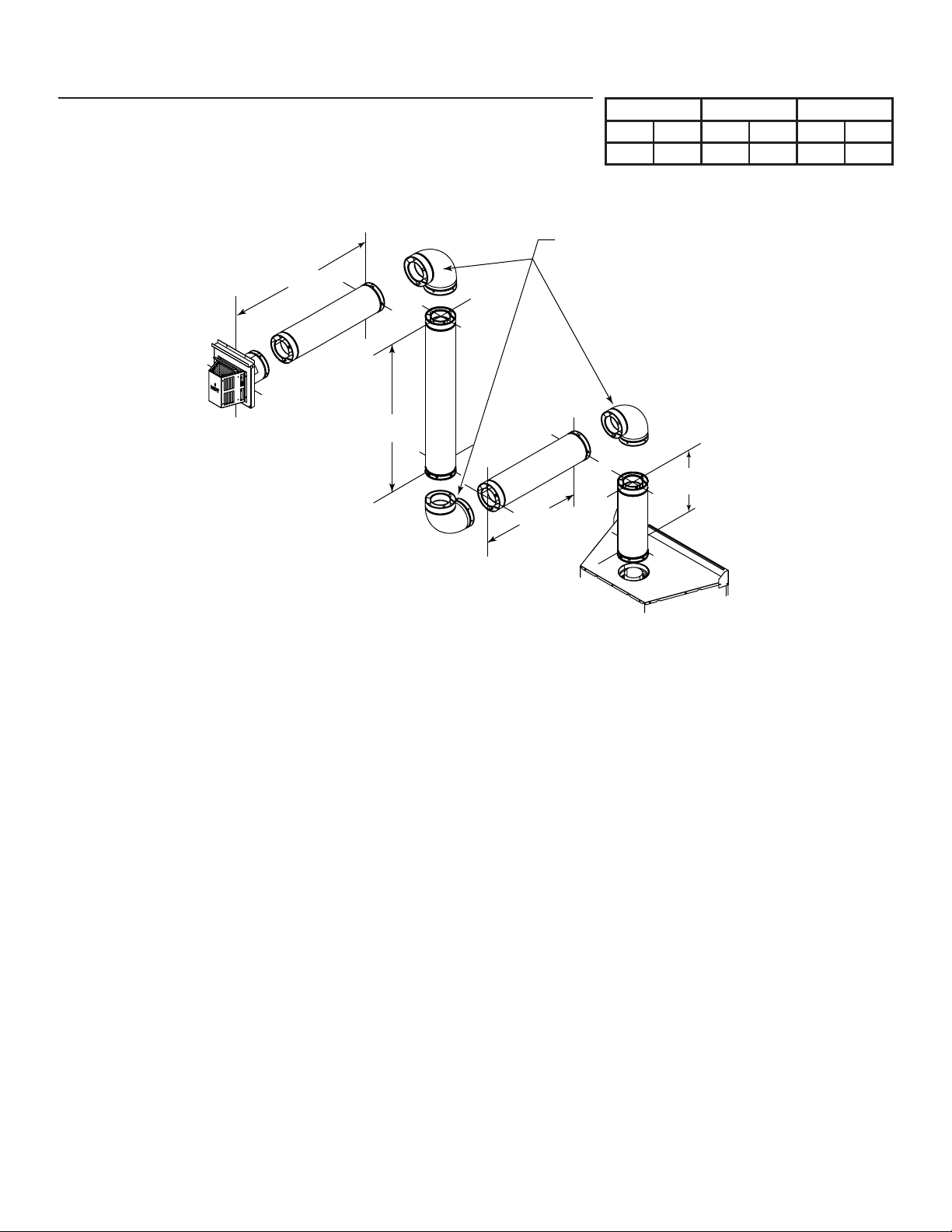

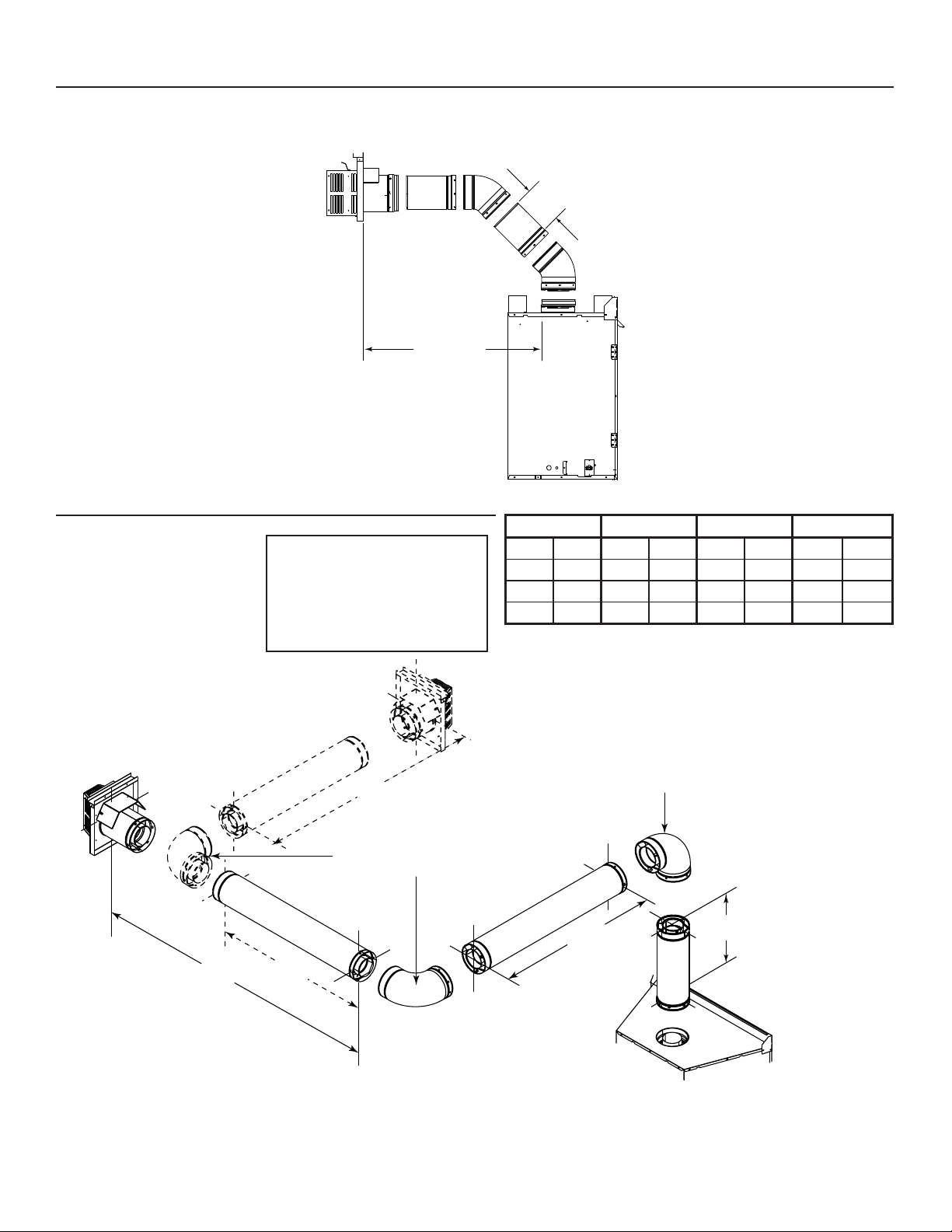

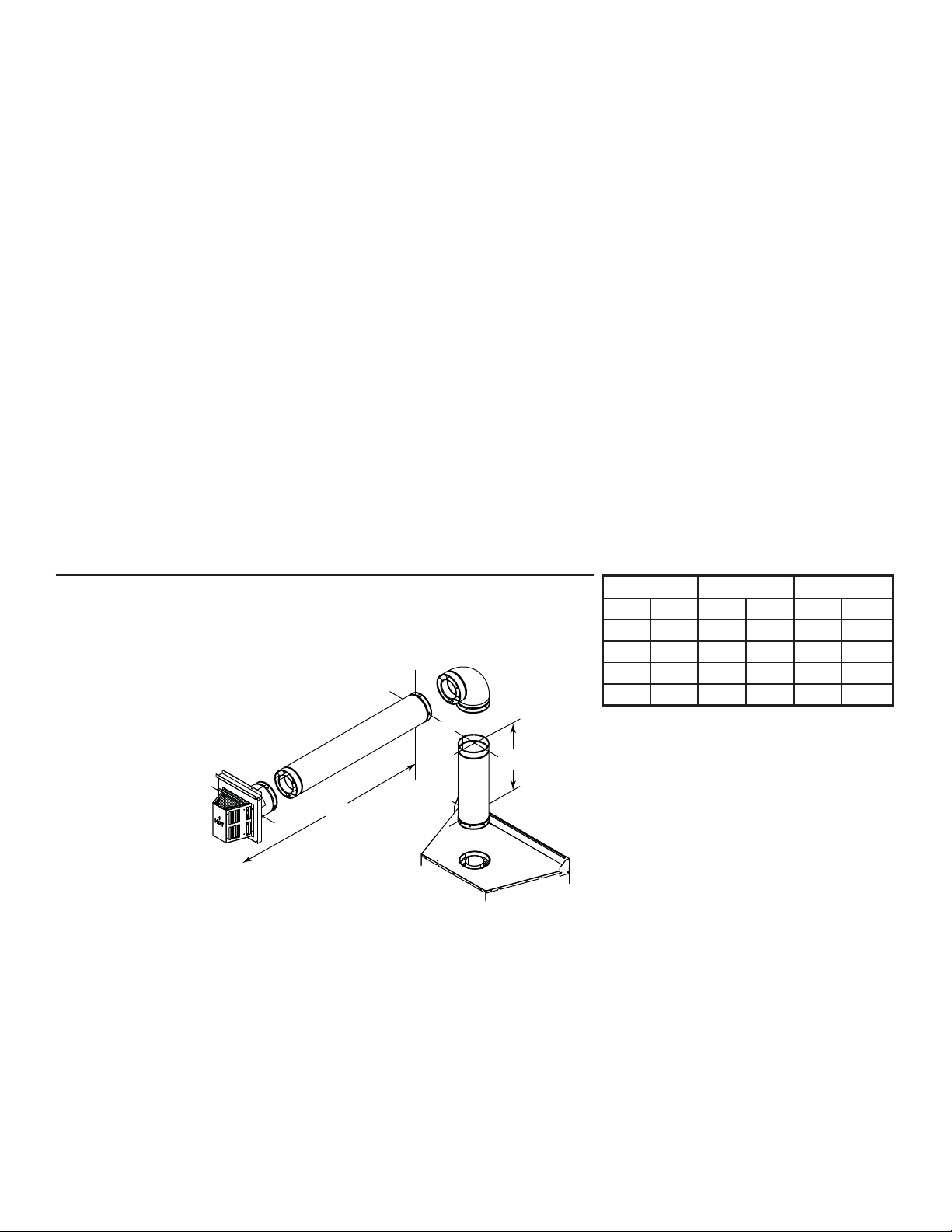

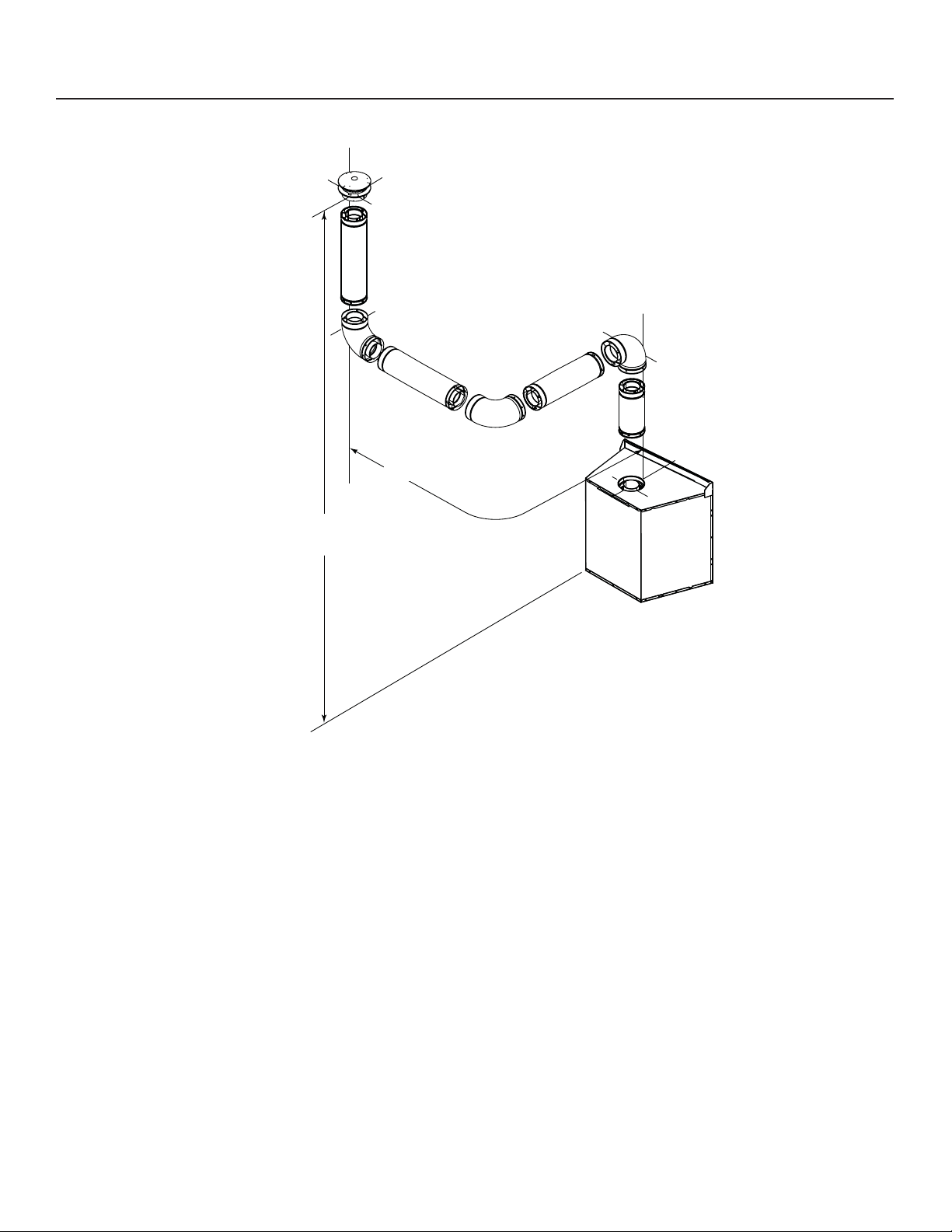

E. Vent Diagrams 23

8 Vent Clearances and Framing

A. Pipe Clearances to Combustibles 28

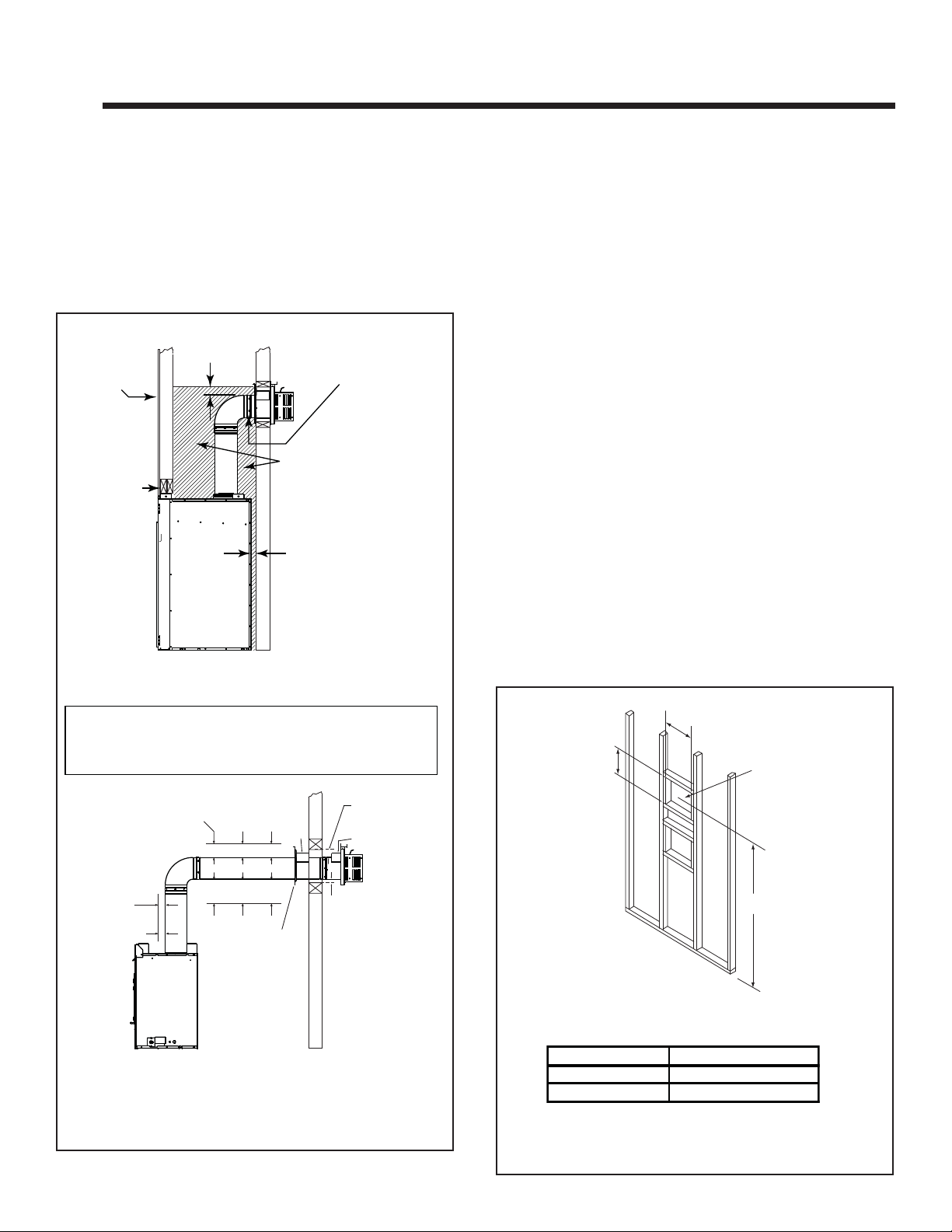

B. Wall Penetration Framing 28
C. Install the Ceiling Firestop 29
D. Install Attic Insulation Shield 30

9 Appliance Preparation

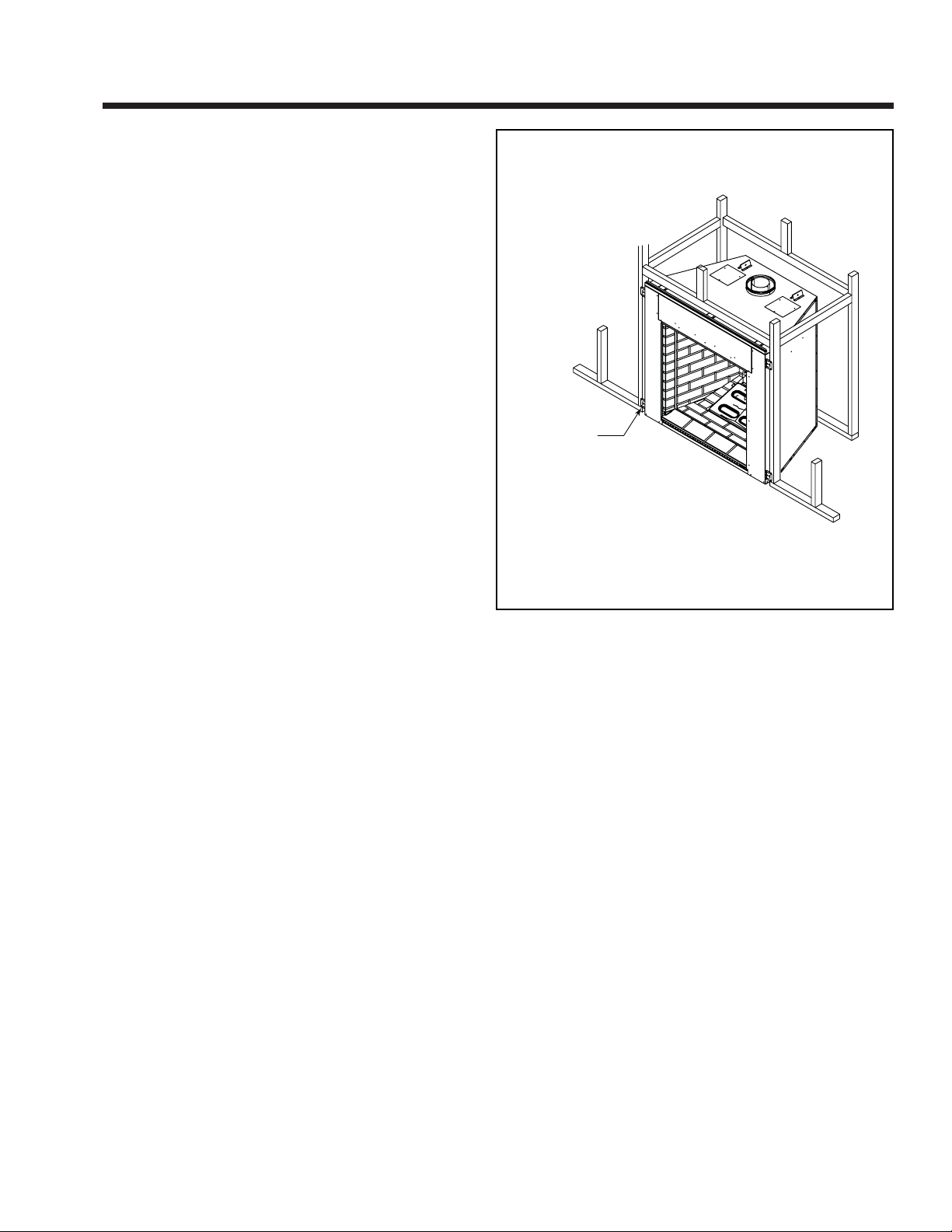

A. Secure and Level the Appliance 31

10 Install Vent Pipe

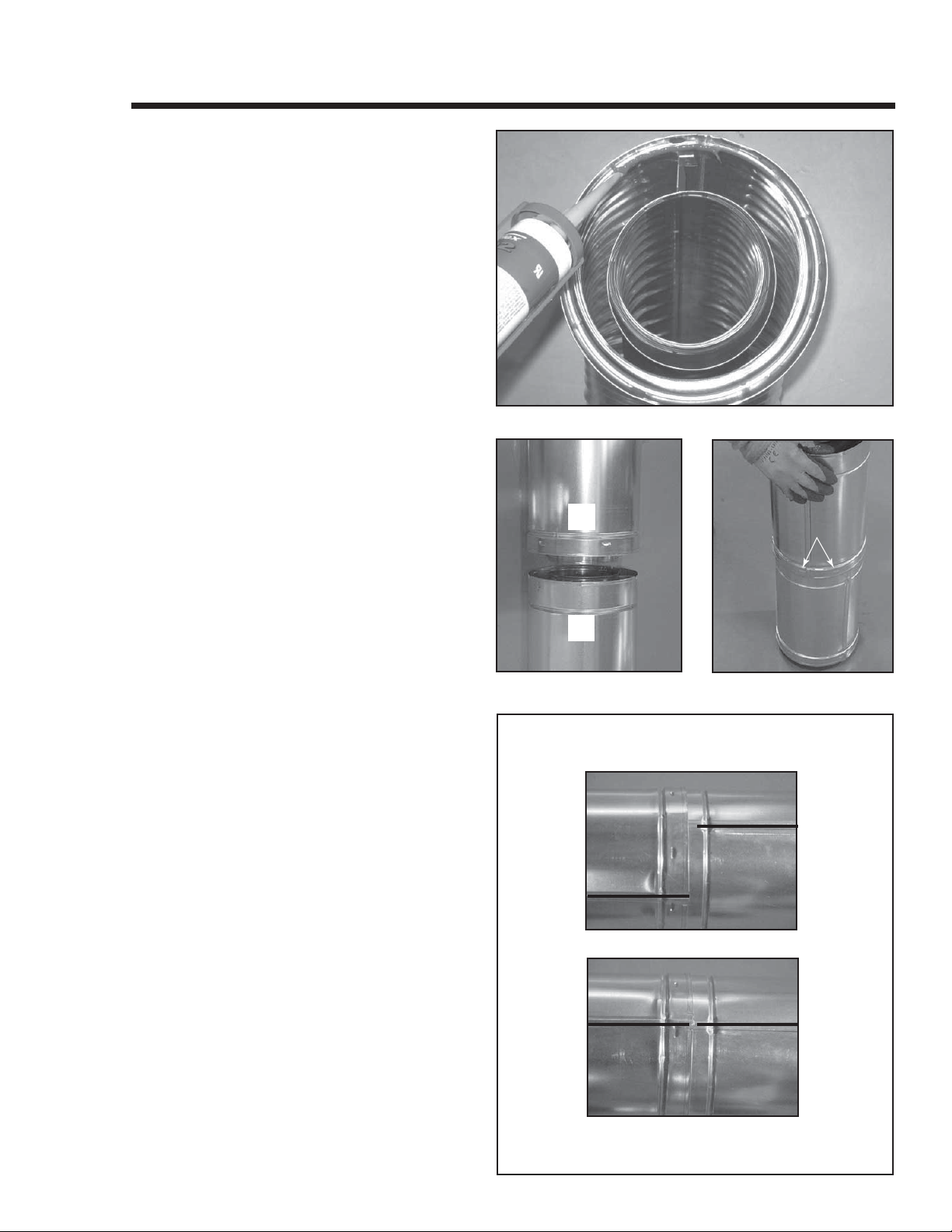

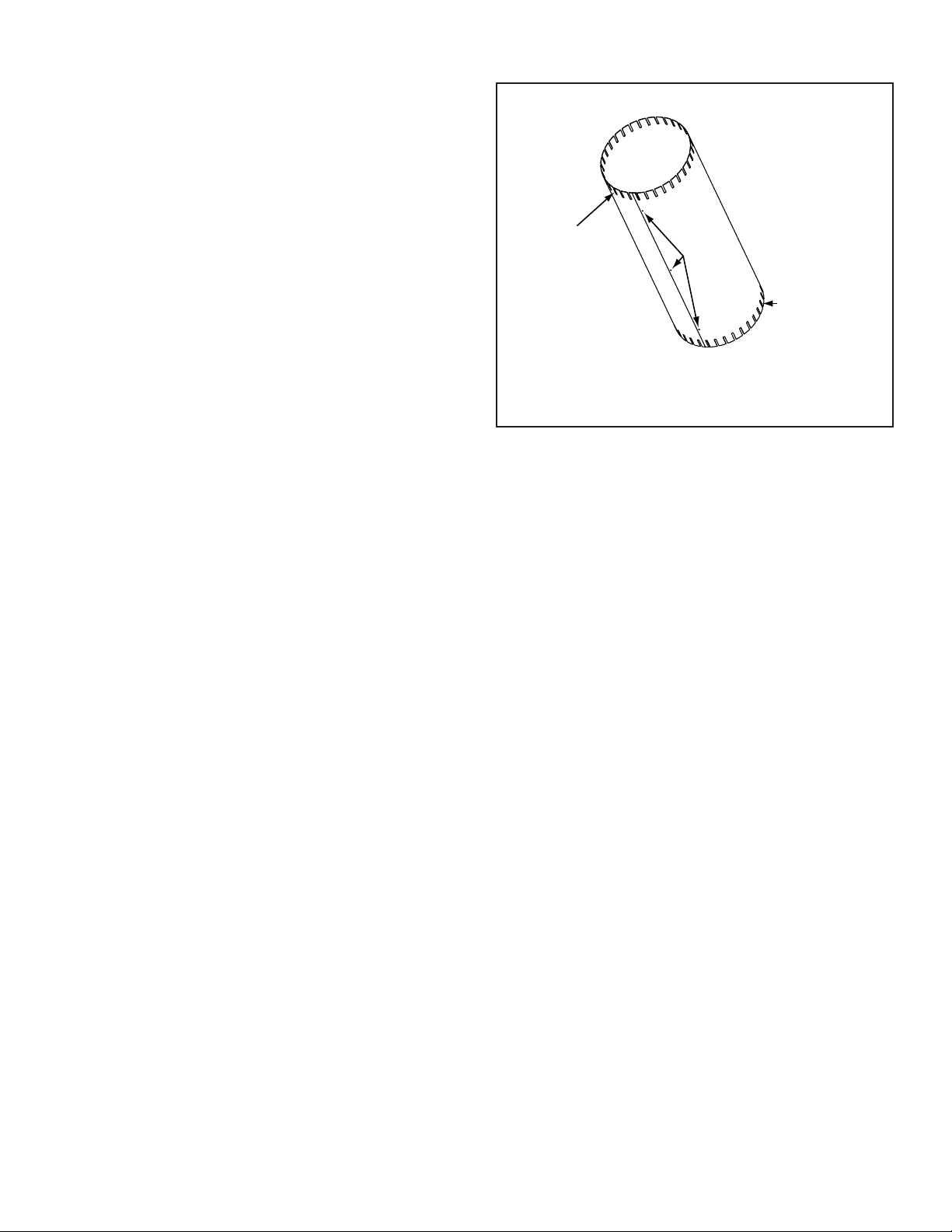

A. Assemble Vent Sections 32
B. Assemble Slip Sections 33

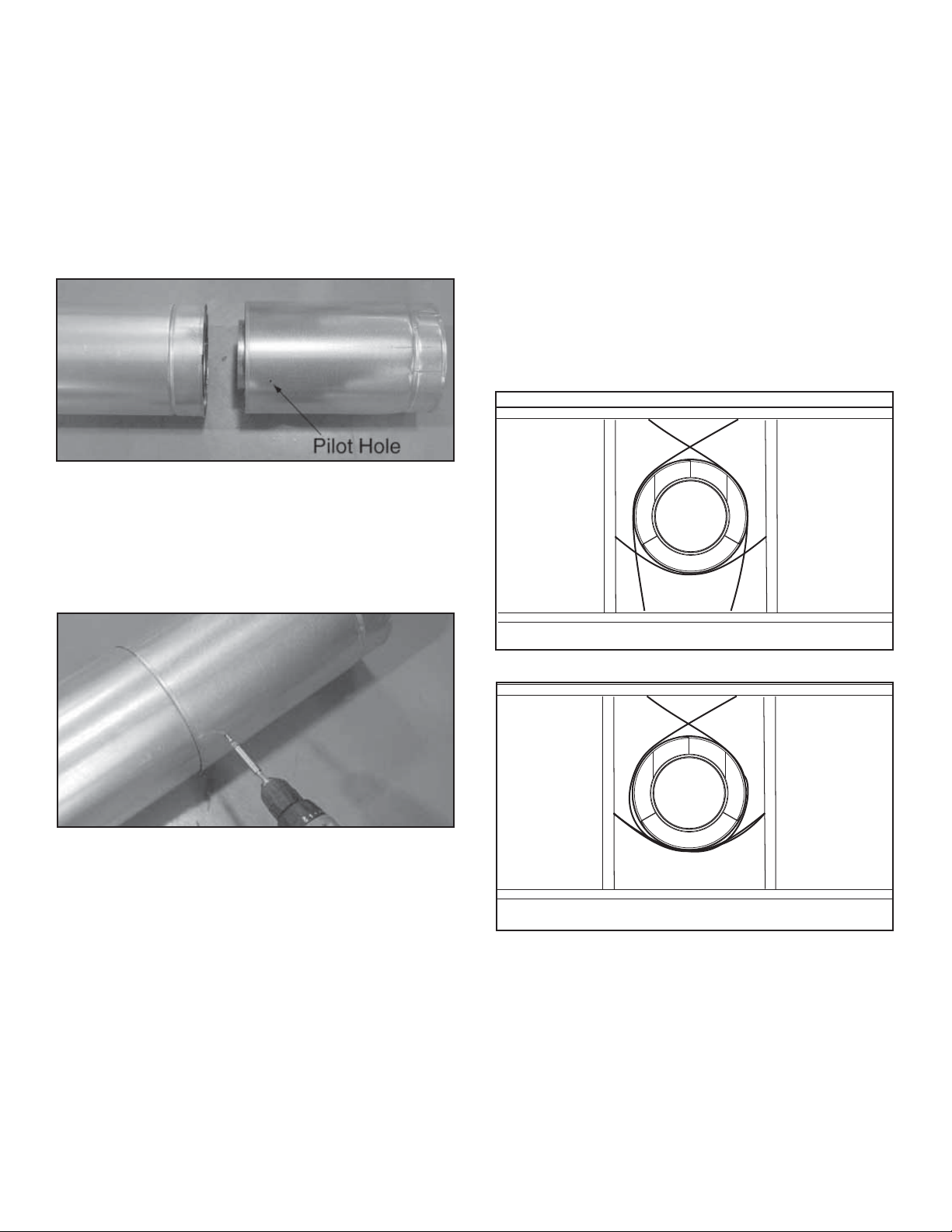

C. Secure the Vent Sections 33
D. Disassemble Vent Sections 34
E. Install Metal Roof Flashing 34

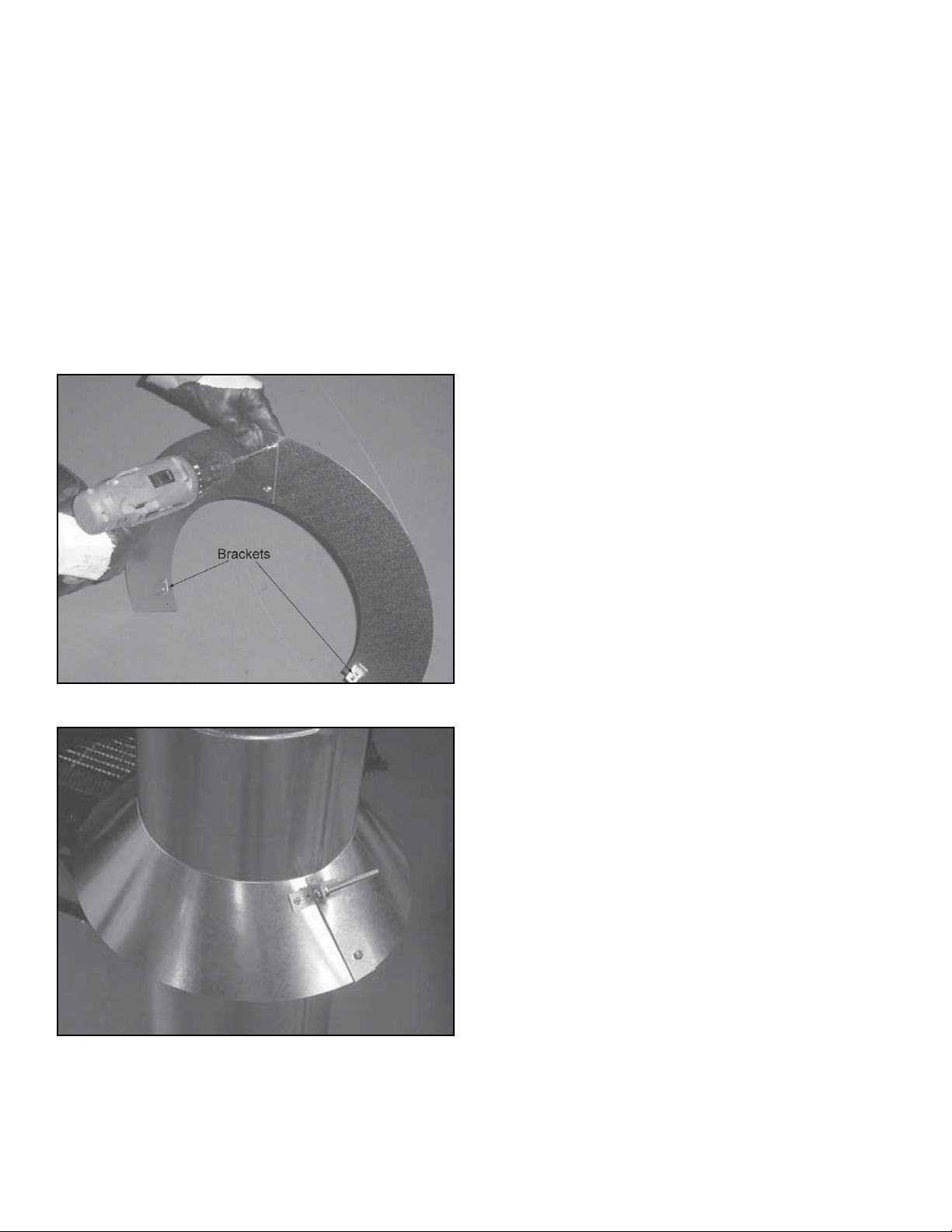

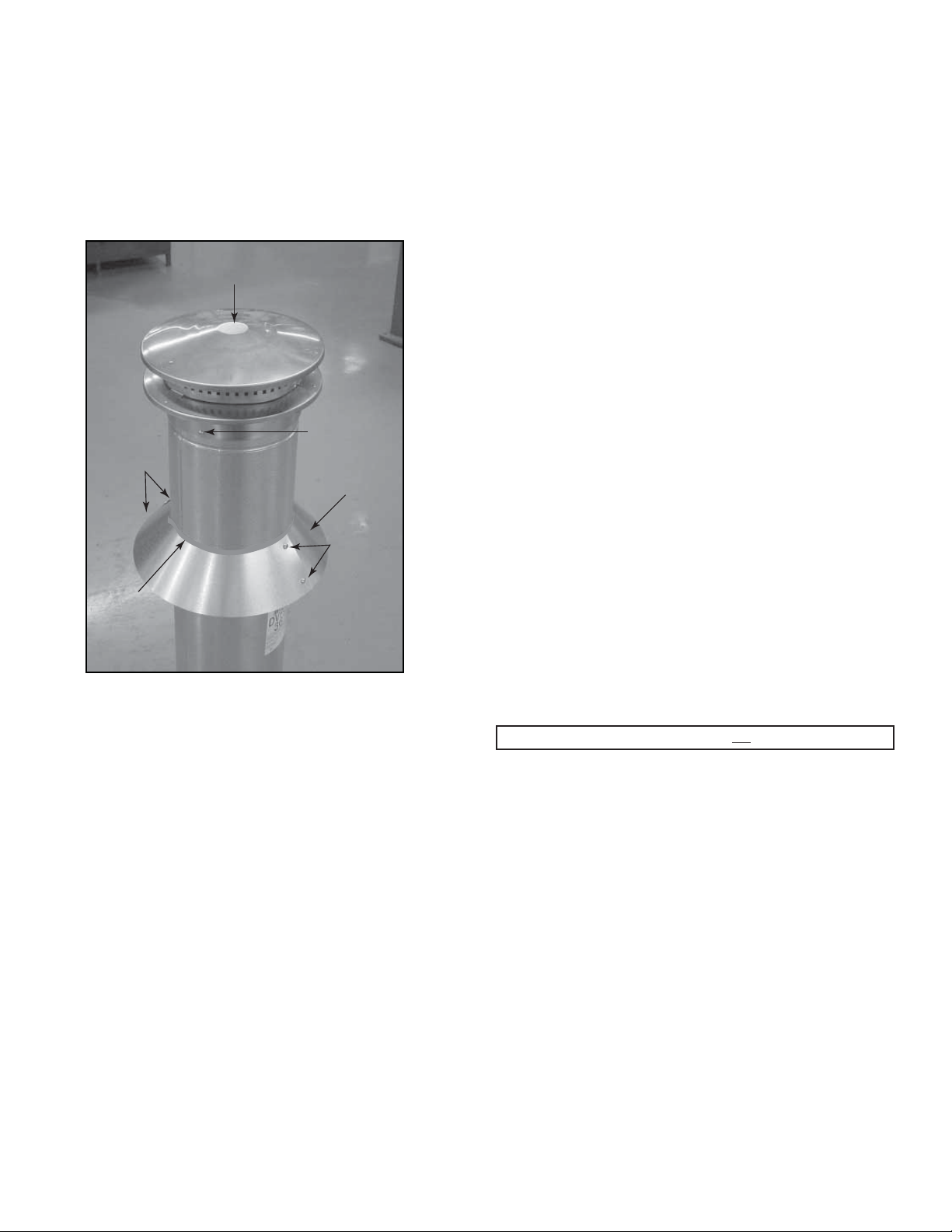

F. Assemble and Install Storm Collar 35
G. Install Vertical Termination Cap 36
H. Heat Shield Requirements for Horizontal
Termination 36

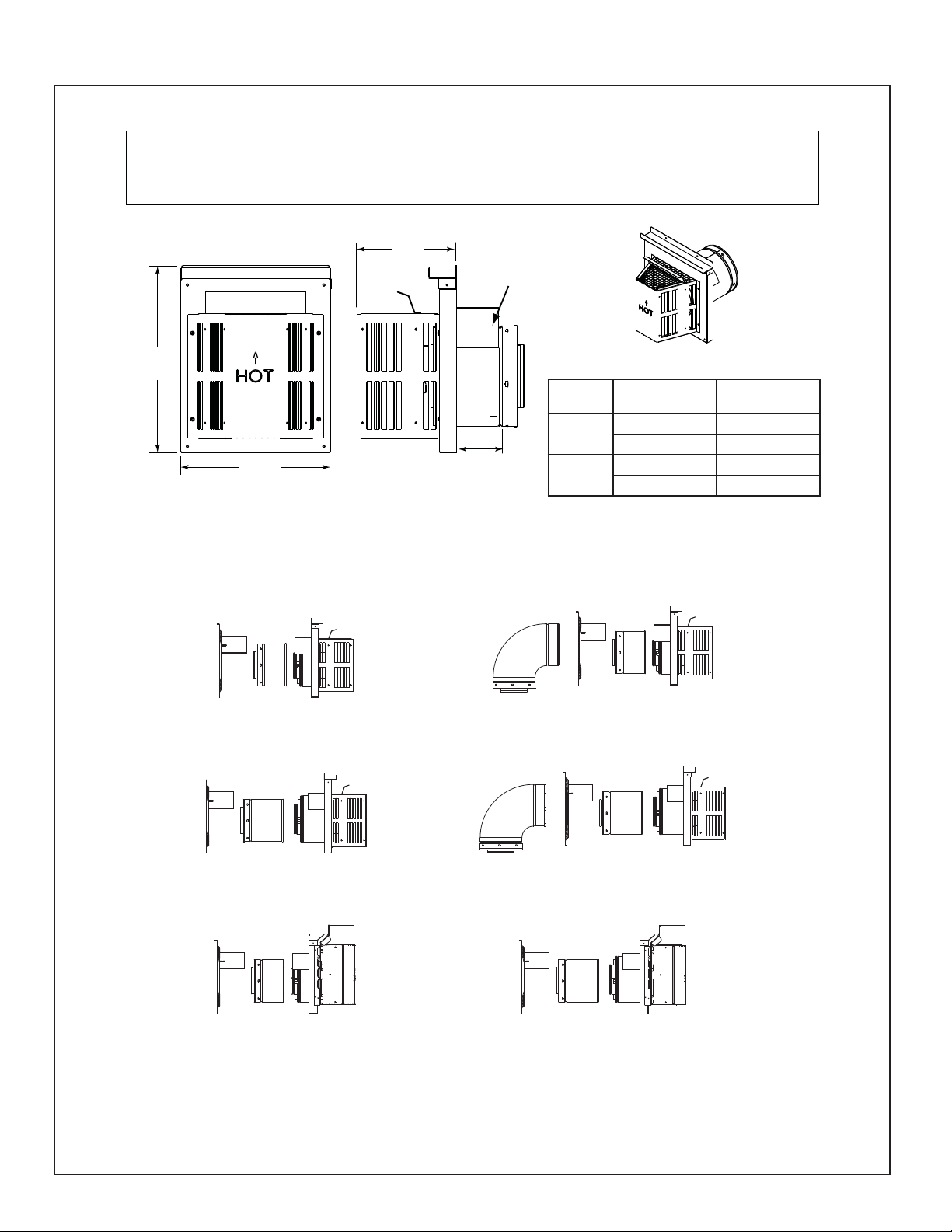

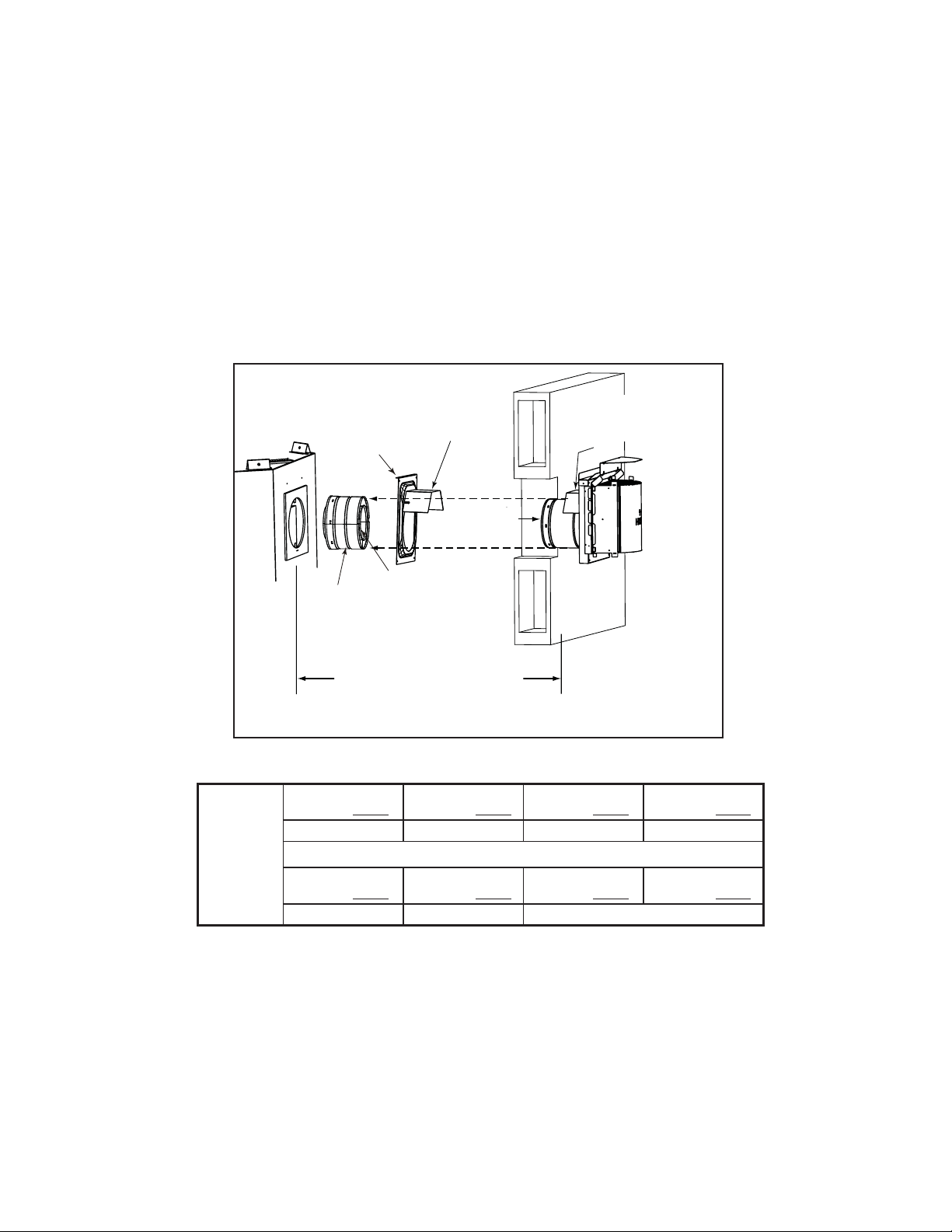

I. Install Horizontal Termination Cap 37

11 Shrouds

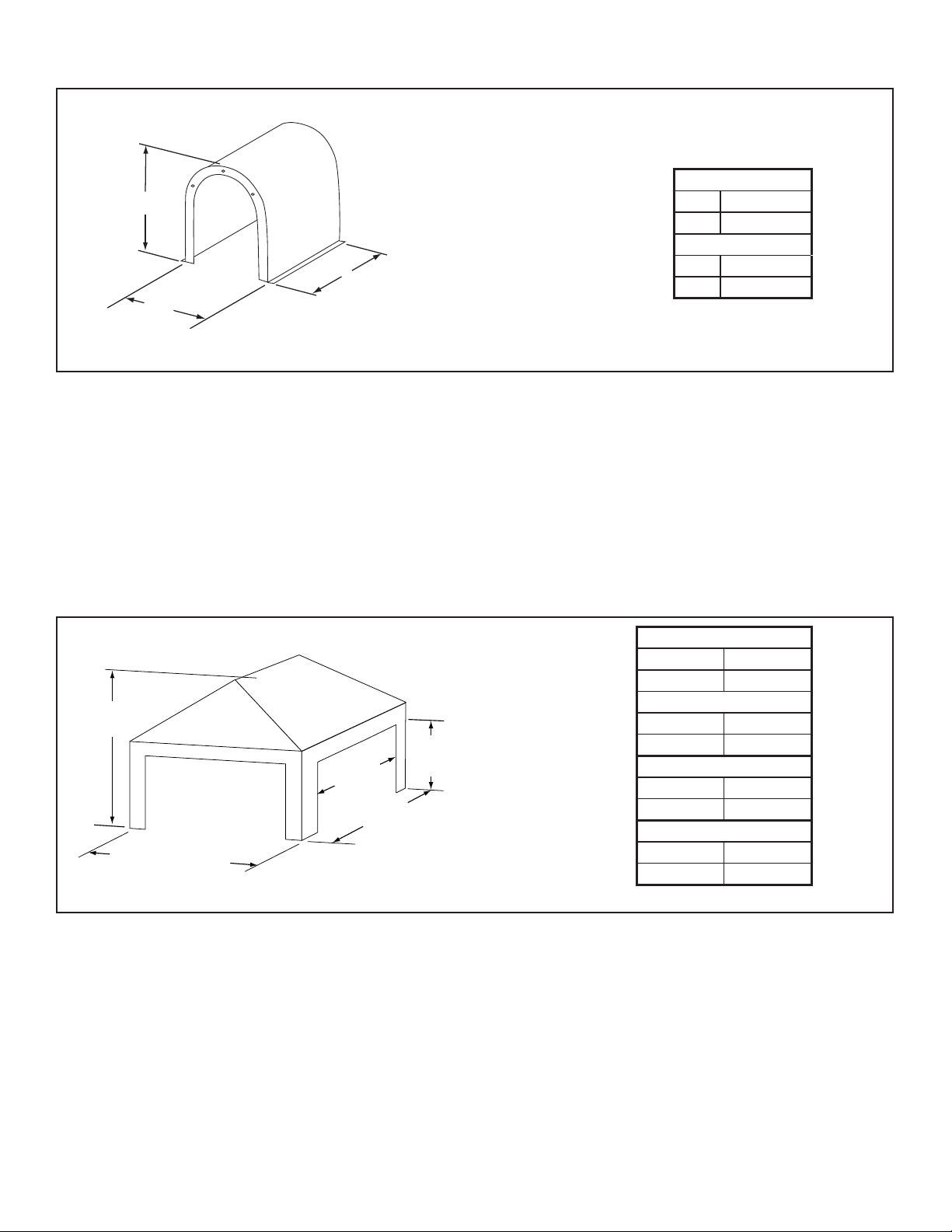

A. HHT Shrouds 38
B. Field Constructed Shrouds 38

12 Gas Information

A. Fuel Conversion 40
B. Gas Pressure 40
C. Gas Connection 40
D. High Altitude Installations 40

13 Electrical Information

A. Wiring Requirements 41

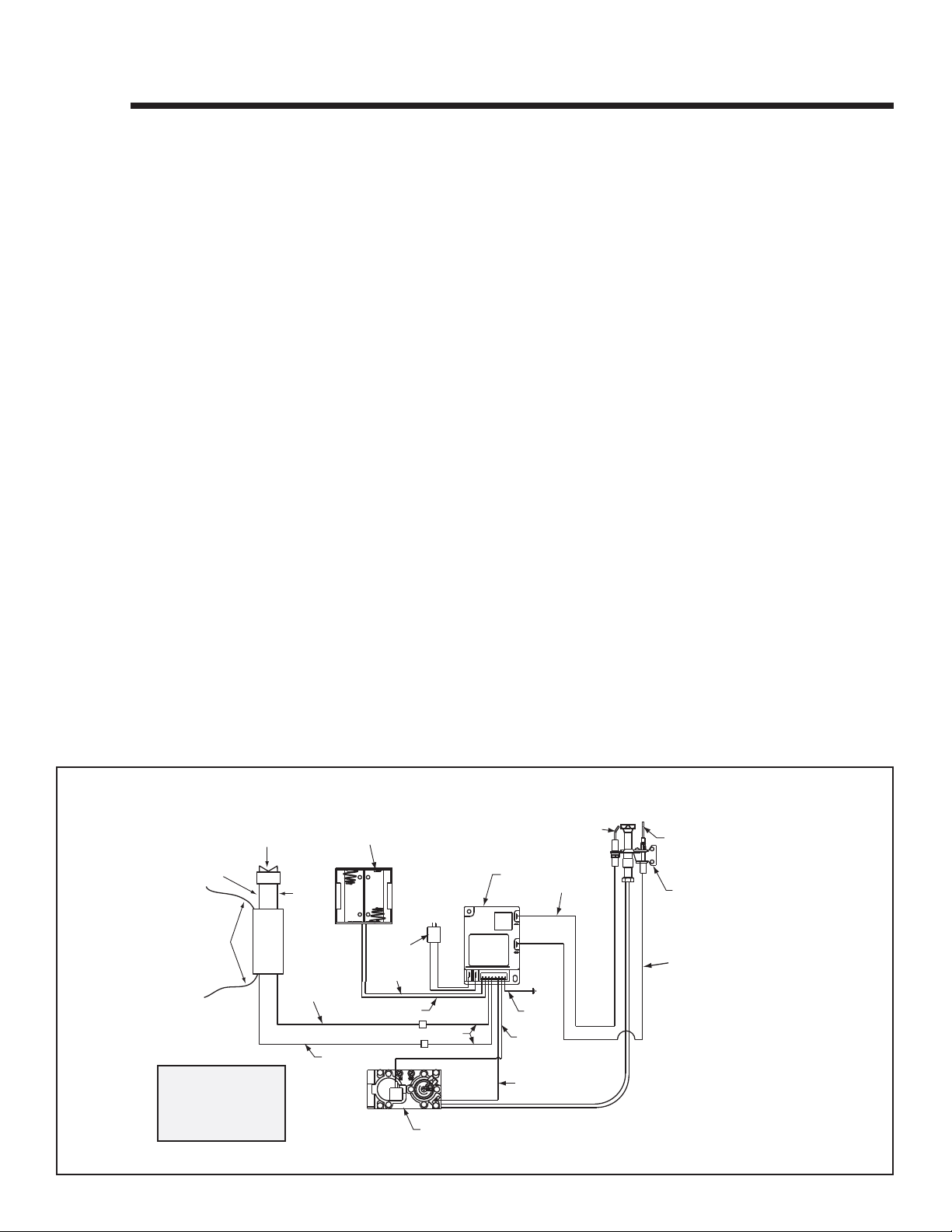

B. Intellifi re Ignition System Wiring 41
C. Optional Accessories Requirements 41
D. Electrical Service and Repair 41

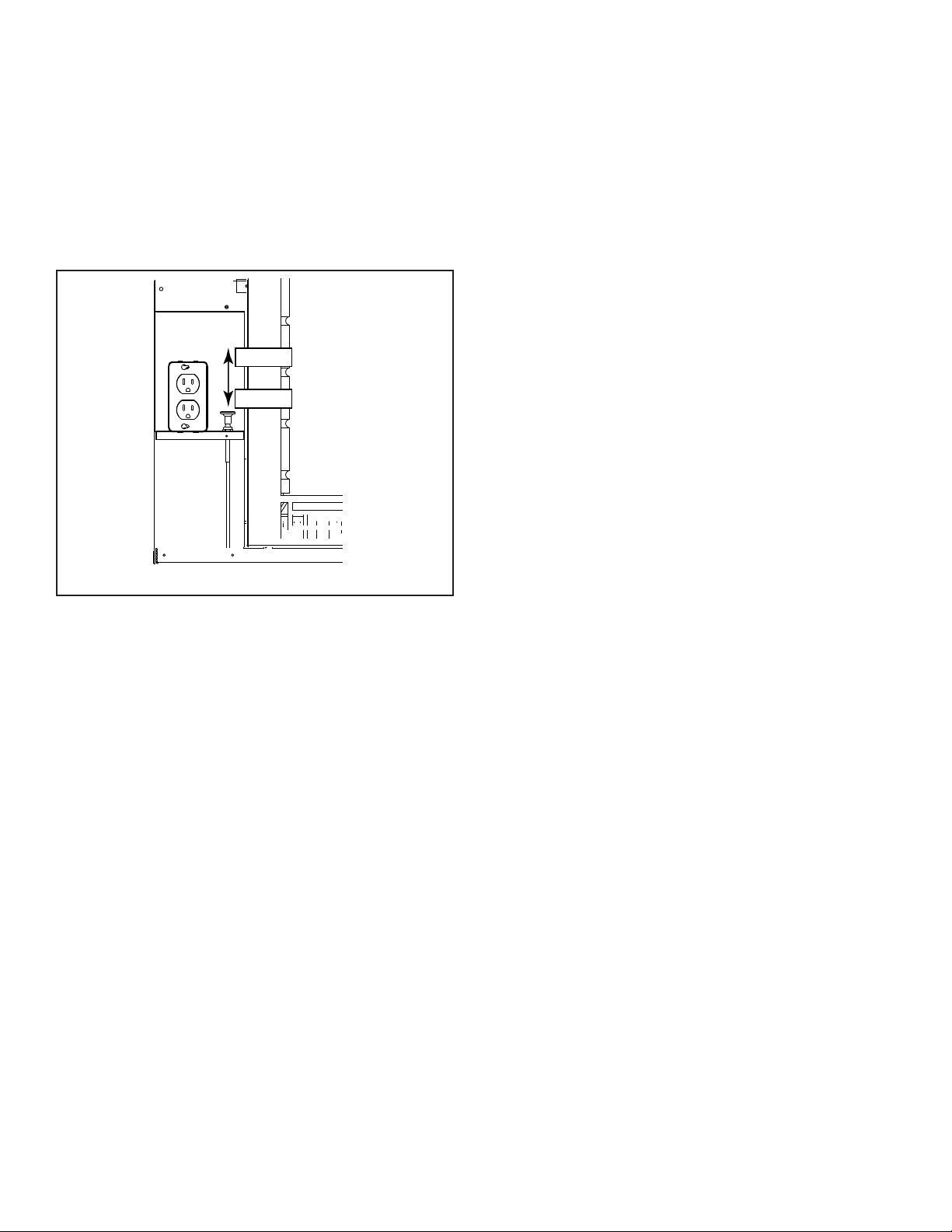

E. Junction Box Installation 42

14 Finishing

A. Mantel and Wall Projections 43
B. Facing Material 43
C. Non-combustible Finishing Material 44

15 Appliance Setup

A. Remove Shipping Materials 45
B. Remove Fixed Glass Assembly 45
C. Remove Materials Shipped Inside Firebox 45
D. Clean the Appliance 45
E. Accessories 45

Heatilator • ICON DV-IDV Series • 4042-575 • Rev. S • 5/11 3

F. Heat-Zone® Gas 45
G. Refractory 45

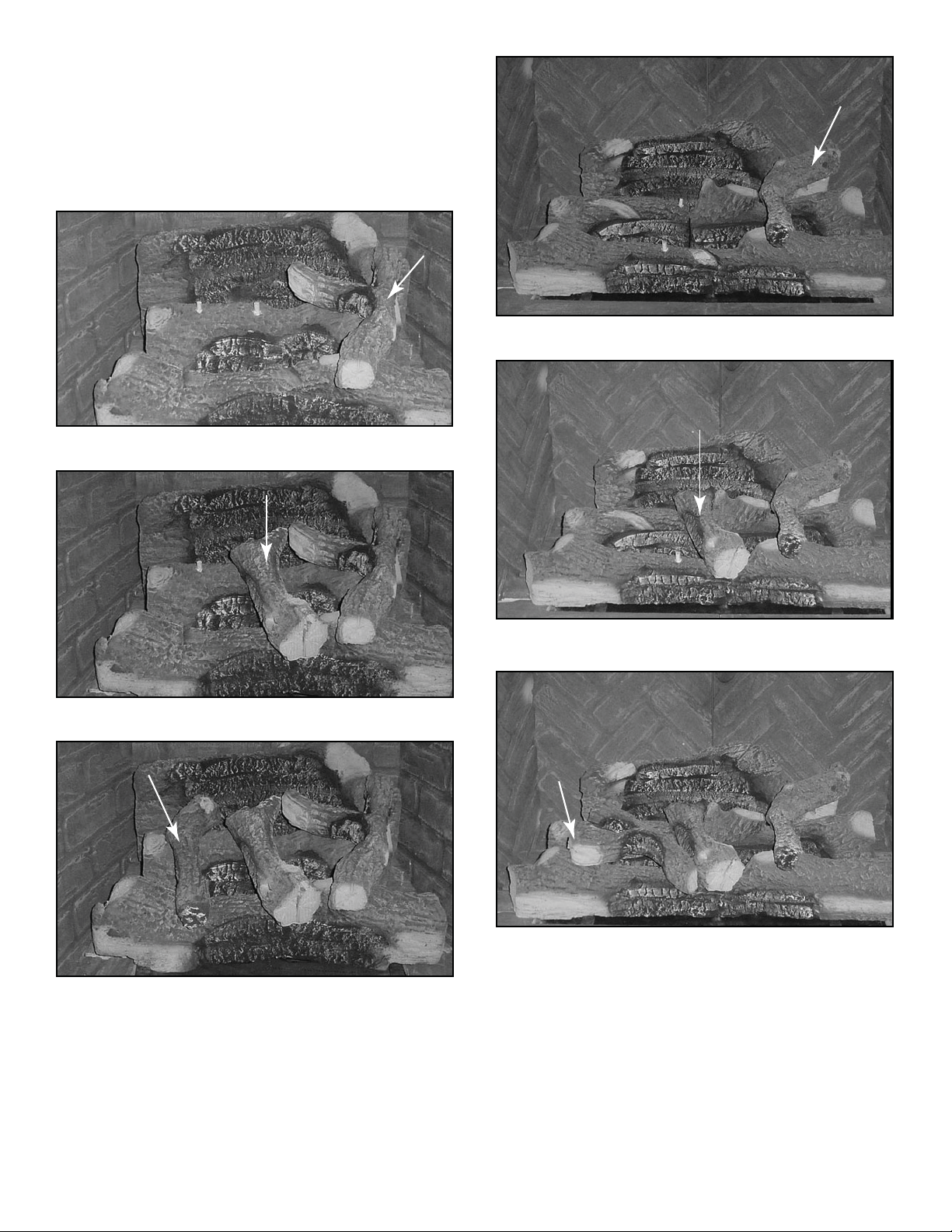

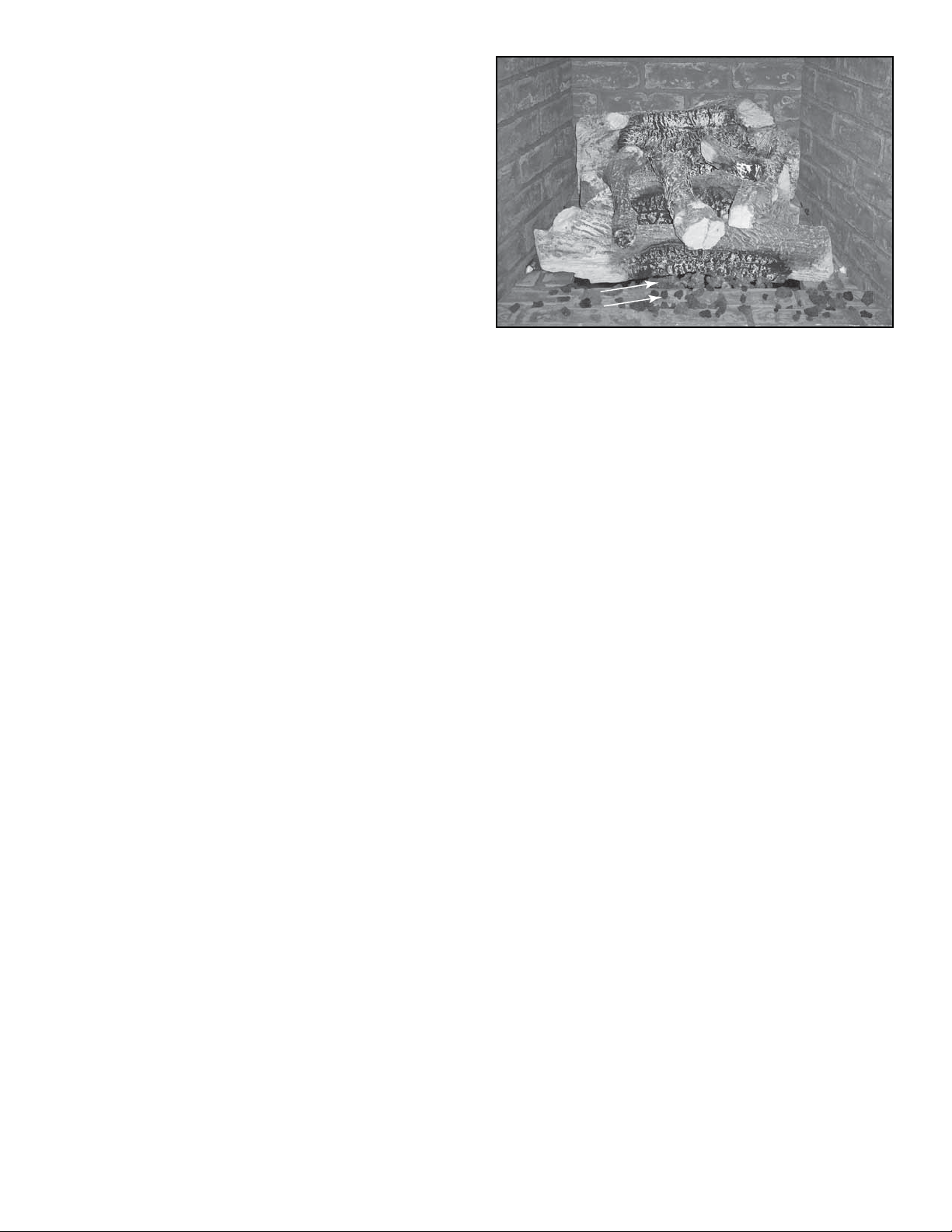

H. Install the Logs 46
I. Place Lava Rock and Rockwool 47
J. Glass Panel Assembly 48

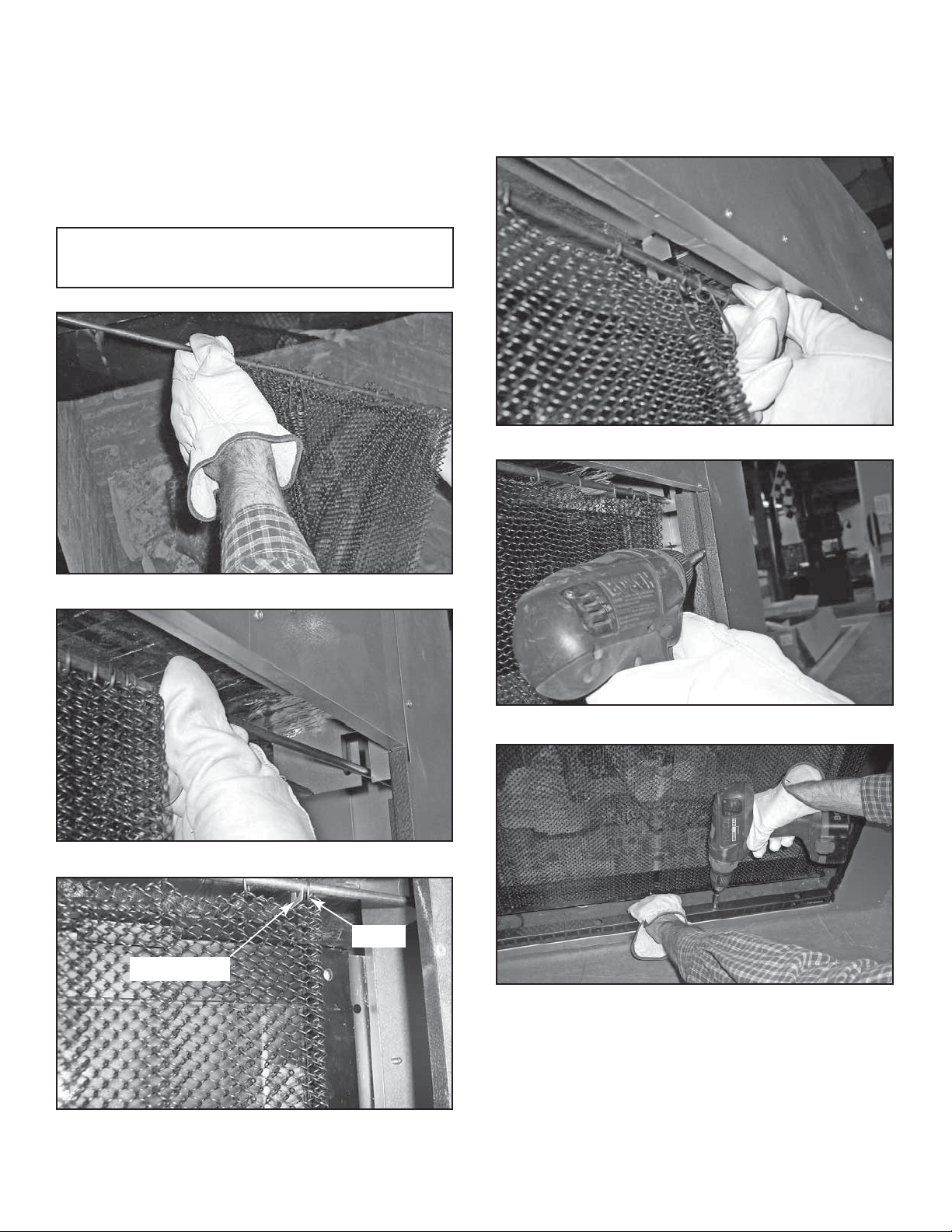

K. Decorative Firescreen, Refractory Shields and
Lower Decorative Front Face 49

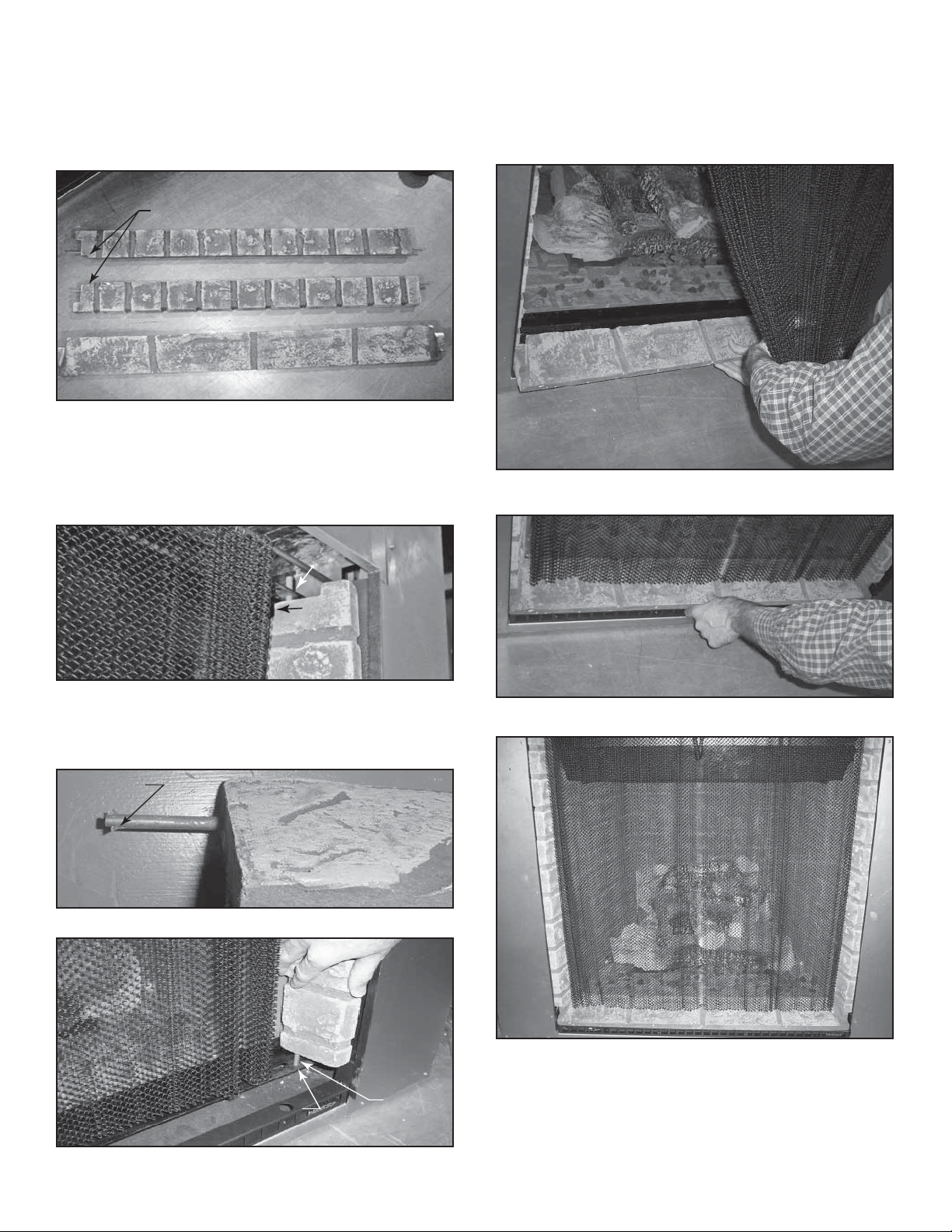

L. Installing External Refractories 50
M. Air Shutter Setting 51

16 Troubleshooting

A. Intellifi re Ignition System 52

17 Reference Materials

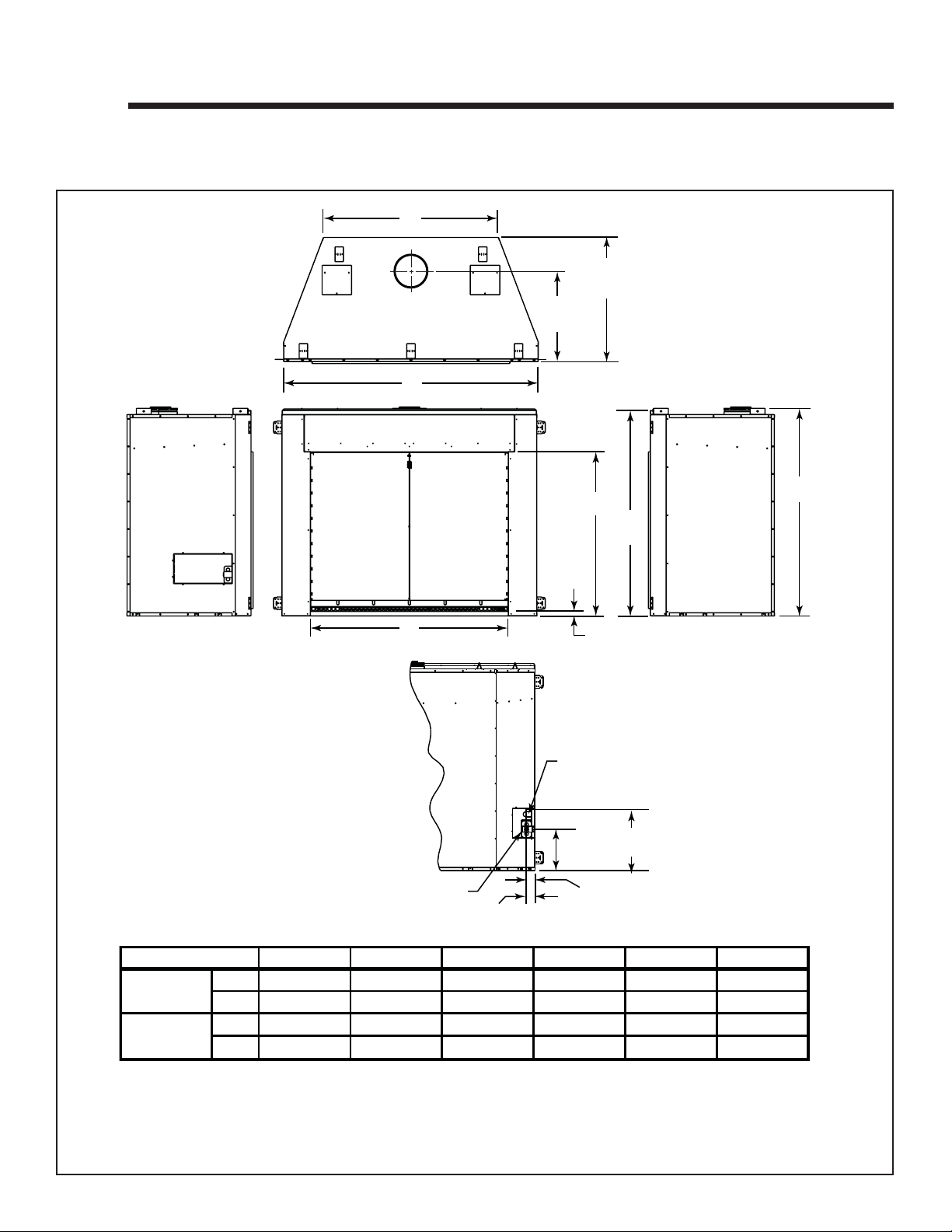

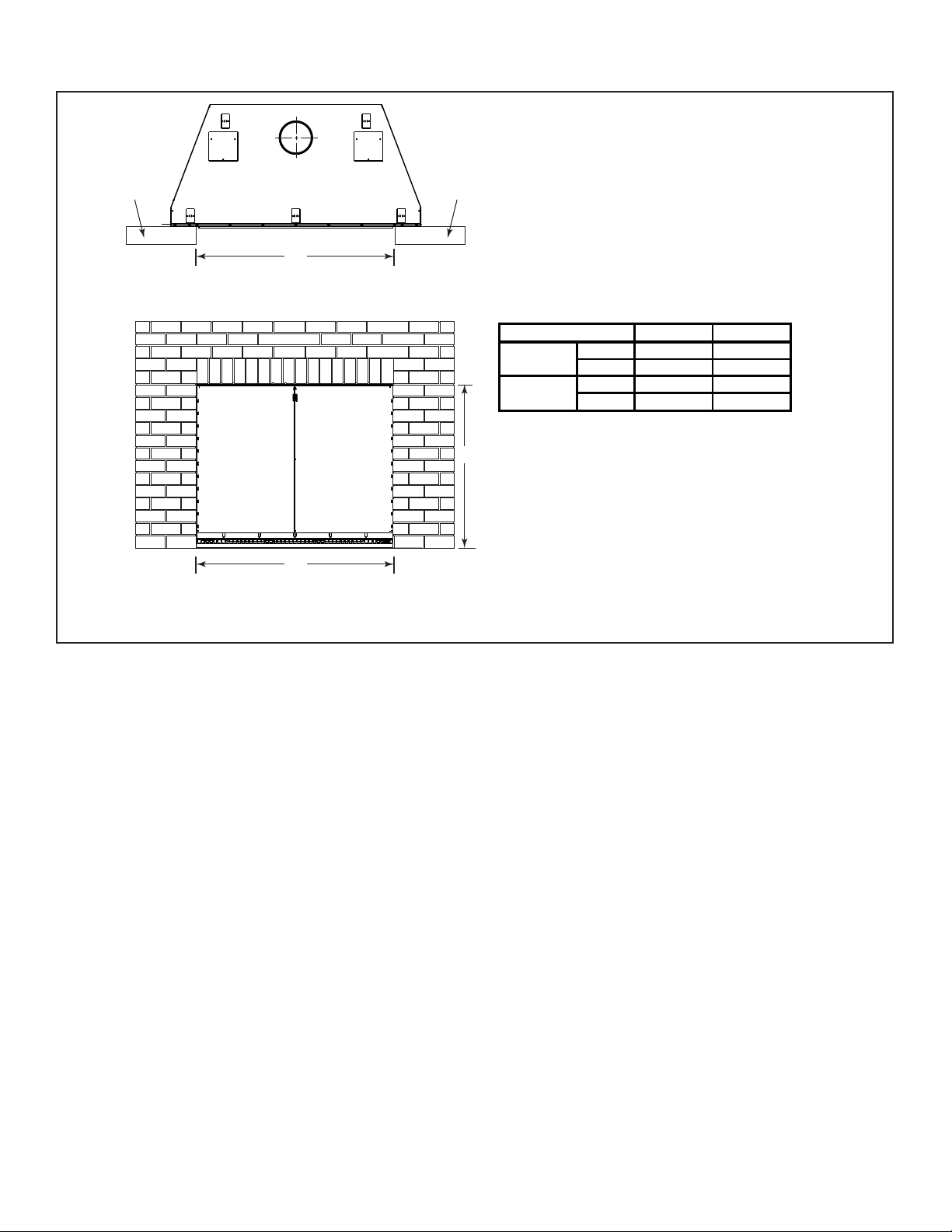

A. Appliance Dimension Diagram 54

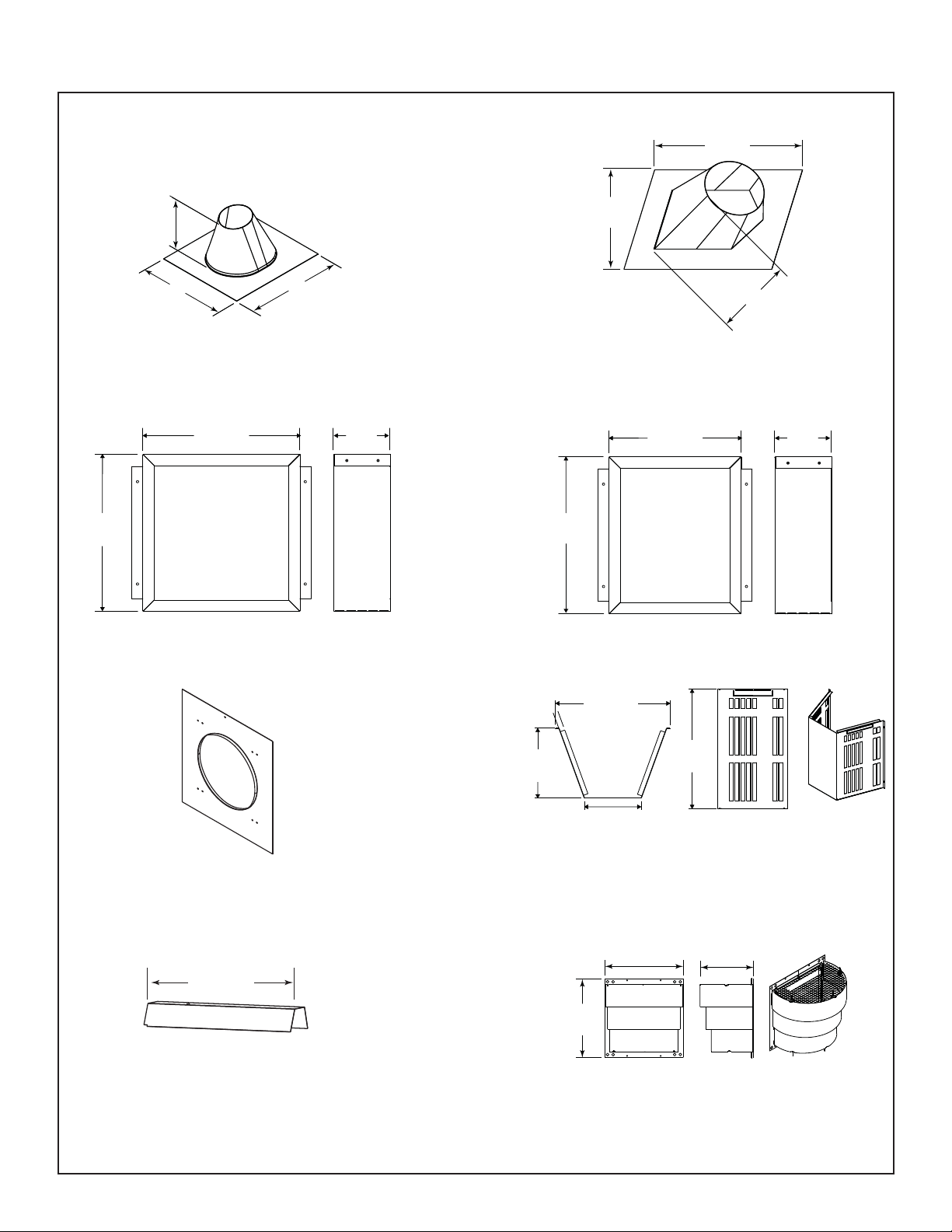

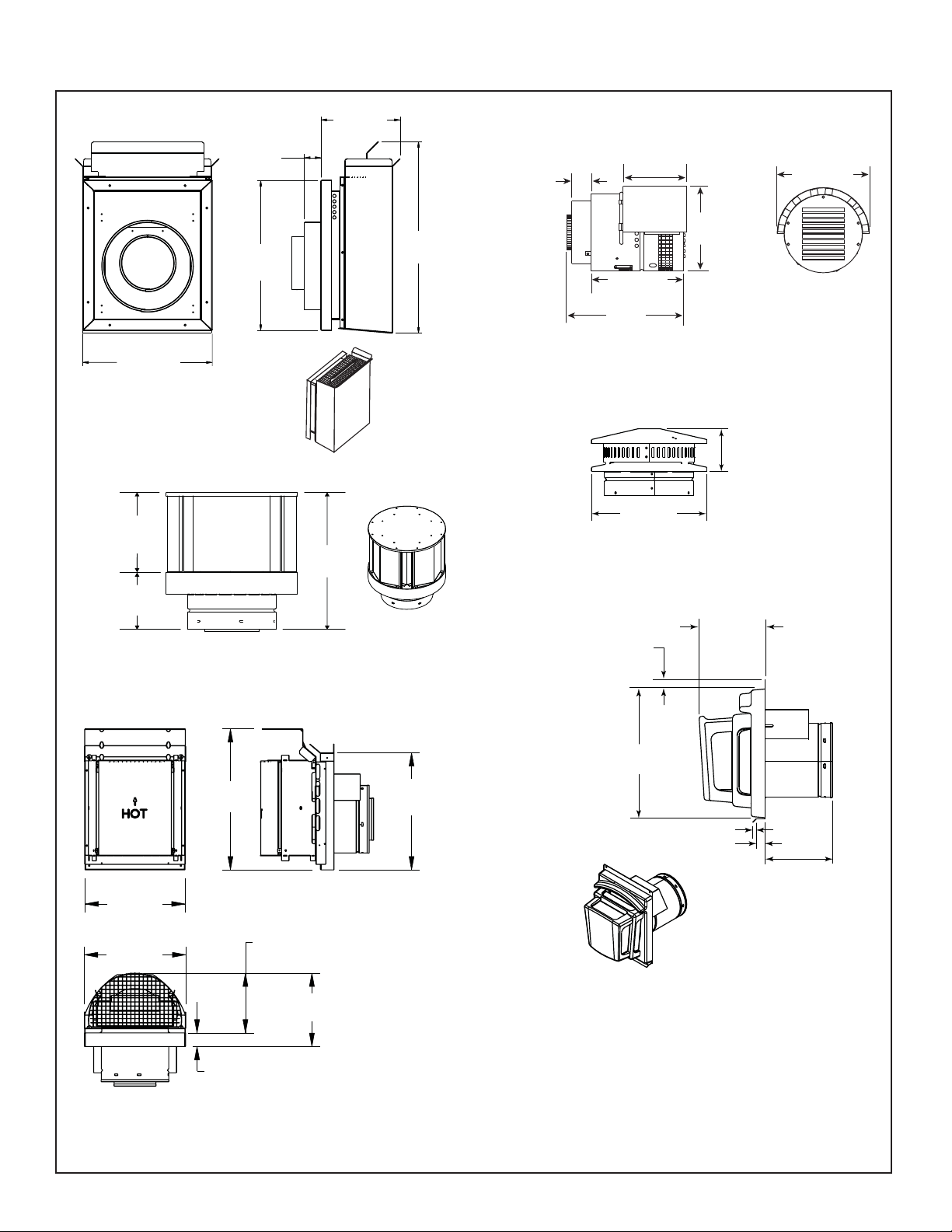

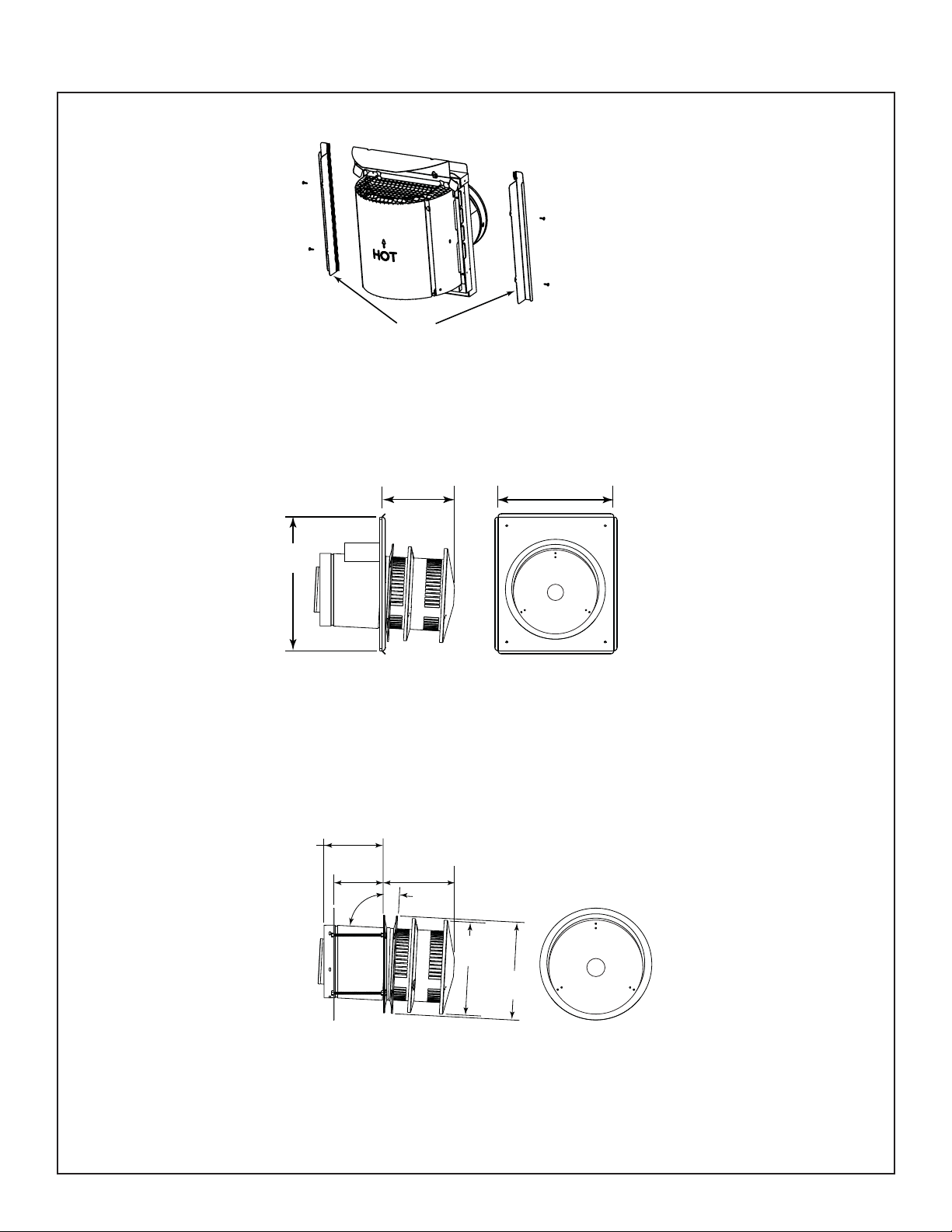

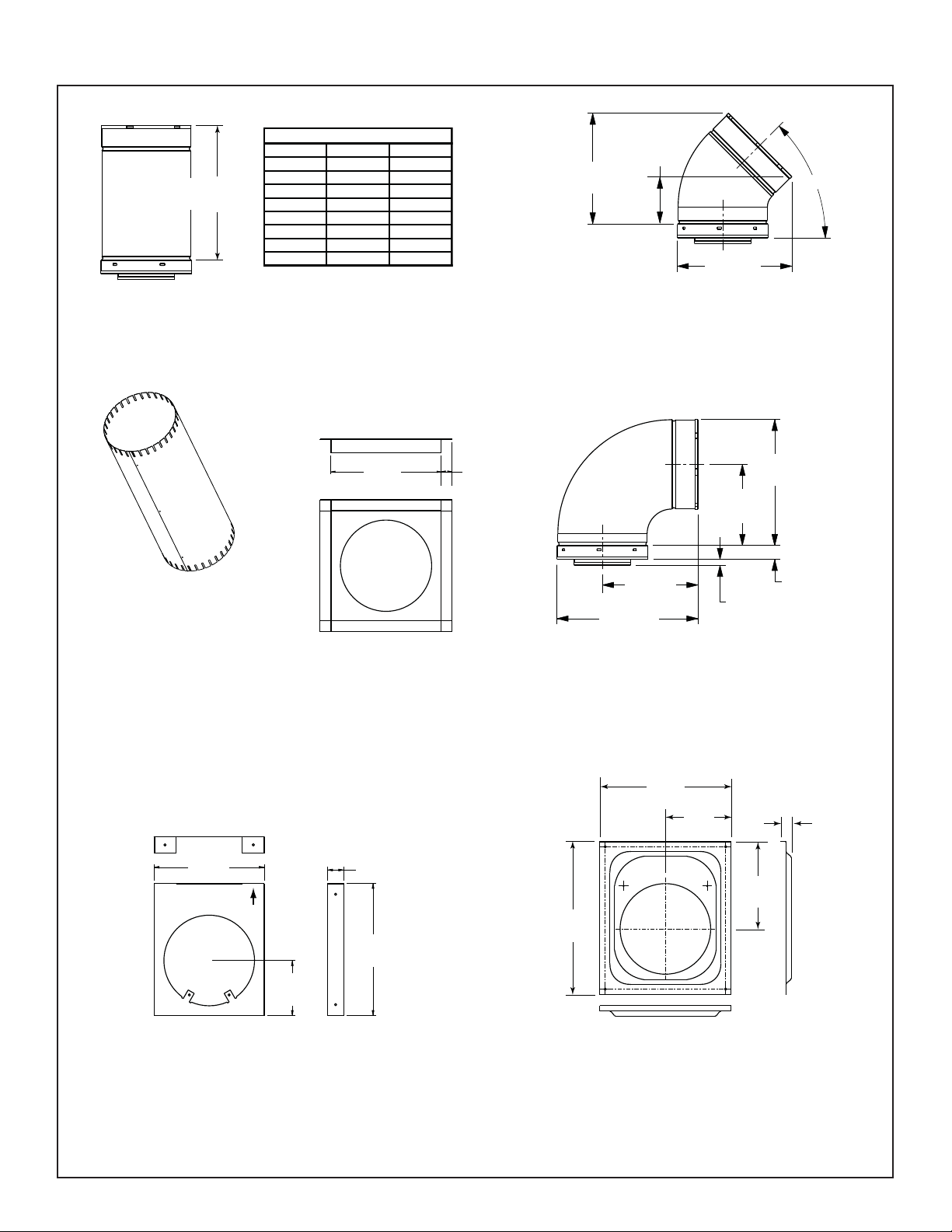

B. Vent Components Diagrams 55
C. Service Parts 60
D. Optional Components 67
E. Contact Information 68

 = Contains updated information.

Heatilator • ICON DV-IDV Series • 4042-575 • Rev. S • 5/114

g

y

y p

p

y

y

y

y

B. Limited Lifetime Warranty

Hearth & Home Technologies Inc.

LIMITED LIFETIME WARRANTY

Hearth & Home Technologies Inc., on behalf of its hearth brands (”HHT”), extends the following warranty for
HHT gas, wood, pellet, coal and electric hearth appliances that are purchased from an HHT authorized dealer.

WARRANTY COVERAGE:

HHT warrants to the original owner of the HHT appliance at the site of installation, and to any transferee taking ownership
of the appliance at the site of installation within two years following the date of original purchase, that the HHT appliance
will be free from defects in materials and workmanship at the time of manufacture. After installation, if covered compo­nents manufactured by HHT are found to be defective in materials or workmanship during the applicable warranty period,
HHT will, at its option, repair or replace the covered components. HHT, at its own discretion, may fully discharge all of its
obligations under such warranties by replacing the product itself or refunding the verified purchase price of the product
itself. The maximum amount recoverable under this warranty is limited to the purchase price of the product. This warranty
is subject to conditions, exclusions and limitations as described below.

WARRANTY PERIOD:

Warranty coverage begins on the date of original purchase. In the case of new home construction, warranty coverage
begins on the date of first occupancy of the dwelling or six months after the sale of the product by an independent,
authorized HHT dealer/ distributor, whichever occurs earlier. The warranty shall commence no later than 24 months
following the date of product shipment from HHT, regardless of the installation or occupancy date. The warranty period for
parts and labor for covered components is produced in the following table.

The term “Limited Lifetime” in the table below is defined as: 20 years from the beginning date of warranty coverage for
gas appliances, and 10 years from the beginning date of warranty coverage for wood, pellet, and coal appliances. These
time periods reflect the minimum expected useful lives of the designated components under normal operating conditions.

Warranty Period HHT Manufactured Appliances and Venting

Parts Labor Gas Wood Pellet

1 Year

2 years

3 years

ears 1 year X X Castings and baffles

5

7 years 3 years X X X

10

ears

Limited

Lifetime

1 year X Burners, logs and refractory

3 yearsXXXXX Firebox and heat exchanger

XXXXXXX

XXX

XXXXX Factor

X Molded refractor

XFire

EPA

Wood

Coal Electric Venting

Components Covered

All parts and material except as

covered by Conditions,

Exclusions, and Limitations

listed

Igniters, electronic components,

and

lass

-installed blowers

ots and burnpots

Manifold tubes,

HHT chimne

and termination

anels

90 Days

4021-645C 12-29-10 Page 1 of 2

XXXXXXX

See conditions, exclusions, and limitations on next page.

Heatilator • ICON DV-IDV Series • 4042-575 • Rev. S • 5/11 5

All replacement parts

ond warranty period

be

B. Limited Lifetime Warranty (continued)

WARRANTY CONDITIONS:

 7KLVZDUUDQW\RQO\FRYHUV++7DSSOLDQFHVWKDWDUHSXUFKDVHGWKURXJKDQ++7DXWKRUL]HGGHDOHURUGLVWULEXWRU$OLVWRI

++7DXWKRUL]HGGHDOHUVLVDYDLODEOHRQWKH++7EUDQGHGZHEVLWHV
 7KLVZDUUDQW\LVRQO\YDOLGZKLOHWKH++7DSSOLDQFHUHPDLQVDWWKHVLWHRIRULJLQDOLQVWDOODWLRQ
 &RQWDFW\RXULQVWDOOLQJGHDOHUIRUZDUUDQW\VHUYLFH,IWKHLQVWDOOLQJGHDOHULVXQDEOHWRSURYLGHQHFHVVDU\SDUWVFRQWDFW

WKHQHDUHVW++7DXWKRUL]HGGHDOHURUVXSSOLHU$GGLWLRQDOVHUYLFHIHHVPD\DSSO\LI\RXDUHVHHNLQJZDUUDQW\VHUYLFH

IURPDGHDOHURWKHUWKDQWKHGHDOHUIURPZKRP\RXRULJLQDOO\SXUFKDVHGWKHSURGXFW
 &KHFNZLWK\RXUGHDOHULQDGYDQFHIRUDQ\FRVWVWR\RXZKHQDUUDQJLQJDZDUUDQW\FDOO7UDYHODQGVKLSSLQJFKDUJHV

IRUSDUWVDUHQRWFRYHUHGE\WKLVZDUUDQW\

WARRANTY EXCLUSIONS:

7KLVZDUUDQW\GRHVQRWFRYHUWKHIROORZLQJ
 &KDQJHVLQVXUIDFHILQLVKHVDVDUHVXOWRIQRUPDOXVH$VDKHDWLQJDSSOLDQFHVRPHFKDQJHVLQFRORURILQWHULRUDQG

H[WHULRUVXUIDFHILQLVKHVPD\RFFXU7KLVLVQRWDIODZDQGLVQRWFRYHUHGXQGHUZDUUDQW\

 'DPDJHWRSULQWHGSODWHGRUHQDPHOHGVXUIDFHVFDXVHGE\ILQJHUSULQWVDFFLGHQWVPLVXVHVFUDWFKHVPHOWHGLWHPV

RURWKHUH[WHUQDOVRXUFHVDQGUHVLGXHVOHIWRQWKHSODWHGVXUIDFHVIURPWKHXVHRIDEUDVLYHFOHDQHUVRUSROLVKHV

 5HSDLURUUHSODFHPHQWRISDUWVWKDWDUHVXEMHFWWRQRUPDOZHDUDQGWHDUGXULQJWKHZDUUDQW\SHULRG7KHVHSDUWV

LQFOXGHSDLQWZRRGSHOOHWDQGFRDOJDVNHWVILUHEULFNVJUDWHVIODPHJXLGHVOLJKWEXOEVEDWWHULHVDQGWKHGLVFRORU-

DWLRQRIJODVV

 0LQRUH[SDQVLRQFRQWUDFWLRQRUPRYHPHQWRIFHUWDLQSDUWVFDXVLQJQRLVH7KHVHFRQGLWLRQVDUHQRUPDODQGFRP-

SODLQWVUHODWHGWRWKLVQRLVHDUHQRWFRYHUHGE\WKLVZDUUDQW\

 'DPDJHVUHVXOWLQJIURPIDLOXUHWRLQVWDOORSHUDWHRUPDLQWDLQWKHDSSOLDQFHLQDFFRUGDQFHZLWKWKHLQVWDOODWLRQ

LQVWUXFWLRQVRSHUDWLQJLQVWUXFWLRQVDQGOLVWLQJDJHQWLGHQWLILFDWLRQODEHOIXUQLVKHGZLWKWKHDSSOLDQFHIDLOXUHWR

LQVWDOOWKHDSSOLDQFHLQDFFRUGDQFHZLWKORFDOEXLOGLQJFRGHVVKLSSLQJRULPSURSHUKDQGOLQJLPSURSHURSHUD-

WLRQDEXVHPLVXVHFRQWLQXHGRSHUDWLRQZLWKGDPDJHGFRUURGHGRUIDLOHGFRPSRQHQWVDFFLGHQWRULPSURSHUO\
LQFRUUHFWO\SHUIRUPHGUHSDLUVHQYLURQPHQWDOFRQGLWLRQVLQDGHTXDWHYHQWLODWLRQQHJDWLYHSUHVVXUHRUGUDIWLQJ
FDXVHGE\WLJKWO\VHDOHGFRQVWUXFWLRQVLQVXIILFLHQWPDNHXSDLUVXSSO\RUKDQGOLQJGHYLFHVVXFKDVH[KDXVWIDQVRU
IRUFHGDLUIXUQDFHVRURWKHUVXFKFDXVHVXVHRIIXHOVRWKHUWKDQWKRVHVSHFLILHGLQWKHRSHUDWLQJLQVWUXFWLRQV
LQVWDOODWLRQRUXVHRIFRPSRQHQWVQRWVXSSOLHGZLWKWKHDSSOLDQFHRUDQ\RWKHUFRPSRQHQWVQRWH[SUHVVO\DXWKRUL]HG
DQGDSSURYHGE\++7PRGLILFDWLRQRIWKHDSSOLDQFHQRWH[SUHVVO\DXWKRUL]HGDQGDSSURYHGE\++7LQZULWLQJ

DQGRULQWHUUXSWLRQVRUIOXFWXDWLRQVRIHOHFWULFDOSRZHUVXSSO\WRWKHDSSOLDQFH
 1RQ++7YHQWLQJFRPSRQHQWVKHDUWKFRPSRQHQWVRURWKHUDFFHVVRULHVXVHGLQFRQMXQFWLRQZLWKWKHDSSOLDQFH
 $Q\SDUWRIDSUHH[LVWLQJILUHSODFHV\VWHPLQZKLFKDQLQVHUWRUDGHFRUDWLYHJDVDSSOLDQFHLVLQVWDOOHG

 ++7¶VREOLJDWLRQXQGHUWKLVZDUUDQW\GRHVQRWH[WHQGWRWKHDSSOLDQFH¶VFDSDELOLW\WRKHDWWKHGHVLUHGVSDFH,QIRUPD-

WLRQLVSURYLGHGWRDVVLVWWKHFRQVXPHUDQGWKHGHDOHULQVHOHFWLQJWKHSURSHUDSSOLDQFHIRUWKHDSSOLFDWLRQ&RQVLGHU-

DWLRQPXVWEHJLYHQWRDSSOLDQFHORFDWLRQDQGFRQILJXUDWLRQHQYLURQPHQWDOFRQGLWLRQVLQVXODWLRQDQGDLUWLJKWQHVVRI

WKHVWUXFWXUH

This warranty is void if:

 7KHDSSOLDQFHKDVEHHQRYHUILUHGRURSHUDWHGLQDWPRVSKHUHVFRQWDPLQDWHGE\FKORULQHIOXRULQHRURWKHUGDPDJLQJ

FKHPLFDOV2YHUILULQJFDQEHLGHQWLILHGE\EXWQRWOLPLWHGWRZDUSHGSODWHVRUWXEHVUXVWFRORUHGFDVWLURQEXEEOLQJ

FUDFNLQJDQGGLVFRORUDWLRQRIVWHHORUHQDPHOILQLVKHV
 7KHDSSOLDQFHLVVXEMHFWHGWRSURORQJHGSHULRGVRIGDPSQHVVRUFRQGHQVDWLRQ
 7KHUHLVDQ\GDPDJHWRWKHDSSOLDQFHRURWKHUFRPSRQHQWVGXHWRZDWHURUZHDWKHUGDPDJHZKLFKLVWKHUHVXOWRIEXW

QRWOLPLWHGWRLPSURSHUFKLPQH\RUYHQWLQJLQVWDOODWLRQ

LIMITATIONS OF LIABILITY:

 7KHRZQHU¶VH[FOXVLYHUHPHG\DQG++7¶VVROHREOLJDWLRQXQGHUWKLVZDUUDQW\XQGHUDQ\RWKHUZDUUDQW\H[SUHVVRU

LPSOLHGRULQFRQWUDFWWRUWRURWKHUZLVHVKDOOEHOLPLWHGWRUHSODFHPHQWUHSDLURUUHIXQGDVVSHFLILHGDERYH,QQR

HYHQWZLOO++7EHOLDEOHIRUDQ\LQFLGHQWDORUFRQVHTXHQWLDOGDPDJHVFDXVHGE\GHIHFWVLQWKHDSSOLDQFH6RPHVWDWHV

GRQRWDOORZH[FOXVLRQVRUOLPLWDWLRQRILQFLGHQWDORUFRQVHTXHQWLDOGDPDJHVVRWKHVHOLPLWDWLRQVPD\QRWDSSO\WR\RX

7KLVZDUUDQW\JLYHV\RXVSHFLILFULJKWV\RXPD\DOVRKDYHRWKHUULJKWVZKLFKYDU\IURPVWDWHWRVWDWH(;&(3772

7+((;7(173529,'('%</$:++70$.(612(;35(66:$55$17,(627+(57+$17+(:$55$17<

63(&,),('+(5(,17+('85$7,212)$1<,03/,(':$55$17<,6/,0,7('72'85$7,212)7+(

(;35(66(':$55$17<63(&,),('$%29(

4021-645C 12-29-10 Page 2 of 2

Heatilator • ICON DV-IDV Series • 4042-575 • Rev. S • 5/116

1

1

Listing and Code Approvals

A. Appliance Certifi cation

MODELS: IDV4833 & IDV6247 Series
LABORATORY: Underwriters Laboratories, Inc. (UL)
TYPE: Vented Gas Fireplace Heaters
STANDARD: ANSI Z21.88b-2008•CSA2.33b-2008

NOTICE: This installation must conform with local codes

or, in the absence of local codes, with the National Fuel
Gas Code, ANSI Z223.1/NFPA 54, or the Natural Gas and
Propane Installation Code, CSA B149.1.

• A manufactured home (USA only) or mobile home OEM
installation must conform with the (U.S.) Manufactured

Home Construction and Safety Standard, Title 24 CFR,
Part 3280 or, when such a standard is not applicable, the
Standard for Fire Safety Criteria for Manufactured Home
Installation Sites and Communities, ANSI/NFPA 501A,
in the United States, or the Mobile Homes Standard,
CAN/CSA Z240 MH Series in Canada.

• This appliance complies with the installation requirements
for HUD.

C. BTU Specifi cations

ICON DV-Mesh IDV4833 IDV6247

IPI

Max/Min Input Rate (NG) 48,000/33,500 59,000/40,000

Orifi ce Size (NG) 0.128 0.144

Max/Min Input Rate (LP) 48,000/35,500 56,000/41,500

Orifi ce Size (LP) 0.079 0.086

D. High Altitude Installations

NOTICE: If the heating value of the gas has been reduced,

these rules do not apply . Check with your local gas utility or
authorities having jurisdiction.

When installing above 2000 feet elevation:

• In the USA: Reduce input rate 4% for each 1000 feet
above 2000 feet.

• In CANADA: Reduce input rate 10% for elevations
between 2000 feet and 4500 feet. Above 4500 feet,
consult local gas utility.

Check with your local gas utility to determine proper
orifi ce size.

NOT INTENDED FOR USE AS A PRIMARY HEAT SOURCE.

This appliance is tested and approved as either supplemental
room heat or as a decorative appliance. It should not be fac­tored as primary heat in residential heating calculations.

B. Tempered Glass Specifi cations

Hearth & Home Technologies appliances manufactured
with tempered glass may be installed in hazardous
locations such as bathtub enclosures as defi ned by the
Consumer Product Safety Commission (CPSC). The
tempered glass has been tested and certifi ed to the
requirements of ANSI Z97.1 and CPSC 16 CFR 1202
(Safety Glazing Certifi cation Council SGCC# 1595 and

1597. Architectural Testing, Inc. Reports 02-31919.01 and
02-31917.01).

This statement is in compliance with CPSC 16 CFR
Section 1201.5 “Certifi cation and labeling requirements”

which refers to 15 U.S. Code (USC) 2063 stating “…Such
certifi cate shall accompany the product or shall otherwise
be furnished to any distributor or retailer to whom the
product is delivered.”

Some local building codes require the use of tempered
glass with permanent marking in such locations. Glass
meeting this requirement is available from the factory.
Please contact your dealer or distributor to order.

E. Non-Combustible Materials Specifi cation

Material which will not ignite and burn. Such materials are
those consisting entirely of steel, iron, brick, tile, concrete,
slate, glass or plasters, or any combination thereof.

Materials that are reported as passing ASTM E 136,

Standard Test Method for Behavior of Materials in a
Vertical Tube Furnace at 750 ºC and UL763 shall be

considered non-combustible materials.

F. Combustible Materials Specifi cation

Materials made of or surfaced with wood, compressed
paper, plant fi bers, plastics, or other material that can ig-
nite and burn, whether fl ame proofed or not, or plastered
or unplastered shall be considered combustible materials.

G. Electrical Codes

NOTICE: This appliance must be electrically wired

and grounded in accordance with local codes or, in the
absence of local codes, with National Electric Code

ANSI/NFPA 70-latest edition or the Canadian Electric
Code CSA C22.1.

• A 1 10-120 V AC circuit for this product must be protected
with ground-fault circuit-interrupter protection, in
compliance with the applicable electrical codes, when
it is installed in locations such as in bathrooms or near
sinks.

Heatilator • ICON DV-IDV Series • 4042-575 • Rev. S • 5/11 7

Note: The following requirements reference various
Massachusetts and nati onal c ode s not c ontaine d in this
document.

H. Requirements for the Commonwealth of
Massachusetts

For all side wall horizontally vented gas fueled equipment
installed in every dwelling, building or structure used in
whole or in part for residential purposes, including those
owned or operated by the Commonwealth and where the
side wall exhaust vent termination is less than seven (7)
feet above fi nished grade in the area of the venting, in-
cluding but not limited to decks and porches, the following
requirements shall be satisfi ed:

Installation of Carbon Monoxide Detectors

At the time of installation of the side wall horizontal
vented gas fueled equipment, the installing plumber or
gas fi tter shall observe that a hard wired carbon mon-
oxide detector with an alarm and battery back-up is
installed on the fl oor level where the gas equipment is
to be installed. In addition, the installing plumber or gas
fi tter shall observe that a battery operated or hard wired
carbon monoxide detector with an alarm is installed on
each additional level of the dwelling, building or struc­ture served by the side wall horizontal vented gas fueled
equipment. It shall be the responsibility of the property
owner to secure the services of qualifi ed licensed profes-
sionals for the installation of hard wired carbon monoxide
detectors.

In the event that the side wall horizontally vented gas
fueled equipment is installed in a crawl space or an attic,
the hard wired carbon monoxide detector with alarm and
battery back-up may be installed on the next adjacent
fl oor level.

In the event that the requirements of this subdivision can
not be met at the time of completion of installation, the
owner shall have a period of thirty (30) days to comply
with the above requirements; provided, however, that dur­ing said thirty (30) day period, a battery operated carbon
monoxide detector with an alarm shall be installed.

Approved Carbon Monoxide Detectors

Each carbon monoxide detector as required in accor­dance with the above provisions shall comply with NFPA
720 and be ANSI/UL 2034 listed and IAS certifi ed.

Signage

A metal or plastic identifi cation plate shall be permanently
mounted to the exterior of the building at a minimum
height of eight (8) feet above grade directly in line with
the exhaust vent terminal for the horizontally vented gas
fueled heating appliance or equipment. The sign shall
read, in print size no less than one-half (1/2) in. in size,

“GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL
OBSTRUCTIONS”.

Inspection

The state or local gas inspector of the side wall horizon­tally vented gas fueled equipment shall not approve the
installation unless, upon inspection, the inspector ob­serves carbon monoxide detectors and signage installed
in accordance with the provisions of 248 CMR 5.08(2)(a)1
through 4.

Exemptions

The following equipment is exempt from 248 CMR

5.08(2)(a)1 through 4:

• The equipment listed in Chapter 10 entitled “Equipment
Not Required To Be Vented” in the most current edition
of NFPA 54 as adopted by the Board; and

• Product Approved side wall horizontally vented gas
fueled equipment installed in a room or structure
separate from the dwelling, building or structure used
in whole or in part for residential purposes.

MANUFACTURER REQUIREMENTS
Gas Equipment Venting System Provided

When the manufacturer of Product Approved side wall
horizontally vented gas equipment provides a venting
system design or venting system components with the
equipment, the instructions provided by the manufacturer
for installation of the equipment and the venting system
shall include:

• Detailed instructions for the installation of the venting
system design or the venting system components;
and

• A complete parts list for the venting system design or
venting system.

Gas Equipment Venting System NOT Provided

When the manufacturer of a Product Approved side
wall horizontally vented gas fueled equipment does not
provide the parts for venting the fl ue gases, but identi-
fi es “special venting systems”, the following requirements
shall be satisfi ed by the manufacturer:

• The referenced “special venting system” instructions
shall be included with the appliance or equipment
installation instructions; and

• The “special venting systems” shall be Product
Approved by the Board, and the instructions for that
system shall include a parts list and detailed installation
instructions.

A copy of all installation instructions for all Product Ap­proved side wall horizontally vented gas fueled equip­ment, all venting instructions, all parts lists for venting
instructions, and/or all venting design instructions shall
remain with the appliance or equipment at the completion
of the installation.

See Gas Connection section for additional Common­wealth of Massachusetts requirements.

Heatilator • ICON DV-IDV Series • 4042-575 • Rev. S • 5/118

2

User Guide

2

Operating Instructions

A. Gas Fireplace Safety

WARNING

HOT SURFACES!

Glass and other surfaces are hot
during operation and cool down.

Hot glass will cause burns.

• Do not touch glass until it is cooled

• NEVER allow children to touch glass

• Keep children away

• CAREFULL Y SUPERVISE children in

same room as appliance.

• Alert children and adults to hazards of high
temperatures.

High temperatures may ignite clothing or other

fl ammable materials.

• Keep clothing, furniture, draperies and other
combustibles away.

This appliance has been supplied with an integral
barrier to prevent direct contact with the fi xed glass
panel. Do NOT operate the appliance with the barrier
removed.

Contact your dealer or Hearth & Home Technologies if the
barrier is not present or help is needed to properly install one.

• Install a physical barrier such as:

- A decorative fi rescreen.

- Adjustable safety gate.

• Install a switch lock or a wall/remote control with child
protection lockout feature.

• Keep remote controls out of reach of children.

• Never leave children alone near a hot fi replace, whether
operating or cooling down.

• Teach children to NEVER touch the fi replace.

• Consider not using the fi replace when children will be
present.

Contact your dealer for more information, or visit: www.
hpba.org/safety-information.

To prevent unintended operation when not using your
fi replace for an extended period of time (summer months,
vacations, trips, etc):

• Remove batteries from remote controls.

• Turn off wall controls.

• Unplug 3-volt adapter plug and remove batteries on IPI
models.

• Turn off gas controls valve on standing pilot models.

When lighting the pilot light on fi replaces with a standing
pilot, remove the fi xed glass assembly so you can detect
presence of residual gas build-up. See Standing Pilot
Lighting instructions and Maintenance Tasks.

If you expect that small children or vulnerable adults may
come into contact with this fi replace, the following precau-
tions are recommended:

Decorative Doors

(not shown)
Section 2.D.

Fixed Glass Assembly

(not shown)
Section 2.E.

Grate
(not shown)
Section 2.B.

Clear Space
Section 2.C.

Hearth

(not required)

Mantel

B. Y our Fireplace

WARNING! DO NOT operate fi replace before reading and
understanding operating instructions. Failure to operate

fi replace according to operating instructions could cause
fi re or injury.

Figure 2.1 General Operating Parts

Heatilator • ICON DV-IDV Series • 4042-575 • Rev. S • 5/11 9

C. Clear Space

WARNING! DO NOT place combustible objects in front of
the fi replace or block louvers. High temperatures may start
a fi re. See Figure 2.2.

Avoid placing candles and other heat-sensitive objects on
mantel or hearth. Heat may damage these objects.

Clear space 3 ft (914 mm)
in front of appliance

Figure 2.2 Clear Space

E. Fixed Glass Assembly

See Section 15.J.

F. Remote Controls, Wall Controls and Wall
Switches

Follow the instructions supplied with the control installed
to operate your fi replace:

For safety:

• Install a switch lock or a wall/remote control with child
protection lockout feature.

• Keep remote controls out of reach of children.

See your dealer if you have questions.

G. Before Lighting Fireplace

Before operating this fi replace for the fi rst time, have a
qualifi ed service technician:

• Verify all shipping materials have been removed from
inside and/or underneath the fi rebox.

• Review proper placement of logs, rockwool and/or other
decorative materials.

• Check the wiring.

• Check the air shutter adjustment.

• Ensure that there are no gas leaks.

• Ensure that the glass is sealed and in the proper position
and that the integral barrier is in place.

D. Decorative Doors and Fronts

WARNING! Risk of Fire! Install ONLY doors or fronts

approved by Hearth & Home Technologies. Unapproved
doors or fronts may cause fi replace to overheat.

This fi replace has been supplied with an integral barrier to
prevent direct contact with the fi xed glass panel. DO NOT
operate the fi replace with the barrier removed.

Contact your dealer or Hearth & Home Technologies if the
barrier is not present or help is needed to properly install
one.

For more information refer to the instructions supplied
with your decorative door or front.

WARNING! Risk of Fire or Asphyxiation! DO NOT oper­ate fi replace with fi xed glass assembly removed.

Heatilator • ICON DV-IDV Series • 4042-575 • Rev. S • 5/1110



H. Lighting Instructions (IPI)

• For normal use, activate/deactivate your fi replace with the wall switch or remote control.

• The IPI system may be operated with two D-cell batteries. When using batteries, unplug the transformer. To prolong
battery life, remove them when using the transformer.

• If your fi replace must be deactivated for service or an extended period of time, follow the instructions below.

FOR YOUR SAFETY

READ BEFORE LIGHTING

WARNING: If you do not follow these instructions exactly, a fi re or explosion

may result causing property damage, personal injury or loss of life.

A. This appliance is equipped with an

intermittent pilot ignition (IPI) device
which automatically lights the burn­er. DO NOT try to light the burner by
hand.

B. BEFORE LIGHTING, smell all around

the appliance area for gas. Be sure to
smell next to the fl oor because some
gas is heavier than air and will settle
on the fl oor.

WHA T TO DO IF YOU SMELL GAS

• DO NOT try to light any appliance.

• DO NOT touch any electric switch; do
not use any phone in your building.

WARNING:

DO NOT CONNECT LINE VOLT­AGE (110/120 VAC OR 220/240
V AC) TO THE CONTROL V ALVE.

Improper installation, adjustment, al­teration, service or maintenance can
cause injury or property damage. Re­fer to the owner’s information manual
provided with this appliance.

This appliance needs fresh air for
safe operation and must be installed
so there are provisions for adequate
combustion and ventilation air.

If not installed, operated, and main­tained in accordance with the manufac­turer’s instructions, this product could
expose you to substances in fuel or
fuel combustion which are known to
the State of California to cause can­cer, birth defects, or other reproductive
harm.

Keep burner and control compartment
clean. See installation and operating
instructions accompanying appliance.

For additional information on operating your

Hearth & Home Technologies fi replace, please refer to www.fi replaces.com.

• Immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions.

• If you cannot reach your gas sup­plier, call the fi re department.

C. DO NOT use this appliance if any

part has been under water. Imme­diately call a qualifi ed service tech-
nician to inspect the appliance and
to replace any part of the control
system and any gas control which
has been under water.

CAUTION:

Hot while in operation. DO NOT touch.
Keep children, clothing, furniture, gaso­line and other liquids having fl ammable
vapors away.

DO NOT operate the appliance with
fi xed glass assembly removed, cracked
or broken. Replacement of the fi xed
glass assembly should be done by a
licensed or qualifi ed service person.

NOT FOR USE

WITH SOLID FUEL

For use with natural gas and propane.
A conversion kit, as supplied by the
manufacturer, shall be used to convert
this appliance to the alternate fuel.

Also Certifi ed for Installation in a
Bedroom or a Bedsitting Room.

For assistance or additional informa­tion, consult a qualifi ed installer, ser-
vice agency or the gas supplier.

LIGHTING

INSTRUCTIONS (IPI)

1. This appliance is equipped with an ignition

device which automatically lights the burner.

DO NOT try to light the burner by hand.

GAS

VALVE

2. Wait fi ve (5) minutes to clear out any gas.

Then smell for gas, including near the fl oor. If
you smell gas, STOP! Follow “B” in the Safety
Information located on the left side of this la­bel. If you do not smell gas, go to next step.

3. To light the burner:
Equipped with wall switch: Turn ON/OFF switch

to ON.

Equipped with remote or wall control: Press

ON or FLAME button.

Equipped with thermostat: Set temperature to

desired setting.

4. If the appliance does not light after three tries,
call your service technician or gas supplier.

TO TURN OFF

GAS TO APPLIANCE

1. Equipped with wall switch: Turn ON/OFF switch

to OFF.

Equipped with remote or wall control: Press

OFF button.

Equipped with thermostat: Set temperature to

lowest setting.

2. Service technician should turn off electric
power to the control when performing service.

593-913G

Final inspection by

Heatilator • ICON DV-IDV Series • 4042-575 • Rev. S • 5/11 11

I. After Fireplace is Lit

Initial Break-in Procedure

• The fireplace should be run three to four hours
continuously on high.

• Turn the fi replace off and allow it to completely cool.

• Remove fi xed glass assembly. See Section 15.J.

• Clean fi xed glass assembly. See Section 3.

• Replace the fi xed glass assembly and run continuously
on high an additional 12 hours.

This cures the materials used to manufacture the fi re-
place.

Indicator

NOTICE! Open windows for air circulation during fi replace

break-in.

• Some people may be sensitive to smoke and

odors.

• Smoke detectors may activate.

J. Flame Adjustment Control

Some appliances come equipped with a high/low fl ame
adjustment control.

• Open control access panel

• Compare your valve to Figures 2.4 & 2.5.

• Adjust the fl ame by turning knob as indicated in the photo
matching your valve.

K. Frequently Asked Questions

HILO

Figure 2.4 DEXEN Valve - IntelliFire Ignition System

Indicator

HI LO

Figure 2.5 SIT Valve - Standing Pilot Ignition System

ISSUE SOLUTIONS

Condensation on the glass This is a result of gas combustion and temperature variations. As the appliance warms, this

condensation will disappear.

Blue fl ames This is a result of normal operation and the fl ames will begin to yellow as the appliance is allowed

to burn for 20 to 40 minutes.

Odor from appliance When fi rst operated, this appliance may release an odor for the fi rst several hours. This is caused

by the curing of materials from manufacturing. Odor may also be released from fi nishing materials
and adhesives used near the appliance. These circumstances may require additional curing
related to the installation environment.

Film on the glass This is a normal result of the curing process of the paint and logs. Glass should be cleaned within

3 to 4 hours of initial burning. A non-abrasive cleaner such as gas appliance glass cleaner may be
necessary. See your dealer.

Metallic noise Noise is caused by metal expanding and contracting as it heats up and cools down, similar to the

sound produced by a furnace or heating duct. This noise does not affect the operation or longevity
of the appliance.

Is it normal to see the pilot
fl ame burn continually?

In an IntelliFire ignition system (IPI), the pilot fl ame should turn off when appliance is turned off.
Some optional control systems available with IPI models may allow pilot fl ame to remain lit. In a
standing pilot system the pilot will always stay on.

Heatilator • ICON DV-IDV Series • 4042-575 • Rev. S • 5/1112

3

3

Maintenance and Service

Any safety screen or guard removed for servicing must be
replaced prior to operating the fi replace.

When properly maintained, your fi replace will give you
many years of trouble-free service. We recommend an­nual service by a qualifi ed service technician.

A. Maintenance Tasks-Homeowner

Installation and repair should be done by a qualifi ed
service technician only. The fi replace should be inspect-
ed before use and at least annually by a professional
service person.

The following tasks may be performed annually by the
homeowner. If you are uncomfortable performing any of
the listed tasks, please call your dealer for a service ap­pointment.

More frequent cleaning may be required due to lint from
carpeting or other factors. Control compartment, burner
and circulating air passageway of the fi replace must be
kept clean.

CAUTION! Risk of Burns! The fi replace should be

turned off and cooled before servicing.

Glass Cleaning

Frequency: Seasonally
By: Homeowner

Tools Needed: Protective gloves, glass cleaner, drop

cloth and a stable work surface.

CAUTION! Handle fi xed glass assembly with care.

Glass is breakable.

• Avoid striking, scratching or slamming glass

• Avoid abrasive cleaners

• DO NOT clean glass while it is hot

• Prepare a work area large enough to accommodate fi xed
glass assembly and door frame by placing a drop cloth
on a fl at, stable surface.

Note: Fixed glass assembly and gasketing may have
residue that can stain carpeting or fl oor surfaces.

• Remove door or decorative front from fi replace and set
aside on work surface.

• See Section 15.J for instructions to remove fi xed glass
assembly.

• Clean glass with a non-abrasive commercially available
cleaner.

- Light deposits: Use a soft cloth with soap and water

- Heavy deposits: Use commercial fi replace glass cleaner
(consult with your dealer)

• Carefully set fi xed glass assembly in place on fi replace.
Hold glass in place with one hand and secure glass
latches with the other hand.

• Reinstall door or decorative front.

Doors, Surrounds, Fronts

Frequency: Annually
By: Homeowner
Tools needed: Protective gloves, stable work surface

• Assess condition of screen and replace as necessary.

• Inspect for scratches, dents or other damage and repair
as necessary.

• Check that louvers are not blocked.

• Vacuum and dust surfaces.

Remote Control

Frequency: Seasonally
By: Homeowner
Tools needed: Replacement batteries and remote control

instructions.

• Locate remote control transmitter and receiver.

• Verify operation of remote. Refer to remote control
operation instructions for proper calibration and setup
procedure.

• Place batteries as needed in remote transmitters and
battery-powered receivers.

• Place remote control out of reach of children.

If not using your fi replace for an extended period of time
(summer months, vacations/trips, etc), to prevent unin­tended operation:

• Remove batteries from remote controls.

• Unplug 3 volt adapter plug on IPI models.

Venting

Frequency: Seasonally
By: Homeowner
Tools needed: Protective gloves and safety glasses.

• Inspect venting and termination cap for blockage or
obstruction such plants, bird nests, leaves, snow, debris,
etc.

• Verify termination cap clearance to subsequent
construction (building additions, decks, fences, or
sheds). See Section 6.

• Inspect for corrosion or separation.

• Verify weather stripping, sealing and fl ashing remains
intact.

• Inspect draft shield to verify it is not damaged or
missing.

Heatilator • ICON DV-IDV Series • 4042-575 • Rev. S • 5/11 13

B. Maintenance Tasks-Qualifi ed Service
Technician

The following tasks must be performed by a qualifi ed
service technician.

Gasket Seal and Glass Assembly Inspection

Frequency: Annually
By: Qualifi ed Service Technician
Tools needed: Protective gloves, drop cloth and a stable

work surface.

• Inspect gasket seal and its condition.

• Inspect fi xed glass assembly for scratches and nicks
that can lead to breakage when exposed to heat.

• Confi rm there is no damage to glass or glass frame.
Replace as necessary.

• Verify that fi xed glass assembly is properly retained and
attachment components are intact and not damaged.
Replace as necessary.

Logs

Frequency: Annually
By: Qualifi ed Service Technician
Tools needed: Protective gloves.

• Inspect for damaged or missing logs. Replace as
necessary. Refer to Section 15.H. for log placement
instructions.

• Verify correct log placement and no fl ame impingement
causing sooting. Correct as necessary.

Firebox

Frequency: Annually
By: Qualifi ed Service Technician
Tools needed: Protective gloves, sandpaper, steel wool,

cloths, mineral spirits, primer and touch-up paint.

• Inspect for paint condition, warped surfaces, corrosion
or perforation. Sand and repaint as necessary.

• Replace fi replace if fi rebox has been perforated.

Burner Ignition and Operation

Frequency: Annually
By: Qualifi ed Service Technician
Tools needed: Protective gloves, vacuum cleaner, whisk

broom, fl ashlight, voltmeter, indexed drill bit set, and a
manometer.

• Verify burner is properly secured and aligned with pilot
or igniter.

• Clean off burner top, inspect for plugged ports, corrosion
or deterioration. Replace burner if necessary.

• Replace rockwool with new dime-size pieces. DO NOT
block ports or obstruct lighting paths. Refer to Section

15.I for proper rockwool placement.

• Verify batteries have been removed from battery back­up IPI systems to prevent premature battery failure or
leaking.

• Check for smooth lighting and ignition carryover to all
ports. Verify that there is no ignition delay.

• Inspect for lifting or other fl ame problems.

• Verify air shutter setting is correct. See Section 15.M.
for required air shutter setting. Verify air shutter is clear
of dust and debris.

• Inspect orifi ce for soot, dirt and corrosion. Verify orifi ce
size is correct. See Service Parts List for proper orifi ce
sizing.

• Verify manifold and inlet pressures. Adjust regulator as
required.

• Inspect pilot fl ame pattern and strength. See Figure 3.1
for proper pilot fl ame pattern. Clean or replace orifi ce
spud as necessary.

• Inspect thermocouple/thermopile or IPI fl ame sensing
rod for soot, corrosion and deterioration. Clean with
emery cloth or replace as required.

• Verify thermocouple/thermopile or IPI millivolt output.
Replace as necessary.

Control Compartment and Firebox Top

Frequency: Annually
By: Qualifi ed Service Technician
Tools needed: Protective gloves, vacuum cleaner, dust

cloths

• Vacuum and wipe out dust, cobwebs, debris or pet hair .
Use caution when cleaning these areas. Screw tips that
have penetrated the sheet metal are sharp and should
be avoided.

• Remove all foreign objects.

• Verify unobstructed air circulation.

Heatilator • ICON DV-IDV Series • 4042-575 • Rev. S • 5/1114

Figure 3.1 IPI Pilot Flame Patterns

4

Installer Guide

4

Getting Started

A. T ypical Appliance System

NOTICE: Illustrations and photos refl ect typical installations and are for design purposes only . Illustrations/diagrams are not

drawn to scale. Actual product may vary from pictures in manual

Vertical Termination Cap

(SECTION 10)

Noncombustible roof
flashing maintains minimum
clearance around pipe
(SECTION 10)

Vent Pipe
(SECTIONS 7, 8, 10)

Storm Collar
(SECTION 10)

Vent pipe penetrates roof,
preferably without affecting
roof rafters
(SECTION 8)

Attic insulation shield (not shown) must be used here to
keep insulation away from vent pipe if attic is insulated.
(SECTION 8)

Ceiling Firestop
on floor of attic
(SECTION 8)

Framing/Header
(SECTION 5)

Framing Headed off
in Ceiling Joists
(SECTION 8)

Optional

Wall Switch

Mantel & Mantel Leg
(SECTION 14)

Surround

Hearth Extension
(not required)

Gas Line
(SECTION 12)

Figure 4.1 Typical System

Heatilator • ICON DV-IDV Series • 4042-575 • Rev. S • 5/11 15

B. Design and Installation Considerations

Heatilator direct vent gas appliances are designed to op­erate with all combustion air siphoned from outside of the
building and all exhaust gases expelled to the outside. No
additional outside air source is required.

Installation MUST comply with local, regional, state and
national codes and regulations. Consult insurance carrier,
local building inspector, fi re offi cials or authorities having
jurisdiction over restrictions, installation inspection and
permits.

Before installing, determine the following:

• Where the appliance is to be installed.

• The vent system confi guration to be used.

• Gas supply piping.

• Electrical wiring requirements.

• Framing and fi nishing details.

• Whether optional accessories—devices such as a fan,

wall switch, or remote control—are desired.

Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. For
assistance or additional information, consult a qualifi ed
service technician, service agency or your dealer.

C. Tools and Supplies Needed

Before beginning the installation be sure that the following
tools and building supplies are available.

Tape measure Framing material
Pliers Non-corrosive leak check solution
Hammer Phillips screwdriver
Gloves Framing square
Voltmeter Electric drill and bits (1/4 in.)
Plumb line Safety glasses
Level Reciprocating saw
Manometer Flat blade screwdriver
1/2 - 3/4 in. length, #6 or #8 Self-drilling screws
Caulking material (300ºF minimum continuous exposure

rating)
One 1/4 in. female connection (for optional fan).

D. Inspect Appliance and Components

• Carefully remove the appliance and components from
the packaging. Refer to Section 15.A & 15.C.

• The vent system components and decorative doors and
fronts may be shipped in separate packages.

• If packaged separately, the log set and appliance grate
must be installed.

• Report to your dealer any parts damaged in shipment,
particularly the condition of the glass.

• Read all of the instructions before starting the installation.
Follow these instructions carefully during the installation
to ensure maximum safety and benefi t.

WARNING! Risk of Fire or Explosion! Damaged parts

could impair safe operation. DO NOT install damaged, in­complete or substitute components. Keep appliance dry.

Hearth & Home Technologies disclaims any responsibility for,
and the warranty will be voided by, the following actions:

• Installation and use of any damaged appliance or vent system
component.

• Modifi cation of the appliance or vent system.

• Installation other than as instructed by Hearth & Home
Technologies.

• Improper positioning of the gas logs or the glass door.

• Installation and/or use of any component part not approved
by Hearth & Home Technologies.

Any such action may cause a fi re hazard.

WARNING! Risk of Fire, Explosion or Electric Shock!
DO NOT use this appliance if any part has been under wa-

ter. Call a qualifi ed service technician to inspect the appli-
ance and to replace any part of the control system and/or
gas control which has been under water.

Heatilator • ICON DV-IDV Series • 4042-575 • Rev. S • 5/1116

5

5

ABCDEF

in.

47-1/2 64-1/4 30-1/2 48-1/2 90-7/8 48

mm

1207 1632 775 1232 2309 1219

in.

61-1/2 74-1/8 30-1/2 62-1/2 104-7/8 48

mm

1562 1883 775 1588 2665 1219

Model #

IDV4833I

IDV6247I

Framing and Clearances

A. Select Appliance Location

When selecting a location for the appliance it is important
to consider the required clearances to walls (see Fig­ure 5.1).

WARNING! Risk of Fire or Burns! Provide adequate

clearance around air openings and for service access. Due
to high temperatures, the appliance should be located out
of traffi c and away from furniture and draperies.

1-1/2 in. (38 mm)

min.

appliance

to combustibles

B

B

E

A

NOTICE: Illustrations refl ect typical installations and are

FOR DESIGN PURPOSES ONLY. Illustrations/diagrams
are not drawn to scale. Actual installation may vary due to
individual design preference.

A
D

Alcove

Installation

Drywall

F

Figure 5.1 Appliance Locations

Top Vent

One 90° Elbow

Horiz Term

Top Vent

One 90° Elbow

Horiz Term

A

C

Heatilator • ICON DV-IDV Series • 4042-575 • Rev. S • 5/11 17

A

Rough

Opening

(Width)

B

Rough

Opening

(Height)

C

Rough

Opening

(Depth)

D

Rough

Opening

(vent pipe)

in.

47-1/2 45-1/2 30-1/2 10

mm

1207 1156 775 254

in.

61-1/2 50 30-1/2 10

mm

1562 1270 775 254

Model #

IDV4833I

IDV6247I

B. Construct the Appliance Chase

A chase is a vertical box-like structure built to enclose the
gas appliance and/or its vent system. In cooler climates
the vent should enclosed inside the chase.

NOTICE:

fi restops and construction of the chase may vary with the
type of building. These instructions are not substitutes for the
requirements of local building codes. Therefore, you MUST
check local building codes to determine the requirements
to these steps.

Chases should be constructed in the manner of all outside
walls of the home to prevent cold air drafting problems.
The chase should not break the outside building envelope
in any manner.

Walls, ceiling, base plate and cantilever fl oor of the chase
should be insulated. Vapor and air infi ltration barriers
should be installed in the chase as per regional codes for
the rest of the home. Additionally, in regions where cold
air infi ltration may be an issue, the inside surfaces may be
sheetrocked and taped for maximum air tightness.

Treatment of ceiling fi restops and wall shield

1-1/2 in.(38 mm)

T o further prevent drafts, the wall shield and ceiling fi restops
should be caulked with caulk with a minimum of 300ºF con­tinuous exposure rating to seal gaps. Gas line holes and
other openings should be caulked with caulk with a mini­mum of 300ºF continuous exposure rating or stuffed with
unfaced insulation. If the appliance is being installed on a
cement slab, a layer of plywood may be placed underneath
to prevent conducting cold up into the room.

C. Clearances

NOTICE: Install appliance on hard metal or wood surfaces

extending full width and depth. DO NOT install directly on
carpeting, vinyl, tile or any combustible material other than
wood.

WARNING! Risk of Fire! Maintain specifi ed air space

clearances to appliance and vent pipe:

• Insulation and other materials must be secured to
prevent accidental contact.

• The chase must be properly blocked to prevent blown
insulation or other combustibles from entering and
making contact with fi replace or chimney.

• Failure to maintain airspace may cause overheating and
a fi re.

D

Combustible flooring may be installed
next to the front of the appliance.

30 in.
(762 mm)
to ceiling

36 in.

(914 mm)

1-1/2 in.

(38 mm)

0 in. TO LEVEL

OF STANDOFFS

1/2 in. (13 mm)

Drywall

0 in.

B

C

A

Adjust framing dimensions for interior sheathing (such as sheetrock)

Combustible Object

Figure 5.2 Clearances to Combustibles

O in.

Heatilator • ICON DV-IDV Series • 4042-575 • Rev. S • 5/1118

Note: Wiring for and the installation of the heat zone must be done
before framed enclosure is completed.
