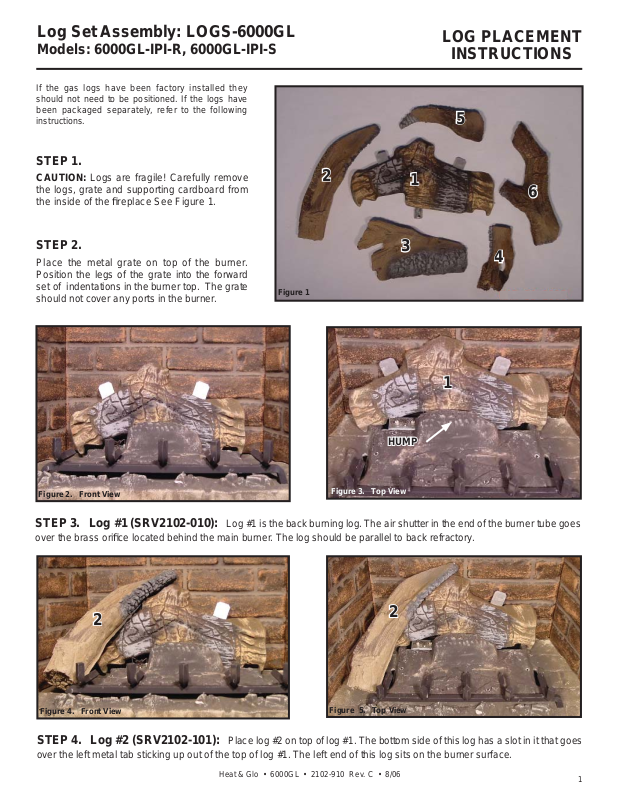

Log Set Assembly: LOGS-6000GL
HUMP
Models: 6000GL-IPI-R, 6000GL-IPI-S
If the gas logs have been factory installed they
should not need to be positioned. If the logs have
been packaged separately, refer to the following
instructions.
STEP 1.
CAUTION: Logs are fragile! Carefully remove
the logs, grate and supporting cardboard from
the inside of the fi replace See Figure 1.
2
1
LOG PLACEMENT
INSTRUCTIONS
5
6
STEP 2.
Place the metal grate on top of the burner.
Position the legs of the grate into the forward
set of indentations in the burner top. The grate
should not cover any ports in the burner.
1
Figure 2. Front View
STEP 3. Log #1 (SRV2102-010): Log #1 is the back burning log. The air shutter in the end of the burner tube goes
over the brass orifi ce located behind the main burner. The log should be parallel to back refractory.
Figure 1
Figure 3. Top View
3
HUMP
1
4
2
2
Figure 4. Front View
STEP 4. Log #2 (SRV2102-101): Place log #2 on top of log #1. The bottom side of this log has a slot in it that goes
over the left metal tab sticking up out of the top of log #1. The left end of this log sits on the burner surface.
Heat & Glo • 6000GL • 2102-910 Rev. C • 8/06
Figure 5. Top View
1
Page 2
3
5
3
3
5
4
4
3
Figure 6. Front View
STEP 5. Log #3 (SRV2102-105): Place log #3 on top of the burner surface in front of the hump. The bottom of the
log is contoured to match some of the burner surface features. Slide it back against the hump. The “V” shaped notch in the
front bottom of the log rests into the second from the left grate tine. The log should not cover any ports.
4
Figure 8. Front View
STEP 6. Log #4 (SRV2102-104): Place log #4 on top of the burner. There is a groove in the bottom of this log.
Place this groove over the second tine from the right on the grate and slide the log forward. A group of ports should be visible through the hole in the log.
Figure 7. Top View
Figure 9. Top View
4
5
5
Figure 10. Front View
STEP 7. Log #5 (SRV2102-103): Place log #5 on top of log #1 and log #3. The bottom of this log has a slot in it
that goes over the metal tab molded in the top right side of log #1. The thin end of the log rests in the fl at spot molded into
the top of log #3.
2
Heat & Glo • 6000GL • 2102-910 Rev. C • 8/06
Figure 11. Top View
Page 3
6
6
6
6
Figure 12. Front View
Figure 17. Top View
STEP 8. Log #6 (SRV2102-102): Place log #6 on top of log #5 and log #4. There is a fl at spot molded into the top
of log #4 and log #5. Place the log so the long end of the “Y” rests on log #5 and the short end of the log rests on log #4.
The end of the log rests on the burner surface.
Heat & Glo • 6000GL • 2102-910 Rev. C • 8/06
3
