REMOTE CONTROLLER

OWNER’S MANUAL

B-SMA/SMH 09/12/18SC

Single Zone Mini-Splits

B-VMH 09/12/18/24/30/36SC-1

Single Zone Inverter Mini-Splits

B-VMH09/12/18FC-1

Multi-Flex Inverter Mini-Splits

Heat Controller, Inc. • 1900 Wellworth Ave. • Jackson, MI 49203 • [phone] • www.heatcontroller.com

Owner’s Manual Remote ContRolleR Heat Controller, Inc.

Table of Contents

Using the remote controller ......................................................................................... 2

Remote controller specications.................................................................................. 3

Function buttons .......................................................................................................... 4

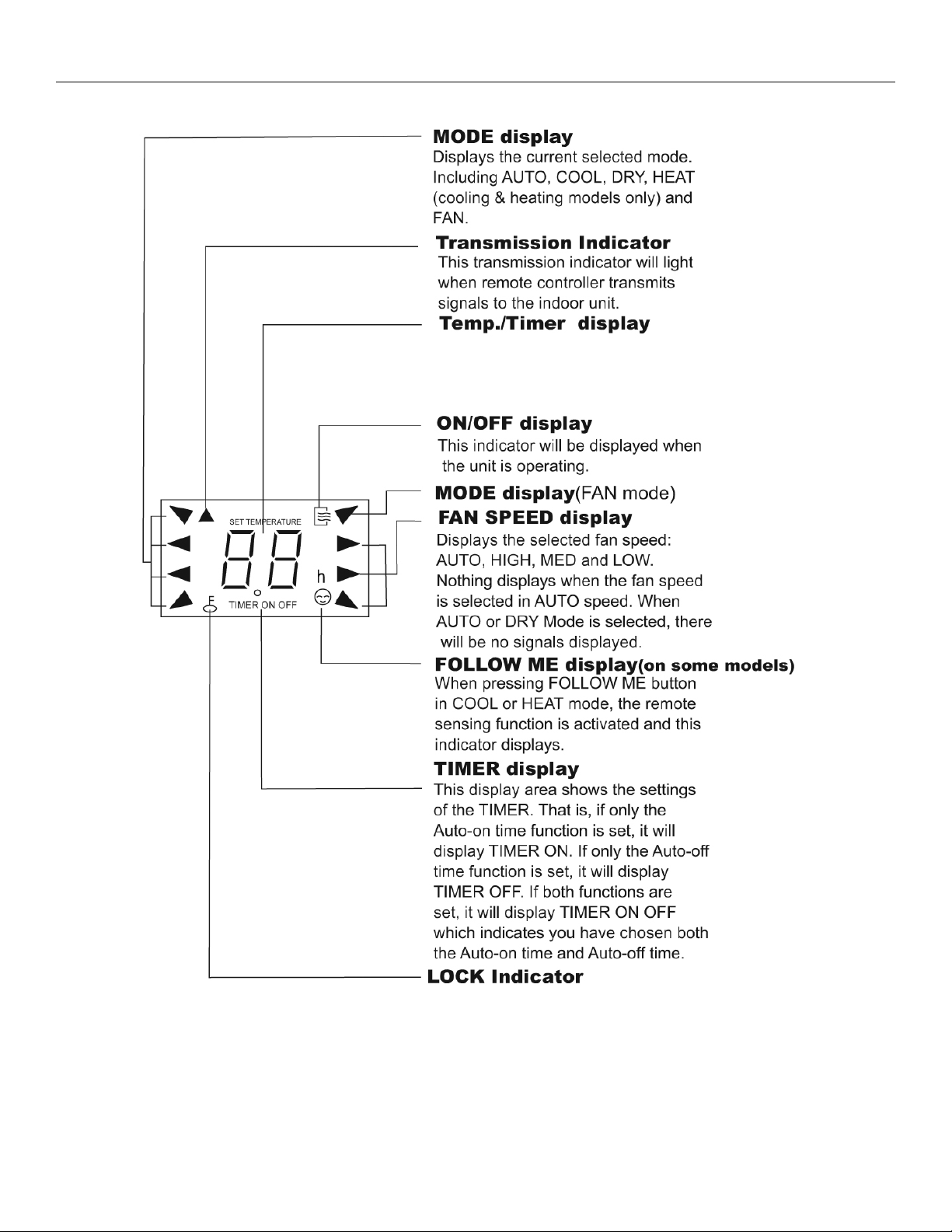

Indicators on LCD display............................................................................................ 6

How to use the buttons ................................................................................................ 7

Auto operation ............................................................................................................. 7

Cooling/Heating/Fan operation .................................................................................... 7

Dehumidifying operation .............................................................................................. 8

Swing operation ........................................................................................................... 8

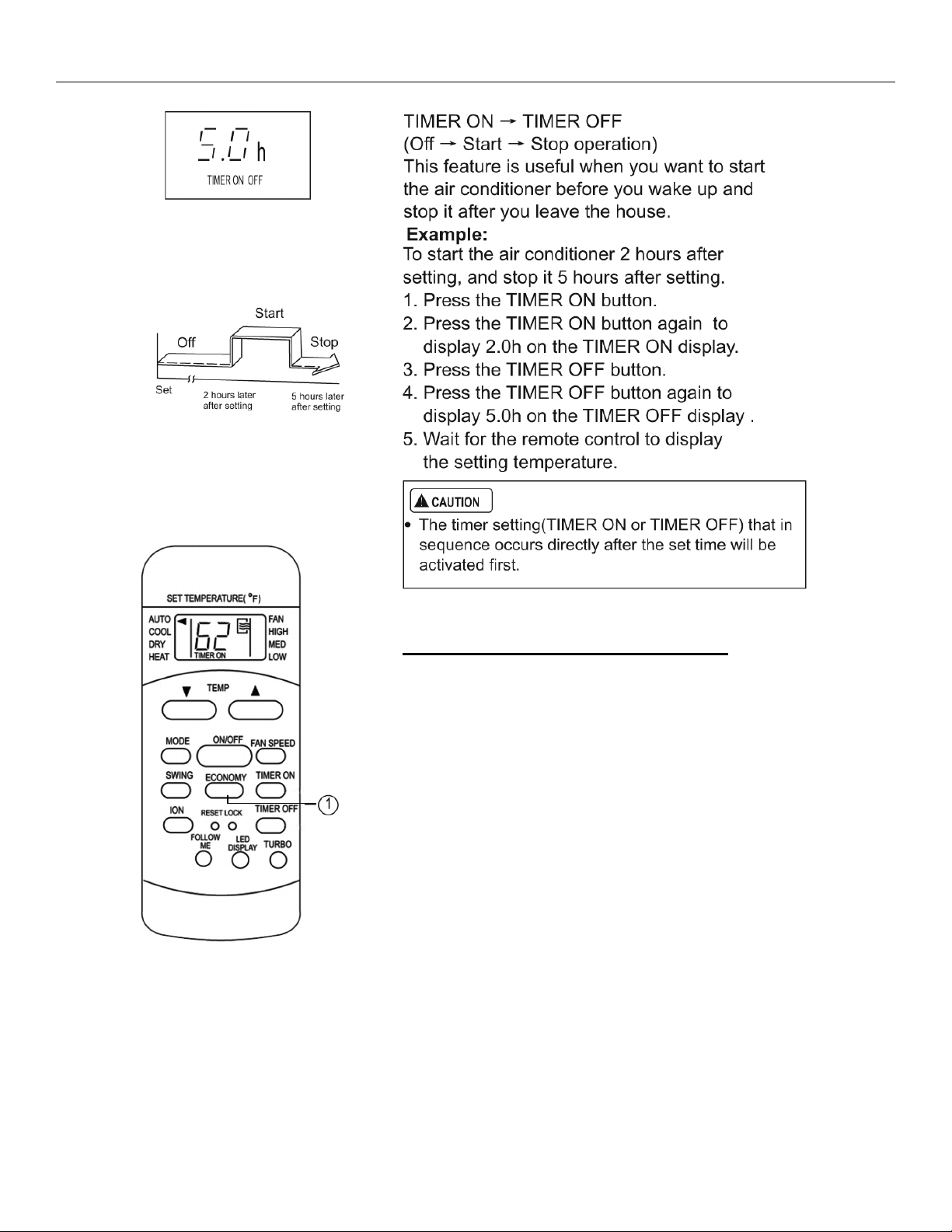

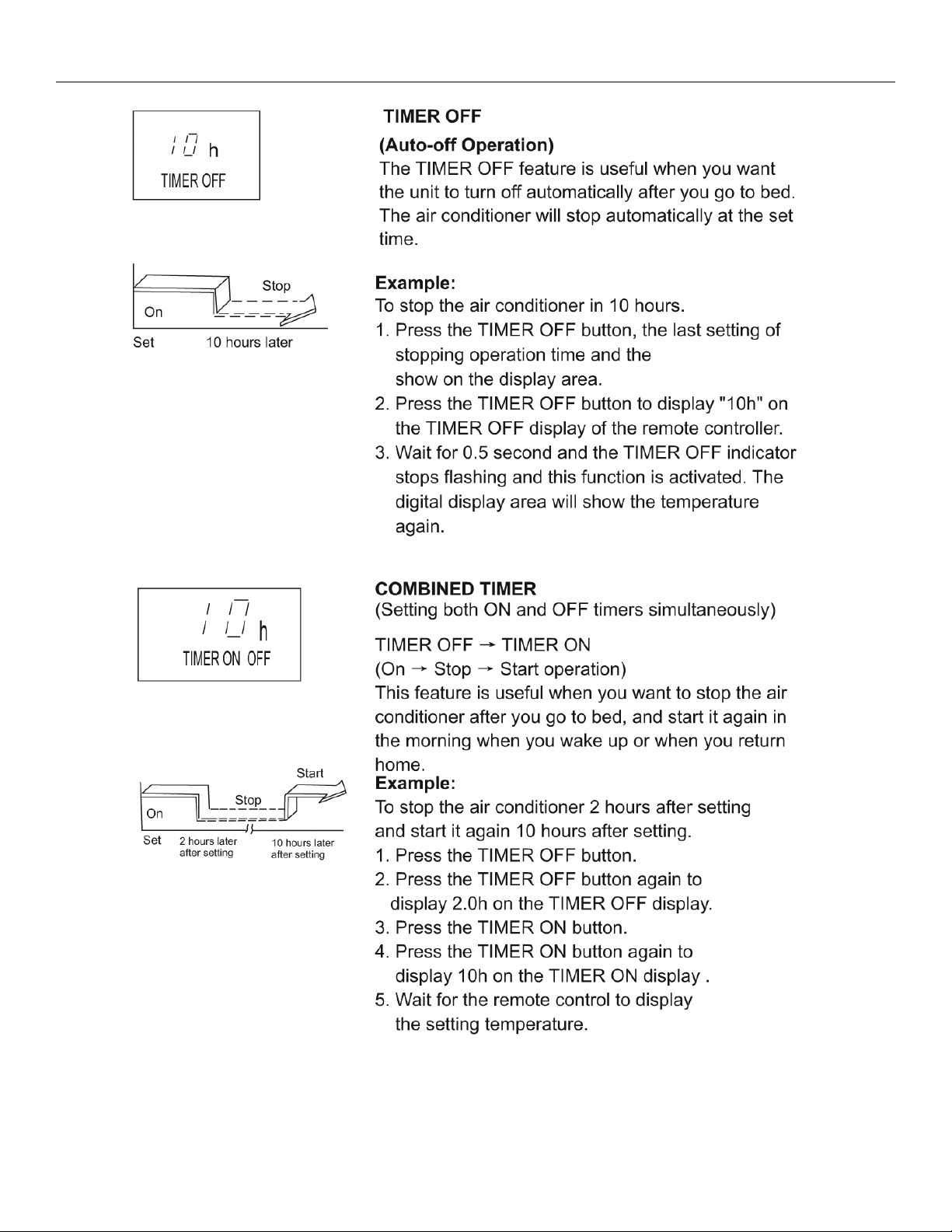

Timer operation ........................................................................................................... 9

Ecomony operation.................................................................................................... 12

1

Heat Controller, Inc. Remote ContRolleR Owner’s Manual

Using the Remote Controller

Use the remote controller within a distance of 26' 3"
(8 meters) from the appliance, pointing it towards the
receiver. Reception is conrmed by a beep.

receiver

housing

Remove the battery cover by pressing and sliding it off.

2

Owner’s Manual Remote ContRolleR Heat Controller, Inc.

an extended period of time.

Remote Controller Specications

R51l5BG(C)E, R51l6/BG(C)E,

Model*

Rated Voltage 3.0V (Dry batteries R03/LR03x2 or (2) AAA)

Lowest Voltage of CPU Emitting Signal 2.0V

Signal Receiving Range 26'3" (8m)

Environment -41°F~140°F (-5°C~60°C)

*NOTE:

Temperature setting display:

Fahrenheit scale (°F): R51l9/BG(C)E; R51l10/BG(C)E, R51l11/BG(C)E, R51l12/BG(C)E

Celsius scale (°C): R51l5BG(C)E, R51l6/BG(C)E, R51l7/BG(C)E, R51l8/BG(C)E

R51l7/BG(C)E, R51l8/BG(C)E, R51l9/BG(C)E;
R51l10/BG(C)E, R51l11/BG(C)E, R51l12/BG(C)E;

Performance Feature

Indoor setting temperature range: 62°F~88°F (17°C~30°C)

Full function of LCD Display (Liquid Crystal Display)

3

Heat Controller, Inc. Remote ContRolleR Owner’s Manual

Function Buttons

AUTO COOL DRY HEAT* FAN

*NOTE: Heat pump models only

ION and FOLLOW buttons

are optional functions.

4
