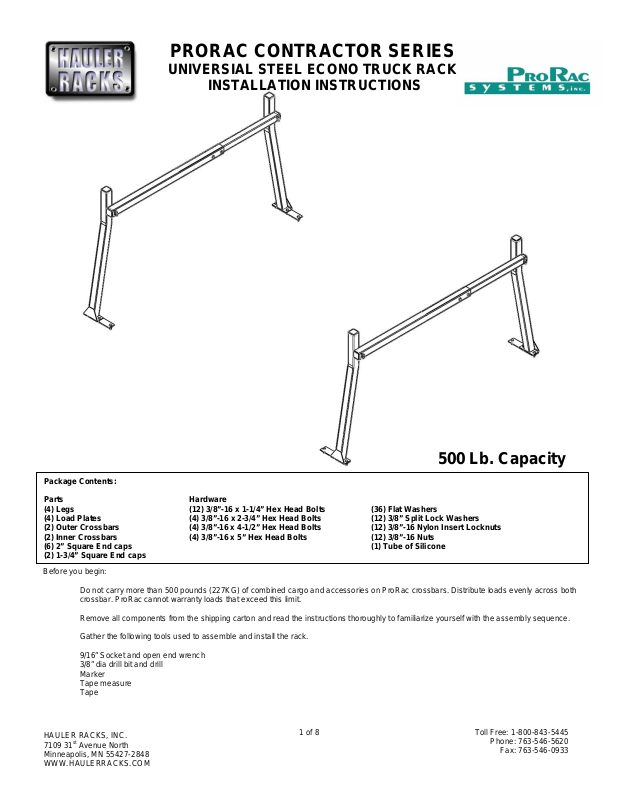

Hauler Racks STE2-1 User Manual

PRORAC CONTRACTOR SERIES

UNIVERSIAL STEEL ECONO TRUCK RACK

INSTALLATION INSTRUCTIONS

500 Lb. Capacity

Package Contents:
Parts Hardware

(4) Legs (12) 3/8”-16 x 1-1/4” Hex Head Bolts (36) Flat Washers
(4) Load Plates (4) 3/8”-16 x 2-3/4” Hex Head Bolts (12) 3/8” Split Lock Washers
(2) Outer Crossbars (4) 3/8”-16 x 4-1/2” Hex Head Bolts (12) 3/8”-16 Nylon Insert Locknuts
(2) Inner Crossbars (4) 3/8”-16 x 5” Hex Head Bolts (12) 3/8”-16 Nuts
(6) 2” Square End caps (1) Tube of Silicone
(2) 1-3/4” Square End caps

Before you begin:

HAULER RACKS, INC.
7109 31
Minneapolis, MN 55427-2848
WWW.HAULERRACKS.COM

Do not carry more than 500 pounds (227KG) of combined cargo and accessories on ProRac crossbars. Distribute loads evenly across both
crossbar. ProRac cannot warranty loads that exceed this limit.

Remove all components from the shipping carton and read the instructions thoroughly to familiarize yourself with the assembly sequence.
Gather the following tools used to assemble and install the rack.
9/16” Socket and open end wrench

3/8” dia drill bit and drill
Marker
Tape measure
Tape

st

Avenue North

1 of 8

Toll Free: 1-800-843-5445

Phone: [phone]

Fax: [phone]

Step 1 – Locate legs on truck bed

Locate on the truck bed where the front and rear legs will be positioned. The ideal positions for the legs are as far
forward for the front legs and as far rearward for the back leg.

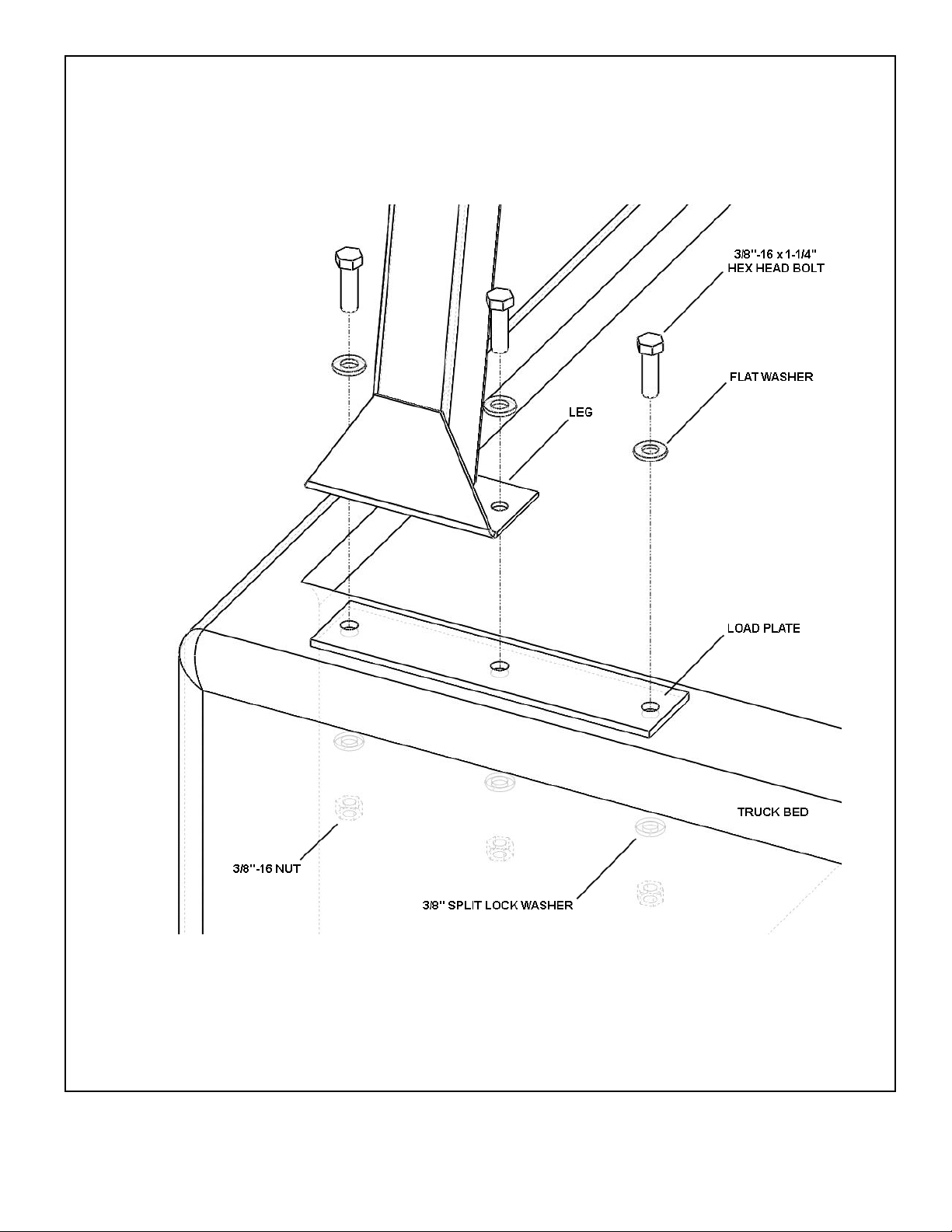

You will need to have open access underneath the top of the bed surface for mounting the legs and load plates to the
bed.

Check for obstructions in mounting the legs to the truck bed such as stake pocket holes or limited access to the
underside of the top surface of the bed.

Check for function of tailgate or interference with the cab of the truck. Adjust as needed.
The spacing between the centers of the bolt holes is 4-1/2”.
Place tape over the desired positions.
Place a leg on top of the tape and position the leg to the desired location on the top surface. For best results, use a

tape measure so each legs is positioned equally with the other side.

Using a marker, mark the outline of the leg and two mounting holes onto the tape.
Place the load plate over the two holes marked holes above and mark the third hole.
Mark the centers of all three holes.
Repeat for all legs

HAULER RACKS, INC.

st

7109 31
Minneapolis, MN 55427-2848
WWW.HAULERRACKS.COM

Avenue North

2 of 8

Toll Free: 1-800-843-5445

Phone: [phone]

Fax: [phone]

Step 2 Measure distances

Using a tape measure, measure from driver side to passenger side on the inside marked edges of the tape where the
legs where outline from step 1. See illustration below.

Front truck bed mount span = ___________________

Rear truck bed mount span = ____________________
