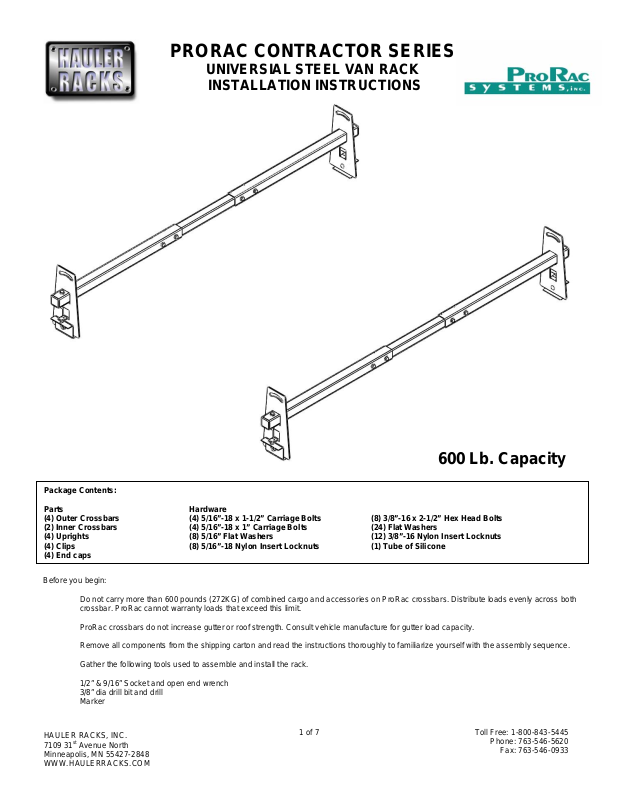

PRORAC CONTRACTOR SERIES
r
UNIVERSIAL STEEL VAN RACK
INSTALLATION INSTRUCTIONS
600 Lb. Capacity
Package Contents:
Parts Hardware
(4) Outer Crossbars (4) 5/16”-18 x 1-1/2” Carriage Bolts (8) 3/8”-16 x 2-1/2” Hex Head Bolts
(2) Inner Crossbars (4) 5/16”-18 x 1” Carriage Bolts (24) Flat Washers
(4) Uprights (8) 5/16” Flat Washers (12) 3/8”-16 Nylon Insert Locknuts
(4) Clips (8) 5/16”-18 Nylon Insert Locknuts (1) Tube of Silicone
(4) End caps
Before you begin:
HAULER RACKS, INC.
7109 31
Minneapolis, MN 55427-2848
WWW.HAULERRACKS.COM
Do not carry more than 600 pounds (272KG) of combined cargo and accessories on ProRac crossbars. Distribute loads evenly across both
crossbar. ProRac cannot warranty loads that exceed this limit.
ProRac crossbars do not increase gutter or roof strength. Consult vehicle manufacture for gutter load capacity.
Remove all components from the shipping carton and read the instructions thoroughly to familiarize yourself with the assembly sequence.
Gather the following tools used to assemble and install the rack.
1/2” & 9/16” Socket and open end wrench
3/8” dia drill bit and drill
Marke
st
Avenue North
1 of 7
Toll Free: 1-800-843-5445
Phone: 763-546-5620
Fax: 763-546-0933
Page 2
Step 1 - Assemble clips to uprights
Orientate the clip to the upright as shown below.
Place a 5/16”-18 x 1” carriage bolt through back of the upright and clip.
Loosely secure the clip with a 5/16” flat washer and 5/16”-18 nylon insert lock nut.
HAULER RACKS, INC.
st
7109 31
Minneapolis, MN 55427-2848
WWW.HAULERRACKS.COM
Avenue North
2 of 7
Toll Free: 1-800-843-5445
Phone: 763-546-5620
Fax: 763-546-0933
Page 3
Step 1 (Continued) - Assemble clips to uprights
Place the 5/16”-18 x 1-1/2” carriage bolt through the upright tab and the clip.
Loosely secure the clip with a 5/16” flat washer and 5/16”-18 nylon insert lock nut.
Repeat for remaining uprights.
Step 2 End cap assembly
Press the end cap into one end of the 1-3/4” square tube end.
Repeat for remaining 1-3/4” square tubes.
HAULER RACKS, INC.
st
7109 31
Minneapolis, MN 55427-2848
WWW.HAULERRACKS.COM
Avenue North
3 of 7
Toll Free: 1-800-843-5445
Phone: 763-546-5620
Fax: 763-546-0933
Page 4

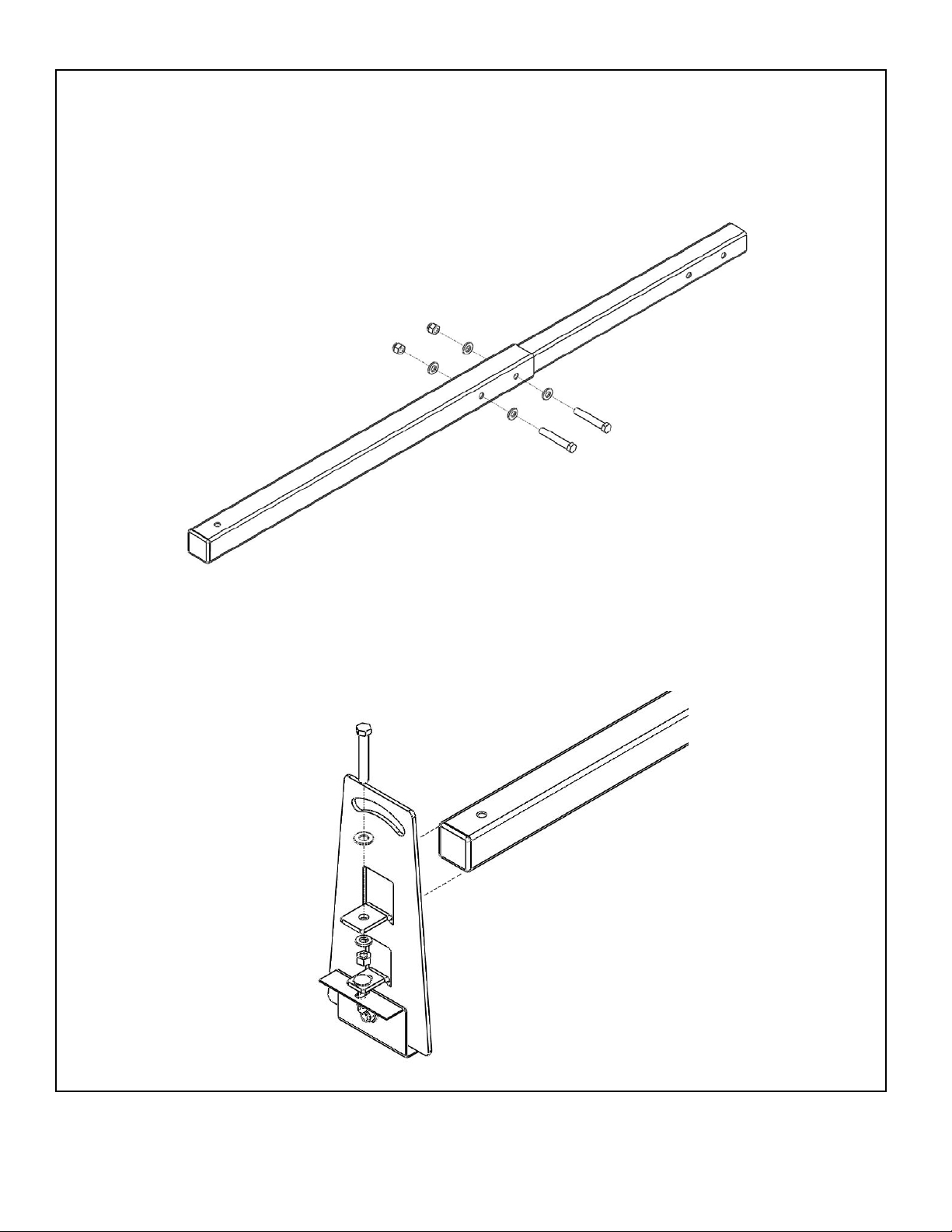

Step 3 Crossbar subassembly
Slide in the 1-1/2” square tube into 1-3/4” square tube and align the two bolt holes.
Apply a small bead of silicone around the bolt holes to seal out water.
Bolt the two bars together using (2) 3/8”-16 x 2-1/2” hex head bolt, (4) flat washers and (2) 3/8”-16 nylon insert lock
nut.
Repeat for other crossbar.
Step 4 Mount tubes to upright
Slide the 1-3/4” square tube into the upright opening as shown and align the holes.
Secure using 3/8”-16 x 2-1/2” hex head bolt, flat washer, 3/8” split lock washer and 3/8”-16 nut.
Repeat for remaining 1-3/4” square tubes.
HAULER RACKS, INC.
st
7109 31
Minneapolis, MN 55427-2848
WWW.HAULERRACKS.COM
Avenue North
4 of 7
Toll Free: 1-800-843-5445
Phone: 763-546-5620
Fax: 763-546-0933
Page 5

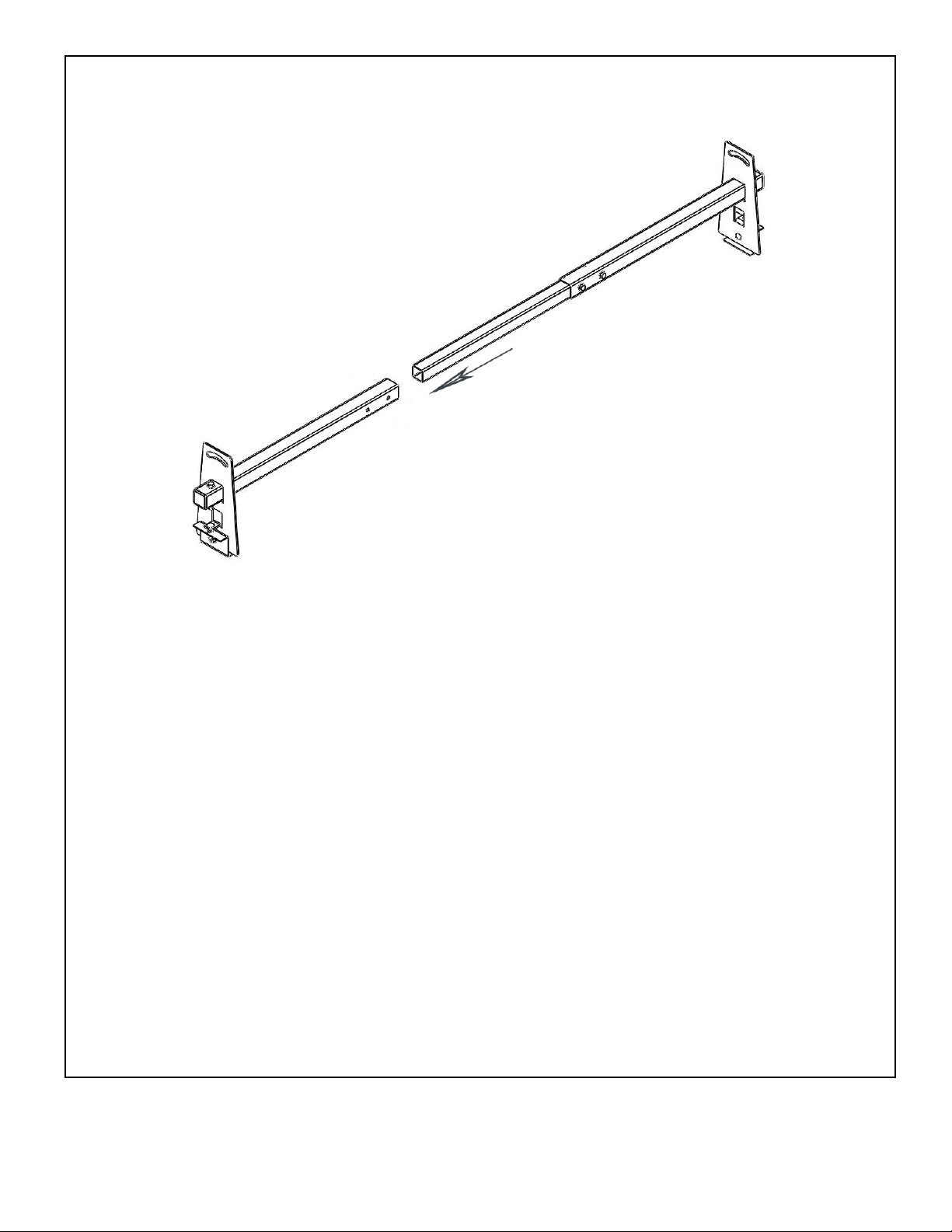

Step 5 Crossbar assembly
Slide the crossbar subassembly with the 1-1/2” square tube into the crossbar assembly with the 1-3/4” square tube as
shown.
Repeat for other crossbar.
Step 6
Place the crossbars on desired location on van and adjust width to fit gutter.
Tighten clip hardware on both sides.
Using the 1-3/4” tube bolt holes as guides; mark the holes onto both sides of the 1-1/2” tubes.
Loosen clips and remove the crossbars from van.
Step 7
Slide out 1-1/2” tube from the 1-3/4” tube.
Mark the center of the holes on the 1-1/2” tube from step 6.
Using a 3/8” drill bit, drill each holes from the outside in.
Repeat for other crossbar.
HAULER RACKS, INC.
st
7109 31
Minneapolis, MN 55427-2848
WWW.HAULERRACKS.COM
Avenue North
5 of 7
Toll Free: 1-800-843-5445
Phone: 763-546-5620
Fax: 763-546-0933
Page 6

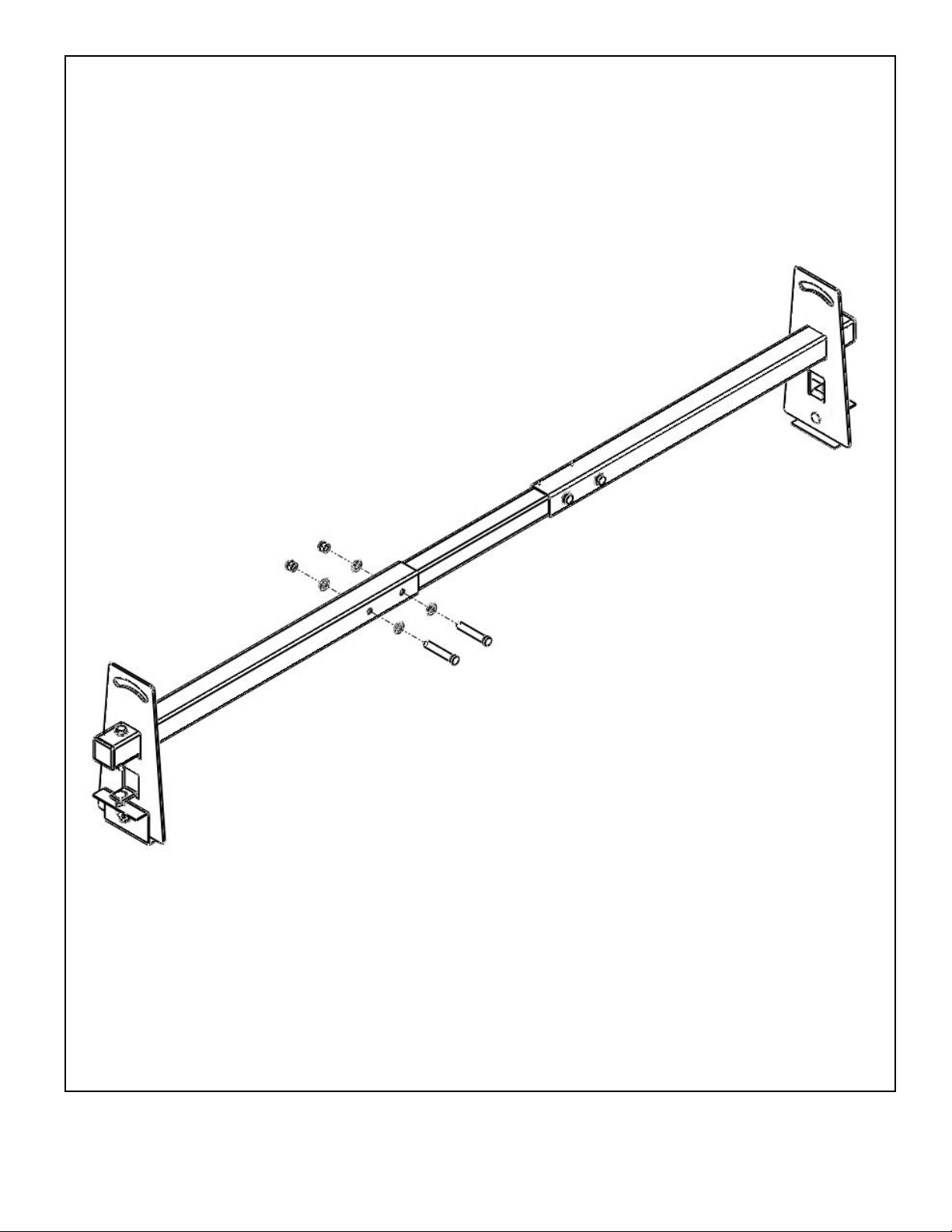

Step 8
Reinsert 1-1/2” tube into 1-3/4” tube assembly and align holes of the 1-3/4” tube with drilled holes on the 1-1/2” tube.
Apply a small bead of silicone around the bolt holes to seal out water.
Bolt the two tubes together using (2) 3/8”-16 x 2-1/2” hex head bolts, (4) flat washers and (2) 3/8”-16 nylon insert lock
nuts.
Repeat for other crossbar.
Step 9
Seal the gap between the 1-3/4” and 1-1/2” crossbars with silicone. This seals the tubes preventing water from
entering and reduces wind noise.
Step 10
Place back on the van roof to the desired location and tighten clip hardware.
Step 11
Repeat for other crossbar.
HAULER RACKS, INC.
st
7109 31
Minneapolis, MN 55427-2848
WWW.HAULERRACKS.COM
Avenue North
6 of 7
Toll Free: 1-800-843-5445
Phone: 763-546-5620
Fax: 763-546-0933
Page 7
Hauler Racks, Inc. offers to preferred customers a special limited warranty. It is our goal to provide effective service for
Customer Limited Warranty and Standard Return Policy
any warranty or standard return. This statement of warranty and return policy is divided into two sections: Warranty
Returns of Defective Product and Standard Returns of Unused Product.
Warranty Returns of Defective Product
Hauler Racks, Inc. will repair or replace, at its option and without charge, any properly installed Hauler component that
fails due to defect in material or workmanship up to 30 days from the initial registered consumer purchase. All of our
aluminum product line is guaranteed not to rust or corrode for 1 year. Proof of Purchase must be provided for warranty
to be honored.
Loads should never exceed 1/3 of your vehicle’s manufacturer’s total load capacity. Loads should never extend more
than 1 foot on either end of rack. This warranty is void if any damage to the product is due to misuse, abuse, neglect,
accident, improper installation, or any uses contrary to the instructions accompanying the product. The warranty is also
void if racks are altered in any manner. The racks have been load tested for the racks capacity to hold loads when not
on a vehicle. Hauler Racks, Inc. does not warranty load capacities. As the factory has no way of knowing if the product
was properly assembled, installed, used according to instructions, or if loads were secured properly.
This warranty covers the cost of the defective component and not the cost of removal, installation or other incidental
charges unless other arrangements have been made with Hauler Racks.
This warranty gives you specific legal rights and you may have other rights which vary from state to state.
All warranty claims must receive a Return Authorization number from Hauler Racks, Inc. BEFORE the product is
returned to the Company. Please follow this procedure:
1. Call Hauler at 800-843-5445 to request a Return Authorization number. You will need to provide the following
information
• Specific nature of the defect • Product installation date
• Product part number • Original sales invoice number
2. When a replacement or repair strategy is determined, a Return Authorization number will be assigned to the claim.
3. A replacement invoice and shipping document will be generated at Hauler Racks to initiate any replacement product.
Replacement product will be sent according to standard shipping cycles.
4. The purchaser is responsible for packing and return shipping of the product. The RETURN AUTHORIZ ATION
NUMBER MUST BE CLEARLY MARKED ON THE OUTSIDE OF THE PACKAGE. Unmarked packages will be
refused. Any product damage that occurs during the shipping is not covered under warranty. The purchaser must
pursue claims for shipping damage with the shipping center.
5. The purchaser is responsible for payment of both the original product invoice and the replacement invoice according
to established credit terms.
6. Upon receipt of the returned product, Hauler Racks will review the claim for warranty conformance. If the claim meets
warranty criteria, a credit for the original invoice amount will be posted to the purchaser’s account and a credit memo
will be mailed. If the claim does not meet warranty criteria, the purchaser will receive a statement detailing reasons
for partial credit or denial. At the purchaser’s option, denied product may be returned to the purchaser.
Standard Returns of Unused Product
Unused product may be eligible for return to Hauler Racks, Inc. Follow the procedure described in the section on
Warranty Returns to receive an Authorization Number.
Returned product which is less than 6 (six) months old is subject to a 20% restocking fee.
Returned product which is more than 6 (six) months old may not be eligible for return or may incur additional restocking
charges.
© 2009 Hauler Racks, Inc. Revised 5-20-2009
