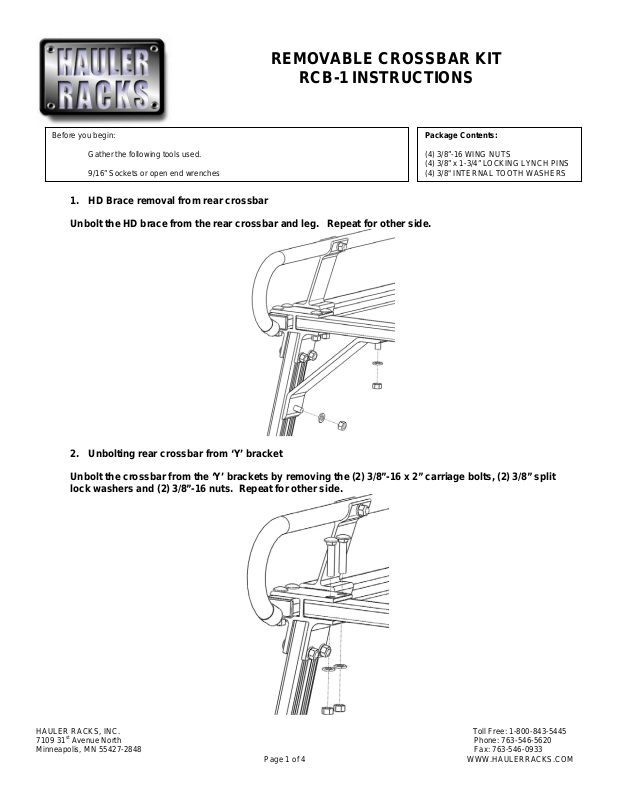

Hauler Racks RCB-1 User Manual

REMOVABLE CROSSBAR KIT

RCB-1 INSTRUCTIONS

Before you begin:

1. HD Brace removal from rear crossbar
Unbolt the HD brace from the rear crossbar and leg. Repeat for other side.

Gather the following tools used.
9/16” Sockets or open end wrenches

Package Contents:

(4) 3/8”-16 WING NUTS
(4) 3/8” x 1-3/4” LOCKING LYNCH PINS
(4) 3/8" INTERNAL TOOTH WASHERS

2. Unbolting rear crossbar from ‘Y’ bracket
Unbolt the crossbar from the ‘Y’ brackets by removing the (2) 3/8”-16 x 2” carriage bolts, (2) 3/8 ” sp lit

lock washers and (2) 3/8”-16 nuts. Repeat for other side.

HAULER RACKS, INC. Toll Free: 1-800-843-5445

st

7109 31
Minneapolis, MN 55427-2848 Fax: [phone]

Avenue North Phone: [phone]

Page 1 of 4 WWW.HAULERRACKS.COM

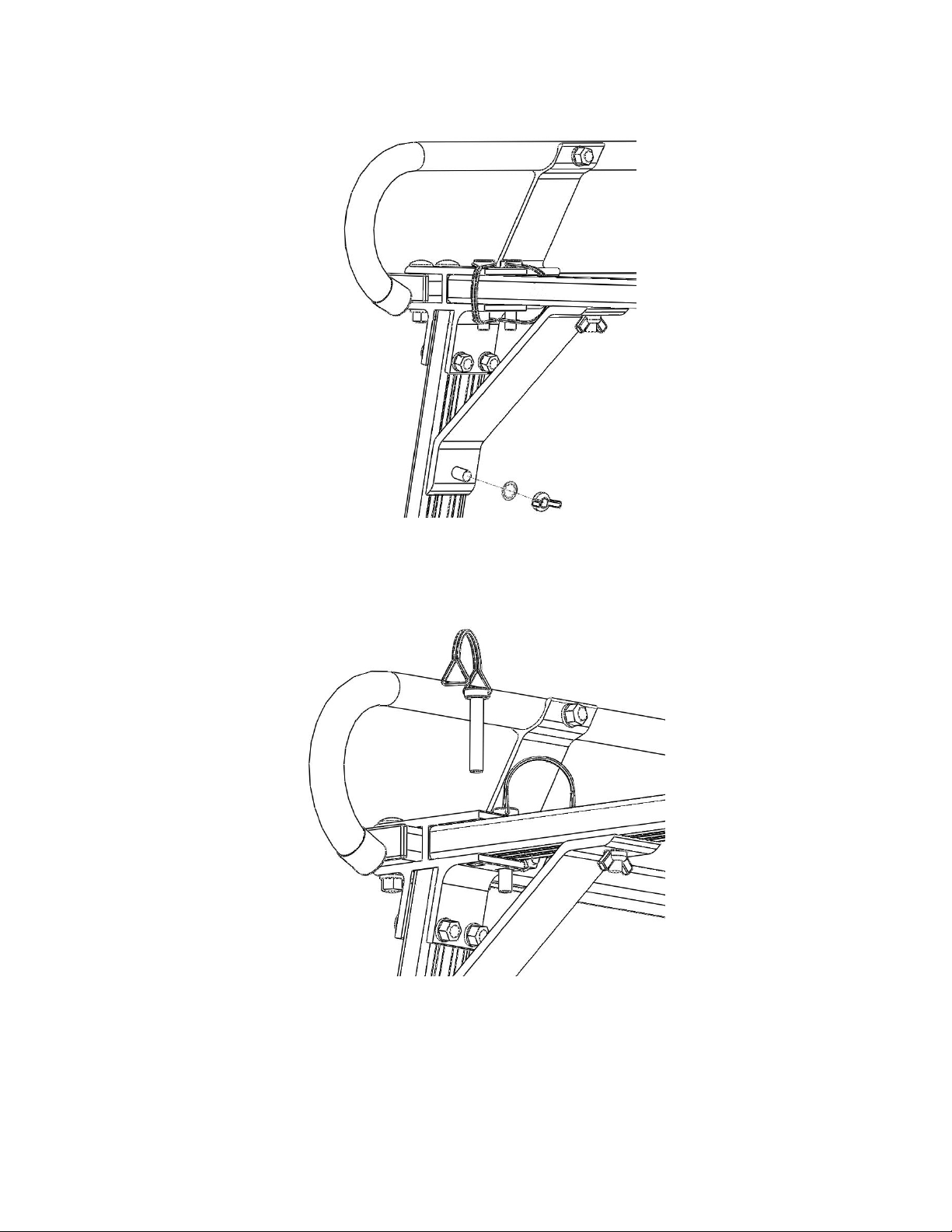

3. Pinning crossbar
Open the clasps on the locking lynch pins and insert the rod end through the ‘Y’ bracket. Repeat for

other side.

4. Reinstalling HD braces.
Align the HD brace on the leg and loosely secure with 3/8” internal tooth washer and 3/8”-16 wing nut.

Slide the HD brace up to the crossbar and align the bolt in the center channel.
Secure with 3/8” internal tooth washer and 3/8”-16 wing nut. Repeat for other side. Tighten all

hardware.

HAULER RACKS, INC. Toll Free: 1-800-843-5445

st

7109 31
Minneapolis, MN 55427-2848 Fax: [phone]

Avenue North Phone: [phone]

Page 2 of 4 WWW.HAULERRACKS.COM
