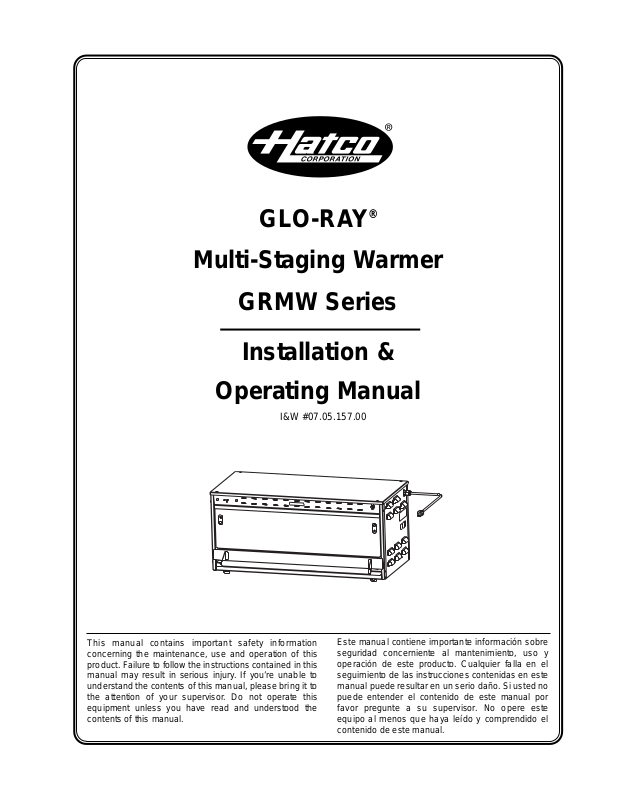

Hatco GRMWM-0505-1 User Manual

GLO-RAY
®
Multi-Staging Warmer
GRMW Series
Installation &
Operating Manual
I&W #07.05.157.00
This manual contains important safety information concerning the maintenance, use and operation of this product. Failure to follow the instructions contained in this manual may result in serious injury. If you’re unable to understand the contents of this manual, please bring it to the attention of your supervisor. Do not operate this equipment unless you have read and understood the contents of this manual.
Este manual contiene importante información sobre seguridad concerniente al mantenimiento, uso y operación de este producto. Cualquier falla en el seguimiento de las instrucciones contenidas en este manual puede resultar en un serio daño. Si usted no puede entender el contenido de este manual por favor pregunte a su supervisor. No opere este equipo al menos que haya leído y comprendido el contenido de este manual.
Form No. GRMWM-0505
i
CONTENTS
INTRODUCTION
The Hatco Glo-Ray®GRMW Series Warmers are perfect for holding prepared foods at kitchen work areas. These warmers hold hot prepared food products and keep them at optimum serving temperatures without affecting quality. Prefocused infrared heat from above and a thermostatically controlled heated base extends the holding times of the food product. The upper infrared heating element is guaranteed against burnout and breakage for two years and the base blanket heating element for one year.
This manual provides the installation, safety and operating instructions for the Glo-Ray Multi­Staging Warmer. We recommend all installation, operating and safety instructions appearing in this manual be read prior to installation or operation of
your Hatco Multi-Staging Warmer. Safety instructions that appear in this manual after a warning symbol and the words WARNING or
CAUTION printed in bold face are very important.
WARNING means there is the possibility of
serious injury or death to yourself or others.
CAUTION means there is the possibility of minor or moderate injury. CAUTION without the symbol signifies the possibility of equipment or property damage only.
Hatco Glo-Ray Multi-Staging Warmers are a product of extensive research and field testing. The materials used were selected for maximum durability, attractive appearance and optimum performance. Every unit is thoroughly inspected and tested prior to shipment.
Important Owner Information........................................i
Introduction ....................................................................i
Important Safety Information.......................................1
Specifications................................................................2
Electrical Rating Chart.............................................2
Plug Configuration...................................................2
Dimensions..............................................................2
Model Descriptions.......................................................3
All Models................................................................3
GRMW-.5.................................................................3
GRMW-3..................................................................3
GRMW-4..................................................................3
Installation .....................................................................4
Unpacking................................................................4
Location...................................................................4
Operation .......................................................................5
Thermostat Adjustment Procedure..........................5
Drawer Operation....................................................5
Maintenance ..................................................................6
General....................................................................6
Cleaning ..................................................................6
Drawer Removal Procedure....................................6
Drawer Slide Removal Procedure...........................6
Hatco Limited Warranty................................................7
Authorized Parts Distributors.....................Back Cover
IMPORTANT OWNER INFORMATION
Business 8:00 a.m. to 5:00 p.m. Hours: Central Standard Time
(Summer Hours: June to September – 8:00 a.m. to 5:00 p.m. C.D.T. Monday through Thursday
8:00 a.m. to 2:30 p.m. C.D.T. Friday) Telephone: (800) 558-0607; (414) 671-6350 Fax: (800) 690-2966 (Parts & Service)
(414) 671-3976 (International)
Additional information can be found by visiting our web site at www.hatcocorp.com
24-Hour 7-Day Parts & Service Assistance available in the United States and Canada by calling (800) 558-0607.
Record the model number, serial number (identification decal located on the lower right hand side, front corner of the unit), voltage and purchase date of your Glo-Ray
®
Multi-Staging Warmer in the spaces below. Please have this information available when calling Hatco for service assistance.
Model No. ________________________________ Serial No. ________________________________ Voltage __________________________________ Date of Purchase __________________________
Form No. GRMWM-0505
1
IMPORTANT SAFETY INFORMATION
IMPORTANT! Read the following important safety instructions to avoid personal injury or death, and to avoid damage to the equipment or property.
WARNINGS
Genuine Hatco Replacement Parts are specified to operate safely in the environments in which they are used. Some aftermarket or generic replacement parts do not have the characteristics that will allow them to operate safely in Hatco equipment. It is essential to use Hatco Replacement Parts when repairing Hatco equipment. Failure to use Hatco Replacement Parts may subject operators of the equipment to hazardous electrical voltage, resulting in electrical shock or burn.
CAUTIONS
To avoid any injury or damage locate the unit at the proper counter height, in an area that is convenient for use. The location should be level to prevent the unit or its contents from accidentally falling, and strong enough to support the weight of the unit and food.
Unit is not weatherproof. For safe and proper operation the unit must be located indoors where the ambient air temperature is a minimum of 70°F (21°C) and a maximum of 85°F (29°C).
CAUTIONS
Use only non-abrasive cleaners. Abrasive cleaners could scratch the finish of your unit marring its appearance and making it susceptible to soil accumulation.
WARNINGS
Plug unit into a properly grounded electrical outlet of the correct voltage, size and plug configuration. If the plug and receptacle do not match, contact a qualified electrician to determine the proper voltage and size and install the proper electrical outlet.
To avoid any injury, turn the power switch OFF, unplug the unit from the power source and allow to cool completely before performing any maintenance or cleaning.
For safe and proper operation, the unit must be located a reasonable distance from combustible walls and materials. If safe distances are not maintained, discoloration or combustion could occur.
To avoid electrical shock or personal injury, do not steam clean or use excessive water on the unit.
Some exterior surfaces on the unit will get hot. Use caution when touching these areas to avoid injury.
Unit is not waterproof. DO NOT submerge in water. Do not operate if it has been submerged in water.
To avoid any injury or damage to the unit do not pull unit by power cord.
To prevent any injury, discontinue use if power cord is frayed or worn.
To avoid any injury or damage to the unit, thermostat adjustments must only be performed by authorized personnel.
If service is required on this unit, contact your Authorized Hatco Service Agent, or contact the Hatco Service Department at 800-558-0607 or 414-671-6350; fax 800-690-2966 or International fax 414-671-3976.
This product has no “user” serviceable parts. To avoid damage to the unit or injury to personnel, use only Authorized Hatco Service Agents and Genuine Hatco Parts when service is required.
Model Voltage Watts Amps Plug Configuration Shipping Weight
GRMW-.5 120 450 3.7 NEMA 5-15P 43 lbs. (20 kg) GRMW-3 120 710 5.9 NEMA 5-15P 50 lbs. (23 kg) GRMW-4 120 900 7.5 NEMA 5-15P 55 lbs. (25 kg)
Form No. GRMWM-0505
2
SPECIFICATIONS
ELECTRICAL RATING CHART
PLUG CONFIGURATION
Units are supplied from the factory with an electrical cord and plug installed. Plugs are supplied according to the applications. (See Figure 1.)
WARNING Plug unit into a properly grounded electrical outlet of the correct voltage, size and plug configuration. If the plug and receptacle do not match, contact a qualified electrician to determine the proper voltage and size and install the proper electrical outlet.
NEMA 5-15P
Figure 1. Plug Configuration
Width Depth Height
Model (A) (B) (C)
GRMW-.5 15-7/8" 17-7/8" 15-1/8"
(403 mm) (454 mm) (384 mm)
GRMW-3 26-5/8" 17-7/8" 15-1/8"
(676 mm) (454 mm) (384 mm)
GRMW-4 34-1/2" 17-7/8" 15-1/8"
(876 mm) (454 mm) (384 mm)
DIMENSIONS
Figure 2. Dimensions
A
C
B
NOTE: Shipping weight includes packaging.
