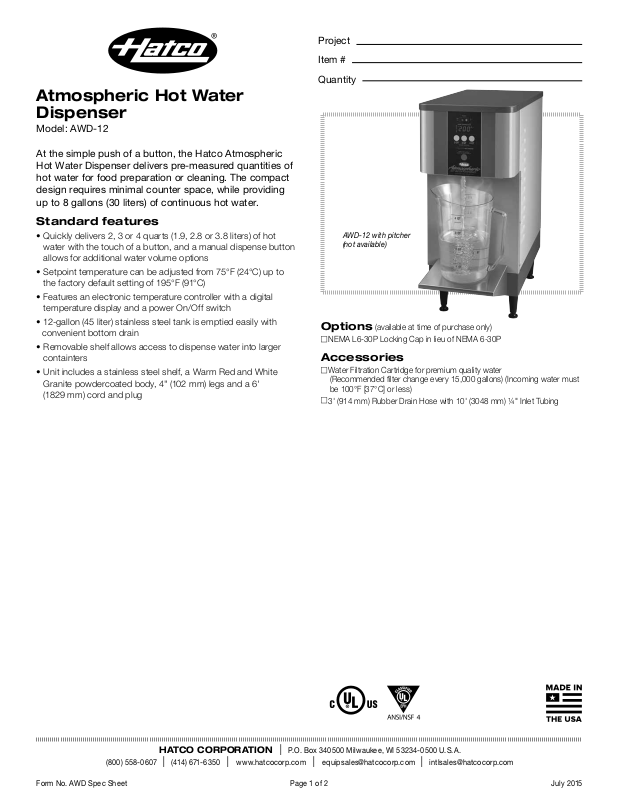

Hatco AWD-12 User Manual

Atmospheric Hot Water
Dispenser

Model: AWD-12

At the simple push of a button, the Hatco Atmospheric
Hot Water Dispenser delivers pre-measured quantities of
hot water for food preparation or cleaning. The compact
design requires minimal counter space, while providing
up to 8 gallons (30 liters) of continuous hot water.

Standard features

• Quickly delivers 2, 3 or 4 quarts (1.9, 2.8 or 3.8 liters) of hot
water with the touch of a button, and a manual dispense button
allows for additional water volume options

• Setpoint temperature can be adjusted from 75°F (24°C) up to
the factory default setting of 195°F (91°C)

• Features an electronic temperature controller with a digital
temperature display and a power On/Off switch

• 12-gallon (45 liter) stainless steel tank is emptied easily with

convenient bottom drain

• Removable shelf allows access to dispense water into larger
containters

• Unit includes a stainless steel shelf, a Warm Red and White
Granite powdercoated body, 4" (102 mm) legs and a 6'
(1829 mm) cord and plug

Project

Item #

Quantity

AWD-12 with pitcher
(not available)

Options

c

NEMA L6-30P Locking Cap in lieu of NEMA 6-30P

(available at time of purchase only)

Accessories

c

Water Filtration Cartridge for premium quality water

(Recommended filter change every 15,000 gallons) (Incoming water must
be 100°F [37°C] or less)

c

3' (914 mm) Rubber Drain Hose with 10' (3048 mm) ¼" Inlet Tubing

HATCO CORPORATION

[phone]

Form No. AWD Spec Sheet Page 1 of 2 July 2015

(414) 671- 6 3 50

l

l

www.hatcocorp.com

l

P.O. Box 340500 Milwaukee, WI 53234-0500 U.S.A.

l

[e-mail]

[e-mail]

l

Atmospheric Hot Water Dispenser

Model: AWD-12

Water Inlet

1

(

⁄4" Male Flare
Connection)

SPECIFICATIONS
Atmospheric Hot Water Dispenser

Model

AWD-12

•

Height includes 4" (102 mm) legs.

* Shipping weight includes packaging.

Dimensions

(Width x Depth x Height•)

13.36" x 27.47" x 28.06"
(339 x 698 x 713 mm)

Voltage Hertz Phase kW Amps Plug Cord Location Ship Weight*

208

240 20.8

27.47" (698 mm)

23.5" (597 mm)

Manual
Drain Lever

Outlet for Manual Drain

3

(Standard

⁄4" Hose Connection)

SIDE VIEW

50/60 Single 5.0

3.98"
(101 mm)

8"

(203 mm)

11.78"

(299 mm)

8.13"

(207 mm)

24.0

1.47"

(38 mm)

NEMA 6-30P

13.36" (339 mm)

11.89"

(302 mm)

FRONT VIEW

24.06"

(611 mm)

28.06"

(713 mm)

4"

(102 mm)

Lower left corner on
left side

78 lbs. (36 kg)

WATER QUALITY REQUIREMENTS

Incoming water in excess of 3.0 grains of hardness per gallon (GPG) (.75 grains of
hardness per liter) must be treated and softened before being supplied to hot water
dispenser(s). Water containing over 3.0 GPG (.75 GPL) will decrease efciency and
reduce the operating life of the unit.

Note: Product failure caused by liming or sediment buildup is not covered under

warranty.

PLUG CONFIGURATIONS

NEMA 6-30P

NEMA L6-30P

PRODUCT SPECS
Atmospheric Hot Water Dispenser

The Atmospheric Hot Water Dispenser to supply water ranging from 75°F (24°C) to
195°F (91°C) shall be a Hatco model ... as manufactured for commercial use by the
Hatco Corporation, Milwaukee, WI 53234 U.S.A.

The Water Dispenser shall have the capacity to heat 12 gph (45 lph) from 35°F (2°C)
to 195°F (91°C) and it shall be rated at ... volts, ... watts.

The dispenser shall be complete with a stainless steel tank and all internal plumbing,
including a ¼" male are connection on the inlet and a ¾" hose connection on the
drain. All controls shall be built-in, including contactor.

WATER TEMPERATURE RECOVERY

Dispensing Temperature of 195°F (91°C):

12 gph (45 lph) with 35°F (2°C) incoming water
33 gph (125 lph) with 140°F (60°C) incoming water

gph = (kW x 400)/(°F Temperature Rise)
lph = (kW x 841)/(°C Temperature Rise)

The heater shall be equipped with an electronic controller, an on-off switch, a digital
temperature display and preset dispensing push-buttons including manual dispense.
Electric heating elements shall be metal sheathed, controlled by a submersed
thermistor. The Water Dispenser shall be protected with high-temperature limit and
low-water cut-off. The unit may be emptied easily by a convenient bottom drain.

The dispenser shall consist of a stainless steel tank, front cover, front control housing
and a painted Warm Red and White Granite body with standard 4" (102 mm) legs and
6' (1829 mm) cord and plug.

Warranty consists of 24/7 parts and service assistance (US and Canada only).

[phone]

HATCO CORPORATION

(414) 671- 6 3 50

l

l

www.hatcocorp.com

l

P.O. Box 340500 Milwaukee, WI 53234-0500 U.S.A.

l

[e-mail]

[e-mail]

l

Form No. AWD Spec Sheet Page 2 of 2 July 2015
