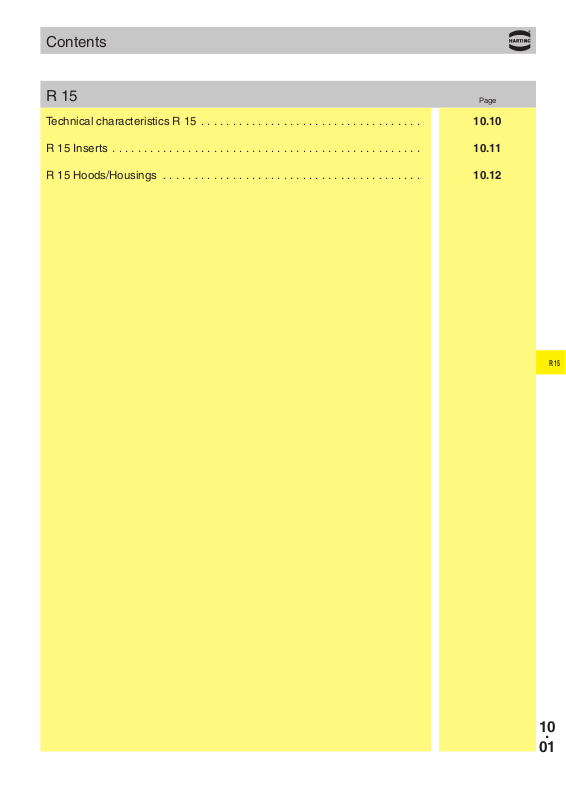

Contents

R 15

Technical characteristics R 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.10

R 15 Inserts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.11

R 15 Hoods/Housings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.12

Page

R 15

10

.

01

R 15 Technical characteristics

R 15

Specifications DIN VDE 0627

DIN VDE 0110
DIN EN 61 984

Approvals ,

Inserts

Number of contacts 7 + PE

Electrical data
acc. to DIN EN 61984 10 A  250 V  4 kV  3

Working current
Working voltage
Rated impulse voltage
Pollution degree

Working voltage
acc. to UL/CSA 600 V

Insulation resistance
Material Polyamide
Limiting temperatures - 40
Flammability acc. to UL 94 HB
Mechanical working life

- Mating cycles

≥ 1010 Ω

O

C / +125 OC

≥ 500

Current carrying capacity

The current carrying capacity is limited by maximum temperatu­re of materials for inserts and contacts including terminals. The
current capacity-curve is valid for continuous, not interrupted
current-loaded contacts of connectors when simultaneous power
on all contacts is given, without exceeding the maximum tempe­rature.

Control and test procedures according to DIN IEC 60 5 12 - 5 .

Working current

Contacts

Material copper alloy
Surface

- hard-silver plated 3 µm Ag

- hard-gold plated 2 µm Au over 3 µm Ni
Contact resistance
Crimp terminal

2

0.14 - 2.5 mm²

- mm

- AWG 26 - 14

≤ 3 mΩ

Hoods/Housings

Material metal hoods/housings
thermoplastic resin
Hoods/Housings seal NBR
Limiting temperatures - 40
Degree of protection acc. to DIN
40 050 for coupled connector IP 65

O

C / +125 OC

Ambient temperature

10

.

10

Accessories

Crimping tools chapter 99
Cable clamps chapter 40
Label acc. to CSA-approval chapter 40

R 15

Housing

screw mounting

Hood

Cable seal

Male contact Male insert (M) Female insert (F) Female contact

Number of contacts

250 V 10 A

7

Inserts

Part No.

Identification Series Male insert (M) Female insert (F) Drawing Dimensions in mm

Crimp terminal R 15

Inserts for thermo­plastic hoods/housings

Order crimp contacts separately

09 15 007 3001  09 15 007 3101

Crimp terminal R 15

Inserts for metal
hoods/housings

Order crimp contacts separately

09 15 007 3021  09 15 007 3121

Contact arrangement

View from termination side

Male insert (M)

Female insert (F)

Mounting example

Wire gauge Part No.

Identification (mm

Crimp contacts

  0.5 09 15 000 6103  09 15 000 6203 

silver plated

1.0 09 15 000 6102  09 15 000 6202

  1.5 09 15 000 6101  09 15 000 6201 

2.5 09 15 000 6106  09 15 000 6206

0.5 09 15 000 6123  09 15 000 6223

0.75 09 15 000 6125  09 15 000 6225
gold plated

1.5 09 15 000 6121  09 15 000 6221

2.5 09 15 000 6126  09 15 000 6226

0.75 09 15 000 6105  09 15 000 6205

1.0 09 15 000 6122  09 15 000 6222

2

) Male contacts Female contacts Drawing Dimensions in mm

0.14-0.37

09 15 000 6104  09 15 000 6204 

0.14-0.37

09 15 000 6124  09 15 000 6224 

Stripping
Wire gauge
length

0.14-0.37 mm

0.5 mm

0.75 mm
1

1.5 mm

2.5 mm

2

AWG 26-22 0.90 mm 8 mm

2

AWG 20 1.10 mm 8 mm

2

AWG 18 1.30 mm 8 mm

. mm2 AWG 18 1.45 mm 8 mm

2

AWG 16 1.75 mm 8 mm

2

AWG 14 2.25 mm 6 mm

ø

R 15

FOC contacts

for 1 mm
plastic

    20 10 001 3211  20 10 001 3221

fibre

Stock items in bold type

10

.

11

Hoods/Housings R 15

Part No.

Identification thermoplastic metal Drawing Dimensions in mm

Hoods

09 15 000 0401 Pg 11

19 15 000 0401 M 16

Hoods

09 15 000 0421 Pg 11

M Pg
a 16 11

Housings bulkhead mounting

09 15 000 0301 –

R 15

Housings screw mounting

09 15 000 0101 –

09 15 000 0121 –

Housings angled

09 15 000 0102 –

09 15 000 0122 –

Housings

Cover screw mounting

09 15 000 5401 –

Mounting example

10

.

12

R15 insert fixing screw

(for replacement)

Plastic Metal
09 15 000 9905  09 15 000 9921

Stock items in bold type
