HARTING Han-Kit User Manual

Han-Kit® Complete Connector Sets

Industrial Connectors for Applications
up to 500 V / 16 A

Han® Data Sheet 0031-2

People | Power | Partnership

HARTING Electric

Han-Kit®

Page 2

Cable Gland

Hood

Male contacts

Male insert

Female insert

Female contacts

Bulkhead mounted housing

Economical and Reliable Connections - 1 Kit per Package - Easy Choice for You!

Specications

VDE 0110 Table for clearance and

creepage distances

DIN EN 61 984
VDE 0627 Connectors
Safety requirements and

Tests

Standards

DIN EN 175 301-801

Approvals

UL, CSA, SEV for inserts

Certied accd. to EN ISO 9001

in design/ development, production,

installation and service.

General Remarks:

It is the user‘s responsibility to check
whether the componenets belonging
to these kits comply with different
regulations from those stated in spe­cial elds of application which we are
unable to foresee.

We reserve the right to modify designs
in order to improve quality and keep
pace with technological requirements
in production.

No part of this information leaet must
be reproduced in any form (print, pho­tocopy, microlm or any other process)
processed, duplicated or distributed by
means of electronc systems without
the written permission of HARTING
ELectric GmbH & Co. KG, Espelkamp
(Copyright Law, Fair Trading Law, Civil
Code).

We are bound by the German version
only.

Note
Connectors should not be cou-

pled or decoupled under electri­cal load.

Connectors of the same or
different series being mounted
side by side may be protected
against incorrect mating by the
use of coding options.

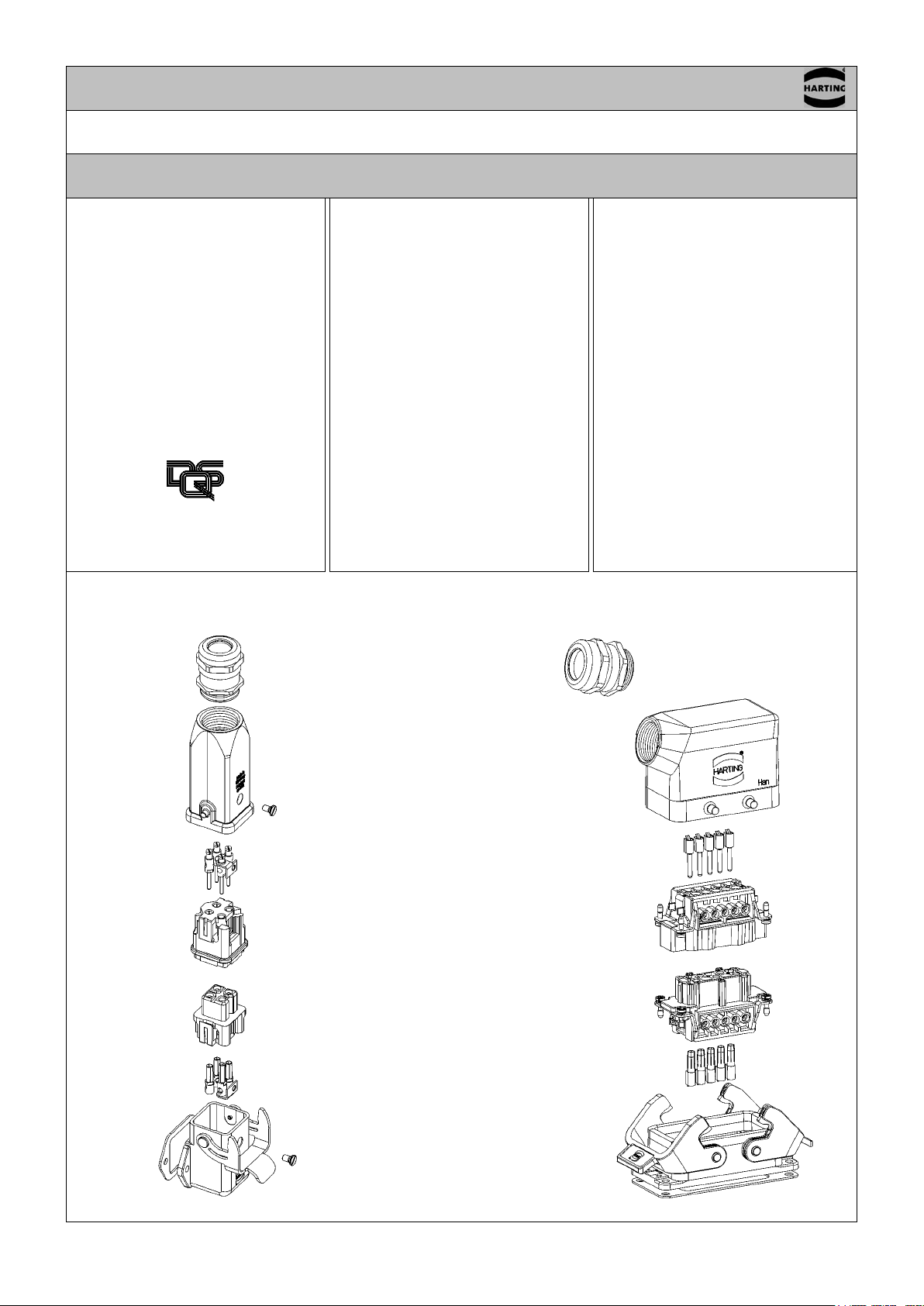

Connector Set Up

Han® 3 A Han® 10 B

Han-Kit®

Page 3

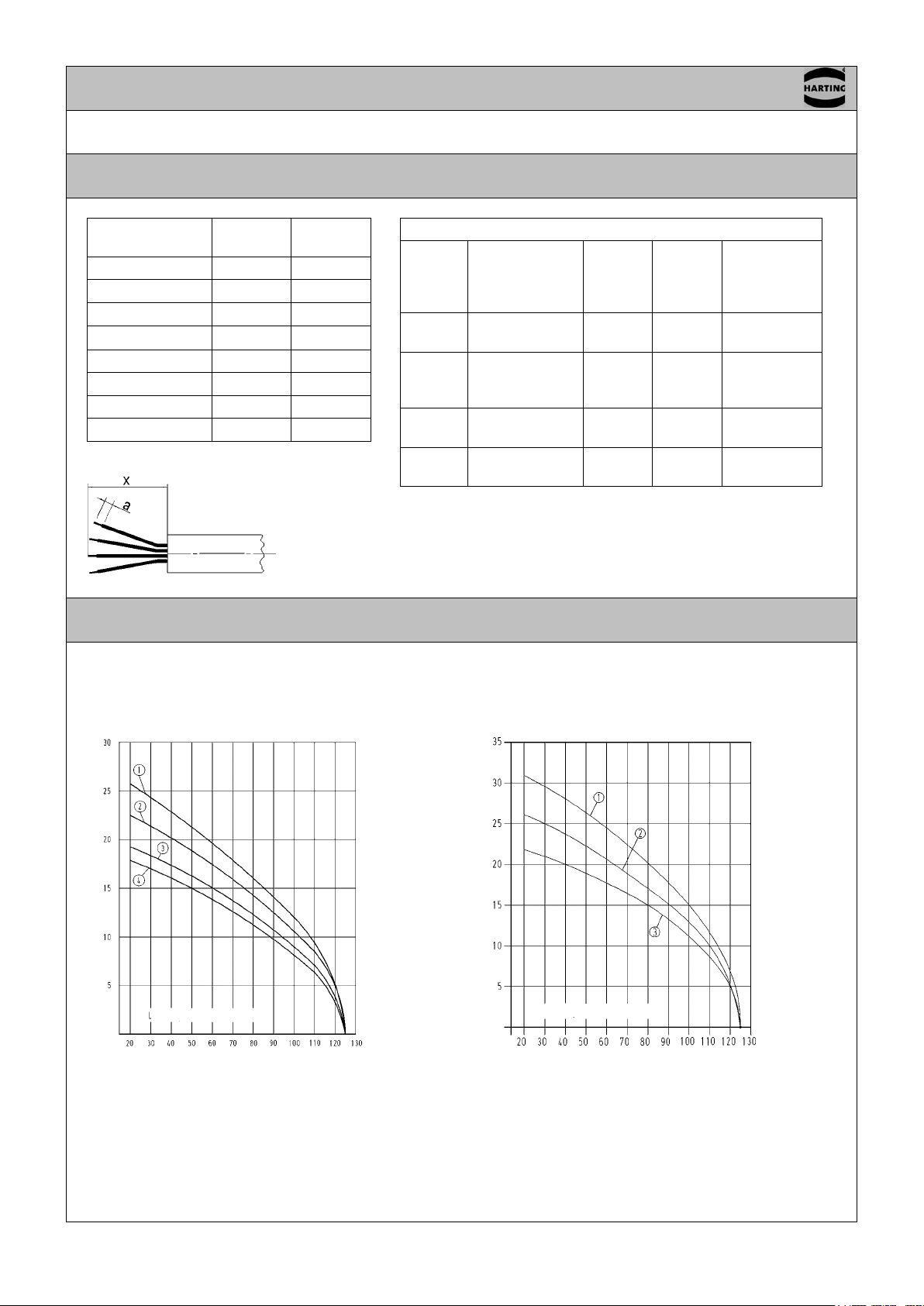

Screw Terminal

Inserts Stripping

length

Sheath

length

a (mm) x (mm)

Han 3A ... + 4A... 4.5 40

Han 10 A 7 85

Han 16 A 7 100

Han 6 E 7 70

Han 10 E 7 90

Han 16 E 7 110

Han 24 E 7 130

Recommended Tightening Torques and Screw Driver Blades

Size of
screw

Type of

connector

Tigh­tening
torque

[Nm]

Tigh­tening
torque

[lbft]

Recomm.

screw driver

blade [mm]

M3 Screw terminal

Han 3A.../4A...

0.25 0.4 0.5 x 2.5

M3 Screw terminal

Han 10A + 16A

Han 6B - 24 B

0.5 0.4 0.5 x 3.5

M3.5 PE contact

Han 10A + 16A

1.2 0.9 0.5 x 3.5

M4 PE contact

Han 6B - 24 B

1.2 0.9 0.5 x 3.5

Derating Diagrammes

The current carrying capacitiy is limited by the thermal properties of materials which are used for inserts as well as by the
insulation materials. The rated current is the continuous, not interrupted current a connector can take when simultaneous
power on all contacts is given, without exceeding the maximum temperature according to DIN IEC 60 512-3.

1 = Han 3 A / 4 A
2 = Han 10 A
3 = Han 16 A

1 = Han 6 E
2 = Han 10 E
3 = Han 16 E
4 = Han 24 E

Operating current [A]

Ambient temperature [°C] Ambient temperature [°C]

Operating current [A]

Wire gauge 2.5 mm²

Wire gauge 2.5 mm²

Han-Kit®

Page 4

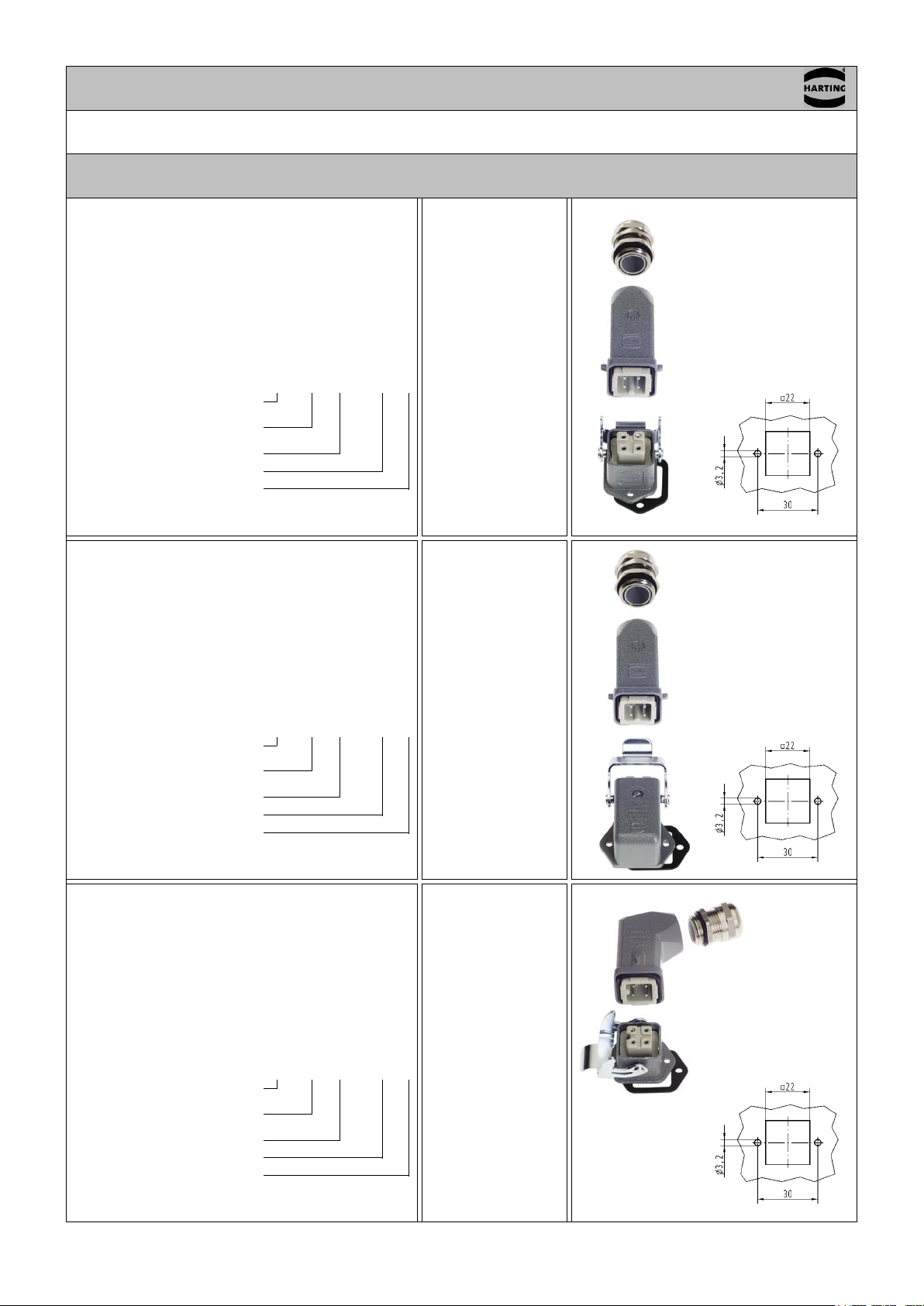

Han® 3 A Metal Version

Part-Number

Dimensions in mm

10 20 003 0001

10 20 003 0003

Assembly cut out

bulkhead mounted

housing

22 x 22 mm

Han-Kit®-3AGM

Hood Han® 3 A straight
Bulkhead mounted hous.1) Han® 3 A straight
Material Die cast zinc alloy
Protection degree2) IP 67
Cable gland M20, metal
Cable diameter 5 - 9 mm / 6 - 12 mm

Insert Han® 3 A, 3-pins + PE
Screw terminal 1-2.5 mm², AWG 18-14

Electrical data accd. to DIN EN 61 984

3)

10 A 230/400 V 4kV 3
Rated current
Rated voltage
conductor-ground
Rated voltage
conductor-conductor
Rated impulse voltage
Pollution degree

Rated voltage
accd. to UL/CSA 600 V

Han-Kit®-3AWM

Hood Han® 3 A straight
Bulkhead mounted hous.1) Han® 3 A angled
Material Die cast zinc alloy
Protection degree2) IP 67
Cable gland M20, metal
Cable diameter 5 - 9 mm / 6 - 12 mm

Insert Han® 3 A, 3-pins + PE
Screw terminal 1-2.5 mm², AWG 18-14

Electrical data accd. to DIN EN 61 984

3)

10 A 230/400 V 4kV 3
Rated current
Rated voltage
conductor-ground
Rated voltage
conductor-conductor
Rated impulse voltage
Pollution degree

Rated voltage
accd. to UL/CSA 600 V

10 20 003 0005

Han-Kit®-3AWSM

Hood Han® 3 A angled
Bulkhead mounted hous.1) Han® 3 A straight
Material Die cast zinc alloy
Protection degree2) IP 67
Cable gland M20, metal
Cable diameter 5 - 9 mm / 6 - 12 mm

Insert Han® 3 A, 3-pins + PE
Screw terminal 1-2.5 mm², AWG 18-14

Electrical data accd. to DIN EN 61 984

3)

10 A 230/400 V 4kV 3
Rated current
Rated voltage
conductor-ground
Rated voltage
conductor-conductor
Rated impulse voltage
Pollution degree

Rated voltage
accd. to UL/CSA 600 V

Assembly cut out

bulkhead mounted

housing

22 x 22 mm

1) Bulkhead mounted housing
with ange gasket

2) Protection degree acc. to DIN
EN 60 529 in locked position

3) For only use in grounded
circuits

Assembly cut out

bulkhead mounted

housing

22 x 22 mm

Han-Kit®

Page 5

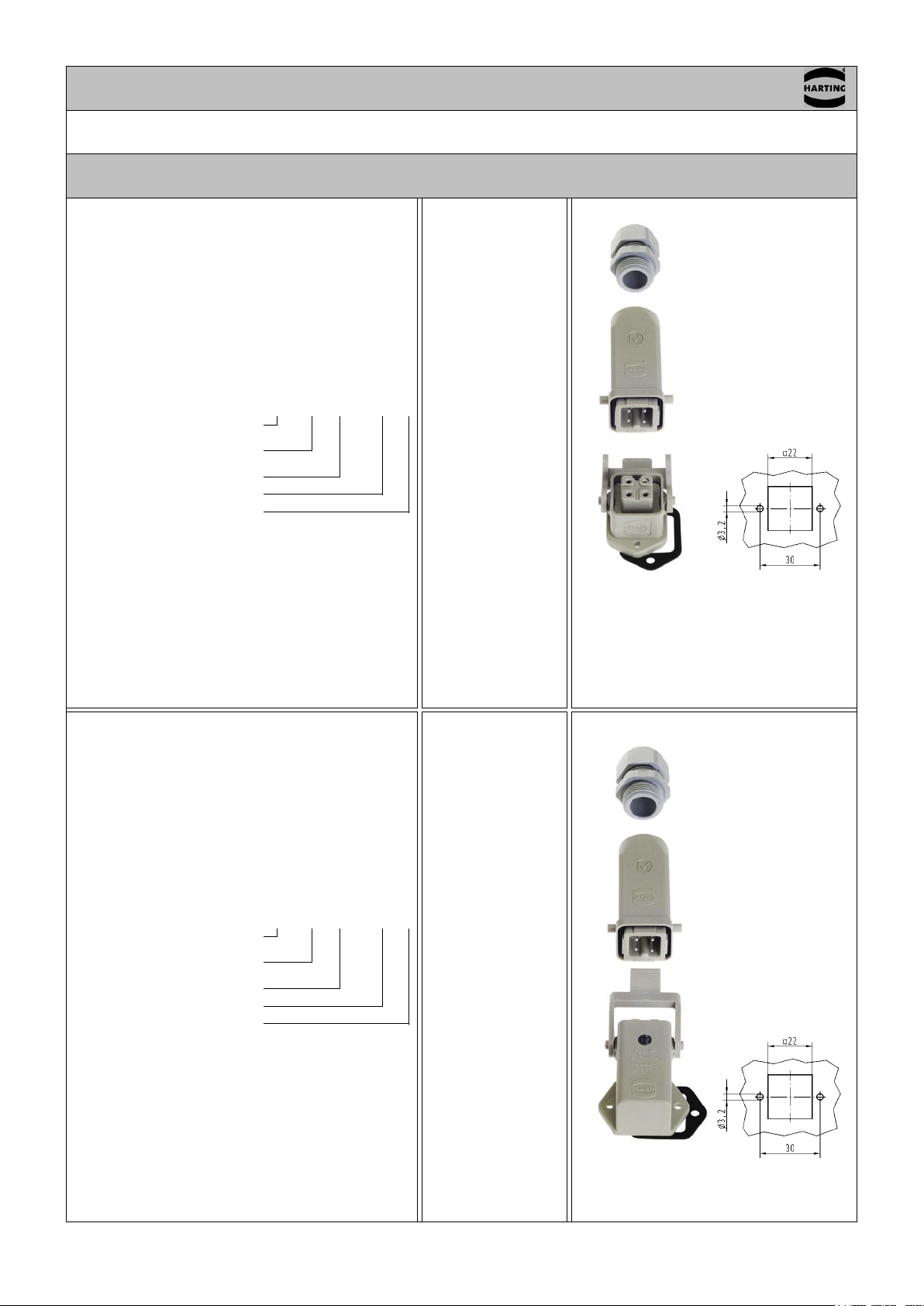

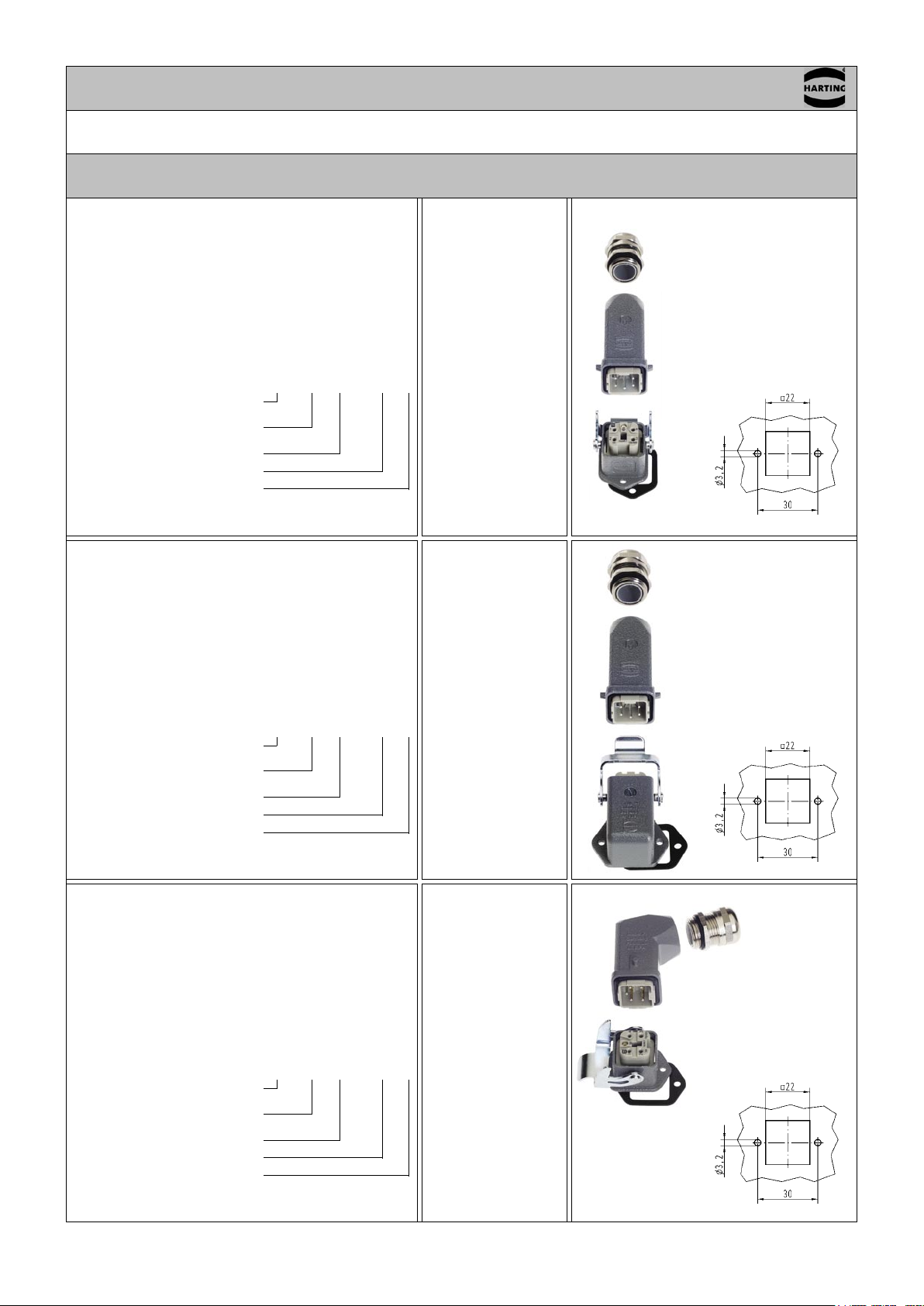

Han® 3 A Plastic Version

Part-Number

10 20 003 0002

10 20 003 0004

Dimensions in mm

Han-Kit®-3AGK

Hood Han® 3 A straight
Bulkhead mounted hous.1) Han® 3 A straight
Material Plastic
Protection degree2) IP 67
Cable gland M20, plastic
Cable diameter 5 - 9 mm / 6 - 12 mm

Insert Han® 3 A, 3-pins + PE
Screw terminal 1-2.5 mm², AWG 18-14

Electrical data accd. to DIN EN 61 984

3)

10 A 230/400 V 4kV 3
Rated current
Rated voltage
conductor-ground
Rated voltage
conductor-conductor
Rated impulse voltage
Pollution degree

Rated voltage
accd. to UL/CSA 600 V

Han-Kit®-3AWK

Hood Han® 3 A straight
Bulkhead mounted hous.1) Han® 3 A angled
Material Plastic
Protection degree2) IP 67
Cable gland M20, plastic
Cable diameter 5 - 9 mm / 6 - 12 mm

Insert Han® 3 A, 3-pins + PE
Screw terminal 1-2.5 mm², AWG 18-14

Electrical data accd. to DIN EN 61 984

3)

10 A 230/400 V 4kV 3
Rated current
Rated voltage
conductor-ground
Rated voltage
conductor-conductor
Rated impulse voltage
Pollution degree

Rated voltage
accd. to UL/CSA 600 V

Assembly cut out

bulkhead mounted

housing

22 x 22 mm

Assembly cut out

bulkhead mounted

housing

22 x 22 mm

1) Bulkhead mounted housing
with ange gasket

2) Protection degree acc. to DIN
EN 60 529 in locked position

3) For only use in grounded
circuits

Han-Kit®

Page 6

Han® 4 A Metal Version

Part-Number

10 20 004 0001

10 20 004 0003

Dimensions in mm

Han-Kit®-4AGM

Hood Han® 3 A straight
Bulkhead mounted hous.1) Han® 3 A straight
Material Die cast zinc alloy
Protection degree2) IP 67
Cable gland M20, metal
Cable diameter 5 - 9 mm / 6 - 12 mm

Insert Han® 4 A, 4-pins + PE
Screw terminal 1-2.5 mm², AWG 18-14

Electrical data accd. to DIN EN 61 984

3)

10 A 230/400 V 4kV 3
Rated current
Rated voltage
conductor-ground
Rated voltage
conductor-conductor
Rated impulse voltage
Pollution degree

Rated voltage
accd. to UL/CSA 600 V

Han-Kit®-4AWM

Hood Han® 3 A straight
Bulkhead mounted hous.1) Han® 3 A angled
Material Die cast zinc alloy
Protection degree2) IP 67
Cable gland M20, metal
Cable diameter 5 - 9 mm / 6 - 12 mm

Insert Han® 4 A, 4-pins + PE
Screw terminal 1-2.5 mm², AWG 18-14

Electrical data accd. to DIN EN 61 984

3)

10 A 230/400 V 4kV 3
Rated current
Rated voltage
conductor-ground
Rated voltage
conductor-conductor
Rated impulse voltage
Pollution degree

Rated voltage
accd. to UL/CSA 600 V

Han-Kit®-4AWSM

Hood Han® 3 A angled
Bulkhead mounted hous.1) Han® 3 A straight
Material Die cast zinc alloy
Protection degree2) IP 67
Cable gland M20, metal
Cable diameter 5 - 9 mm / 6 - 12 mm

Insert Han® 4 A, 4-pins + PE
Screw terminal 1-2.5 mm², AWG 18-14

Electrical data accd. to DIN EN 61 984

3)

10 A 230/400 V 4kV 3
Rated current
Rated voltage
conductor-ground
Rated voltage
conductor-conductor
Rated impulse voltage
Pollution degree

Rated voltage
accd. to UL/CSA 600 V

10 20 004 0005

Assembly cut out

bulkhead mounted

housing

22 x 22 mm

Assembly cut out

bulkhead mounted

housing

22 x 22 mm

1) Bulkhead mounted housing
with ange gasket

2) Protection degree acc. to DIN
EN 60 529 in locked position

3) For only use in grounded
circuits

Assembly cut out

bulkhead mounted

housing

22 x 22 mm

Han-Kit®

Page 7

Han® 4 A Plastic Version

Part-Number Dimensions in mm

10 20 004 0002

10 20 004 0004

Han-Kit®-4AGK

Hood Han® 3 A straight
Bulkhead mounted hous.1) Han® 3 A straight
Material Plastic
Protection degree2) IP 67
Cable gland M20, plastic
Cable diameter 5 - 9 mm / 6 - 12 mm

Insert Han® 4 A, 4-pins + PE
Screw terminal 1-2.5 mm², AWG 18-14

Electrical data accd. to DIN EN 61 984

3)

10 A 230/400 V 4kV 3
Rated current
Rated voltage
conductor-ground
Rated voltage
conductor-conductor
Rated impulse voltage
Pollution degree

Rated voltage
accd. to UL/CSA 600 V

Han-Kit®-4AWK

Hood Han® 3 A straight
Bulkhead mounted hous.1) Han® 3 A angled
Material Plastic
Protection degree2) IP 67
Cable gland M20, plastic
Cable diameter 5 - 9 mm / 6 - 12 mm

Insert Han® 4 A, 4-pins + PE
Screw terminal 1-2.5 mm², AWG 18-14

Electrical data accd. to DIN EN 61 984

3)

10 A 230/400 V 4kV 3
Rated current
Rated voltage
conductor-ground
Rated voltage
conductor-conductor
Rated impulse voltage
Pollution degree

Rated voltage
accd. to UL/CSA 600 V

Assembly cut out

bulkhead mounted

housing

22 x 22 mm

Assembly cut out

bulkhead mounted

housing

22 x 22 mm

1) Bulkhead mounted housing
with ange gasket

2) Protection degree acc. to DIN
EN 60 529 in locked position

3) For only use in grounded
circuits

Han-Kit®

Page 8

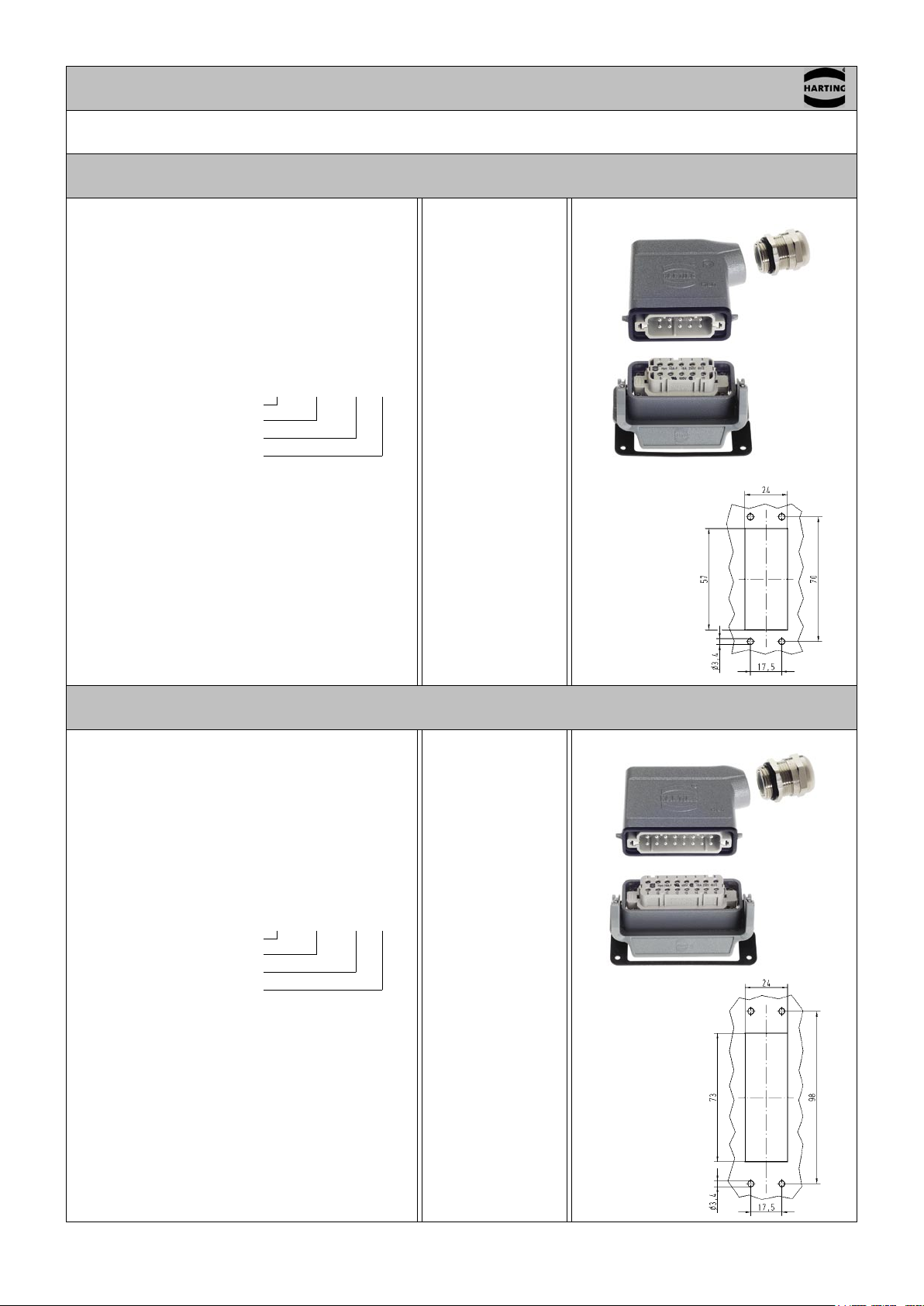

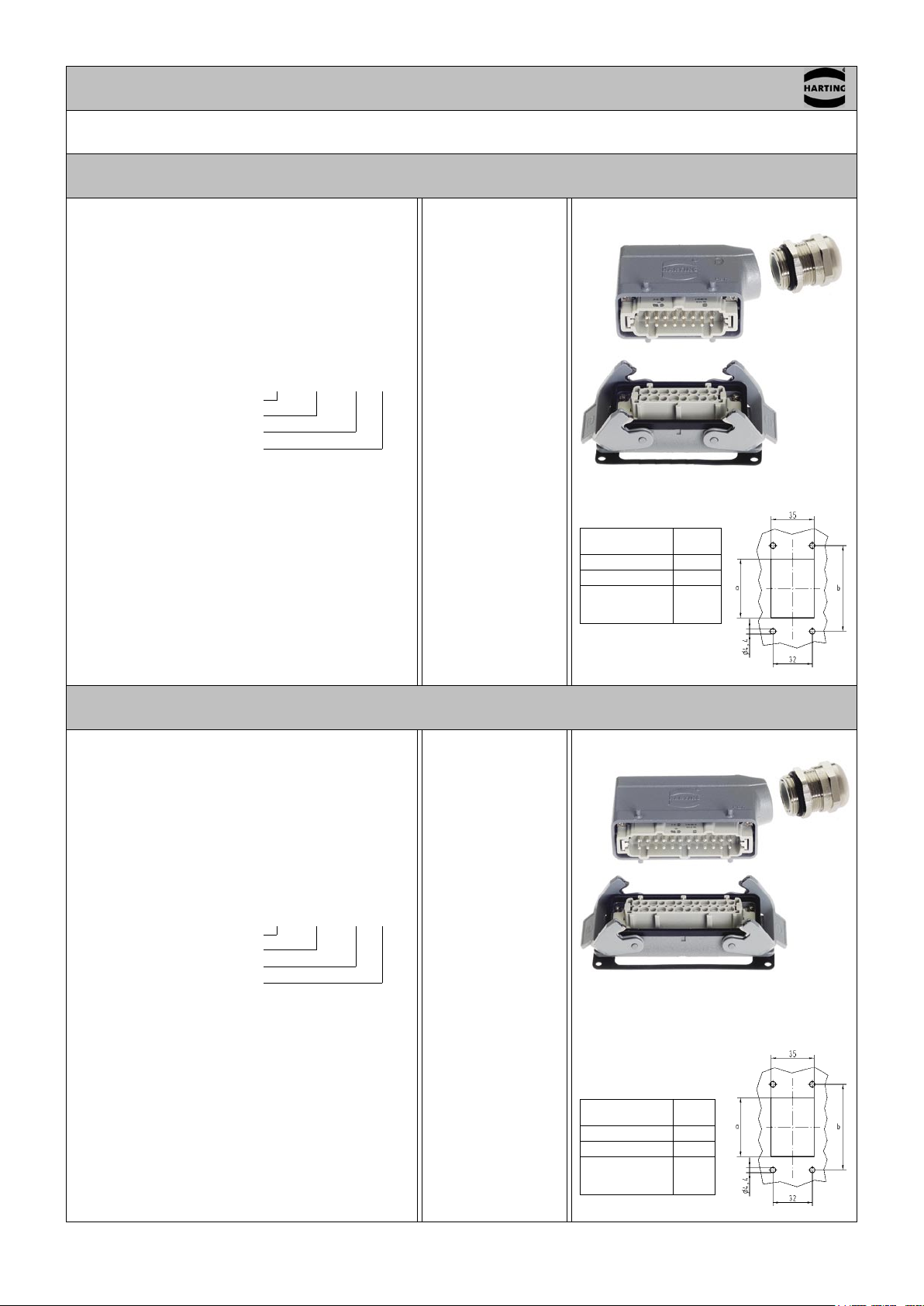

Han® 10 A

Han-Kit®-10A

Hood1) Han® 10 A
Material Die cast aluminium alloy
Protection degree2) IP 65
Cable gland M20, metal
Cable diameter 5 - 9 mm / 6 - 12 mm

Insert Han® 10 A, 10-pins + PE
Screw terminal 1-2.5 mm², AWG 18-14

Electrical data accd. to DIN EN 61 984

3)

16 A 250 V 4kV 3
Rated current
Rated voltage3)
Rated impulse voltage
Pollution degree

Rated voltage
accd. to UL/CSA 600 V

Part-Number

10 20 010 0000

Han® 16 A

Han-Kit®-16A

Hood1) Han® 16 A
Material Die cast aluminium alloy
Protection degree2) IP 65
Cable gland M20, metal
Cable diameter 5 - 9 mm / 6 - 12 mm

Insert Han® 16 A, 16-pins + PE
Screw terminal 1-2.5 mm², AWG 18-14

Electrical data accd. to DIN EN 61 984

3)

16 A 250 V 4kV 3
Rated current
Rated voltage3)
Rated impulse voltage
Pollution degree

Rated voltage
accd. to UL/CSA 600 V

Part-Number

10 20 016 0000

Assembly cut out
bulkhead mounted
housing
73 x 24 mm

Dimensions in mm

Dimensions in mm

Assembly cut out
bulkhead mounted
housing
57 x 24 mm

1) Bulkhead mounted housing with ange gasket

2) Protection degree acc. to DIN EN 60 529 in locked position

3) For use in a un-grounded circuit or a grounded delta circuit

Han-Kit®

Page 9

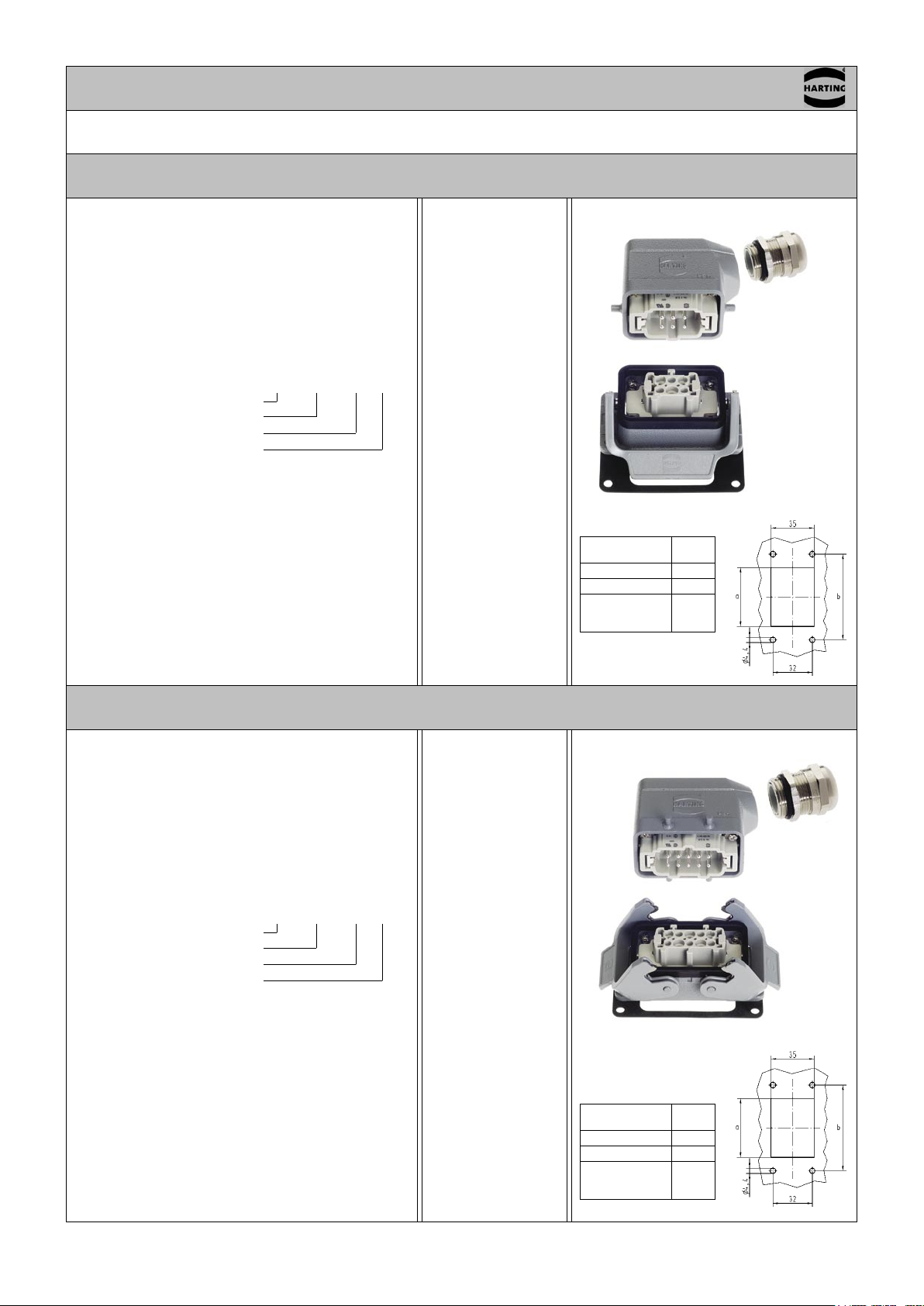

Han® 6 B

Han-Kit®-6B

Hood1) Han® 6 B
Material Die cast aluminium alloy
Protection degree2) IP 65
Cable gland M20, metal
Cable diameter 5 - 9 mm / 6 - 12 mm

Insert Han® 6 E, 6-pins + PE
Screw terminal 1-2.5 mm², AWG 18-14

Electrical data accd. to DIN EN 61 984

3)

16 A 500 V 6kV 3
Rated current
Rated voltage3)
Rated impulse voltage
Pollution degree

Rated voltage
accd. to UL/CSA 600 V

Part-Number

10 33 006 0000

Han-Kit®-10B

Hood1) Han® 10 B
Material Die cast aluminium alloy
Protection degree2) IP 65
Cable gland M25, metal
Cable diameter 9 - 16 mm / 13 - 18 mm

Insert Han® 10 E, 10-pins + PE
Screw terminal 1-2.5 mm², AWG 18-14

Electrical data accd. to DIN EN 61 984

3)

16 A 500 V 6kV 3
Rated current
Rated voltage3)
Rated impulse voltage
Pollution degree

Rated voltage
accd. to UL/CSA 600 V

10 33 010 0000

Dimensions in mm

Dimensions in mm Han-Kit

6 B

a 48

b 70

Assembly cut out
bulkhead mounted
housing

48x35

Han® 10 B

Part-Number

Dimensions in mm

Dimensions in mm Han-Kit

10 B

a 60

b 83

Assembly cut out
bulkhead mounted
housing

60 x 35

1) Bulkhead mounted housing with ange gasket

2) Protection degree acc. to DIN EN 60 529 in locked position

3) For use in a un-grounded circuit or a grounded delta circuit

Han-Kit®

Page 10

Han® 16 B

Part-Number Dimensions in mm

Dimensions in mm Han-Kit

16 B

a 82

b 103

Assembly cut out
bulkhead mounted
housing

82 x 35

1) Bulkhead mounted housing with ange gasket

2) Protection degree acc. to DIN EN 60 529 in locked position

3) For use in a un-grounded circuit or a grounded delta circuit

Han-Kit®-16B

Hood1) Han® 16 B
Material Die cast aluminium alloy
Protection degree2) IP 65
Cable gland M32, metal
Cable diameter 13-20 mm / 18-25 mm

Insert Han® 16 E, 16-pins + PE
Screw terminal 1-2.5 mm², AWG 18-14

Electrical data accd. to DIN EN 61 984

3)

16 A 500 V 6kV 3
Rated current
Rated voltage3)
Rated impulse voltage
Pollution degree

Rated voltage
accd. to UL/CSA 600 V

10 33 016 0000

Han-Kit®-24B

Hood1) Han® 24 B
Material Die cast aluminium alloy
Protection degree2) IP 65
Cable gland M32, metal
Cable diameter 13-20 mm / 18-25 mm

Insert Han® 24 E, 24-pins + PE
Screw terminal 1-2.5 mm², AWG 18-14

Electrical data accd. to DIN EN 61 984

3)

16 A 500 V 6kV 3
Rated current
Rated voltage3)
Rated impulse voltage
Pollution degree

Rated voltage
accd. to UL/CSA 600 V

10 33 024 0000

Dimensions in mm Han-Kit

24 B

a 108

b 130

Assembly cut out
bulkhead mounted
housing

108x35

Han® 24 B

Part-Number Dimensions in mm

HARTING Electric

Page 11

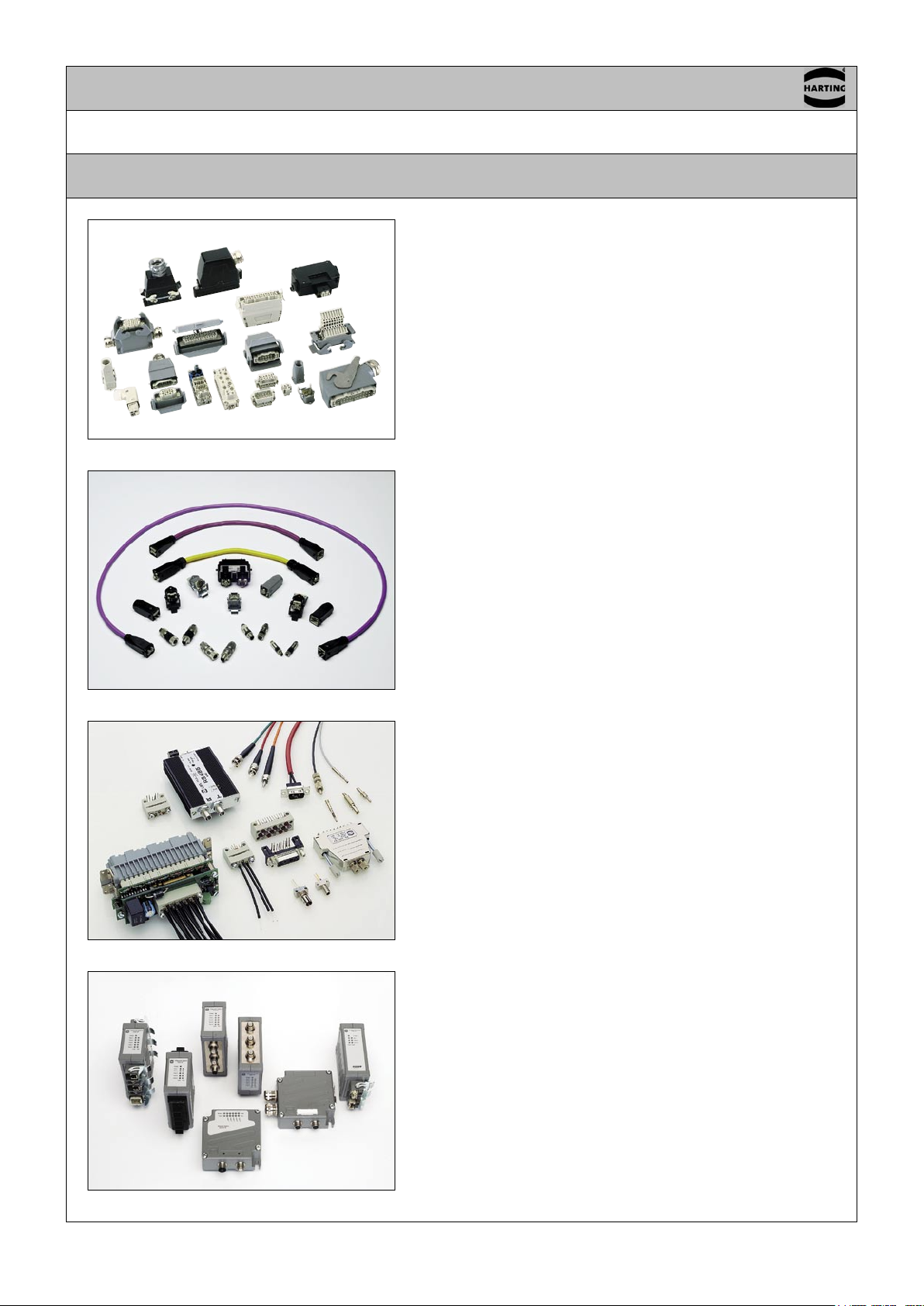

Product Range

Industrial Connectors Han

®

Feldbus components
Sensor/Actuator components
Han-InduNet® system cables

Fiber optic data link systems
and components

Network components
for industrial communication

Argentina: Condel Electronica
Julian Agüero 3355
(1605) Munro - Pcia. de Buenos Aires
Phone + Fax [phone]
E-Mail: [email protected]
Roberto Mediavilla
Rivera Indarte 390; (5000) Córdoba
Phone [phone], Fax [phone]
E-Mail: [email protected]

Australia
ADILAM Electronics Pty. Ltd.
14 Nicole Close, North Bayswater
3153 Victoria
Phone [phone]
Fax [phone]
E-Mail: [email protected]
Internet: www.adilam.com.au

Denmark: Knud Wexøe A/S
Skaettekaeret 11, P.O. Box 152
DK-2840 Holte
Phone [phone], Fax [phone]
[email protected]; www.wexoe.dk

Finland: SKS-automaatio OY
Martinkyläntie 50, FIN-01721 Vantaa
Phone [phone], Fax [phone]
E-Mail: [email protected]

Estonia: SKS-tehnika Ou
Mustamäe tee 55; EE-10621 Tallinn
Phone [phone], Fax [phone]
[email protected]

Hungary: Mile Kft.
Mádi u. 52; H-1104 Budapest
Phone [phone], Fax [phone]
[email protected]; www.mile-kft.hu

India: Sahajanand Impex Pvt. Ltd.
103/ 104, Magnum Opus
Shantinagar, Vakola Santacruz (East)
Mumbai - 400 055, INDIA
Phone [phone]
Fax [phone]
E-Mail: [email protected]
Internet: www.sahajanand.com

Island: Smith & Norland
Nóatún 4; IS-105 Reykjavík
Phone [phone], Fax [phone]
[email protected]; www.sminor.is

Polen: Soyter Sp. z o. o.
ul. Warszawska 3
05-082 Warszawa - Stare Babice
Phone [phone]
Fax [phone]
[email protected]; www.soyter.com

South-Africa
HellermannTyton Pty Ltd.
Private Bag X158 Rivonia 2128
34 Milky Way Avenue
Linbro Business Park 2065
Johannesburg, South Africa
Phone [phone]
Fax [phone]
E-Mail: [email protected]

Turkey
Gökhan Elektrik San. Tic. Ltd. Sti.
Perpa Elektrikçiler Is Merkezi A Blok
Kat:7-8-9 No.694
TR - 80270 Okmeydani/Istanbul
Phone [phone] (pbx)
Fax [phone]
E-Mail: [email protected]

Austria: HARTING Ges. m. b. H.
Deutschstraße 3, A-1230 Wien
Phone [phone]; Fax [phone]
E-Mail: [email protected]

Belgium: HARTING N.V./S.A.
Doornveld 8, B-1731 Zellik
Phone [phone], Fax [phone]
E-Mail: [email protected]

Brazil: HARTING Ltda.
Av. Dr. Lino de Moraes Leme, 255; Pq. Jabaquara
CEP 04360-001 - São Paulo - SP - Brazil
Phone [phone]; Fax [phone]
E-Mail: [email protected]

China: HARTING (HK) Limited
Shanghai Representative Office
Room 2302 Hong Kong Plaza South Tower
283 Huai Hai Road (M); Shanghai 200021, China
Phone [phone]
Fax [phone]
E-Mail: [email protected]

Czech Republic: HARTING spol. s.r.o.
Mlýnská 2, 16000 Praha 6
Phone [phone]; Fax [phone]
E-Mail: [email protected]
Internet: www.HARTING.cz

Finland: HARTING Oy
Hakamäenkuja 11 A, FIN-01510 Vantaa
Phone [phone], Fax [phone]
E-Mail: [email protected]

France: HARTING France, Paris Nord 2
B.P.60058 Tremblay en France, 181, av. des Nations
F-95972 Roissy Charles de Gaulle Cédex
Phone [phone]; Fax [phone]
E-Mail: [email protected]

Germany: HARTING Deutschland GmbH & Co. KG
Simeonscarré 1, D-32427 Minden
Phone [phone]; Fax [phone]
E-Mail: [email protected]

Great Britain: HARTING Ltd.
Caswell Road, Brackmills Industrial Estate
GB-Northampton, NN4 7PW
Phone [phone], 827500; Fax [phone]
E-Mail: [email protected]
Internet: www.HARTING.co.uk

Hong Kong: HARTING (HK) Limited
Regional Office Asia Pacific
4208 Metroplaza Tower 1, 223 Hing Fong Road
Kwai Fong, N. T., Hong Kong
Phone [phone], Fax [phone]
E-Mail: [email protected]

Italy: HARTING SpA
Via Dell‘ Industria 7
I-20090 Vimodrone (Milano)
Phone [phone], Fax [phone]
E-Mail: [email protected]

Japan: HARTING K. K.
Yusen Shin-Yokohama 1 Chome Bldg., 2F
1-7-9, Shin-Yokohama, Kohoku-ku, Yokohama
222-0033 Japan
Tel: [phone]; Fax: [phone]
E-Mail: [email protected]
Internet: www.HARTING.co.jp

Korea: HARTING Korea Limited
14/F FKI Building, 28-1 Yoido-dong
Youngdungpo-Gu, Seoul 150-756, Korea
Phone [phone]
Fax [phone]
E-Mail: [email protected]

Netherlands: HARTING B.V.
Larenweg 44, NL-5234 KA ‚s-Hertogenbosch
Postbus 3526, NL-5203 DM ‚s-Hertogenbosch
Phone [phone]; Fax [phone]
E-Mail: [email protected]

Norway: HARTING A/S
Østensjøveien 36, N-0667 Oslo
Phone [phone]; Fax [phone]
E-Mail: [email protected]

Portugal: HARTING Iberia S.A.
Josep Tarradellas 20-30 4o 6a; E-08029 Barcelona
Phone [phone]; Fax [phone]
E-Mail: [email protected]

Russia: HARTING ZAO
ul. Tobolskaja 12
Saint Petersburg, 194044 Russia
Phone [phone]; Fax [phone]
E-Mail: [email protected]
Internet: www.HARTING.ru

Singapore: HARTING Singapore Pte Ltd.
No. 1 Coleman Street, #B1-21 The Adelphi
Singapore 179803
Phone [phone], Fax [phone]
E-Mail: [email protected]

Spain: HARTING Iberia S.A.
Josep Tarradellas 20-30 4o 6a; E-08029 Barcelona
Phone [phone]; Fax [phone]
E-Mail: [email protected]

Sweden: HARTING AB
Gustavslundvägen 141B; S-16751 Bromma
Phone [phone]; Fax [phone]
E-Mail: [email protected]

Switzerland: HARTING AG
Industriestrasse 26, CH-8604 Volketswil
Phone [phone], Fax [phone]
E-Mail: [email protected]

Taiwan: HARTING R.O.C. Limited
Room 6, 10 Floor, No. 171
Sung-Te Road, Taipei, Taiwan
Phone [phone]; Fax [phone]
E-Mail: [email protected]

USA: HARTING Inc. of North America
1370 Bowes Road; Elgin, Illinois 60123
Phone +1 847 / 741 1500
Fax +1 847 / 741 8257 (Customer Service)
Fax +1 847 / 717 9420 (Sales+Marketing)
E-Mail: [email protected]
Internet: www.HARTING-USA.com

Eastern Europe
HARTING Eastern Europe GmbH
Marienwerderstraße 3, D-32339 Espelkamp
Phone [phone]; Fax [phone]
E-Mail: [email protected]

Other countries
Please contact your Global Business Unit

HARTING Electric GmbH & Co. KG
P.O. Box 14 73
D-32328 Espelkamp
Phone [phone]
Fax [phone]
E-Mail: [email protected]
Internet: www.HARTING.com

Subsidiary companies – worldwide

Representatives
– worldwide

Global Business Unit
Electric

Your Contact Partner
