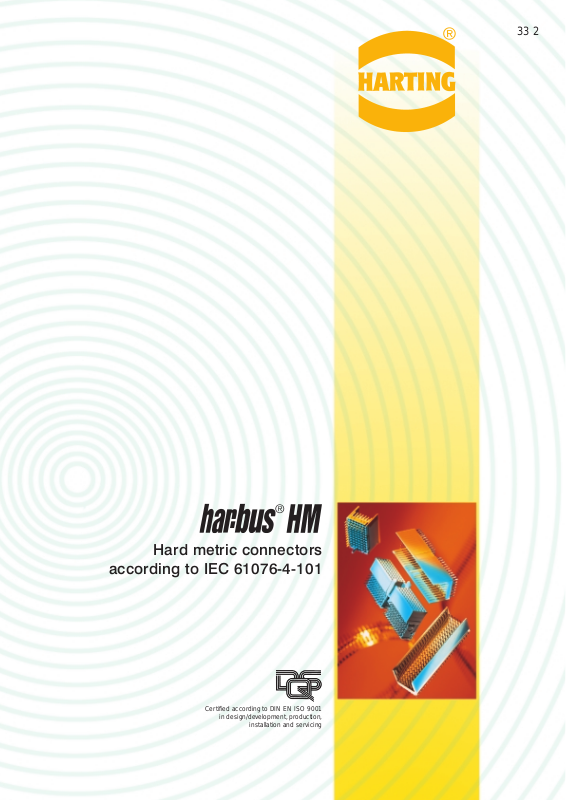

Page 1
Certified according to DIN EN ISO 9001
in design/development, production,
installation and servicing
33 2
Hard metric connectors
according to IEC 61076-4-101
Page 2
HARTING was founded in 1945 by the family that still owns the company.
Today, HARTING employs around 2200 people worldwide, including 150 qualified engineers.The sales team, including more than 100 sales engineers is in daily contact with our customers.
The company is one of the world’s leading manufacturers of connectors, and currently have 31 subsidiary companies in Europe, the United States and Asia. In several product areas, HARTING is a market leader.
Great emphasis is placed on close links with customers, including the provision of a ‘Just-in-Time’-Service to ensure rapid delivery to key customers.
HARTING products are designed and manufactured using the latest auto­mated techniques, from CAD systems in the research and development department to automatic production techniques on the assembly lines.
Production and quality control is based on a ‘zero-error’ philosophy which can only be reached by the continuous successful implementation of fully automated production techniques. The organisation and procedures for quality assurance are based on the EN ISO 9001 standard. A total of 60 engineers and other employees, most of whom are trained and qualified to standards laid down by the DGQ (German Association of Quality) or the SAQ (Swiss Association of Quality), are employed solely on quality-assurance activities.

Quality Connections Worldwide

People Power Partnership
Page 3
3
Introduction 4 Comparison of different 2 mm systems 5 Technical characteristics 6 Contacts for male connectors 6 Press-in technique 7 Typical configurations on PCB 8
Type A – male connectors 9
Type A – female connectors 12
Type B – male connectors 13
Type B – female connectors 17
Type C – male connectors 18
Type C – female connectors 20
Type D – male connectors 21
Type E – male connectors 22
CompactPCI configuration 23
CompactPCI monoblock – male connectors 25
CompactPCI monoblock – female connectors 27
Coding 28
VME64x configuration 29
VME64x – male connectors 30
VME64x – female connectors 31
Tooling 32 Customer request form 33 List of part numbers 34 Addresses 35
Summary
Page
Page 4
4
the 2.0mm hard metric system from HARTING

Introduction

A continual trend has seen the move towards the miniaturisation of electronic components and the advances in processing speeds and data trans­mission rates. This results into faster being routed through connectors between PCB’s, I/O Panels, transition boards or cables.The need for higher pin counts has resulted in a shift from 2.54 mm and 2.5 mm pitch connectors to 2.0 mm variants.
The industrial market utili­sing standard compo­nents is dominated by the VMEbus where 50% mar­ket share is achieved and projected to grow at an annual rate of 10%.Com­pactPCI
®
systems are projected to grow at rates in excess of 100% to ap­proach a market size similar to VMEbus.
The expected growth rate for CompactPCI
®
is rea­lised as a result of the PC/PCI domination in the desktop/office market. Many industrial hardware and software applications can be processed such as Windows NT and graphi­cal user interface etc. CompactPCI
®
benefits from the available soft­ware, expert knowledge, commodity chips and the general infrastructure in the PCI desktop market.
The Telecoms market is e volving to include standard bus-board equipment, which allows manufacturers to concentrate on proprietary systems where tradi­tionally a minimal number of corporations with world-wide activities participated. These markets have been deregulated which has dramatically in­creased the rate of change in technology .It is no lon­ger profitable to manufacture all the elements of a system under one roof and maintain a short time to
market. Corporations had started to use desktop computers for a short period, but applications required guaranteed availability for many years using standard pin and socket connectors with mechanically secured boards. Therefore Compact­PCI
®
provided the benefits of a desktop PC, a short time to market, rugged reliability and a popular software development platform.
The industrial market which is often described as ‘embedded and real-time’, has started to move from ISA to CompactPCI
®
. Proprietary bus systems is
the major growth for CompactPCI
®
.The forecasters agree that the majority of medium and large sy­stems could easily adopt both VME and Compact­PCI
®
in any given application. The main would be
controlled by CompactPCI
®
and real-time high-end
application subsystems calling for VME.
Page 5
5
the 2.0mm hard metric system from HARTING
Comparison of 2.0 mm systems
For many years board-to backplane connectors were dominated by DIN connectors with a pitch of
2.54 mm. The advances of new designs in recent years have migrated to 2.0 mm pitch connectors. However, today there are three separate and non­compatible 2.0 mm style connector families avail­able on the market: Futurebus+ style, HDM
®
and
hard metric style.
Several years ago Futurbus+ and telecom applica­tions standardised on a modular 2.0 mm connector using of increments of 12 mm.These connectors are currently undergoing IEC standardisation (IEC 61076-4-104).They are also specified for Industrial PCI systems.
Another 2.0 mm connector specification available today is commonly referred to as HDM
®
, HDM®plus or VHDM.These connectors come in 22 mm and 46 mm increments.
This proprietary system is not standardised there­fore, unable to provide a high degree of intermata­bility.
For high speed applications like CompactPCI
®
the
hard-metric connector, such as har-bus
®
HM from HARTING, was chosen. It is a modular 2 mm connector using increments of 25 mm. Compact­PCI
®
has specified two connectors J1/P1 and J2/P2 for 3U cards and five connectors (J1/P1 - J5/P5) for 6U cards. On 3U Eurocards two full size 50 mm
connectors will not assemble to a 100 mm card height because of space needed for guide rails.The type B connector is therefore shortened to 22 rows or 44 mm length. J4/P4 and J5/P5 on 6U cards are mirror images of J1/P1 and J2/P2 respectively. The centre connector J3/P3 on 6U has 19 rows of pins. This 19 row version is also used as the centre connector J0/P0 on 6U VME boards.
The popular configuration of 2.0 mm hard metric connectors are 5 rows of signal contacts and one or two rows of outer shield or ground contacts. The increase in pin-count over the popular DIN connec­tor (IEC & EN 60603-2) is quite significant, 96 to 240 contacts. The enhanced or 5-row DIN compatible connector (har-busâ 64) originated by HARTING, has 160 contacts on a 2.54 mm pitch.
The IEC 61076-4-101 hard metric connector has been designed for high-speed applications with appropriate shielding options. It is specified for CompactPCI
®
, VMEbus and proprietary appli­cations. Further standardisation is being developed by VITA as a mechanical practice guide, VITA 30 Draft standard.
Page 6
6

Technical characteristics

Number of contacts : 55 – 220 signal, 66 – 308 inclusive shield and customized loadings Contact spacing : 2.00 mm Working current : 1.5 ADC (Signal) Test voltage U
r.m.s.
: AC 750 V min. Contact resistance : 20 mΩ max. Insulation resistance: 10 GΩ min. Temperature range : – 55 °C … + 125 °C Durability : depending on the performance level Press-in force : 100 N/pin max. Retention force : 20 N/pin min. Mating force : 0.75 N/pin max. Withdrawal force : 0.15 N/pin min.
Materials Mouldings : Thermoplastic resin, glass-fibre filled, UL 94 V-0 Contacts : Copper alloy Contact surface : Au Packaging : Tube (standard) or cardboard box

Contacts for male connectors

HARTING offers 12 different contact lengths for har­bus
®
HM male connectors:the standard mating length of 8.2 mm, pre-leading contacts with 9.7 mm and extra long contacts preferred for shielding with 11.2 mm mating length. On the termination side the standard length is 3.7 mm.With the three termination lengths of
13.0, 14.5 and 16.0 mm even for rear I/O applications different mating levels are possible, depending on the PCB thickness and shroud height.
All contacts are offered as press-in form with needle eye termination.In accordance of the application they can be delivered in performance level 1 or 2. The different contact lengths are designated with letters to identify them in the configurations given in this cata­logue. For special loadings please use the customer request form at the end of this catalogue.
C
Contact dimensions [mm]
ontact dimensions
Pin type
Level 2
Level 3
Level 1
Length for mating
Datum plane depth
Page 7
7

Press-in technique

Maximum circuit density
When using the recommended diameter of the finished through hole (0.6 ± 0.05 mm) with an appropriate annular ring, the remaining distance between the rings is about 1 mm. Under the condition that the width of the track and the space between should be the equal, two tracks of 0.2 mm width or three trac ks of
0.14 mm width can be placed between two rings.Typical designs are shown in the drawing on the right side.
PCB specification
• Diameter of drilled hole: 0.7 ± 0.02 mm
• Diameter of finished through hole: 0.6 ± 0.05 mm
• PCB thickness: for male connector: 1.4 mm min.
for female connector: 1.4 mm min.
HARTING has developed the whole range of har-bus
®
HM in press-in technique. More and more customers chose this reli­able design due to the fact that the press-in technique offers a lot of benefits in comparison to other termination methods.
The economical and technical advantages are:
• Thermal shocks due to the soldering process are avoided
• No need for subsequent cleaning of the assemb led boards
• High assembly speed
• Defined impedances guarantee well HF-charac-
teristics
Page 8
8
Typical configurations on PCB
All HARTING har-bus®HM connectors can be assembled end to end in any order. Typical examples are shown in the picture above.
General rules:
•
Type B connectors should always be used in combi­nation with a type A and/or type C connectors that are fitted with a polarising and guiding peg.
• Type C connectors must be assembled at the end of a connector stack, to get a polarisation and avoid mismating.
• To ensure a correct mating of connector stacks coding can be added in style A connectors.By using all available styles the stacks have a minimum length of 50 mm (style A) that can be increased in stages as shown in the diagram.
m = male connector f = female connector
50
m
f
75
m
f
94
m
f
94
m
f
100
m
f
213
m
f
226
m
f
226
m
f
Type A
Type A
Type C
Type B Type A
Type Monoblock 47
Type A Type A
Type A Type B Type A Type B
Type C
Type B Type A Type B Type B Type A
Type Monoblock 47 Type B Type Monoblock 47
Dimensions [mm]
Page 9
9
Number Contact length [mm]
of mating termination
Identification contacts side side Part number Contact configuration
Type A
110 8.2 3.7
17 01 110 1201
17 01 110 2201
Type A
154
8.2/
3.7
17 01 154 1201
11.2 17 01 154 2201
Type A Male connectors, straight
Type A
110 9.7 3.7
17 01 110 1204
17 01 110 2204
Type A
154
9.7/
3.7
17 01 154 1205
11.2 17 01 154 2205
C
Thin printed part numbers: performance level 1
Bold printed part numbers: performance level 2
Contact dimensions [mm]
ontact dimensions
Pin type
Level 2
Level 3
Level 1
Length for mating
Datum plane depth
Page 10
10
Number Contact length [mm]
of mating termination
Identification contacts side side Part number Contact configuration
Type A
110 8.2 13.0
17 01 110 1402
17 01 110 2402
Type A
154
9.7/
14.5/
17 01 154 1001
11.2
16.0
17 01 154 2001
Type A Male connectors, straight
Type A, CompactPCI
8.2/ 17 01 154 1203
154 9.7/ 3.7
17 01 154 2203
11.2
Type A, CompactPCI hot swap
8.2/ 17 01 154 1204
154 9.7/ 3.7
17 01 154 2204
11.2
C
Thin printed part numbers: performance level 1
Bold printed part numbers: performance level 2
Contact dimensions [mm]
ontact dimensions
Pin type
Level 2
Level 3
Level 1
Datum plane depth
Length for mating
Page 11
11
Number Contact length [mm]
of mating termination
Identification contacts side side Part number Contact configuration
Type A CompactPCI computer
8.2/
13.0/
telephony 100 9.7/
14.5/
17 01 100 1001
11.2
16.0
17 01 100 2001
Type A CompactPCI computer
8.2/
telephony
100 9.7/ 3.7
17 01 100 1201
11.2
17 01 100 2201
Type A Male connectors, straight
C
Thin printed part numbers: performance level 1
Bold printed part numbers: performance level 2
Position
Row
Position
Row
Row
All holes
Board drillings
Datum plane
depth
Contact dimensions [mm]
Dimensions [mm]
ontact dimensions
Pin type
Datum plane depth
Level 2
Level 3
Level 1
Length for mating
Page 12
12
Contact length [mm]
No.of termination
Identification contacts side Part number
Type A
110 3.4
17 21 110 1101
17 21 110 2101
Type A, with pre-installed upper shield
110 3.4
17 21 110 1102
17 21 110 2102
Type A Female connectors, angled
Lower shield for type A connectors
17 21 000 4102
Type A, with pre-installed upper shield
90 3.4
17 21 090 1103
CompactPCI computer telephony 17 21 090 2103 Lower shield
for type A connectors (rows 1 – 5), CompactPCI computer telephony
17 29 000 4102
Lower shield for type A connectors (rows 15 – 25), CompactPCI computer telephony
17 23 000 4102
Without shielding With shielding
Dimensions [mm]
Thin printed part numbers: performance level 1
Bold printed part numbers: performance level 2
Position Position
Row
Position
Board drillings Board drillings
Row
Position
Row
Row
All holes
All holes
Page 13
13
Number Contact length [mm]
of mating termination
Identification contacts side side Part number Contact configuration
Type B
125 8.2 3.7
17 02 125 1201
17 02 125 2201
Type B
175
8.2/
3.7
17 02 175 1201
11.2 17 02 175 2201
Type B Male connectors, straight
Type B
8.2/ 17 02 175 1202
175 9.7/ 3.7
17 02 175 2202
11.2
Type B
110 8.2 3.7
17 04 110 1201
17 04 110 2201
C
Thin printed part numbers: performance level 1
Bold printed part numbers: performance level 2
Contact dimensions [mm]
ontact dimensions
Pin type
Level 2
Level 3
Level 1
Length for mating
Datum plane depth
Page 14
14
Number Contact length [mm]
of mating termination
Identification contacts side side Part number Contact configuration
Type B
154
8.2/
3.7
17 04 154 1201
11.2 17 04 154 2201
Type B, CompactPCI
154
9.7/
3.7
17 04 154 1203
11.2 17 04 154 2203
Type B Male connectors, straight
Type B, CompactPCI computer
8.2/
13.0/
telephony 132 9.7/
14.5/
17 04 132 1001
11.2
16.0
17 04 132 2001
Type B, CompactPCI computer
8.2/
telephony 154 9.7/ 3.7
17 04 154 1204
11.2
17 04 154 2204
C
Thin printed part numbers: performance level 1
Bold printed part numbers: performance level 2
Contact dimensions [mm]
ontact dimensions
Pin type
Level 2
Level 3
Level 1
Datum plane depth
Length for mating
Page 15
15
Number Contact length [mm]
of mating termination
Identification contacts side side Part number Contact configuration
Type B, CompactPCI computer
8.2/
telephony 132 9.7/ 3.7
17 04 132 1201
11.2
17 04 132 2201
Type B, CompactPCI I/O
154
9.7/
16.0
17 04 154 1601
11.2 17 04 154 2601
Type B Male connectors, straight
Type B
95 8.2 3.7
17 05 095 1201
17 05 095 2201
Type B
133
8.2/
3.7
17 05 133 1201
11.2 17 05 133 2201
C
Thin printed part numbers: performance level 1
Bold printed part numbers: performance level 2
Contact dimensions [mm]
ontact dimensions
Pin type
Datum plane depth
Level 2
Level 3
Level 1
Length for mating
Page 16
16
Number Contact length [mm]
of mating termination
Identification contacts side side Part number Contact configuration
Type B
133
9.7/
3.7
17 05 133 1203
11.2 17 05 133 2203
Type B
95 8.2 13.0
17 05 095 1401
17 05 095 2401
Type B Male connectors, straight
C
Thin printed part numbers: performance level 1
Bold printed part numbers: performance level 2
Position
Row
Position
Row
All holes
Board drillings
Datum plane
depth
Row
Contact
positions
x
1
x
2
19 37.9 18 x 2 (= 36) 22 43.9 21 x 2 (= 42) 25 49.9 24 x 2 (= 48)
Contact dimensions [mm]
Dimensions
[mm]
ontact dimensions
Pin type
Level 2
Level 3
Level 1
Length for mating
Datum plane depth
Page 17
17
Contact length [mm]
No.of termination
Identification contacts side Part number
Type B
95 3.4
17 25 095 1101
17 25 095 2101
Type B,
95 3.4
17 25 095 1102
with pre-installed upper shield 17 25 095 2102
Type B Female connectors, angled
Lower shield for type B connectors with 95 contacts
17 25 000 4102
Type B,
110 3.4
17 24 110 1102
with pre-installed upper shield 17 24 110 2102
Type B
110 3.4
17 24 110 1101
17 24 110 2101
Lower shield for type B connectors with 110 contacts
17 24 000 4102
Type B
125 3.4
17 22 125 1101
17 22 125 2101
Without shielding With shielding
Type B,
125 3.4
17 22 125 1102
with pre-installed upper shield 17 22 125 2102 Lower shield
for type B connectors with 125 contacts
17 22 000 4102
Thin printed part numbers: performance level 1
Bold printed part numbers: performance level 2
Position
Position
Row
Position
Board drillings
Board drillings
Row
Position
Row
Row
All holes
All holes
Contact positions x
1
x
2
19 37.9 18 x 2 (= 36) 22 43.9 21 x 2 (= 42) 25 49.9 24 x 2 (= 48)
Dimensions [mm]
Page 18
18
Number Contact length [mm]
of mating termination
Identification contacts side side Part number Contact configuration
Type C
55 8.2 3.7
17 03 055 1201
17 03 055 2201
Type C
77
8.2/
3.7
17 03 077 1201
11.2 17 03 077 2201
Type C Male connectors, straight
Type C
55 9.7 3.7
17 03 055 1202
17 03 055 2202
Type C
77
9.7/
3.7
17 03 077 1202
11.2 17 03 077 2202
C
Thin printed part numbers: performance level 1
Bold printed part numbers: performance level 2
Contact dimensions [mm]
ontact dimensions
Pin type
Level 2
Level 3
Level 1
Datum plane depth
Length for mating
Page 19
19
Number Contact length [mm]
of mating termination
Identification contacts side side Part number Contact configuration
Type C
55 8.2 13.0
17 03 055 1401
17 03 055 2401
Type C
77
8.2/ 3.7/ 17 03 077 1001
11.2 13.0 17 03 077 2001
Type C Male connectors, straight
C
Thin printed part numbers: performance level 1
Bold printed part numbers: performance level 2
Position
Row
Position
Row
Row
All holes
Board drillings
Datum plane
depth
Contact dimensions [mm]
Dimensions [mm]
ontact dimensions
Pin type
Level 2
Level 3
Level 1
Length for mating
Datum plane depth
Page 20
20
Contact length [mm]
No.of termination
Identification contacts side Part number
Type C
55 3.4
17 23 055 1101
17 23 055 2101
Type C, with pre-installed upper shield
55 3.4
17 23 055 1102
17 23 055 2102
Type C Female connectors, angled
Lower shield for type C connectors
17 23 000 4102
Without shielding With shielding
Thin printed part numbers: performance level 1
Bold printed part numbers: performance level 2
Position
Position
Row
Position
Board drillings Board drillings
Row
Position
Row
Row
All holes
All holes
Dimensions [mm]
Page 21
21
Number Contact length [mm]
of mating termination
Identification contacts side side Part number Contact configuration
Type D
176 8.2 3.7
17 11 176 1201
17 11 176 2201
Type D
220
8.2/
3.7
17 11 220 1201
11.2 17 11 220 2201
Type D Male connectors, straight
Type D
220
9.7/
14.5/
17 11 220 1001
11.2
16.0
17 11 220 2001
C
Thin printed part numbers: performance level 1
Bold printed part numbers: performance level 2
Dimensions [mm]
Position
Row
Datum plane
depth
Position
Board drillings
Row
All holes
Row
Contact dimensions [mm]
ontact dimensions
Pin type
Datum plane depth
Level 2
Level 3
Level 1
Length for mating
Page 22
22
Number Contact length [mm]
of mating termination
Identification contacts side side Part number Contact configuration
Type E
200 8.2 3.7
17 12 200 1201
17 12 200 2201
Type E
250
8.2/
3.7
17 12 250 1201
11.2 17 12 250 2201
Type E Male connectors, straight
Type E
250
9.7/
14.5/
17 12 250 1001
11.2
16.0
17 12 250 2001
C
Thin printed part numbers: performance level 1
Bold printed part numbers: performance level 2
Position
Row
Datum plane
depth
Position
Board drillings
Row
All holes
Row
Contact dimensions [mm]
Dimensions [mm]
ontact dimensions
Pin type
Datum plane depth
Level 2
Level 3
Level 1
Length for mating
Page 23
23
the 2.0mm hard metric system from HARTING
CompactPCI®configuration
CompactPCI®as a standard is maintained and en­hanced by the PCI Industrial Computer Manufactu­rers Group (PICMG
®
). It defines a combination of the electrical and logical specifications of the PCI standard and the mechanical specifications of the IEEE 1101 and IEC 60297 series of standards.The board connector has been developed from the IEC 61076-4-101 series of 2.0 mm connectors.The mo­unting location and dimensions for the 2.0 mm connectors are specified in IEEE 1101.11. Some additional mechanical definitions for 2.0 mm connectors in the Eurocard format are being speci­fied in the VITA 30 draft. Other international stan­dards are listed in the CompactPCI
®
standard for environmental and related specifications.This gives CompactPCI
®
a solid foundation of international
standards and practices for mechanical robustness .
The board format is either a 3U or a 6U Eurocard as defined in IEC 60297.There are two or five connec­tors specified for 3U or 6U boards respectively. Connectors are numbered from J1/P1 through J5/P5 (bottom to top) on the board or backplane. Slave or peripheral boards need J1/P1 as a mini­mum, master or system boards need both J1/P1
and J2/P2 as a minimum.Backplanes should alwa ys have the full complement of connectors to be com­patible with any type of board.
Connectors, as well as contact numbers on the connectors are both numbered from bottom to top. This is opposite to numbering schemes in other ar­chitectures.
The front panel of CPCI cards may be equipped with additional keying pegs to code individual board ty­pes.There is also an extended length pin to remov e any electro-static charge before the contacts on the rear connnetors mate. This pin also functions as a mechanical guide to position the board as straight as possible for insertion.This prevents pin bending and lowers the insertion force.There might be more than 500 pins to be pushed into sockets, all at the same time.
Connectors for high availability applications (hot swap) come with 3 different lenths of pins for a sta­ged sequence of make or break of contact.
Connector J1/P1 carries the signals for a 32 bit PCI bus (see table of contact assignments for J1/P1). Connector J2/P2 on a system card has the additio­nal signals for a 64 bit PCI bus and some user-defi­ned I/O (see table of contact assignments for J2/P2). On slave cards all of J2/P2 might be user­defined I/O except the top row which carries the sig­nals for geographical addressing. J3 should be re­served for other system bus definitions. J4/P4 and
Page 24
24
the 2.0mm hard metric system from HARTING
J5/P5 are used for I/O or secondary buses, e.g. H.110 in telecom applications or for bridges into other buses like VMEbus.This is used to accommo­date two bus platforms in one card cage on one backplane.
In mechanical terms J1/P1 is a 25 x 5 matrix of contacts.Three rows of 5 contacts (rows 12 - 15) are not used for electrical contacts.Instead, plastic keys of different orientation and configuration are used to key board locations as to system or peripheral slot, voltage options, etc.J2/P2 is a shortened connector with only 22 rows of contacts instead of 25 rows for a standard size. HARTING now offers monolithic versions with J1/P1 and J2/P2 combined in one single connector.This combination together with so­me space left on the card to fit into guide rails ma­kes maximum use of the 100 mm rear edge of the 3U Eurocard. On a 6U card this connector setup is repeated on J4/P4 and J5/P5.The J3/P3 connector is a shortened version of the 2.0 mm connector with 19 rows of 5 signal contacts. The size results from
the height of a 6U board (233 mm) which is more than double the height of a 3U board.
All connectors used for CompactPCI
®
are based on a 7 column pitch.The inner 5 columns are used for logic signals and power .The outer columns on either side are reserved for shielding or ground.
Executive Member
Contact assignment on CompactPCI system slot (J1/P1)
Contact assignment on CompactPCI system slot (J2/P2)
Page 25
25
Number Contact length [mm]
of mating termination
Identification contacts side side Part number Contact configuration
Type Monoblock 47
220 8.2 3.7
17 06 220 1201
17 06 220 2201
Type Monoblock 47
308
8.2/
3.7
17 06 308 1201
11.2 17 06 308 2201
Type Monoblock 47 Male connectors, straight
Type Monoblock 47
220 9.7 3.7
17 06 220 1202
17 06 220 2202
Type Monoblock 47
308
9.7/
3.7
17 06 308 1204
11.2 17 06 308 2204
C
Thin printed part numbers: performance level 1
Bold printed part numbers: performance level 2
Contact dimensions [mm]
ontact dimensions
Pin type
Level 2
Level 3
Level 1
Length for mating
Datum plane depth
Page 26
26
Number Contact length [mm]
of mating termination
Identification contacts side side Part number Contact configuration
Type Monoblock 47
8.2/
CompactPCI 308 9.7/ 3.7
17 06 308 1202
11.2
17 06 308 2202
Type Monoblock 47
8.2/
CompactPCI 308 9.7/ 3.7
17 06 308 1203
hot swap
11.2
17 06 308 2203
Type Monoblock 47 Male connectors, straight
Type Monoblock 47
8.2/
CompactPCI 232 9.7/ 3.7
17 06 232 1201
computer
11.2
17 06 232 2201
telephony Type
Monoblock 47
8.2/
3.7/
CompactPCI 308 9.7/
16.0
17 06 308 1001
I/O 11.2
17 06 308 2001
C
Thin printed part numbers: performance level 1
Bold printed part numbers: performance level 2
Position
Row
Datum plane
depth
Position
Board drillings
Row
All holes
Row
Contact dimensions [mm]
Dimensions [mm]
ontact dimensions
Pin type
Datum plane depth
Level 2
Level 3
Level 1
Length for mating
Page 27
27
Contact length [mm]
No.of termination
Identification contacts side Part number
220 3.4
17 26 220 1101
17 26 220 2101
220 3.4
17 26 220 1102
17 26 220 2102
Type Monoblock 47
Type Monoblock 47, with pre-installed upper shield
Type Monoblock 47 Female connectors, angled
Lower shield for type Monoblock 47 connectors
17 26 000 4102
Lower shield for type Monoblock 47 connectors (rows 1 – 22), CompactPCI computer telephony
17 24 000 4102
Type Monoblock 47, with pre-installed upper shield,
200 3.4
17 26 200 1103
CompactPCI computer telephony 17 26 200 2103
Lower shield for type Monoblock 47 connectors (rows 23 – 27), CompactPCI computer telephony
17 29 000 4102
Without shielding
Dimensions [mm]
With shielding
Lower shield for type Monoblock 47 connectors (rows 37 – 47), CompactPCI computer telephony
17 23 000 4102
Thin printed part numbers: performance level 1
Bold printed part numbers: performance level 2
Position
Position
Row
Position
Board drillings Board drillings
Row
Position
Row
Row
All holes
All holes
Page 28
28
Coding
Coding keys are used to pre vent mismating of boards . They can be inserted into the multifunctional area of male and female connectors with a special tooling. This can be easily done after the connectors have been pressed in. To identify coding keys very simply they have different bright and pre-defined RAL colours. In the table below all colours and code numbers in acc. to the IEC 61076-4-101 are listed. The bold printed part numbers are preferred types that will be used for the following applications:
• Cadmium yellow for CompactPCI to identify 3.3 V
bus signalling
• Brilliant blue for CompactPCI to identify 5 V bus
signalling
• Reseda green to prevent accidental board insertion
in VME64x on CompactPCI applications
• Strawberry red to prev ent accidental board insertion
in telephony applications
Coding keys for male connectors
Coding Code Colour Part
key number number
Pastel orange
3568 RAL 2003 17 79 000 0010
Steel blue
3478 RAL 5011 17 79 000 0011
Slate grey
3467 RAL 7015 17 79 000 0012
Cadmium yellow
3456 RAL 1021 17 79 000 0013
for CPCI, 3.3 V
Reseda green
2578 RAL 6011 17 79 000 0014
Brilliant blue
1567 RAL 5007 17 79 000 0015
for CPCI, 5.0 V
Blue lilac
1356 RAL 4005 17 79 000 0016
Ocher yellow
4678 RAL 1024 17 79 000 0017
Pastel orange
1247 RAL 2003 17 79 000 0020
Steel blue
1256 RAL 5011 17 79 000 0021
Slate grey
1258 RAL 7015 17 79 000 0022
Cadmium yellow
1278 RAL 1021 17 79 000 0023
for CPCI, 3.3 V
Reseda green
1346 RAL 6011 17 79 000 0024
Brilliant blue
2348 RAL 5007 17 79 000 0025
for CPCI, 5.0 V
Blue lilac
2478 RAL 4005 17 79 000 0026
Ocher yellow
1235 RAL 1024 17 79 000 0027
Strawberry red
1248 RAL 3018 17 79 000 0018
Nut brown
1236 RAL 8011 17 79 000 0019
Strawberry red
3567 RAL 3018 17 79 000 0028
Nut brown
4578 RAL 8011 17 79 000 0029
Coding keys for female connectors
Coding Code Colour Part
key number number
All codings are in acc. to the IEC 61076-4-101 specification
Bold part numbers are prefered types
Page 29
29
the 2.0mm hard metric system from HARTING
VME64x configuration
The VMEb us has ev olved ov er a period of more than 15 years to become the leading bus architecture in open industrial applications. The specification is an ANSI norm the original specification has been extended to become a draft standard VME64x ANSI/VITA 1.1-1997. This draft standard includes the specification for the new 5-row DIN compatible connector (IEC 61076-4-113) and for a center connector J0/P0 on 6U VME cards, which is identi­cal to J3/P3 in CompactPCI
®
systems.
The 2.0 mm J0/P0 connector in VME64x systems is used for additional I/O, for new high speed sub busses or I/O for mezzanine modules, e.g. IP modules on VMEbus boards. The connector is placed on the Eurocard to work in combination with the non-metric original VMEbus connectors or the newer 5-row connector. The mounting location and dimensions for the J0/P0 VMEbus connector (IEC 61076-4-101) is specified in IEEE 1101.11. The VMEbus 2.0 mm connector uses 5 columns of signal contacts and as an optional has an additional outer column on either side for shielding. All 95 signal contacts are user defined.
In VMEbus systems it is possible to use custom connectors in the J0/P0 area (e.g.coax connectors). To prevent problems with non-mating backplanes it is strongly recommended to use front panel keying. The IEEE 1101 documents J0/P0 can also be used with rear transition modules for pluggable I/O cabling. As mentioned above the contacts on this connector may be bussed.One example is the ATM CellBus, which is in the process of being standar­dised. The bus on J0/P0 connectors might actually be a plug-on mezzanine backplane rather than con­ducting traces integrated into the backplane itself.
Page 30
30
Number Contact length [mm]
of mating termination
Identification contacts side side Part number Contact configuration
Type B Male connectors, straight
Type B VME J0
95 8.2 3.7
17 05 095 1201
17 05 095 2201
Type B VME J0
133
8.2/
3.7
17 05 133 1201
11.2 17 05 133 2201
C
Thin printed part numbers: performance level 1
Bold printed part numbers: performance level 2
Contact dimensions [mm]
Type B VME J0
133
9.7/
3.7
17 05 133 1203
11.2 17 05 133 2203
Type B VME J0
95 8.2 13.0
17 05 095 1401
17 05 095 2401
ontact dimensions
Pin type
Level 2
Level 3
Level 1
Length for mating
Datum plane depth
Page 31
31
Contact length [mm]
No.of termination
Identification contacts side Part number
Type B
95 3.4
17 25 095 1101
VME P0 17 25 095 2101 Type B,
95 3.4
17 25 095 1102
VME P0 with pre-installed upper shield 17 25 095 2102
Type B Female connectors, angled
Thin printed part numbers: performance level 1
Bold printed part numbers: performance level 2
Dimensions [mm]
Contact
positions
x
1
x
2
19 37.9 18 x 2 (= 36)
Without shielding With shielding
Position
Position
Row
Position
Board drillings Board drillings
Row
Position
Row
Row
All holes
All holes
Page 32
32

Tooling

Press-in Tools
C.P.M. 2001/a:
The most advanced high speed assembling machine.
C.P.M. 2001/s:
Semi-automatic for applications up to:100 kN
Other tools on request
To press in the har-bus®HM connector, an insert block is used (see the pictures on the left).This block can be put into the connector manually or automati­cally. To start the press in process, the operator pushes a flat die on the insert block.The ease of this method reduces cost because no special tools are necessary.
The insert block 1799000 0001 e.g. can be used for the types A, C and Monoblock 47.
Part number connector Quantity and part number insert block 17 01 xxx xxxx, type A or 1 x 17 99 000 0009
or 2 x 17 99 000 0001 17 04 xxx xxxx, type B or 1 x 17 99 000 0004 17 05 xxx xxxx, type B or 1 x 17 99 000 0002 17 02 xxx xxxx, type B or 1 x 17 99 000 0003 17 03 xxx xxxx, type C or 1 x 17 99 000 0001 17 06 xxx xxxx, type Monoblock 47 or 1 x 17 99 000 0008
or 1 x 17 99 000 0001 and 1 x 17 99 000 0005 17 11 xxx xxxx, type D or 1 x 17 99 000 0006 17 12 xxx xxxx, type E or 1 x 17 99 000 0007
Page 33
33
HARTING customer request form
If you need a specially loaded connector for y our application please use this request form.Fill out the drawing for the desired connector style and mark each position with the required contact length (A, B, …, S, T).
Name:
Company:
Address:
Phone:
Fax:
E-Mail:
Performance level: nn 1 nn 2
Drawing: nn yes nn no
Samples: nn no nn yes, quantity
Volume (pcs./year):
Special requirements:
Type A
Type B (19, 22 or 25 positions) Type C
Type Monoblock 47
C
Contact dimensions [mm]
ontact dimensions
Pin type
Level 2
Level 3
Level 1
Datum plane depth
Length for mating
Page 34
34
List of part numbers
Part number Page
17 01 100 1001 11 17 01 100 1201 11
17 01 100 2001 11 17 01 100 2201 11
17 01 110 1201 9 17 01 110 1204 9 17 01 110 1402 10
17 01 110 2201 9 17 01 110 2204 9 17 01 110 2402 10
17 01 154 1001 10 17 01 154 1201 9 17 01 154 1203 10 17 01 154 1204 10 17 01 154 1205 9
17 01 154 2001 10 17 01 154 2201 9 17 01 154 2203 10 17 01 154 2204 10 17 01 154 2205 9
17 02 125 1201 13 17 02 125 2201 13
17 02 175 1201 13 17 02 175 1202 13
17 02 175 2201 13 17 02 175 2202 13
17 03 055 1201 18 17 03 055 1202 18 17 03 055 1401 19
17 03 055 2201 18 17 03 055 2202 18 17 03 055 2401 19
17 03 077 1001 19 17 03 077 1201 18 17 03 077 1202 18
17 03 077 2001 19 17 03 077 2201 18 17 03 077 2202 18
17 04 110 1201 13 17 04 110 2201 13
17 04 132 1001 14 17 04 132 1201 15
17 04 132 2001 14 17 04 132 2201 15
Part number Page
17 04 154 1201 14 17 04 154 1203 14 17 04 154 1204 14 17 04 154 1601 15
17 04 154 2201 14 17 04 154 2203 14 17 04 154 2204 14 17 04 154 2601 15
17 05 095 1201 15 17 05 095 1201 30 17 05 095 1401 16 17 05 095 1401 30
17 05 095 2201 15 17 05 095 2201 30 17 05 095 2401 16 17 05 095 2401 30
17 05 133 1201 15 17 05 133 1201 30 17 05 133 1203 16 17 05 133 1203 30
17 05 133 2201 15 17 05 133 2201 30 17 05 133 2203 16 17 05 133 2203 30
17 06 220 1201 25 17 06 220 1202 25
17 06 220 2201 25 17 06 220 2202 25
17 06 232 1201 26 17 06 232 2201 26
17 06 308 1001 26 17 06 308 1201 25 17 06 308 1202 26 17 06 308 1203 26 17 06 308 1204 25
17 06 308 2001 26 17 06 308 2201 25 17 06 308 2202 26 17 06 308 2203 26 17 06 308 2204 25
17 11 176 1201 21 17 11 176 2201 21
17 11 220 1001 21 17 11 220 1201 21
17 11 220 2001 21 17 11 220 2201 21
Part number Page
17 12 200 1201 22 17 12 200 2201 22
17 12 250 1001 22 17 12 250 1201 22
17 12 250 2001 22 17 12 250 2201 22
17 21 000 4102 12
17 21 090 1103 12 17 21 090 2103 12
17 21 110 1101 12 17 21 110 1102 12
17 21 110 2101 12 17 21 110 2102 12
17 22 000 4102 17
17 22 125 1101 17 17 22 125 1102 17
17 22 125 2101 17 17 22 125 2102 17
17 23 000 4102 12 17 23 000 4102 20 17 23 000 4102 27
17 23 055 1101 20 17 23 055 1102 20
17 23 055 2101 20 17 23 055 2102 20
17 24 000 4102 17 17 24 000 4102 27
17 24 110 1101 17 17 24 110 1102 17
17 24 110 2101 17 17 24 110 2102 17
17 25 000 4102 17
17 25 095 1101 17 17 25 095 1101 31 17 25 095 1102 17 17 25 095 1102 31
17 25 095 2101 17 17 25 095 2101 31
Part number Page
17 25 095 2102 17 17 25 095 2102 31
17 26 000 4102 27
17 26 200 1103 27 17 26 200 2103 27
17 26 220 1101 27 17 26 220 1102 27
17 26 220 2101 27 17 26 220 2102 27
17 29 000 4102 12 17 29 000 4102 27
17 79 000 0010 28 17 79 000 0011 28 17 79 000 0012 28 17 79 000 0013 28 17 79 000 0014 28 17 79 000 0015 28 17 79 000 0016 28 17 79 000 0017 28 17 79 000 0018 28 17 79 000 0019 28 17 79 000 0020 28 17 79 000 0021 28 17 79 000 0022 28 17 79 000 0023 28 17 79 000 0024 28 17 79 000 0025 28 17 79 000 0026 28 17 79 000 0027 28 17 79 000 0028 28 17 79 000 0029 28
17 99 000 0001 32 17 99 000 0002 32 17 99 000 0003 32 17 99 000 0004 32 17 99 000 0005 32 17 99 000 0006 32 17 99 000 0007 32 17 99 000 0008 32 17 99 000 0009 32
Page 35
MO/27.08.99/4.0 98 51 033 0201
HARTING – Subsidiary companies
Foreign representatives Production plants
Portugal UNIMAQUE ELÉCTRONICA E ELECTRICIDADE INDUSTRIAL, LDA. Rua Augusto Gil, 22-B, P-1000 Lisboa Tel. +35 11 / 7966732 / 85 Fax +35 11/ 7 960924
South-Africa Bowthorpe Hellermann (Pty) Ltd. P. O. Box 27063, ZA-2011 Johannesburg TVL Tel. +27 11 / 616-1960 Fax +27 11/ 6 16-4715
South-Afr
ica Allcable (Pty) Ltd. P.O.Box 13518, Witfield 1467, R.S. A. Tel. +27 11 / 8453325, Fax +27 11 /84540 77
World Headquarters
HARTING KGaA P.O.Box 1133 · D-32325 Espelkamp Tel. +49 57 72 /47-0 Fax +495772/47-462/-495 E-Mail: [email protected] Internet: http://www.HARTING.com
A
ustralia
Denmark Knud Wexøe A/S Skaettekaeret 11, P.O.Box 152 DK-2840 Holte Tel. +45 45 46 5800, Fax +45 45465801 E-Mail: [email protected]
India Sahajanand Impex Pvt. Ltd. Acharya Donde Marg, Opp.Thakre Udyan Sewree, Mumbai, 400015 Tel. +91 22 / 4135151 Fax +91 22/ 4 147820 E-Mail: [email protected]
Espelkamp, Germany, plant 1–4 Northampton, Great Britain Biel, Switzerland Chicago, USA China
A
ustr
ia HARTING Ges.m. b. H. Deutschstraße 3, A-1230 Wien Tel. +43 1 / 6162121 Fax +43 1/ 6 162121-21 E-Mail: [email protected]
Belgium N.V. HARTING S.A. Doornveld 8, B-1731 Zellik Tel. +32 2 / 4660190, Fax +32 2/46678 55 E-Mail: [email protected]
Br
azil HARTING Ltda. Av. Dr. Lino de Moraes Leme 255 - ZIP Code 04360-001 - São Paulo - Brazil Tel. (011) 536 00 73, Fax (011) 5 33 4743 E-Mail: [email protected]
China HARTING (HK) Limited Shanghai Representative Office Room 2302, Hong Kong Plaza South Tower 283 Huai Hai Road (M), Shanghai 200021, China Tel. +86 (21)/63 90 6935 Fax +86 (21)/6390 63 99 E-Mail: [email protected]
Cz
ech Republic HARTING spol. s.r.o. Jankovcova 2, 17088 Praha 7 Tel. +420 / 2667841 52 Fax +420 / 2 66784159 E-Mail: [email protected]
Finland HARTING KGaA, Office Finland Malmin Kauppatie 8 A 3, FIN-00700 Helsinki Tel. +35 9 35 087300, Fax +35 93508 7320 E-Mail: [email protected]
F
rance HARTING France ZAC Paris Nord II, 181, av. des Nations B.P. 60058 F-95972 Roissy Charles de Gaulle Cedex Tel. +33(0)14938 34 00 Fax +33(0)1486323 06 E-Mail: [email protected]
Ger
many HARTING Vertrieb für Steckverbinder und Systemtechnik GmbH & Co.KG Postfach 2451, D-32381 Minden Tel. +49 5 71 /8896- 0 Fax +49 571 / 8896-2 82 E-Mail: [email protected]
Great Britain HARTING Ltd. Caswell Road, Brackmills Industrial Estate GB-Northampton, NN4 7PW Tel. +44 16 04 /766686 Fax +44 1604 / 706777 E-Mail: [email protected]
Hong K
ong HARTING (HK) Limited 4208 Metroplaza Tower I, 223 Hing Fong Road Kwai Fong, N.T., Hong Kong Tel. +852/ 24 237338, Fax +852/24 80 4378 E-Mail: [email protected]
Italy HARTING SpA Via Dell' Industria 7 I-20090 Vimodrone (Milano) Tel. +39 02 / 250801, Fax +39 02/ 2 650597 E-Mail: [email protected]
J
apan HARTING K. K. German Industry Center 407 1-18-2, Hakusan Midori-ku, Y okohama 226-0006, Japan Tel. +81 45 / 931-5715, Fax +81 45/ 9 31-5719 E-Mail: [email protected]
K
orea HARTING Korea Limited Room 103, Shinwon Plaza Building 28-2 Hannam-Dong, Yongsan-Ku Seoul 140-210 Tel. +82 (2)/37 80 4614 Fax +82 (2)/3780 46 44 E-Mail: [email protected]
Nether
lands HARTING B.V. Larenweg 44, NL-5234 KA's-Hertogenbosch Postbus 3526, NL-5203 DM's-Hertogenbosch Tel. +31 73 / 6410404, Fax +31 73/64406 99 E-Mail: [email protected]
Norw
ay HARTING A/S Østensjøveien 36, N-0667 Oslo Tel. +47 22 / 647590, Fax +47 22/ 64 7393 E-Mail: [email protected]
Russia HARTING ZAO ul.Tobolskaja 12 Saint Petersburg, 194044 Russia Tel. +7/812/3276477 Fax +7/812 / 3276478 E-Mail: [email protected]
Singapore HARTING Singapore Pte Ltd. 25 International Business Park #04-05 German Centre Singapore 609916 Tel. +65 5 62 /8190, Fax +65 562/ 8199 E-Mail: [email protected]
Spain HARTING Elektronik S.A. Josep Tarradellas 20-30 3o5
a
E-08029 Barcelona Tel. +34 93 / 3638484 Fax +34 93/ 4 199585 E-Mail: [email protected]
Sw
eden HARTING AB Fagerstagatan 18 A, 5 TR., S-16353 Spånga Tel. +46 8 / 4457171, Fax +46 8/44571 70 E-Mail: [email protected]
Switz
erland HARTING AG Industriestrasse 26, CH-8604 Volketswil Tel. +41 1 / 9460966, Fax +41 1/94609 70 E-Mail: [email protected]
T
aiwan HARTING R.O.C. Limited 7thFloor, Fu Hsin Financial Building 222, Fu Hsin S. Road, Sec. 1, Taipei Tel. +886 (2)/ 87 738577, Fax +886 (2)/87 73 8576 E-Mail: [email protected]
USA HARTING Inc. of North Amer ica 1370 Bowes Road, Elgin, IL 60123 Tel. 847/ 7 41-1500, Fax 847 /741-82 61 E-Mail: [email protected]
Easter
n-Europe HARTING Bauelemente GmbH Vertrieb Osteuropa Bamberger Straße 7, D-01187 Dresden Tel. +49 3 51 /43617 60 Fax +49 351 / 4361770 E-Mail: [email protected]
South-Eastern-Europe and other foreign countries HARTING KGaA P.O.Box 1133, D-32325 Espelkamp Tel. +49 57 72 /47-0 Fax +495772/47-462/-495 E-Mail: [email protected]
Page 36
HARTING KGaA
Marienwerderstraße 3 · D-32339 Espelkamp
P.O. Box 1133 · D-32325 Espelkamp
%
+49 5772/ 47-0 · Fax +49 5772/47-462
E-Mail: [email protected]
Internet: http://www.HARTING.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
