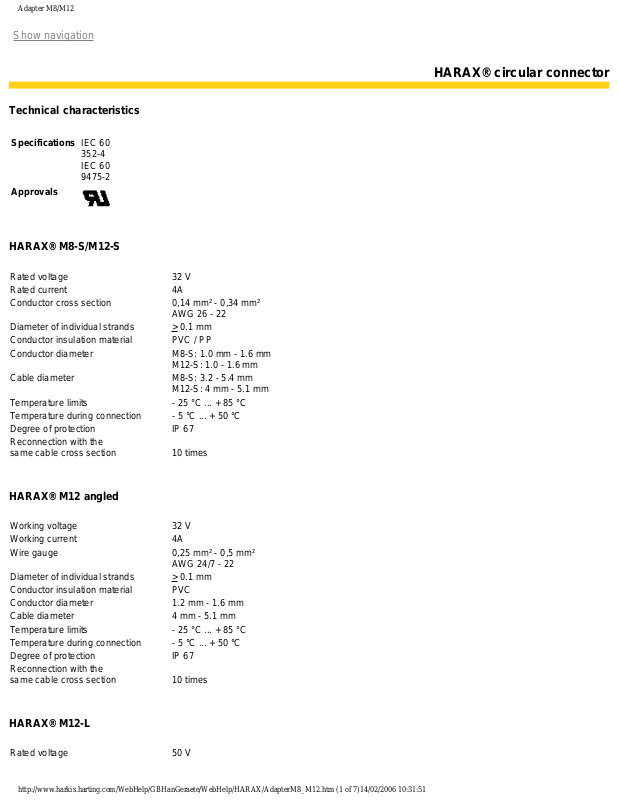

Adapter M8/M12
Show navigation
HARAX® circular connector
Technical characteristics
Specifications
IEC 60
352-4
IEC 60
9475-2
Approvals
HARAX® M8-S/M12-S
Rated voltage 32 V
Rated current 4A
Conductor cross section 0,14 mm² - 0,34 mm²
AWG 26 - 22
Diameter of individual strands
> 0.1 mm
Conductor insulation material PVC / PP
Conductor diameter M8-S: 1.0 mm - 1.6 mm
M12-S: 1.0 - 1.6 mm
Cable diameter M8-S: 3.2 - 5.4 mm
M12-S: 4 mm - 5.1 mm
Temperature limits - 25 °C ... + 85 °C
Temperature during connection - 5 °C ... + 50 °C
Degree of protection IP 67
Reconnection with the
same cable cross section
10 times
HARAX® M12 angled
Working voltage 32 V
Working current 4A
Wire gauge 0,25 mm² - 0,5 mm²
AWG 24/7 - 22
Diameter of individual strands
> 0.1 mm
Conductor insulation material PVC
Conductor diameter 1.2 mm - 1.6 mm
Cable diameter 4 mm - 5.1 mm
Temperature limits - 25 °C ... + 85 °C
Temperature during connection - 5 °C ... + 50 °C
Degree of protection IP 67
Reconnection with the
same cable cross section
10 times
HARAX® M12-L
Rated voltage 50 V
http://www.harkis.harting.com/WebHelp/GBHanGeraete/WebHelp/HARAX/AdapterM8_M12.htm (1 of 7)14/02/2006 10:31:51
Adapter M8/M12
Rated current 6 A
Conductor cross section 0.34 mm² - 0.75 mm²
AWG 22 - 18
Diameter of individual strands
> 0.1 mm
Conductor insulation material PVC
Conductor diameter 1.6 mm - 2.0 mm
Cable diameter 5.5 mm - 8 mm
Temperature limits - 25 °C ... + 85 °C
Temperature during connection - 5 °C ... + 50 °C
Degree of protection IP 67
Reconnection with the
same cable cross section
10 times
HARAX® M12-L screened version
Ethernet, D-coded Profibus
Rated voltage 32 V 32 V
Rated current 4 A 4 A
Conductor cross section 0.25 mm² - 0.34 mm²
AWG 24-22
0.25 mm² - 0.34 mm²
AWG 24-22
Diameter of individual strands
> 0.1 mm > 0.1 mm
Conductor cross section of Solid
wire
Result pending AWG 22/1
Conductor insulation material PVC PVC
Conductor diameter 1.2 mm - 1.6 mm 2.0 mm - 2.6 mm
Cable diameter 5.5 mm - 7.2 mm 7 mm - 8.8 mm
Temperature limits - 25 °C ... + 85 °C - 25 °C ... + 85 °C
Temperature during connection - 5 °C ... + 50 °C - 5 °C ... + 50 °C
Degree of protection IP 67 IP 67
Coding d-coding b-coding / reverse key
Reconnection with the
same cable cross section
10 times
10 times
Transmission characteristics acc. to DIN EN 50 173 -
M12-L A-coded
Adapter M12-RJ45
Rated voltage 32 V Rated current 4A Conductor cross section 0,25 mm² - 0,34 mm²
AWG 24 - 22
-
Diameter of individual strands
> 0.1 mm Conductor cross section of Solid wire Works with AWG 22/1 Conductor insulation material PVC Conductor diameter 1.6 mm - 2.0 mm Cable diameter 7.0 mm - 8.8 mm Working temperature - 25 °C ... + 85 °C - 25 °C ... + 85 °C
Temperature during connection - 5 °C ... + 50 °C - 5 °C ... + 50 °C
Degree of protection IP 67 IP 65 / 67
Coding a-coding Number of terminations with
same cable cross section
10
10
Transmission characteristics acc. to - DIN EN 50 173
http://www.harkis.harting.com/WebHelp/GBHanGeraete/WebHelp/HARAX/AdapterM8_M12.htm (2 of 7)14/02/2006 10:31:51
Adapter M8/M12
HF Properties
acc. to DIN EN 50173
1= Limit acc. to DIN EN 50173, Category 5
2= Pin allocation diagonal wire pair 1/3 <-> 2/4
3= Pin allocation diagonal wire pair 2/4 <-> 1/3
Derating Diagramme
The current carrying capacity is limited by maximum temperature of materials for insert and contacts including terminals. The current capacitycurve is valid for continuous, not interrupted current-loaded contacts of connectors when simultaneous power on all contacts is given, without
exceeding the maximum temperature.
Control and test procedures according to DIN IEC 60512-3.
M8-S, 4 poles
M12-S, 4 poles
http://www.harkis.harting.com/WebHelp/GBHanGeraete/WebHelp/HARAX/AdapterM8_M12.htm (3 of 7)14/02/2006 10:31:51
Adapter M8/M12
1 = wire gauge 0,25 mm²
2 = wire gauge 0,34 mm²
M12, 4 poles, angled
1 = wire gauge 0,25 mm²
2 = wire gauge 0,5 mm²
http://www.harkis.harting.com/WebHelp/GBHanGeraete/WebHelp/HARAX/AdapterM8_M12.htm (4 of 7)14/02/2006 10:31:51
Adapter M8/M12
M12-L, 4 poles
M12-L, shielded
1 = wire gauge 4 x 0,34 mm²
2 = wire gauge 4 x 0,75 mm²
Assembly manual HARAX®
1. Strip cable
2. Assemble HARAX® elements
3. Cut off cable ends
4. Screw connector
(1) Nut
(2) Strain relief
(3) Insert
Screw the nut onto the insert until a stop is noticeable.
Note!
For reconnection cut off the used cable ends and repeat steps 1 to 4.
http://www.harkis.harting.com/WebHelp/GBHanGeraete/WebHelp/HARAX/AdapterM8_M12.htm (5 of 7)14/02/2006 10:31:51
Adapter M8/M12
Assembly instruction for shielded HARAX® M12-L
1. Strip cable
2. Assemble HARAX® elements,
twist screening braid and push it into the sealing slot
3. Slide ring over the sealing
cut off cable ends and the screening braid.
4. Screw the connector
(1) Nut
(2) Strain relief
(3) Insert
Note!
For reconnection cut off the used cable end and repeat steps 1 to 4.
http://www.harkis.harting.com/WebHelp/GBHanGeraete/WebHelp/HARAX/AdapterM8_M12.htm (6 of 7)14/02/2006 10:31:51
Adapter M8/M12
