HARDT Inferno 24 Reference Manual

EFFECTIVE 2006 /06 INF-24 REF-MANL

CUSTOMER SERVICE 1-800 38 ROTIS

1

HARDT EQUIPMENT MANUFACTURING INC. 2025 52 AVE., LACHINE (MONTREAL), QUEBEC, CANADA H8T3C3 TEL. [phone] FAX [phone]

INFERNO 24

REFERENCE

MANUAL

INTRODUCTION

ABOUT THIS MANUAL 4
CUSTOMER SERVICE PROGRAM 5
WARRANTY CONDITIONS 6
UL LISTING AND SAFETY WARNING 7

SPECIFICATIONS

INFERNO 24 8
LOCATION OF COMPONENTS AND CONNECTIONS 9

DELIVERY INFORMATION

PRE-SHIPPING SPECIFICATIONS 10
INVENTORY CHECKLIST 11

INSTALLATION INFORMATION

ORDER OF INSTALLATION 12
VENTING INFORMATION 12
POSITIONING OF THE ROTISSERIE 13
CONNECTION OF ELECTRICAL SUPPLY 14
INSTALLATION OF GAS SUPPLY 16
INSTALLATION OF WATER SUPPLY 16
INSTALLATION OF DRAIN 17
INSTALLATION OF OVERFLOW 17

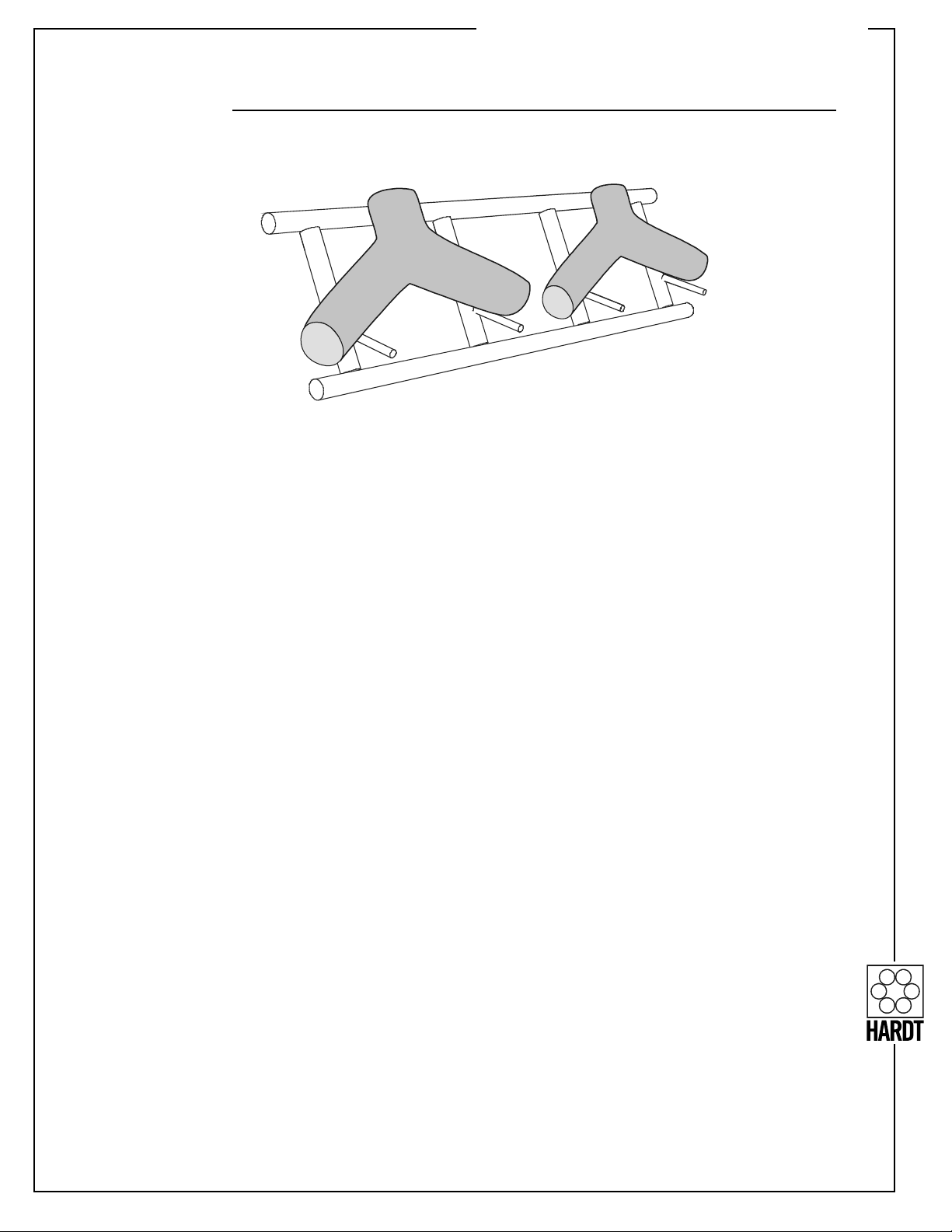

PLACEMENT OF GRATE SECTIONS & LOGS 18

OPERATION INFORMATION

PRIOR TO STARTING THE ROTISSERIE 19
MORNING STARTUP 19
PREHEATING 19
OPERATION 19
INSERTION OF SKEWERS 20
REMOVAL OF SKEWERS 21

MAINTENANCE

CLEANING THROUGHOUT THE DAY 22
CLEANING AT THE END OF THE DAY 22
MAINTENANCE EVERY MONTH 23
MAINTENANCE EVERY TWO MONTHS 23
6 MONTH PREVENTATIVE MAINTENANCE 24

TROUBLESHOOTING

25

EFFECTIVE 2006 /06 INF-24 REF-MANL

CUSTOMER SERVICE 1-800 38 ROTIS

3

HARDT EQUIPMENT MANUFACTURING INC. 2025 52 AVE., LACHINE (MONTREAL), QUEBEC, CANADA H8T 3C3 TEL. [phone] FAX [phone]

EFFECTIVE 2006 /06 INF-24 REF-MANL

INTRODUCTION

ABOUT THIS MANUAL

This manual must be retained for future reference. This manual contains information
necessary for the installation and operation of the HARDT Inferno rotisserie. To help the
reader in the utilization of this manual certain information has been highlighted using the
following convention.

SPECIFIES INFORMATION THAT REFERS TO ACTIONS WHICH MAY HAVE CON­SEQUENCES POTENTIALLY DANGEROUS TO THE OPERATOR AND/OR THE
ROTISSERIE.

Specifies information necessary for the proper installation and functioning of the
rotisserie.

Specifies additional important information

POST IN A PROMINENT LOCATION:

FOR YOUR SAFETY
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND
LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
KEEP THE AREA AROUND THE APPLIANCE FREE FROM ANY COMBUSTIBLE
MATERIAL.

IMPROPER INSTALLATION, ADJUSTMENT ALTERATION, MAINTENANCE CAN
CAUSE PROPERTY DAMAGE, INJURY OR DEATH. READ THE INSTALLATION
INSTRUCTIONS THOROUGHLY BEFORE INSTALLING OR SERVICING THIS
EQUIPMENT.

Never obstruct the flow of combustion or ventilation air.

IN THE EVENT THE USER SMELLS GAS:
SHUT OFF THE MAIN GAS VALVE TO THE BUILDING.
DO NOT TOUCH ANY ELECTRICAL APPLIANCE.
DO NOT TOUCH ANY ELECTRICAL SWITCH.
DO NOT USE ANY TELEPHONE IN YOUR BUILDING.
EXTINGUISH ANY OPEN FLAME.
IMMEDIATELY CALL YOUR GAS SUPPLIER FROM ANEIGHBOR’S PHONE.

FOLLOW THE GAS SUPPLIER’S INSTRUCTIONS.
IF YOU CANNOT REACH YOUR GAS SUPPLIER CALL THE FIRE DEPARTMENT.

CUSTOMER SERVICE 1-800 38 ROTIS

4

HARDT EQUIPMENT MANUFACTURING INC. 2025 52 AVE., LACHINE (MONTREAL), QUEBEC, CANADA H8T 3C3 TEL. [phone] FAX [phone]

CUSTOMER SERVICE PROGRAM

We at HARDT Equipment have developed a Customer Service Program to ensure fast
response time and efficient flow of information. Our authorized service companies are
required to attend a yearly training session to ensure they are up to date on the latest
information.

Here are some of the proactive steps in our Customer Service Program.

• Our authorized service companies provide service in the 50 states and Canada. All
our service companies stock parts.

• We are committed to a 4 hour service response time for units that are in a "down"
situation.

• We are available 24 hours per day, 7 days per week including holidays.

• We remind you, with a call every 6 months, to have the drive maintenance
performed.

What to do if a service issue occurs:

• FIRST call should be to HARDT technical support at 800-387-6847 (24hrs per day,
7 days per week including holidays).

• Technical support will diagnose the problem and forward specific information to our
technician. This will allow the call to be handled in more effective manner.

Please remember that during the WARRANTY period, all service calls MUST be direct­ed to Hardt for approval before contacting the service company.

EFFECTIVE 2006 /06 INF-24 REF-MANL

CUSTOMER SERVICE 1-800 38 ROTIS

5

HARDT EQUIPMENT MANUFACTURING INC. 2025 52 AVE., LACHINE (MONTREAL), QUEBEC, CANADA H8T 3C3 TEL. [phone] FAX [phone]

EFFECTIVE 2006 /06 INF-24 REF-MANL

WARRANTY CONDITIONS

HARDT EQUIPMENT MANUFACTURING WARRANTS ITS PRODUCTS TO BE FREE
FROM DEFECTS IN MATERIAL AND WORKMANSHIP UNDER NORMAL USE AND SER­VICE FOR APERIOD OF TWO YEARS FROM DATE OF ORIGINAL INSTALLATION OR 8
WEEKS AFTER THE ROTISSERIE IS SHIPPED, WHICHEVER COMES FIRST. THIS
WARRANTYIS APPLICABLE TO THE INITIALEND USER AND IS NOTTRANSFERRABLE.

Warranty is conditional on proper installation as per the instructions in the 'INSTALLA­TION INFORMA TION' section of this guide. Should the rotisserie be improperly installed
and service be required as a result, all charges will be invoiced to the individual who
requested the service. HARDT reserves the right to void the warranty if unauthorized
service is performed or if the equipment has not been paid for in full.

Warranty is conditional on proper maintenance and cleaning as per the 'MAINTENANCE'
section of this manual. Improper or insufficient maintenance or cleaning will cause
premature deterioration of components and the replacement of these will not be covered
under warranty. Please read the 'MAINTENANCE' section carefully.

Work performed under warranty must be performed by service representatives autho­rized by HARDT. Should other service companies be used, authorization must be
obtained from HARDT prior to the commencement of any service.

During the warranty period, specified parts changed by authorized service companies
must be returned to HARDT to determine if they are covered under warranty. A copy of
the service sheet explaining the problem and the corrective measure taken must be
included with the invoice along with the Return Authorization Number given by HARDT.

Warranty includes labor, material, travel expenses, and material freight charges: Labor
is limited to straight-time. Overtime charges cover only time and one half in emergen­cies when the rotisserie is completely non-operational. Travel expenses are limited to
150 miles and 2 hours travel, per call.

WARRANTY DOES NOT INCLUDE:

• Problems arising from improper use or installation; including high or low voltage, high
or low gas pressure, improper venting, and/or poor maintenance.

• Service calls pertaining to problems with temperature will be limited to those in which
the rotisserie has a malfunctioning thermostat or is experiencing insufficient heat prob­lems. Warranty will not include service calls that can be avoided by adjusting the ther­mostat and verifying the temperature in the rotisserie by the thermometer.

• Service calls pertaining to problems with adjustment, cleanliness, drying or alignment
of igniters.

• The replacement of either or both burners, the igniter, or the ceramic radiants that
were damaged as a result of contact with chemicals, liquids or solid objects.
Chemicals or liquids of any kind (including water) should NEVER come in contact with
the burners, the igniter, or the ceramic radiants.

• The replacement of the glass.

(All rotisseries are fully heat tested prior to shipment. Glass break-

age is a result of sharp, abrupt contact. Please exercise caution during operation.)

• The replacement of light bulbs.

• Lost revenue or expenses incurred due to equipment failure.

• Calls made directly to our service companies

(without an authorization number from HARDT).

SPARE PARTS WARRANTY

HARDT Equipment Manufacturing Inc, grants an operation warranty of 3 months on orig­inal HARDT spare parts. In cases of failure within this period, HARDT will supply a
replacement part.

CUSTOMER SERVICE 1-800 38 ROTIS

6

HARDT EQUIPMENT MANUFACTURING INC. 2025 52 AVE., LACHINE (MONTREAL), QUEBEC, CANADA H8T 3C3 TEL. [phone] FAX [phone]

UL LISTING AND SAFETY WARNING

The HARDT Inferno rotisserie is listed by UL, ULC, AGA, CGA, NSF and CE. The UL or
ULC label is the only evidence provided by UL or ULC to identify products manufactured
under the respective listing and follow up service programs. Consult the authority hav­ing jurisdiction to determine what regulations are in force for appliances of this type.

POST IN APROMINENT LOCA TION THE INSTRUCTIONS T O BE FOLLOWED IN THE
EVENT THE USER SMELLS GAS. THIS INFORMATION SHOULD BE AVAILABLE
FROM YOUR LOCAL GAS SUPPLIER.

FOR YOUR SAFETY!
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND
LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.

KEEP THE AREA AROUND THE APPLIANCE FREE FROM ANY COMBUSTIBLE
MATERIAL.

IMPROPER INST ALLATION, ADJUSTMENT, AL TERATION, OR MAINTENANCE CAN
CAUSE PROPERTY DAMAGE, INJURY OR DEATH. READ THE INSTALLATION
INSTRUCTIONS THOROUGHLY BEFORE INSTALLING OR SERVICING THIS
EQUIPMENT.

AN ADEQUATE AIR SUPPLY MUST BE SUPPLIED TO THE UNIT AT ALL TIMES
DURING THE OPERATION TO ENSURE A PROPER FLOW OF COMBUSTION AND
VENTILA TION AIR.

IF YOU SMELL GAS CALL YOUR LOCAL GAS SUPPLIER.

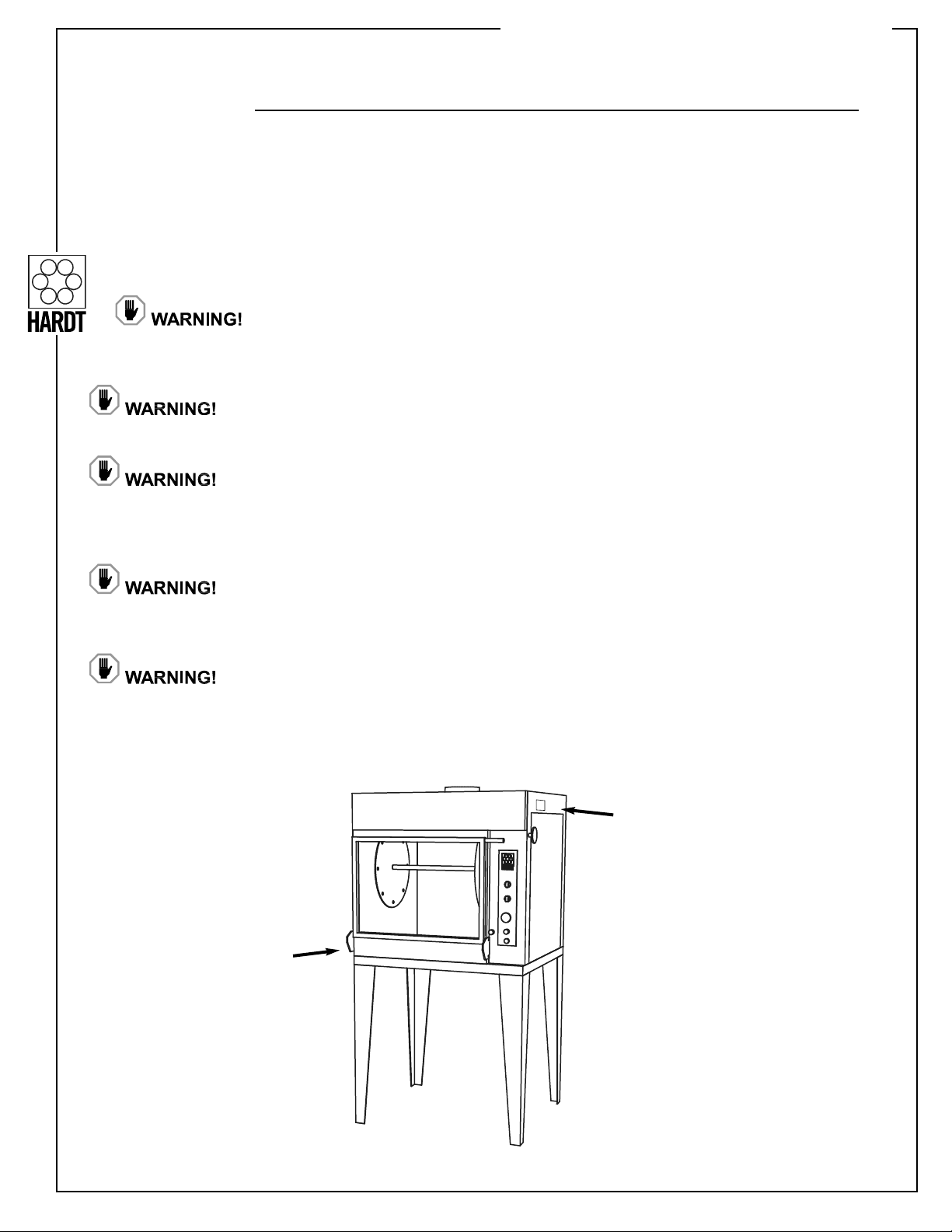

The rotisserie’s identification plate and serial number can be found as shown below.

EFFECTIVE 2006 /06 INF-24 REF-MANL

CUSTOMER SERVICE 1-800 38 ROTIS

7

HARDT EQUIPMENT MANUFACTURING INC. 2025 52 AVE., LACHINE (MONTREAL), QUEBEC, CANADA H8T 3C3 TEL. [phone] FAX [phone]

SERIAL NUMBER PLATE

IDENTIFICATION PLATE

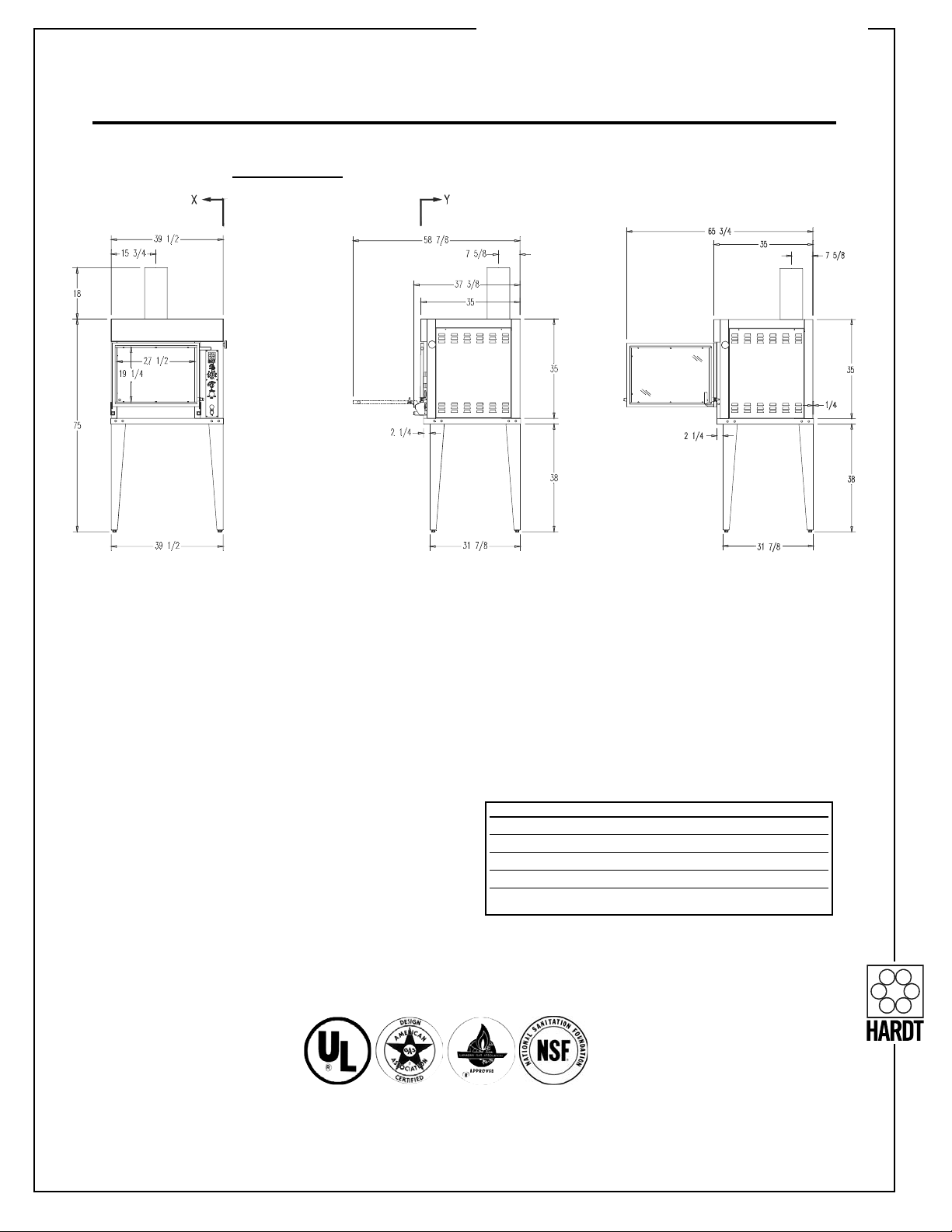

SPECIFICATIONS

INFERNO 24

CUSTOMER SERVICE 1-800 38 ROTIS

DROP-DOWN DOOR SWING DOOR

CONNECTIONS:
Gas: Minimum supply pressure:

SHIPPING WEIGHT:

Approx. 1130 lbs.
Natural: 7" WC
Propane: 11" WC

Manifold pressure:

Natural: front: 4½" WC

rear: 4" WC

Propane: front: 10" WC

CLEARANCES:

Control side (right): 3" for units with casters or 12" for

units without casters to allow access to motor.

Opposite side (left): 3"

Back: 3"

rear: 10" WC

Maximum rating: 120,000 Btu/h
Connection: ¾" NPT male

Electrical: 120V 1PH 60Hz 7.5A
Venting: Free vent under hood / canopy
Water Inlet: ½" NPT coupling

(preferably hot water)

Drain and Overflow: 1½" NPT connection

Hardt improves its products continuously and reserves the right to change specifications without notice.

FEATURE X Position Y Position Elevation
Drain Connection 34 ½ 4
Electrical Connection 3 16
Gas Connection 66
Overflow Connection 28 ½ 4
Water Inlet Connection 42240

All measurements are in inches.

1

/

8

3

/

8

5

/

8

1

/

8

40
40
40
40

8

HARDT EQUIPMENT MANUFACTURING INC. 2025 52 AVE., LACHINE (MONTREAL), QUEBEC, CANADA H8T 3C3 TEL. [phone] FAX [phone]

EFFECTIVE 2006 /06 INF-24 REF-MANL

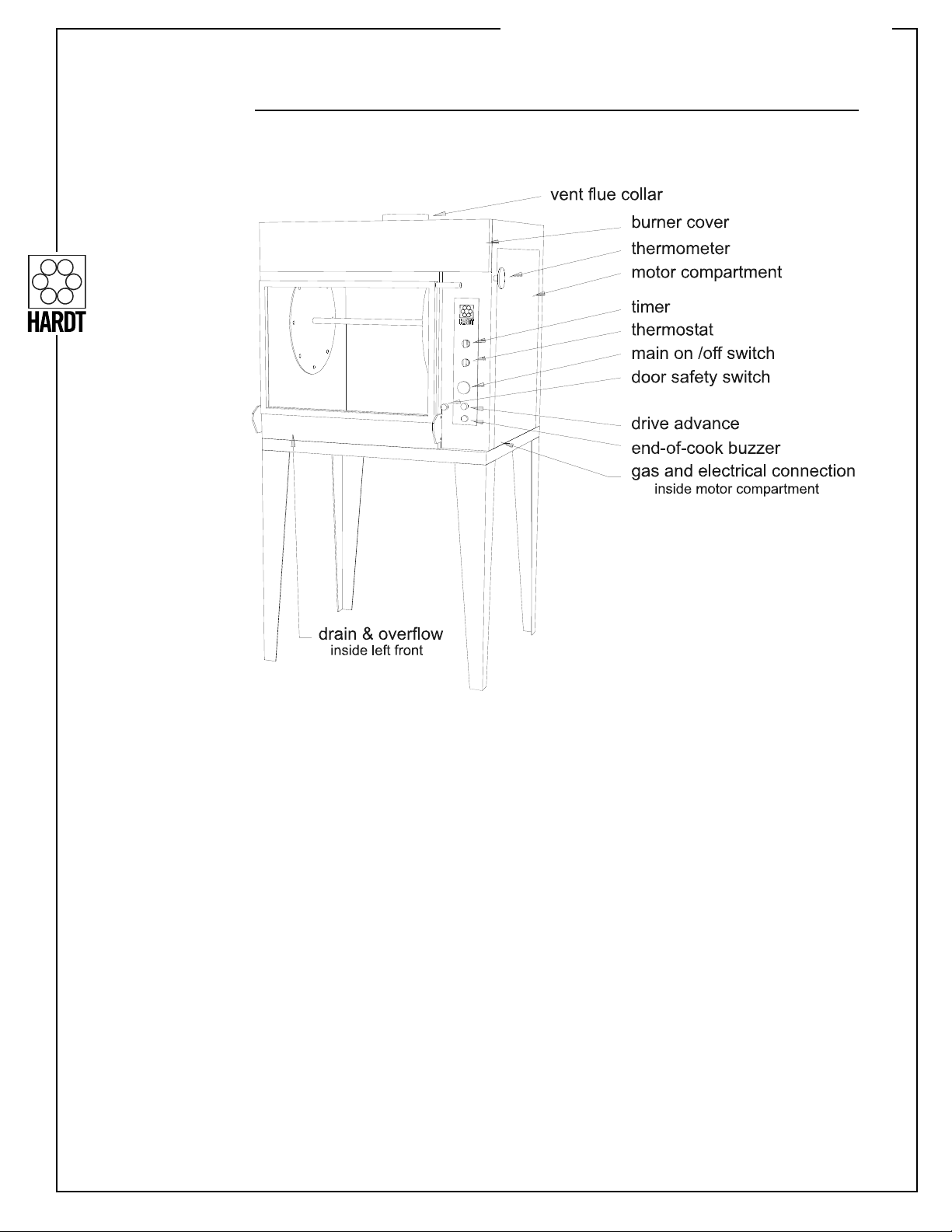

LOCATION OF COMPONENTS AND CONNECTIONS

NOT VISIBLE

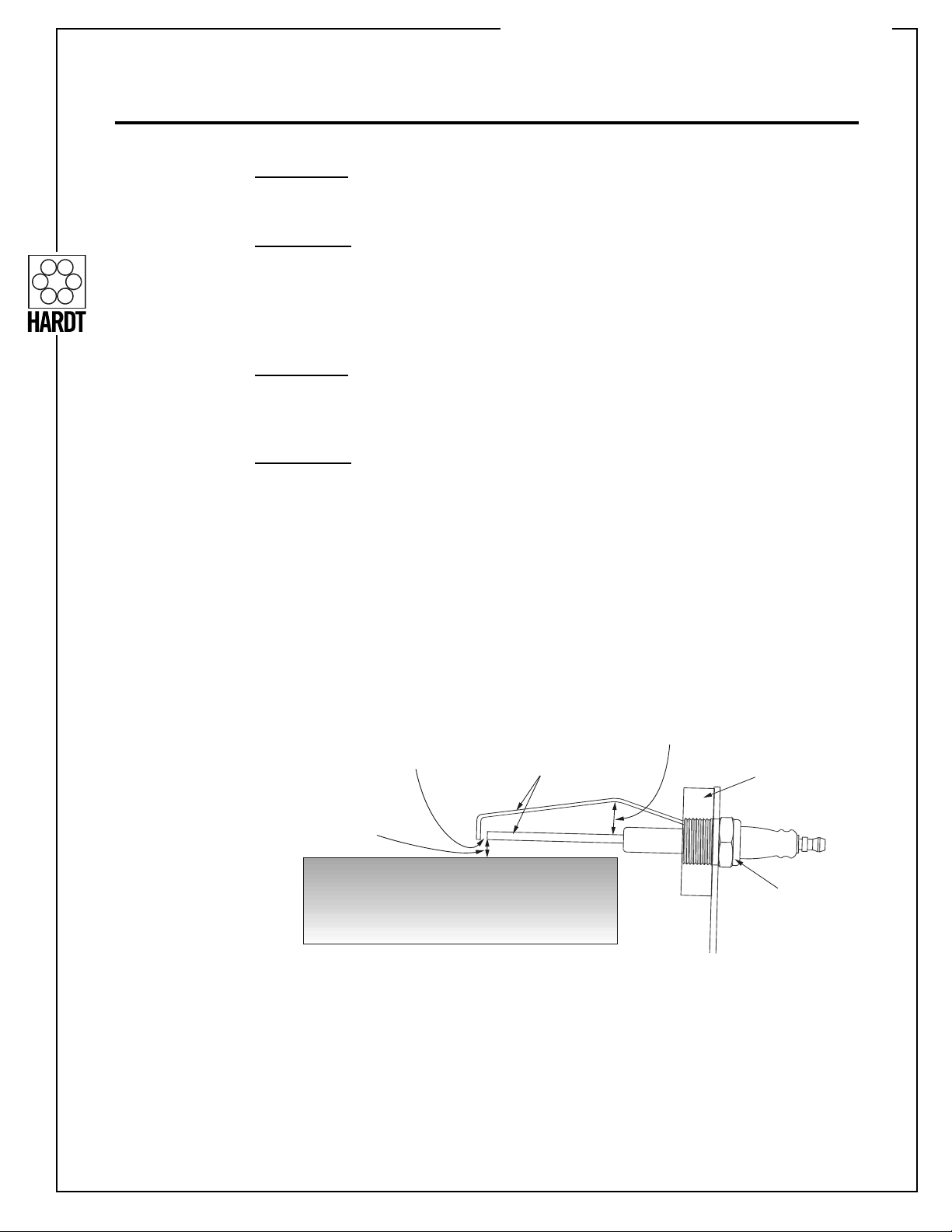

IGNITERS: Igniter for I/R burner located in the right top front corner of the cooking

compartment. The igniter for rear burner is located at the rear right of
the cooking compartment just behind the water pan.

EFFECTIVE 2006 /06 INF-24 REF-MANL

CUSTOMER SERVICE 1-800 38 ROTIS

9

HARDT EQUIPMENT MANUFACTURING INC. 2025 52 AVE., LACHINE (MONTREAL), QUEBEC, CANADA H8T 3C3 TEL. [phone] FAX [phone]

EFFECTIVE 2006 /06 INF-24 REF-MANL

DELIVERY INFORMATION

PRE-SHIPPING INFORMATION

The information below is designed to prepare the general contractor for the arrival of the
HARDT Inferno Rotisserie. Please ensure that the appropriate personnel have reviewed
this information prior to the rotisserie’s arrival.

It is very important to note that the rotisserie crate should be received as “Subject
to Verification” (i.e., write it on the waybill when signing for the shipment), as you
will only be uncrating it after the transport truck has left. This will allow you the
opportunity to make a claim against the transport firm should the rotisserie or its
components have been damaged in transit.

To remove the rotisserie from the truck you will require a forklift. The transport company
will call 24 hours prior to delivery to allow for preparation.

TAKE CARE WHEN HANDLING THE CRATE AS IT IS TOP HEAVY.

THE UNIT SHOULD BE DRAGGED AS LITTLE AS POSSIBLE AS THIS MAY CAUSE
VIBRATIONS THAT MAY DAMAGE THE ELECTRONIC IGNITION SYSTEM.

DIMENSIONS / WEIGHTS:

Crated with Accessories: 88” H x 48” W x 44” D Approx. 1130 lbs
FOB Montreal.

The rotisserie door may need to be removed from the crate for it to enter through a stan­dard doorway. See the SPECIFICATIONS section for precise dimensions.

Please do not uncrate the rotisserie until ready to install in order to prevent the loss of
any parts or accessories shipped with the unit. An inventory checklist is provided on
page 12 to help you verify the contents of the shipment. Call HARDT if you have any
questions.

To connect the rotisserie once it is in position you will require:

1) AN ELECTRICIAN

2) THE LOCAL GAS COMPANY

3) A PLUMBER (If permanently connected)

Please refer to the 'INSTALLATION INFORMATION' section for the order in which the
rotisserie is to be connected once it is in place, as well as other important installation
information.

If you require any information in addition to that described above please contact a
Customer Service Representative at the above Customer Service 1-800 number.

CUSTOMER SERVICE 1-800 38 ROTIS

10

HARDT EQUIPMENT MANUFACTURING INC. 2025 52 AVE., LACHINE (MONTREAL), QUEBEC, CANADA H8T 3C3 TEL. [phone] FAX [phone]

INVENTORY CHECKLIST

The Inferno rotisserie is shipped with its accessories packed as described below . Please
verify that all the components listed have arrived in good condition after transport. The
inventory checklist is intended to clarify what parts have been shipped and where they
can be located.

Skewers:

Inside the main rotisserie compartment (# of pieces depends on quantity ordered).

[ ]
Cleaning shield: Inside the main rotisserie compartment [ ]
Firepit:

Inside the main rotisserie compartment

[ ]
Flue 18": Inside the main rotisserie compartment [ ]
Plumbing parts (installed) [ ]
Reference manual (taped to shaft) [ ]

Logs:

Inside accessory box

[ ]
Strainer:

Inside accessory box [ ]

Brushes for cleaning: Inside accessory box (if ordered) [ ]

If you require any information in addition to that described in this guide please contact a
Customer Service Representative at the above Customer Service 1-800 number.

EFFECTIVE 2006 /06 INF-24 REF-MANL

CUSTOMER SERVICE 1-800 38 ROTIS

11

HARDT EQUIPMENT MANUFACTURING INC. 2025 52 AVE., LACHINE (MONTREAL), QUEBEC, CANADA H8T 3C3 TEL. [phone] FAX [phone]

EFFECTIVE 2006 /06 INF-24 REF-MANL

INSTALLATION INFORMATION

ORDER OF INSTALLATION

Warranty is conditional on proper installation as per the instructions in this section.
Should the rotisserie be improperly installed and service be performed, all charges will
be invoiced to the individual who requested the service. Please call our Customer
Service department if you have any questions whatsoever.

1. Install the ventilation hood or the ducting for a direct venting setup.

2. Place the HARDT Inferno rotisserie in position as described on the following page.

3. Connect the gas, electricity, and plumbing to the rotisserie.

VENTING INFORMATION

The INFERNO rotisserie is designed to be direct vented or to be used with a hood /
canopy type vent. Please contact a hood supplier that manufactures hoods that conform
to YOUR design as well as local codes. In either case the INFERNO rotisserie is
equipped with an 18” long by 8” diameter flue riser that is necessary for proper opera­tion.

The HARDT INFERNO rotisserie must vent freely. Do not install the hood and
make-up air in a way that air is being blown into or pulled out of the rotisserie.
Either of these events will greatly affect the rotisserie’s operation. The hood
should remove the exhaust gases without disturbing the air within the rotisserie.

Hood Specification Recommendations

We recommend a Type 1 / Class Agrease hood with filters. It is normally equipped with
a fire suppression system. Per local authorities and codes, NFPA 96 recommends that
all rotisseries that produce grease laden vapors should be vented to a Type 1 / Class A
hood. Other equipment that would fall into this category would be fryers and griddles.

The hood should have at least 12" of overhang canopy on sides and front (this may vary
as per local code).

The lower lip of the canopy should be no more than 6 inches above the top of the
unit. If the clearance exceeds this dimension it may allow drafts which will
interfere with the unit's operation and efficiency.

If the unit is installed on casters, so as to be mobile for service, ensure that the
fire suppression nozzles do not prevent it from moving.

Exhaust

950 CFM is recommended for INFERNO 24 model rotisseries.

Supply

When a plenum is used for make up air, the supply riser should be 600 CFM.

Balancing Hood Information

Balance the hood as well as the store environment, as per NFPA # 96.

CUSTOMER SERVICE 1-800 38 ROTIS

12

HARDT EQUIPMENT MANUFACTURING INC. 2025 52 AVE., LACHINE (MONTREAL), QUEBEC, CANADA H8T 3C3 TEL. [phone] FAX [phone]

POSITIONING OF THE ROTISSERIE

Do not locate the rotisserie in an area where the right (control) side is next to fry­ers, broilers or any other appliance that emits grease, smoke, humidity, flour etc.

As the venturi for the burner is behind the control panel, precautions should be
taken to prevent the above mentioned particles from entering the burner and caus­ing it to malfunction.

Once the hood installation has been completed the rotisserie can be placed in position.
To operate properly, the rotisserie should be positioned on a level surface in a draft-free
area where the temperatures remain above 45 degrees Fahrenheit.

To allow for sufficient cooling the required minimum clearances to combustible and non­combustible surfaces are:

Left (non-motor) side: 3”
Back: 3”
Right (motor) side: 3” (12” if unit is not equipped with casters

. This is the minimum

necessary for adequate access to the service compartment)

Failure to conform to minimum clearances may result in service not being able to
be performed!

A clearance of less than 12” on the control side requires the use of casters and
quick disconnect connections for both the gas and the water supplies.

ON UNITS EQUIPPED WITH CASTERS, THE FRONT 2 CASTERS ARE EQUIPPED
WITH BRAKES. THESE SHOULD BE KEPT LOCKED TO PREVENT THE
ROTISSERIE FROM BEING MOVED ACCIDENTALLY.

EFFECTIVE 2006 /06 INF-24 REF-MANL

CUSTOMER SERVICE 1-800 38 ROTIS

13

HARDT EQUIPMENT MANUFACTURING INC. 2025 52 AVE., LACHINE (MONTREAL), QUEBEC, CANADA H8T 3C3 TEL. [phone] FAX [phone]

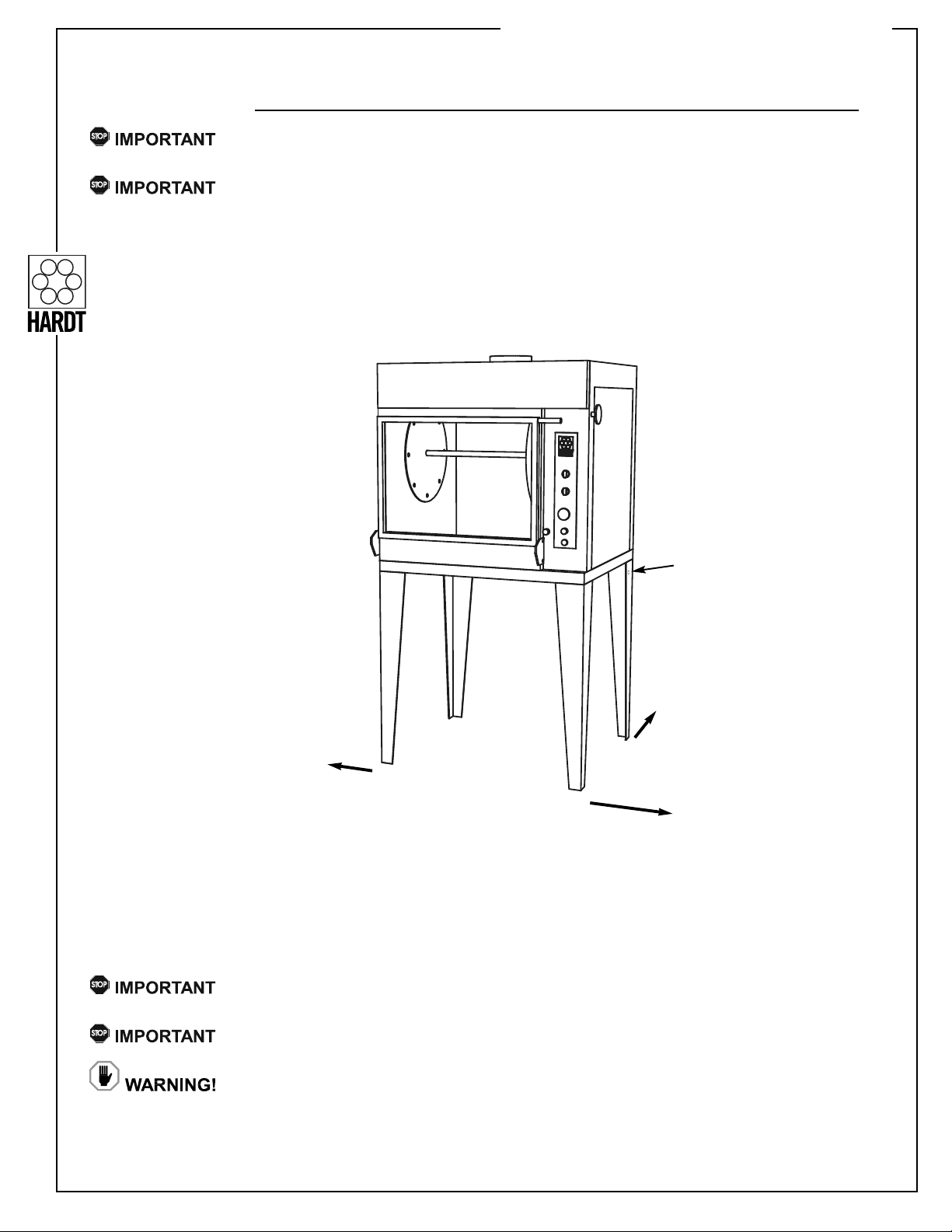

3”

3”

3”

or 12”

(see below)

RESTRAINING CABLE
ATTACHMENT POINT

EFFECTIVE 2006 /06 INF-24 REF-MANL

CONNECTION OF ELECTRICAL SUPPLY

The rotisserie runs on 120v 60HZ 7.5A 1-phase. The electrical connection to the rotis­serie is made at the contact block located within the junction box beneath the motor
compartment. The contact block is labeled B / W / G (Black, White, Ground). A circuit
breaker is located on the motor side behind the front leg. The INFERNO rotisserie is
supplied with a 6’ long power cord

IN THE USA: The appliance must be electrically grounded in accordance with local

codes, or in the absence of local codes, with the NATIONAL ELECTRI­CAL CODE, ANSI / NFPA 70.

IN CANADA: Electrical installation and grounding shall be in accordance with the

current CSA C22.2 CANADIAN ELECTRICAL CODE or local codes.

CUSTOMER SERVICE 1-800 38 ROTIS

14

HARDT EQUIPMENT MANUFACTURING INC. 2025 52 AVE., LACHINE (MONTREAL), QUEBEC, CANADA H8T 3C3 TEL. [phone] FAX [phone]

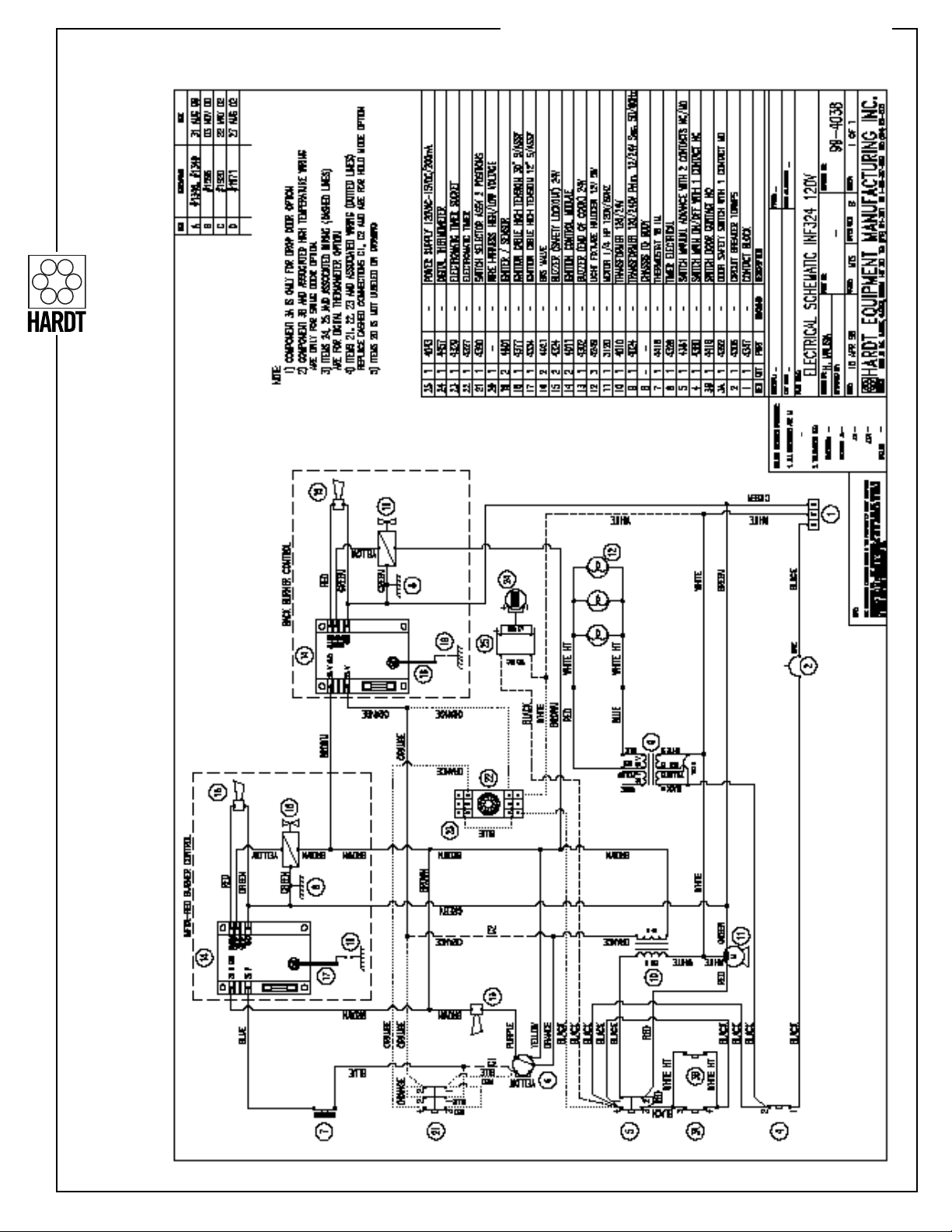

EFFECTIVE 2006 /06 INF-24 REF-MANL

CUSTOMER SERVICE 1-800 38 ROTIS

15

HARDT EQUIPMENT MANUFACTURING INC. 2025 52 AVE., LACHINE (MONTREAL), QUEBEC, CANADA H8T 3C3 TEL. [phone] FAX [phone]

EFFECTIVE 2006 /06 INF-24 REF-MANL

INSTALLATION OF GAS SUPPLY

IN THE USA: Installation must conform to local codes, or in the absence of local codes,

with the NATIONAL FUEL GAS CODE, ANSI Z223.1.

IN CANADA: Installation for Natural gas must be in accordance with current code

CAN/CGA B149.1.
Propane gas installation must be in accordance with current code

CAN/CGA B149.2 and/or local codes.

NATURAL GAS Minimum inlet pressure 7" W.C.

Manifold pressure (front): 4½" W.C.
Manifold pressure (rear): 4" W.C.

PROPANE GAS Minimum inlet pressure 11" W.C.

Manifold pressure (front + rear): 11" W.C.
Maximum rating: Inferno 24 120,000 Btu/h
Connection: ¾" NPT male

INSTALLATION OF WATER SUPPLY

When a direct connection to a permanent water supply is desired the water source
should be connected to the copper pipe on the rotisserie. Avalve (not supplied) should
be installed between the copper pipe on the rotisserie and the water supply.

When installing a permanent water supply, make sure that the main valve is
installed in an easily accessible location, preferably at the front of the rotisserie.

For a manual supply of water, either by hose or bucket, the copper pipe must be plugged.
In either case it is recommended to use hot water as it reduces warm-up time and

facilitates cleaning.

Local ordinances may require a backflow prevention device. Consult the authority having
jurisdiction to determine what regulations are in force for appliances of this type.

UNITS WITH CASTERS

As an option the unit may be ordered with casters. When supplied with this option it is
required that the rotisserie be equipped with ‘Quick Disconnect’ gas installation hard­ware. In this case connect the rotisserie to the gas supply using the instructions sup­plied in the ‘Quick Disconnect’ kit.

When using the ‘Quick Disconnect’ hardware, the rotisserie must be equipped with a
connector that complies with the Standard for Connectors for Movable Gas Appliances,
ANSI Z21.69 or Connectors for Movable Gas Appliances, CAN/CGA-6.16

The Dormont ‘Quick Disconnect’ kit which may be purchased from Hardt is a quick-dis­connect device that complies with the Standard for Quick Disconnect Devices for Use
with Gas Fuel, CAN1-6.9.

A RESTRAINING DEVICE MUST BE INSTALLED SUCH THAT THE ROTISSERIE
MOVEMENT IS LIMITED WITHOUT RELYING ON THE CONNECTOR AND THE
QUICK DISCONNECT DEVICE OR ITS ASSOCIATED PIPING. The restraining cable
for the Dormont kit attaches at the point shown in the diagram on page 13.

All gas installations must be performed by a licensed professional. Check local ordi­nances for applicable regulations.

CUSTOMER SERVICE 1-800 38 ROTIS

16

HARDT EQUIPMENT MANUFACTURING INC. 2025 52 AVE., LACHINE (MONTREAL), QUEBEC, CANADA H8T 3C3 TEL. [phone] FAX [phone]

INSTALLATION OF DRAIN

There are two holes in the rotisserie's water pan. One is for the drain and the other is for
the overflow. The drain hole is the one located at the back of the rotisserie's water pan.

Underneath the rotisserie place the two rubber washers onto the flat portion of the drain
elbow and line up the drain elbow with the back hole of the rotisserie's water pan.

Inside the rotisserie, insert the strainer into the back hole of the water pan and tighten
the strainer into the drain elbow.

Weld the drain valve in the location most accessible to the employees.

When installing a rotisserie equipped with casters, make sure that for it to remain
mobile for servicing the drain is not hard plumbed into the floor.

Please consult the authority having jurisdiction to determine what regulations are in force
regarding the disposal of grease laden water.

INSTALLATION OF OVERFLOW

The overflow is located in the front of the two holes in the rotisserie's water pan.
Underneath the rotisserie, place two rubber washers onto the flat portion of the overflow

drain elbow and line it up with the front hole of the rotisserie's water pan.
Inside the rotisserie insert the overflow strainer into the front hole of the water pan and

tighten it into the overflow drain elbow. (If the overflow is connected to the drain pipe it
must join the drain only after the drain valve.)

Please consult the authority having jurisdiction to determine what regulations are in force
regarding the disposal of grease laden water.

EFFECTIVE 2006 /06 INF-24 REF-MANL

CUSTOMER SERVICE 1-800 38 ROTIS

17

HARDT EQUIPMENT MANUFACTURING INC. 2025 52 AVE., LACHINE (MONTREAL), QUEBEC, CANADA H8T 3C3 TEL. [phone] FAX [phone]

EFFECTIVE 2006 /06 INF-24 REF-MANL

PLACEMENT OF GRATE SECTIONS & LOGS

The grates should be positioned as shown in the above diagram. The larger of the two
sections is the first to be placed into position. It is situated behind the rear part of the drip
pan and leans over the burner tube, up against the back wall. The front section is the
smaller of the two pieces and has two supports attached to it. This grate is positioned in
such a way that the two supports face to the rear. The complete assembly sits on top of
the diagonally placed large grate and up against the rear part of the drip pan.

CUSTOMER SERVICE 1-800 38 ROTIS

18

HARDT EQUIPMENT MANUFACTURING INC. 2025 52 AVE., LACHINE (MONTREAL), QUEBEC, CANADA H8T 3C3 TEL. [phone] FAX [phone]

OPERATION

SHOULD THE ROTISSERIE NOT LIGHT ON THE FIRST TRY, OPEN THE DOOR AND
ALLOW A ONE MINUTE PERIOD BEFORE RELIGHTING.

PRIOR TO STARTING THE ROTISSERIE

It is recommended to wrap the center shaft in aluminum foil. This will facilitate cleanup
of the rotisserie after daily use.

Close the drain valve and fill the drip pan, preferably with hot water. The water in the
rotisserie will serve to diffuse the drippings and facilitate cleanup as well as provide mois­ture during the cooking process.

MORNING STARTUP

Open the rotisserie door and verify that:

1. The thermometer probe is clean. Clean if necessary.

2. The thermostat probe is clean. Clean if necessary.

3. The light lenses are clean. Clean if necessary.

4. The ‘ATEND OF THE DAY’ cleaning was performed properly. If not done, do it now.

PREHEATING

1. Verify that the door is closed.

2. Set the thermostat to the OFF position.

(This is to ensure that initially only the rear burner lights.)

3. Set the timer to 30 minutes.

4. Pull the MAIN ON /OFF switch (Red Button) to the “ON” position.

(The back burner will light.)

5. After approximately 5 minutes set the thermostat to the temperature setting at which
you will be cooking.

(The front burner will light.)

Allow the rotisserie to become preheated to the desired temperature. Sufficient pre­heating minimizes and excessive temperature drop while the rotisserie is being loaded,
and prolongation of the cooking time of the first load.

While the rotisserie is being preheated, prepare the product.

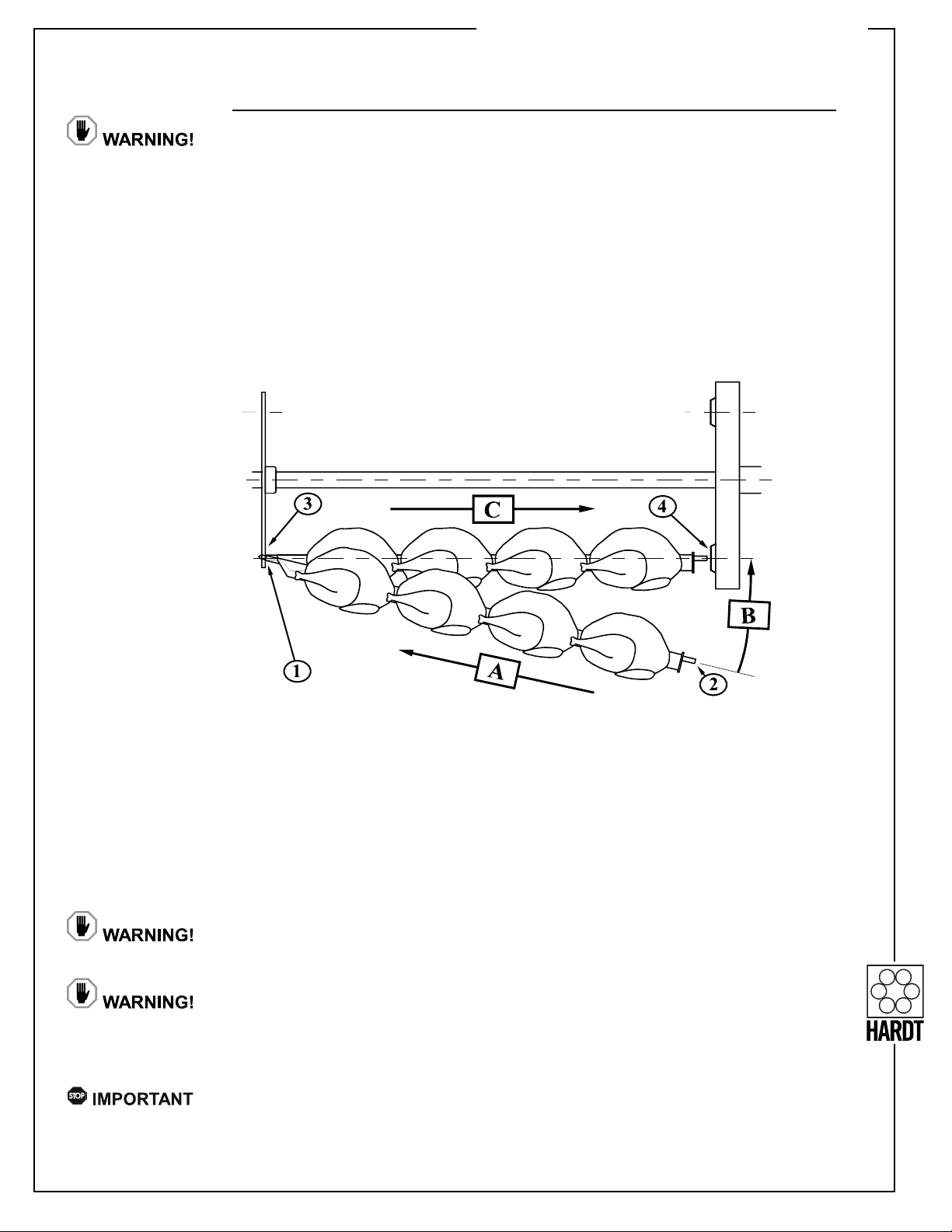

OPERATION

NEVER STICK YOUR HANDS OR ANY OTHER OBJECTS INTO THE ROTATING
DRIVE WHEN LOADING SKEWERS.

ALWAYS USE INSULATED OVEN MITTS OR SKEWER FORKS WHEN HANDLING
SKEWERS NEAR THE HOT ROTISSERIE.

1. When the oven is preheated, load the desired amount of skewers into the rotisserie.

2. Set the thermostat to the desired temperature setting.

3. Set the timer to the desired cooking duration.

4. At the end of the cooking cycle, measure the internal temperature of the chickens. It
should be 185 degrees F.

EFFECTIVE 2006 /06 INF-24 REF-MANL

CUSTOMER SERVICE 1-800 38 ROTIS

19

HARDT EQUIPMENT MANUFACTURING INC. 2025 52 AVE., LACHINE (MONTREAL), QUEBEC, CANADA H8T 3C3 TEL. [phone] FAX [phone]

EFFECTIVE 2006 /06 INF-24 REF-MANL

INSERTION OF SKEWERS

CROSS CONTAMINATION IS VERY DANGEROUS!
DO NOT LOAD FRESH PRODUCT INTO THE ROTISSERIE UNTIL THE COOKING
CYCLE IS COMPLETE AND ALL THE COOKED PRODUCT HAS BEEN REMOVED
FROM THE ROTISSERIE.

When the rotisserie has reached its operating temperature the skewers can be loaded
into the rotisserie.

Opening the door will cause the burner to shut off and the drive to stop rotating. The
Manual Switch (Green button, located on the front of the control panel) actuates the drive
mechanism without igniting the burner. Press and hold this switch until the desired
socket on the drive drum is easily accessible at the front of the rotisserie.

The above sketch illustrates the insertion of the loaded skewers into the drive sockets.

A) The pointed end (1) of the skewer is inserted into the hole (3) in the support plate at

the left side of the rotisserie.

B) The hexagonal end (2) is then raised and inserted into the drive socket slot (4) in the

right hand drive drum.

C) The hexagonal end (2) must be slid into the socket as far to the right as possible to

make certain that the shoulder on the pointed end is inside the face of the support
plate. This prevents the skewer from slipping out of the drive drum socket.

IF YOU HAVE PURCHASED BASKETS OR ROAST SKEWERS, YOU MAY HAVE TO
SKIP SOCKETS WHEN COOKING . PLEASE CONTACT OUR FIELD APPLICA TIONS
TEAM AT 1-800-387-6847 TO DISCUSS YOUR PARTICULAR SITUATION.

NEVER PLACE THE SKEWERS (OR BASKETS) INTO THE ROTISSERIE WITH THE
GROOVE IN THE SKEWER’S POINTED END RESTING ON THE SUPPORT PLATE.
THE GROOVE IS ONLY FOR HANGING THE SKEWER ON THE OPTIONAL WALL
MOUNTED SKEWER RACK.

To prevent unnecessary losses of heat that will increase cooking time, the doors
should not be opened until the end of the cooking cycle. The end of the cooking
cycle is indicated by the sound of the ‘end of cook’ buzzer.

CUSTOMER SERVICE 1-800 38 ROTIS

20

HARDT EQUIPMENT MANUFACTURING INC. 2025 52 AVE., LACHINE (MONTREAL), QUEBEC, CANADA H8T 3C3 TEL. [phone] FAX [phone]

REMOVAL OF SKEWERS

To remove the skewers, open the doors to stop the skewer rotation and shut off the
flame. Use the Manual Switch (Green button) to activate the drive motor alone and bring
the desired skewer to the front and center of the door opening where it is readily acces­sible. Reverse the insertion process by raising the pointed end slightly so that the shoul­der is level with the hole in the support plate and push the skewer to the left until the
hexagonal end is free from the drive socket. Remove the skewer. If the rotisserie will
not be used it should be cleaned as described in the “CLEANING” section.

We recommend leaving the doors OPEN when the rotisserie is not in use. If the
doors remains closed, as the rotisserie cools, humidity will condense around the
igniter causing the rotisserie to go into ‘Safety Lockout’.

IN THE EVENT OF A PROLONGED POWER FAILURE, THE ROTISSERIE MUST BE
SHUT OFF BY PUSHING IN THE MAIN ON/OFF SWITCH (RED BUTTON).

EFFECTIVE 2006 /06 INF-24 REF-MANL

CUSTOMER SERVICE 1-800 38 ROTIS

21

HARDT EQUIPMENT MANUFACTURING INC. 2025 52 AVE., LACHINE (MONTREAL), QUEBEC, CANADA H8T 3C3 TEL. [phone] FAX [phone]

EFFECTIVE 2006 /06 INF-24 REF-MANL

MAINTENANCE

Your HARDT rotisserie was built using only the highest quality products. All bushings,
as well as the complete drive train, are permanently lubricated and do not require any
greasing or oiling. The most important maintenance is the daily cleaning as described
in the sections below.

DISCONNECT POWER SUPPLY TO THE ROTISSERIE BEFORE SERVICING.

ALWA YS SHUT-OFF THE CIRCUIT BREAKER WHEN CLEANING INSIDE THE ROTISSERIE.

CLEANING THROUGHOUT THE DAY

It is highly recommended to clean the rotisserie glass with a wet cloth at the end of each
cooking cycle. This procedure keeps the glass clean without scratching it. Depending
on the volume of product cooked, changing the water during the day may be desired.

CLEANING AT THE END OF THE DAY

OPEN THE DOOR AND ALLOW THE ROTISSERIE TO COOL DOWN UNTIL IT IS
SAFE TO TOUCH.

NEVER SPRAY CHEMICALS OR LIQUIDS OF ANY KIND (INCLUDING WATER) IN
THE DIRECTION OF THE BURNER OR THE IGNITER (INSIDE, UPPER FRONT), THE
CERAMIC RADIANTS OR THE EXTERIOR OF THE ROTISSERIE. Should any liq­uids come in contact with the burner while it is still hot, the ceramics in the burn­er might crack and the burner will have to be replaced. If chemicals come in con­tact with the igniter, the igniter will corrode, the rotisserie will malfunction, and the
igniter will have to be replaced. To avoid damage, when cleaning the drive plate
or applying degreaser, first do the bottom half of the drive plate, then rotate the
drive halfway by pushing the green button, and then do the other half.

Hang the cleaning shield that is supplied with each rotisserie on the inside back wall of
the unit so that it protects the rear burner . It should be positioned closest to the right side
to protect the igniter from water or chemical spray. Remove the aluminum foil used to
wrap the center shaft. Spray an approved degreaser on the interior of the warm rotis­serie. Allow it to work and rinse clean.

Spray the area in and around the drive sockets and the hole in the drive ring with
an approved degreaser.

After the grease melts, use the small bristle brush to remove any buildup from around
and inside the sockets, then rinse with water . In doing this simple operation you will elim­inate the blockage of the sockets due to the accumulation of dry hard carbon.

The glass on both the doors as well as the glass protecting the oven’s interior light should
be cleaned daily as the buildup of burnt carbon is very difficult to remove from tempered
glass.

The thermostat and thermometer probes must be wiped clean as carbon buildup will
cause improper readings.

The igniters should be inspected at this time also to ensure that they are free of carbon
and grease buildup. If they are dirty use a dry paper towel to wipe them clean.

CUSTOMER SERVICE 1-800 38 ROTIS

22

HARDT EQUIPMENT MANUFACTURING INC. 2025 52 AVE., LACHINE (MONTREAL), QUEBEC, CANADA H8T 3C3 TEL. [phone] FAX [phone]

AVOID USING SCOURING PADS OR CLEANERS WITH GRIT AS TEMPERED
GLASS IS EASILY SCRATCHED.

After cleaning, always leave the door open to allow the humidity to escape as it
will condense around the igniter causing starting problems the next morning.

If parts returned are found to have not been adequately maintained, they will NOT be
covered by our warranty plan. Warranty does not cover damage caused by the above
or any other misuse.

MAINTENANCE EVERY MONTH

Once a month the rear burner should be cleaned.

1) Make sure the unit is cool to work on, that there is no water in the waterpan and that
the power is turned off (either at the switch on the wall controlling the unit or on the
circuit breaker of the machine, found just beneath the waterpan near the control
panel). We recommend you place a sheet of cardboard in the waterpan to prevent
it being scratched or damaged when the pieces are being moved.

2) Remove the ceramic logs from the rear grate. Be careful, they are fragile. (If they
are covered with grease, simply turn them around when replacing them. The next
day you can turn them back and they will have been cleaned by the flame.)

3) The rear grate must be lifted over the lip of the back of the waterpan, then slid under
the spit support and drive plate rings and out the front of the rotisserie. Once out, any
grease deposits can be scraped off with a scraper.

4) Use a step-stool to elevate yourself so you can easily inspect the back burner to see
if all the holes are open. If some are clogged, use a stiff bristle brush on the surface
to loosen the debris and a long straight object (such as a coat hanger, paper clip or
small jewelers screwdriver) to clear any blocked holes. This is the area in the unit
that acts as a flame sensor.

5) The grate can now be re-installed.

7) Replace the ceramic logs (as shown in the diagram on page 19). They need to be
angled at a 60 degree angle starting with a large one, then a small one etc, from left
to right.

8) The job is complete, remove the cardboard and turn the power switch or circuit­breaker back on. Clean up any debris from the area in and around the rotisserie as
it may block the drain.

MAINTENANCE EVERY TWO MONTHS

Every two months, when the oven is cool, remove the ceramic logs and their support.
Verify that the rear burner is clean and that its holes are not blocked. If any of the burn­er holes are blocked, use a thin metal rod (such as a coat hanger) to clear them.

Unscrew the external thermometer and check its calibration. When the probe is
immersed in the boiling water the dial should read 212°F.

Verify that the cleaning of the inside of the drive sockets is being properly done. Clean
if necessary. Black carbon buildup around the exterior of the sockets is the first sign of
improper or insufficient cleaning.

EFFECTIVE 2006 /06 INF-24 REF-MANL

CUSTOMER SERVICE 1-800 38 ROTIS

23

HARDT EQUIPMENT MANUFACTURING INC. 2025 52 AVE., LACHINE (MONTREAL), QUEBEC, CANADA H8T 3C3 TEL. [phone] FAX [phone]

EFFECTIVE 2006 /06 INF-24 REF-MANL

6 MONTH PREVENTATIVE MAINTENANCE

Hardt recommends that a preventative maintenance be performed on the drive system
every six months.

If you would like to schedule a preventative maintenance please call our Customer ser­vice team at 1-800-387-6847 to arrange one today

Maintenance other than that described in this manual should be performed by your
HARDT authorized service representative. This should not be necessary if the cleaning
procedures are correctly followed.

For any technical assistance, or if you require information additional to that described
above, please contact a HARDT Customer Service Representative at the above
Customer Service 1-800 number, available 24 hours per day, 7 days per week.

We can also be reached at 514-631-7271, Monday to Friday - 8:30 AM to 6:00 PM EST.

CUSTOMER SERVICE 1-800 38 ROTIS

24

HARDT EQUIPMENT MANUFACTURING INC. 2025 52 AVE., LACHINE (MONTREAL), QUEBEC, CANADA H8T 3C3 TEL. [phone] FAX [phone]

TROUBLESHOOTING

PROBLEM

Rotisserie does not operate when Main ON/OFF Switch (Red button) is pulled.

SOLUTION

A) Check rotisserie electrical cord is connected properly.
B) Check if the circuit breaker is in the ‘ON’ position.
C) If both A and B are OK, call our service department.

PROBLEM

Main ON/OFF switch (Red button) is pulled, drive drum rotates but after 11 seconds the
alarm buzzer sounds. Rotisserie has gone into SAFETY LOCKOUT.

SOLUTION

A) Verify that the startup procedure is being followed correctly.
B) If the rotisserie again goes into safety lockout, turn the rotisserie “OFF” by pushing

in the Main ON/OFF Switch (Red button). Open the door of the rotisserie. If the door
has been closed all night, humidity may have condensed around the igniter. Get a
paper towel and gently clean the igniter. This procedure will clean and de-humidify
the ignition. Turn the rotisserie “ON” by pulling the Main ON/OFF Switch.

C) If the rotisserie again goes into safety lockout note which burner (front or back) does

not ignite or stay lit. T urn the rotisserie OFF by pushing in the Main ON/OFF Switch.
Depending on which burner is not working check the gap at the tip of the appropriate
igniter. The gap should be between 1/8" and 3/16” in size as shown below. Verify
that the igniter and the area of the burner that is near the igniter are clean.

D) If the rotisserie again goes into safety lockout, switch the rotisserie OFF for 1 minute.

Check that the gas valve on the rotisserie and that the main gas supply valve are
both open. To check the main gas supply valve, try another gas powered appliance
connected to the same line. Pull the Main ON/OFF Switch to turn the rotisserie ON.

BURNER SURFACE

BRASS IGNITER SUPPORT

IGNITER

APPROX. ½"

TO PREVENT SPARK JUMPING

(13 mm)

IGNITER PROBES

TIP SETTING:

1/8" to 3/16"

CLEARANCE

(3 mm to 5 mm)

¼“ to ½"

CLEARANCE FROM IGNITER TIP

TO BURNER

(6 mm to 13 mm)

ENSURE THAT BOTH THE IGNITER PROBES ARE WELL CLEANED WITH STEEL WOOL.

VERIFY THAT THE BURNER HOLES NEAR THE IGNITER ARE FREE OF ANY OBSTRUCTIONS.

EFFECTIVE 2006 /06 INF-24 REF-MANL

CUSTOMER SERVICE 1-800 38 ROTIS

25

HARDT EQUIPMENT MANUFACTURING INC. 2025 52 AVE., LACHINE (MONTREAL), QUEBEC, CANADA H8T 3C3 TEL. [phone] FAX [phone]

EFFECTIVE 2006 /06 INF-24 REF-MANL

PROBLEM

Halogen light bulb is burned out.

SOLUTION

Unscrew (counterclockwise) the protective glass lens of the defective bulb and pull out
the bulb.

The Halogen bulbs should not be touched with bare fingers as the oil from your
hands will reduce the life of the bulb. If the bulb is accidentally touched it should
be cleaned with rubbing alcohol (isopropyl alcohol).
When shipped, the service bulbs are in a plastic bag. One should use clean gloves
or a plastic bag or wrapper when taking a bulb out of the bag and inserting it into
the lamp holder.

To replace the Halogen light, insert the bulb into its socket using the described handling
method. Once it is in place screw the protective glass lens over the bulb.

If problems other than those described above arise, DO NOT ATTEMPT TO FIX THEM
YOURSELVES. For any technical assistance, please contact a HARDT Customer
Service Representative at the above Customer Service 1-800 number, available 24
hours per day, 7 days per week.

We can also be reached at 514-631-7271, Monday to Friday - 8:30 AM to 6:00 PM EST.

CUSTOMER SERVICE 1-800 38 ROTIS

26

HARDT EQUIPMENT MANUFACTURING INC. 2025 52 AVE., LACHINE (MONTREAL), QUEBEC, CANADA H8T 3C3 TEL. [phone] FAX [phone]
