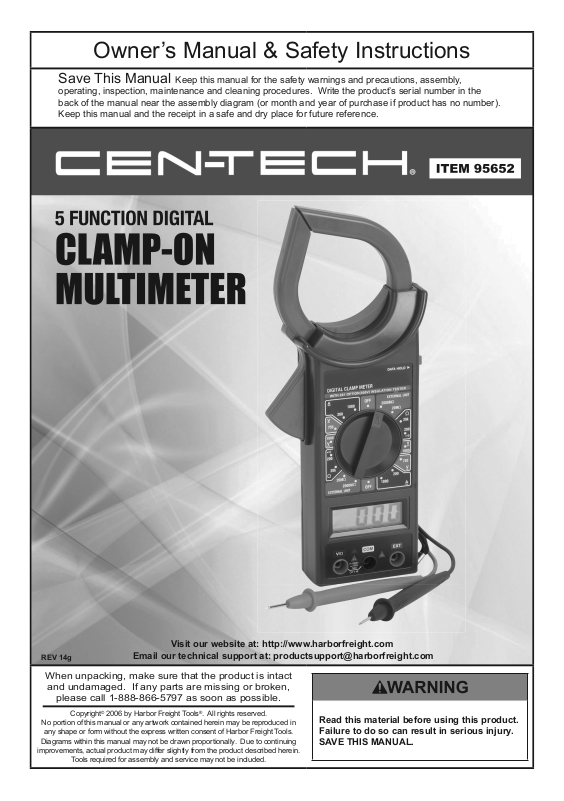

Harbor Freight Tools 95652 Product manual
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
REV 14g
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright© 2006 by Harbor Freight Tools®. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Email our technical support at: productsupport@harborfreight.com
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.

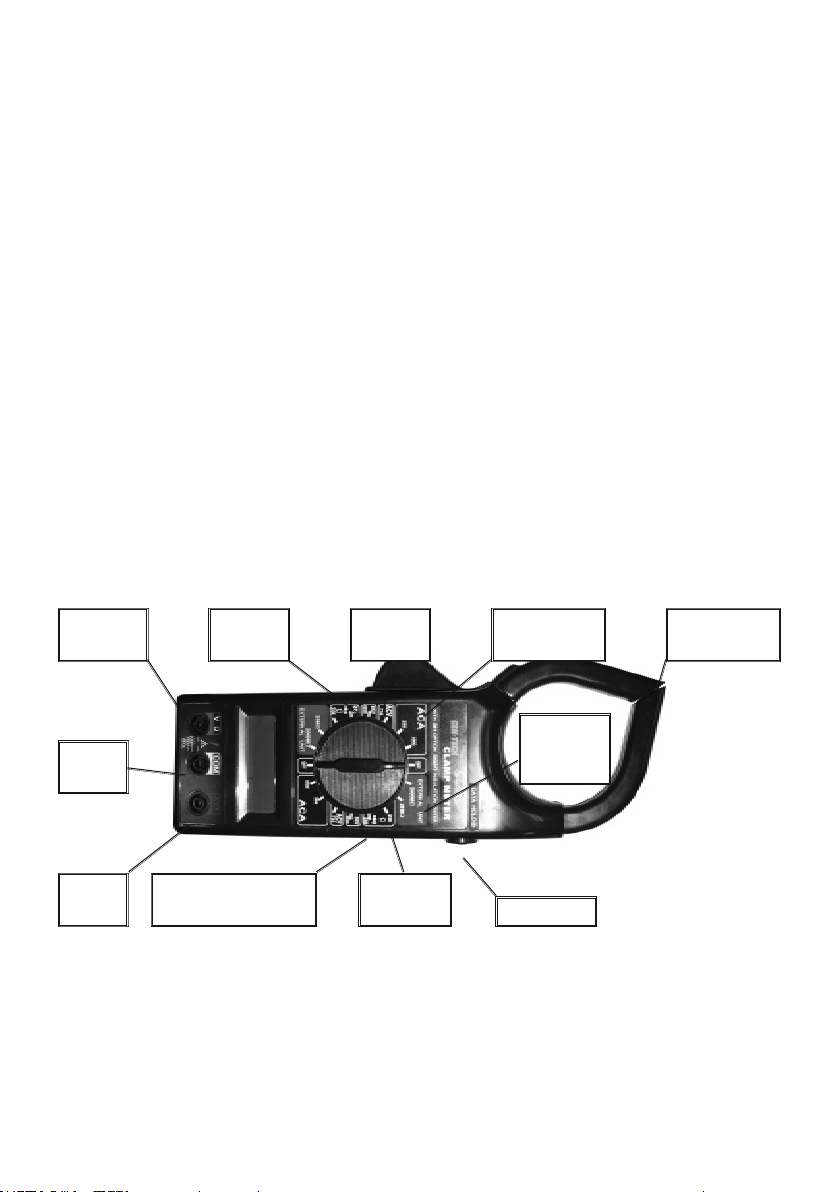

AC Amps
AC Voltage
DC Voltage
Resistance
Insulation Test
(using 500V insulation
tester, not included)
Specifications
Ranges: 200/1000A
Resolution: 100mA/1A
Accuracy: ± 2% rdg +5d @ 50-60 Hz (up to 800A)
± 3% rdg +5d @ 50-60 Hz (above 800A)
Overload Protection: 1200A within 60 seconds
Range: 750V
Resolution: 1V
Accuracy: ± 1% rdg +4d @ 50-500 Hz
Input Impedance: 9 MΩ
Overload Protection: 750V AC/DC on all ranges
Range: 1000V
Resolution: 1V
Accuracy: ± 0.8% rdg +1d
Input Impedance: 9 MΩ
Overload Protection: 1000V DC/peak AC on all ranges
Ranges: 200Ω/20KΩ
Resolution: 0.1Ω/10Ω
Accuracy: 200Ω ± 1% rdg +3d
20KΩ ± 1% rdg +1d
Overload Protection: 500V DC/rms AC on all ranges
Continuity Buzzer (200Ω range): 50Ω ±25Ω
Ranges: 20MΩ/2000MΩ
Resolution: 10KΩ/1MΩ
Accuracy: 20MΩ ± 2% rdg +2d
2000MΩ ± 4% rdg +2d (up to 500MΩ)
2000MΩ ± 5% rdg +2d (above 500MΩ)
Operating Temperature Range: 32° - 122° F
Display
1
/2” high 31/2-digit LCD
Reading Rate 3 readings/second
Measurement Method Dual slope integration
Overload Indicator
Most Signicant Digit*(MSD), decimal point and negative sign (if negative reading) shown alone
Battery One 9 V (included)
Weight 11 oz.
Accessories Test leads, battery, and carrying case
*Most Signicant digit is the digit farthest left.
Item 95652 For technical questions, please call 1-888-866-5797. Page 2
Save This Manual
You will need the manual for the safety warnings and
precautions, and operating and maintenance procedures.
Keep your invoice with this manual. Write the invoice number
on the inside of the front cover. Keep the manual and invoice
in a safe and dry place for future reference.
Safety Warnings and Precautions
WARNING: When using tool, basic safety precautions should always
be followed to reduce the risk of personal injury and damage to
equipment.
Read all instructions before using this tester!
1. Test cable voltages with care. Only use one hand when securing the
tester around the cable to reduce risk of injury in case of electric shock.
2. Avoid working alone. If an accident happens, an assistant can bring help.
3. Keep work area clean. Cluttered areas invite injuries.
4. Avoid electrical shock. Use extreme caution when clamping around
uninsulated conductors or bus bars. Prevent body contact with grounded
surfaces such as pipes, radiators, ranges, and cabinet enclosures when
testing voltages.
5. Avoid damaging meter. Use only as specified in this manual.
6. Observe work area conditions. Do not test voltages in damp or wet
locations. Don’t expose to rain. Keep work area well lit.
7. Keep children away. Children must never be allowed in the work area.
Do not let them handle machines, tools, or extension cords.
8. Store idle equipment. When not in use, tools must be stored in a dry
location to inhibit rust. Always lock up tools and keep out of reach of children.
9. Dress properly. Protective, electrically nonconductive clothes and
nonskid footwear are recommended when working.
10. Use eye protection. Always wear ANSI approved impact safety goggles.
11. Do not overreach. Keep proper footing and balance at all times. Do
not reach over or across electrical cables or frames.
12. Maintain tools with care. Ensure multimeter has a fresh battery.
Inspect tool cords periodically and, if damaged, have them repaired by
an authorized technician.
Item 95652 For technical questions, please call 1-888-866-5797. Page 3
