Harbor Freight Tools 62306 Quick Start Manual
Charge Completely!
Immediately After
Purchase
5
Turn ON
Vehicle Ignition
Approximate AC Charge Time
Initial Charge: 48 hours
Recharge: 34 hours
Wait 5 minutes!
AFTER TURNING
CLAMP POWER ON,
wait 5 minutes before
starting ignition.
THE VEHICLE WILL NOT
START IF YOU DON’T
WAIT 5 MINUTES!
5
MIN
4
3
Turn ON
Clamp Power
ON

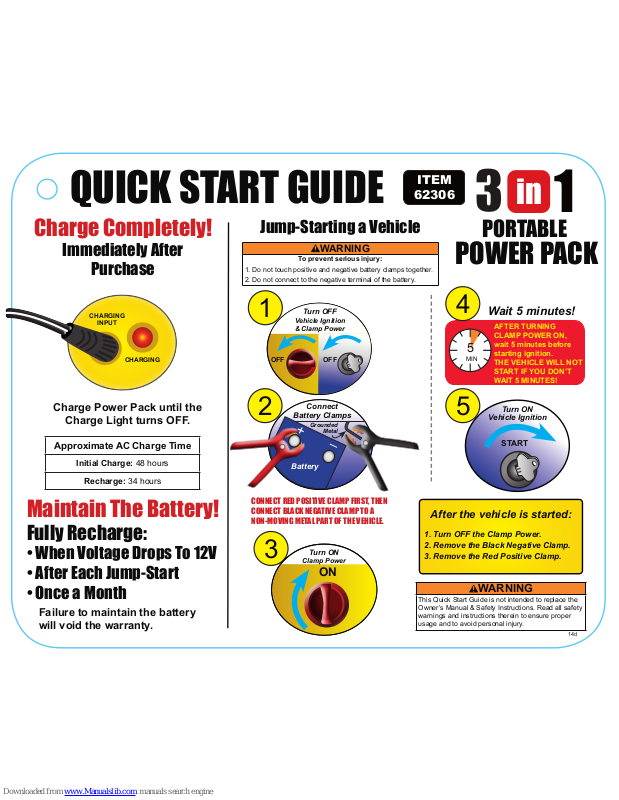

QUICK START GUIDE
Maintain The Battery!
Fully Recharge:
• When Voltage Drops To 12V
• After Each Jump-Start
• Once a Month
Failure to maintain the battery
will void the warranty.
Jump-Starting a Vehicle
2
Connect
Battery Clamps
Grounded
Metal
+
_
Battery
CONNECT RED POSITIVE CLAMP FIRST, THEN
CONNECT BLACK NEGATIVE CLAMP TO A
NON-MOVING METAL PART OF THE VEHICLE.
ITEM
62306
14d
WARNING
To prevent serious injury:
1. Do not touch positive and negative battery clamps together.
2. Do not connect to the negative terminal of the battery.
After the vehicle is started:
1. Turn OFF the Clamp Power.
2. Remove the Black Negative Clamp.
3. Remove the Red Positive Clamp.
WARNING
This Quick Start Guide is not intended to replace the
Owner’s Manual & Safety Instructions. Read all safety
warnings and instructions therein to ensure proper
usage and to avoid personal injury.
START
1
Turn OFF
Vehicle Ignition
& Clamp Power
OFF
OFF
PORTABLE
POWER PACK
in
1
3
Charge Power Pack until the
Charge Light turns OFF.
CHARGING
INPUT
CHARGING
Typical DC Appliances & Run Times
Appliance
Estimated
Power
(Watts)
Estimated
Lifetime
(Hours)
• Fluorescent Light
• Cell Phone
4 50
• Radio
• Fan
• Depth Finder
9 26
• Video Recorder
• Spotlight
15 14
• Small Power Tool
• Bilge Pump
24 8
Running/Charging DC Appliances
Use this chart as a guideline only.
Actual power usage may vary
based on the model or brand of the
appliance. Check the actual wattage
of your appliances and calculate the
amount of power needed to start and
run them.
O
Turn ON
Appliance
ON
4
1
Turn OFF
Appliance
OFF
Plug
Appliance into
Outlet
DC
3
2
Turn OFF
Clamp Power
OFF
ITEM
62306
PORTABLE
POWER PACK
in
1
3
QUICK START GUIDE
WARNING
This Quick Start Guide is not intended to replace the
Owner’s Manual & Safety Instructions. Read all safety
warnings and instructions therein to ensure proper
usage and to avoid personal injury.
