Harbor Freight Tools 61750 Product manual

PRODUCT SPECIFICATIONS

Electrical Requirements 120 VAC / 60 Hz / 12 A

Motor Rating 1 HP, 3450 RPM Ball Bearing Motor

Overall Height 38.5"

Table Surface Dimensions 6" x 12"

Table Tilt 0 – 45 Degrees

Work Table Options For Sanding Disc or Sanding Belt Use

Belt Size 6" x 48"

Disc Size 9" Diameter, PSA Type

Belt Speed 1400 FPM

Disk Speed 1800 RPM

Weight 121 lb

4005911

WARNING SYMBOLS AND DEFINITIONS

This is the safety alert symbol. It is used to alert you to

potential personal injury hazards. Obey all safety messages

that follow this symbol to avoid possible injury or death.

Indicates a hazardous situation which, if not avoided,

will result in death or serious injury.

Indicates a hazardous situation which, if not avoided,

could result in death or serious injury.

Indicates a hazardous situation which, if not avoided,

could result in minor or moderate injury.

Addresses practices not related to personal injury.

Item 61750 For technical questions, please call 1-888-866-5797. Page 2

IMPORTANT SAFETY INFORMATION

General Tool Safety Warnings

Read all safety warnings and instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

1. KEEP GUARDS IN PLACE
and in working order.

2. REMOVE ADJUSTING KEYS AND
WRENCHES. Form habit of checking to
see that keys and adjusting wrenches are
removed from tool before turning it on.

3. KEEP WORK AREA CLEAN.
Cluttered areas and benches invite accidents.

4. DON’T USE IN DANGEROUS

ENVIRONMENT. Don’t use power tools

in damp or wet locations, or expose them
to rain. Keep work area well lighted.

5. KEEP CHILDREN AWAY. All visitors should
be kept safe distance from work area.

6. MAKE WORKSHOP KID PROOF
with padlocks, master switches,
or by removing starter keys.

7. DON’T FORCE TOOL. It will do the job better
and safer at the rate for which it was designed.

8. USE RIGHT TOOL. Don’t force
tool or attachment to do a job for
which it was not designed.

Table A: RECOMMENDED MINIMUM WIRE

GAUGE FOR EXTENSION CORDS

(120 VOLT)

NAMEPLATE

AMPERES

(at full load)

0 – 6 18 16 16 14

6.1 – 10 18 16 14 12

10.1 – 12 16 16 14 12

12.1 – 16 14 12 Do not use.

9. USE PROPER EXTENSION CORD. Make sure
your extension cord is in good condition.
When using an extension cord, be sure to
use one heavy enough to carry the current
your product will draw. An undersized cord will
cause a drop in line voltage resulting in loss
of power and overheating.
correct size to use depending on cord length
and nameplate ampere rating. If in doubt, use
the next heavier gauge. The smaller the
gauge number, the heavier the cord.

10. WEAR PROPER APPAREL. Do not
wear loose clothing, gloves, neckties,
rings, bracelets, or other jewelry which
may get caught in moving parts. Nonslip
footwear is recommended. Wear protective
hair covering to contain long hair.

EXTENSION CORD

LENGTH

25′ 50′ 100′ 150′

Table A shows the

11. ALWAYS USE SAFETY GLASSES. Also
use face or dust mask if cutting operation is
dusty. Everyday eyeglasses only have impact
resistant lenses, they are NOT safety glasses.

12. SECURE WORK. Use clamps or a
vise to hold work when practical. It’s
safer than using your hand and it
frees both hands to operate tool.

Item 61750 For technical questions, please call 1-888-866-5797. Page 3

13. DON’T OVERREACH.
Keep proper footing and balance at all times.

14. MAINTAIN TOOLS WITH CARE. Keep
tools sharp and clean for best and safest
performance. Follow instructions for
lubricating and changing accessories.

15. DISCONNECT TOOLS before servicing;
when changing accessories, such as
blades, bits, cutters, and the like.

16. REDUCE THE RISK OF UNINTENTIONAL
STARTING. Make sure switch is in
off position before plugging in.

17. USE RECOMMENDED ACCESSORIES.
Consult the owner’s manual for recommended
accessories. The use of improper accessories
may cause risk of injury to persons.

Grounding Instructions

18. NEVER STAND ON TOOL.
Serious injury could occur if the tool is tipped or
if the cutting tool is unintentionally contacted.

19. CHECK DAMAGED PARTS. Before further
use of the tool, a guard or other part that is
damaged should be carefully checked to
determine that it will operate properly and

perform its intended function – check for

alignment of moving parts, binding of moving
parts, breakage of parts, mounting, and any
other conditions that may affect its operation.
A guard or other part that is damaged
should be properly repaired or replaced.

20. DIRECTION OF FEED.
Feed work into a blade or cutter against the
direction of rotation of the blade or cutter only.

21. NEVER LEAVE TOOL RUNNING
UNATTENDED. TURN POWER OFF. Don’t
leave tool until it comes to a complete stop.

TO PREVENT ELECTRIC SHOCK AND DEATH FROM INCORRECT
GROUNDING WIRE CONNECTION READ AND FOLLOW THESE INSTRUCTIONS:

110-120 VAC Grounded Tools: Tools with Three Prong Plugs

1. In the event of a malfunction or breakdown,
grounding provides a path of least resistance
for electric current to reduce the risk of
electric shock. This tool is equipped with an
electric cord having an equipment-grounding
conductor and a grounding plug. The plug
must be plugged into a matching outlet that is
properly installed and grounded in accordance
with all local codes and ordinances.

2. Do not modify the plug provided – if it will
not fit the outlet, have the proper outlet
installed by a qualified electrician.

3. Improper connection of the equipment­grounding conductor can result in a risk
of electric shock. The conductor with
insulation having an outer surface that is
green with or without yellow stripes is the
equipment-grounding conductor. If repair or
replacement of the electric cord or plug is
necessary, do not connect the equipment­grounding conductor to a live terminal.

4. Check with a qualified electrician or service
personnel if the grounding instructions are
not completely understood, or if in doubt as
to whether the tool is properly grounded.

5. Use only 3-wire extension cords that
have 3-prong grounding plugs and 3-pole
receptacles that accept the tool’s plug.

6. Repair or replace damaged or
worn cord immediately.

Item 61750 For technical questions, please call 1-888-866-5797. Page 4

Grounding

Pin

7. This tool is intended for use on a circuit that
has an outlet that looks like the one illustrated
above in “125 VAC 3-Prong Plug and Outlet”.
The tool has a grounding plug that
looks like the plug illustrated above in
“125 VAC 3-Prong Plug and Outlet”.

8. The outlet must be properly installed
and grounded in accordance with
all codes and ordinances.

125 VAC 3-Prong Plug and Outlet

(for up to 125 VAC and up to 15 A)

Sander Tool Safety Warnings

For Your Own Safety Read Instruction
Manual Before Operating Tool Sander

1. Wear eye protection.

2. Support workpiece with miter
gauge, backstop, or worktable.

3. Maintain 1/16 inch maximum clearance
between table and sanding belt or disc.

4. Avoid kickback by sanding in accordance
with the directional arrows.

5. The backstop is a fence near the surface
that helps the operator maintain control
of the workpiece and prevents the
workpiece from being pulled into the
machine. For safety, it must be adjusted
very close to the sanding surface.

6. The worktable is the surface mounted
close to the sanding surface that the
operator rests the workpiece against to
prevent it from being pulled by the sanding
surface. For safety, it must be adjusted
very close to the sanding surface.

7. The sanding belt is designed to rotate down
towards the table while the disc rotates
both up from the table and down towards
the table. Sand only on the downward moving
surface of the disc - sanding on the upward
moving surface may result in the workpiece
being thrown up and towards the operator.

8. DO NOT OPERATE WITH ANY

GUARD DISABLED, DAMAGED, OR
REMOVED. Moving guards must
move freely and close instantly.

9. Do not use an adapter to connect
this tool to a different outlet.

9. The use of accessories or attachments
not recommended by the manufacturer
may result in a risk of injury to persons.

10. When servicing use only identical
replacement parts.

11. Do not depress the spindle lock when
starting or during operation.

12. Only use safety equipment that has been
approved by an appropriate standards
agency. Unapproved safety equipment
may not provide adequate protection. Eye
protection must be ANSI-approved and
breathing protection must be NIOSH-approved
for the specific hazards in the work area.

13. Stay alert, watch what you are doing and
use common sense when operating a
power tool. Do not use a power tool while
you are tired or under the influence of
drugs, alcohol or medication. A moment
of inattention while operating power tools
may result in serious personal injury.

14. Industrial applications must
follow OSHA guidelines.

15. Maintain labels and nameplates on the tool.
These carry important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.

16. Avoid unintentional starting.
Prepare to begin work before
turning on the tool.

Item 61750 For technical questions, please call 1-888-866-5797. Page 5

17. People with pacemakers should
consult their physician(s) before use.
Electromagnetic fields in close proximity to
heart pacemaker could cause pacemaker
interference or pacemaker failure.

18. WARNING: Some dust created by power
sanding, sawing, grinding, drilling, and other
construction activities, contains chemicals
known [to the State of California] to cause
cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:

• Lead from lead-based paints

• Crystalline silica from bricks and cement or
other masonry products

• Arsenic and chromium from
chemically treated lumber

Your risk from these exposures

varies, depending on how often you
do this type of work. To reduce your exposure

Vibration Safety

to these chemicals: work in a well ventilated
area, and work with approved safety
equipment, such as those dust masks that
are specially designed to filter out microscopic
particles. (California Health & Safety
Code § 25249.5, et seq.)

19. WARNING: Handling the cord on this product
will expose you to lead, a chemical known
to the State of California to cause cancer,
and birth defects or other reproductive harm.
Wash hands after handling. (California
Health & Safety Code § 25249.5, et seq.)

20. The warnings, precautions, and instructions
discussed in this instruction manual cannot
cover all possible conditions and situations that
may occur.
It must be understood by the operator that
common sense and caution are factors
which cannot be built into this product,
but must be supplied by the operator.

This tool vibrates during use. Repeated or
long-term exposure to vibration may cause
temporary or permanent physical injury,
particularly to the hands, arms and shoulders.
To reduce the risk of vibration-related injury:

1. Anyone using vibrating tools regularly or for
an extended period should first be examined
by a doctor and then have regular medical
check-ups to ensure medical problems
are not being caused or worsened from
use. Pregnant women or people who have
impaired blood circulation to the hand, past
hand injuries, nervous system disorders,
diabetes, or Raynaud’s Disease should not use
this tool. If you feel any medical or physical
symptoms related to vibration (such as
tingling, numbness, and white or blue fingers),
seek medical advice as soon as possible.

SAVE THESE INSTRUCTIONS.

2. Do not smoke during use. Nicotine reduces
the blood supply to the hands and fingers,
increasing the risk of vibration-related injury.

3. Use tools with the lowest vibration when there
is a choice between different processes.

4. Include vibration-free periods each day of work.

5. Grip workpiece as lightly as possible
(while still keeping safe control of
it). Let the tool do the work.

6. To reduce vibration, maintain the tool as
explained in this manual. If any abnormal
vibration occurs, stop use immediately.

Item 61750 For technical questions, please call 1-888-866-5797. Page 6

PRODUCT FEATURES

NOTE: Prior to assembling and operating the Belt/Disc Sander, it is important to

familiarize yourself with all of the machine’s major components. Failure to do so

may result in personal injury and/or damage to the machine and workpiece being

sanded. (See Figure B, and refer to the “Operating Instructions” section in
this manual.)

9" SANDING DISC

(32)

FIGURE B

MITER GAUGE

WORK TABLE (41)

DUST

GUARD

(22)

BASE

(68)

POWER

CORD

(59)

(39)

WORK STOP

(105)

FRAME (85)

KNOB/ADJUST NUT

ASSY. (38)

6" SANDING

BELT (1)

SANDING

BELT

FRAME (106)

POWER

SWITCH

(64)

SIDE STAND

SUPPORT (76)

ASSEMBLY INSTRUCTIONS

NOTE: For additional references to the parts listed below, refer to the Assembly
Diagram on page 17.

To Assemble the Stands, Frames, and Upper Bracket:

1. With assistance, position the two Side Stand Supports (76) upright on the floor
and parallel to one another. (See Figure C.)

2. Place the end of one Frame (85) on the inside edge of one Side Stand Support
(76), and align the two mounting holes on the end of the Frame with the two
lower mounting holes on the Side Stand Support. (See Figure C.)

3. Secure the Frame (85) to the Side Stand Support (76), using two Bolts (77), two
Washers (83), and two Nuts (84). (See Figure C.)

4. Repeat Steps #1, #2, and #3 to connect the other end of the Frame to the
remaining Stand. (See Figure C.)

Item 61750 For technical questions, please call 1-888-866-5797. Page 7

5. To connect the remaining Frame (85) to the two Side Stand Supports (76), follow
Steps #1, #2, #3, and #4. (See Figure C.)

UPPER

SCREW (75)

WASHER (89)

NUT (90)

SIDE

STAND

SUPPORT

(76)

SCREW (77)

WASHER (83)

NUT (84)

FRAME

(85)

BRACKET

(74)

(mostly
hidden)

FIGURE C

6. Place both Upper Brackets (74) on the top edges of the two Side Stand
Supports (76), and align the eight mounting holes (two on each end) of the
Brackets with the eight mounting holes (two on each end) of the Side Stand
Supports. (See Figure C.)

7. Secure both Upper Brackets (74) to the two Side Stand Supports (76), using
eight Bolts (77), Washers (93), and Nuts (74). (See Figure C.)

8. With assistance, carefully tip the assembled Stand on its side. Attach a Rubber
Foot (78) to each of the Stand’s four corners, using four Rubber Feet, four
Washers (80), and four Bolts (79). Then, place the Stand back in its upright
position. (See Figure D.)

To Attach the Base to the Upper Bracket:

1. With assistance, place the Base (68) of the Belt/Disc Sander on top of the Upper

Brackets (74). Align the four threaded mounting holes on the Base with the four
mounting holes on the Upper Brackets. (See Figures B, and D.)

2. From underneath the Stand, secure the Base (68) to the Upper Brackets (74)
by inserting four Bolts (86), with four Washers (87), upward through the Stand’s
four mounting holes. Then, firmly tighten the four Bolts into the four threaded
mounting holes on the Base. (See Figure D.)

Item 61750 For technical questions, please call 1-888-866-5797. Page 8

BOLT (86)

WASHER (87)

RUBBER

FOOT

(78)

FIGURE D

Bolt

(79)

WASHER

(80)

To Assemble the Pulleys, Sanding Disc Plate, and Table:

1. Remove the 4 screws from the cover on the Dust Guard (22) and set aside.

2. Line up the three bolt holes on the Dust Guard (22) with the threaded holes in
the End Shield (19). Place a Washer (27) over each of 3 screw holes. Insert a
Screw (28) into each hole and tighten. (See Figure E.)

3. This item is packed with tape on the shafts to
keep the keys in place. Remove the tape

FIGURE E

from the upper shaft, being careful to not
lose the key.

4. Loosen the Set Screw (23) on the
Spindle Pulley (24). Put the Spindle

Screw (28)

Pulley on the upper shaft, with the
smaller step on the pulley inside and
with the Key (12) lined up with the slot
on the Pulley. Be sure the key stays in
the correct position, all the way through the
pulley.

5. Repeat steps 3 and 4, putting the Motor Pulley (26) on
the lower shaft. (See Figure F.)

Item 61750 For technical questions, please call 1-888-866-5797. Page 9

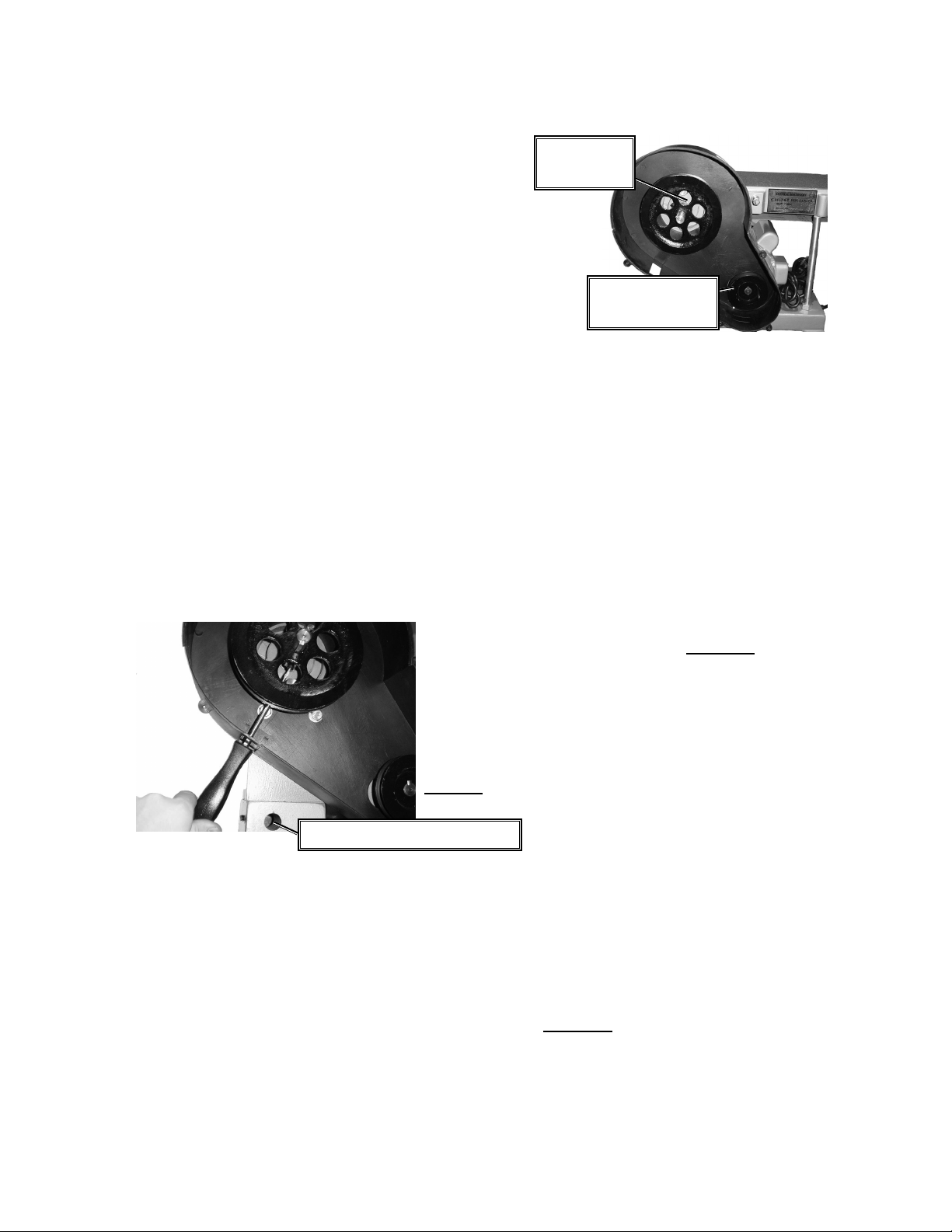

6. Carefully align both pulleys and tighten.
Use a flat head screwdriver through the
slot in the Dust Guard (22) to tighten
the Set Screw (23) on the Spindle
Pulley (24). (See Figure G.) Use a hex
key (not included) to tighten the Set Screw (25) on
the Motor Pulley (26).

Spindle

Pulley (24)

FIGURE F

7. Loosen the 4 Bolts (96) that hold the Motor (101)
just enough to let the Motor move. Move the
Motor towards the Spindle Pulley enough to let the
Belt (29) slip on over both Pulleys. Move the Motor
away from the Spindle Pulley until the Belt is tight enough so that, if pushed,
it doesn’t move more than 1/2". Hold the Motor in place while you retighten
the 4 Bolts (96).

8. Put the Sanding Disc Plate (30) on the end of the shaft so that it’s flush with the
end of the Drive Shaft (13). Tighten its Set Screw (31), once again using the slot
in the Dust Guard (22). (See Figure G.)

9. Check to make sure the Sanding Disc Plate (30) is free of dirt, oil, and other
debris.

10. Remove the paper backing on the adhesive Sanding Disc (32), and stick the

Sanding Disc firmly and evenly onto the Sanding
Disc Plate (30). (See Figure I, page 11.)

11. Replace cover of the Dust Guard (22) and

tighten the 4 screws. Verify that the Dust Guard

does not contact the Sanding Disc (32). If it does,

FIGURE G

you need to adjust the Sanding Disc Plate (30).

Motor Pulley

(26)

NOTE: When positioning the Work Table (41),

make sure there is more than 1/16"

Hole for Support Bar (56)

12. Insert the round end of the Support Bar (56) into the hole on the side of the
Base (68). (See Figure G.) Put the Table Support (51) over the end of the
Support Bar, with the tapered side of the Table Support facing the Sanding
Disc (32) and also the flat side of the Support Bar lined up with the Set
Screw (67). Tighten the Set Screw (50) on the Table Support Bracket. Set the
Table Support Bracket as shown in Figure J, page 12. Tighten the two Set
Screws (97) on the side of the Base to secure the bar.

Item 61750 For technical questions, please call 1-888-866-5797. Page 10

clearance but less than 1/8" clearance
between the Table and the Sanding
Disc (32).

OPERATING INSTRUCTIONS

To Install A Sanding Belt:

1. CAUTION: Always turn the Power Switch (64) to its “OFF” position and unplug
the Power Cord (59) from its 110 volt electrical outlet before performing this
procedure. (See Figure B.)

2. Loosen the two Knobs (107) in order to unlock the two Adjusting Nuts (108).

(See Figure H, next page.)

3. Turn the two Adjusting Nuts (108) counterclockwise to allow the Sanding Belt (1)
to be inserted onto the Sand Belt Frame (106). (See Figure H.)

4. Slide the Sanding Belt (1) fully and evenly onto the Sanding Belt Frame (106).
Then, turn the two Adjusting Nuts clockwise to tighten the tension on the Sanding
Belt. (See Figure H.)

5. Retighten the two Knobs (107), and lock the two Adjusting Nuts (108) in place.

(See Figure H.)

6. Plug the Power Cord (59) into a 110 volt electrical outlet, and turn the Power
Switch (64) to its “ON” position. (See Figure B.)

7. Allow sufficient time for the Sanding Belt (1) to turn at full speed. (See Figure H.)

8. NOTE: If the Sanding Belt (1) appears to be too loose on the Sand Belt
Frame (106), turn off the machine and unplug it from its electrical outlet. Then
repeat Steps #2 through #7 to further increase the tension on the Sanding Belt.

(See Figures B and H.)

9. Attach the Work Stop (105) to the side of the Sanding Belt Frame (106), as
shown in Figure H.

WORK STOP (105)

Sand in this area.

LOCK KNOB &

ADJUST NUT

ASSY.

(107)

SANDING BELT (1)

SANDING BELT FRAME

(106)

ADJUST NUT (108)

KNOB (107)

FIGURE H

Item 61750 For technical questions, please call 1-888-866-5797. Page 11

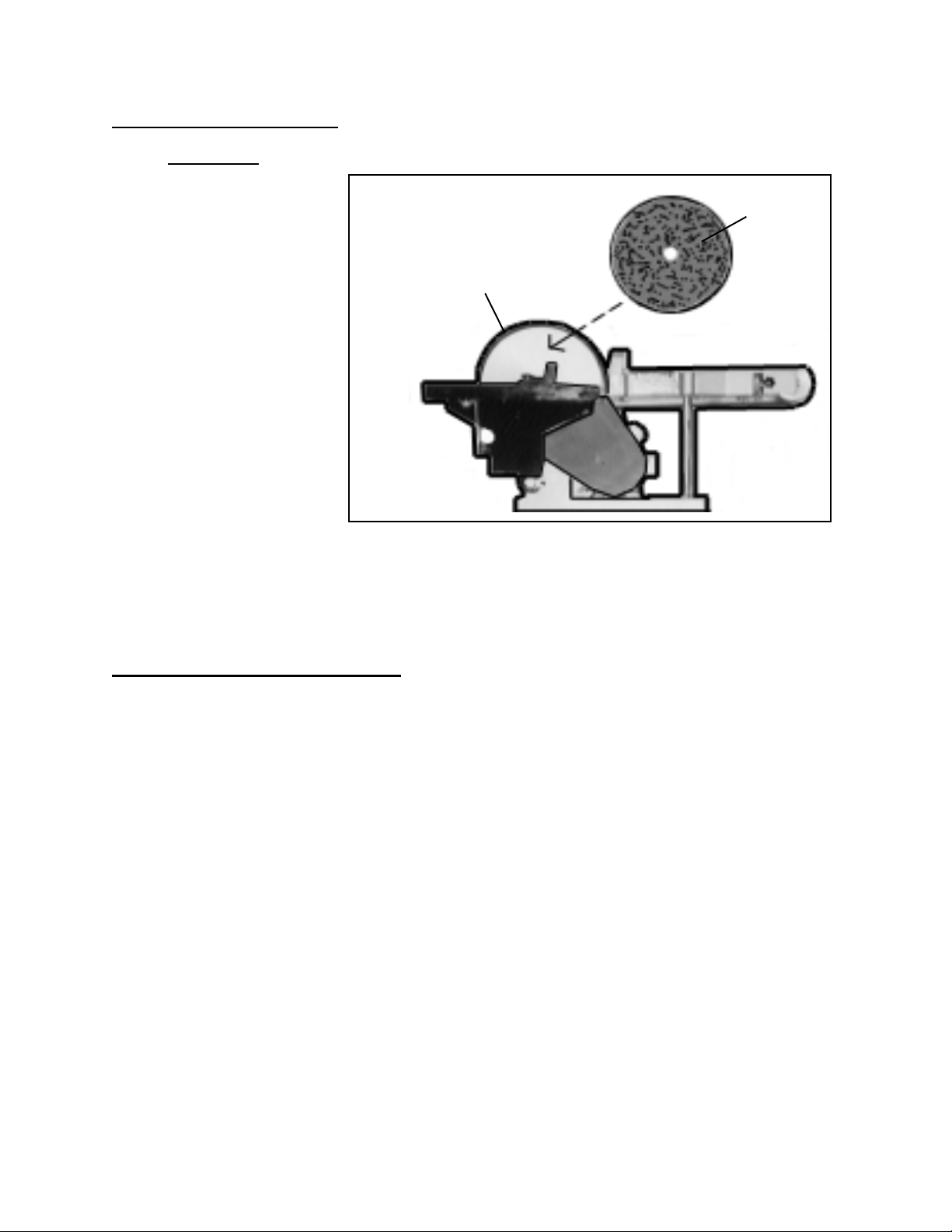

To Install a Sanding Disc:

1. CAUTION: Always turn the Power Switch (64) to its “OFF” position and unplug
the Power Cord (59)
from its 110 volt
electrical outlet

SANDING DISC

(32)

before performing
this procedure.

(See Figure B.)

SANDING DISC PLATE

(30)

2. Swing the Table
Support (51) out of
the way and remove
the cover from the
Dust Guard (22)
as explained on
page 9. Check
to make sure the
Sanding Disc

FIGURE I

Plate (30) is free of
dirt, oil, and other debris. (See Figure I.)

3. Remove the paper backing on the adhesive Sanding Disc (32), and stick the
Sanding Disc firmly and evenly onto the Sanding Disc Plate (30). Restore the
Table Support and Dust Guard to their original positions. (See Figure I.)

To Adjust the Angle of the Table:

1. The angle of the Work Table (41) may be adjusted from 0 to 45 Degrees. (See
Figure J.)

2. To adjust the angle of the Work Table (41), slightly loosen the Knob (45). (See
Figure J.)

3. Observe the Angle Gauge (42). Then raise or lower the Work Table until the
desired angle of the Work Table is shown on the Angle Gauge. (See Figure J.)

4. Once the desired angle of the Work Table (41) is obtained, retighten the
Knob (45). (See Figure J.)

Item 61750 For technical questions, please call 1-888-866-5797. Page 12

TABLE (41)

TABLE (41)

ANGLE

GAUGE

(42)

FIGURE J

KNOB

(45)

ANGLE

GAUGE

(42)

KNOB

(45)

To Adjust The Angle Of The Miter Gauge:

1. The angle of the Miter Gauge (39) may be adjusted to the right 0 to 45 Degrees
and to the left 0 to 45 Degrees. (See Figure K, next page.)

2. To adjust the angle of the Miter Gauge (39), slightly loosen the Miter Gauge
Knob (38). (See Figure K.)

3. Observe the Angle Scale on the Miter Gauge (39). Then move the Miter Gauge
Body to the right or left until the desired angle of the Miter Gauge is shown on the
Angle Scale. (See Figure K.)

4. Once the desired angle of the Miter Gauge (39) is obtained, retighten the Miter
Gauge Knob. (See Figure K.)

MITER GAUGE (39)

MITER GAUGE KNOB (38)

ANGLE SCALE

FIGURE K

Item 61750 For technical questions, please call 1-888-866-5797. Page 13

To Adjust the Sand Belt Frame for Vertical Sanding:

Loosen the two Nuts (5) on the Sanding Belt Frame (106), and with assistance
raise the Sanding Belt Frame to its full vertical position. Then, firmly retighten the
two Nuts to lock the Sanding Belt Frame in place. (See Figure L.)

NUT (5)

SANDING BELT FRAME (106)

(VERTICAL POSITION)

FIGURE L

To Adjust the Position of the Table:

1. When the Sanding Belt Frame (106) is in its vertical position, the Work
Table (41) should be repositioned to the front of the Sanding Belt Frame. (See

Figure M, next page.)

2. To reposition the Work Table (41), loosen the two Screws (53) and remove the
Work Table, including the Support Bar (56). (See Figure M.)

3. Insert the Support Bar into the Mounting Hole, and tighten the other two Set
Screws (67 & 50). (See Figure M.)

4. NOTE: When repositioning the Work Table (41), make sure there is more

1

than

/16" clearance but less than 1/8" clearance between the Table and the

Sanding Belt Frame (106). (See Figure M.)

Item 61750 For technical questions, please call 1-888-866-5797. Page 14

SANDING BELT

WORK TABLE

END VIEW SIDE

SUPPORT BAR

SET SCREW

(67)

(41)

(56)

FIGURE M

FRAME (106)

SANDING

BELT

(1)

VIEW

WORK
TABLE

(41)

SUPPORT

BAR

(56)

SET SCREW

(97)

To Perform Horizontal Sanding with the Sanding Belt:

1. CAUTION: Before each use, inspect the condition of the Sanding Belt (1). Look
for tearing, excessive wear, or other damage to the Sanding Belt. Never use a
Sanding Belt that is damaged. When replacing, never use an inexpensive, low
quality Sanding Belt.

2. Plug the Power Cord (59) into a grounded, 110 Volt electrical outlet. (See
Figure B.)

3. Turn the Power Switch (64) to its “ON” position, and allow the Sanding Belt (1) to
come to full speed for approximately ten seconds before feeding the workpiece
into the Sanding Belt. (See Figure B.)

4. Hold the workpiece firmly with both hands, and carefully set it flat and level upon
the Sanding Belt (1) and against the Work Stop (105). (See Figure B.)

5. Apply moderate downward pressure on the workpiece, allowing the Sanding
Belt (1) to cut without being forced.

6. Once the sanding procedure is completed, remove the workpiece from the
Sanding Belt (1), turn the Power Switch (64) to its “OFF” position, and unplug the
Power Cord (59) from its electrical outlet. (See Figure B.)

Item 61750 For technical questions, please call 1-888-866-5797. Page 15

To Perform Horizontal Sanding with the Sanding Disc:

1. CAUTION: Before each use, inspect the condition of the Sanding Disc (32).
Look for tearing, excessive wear, or other damage to the Sanding Disc. Never
use a Sanding Disc that is damaged. When replacing, never use an inexpensive,
low quality Sanding Disc.

2. NOTE: The Sanding Disc (32) is typically used for smaller workpieces.

3. Plug the Power Cord (59) into a grounded, 110 Volt electrical outlet. (See
Figure B.)

4. Turn the Power Switch (64) to its “ON” position, and allow the Sanding Disc (32)
to come to full speed for approximately ten seconds before feeding the
workpiece into the Sanding Disc. (See Figure B.)

5. Hold the workpiece firmly with both hands, and carefully set it flat and level upon
the Work Table (41). (See Figure B.)

6. Apply moderate inward pressure on the workpiece, allowing the Sanding
Disc (32) to cut without being forced.

7. Once the sanding procedure is completed, remove the workpiece from the
Sanding Disc (32), turn the Power Switch (64) to its “OFF” position, and unplug
the Power Cord (59) from its electrical outlet. (See Figure B.)

To Perform Vertical Sanding with the Sanding Belt:

1. Adjust the Sanding Belt Frame (106) and Work Table (41) for a vertical sanding
procedure. (See Figures L, and M.)

2. Plug the Power Cord (59) into a grounded, 110 Volt electrical outlet. (See
Figure B.)

3. Turn the Power Switch (64) to its “ON” position, and allow the Sanding Belt (1) to
come to full speed for approximately ten seconds before feeding the workpiece
into the Sanding Belt. (See Figure M.)

4. Hold the workpiece firmly with both hands, and carefully set it flat and level upon
the Work Table (41). (See Figure M.)

5. Apply moderate inward pressure on the workpiece, allowing the Sanding Belt (1)
to cut without being forced. (See Figure M.)

6. Once the sanding procedure is completed, remove the workpiece from the
Sanding Belt (1), turn the Power Switch (64) to its “OFF” position, and unplug the
Power Cord (59) from its electrical outlet. (See Figure B.)

REV 14d

Item 61750 For technical questions, please call 1-888-866-5797. Page 16

INSPECTION, MAINTENANCE, AND CLEANING

1. CAUTION: Always turn the Power Switch (64) to its “OFF” position and
unplug the Power Cord (59) from its 110 volt electrical outlet before
performing any inspection, adjustments, maintenance, or cleaning.

2. BEFORE EACH USE, inspect the general condition of the Belt/Disc Sander.
Check for loose screws, misalignment or binding of moving parts, cracked or
broken parts, damaged electrical wiring, excessively loose Sanding Belt (1) and
Sanding Disc (32), and any other condition that may affect its safe operation. If
abnormal noise or vibration occurs, have the problem corrected before further
use. Do not use damaged equipment.

3. DAILY: Sanding Belts (1) and Sanding Discs (32) must be sharp and clean to
perform properly. Depending on materials sanded and frequency of tool use,
Sanding Belts and Sanding Discs become clogged with wood particles and dull.
Dull Sanding Belts and Sanding Discs rub the workpiece rather than cut, which
results in increased friction, higher temperatures, and a burned workpiece. As
often as possible, check the condition of the Sanding Belt and Sanding Disc and,
if necessary, replace a worn Sanding Belt and Sanding Disc with a new, 6" wide
by 48" Sanding Belt and 9" diameter Sanding Disc.

4. DAILY: With a soft brush, cloth, or vacuum, remove all sawdust and debrisfrom

the Belt/Disc Sander. Then, use a premium quality, lightweight machine oil to

lubricate all moving parts.

PLEASE READ THE FOLLOWING CAREFULLY

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND
ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE
MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY
OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS
TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF
THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY

STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN

BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER
ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE

ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR
HER INSTALLATION OF REPLACEMENT PARTS THERETO.

Item 61750 For technical questions, please call 1-888-866-5797. Page 17

PARTS LIST

Part Description Qty

1 Sanding Belt 1
2 Bearing Plate 1
3 3AMI-12

Retaining Ring

4 Ball bearing

6201ZZ
5 8mm Hex Nut 2
6 8mm Lock Washer 2
7 Drum Cover 2
8 6-8 x 10mm

Set Screw
9 6 x 10mm Pan

Head Screw

10 Dust Deflector 1
11 Drive Drum 1
12 Key C5 x 55 1
13 Drive Shaft 1
14 Ball Bearing

6003ZZ

15 1XØ33.8XØ40

Washer

16 3AMI-17

Retaining Ring

17 6-8 x 25mm

Hex Nut

18 8mm Flat Washer 4
19 End Shield 1
20 Washer 1
21 8 x 40mm Bolt 2
22 Dust Guard 1
23 6-8 x 10mm

Set Screw

24 Spindle Pulley 1
25 6-8 x 10mm

Set Screw

26 Motor Pulley 1
27 8mm Flat Washer 4
28 6-8 x 12mm

Hex Screw

29 Belt 1
30 Sanding Disc Plate 1
31 6-8 x 10mm

Set Screw

32 Sanding Disc 1
33 Disc Cover 1
34 Pointer (I) 1
35 4mm Flat Washer 1
36 4mm Lock Washer 1
37 4 x 5 mm Pan

Head Screw

1

1

2

2

1

1

1

4

1

1

4

1

1

Part Description Qty

38 Knob 6 x 15mm 1
39 Miter Gauge 1
40 Gauge Plate 1
41 Working Table 1
42 Angle Gauge 1
43 8mm Flat Washer 1
44 6-8 x 12mm

Hex Screw
45 Knob 8 x 15mm 1
46 8mm Flat Washer 1
47 5 x 12mm Pan

Head Screw
48 5mm Flat Washer 1
49 Pointer (II) 1
50 6-8 x 10mm

Set Screw
51 Table Support 1
52 5mm Locking

Hex Nut
53 5X40mm Screw 2
54 5mm Hex Nut 2
55 ST3.5X9.5mm

Pan Head Screw
56 Support Bar 1
57 5 x 16mm Pan

Head Screw
58 5mm Serrated

Washer
59 Power Cord 1
60 Terminal 2
61 5mm Flat Washer 1
62 5mm Lock Washer 1
63 5mm Hex Nut 1
64 Switch 1
65 ST3.5X13mm

Pan Head Screw
66 Switch Plate 1
67 6-8 x 20mm

Set Screw
68 Base 1
69 Line Clamp 1
70 5mm Flat Washer 1
71 5mm Hex Nut 1
72 5mm Lock Washer 1
73 Switch Box 1
74 Upper Bracket 2
75 6 x 12mm Screw 8
76 Side Stand

Support
77 6 x 12mm Screw 4

1

1

1

2

4

1

1

2

2

2

Part Description Qty

78 Foot 4
79 6-8 x 25mm

Socket Head Bolt
80 8mm Flat Washer 4
81 8mm Flat Washer 4
82 8mm Hex Nut 4
83 6mm Flat Washer 4
84 6mm Hex Nut 4
85 Frame 2
86 6-8 x 16mm

Hex Bolt
87 8mm Lock Washer 4
88 8mm Flat Washer 4
89 6mm Flat Washer 8
90 6mm Hex Nut 8
91 8mm Hex Nut 4
92 8mm Lock Washer 4
93 8mm Flat Washer 4
94 Strain Relief 1
95 Strain Relief 1
96 6-8 x 20mm

Hex Bolt
97 6-8 x 10mm

Set Screw
98 5mm Flat Washer 1
99 5x20mm Pan

Head Screw

100 Key C5 x 25 1
101 Motor 1
102 Shaft 1
103 6-8 x 20mm

Hex Bolt

104 8mm Flat Washer 1
105 Work Stop 1
106 Sanding Belt

Frame

107 Knob 8 x 15mm 2
108 Adjusting Nut 2
109 Drum Cover 2
110 3AMI-12

Retaining Ring

111 Ball Bearing

6201ZZ

112 Drum Shaft 1
113 6-5 x 6mm

Set Screw

114 Adjusting Bar 2
115 Idler Drum 1

4

4

4

2

1

1

1

2

2

1

Item 61750 For technical questions, please call 1-888-866-5797. Page 18

ASSEMBLY DIAGRAM

79

80

78

81

82

83

77

84

85

76

86

87

75

89

88

74

91

90

73

92

59

62

72

71

70

93

58

69

49

48

63

68

50

57

47

61

66

60

56

45

46

67

64

94

51

55

97

95

44

98

54

96

65

43

99

53

28

52

27

42

100

29

41

101

30

110

26

19

102

112

40

33

34

25

109

18

103

105

107

108

111

39

35

20

113

17

38

36

32

106

31

16

104

24

13

114

37

23

21

15

22

14

12

10

9

11

8

7

6

5

4

3

2

1

115

Record Product’s Serial Number Here:

Note: If product has no serial number, record

month and year of purchase instead.

Note: Some parts are listed and shown
for illustration purposes only, and are not
available individually as replacement parts.

Item 61750 For technical questions, please call 1-888-866-5797. Page 19

Limited 90 Day Warranty

Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability
standards, and warrants to the original purchaser that this product is free from defects in materials
and workmanship for the period of 90 days from the date of purchase. This warranty does not apply to
damage due directly or indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside
our facilities, criminal activity, improper installation, normal wear and tear, or to lack of maintenance.
We shall in no event be liable for death, injuries to persons or property, or for incidental, contingent,
special or consequential damages arising from the use of our product. Some states do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation of exclusion
may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES,

EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.

To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.

This warranty gives you specific legal rights and you may also
have other rights which vary from state to state.

3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • 1-888-866-5797
