Instruction Manual

Multiparameter Benchtop Meter

Dear

Customer

Thank you for choosing a Hanna Instrument product.

Please read this instruction manual carefully before using this instrument. This manual will provide you with the necessary information for correct use of this instrument, as well as a precise idea of its versatility.

If you need additional technical information, do not hesitate to e-mail us at tech@hannainst.com or view our worldwide contact list for a Hanna representative near you at www.hannainst.com.

All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner, Hanna Instruments Inc., Woonsocket, Rhode Island, 02895 , USA

Table of Contents

Included ....................................................................................................................... 4

Safety Measures .........................................................................................................5

Description .................................................................................................................. 6

Diagram ..................................................................................................................7-11

Product Diagram ................................................................................................................................................................. 7-8

Probe Diagram ..........................................................................................................................................................................9

Keypad Function ....................................................................................................................................................................10

Guide to Indicators ................................................................................................................................................................ 11

Setup/ Installation ............................................................................................. 12-26

Setting Up edge™ ..........................................................................................................................................................12-14

Electrode & Probe Connections ......................................................................................................................................14

General Setup ..................................................................................................................................................................15-17

Basic Mode ...............................................................................................................................................................................17

Logging Function ...........................................................................................................................................................18-21

Viewing Logged Data .................................................................................................................................................. 21-24

PC & Storage Interface ................................................................................................................................................25-26

Operational Guide .............................................................................................. 27-75

Basic vs Standard pH Mode .......................................................................................................................................27-28

pH Meter Congurations ................................................................................................................................................... 29

pH Calibration .................................................................................................................................................................30-38

Calibration Messages ...................................................................................................................................................39-41

pH GLP Information ......................................................................................................................................................41-43

pH Measurement ..........................................................................................................................................................43-45

Basic vs Standard EC Mode ..................................................................................................................................... 46-47

EC Meter Conguration ...............................................................................................................................................47-50

EC/TDS Calibration ........................................................................................................................................................50-53

% NaCl Calibration .......................................................................................................................................................54-55

EC/TDS GLP Information ............................................................................................................................................55-59

EC/TDS Measurements ...............................................................................................................................................60-61

Salinity Measurements .............................................................................................................................................. 62-64

Dissolved Oxygen Setup ........................................................................................................................................... 65-66

DO Probe Diagram ................................................................................................................................................................ 67

DO Meter Conguration ............................................................................................................................................. 68-70

DO Calibration ................................................................................................................................................................. 70-71

DO Calibration Messages ...................................................................................................................................................72

DO GLP Information ...................................................................................................................................................... 72-74

DO Measurements ........................................................................................................................................................ 74-75

Maintenance .......................................................................................................76-83

pH Probe Maintenance ...............................................................................................................................................76-79

EC Probe Maintenance ....................................................................................................................................................... 79

DO Probe Maintenance ...............................................................................................................................................80-81

Troubleshooting Guide ...............................................................................................................................................82-83

Specications ........................................................................................................................84-87

Accessories .............................................................................................................................88-90

Warranty ..........................................................................................................................................91

Included

Remove the instrument from the packing material and verify damage has not occurred during shipping. Remove protective lm from meter. Notify your nearest Hanna Customer Service Center if damage is observed.

Each instrument is supplied with: Edge meter Bench cradle Wall cradle Electrode holder USB cable 5 Vdc Power Adapter Instruction Manual Quality Certicate

Included

Model Specic Components include:

HI 2020 (pH) HI 2030 (EC) HI 2040 (DO)

HI 11310: Digital pH Electrode with integral temperature sensor

HI 763100: Digital 4 ring conductivity probe with integral temperature sensor

HI 764080: Digital polarographic dissolved oxygen probe with integral temperature sensor

pH 4.01, 7.01 & 10.01 Buer Sachets

1413 µS/cm and 12.88 mS/ cm Conductivity Standard Sachets

HI 7041S Electrolyte for HI 764080 DO probe

2 DO membarne caps for HI 764080 DO probe

HI 700601 General Purpose Cleaning Solution

2 replacement O-rings

Note: Save all packing material until you are sure that the instrument works correctly. Any defective item must be returned in its original packing.

Safety Measures

Before using this product, make sure that it is entirely suitable for your specic application and for the environment in which it is used.

Operation of this instrument may cause unacceptable interferences to other electronic equipment, thus requiring the operator to take all necessary steps to correct interferences. Any variation introduced by the user to the supplied equipment may degrade the instrument’s EMC performance.

To avoid damages or burns, do not put the instrument in microwave ovens. For your and the instrument’s safety, do not use or store the instrument in hazardous environments.

Safety Measures

Description

edge™ enables the user to make fast, accurate measurements of commonly measured laboratory parameters using one of the Hanna edge™ digital sensors for pH, Conductivity or Dissolved Oxygen. The digital sensors are individually serialized and identied by the meter. Once connected to the meter, they are ready to measure their individual parameters along with temperature.

The clean user interface permits you to adapt edge™ to your exact measurement requirements. The intuitive design simplies conguration, calibration, measurement, data logging and transfer of data to a USB thumb drive or computer. edge™ also oers a basic operation mode that streamlines measurement conguration and is useful for many routine applications. Every feature and measurement detail is designed to give you an edge in measurement technology.

edge™ is versatile in many ways. The slim meter and probe can be used remotely as a portable device (using its rechargeable battery) or used in its bench or wall cradles (that also power the meter) as a line-powered laboratory instrument.

Description

Product Diagram

1. Liquid Crystal Display (LCD)

2. Capacitive Touch Keypad

3. 3 mm jack input for edge™ digital probes

4. Top mounted ON/OFF button

5. Micro USB device connection for power or PC interface

6. Standard USB host connection for data transfer to a USB thumb-drive

Front View

Product Diagram

Product

Diagram

Top & Bottom

View

Side & Back

View

• Sleek, clean, intuitive design

• Internal clock and date

• Adjustable resolution for pH and EC measurements

• Auto parameter recognition

• Dedicated GLP key

• GLP data included with logged data

• Basic mode for simplied operation

• Simplied data transfer to a PC

• Up to 8 hours battery life when used as a portable device

Product Diagram

Probe Diagram

pH Electrode EC Electrode DO Electrode

• Process measurement signal directly for noise free determinations

• Support auto sensor recognition

• Store calibration specic data from the last calibration

• Are built with materials suitable for use in chemical analysis

• Have integral temperature measurement

• Incorporate a 3 mm jack termination

• Unique serial ID in every probe for traceability

Probes

Product Diagram

Keypad

Function

1. CAL/MODIFY - Used to enter and exit calibration mode. In SETUP used to initiate modication of a conguration setting.

2. GLP/CFM - Used to display GLP calibration information. In SETUP, used to conrm change made. In calibration, used to accept calibration points

3. RANGE/u - Used to select measurement range. In SETUP used to move to right in pick list. In log RCL used to view GLP data for a data point.

4. SETUP/CLR - Used to enter/ exit SETUP mode. During Calibration used to clear previous calibration data. In log RCL used to clear log records.

5. / - Used to scroll through

SETUP menu. Used to change selection when modifying a parameter in SETUP.

6. RCL - Used to view log records

or view % log memory used.

7. LOG - Used to initiate a manual

(log on demand) or manual (log on stability) log or to start/stop interval logging.

Note: You can increase/ decrease the speed to change the value of the parameters. Proceed as follows:

Press and hold down the p or q key, then slide the nger toward the double apex to increase the rate of change.

Product Diagram

Guide to Indicators

1. Mode tags

2. Conrm tag

3. USB connection status

4. pH electrode diagnostics

5. Probes symbol

6. Battery symbol

7. Arrow tags, displayed when they are available

8. pH calibration buers used

9. 3rd LCD line, message area

10. Labels

11. 2nd LCD line, temperature measurement

12. Temperature units

13. Temperature status

14. Measurement line

15. Measurement units

16. Stability Indicator

The third line of the LCD is a dedicated message line. During measurement the user may use the p q arrows to select desired message. Options include Date, time, calibration data, battery charge or no message. If a measurement error or log status change occurs during measurement, the third line will display a pertinent message.

Setup/Installation

The main operating modes of edge™ are setup, calibration, measurement, data logging, and data export. Follow this general outline of steps to get you started in taking measurements. The following topics are expanded upon in the sections that follow in this manual.

1. Familiarize yourself to the design features of this unique meter.

2. Decide how the meter will be used and set up the wall or bench cradle in a clean area near line power.

3. Turn edge™ on using the ON/OFF button located on the top of the meter.

4. Plug in the probe required for measurement.

5. SETUP the measurement parameters required for the measurement you will be making.

6. Calibrate the sensor/probe.

You are now ready for measurements.

Bench Cradle Setup

Insert electrode holder arm into the post on the pivoting base.

Connect the probe connector to the socket located at the bottom of the instrument.

Slide edge™ into the cradle while positioning the probe cable behind the cradle. Put the probe/sensor into the electrode holder and secure cable in clips.

Setting Up

edge™

Setup/Installation

Connect the power adapter cable to the rear socket of the bench cradle. Verify the battery icon indicates charging when meter is powered.

Wall Cradle Setup

Choose suitable wall location. Use the drilling diagram to drill holes as indicated. (Use 2.5 mm or US #3 bit).

Fasten the wall cradle using the provided screws. Snap cover over screw heads.

Connect the power adapter cable to the bottom socket of the wall cradle.

Connect the probe connector to the socket located at the bottom of edge™.

Slide edge™ into the wall cradle. Verify the battery icon indicates charging when meter is powered.

Setting Up edge™

Setup/Installation

Power Connection

Connect the micro USB connector into the USB socket on the cradle or into the micro USB socket of edge™. Plug the 5 Vdc adapter into the power supply socket. edge™ can be also powered by connecting with a USB cable directly to a PC.

Note: edge™ is supplied with a rechargeable battery inside, which ensures about 8 hours of continuouse use. Whenever edge™ is connected to the power adapter or to a PC, the battery is recharging.

Connect the connector of the probe to the probe input located on the bottom of edge™. Make sure the probe is completely connected. If the probe is recognized, “CONNECTING” message is displayed.

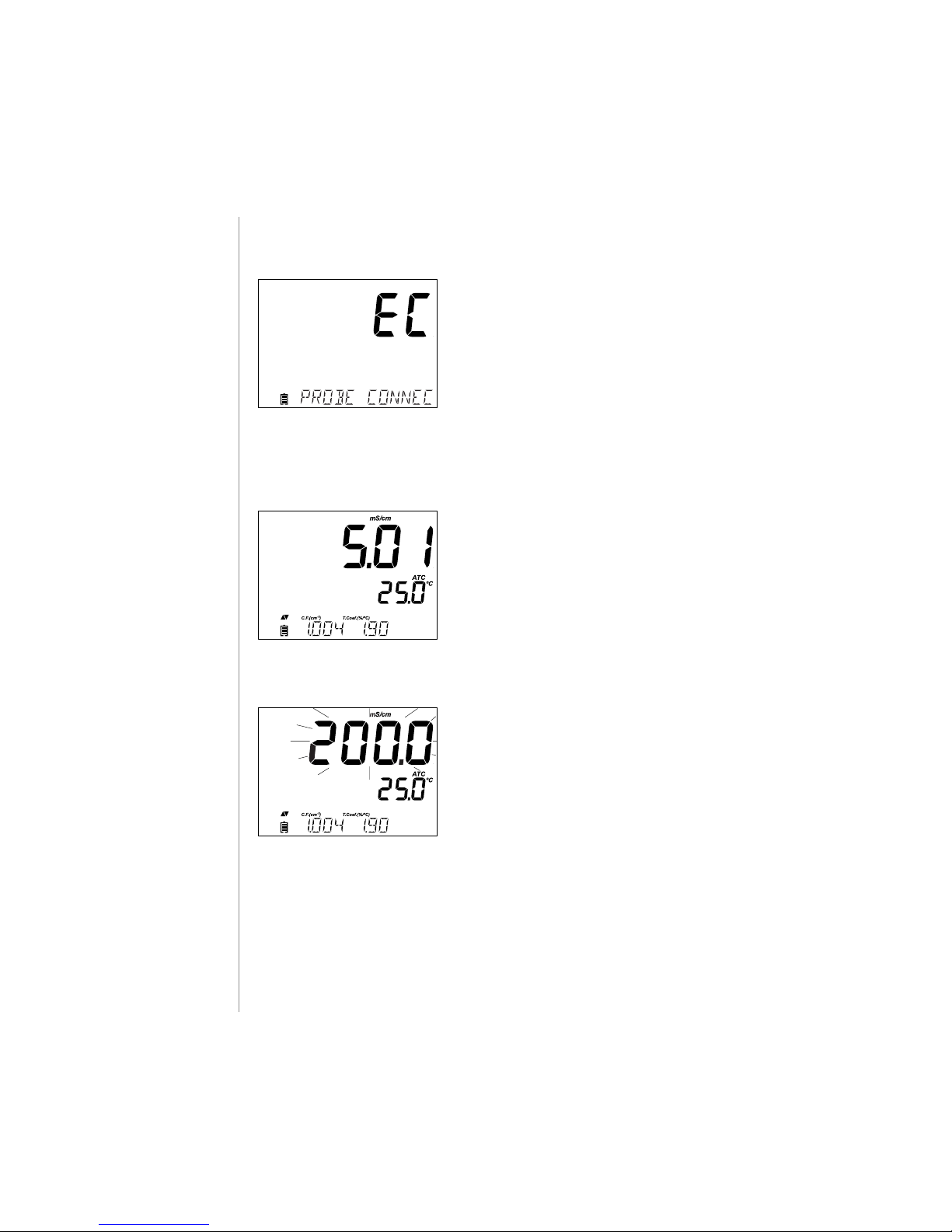

If the probe is not connected or not recognized, “NO PROBE” message is displayed.

Electrode

& Probe

Connections

Setting Up

edge™

Setup/Installation

The following General Setup parameters are displayed with all probe measurements and remain if switching to another probe type. Only these parameters are available when no probe is attached. Parameters are tabulated in the table below with choices and default values. Parameters are accessed by pressing SETUP. Loop through the parameters by using the p q arrows. To modify a setting, press MODIFY. The parameter may be modied by using u, p and q arrows. Press CFM to conrm the change. To exit SETUP press SETUP.

Parameter Description Choices Default

Basic mode*

(EC and pH)

*Only seen when cable connection between micro USB and PC is made.

Select to log data on edge™ or to export data to PC

Log on edge™ of export to PC

Log on edge™ Available

Log

Select log type to be used from 3 types of logs: Manual, Manually initiated Stability log (3 settings available), or a continuous Lot logging with measurements logged in timed intervals.

Manual Log

Stability Log: Fast, Medium, Accurate;

Interval Log: Seconds: 5, 10, 30; Interval Log Minutes: 1, 2, 5, 15, 30, 60, 120,

180.

Interval (5 Sec)

Manual log or Stability log: Medium

Set Calibration Expiration Warning

Meter will indicate “CAL DUE” when set time in this parameter has been exceeded.

1, 2, 3, 4, 5, 6, 7 days or OFF

Not available

General Setup

Setup/Installation

Parameter Description Choices Default

Basic mode*

(EC and pH)

Probe Specic Parameters are inserted here in SETUP list.

Set Date Press MODIFY

key to Set current date, displayed in ISO format. Press CFM to save changes.

YYYY/MM/DD Date

Set date Available

Set Time Press MODIFY

key to Set current time, displayed in ISO format. Press CFM to save changes.

24hr:MM:SS Time

Set time Available

Set Auto O Used to save

battery life by automatically turning o when no key press is detected for time set and meter is not in active logging or calibration mode.

5, 10, 30, 60 Min or O

10 MIN Available

Sound If enabled, a

short audible tone is produced or key stroke or calibration conrmation and a longer tone for wrong key.

On or O On Available

Temperature Unit

Select degree Celsius or Fahrenheit scale for displayed and logged temperatures.

ºC or ºF ºC Available

General

Setup

Setup/Installation

LCD Contrast Permits

modication of the display contrast for various lighting conditions

1 to 8 3 Available

Flash Format

Only seen when log errors are present.

Permits formatting the ash drive.

On or O OFF Available

Message Transition

User may choose how messages are displayed on 3rd LCD line of display.

Word scroll messages or letter scroll messages

Letter scroll messages

Available

Reset Cong To Default

Press the MODIFY key and CFM (when prompted) to reset parameters.

Available: RESETS with Basic Mode OFF.

Instrument Firmware/ Probe Firmware

Displays rmware version of meter. Using the u key switches to Probe rmware (if connected) and diagnostic made for troubleshooting.

View only Current

rmware version.

Available

Meter ID 4 digit numeric User selectable 0000 Available

Note: Parameters that are grayed out are seen under special conditions only.

edge™ oers a basic operation mode that streamlines measurement conguration for pH and EC measurements and is useful for many routine applications. Basic pH SETUP reduces parameter selection to the basic set. The meter limits calibration to 5 standard pH buers; 6.86, 7.01, 4.01, 9.18 and 10.01 buers. All pH measurements will display, log and export with 0.01 pH resolution. Interval logging is also eliminated. Manual and Manual stability Logs on demand are still functional. pH CONDITION, RESPONSE graphs are not displayed, giving the display a “Basic” measurement screen with just pH data

Basic Mode

General Setup

Setup/Installation

and temperature. Basic EC reduces specic EC SETUP parameters to 3. The meter defaults setting to common parameters and auto ranges measurements automatically. The Basic EC meter may be used for conductivity and TDS measurements (salinity is not available). Interval logging is also eliminated. Manual and Manual medium stability Log on demand are still functional.

Note:

• If powering edge™ through the micro USB connector to a PC, a SETUP parameter will require the choice “LOG ON EDGE”.

• 1000 log records can be stored into the Edge memory. This memory is shared between all measurement types (pH, EC, DO) and all logging types (Manual, Manual Stability, Interval logs)

• The maximum number of records for an Interval Lot is 600 records (provided log space is available).

The maximum number of Interval Lots that may be stored is 100. If a 101st lot is attempted, “MAX LOTS” will be displayed. Some lots will need to be deleted. The lot numbering is up to 999 and restarts if all LOT logs are deleted. The maximum number of records that may be stored in a MANUAL or STABILITY lot is 200 records.

If the log memory is full during any logging session, the “LOG FULL“ message will be displayed on the 3rd LCD line for a brief moment and logging will cease. The display will return to the measurement screen.

Logging type is congured in SETUP. The types of

Types of Logging

Interval is a continuous log made using the user-selected sample period. (This is not available in Basic mode).

Logging Function

Setup/Installation

Manual (log on demand) readings are logged each time LOG is pressed. All of the records are stored in a single Manual lot for the measurement type. New records made on dierent days are stored in the same Manual lot.

Stability is a log on demand that is made each time LOG is pressed and the stability criterion is reached. Stability may be set with Fast, Medium or Accurate settings.

Use the u arrow to select between Interval, Manual, Stability. When Interval is displayed use the p and q arrows to select the setting for the timed interval. When Stability is displayed, use the p and q to select the measurement stability setting

A complete set of GLP information including date, time, range selection, temperature reading, calibration information and probe serial number is stored with each log made.

Select Interval and sampling period in the SETUP menu (Not available in Basic mode). To start Interval logging, press the LOG key while the instrument is in measurement.

Interval Logging

A “PLEASE WAIT” message will be displayed followed the number of free spaces. During active interval logging, lot information is displayed on the 3rd LCD line. The line indicates in which lot the data will be placed and keeps track of the number of logged records taken. The “LOG“ tag is continuously on during active logging.

Pressing u during an interval log will display the number of logs available.

Logging Function

Setup/Installation

Pressing the LOG key again will stop the Interval logging session. The “LOG STOPPED“ message will be displayed for a few seconds.

If a sensor failure occurs during interval logging, the message “OUT OF FREE SPACE” will alternate with logging information

Manual Logging

Select Manual in the SETUP menu. To initiate a Manual log, press the LOG key while the instrument is in measurement. The “PLEASE WAIT” screen will be displayed briey followed by a screen indicating the measurement has been saved and then the log record number.

Following the saved and recorded number, the amount of free space will be displayed. The “LOG” tag will be displayed on all 3 screens.

Stability Logging

Select Stability and choose measurement stability criteria in the SETUP menu. Only Stability Medium is available in Basic mode. To initiate the Stability log, press the LOG key while the instrument is in measurement.

The “PLEASE WAIT” screen will be displayed briey followed by a screen showing the stability tag, “LOG” tag and a “WAITING” message. The log can be stopped while the “WAITING” message is displayed by pressing LOG again.

Logging

Function

Setup/Installation

When the stability selected criteria has been met, a “SAVED” message will be displayed followed by a screen indicating of how much log space is available. The “LOG” tag will be displayed on all 4 screens.

All log records stored on edge™ may be viewed on the meter by pressing the RCL key. The log records are grouped according to measurement (pH, EC, DO).

The parameter displayed rst is based on the probe/ sensor connected. The display also indicates the percentage of log memory used. Press CFM to display those logs.

If no sensor or probe is connected, use the u arrow to select the desired measurement type. Press CFM to display those logs.

Use the p q arrows to scroll through the records and nd the desired lot of interest.

Viewing Logged Data

Logging Function

Setup/Installation

Viewing

Logged Data

If no data was logged for the selected measurement range, the instrument displays the following messages (ex. for pH range):

No Manual Logs No Stability Logs

Press CFM to enter inside lot information to view memorized records. Use the ARROW keys to toggle between dierent records. Use u to display GLP data. Press CLR then CFM when deleting records or lots. Press RCL to exit the lot you are viewing. Press RCL to return to the measurement screen.

Delete Record/Lot

Press RCL and select measurement log. Use the pq keys to select the Manual/Stability records or Interval lots to delete. The instrument will display “CLEAR MANUAL” for MANUAL, “CLEAR STAB” for STABILITY.

For Interval lots, the message “Clear” followed by the

selected lot will be displayed with “CFM” tag blinking. Press the ARROW keys to select a dierent lot. Press CFM. The instrument will display “PLEASE WAIT”.

For Interval, use the pq keys to select a dierent lot. Press CFM. The instrument will display “PLEASE WAIT”.

“CLEAR DONE” is displayed for a few seconds after the selected Interval lot is deleted.

Setup/Installation

Viewing Logged Data

To delete individual records (Manual and Stability logs only), enter Manual (Stability) log by pressing CFM when Manual (Stability) is displayed. Use the ARROW keys to select the record to be deleted and then press CLR.

The instrument will display “CLEAR REC.“ and record number along with “CFM” tag blinking. Use the ARROW keys to select another record if necessary.

Press CFM. The instrument will display “PLEASE WAIT” and then “CLEAR DONE” message. When individual logs are deleted within saved MANUAL or STABILITY logs, the logs will renumber, lling in the deleted data but staying in chronological order.

To delete all records of the MANUAL (STABILITY) log, proceed as described above for LOTS.

Select the Manual (Stability) lot and press CLR. The ”CLEAR” message will be displayed along with ”MANUAL” or “STABILITY” and CFM tag blinking on the LCD. Press the CFM key to conrm the deleting of the selected lot (MANUAL or STABILITY) or all records. Press CLR to exit without deleting.

The lot number is used to identify particular sets of data. The lot numbers are allocated successively until 100, even if some lots were deleted. The total number of lots that can be saved is 100. If some are deleted (for example 1-50), fty additional logs may be stored. These will be numbered 101-150. The lots are allocated successively (provided available memory space) until 999 is reached. After this, it is necessary to delete all the LOT logs to start over the numbering.

Setup/Installation

Delete All

All pH logs, (or all EC, all DO logs) may be deleted in a single clear. This function will delete all MANUAL, STABILITY and INTERVAL logs for the measurement type selected.

Press the RCL key. The pH, EC, or DO type will be blinking. Use u to select desired measurement parameter log data to delete.

While the measurement type is blinking and message states “LOG RECALL”, press CLR. “CLEAR ALL” and measurement type will be displayed with CFM tag blinking. Press CFM.

“PLEASE WAIT” and the percent cleared will blink until completed. The procedure can be repeated for the other measurement modes.

Note: If CLR is pressed in error, press CLR again to exit without deleting.

Viewing

Logged Data

Setup/Installation

Logged data on edge™ can be transferred from the meter to a USB ash drive by using the log recall function. The minimum requirement for the drive is USB

1.1. Select the pH, EC or DO record you wish to export and follow the simple steps below.

Connect USB ash drive to the USB host socket, located on the top of the meter. Press the RCL key and select the parameter to view. Press the CFM key. Select Manual, Stability, or interval lots by using the p q arrow keys. Press the LOG key (not CFM). The “USB HOST” tag should come on.

“PLEASE WAIT” message appears followed by “EXPORT”. Press CFM to export the selected record or lot. If CFM is not pressed in 10 seconds, the USB host will become inactive.

The meter will display the percentage of export.

The export percentage should go to 100%. Remove USB ashdrive.

The display will return to the selected le. Press the RCL key twice to return to measurements.

Note: Do not remove USB ash drive during an active export transfer.

PC & Storage Interface

Setup/Installation

PC & Storage

Interface

Logged data on edge™ can be transferred from the meter to a PC by following these simple directions. The minimum operating system for the PC is Windows X P.

1. Connect the edge™ to the PC using the supplied micro USB cable.

2. Turn on the edge™.

3. If “LOG ON EDGE” is enabled, go to SETUP and chagne to “EXPORT TO PC”.

The PC should detect the edge as a removable drive. Open the drive to view the stored les. Log les are formatted as comma separate values (*.csv) and can be opened with any text editor or spreadsheet program

Interval logs are designated as pH, EC or DO Lots. ie. PHLOT001, ECLOT002, DOLOT003.

The Manual Lots are PHLOTMAN, ECLOTMAN, and DOLOTMAN.

The Stability Lots are PHLOTSTAB, ECLOTSTAB, and DOLOTSTAB. All stability logs, regardless of stability setting, are located in the same stability le for that measurement.

Click on the desired log to view data.

Note: If C! appears in log data the sensor/probe was used out of the operation parameters. If C!! appears in log data, the temperature probe is broken

Operational Guide

Basic vs Standard pH mode

For optimum pH measurements, follow these steps:

1. Understand the benets and features of Standard and Basic Operation.

2. Set up edge™ meter by conguring preferences.

3. Calibration

4. Measurement

The “Standard” pH operation includes up to a 5-point buer calibration, use of custom buers, choice of displaying 0.001 pH resolution, use of the full diagnostic features of Calibration Check™ (that includes buers used, probe condition, response time and messages indicating a contaminated buer or pH sensor requiring maintenance during calibration). Additional Sensor Check™ indicators are available if using HI 11311 or HI 12301 pH electrodes.

These include a continuous diagnostic to detect if the electrode is broken or the reference junction has been compromised by sample contamination or fouling. The Standard pH operation also includes full logging capability including Interval, Manual log on demand and Manual log on stability.

“Basic” pH operation provides a simplied SETUP menu; there are no decisions to make regarding the pH measurement itself. The meter will display 0.01 pH resolution and permit a 3-point buer calibration from the following pH buers; 4.01, 6.86, 7.01, 9.18 or 10.01. Calibration Check™ and Sensor Check™ features are limited to messages during calibration. Calibration reminders are also not available. The GLP will still provide oset, slope, buers used and a calibration date. The Basic pH operation includes Manual log on demand and Manual log on stability (medium setting).

Note: When changing from Standard to Basic operation in SETUP, previous calibration data will be cleared. A prompt will force the user to facilitate this.

Operational Guide

Basic vs

Standard

pH mode

Major dierences between Standard and Basic modes are tabulated below.

Standard Basic*

Calibration

5 points including 2 custom buers

3 points

Diagnostics

Cal Check™ Feature Sensor Check™ Feature Error messages GLP

Basic error messages GLP basic

Log types

Manual Log on demand Manual Log on stability Interval

Manual Log on demand Manual Log on stability

Recommended pH electrodes:

HI 11310, HI 12300 HI 11311, HI 12301 HI 10530, HI 10430

HI 11310* HI 12300

* All Sensors work in this mode, but diagnostic and all buers will not be available

Operational Guide

pH meter operation is congured by using the SETUP key with a pH probe connected to the meter. The parameter-specic parameters will be seen inserted into the menu. If Basic mode is congured “On”, the pH parameter list will not be displayed. See Basic mode for a description of this operation before choosing how to SETUP the meter.

Parameter Description Choices Default Basic mode

Basic Mode

When “On”, a limited set of parameters and calibration buers are available for use.

O or On

O Available

Information

Visual indication of buers used, Probe Condition and Response times are determined and displayed when calibration uses 7 and 4 and/or 10 pH buers.

O or On

Buers used, probe conditions, and response times are not displayed.

First Custom Buer

When “On”, it permits the user to enter a custom pH buer value to use during probe calibration.

O or On

O Not Available

Second Custom Buer

When “On”, permits user to enter a custom pH buer value to use during probe calibration.

O or On

O Not Available

First Calibration Point

Allows the user to choose how the rst point in calibration will be made.

Oset or point

Oset

Not Available (automatically uses Oset).

Resolution

Allows the user to select between 0.01 and 0.001 pH resolution.

0.01 Or

0.001 pH

0.01 pH

Not Available (automatically uses

0.01 pH resolution).

Set Out Of Calibration Range

When “On”, a measurement outside the calibration buer window used will trigger a warning message.

O or On

Not Available, No Error messages displayed.

pH Meter Conguations

Operational Guide

Calibration

pH operation in standard mode oers full function of edge™ meter. This includes seven standard buers and two custom ones. Five pH buers may be used for calibration.

The instrument should be recalibrated whenever:

• High accuracy and sensor verication are required.

• The pH electrode is replaced.

• At least once a week.

• After testing aggressive chemicals.

• If ”CAL DUE” is displayed on the 3rd LCD line.

Every time you calibrate the instrument use fresh buers and perform an electrode maintenance as required. It is advised to choose calibration buers that bracket the sample pH.

Preparation

Pour small quantities of the buer solutions into clean beakers. If possible, use plastic to minimize any EMC interferences. For accurate calibration and to minimize cross-contamination, use two beakers for each buer solution. One for rinsing the electrode and one for calibration. If you are measuring in the acidic range, use pH 7.01 or 6.86 as the rst buer and pH 4.01 (or 3.00*) as the second buer. If you are measuring in the alkaline range, use pH 7.01 or 6.86 as rst buer and pH 10.01 or 9.18 as the second buer.

Procedure

Calibration can be performed using up to ve calibration buers. For accurate measurements, a minimum of a three-point calibration is recommended. The calibration buer can be selected from the calibration buer list that includes the custom buers and the standard buers:

pH 1.68, 4.01 (pH 3.00*), 6.86, 7.01, 9.18, 10.01 and 12.45.

* pH 3.00 is only visible when using specic pH electrodes and will replace

4.01 pH buer.

Operational Guide

pH Calibration

The custom buers allow the user to calibrate in a buer solution dierent from a standard one. Two custom buers can be set in SETUP menu. See page 30 for more information about using custom buers. The instrument will automatically skip the buer used during calibration and the buers which are in a ±0.2 pH window, around one of the calibrated buers.

Submerse the pH electrode approximately 3 cm (1¼”) into a buer solution and stir gently. Press CAL to enter calibration.

The “CAL” tag will appear and the “7.01” buer will be displayed on the 3rd LCD line. If necessary, press the ARROW keys to select a dierent buer value. The “ ” along with “STIR” tag will be displayed and “WAIT” will blink on the LCD until the reading is stable.

When the reading is stable and close to the selected buer, “CFM” tag will blink. Press CFM to conrm calibration.

The calibrated value will be displayed on the 1st LCD line and the second expected buer value on the 3rd LCD line.

After the rst calibration point is conrmed, rinse and submerse the pH electrode approximately 3 cm (1¼”) into the second buer solution and stir gently. If necessary, press the ARROW keys to select a dierent buer value.

Operational Guide

The “ ” along with “STIR” tag will be displayed and “WAIT” will blink on the LCD until the reading is stable.

When the reading is stable and close to the selected buer, “CFM” tag will blink. Press CFM to conrm calibration.

Repeat procedure with additional pH buers. A total of ve pH buers can be utilized.

After conrming the last desired buer calibration points, press CAL or if all ve buer values were calibrated the instrument will automatically display “SAVING”, as it stores information and it will then return to normal measurement mode.

Each time a buer is conrmed, the new calibration data replaces the old data for the corresponding buer or for any near buer in a ±0.2 pH proximity. If current buer has no previous data stored and the calibration is not full (ve buers), the current buer is added to the existing calibration. If the existing calibration is full, the instrument asks which buer to replace.

Press the ARROW keys to select another buer to be replaced. Press CFM to conrm the buer that will be replaced. Press CAL to leave calibration without replacing.

Note: If the replaced buer is outside the ±0.2 pH window around each of the calibrated buers, it is possible to select this buer for next calibration during current calibration.

Calibration

Operational Guide

Working With Custom Buers

If a custom buer was set in SETUP menu, it can be selected during calibration by pressing the ARROW keys. The “C1” or “C2” tag will be on once selected.

Press u if you want to modify the custom buer value. The buer value will start blinking. Use the ARROW keys to change the buer value.

After 5 seconds, the buer value is updated. Press u if you want to change it again.

Note: Custom buer value can be adjusted in a ±1.00 pH window around the set value during calibration. When a custom buer is displayed, the “C1” or “C2” tag is displayed.

First Calibration Point

When performing a new calibration, or adding to an existing one, the user has a choice how the rst new calibration point will be treated in reference to the existing calibration point. This is selected in SETUP by the parameter FIRST CALIBRATION POINT. The two SETUP selectable options are “POINT” or “OFFSET”.

Point: A new buer can be added to an existing calibration. The electrode slope will be reevaluated with the addition of this buer (normal operation).

Oset: The new buer calibration point can create a constant oset to all existing pH calibration data (existing calibration must have a minimum of two pH buers).

pH Calibration

Operational Guide

Recalibrating a pH sensor or adding to an existing calibration is simple and follows the PROCEDURE outlined on page 28.

Press CAL. Place sensor in desired buer and select buer from choices. When sensor has equilibrated, the CFM tag will turn on and blink. Press the CFM key.

Press CAL to escape the calibration. Alternately continue calibrating in additional buers. The latest calibration point will be added to the existing data. GLP will reect the latest calibration data. Older calibration buers will be seen as blinking buers.

Note: Each time a buer is conrmed, the new calibration data replaces the old data for the corresponding buer or for any near buer in a ±0.2 pH proximity. If the current buer has no previous data stored and the calibration has not used ve buers, the current buer is added to the existing calibration. If the existing calibration is full, the

instrument asks which buer to replace.

Note: When using Standard mode (Basic mode O), the user has a choice if they want the display to show the CONDITION and RESPONSE gauges on the display. These are part of the Cal Check™ system and are selected in SETUP by the parameter INFORMATION. The choice is ON or OFF.

Electrode Condition And Electrode Response Time

edge™ pH Calibration Check™ feature will assess electrode condition and response time during each calibration and display it for the rest of the day.

The condition gauge shows the electrode’s condition that is based on the oset and slope characteristics of the pH electrode at the time of calibration. The response gauge is a function of the stabilization time between the rst and second calibration buers, when calibration is performed between a pair of 4.01, 7.01, or 10.01. These gauges reect the electrode’s performance and should be expected to slowly decrease over the life of the electrode.

Calibration

Operational Guide

If the instrument is not calibrated the calibration history was deleted, or it has been calibrated only at one point, the electrode condition and the electrode response gauges will be empty.

For a continuous display of the electrode’s condition and response, daily calibration is necessary. This information can also be viewed in the GLP data.

Junction Condition (HI 11311 And HI 12301 Only)

edge™ pH Sensor Check™ feature will assess the health of the pH electrode’s reference junction during each calibration. The junction gauge may be viewed directly in GLP but will also blink a warning on the display if the junction is compromised (not 100%). Should this happen, the junction condition will appear on the display with the junction blinking. The Junction Condition is a function of the electrode’s reference impedance which should be kept low. If the reference junction becomes fouled from a precipitate or coating, the impedance will rise and cause the pH measurement to drift. This diagnostic feature serves as a warning to clean the sensor.

pH Calibration

Operational Guide

Procedure

Basic mode operation permits up to three-point buer calibration. For accurate measurements, at least a two-point calibration is recommended. However, a single point calibration can also be used. The calibration buers can be selected from the calibration buer list that includes the standard buers, pH 4.01, 6.86, 7.01, 9.18 and 10.01.

Three-Point Calibration

Submerse the pH electrode approximately 3 cm (1¼”) into a buer solution and stir gently. Press CAL. The “CAL” tag will appear and the “7.01” buer will be displayed on the 3rd LCD line. If necessary, press the ARROW keys to select a dierent buer value.

The “ ” along with “STIR” tag will be displayed and “WAIT” will blink on the LCD until the reading is stable.

When the reading is stable and close to the selected buer, the “CFM” tag will blink. Press CFM to conrm calibration.

The calibrated value will be displayed on the 1st LCD line and the second expected buer value on the 3rd LCD line.

After the rst calibration point is conrmed, rinse and submerse the pH electrode approximately 3 cm (1¼”) into the second buer solution and stir gently.

If necessary, press the ARROW keys to select a dierent buer value.

Calibration

Operational Guide

The “ ” along with “STIR” tag will be displayed and “WAIT” will blink on the LCD until the reading is stable. When the reading is stable and close to the selected buer, the “CFM” tag will blink. Press CFM to conrm calibration.

The calibrated value is then displayed on the 1st LCD line and the third expected buer value on the 3rd LCD line.

After the second calibration point is conrmed, rinse and submerse the pH electrode approximately 3 cm (1¼”) into the last buer solution and stir gently.

If necessary, press the ARROW keys to select a dierent buer value.

The “ ” along with “STIR” tag will be displayed and “WAIT” will blink on the LCD until the reading is stable.

When the reading is stable and close to the selected buer, the “CFM” tag will blink.

Press CFM to conrm calibration.

At the end of calibration the instrument displays “SAVING”, stores the calibration value and returns to normal measurement mode.

The calibration sequence may be reduced to two buer values or a single one. Press CAL to return to measurement after the desired number of buers.

Note:

• When performing a new calibration or adding to an existing calibration the rst calibration point will be treated as an oset. See page 33 for details.

• Press CAL after the rst or second calibration point are conrmed and the instrument will store the calibration data. Then it will return to measurement mode.

• If the value measured by the instrument is not close to the selected buer, “WRONG BUFFER” will blink. Check if the correct buer has been

pH Calibration

Operational Guide

used, or clean the electrode by following the Cleaning Procedure (see page 76). If necessary, change the buer or the electrode.

• If the buer temperature exceeds the temperature limits of the buer, “WRONG BUFFER TEMPERATURE” will be displayed.

• Press CLR after entering calibration to clear all calibration parameters. “CLEAR ALL” message will be displayed and the instrument will return to measurement mode displaying “CAL DUE” message.

pH Buer Temperature Dependence

The temperature has an eect on pH. The calibration buer solutions are aected by temperature changes also. During calibration the instrument will automatically calibrate to the pH value corresponding to the temperature. During calibration the instrument will display the pH buer value at 25 ºC.

TEMP pH BUFFERS

ºC ºF 1.679 3.000 4.010 6.862 7.010 9.177 10.010 12.454

0 32 1.670 3.072 4.007 6.982 7.130 9.459 10.316 13.379

5 41 1.670 3.051 4.002 6.949 7.098 9.391 10.245 13.178

10 50 1.671 3.033 4.000 6.921 7.070 9.328 10.180 12.985

15 59 1.673 3.019 4.001 6.897 7.046 9.273 10.118 12.799

20 68 1.675 3.008 4.004 6.878 7.027 9.222 10.062 12.621

25 77 1.679 3.000 4.010 6.862 7.010 9.177 10.010 12.450

30 86 1.683 2.995 4.017 6.851 6.998 9.137 9.962 12.286

35 95 1.688 2.991 4.026 6.842 6.989 9.108 9.919 12.128

40 104 1.693 2.990 4.037 6.837 6.983 9.069 9.881 11.978

45 113 1.700 2.990 4.049 6.834 6.979 9.040 9.847 11.834

50 122 1.707 2.991 4.062 6.834 6.978 9.014 9.817 11.697

55 131 1.715 2.993 4.076 6.836 6.979 8.990 9.793 11.566

60 14 0 1.724 2.995 4.091 6.839 6.982 8.969 9.773 11.442

65 149 1.734 2.998 4.107 6.844 6.987 8.948 9.757 11.323

70 158 1.744 3.000 4.123 6.850 6.993 8.929 9.746 11.211

75 167 1.755 3.002 4.139 6.857 7.001 8.910 9.740 11.104

80 176 1.767 3.003 4.156 6.865 7.010 8.891 9.738 11.003

85 185 1.780 3.002 4.172 6.873 7.019 8.871 9.740 10.908

90 194 1.793 3.000 4.187 6.880 7.029 8.851 9.748 10.819

95 203 1.807 2.996 4.202 6.888 7.040 8.829 9.759 10.734

Calibration

Operational Guide

The Calibration Check™ feature may ag diagnostic messages during a calibration. As electrode aging is normally a slow process, substantial changes from previous calibrations are likely due to a temporary problem with the electrode or buers that can be addressed easily. These messages are seen in Standard and Basic modes.

Wrong Buer

This message appears when the dierence between the pH reading and the value of the selected buer is too great. If this error message is displayed, check if you have selected the proper calibration buer and have poured the desired buer.

Wrong-Old Points Inconsistency

This message is displayed if the new calibration diers signicantly from the last value of that sensor in that buer. In this case it may be best to clear the previous calibration and attempt a new calibration with fresh buers.

Press CAL then press CLR. “CLEAR CALIBRATION” will be displayed. Press CAL to exit calibration if you want to keep old calibration data instead of clearing.

Press the CFM key. “CLEAR ALL” will be displayed followed by “CAL DUE”.

Calibration Messages

Operational Guide

Clean Electrode

This error message indicates poor electrode performance (oset out of accepted window, or slope under the accepted lower limit). Often cleaning the sensor will improve the pH electrodes response. See pH Electrode Conditioning and Maintenance for details. Repeat calibration after cleaning.

Check Electrode Check Buer

This error message appears when electrode slope exceeds the highest accepted slope limit. You should check your electrode and use fresh buer. Cleaning may also improve this response.

Bad Electrode

This message appears if the cleaning procedure performed as a result of the above two messages is found to be unsuccessful. In this case it is advised to replace the electrode.

Wrong Buer Temperature

This message appears if the temperature of the buer is outside the dened buer temperature range. The calibration buer solutions are aected by temperature changes in a dened manner. During calibration the instrument will automatically

calibrate to the pH value corresponding to the measured temperature but display it to the value at 25 ºC. Immediately after calibration the buer should read the value of the buer at the temperature of measurement.

Note: Temperature limits will be reduced to actual sensor specications.

Calibration

Messages

Operational Guide

Contaminated Buer

This warning message appears in order to alert that the buer could be contaminated. Refresh your buer and continue the calibration procedure.

Good Laboratory Practice (GLP) refers to a quality control function used to ensure uniformity of sensor calibrations and measurements. The dedicated GLP key opens a le of the latest calibration information. Use the q p keys to scroll the stored information. This includes the buers used, temperature of the buer, and time and date of the last calibration, the sensor serial number and the calculated oset and percent slope. This information is available in Basic and Standard Modes. This information is also included with every data log. Newest calibration points report as a solid number, older calibration data (that is still used) will be displayed blinking.

If calibration has not been performed, the instrument displays “NO CAL” message blinking.

The pH calibration oset and slope (the GLP slope is the average of the calibration slopes; the percentage is referred to the ideal value at 25º C).

Calibration Messages

pH GLP Information

Operational Guide

pH GLP

Information

The last calibration date (yyyy.mm.dd) together with the current reading.

Note: For each custom buer used in calibration, the “C1” and “C2” tags will be displayed. If only the second custom buer is in calibration the tag will be “C1” and the value will be displayed.

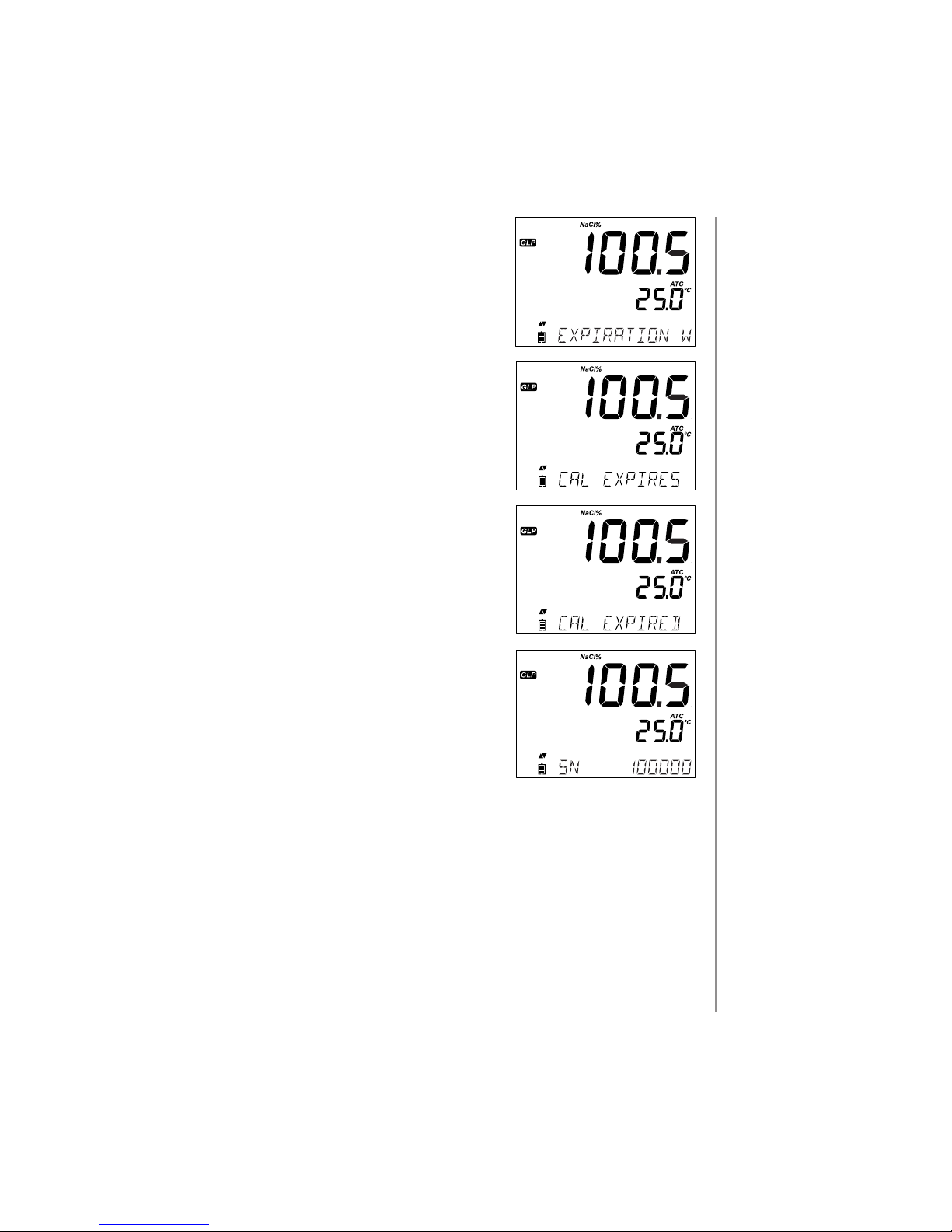

Calibration Expiration status together with the current reading:

If disabled, “EXPIRATION WARDING DISABLED” is

displayed

Or if enabled the number of days until the calibration

alarm “CAL DUE” will be displayed.

The number of days since the calibration expired.

(I.E. “CAL EXPIRED 2 DAYS AGO”).

Operational Guide

The probe serial number together with the current reading.

If a buer is not from the last calibration, the buer tag will be displayed blinking.

In Standard Mode, Condition, Response gauges are visible on the day of calibration (See Electrode Condition And Electrode Response Time page 34). If congured in SETUP, a countdown message displays the number of days remaining until a new Calibration is due.

If using a HI 11311 or HI 12301 sensor, the glass impedance is continuously monitored, updated and reported here and the Junction Condition Gauge is fully visible.

When a pH electrode is connected, the instrument will recognize it and the “REMOVE PROTECTIVE AND FILLING CAPS” message will be displayed along with “PH”. Press any key to skip the message. The instrument will enter measurement mode. Make sure the electrode has been calibrated before taking measurements.

pH GLP Information

pH Measurement

Operational Guide

Rinse the pH sensor with water and a sample aliquot if possible. Submerse the electrode tip approximately 3 cm (1¼”) into the sample to be tested and stir sample gently. Allow time for the electrode to stabilize.

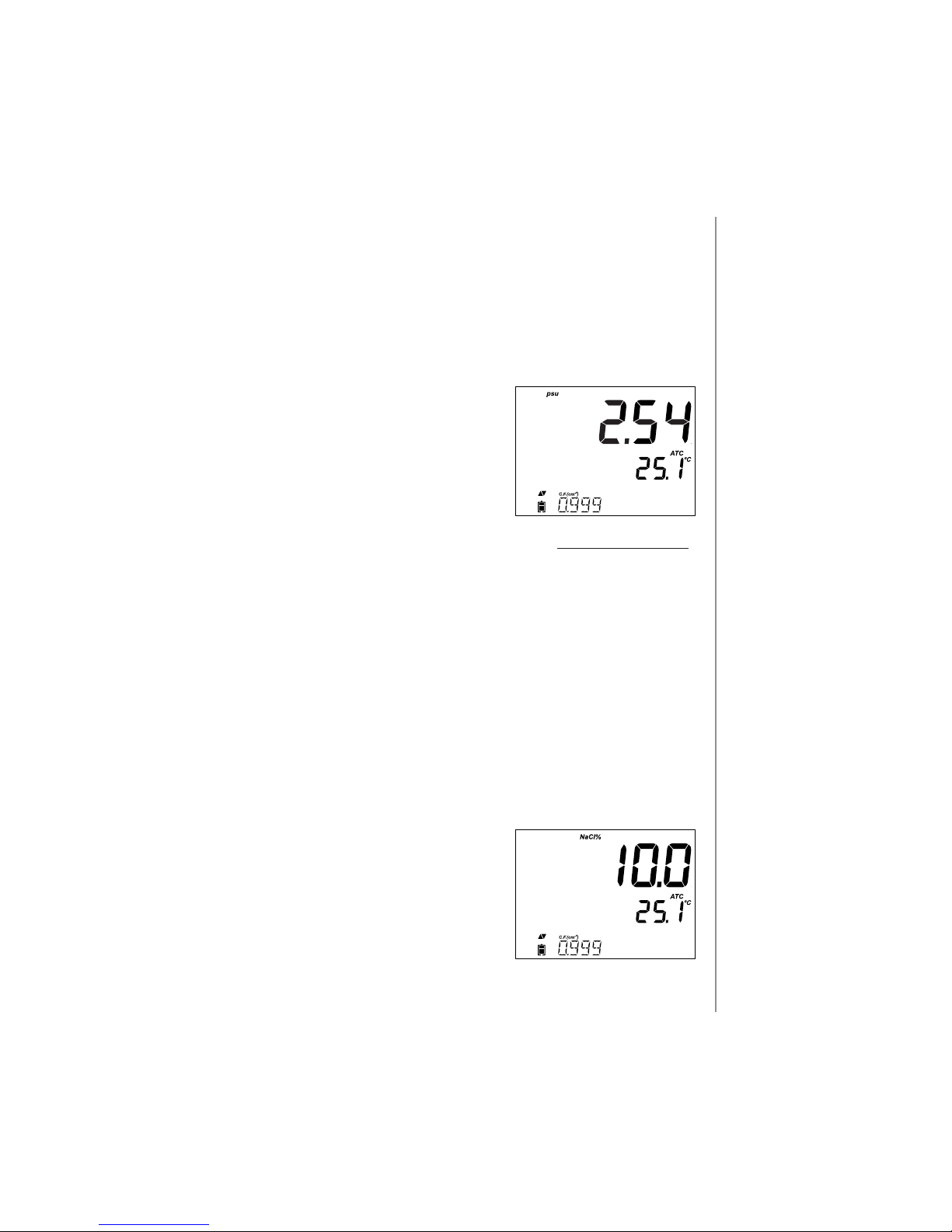

The pH is displayed on the 1st LCD line and the

temperature on the 2nd LCD line. Using the arrows,

date, time, battery status and oset with slope can

be displayed on the 3rd LCD line. If the reading is out

of measurement range, the closest full scale value

will be displayed blinking on the 1st LCD line.

If measurements are taken successively in dierent samples, it is recommended to rinse the electrode thoroughly with deionized water or tap water and then with some of the next sample to prevent crosscontamination. The pH reading is aected by temperature. The temperature eect is compensated for using the temperature sensor inside the probe. The resulting measurement is the actual pH at the temperature of measurement. If the temperature reading is out of range, the closest full scale value will be displayed and the “ºC” will blink on the 2nd LCD line. If the temperature reading is out of electrode specication range, the value is displayed blinking along with “ELECTRODE OUT OF SPEC” message.

If the temperature sensor of the electrode is broken

(interrupt), the message “BROKEN TEMPERATURE

SENSOR” and “25ºC” is displayed and the unit tag is

blinking on the 2nd LCD line.

mV Reading Of The pH

The mV reading of the measured pH can be displayed on the LCD by pressing the RANGE key.

Measurement

Operational Guide

Range Specic Messages Displayed On Alphanumeric Line During Measurement (3rd Lcd Line)

All the messages described in GENERAL section (page 15) are displayed in pH range.

Temperature Sensor Problem (if there is one) Cal Due or Oset and Slope Value Time Date Battery or Charge Status Logging Messages

The specic CALIBRATION INFORMATION that can be viewed:

• Condition and response time gauge (if calibrated using 7.01, 4.01 or

10.01 buers)

• Calibration buers

• pH calibration Oset (mV) and Slope (%)

• Out Of Calibration Range

This information is displayed if it is enabled in SETUP menu.

pH Measurement

Operational Guide

Steps To Optimize

Steps to optimize measurement using an EC probe:

1. Determine what measurement you wish to make with the EC probe.

2. Determine if Standard or Basic mode is best for your measurement.

3. Connect the Probe and congure your measurement using the SETUP

menu.

4. Calibrate the EC probe.

5. Take measurements using a EC probe.

Measurements Available With The EC Probe

The four-ring EC probe may be used for 3 dierent measurement applications with edge™.

• It may be used for temperature compensated or absolute conductivity

measurements (with units of μS/cm or mS/cm).

• TDS (Total Dissolved Solids) measurements (a calculated measurement

derived from the ionized particles in a sample and the conductivity measurement. This has measurement units of mg/L, ppm or g/L).

• Salinity: 3 dierent seawater salinity scales are supported; Practical

Salinity (PSU), the Natural Seawater Scales (g/L), and the % NaCl (not

available in basic mode). The RANGE key is used to change from conductivity to TDS to Salinity (standard mode only).

Basic Versus Standard EC Mode

Standard operation mode allows complete conguration of all parameters for the measurement of Conductivity, TDS or Salinity measurements. Measurement data can be logged using Manual log on demand, Manual Log on Stability or Interval logs. All logged data can be exported to a thumb drive or PC. Basic operation mode is used for conductivity and TDS measurements. Common default values are used for Cell Factor (C.F.), temperature compensation coecient and TDS conversion factor. Measurement units are user selectable for TDS. The meter uses continuous auto-ranging to simplify the measurement experience.

Basic vs

Standard

EC mode

Operational Guide

Basic vs Standard EC mode

EC Meter Conguration

Measurement data can be logged using Manual Log on Demand or Manual Log on Stability or Interval Logging. The measurement logs may be exported to a thumb drive or PC.

Standard Basic

Measurement Conductivity, TDS, Salinity Conductivity, TDS

Set up Parameters Fully selectable Default values used

Log types

Manual Log on demand Manual Log on stability Interval Loggin (Fast, Medium, Accurate)

Manual Log on demand Manual Log on stability

EC (Electrolytic Conductivity) meter operation is congured using the SETUP key with an EC probe connected to the meter. The EC-specic parameters will be seen inserted into the menu. If Basic mode is congured “On”, the EC parameter list will be simplied, limiting the parameters the user can change. See Basic mode for a description of this operation before choosing how to SETUP the meter.

Parameter Description Choices Default Basic mode

BASIC MODE OFF, ON OFF Available

TEMPERATURE COMPENSATION

The user may select Automatic Temperature Compensation or No TC to congure absolute conductivity

No TC or ATC ATC Not available.

ATC is automatically used.

C.F (cm-1) User may enter

actual Cell factor value (if known).

0.01 to 9.999 cm-1

1.000 cm-1 Not available. Automatically determined during calibration.

Operational Guide

Parameter Description Choices Default Basic mode

T.Coef. (%/ºC) This parameter

is related to the solution being measured at temperatures other than 20 or 25 ºC. It is used to correct measured conductivity to a reference temperature by applying a xed factor for linear compensation

0.0 to 6.00 (%/ ºC) Note: Setting to 0.00 is the same as using No TC.

1.90 (%/ºC) Close for natural waters or salt solutions.

Not available. Automatically set to 1.90%/ºC.

T.Ref. (ºC) The user may

select either 20ºC or 25ºC reference temperature for temperature corrected conductivity.

20 ºC or 25 ºC 25 ºC Available

TDS Conversion Factor.

This factor is used to mathematically convert conductivity to a TDS value.

0.40 to 0.80 0.50 Available

VIEW T.Ref. or T.Coef.

The user may choose whether to display the reference temperature (T.Ref) or the Temperature coecient on the display with the measurement.

T.Ref (ºC) or T. Coef. (%/ºC)

T.Ref (ºC) T.Ref (ºC)

automatically displayed during measurement.

EC Meter

Conguration

Operational Guide

Parameter Description Choices Default Basic mode

EC RANGE If AUTO is used,

the edge™ will automatically nd the correct conductivity range and unit. If a xed value is used, measurements made outside the ranges are considered Out of Range, but units will remain xed throughout the measurement.

AUTO,

29.99 μS/cm,

299.9 μS/cm, 2999 μS/cm,

29.99 mS/cm,

200.0 mS/cm,

500.0 mS/cm

AUTO Not available but

measurement autoranges as needed.

TDS RANGE If AUTO is used,

the edge™ will automatically nd the correct TDS measurement range and units. If a xed value is used, measurements made outside the ranges are considered Out of Range, but units will remain xed throughout the measurement.

AUTO,

14.99 mg/L,

149.9 mg/L, 1499 mg/L,

14.99 g/L,

100.0 g/L, 400 g/L

AUTO Not available but

measurement autoranges as needed.

TDS UNIT Select units of

measurement for TDS measurement.

mg/L or ppm ppm Available to

select.

EC Meter Conguration

Operational Guide

Parameter Description Choices Default Basic mode

EC SALINITY SCALE

Three measurement scales are available for salinity measurement in Seawater. (Practical Salinity Scale, Percent Scale and Natural Seawater Scale).

PSU, NaCl%, g/L NaCl% Not available.

EC Range (Not Available In Basic Mode)

The EC and TDS measurements may be congured in SETUP as AUTO (meaning auto-ranging, the measurement automatically nds the correct conductivity or TDS unit and resolution), or it may be congured with a user-selected measurement range and resolution (if you know ahead of time where your samples will fall). If AUTO is selected, the meter will select the scale with the highest possible resolution, but may change in the middle of a series of measurements changing units and displayed resolution).

Note: The selected range is only active during measurements. Auto-ranging is used during calibration. If a xed range is selected and during measurement goes beyond the range limits, the full scale value of that range will ash on the display.

General Guidelines

Calibrate the instrument frequently, especially if high accuracy is required. The instrument should be recalibrated:

• Whenever the EC probe is replaced.

• At least once a week.

• After testing aggressive chemicals.

• If “CAL DUE” is displayed on the 3rd LCD line.

EC/TDS

CALIBRATION

EC Meter

Conguration

Operational Guide

Every time you calibrate the instrument use fresh standard and perform electrode maintenance as required. It is recommended to chose a calibration standard that is close to the sample.

Preparation

Pour small quantities of the standard solutions into a beaker. If possible, use a plastic beaker to minimize any EMC interferences. For accurate calibration and to minimize cross-contamination, use two beakers for the standard solution. One for rinsing the probe and one for calibration.

Procedure

Select standard to be used for calibration. 0.00 μS (probe in air) may be used for an oset calibration. This should be done rst. Hanna Conductivity standards are available at 84 μS/cm, 1413 μS/cm, 5.00 mS/cm, 12.88 mS/cm,

80.0 mS/cm, 111.8 mS/cm and are used for the cell factor calibration.

Rinse the probe with calibration solution or deionized water. Shake o excess solution. Submerse the probe in the calibration solution. The sleeve holes must be completely submersed. If possible, center the probe in the beaker away from the bottom or beaker walls.

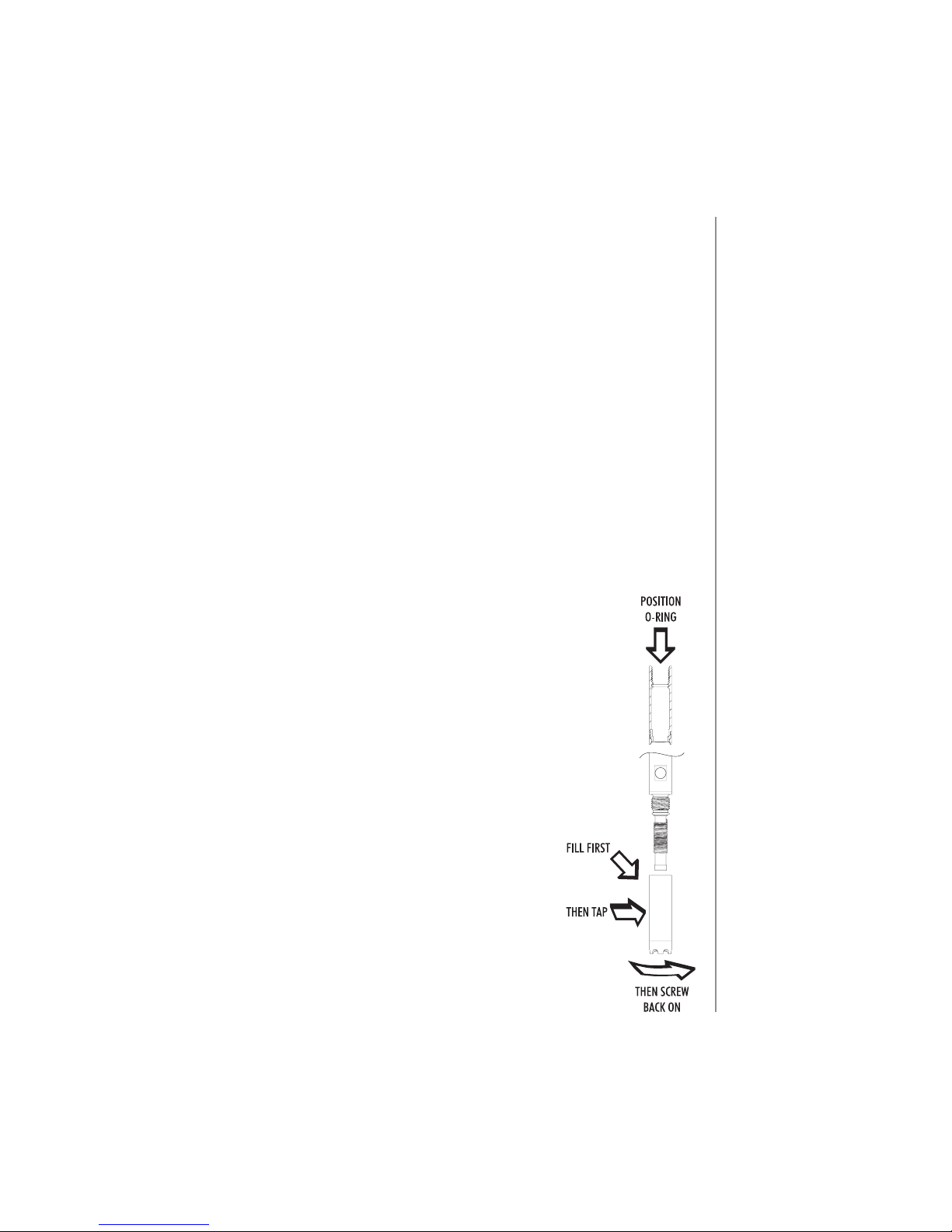

Raise and lower the probe to rell the center cavity and tap the probe repeatedly to remove any air bubbles that may be trapped inside the sleeve.

Press CAL to enter calibration. The “CAL” tag and the recognized standard value will appear on the 3rd LCD line.

If necessary, press the ARROW keys to select a dierent standard value.

The “ “ along with “STIR” tag will be displayed and “WAIT” will blink on the LCD until the reading is stable.

EC/TDS CALIBRATION

Operational Guide

When the reading is stable and close to the selected standard, “CFM” tag will blink and the message “SOLUTION STANDARD” will scroll.

Press CFM to conrm calibration. The Instrument displays “SAVING”, stores the calibration values and returns to measurement mode.

EC/TDS

CALIBRATION

Operational Guide

The following table lists the temperature dependence of Hanna EC calibration standards. edge™ uses these values during calibration and their temperature coecients.

ºC ºF

HI7030 HI8030

(μS/cm)

HI7031 HI8031

(μS/cm)

HI7033

HI8033

(μS/cm)

HI7034 HI8034 (μS/cm)

HI7035

HI8035

(μS/cm)

HI7039 HI8039

(μS/cm)

0 32 7150 776 64 48300 65400 2760

5 41 8220 896 65 53500 74100 3180

10 50 9330 1020 67 59600 83200 3615

15 59 10480 1147 68 65400 92500 4063

16 60.8 10720 1173 70 67200 94400 4155

17 62.6 10950 1199 71 68500 96300 4245

18 64.4 11190 1225 73 69800 98200 4337

19 66.2 11430 1251 74 71300 100200 4429

20 68 11670 1278 76 72400 102100 4523

21 69.8 11910 1305 78 74000 104000 4617

22 71.6 12150 1332 79 75200 105900 4711

23 73.4 12390 1359 81 76500 107900 4805

24 75.2 12640 1386 82 78300 109800 4902

25 77 12880 1413 84 80000 111800 5000

26 78.8 13130 1440 86 81300 113800 5096

27 80.6 13370 1467 87 83000 115700 5190

28 82.4 13620 1494 89 84900 117700 5286

29 84.2 13870 1521 90 86300 119700 5383

30 86 14120 1548 92 88200 121800 5479

31 87.8 14370 1575 94 90000 123900 5575

EC/TDS CALIBRATION

Operational Guide

PREPARATION Pour a small quantity of the calibration solution into a beaker. If possible, use a plastic beaker to minimize any EMC interferences. Before pressing CAL verify in SETUP:

• Basic mode is o

• Salinity Scale is NaCl%

Use the RANGE key to select the Salinity measurement. The NaCl% tag will be on. NaCl calibration is a single point calibration at 100.0% NaCl. Use the HI 7037L calibration solution (sea water solution) as a 100% NaCl calibration solution.

Procedure

Rinse the probe with some of the HI 7037L calibration solution or deionized water. Shake o excess solution. Submerse the probe in the calibration solution. The sleeve holes must be completely submersed. If possible, center the probe in the beaker away from the bottom or beaker walls. Raise and lower the probe to rell the center cavity and tap the probe repeatedly to remove any air bubbles that may be trapped inside the sleeve.

Press CAL to enter calibration. The ” “, ”STIR” and “CAL” tags will turn on and the 1st LCD line will display the percent NaCl reading, the 2nd LCD line will display the temperature and the 3rd LCD line will display ”WAIT” message until the reading is stable.

When the reading is stable and close to the standard, “CFM” tag will blink and “SOLUTION STANDARD” will scroll.

Press CFM to conrm calibration.

% NaCl

CALIBRATION

Operational Guide

The Instrument displays “SAVING”, stores the calibration values and returns to measurement mode.

Note: If a new EC calibration is performed, the NaCl calibration is automatically cleared. A new NaCl calibration is required.

Wrong Standard

If the reading is too far from the expected value, the “WRONG STANDARD” will scroll. Calibration cannot be conrmed. In this case check if the calibration solution has been used correctly or clean the probe by following the EC PROBE MAINTENANCE (see page

79).

Wrong Standard Temperature

If the temperature is out of the 0.0 to 60.0 ºC range, “WRONG STANDARD TEMPERATURE” message will be displayed and the temperature value will blink.

GLP is a set of functions that allows storage and retrieval of data regarding the maintenance and status of the electrode. The following information can be viewed on the 3rd LCD line during measurement: TEMPERATURE SENSOR problem (if there is one), CAL DUE or CELL FACTOR, TEMPERATURE COEFFICIENT or T.Ref (User-selected) TIME DATE RANGE and BATTERY CHARGE STATUS

To view more information, enter GLP mode by pressing GLP key. EC calibration data is stored automatically after a successful calibration.

Calibration Messages

EC/TDS GLP Information

% NaCl CALIBRATION

Operational Guide

To view the EC calibration data, press GLP when the instrument is in EC measurement mode. The instrument will display the calibration standard and the temperature of the calibrated standard. Use the ARROW keys to scroll through the calibration data displayed on the 3rd LCD line.

The cell factor in cm-1 determined from the calibration with the current reading.

The calibration oset factor in μS/cm together with the current reading.

The Solution Standard and calibration temperature.

The temperature coecient set at the calibration moment together with the current reading.

The reference temperature together with the current reading.

EC/TDS

GLP

Information

Operational Guide

The last calibration time (hh:mm:ss) together with the current reading.

The last calibration date (yyyy.mm.dd.) together with the current reading.

Calibration Expiration status together with the current reading: If disabled, “EXPIRATION WARNING DISABLED” is displayed

If enabled, the number of days until the calibration alarm “CAL DUE” will be displayed.

Or if the number of days the calibration has expired ( I.E. “CAL EXPIRED 2 DAYS AGO”).

The serial number of the probe together with the current reading.

EC/TDS GLP Information

Operational Guide

%NaCl Calibration Data in GLP

To view the NaCl% calibration data, press GLP when the instrument is in NaCl% measurement mode. Use the ARROW keys to scroll through the calibration data. The instrument will display the calibration temperature and solution.

The edge™ will indicate: probe cell constant together with the current reading.

The salinity coecient determined from the calibration together with the current reading.

The Solution Standard together with the calibrated temperature.

The last calibration time (hh:mm:ss) together with the current reading.

The last calibration date (yyyy.mm.dd.) together with the current reading.

EC/TDS

GLP

Information

Operational Guide

Calibration Expiration status together with the current reading: If disabled, “EXPIRATION WARNING DISABLED” is displayed

If enabled, the number of days until the calibration alarm “CAL DUE” will be displayed.

Or if the number of days the calibration has expired ( I.E. “CAL EXPIRED 2 DAYS AGO”).

The serial number of the probe.

Note: Press GLP at any moment and the instrument will return to measurement mode.

EC/TDS GLP Information

Operational Guide

The RANGE key will change measurement from conductivity to TDS to Salinity.

Conductivity Measurements

Connect the conductivity probe to the instrument and wait until probe parameters are loaded. The following message is then displayed on the LCD: “Probe Connected”

Verify if the probe has been calibrated. Suspend the probe into the solution to be tested. The sleeve holes must be completely submersed. Tap the probe repeatedly to remove any air bubbles that may be trapped inside the sleeve.

The conductivity value will be displayed on the 1st LCD line, the temperature on the 2nd LCD line and calibration or range specic information on the 3rd LCD line.

To toggle between information displayed on the 3rd LCD line, use the ARROW keys.

If the reading is out of range when the range is automatic, the full-scale value (200.0 mS/cm for ATC mode or 500.0 mS/cm for absolute conductivity) will be displayed blinking.

Temperature-compensated and absolute conductivity are available for measurement. This is selected in the SETUP conguration.

Automatic (ATC): The conductivity probe has a built-in temperature sensor; the temperature value is used to automatically compensate the EC/TDS reading. When this option is selected, “ATC” tag is displayed. A temperature coecient for the sample must also be set.

EC/TDS

Measurements

Operational Guide

EC/TDS Measurements

No Temperature Compensation (No TC): The temperature value is displayed, but not taken into account. When this option is selected, the “NoTC” tag will be displayed. The reading displayed on the primary LCD is the uncompensated EC or TDS value.

Note:

• The default compensation mode is ATC

• The compensation is referenced to the selected reference temperature (see SETUP for details).

If temperature compensation is selected, measurements are compensated using the temperature coecient (default value 1.90 %/ºC, is recommended for natural water samples).

To change the temperature coecient, enter the SETUP mode and select “T.COEF.(%/ºC)” (see SETUP).

The current temperature coecient can be viewed on the 3rd LCD line by pressing the ARROW keys until it is displayed. The value is displayed along with Cell Factor. If the temperature reading is out of range, the closest full scale value will be displayed with “ºC” blinking on the 2nd LCD line.

If the temperature reading is out of probe specication range, the value is displayed blinking along with “PROBE OUT OF SPEC” message. If the temperature sensor is broken, the message “BROKEN TEMPERATURE SENSOR” and “----” is displayed along with the unit tag blinking on the 2nd LCD line.

TDS Measurements

Press the RANGE key. The instrument will switch to TDS measuring range. The TDS reading will be displayed on the 1st LCD line and the temperature reading on the 2nd LCD line. If the reading is out of range, the full-scale value (100.0 g/L for ATC mode or 400.0 g/L for uncompensated TDS) will be displayed blinking.

Operational Guide

Salinity Measurements (Not Available In Basic Mode)

Press the RANGE key twice to switch from conductivity to the congured Salinity scale.

Verify the desired scale is congured in SETUP. The meter supports three salinity scales: Practical Scale 1978, Percent Scale %, and Natural Sea Water 1966, [g/L]. (Information on the 3 scales follows)

Note: These are for determining salinity as they relate to general oceanographic use. Practical salinity and the Natural Seawater require a conductivity calibration. % NaCl requires a calibration in HI 70371 standard.

PSU - Practical Salinity Scale

The practical salinity (S) of seawater relates the ratio of electrical conductivity of a normal seawater sample at 15 ºC and 1 atmosphere to a potassium chloride solution (KCl) with a mass of 32.4356 g/Kg water at the same temperature and pressure.

Under these conditions the ratio is equal to 1, and S=35. The practical salinity scale may be applied to values through 42 PSU at temperature between -2 to 35 ºC.

According to the denition, salinity of a sample in PSU (practical salinity units) is calculated using the following formula:

Salinity

Measurements

Operational Guide

NaCl% Percent Scale

The NaCl % scale is an older scale salinity scale used for seawater salinity. In this scale 100% salinity is equivalent to roughly 10% solids. High percentages were made by evaporation. To display NaCl in % units, enter SETUP and select NaCl% unit. Press the RANGE key until “NaCl%” is displayed on the LCD. The instrument will display the NaCl% reading on the 1st LCD line and the temperature reading on the 2nd LCD line.

If the reading is out of range, the full-scale value (400.0%) will be displayed blinking.

f(t)=

T-15

1 + 0.0162•(t-15)

a0 = 0.008 a1 = -0.1692 a2 = 25.3851 a3 = 14.0941 a4 = -7.0261 a5 = 2.7081 c0 = 0.008 c1 = 0.0005 X = 400R

Y = 100R

b0 = 0.0005 b1 = -0.0056 b2 = -0.0066 b3 = -0.0375 b4 = 0.0636 b5 = -0.01442

- ratio of sample conductivity to standard conductivity at Temp =(T) CT(sample)-conductivity at T ºC; C(35,15)=42.914µS/cm - the corresponding of KCI solution containing a mass of 32.4356 g KCl/1 Kg solution rT - Temperature compensation polynomial

Salinity Measurements

Operational Guide

Natural Sea Water Scale

The Natural Sea Water Scale extends from 0 - 80.0 g/L. It determines salinity based upon a conductivity ratio of sample to “standard seawater” at 15 °C.

Where R

is the conductivity ratio and salinity is

dened by the following equation:

S = - 0.08996 + 28.2929729R

+ 12.80832R

10.67869R

+ 5.98624R

-1.32311R

Note: The formula can be applied for temperatures between 10 ºC and 31 ºC.

Salinity

Measurements

Operational Guide

Steps To Optimize

1. Determine if Concentration or % Saturated measurements will be made.

2. Prepare the D.O. probe for measurement.

3. Connect the probe to the meter and congure the SETUP parameters.

4. Calibrate the D.O. sensor.

5. Take measurements using the DO sensor.

Measurements Available

Concentration measurements in water, and % oxygen saturated measurements are available using edge™ together with HI 764080 DO probe. Algorithms used for concentration measurements (units of ppm or mg/L) are based upon the oxygen solubility in air-saturated fresh water. Compensation for salinity and altitude are made by conguring SETUP parameters. Percent saturation measurements are based upon the partial pressure of oxygen and are suitable for measurement in samples other than air saturated fresh water. It is advised to check material compatibility of the probe with the sample.

DO Probe Preparation

CAUTION: Use care during servicing and use. The HI 764080 contains a glass insulator. Do not drop or handle carelessly.

Probes from Hanna Instruments are shipped dry.

1. Carefully remove the cardboard shipping tube used to protect the probe during shipping. Save should the probe be stored dry again.

2. Open membrane package and remove one O-ring and one membrane cap.

3. Position o-ring in cap as indicated.

4. Rinse the membrane cap with a small amount of HI 7041 electrolyte and discard. Rell membrane cap 3/4 full with electrolyte solution, ensure to cover the o-ring.

5. Holding the membrane cap by the top, tap the side walls of the membrane cap to dislodge gas bubbles and force them to rise to the surface. Do not tap on the membrane directly as it may damage it.

6. With the cathode facing down, slowly screw the cap

Dissolved Oxygen Setup

Operational Guide

clockwise until the threads are fully engaged. Electrolyte will overow.

7. Rinse outer body of the probe and inspect membrane for entrapped gas bubbles. The cathode area should be free of bubbles.

8. Connect the DO probe to the edge™ meter and turn meter on

9. Allow probe conditioning function to occur.

Note: When not in use and during polarization, use the protective transparent cap.

During this process, the following message will be displayed on the LCD, “DISSOLVED OXYGEN PROBE CONDITIONING”.

The conditioning message will be displayed for about 60 seconds while the DO probe is conditioned. If the probe was conditioned and a new conditioning is not necessary, press any key to enter measurement mode.

The probe is polarized with a xed voltage of approximately 800 mV between the cathode and anode. Probe polarization is essential for stable measurements. With the probe properly polarized, oxygen is continually consumed as it passes through gas permeable PTFE membrane.

If polarization is interrupted, the electrolyte solution continues to be enriched with oxygen until it reaches an equilibrium with the surrounding solution. Whenever measurements are taken with a non-polarized probe, the measurement will be drifty and inaccurate. The measurement will jump when the probe is moved.

Dissolved

Oxygen

Setup

Operational Guide

1. Strain Relief

2. Probe Cap

3. PEI Probe Body

4. Temperature Sensor

5. Threads for Membrane Cap

6. Ag/AgCl Anode and Reference

7. Glass Insulator

8. Platinum Cathode

9. O-Ring

10. Disposable Membrane Cap

11. Oxygen Permeable PTFE Membrane

12. Shipping Tube

DO Probe Diagram

Operational Guide

DO (Dissolved Oxygen) meter operation is congured using the SETUP key with a DO probe connected to the meter. The parameter-specic parameters will be seen inserted into the menu. There is no Basic mode for Dissolved Oxygen measurements.

Parameter Description Choices Default

ALTITUDE (m)

Concentration measurements of dissolved oxygen change depending on atmospheric pressure. A convenient way to estimate atmospheric pressure eects is by the related parameter of elevation (m) above or below sea level. Enter altitude in meters closest to the actual altitude to ensure the most accurate calibration and concentration measurement.

-500, -400, -300,

-200, -100, 0, 100, 200, 300, 400, 500, 600, 700, 800, 900, 1000, 1100, 1200, 1300, 1400, 1500, 1600, 1700, 1800, 1900, 2000, 2100, 2200, 2300, 2400, 2500, 2600, 2700, 2800, 2900, 3000, 3100, 3200, 3300, 3400, 3500, 3600, 3700, 3800, 3900, 4000 m

SALINITY (g/L)

Dissolved oxygen solubility decreases if water contains salts. Selecting this factor as to be close to your known salt level, will improve the accuracy of DO concentration calibration and measurement.

0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 12, 14, 15, 16, 17 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40 g/L

DO Units

Select preferred measurement units for DO concentration.

mg/L or ppm

DO Meter

Conguration

Operational Guide

DO Meter Conguration

Salinity and Altitude Compensation

Temperature, altitude and salinity compensation are used for dissolved oxygen concentration measurements (ppm or mg/L). When the water is colder, it can hold more dissolved oxygen, when it is warmer it holds less oxygen. Compensation for temperature-related solubility is done automatically using the built-in temperature sensor within the DO probe and algorithms in the edge meter. When water is measured at an altitude below sea level, oxygen solubility increases, but above sea level the oxygen solubility decreases. To compensate for this during calibration and measurement, the user must provide the approximate altitude (in meters) in the SETUP menu. The settings are in 100 m increments; select the value closest to the actual altitude. Some examples of altitudes around the world follow:

Location Meter Feet

Sebkha paki Tah, Morocco -55 -180

Lake Frome, Australia -6 -20

Netherlands, coastal providence -1 to -7 -3 to -23

Lake Michigan, USA 176 577

Lake Geneva; France, Switzerland 372 1220

Denver, CO USA 1609 5279

Mount Everest 8848 29029

The solubility of oxygen in water is also inuenced by the amount of salt the water contains. Seawater typically has a salinity of 35g/L and the oxygen solubility is 18% less compared to fresh water at 25°C. By entering the approximate salinity value, the calibration and subsequent concentration measurement will be compensated to display the correct oxygen concentration. A 18% error would result if the salinity value is not entered.

Note: Salinity and Altitude have no eect on % oxygen solubility range.

Operational Guide

When water is fresh containing no sea water, the concentration of oxygen will be at a maximum. The solubility of the oxygen dissolved in water is decreased when water is brackish or seawater. The solubility of oxygen in water is decreased when measurements are made at elevations above sea level.

Before proceeding with the calibration, make sure the probe is ready for measurements (see page 65), i.e. the membrane cap is lled with electrolyte, the probe is connected to the meter and properly polarized. For an accurate calibration, it is recommended to wait at least 15 minutes to ensure conditioning of the probe. Keep the protective cap on during polarization time and remove it for calibration and measurements. Follow the calibration procedure. Calibrate the probe frequently, especially if high accuracy is required. The probe can be calibrated at 2 points: 100.0 % (slope calibration) and 0.0 % (zero calibration).

Initial Preparation

Prepare a fresh bottle of HI 7040 by following package directions. Use solution within one month of preparation. Pour small quantities of HI 7040 Zero Oxygen solution into a beaker. Remove the protective cap if used.

100% Saturated Calibration

It is suggested to perform the slope calibration in water/saturated air. Pour a small beaker of water. Rinse the polarized probe with clean water. Dry the probe tip and allow a few seconds for the LCD reading to stabilize (probe in air). Suspend over beaker of water. Press CAL.

The “ ” tag will be displayed along with “WAIT” blinking on the LCD until the reading is stable.

Calibration

DO Meter

Conguration

Operational Guide

DO Calibration

When the reading is stable and is within the limits, “CFM” tag starts blinking. Press CFM to conrm the

100.0 % DO calibration.

Press CAL to leave calibration after the rst point. The instrument will display “SAVING” message and it will return to measurement mode memorizing the slope calibration data.

Zero Calibration

Press CAL or continue with calibration after conrming rst point.. The meter will display “WAIT” and “0.0 %” will be displayed in lower right corner.

Submerse the probe membrane and temperature sensor into the beaker containing HI 7040 Zero Oxygen solution and stir gently for 2-3 minutes. The reading will go down.

When the reading is stable and stops decreasing, “CFM” tag starts blinking. Press CFM to conrm the

0.0 % DO calibration.

The instrument will display “SAVING” message and it will return to measurement mode. Rinse probe tip o in water before taking measurements in samples.

Operational Guide

Calibration Messages

If the reading is outside limits, “WRONG STANDARD“ message will be displayed.

If the temperature goes out of (0.0 - 50.0 ºC) range during calibration, the “WRONG STANDARD TEMPERATURE” message will be displayed and temperature value will blink.

GLP refers to a quality control function used to ensure uniformity of probe calibrations and measurements. The dedicated GLP key opens a le of the latest calibration information. Use the q p keys to scroll the stored information. This includes the standards used, temperature of the standard, Altitude and Salinity factor, time and date of the last calibration, the expired calibration information and the probe serial number. This information is also included with every logged data.

Last DO Calibration Data

The last DO calibration data is stored automatically after a successful calibration. To view the DO calibration data, press GLP when the instrument is in measurement mode.

The instrument will display: The calibration standard and the calibration temperature:

0.0 % if instrument was calibrated in this point.

100% calibration point, if instrument was calibrated in water saturated .

DO GLP

Information

Calibration

Messages

Operational Guide

DO GLP Information

The altitude and salinity setting at the moment of calibration together with the current reading.

The time of the calibration together with the current reading.

The date of the calibration together with the current reading

Calibration Expiration status together with the current reading: If disabled, “EXPIRATION WARNING DISABLED” is displayed

If enabled, the number of days until the calibration alarm “CAL DUE” will be displayed.

Or if the number of days the calibration has expired ( I.E. “CAL EXPIRED 2 DAYS AGO”).

Operational Guide

The probe serial number together with the current reading

Make sure that the probe is polarized, calibrated and the protective cap has been removed. Rinse probe. Submerse the probe in the sample to be tested, make sure temperature probe is also immersed. Allow reading to stabilize. The sample should be stirred.

The Dissolved Oxygen value (in %) is displayed on the 1st LCD line and the temperature on the secondary LCD.

Press RANGE to change the reading from % to ppm

(mg/L) and vice versa.

Oxygen is consumed during the measurement.

For accurate Dissolved Oxygen measurements, water movement of 0.3 m/s is suggested. This is to ensure that the oxygen-depleted membrane surface is constantly measuring representative sample. The use of a magnetic stirrer is recommended. The probe has a built-in temperature sensor. Make sure it is also in sample. The measured temperature is indicated on the 2nd LCD line as shown above. Allow the probe to reach thermal equilibrium before taking

Measurements

DO GLP

Information

Operational Guide

DO Measurements

any measurement. This can take several minutes. The greater the dierence between the temperature at which the probe was stored and the temperature of the sample, the longer the time will be.

Note:

• If the temperature is displayed blinking, the temperature is out of range

for the probe. The measurement LCD will display “---”.

• If the temperature sensor is broken, the message “BROKEN

TEMPERATURE SENSOR” and “----” is displayed along with the unit tag blinking on the 2nd LCD line.

Maintenance

Remove the protective cap of the pH electrode. DO NOT BE ALARMED IF SALT DEPOSITS ARE PRESENT. This is normal with electrodes. They will disappear when rinsed with water.

During transport, tiny bubbles of air may form inside the glass bulb aecting proper functioning of the electrode. These bubbles can be removed by “shaking down” the electrode as you would do with a glass thermometer. If the bulb and/or junction is dry, soak the electrode in HI 70300 or HI 80300 storage solution for at least one hour.

pH Probe

Maintenance

For rellable electrodes: If the lling solution (electrolyte) is more than 2½ cm (1”) below the ll hole, add HI 7082 or HI 8082 3.5M KCl Electrolyte Solution for double junction. Unscrew the ll hole cover during measurements so the liquid junction maintains an outward ow of electrolyte.

Measurement

Rinse the electrode tip with distilled water. Submerse the tip (3 cm /1¼”) in the sample and stir gently for a few seconds. For a faster response and to avoid cross-contamination of the samples, rinse the electrode tip with a few drops of the solution to be tested, before taking measurements.

Storage Procedure

To minimize clogging and ensure a quick response time, the glass bulb and the junction should be kept wet and not allowed to dry out. Replace the solution in the protective cap with a few drops of HI 70300 or HI 80300 Storage Solution or, in its absence, Filling Solution (HI 7082 or HI 8082 for double junction electrodes). Follow the preparation procedure before taking measurements.

Note: NEVER STORE THE ELECTRODE IN DISTILLED OR DEIONIZED WATER.

Periodic Maintenance

Inspect the electrode and the cable. The cable used for connection to the instrument must be intact and there must be no points of broken insulation in the cable or cracks in the electrode stem or bulb. Connectors must be perfectly clean and dry. If any scratches or cracks are present, replace the electrode. Rinse o any salt deposits with water. For rellable electrodes: Rell the reference chamber with fresh electrolyte (HI 7082 or HI 8082 for double junction electrodes). Allow the electrode to stand upright for 1 hour. Follow the Storage Procedure above.

pH Probe Maintenance

Maintenance

Cleaning Procedure

Use diagnostic messages to aid pH electrode troubleshooting. Several cleaning solutions are available:

General – Soak in Hanna HI 7061 or HI 8061 General Cleaning Solution for approximately ½ hour. Protein –Soak in Hanna HI 7073 or HI 8073 Protein Cleaning Solution for 15 minutes. Inorganic – Soak in Hanna HI 7074 Inorganic Cleaning Solution for 15 minutes. Oil/grease – Rinse with Hanna HI 7077 or HI 8077 Oil and Fat Cleaning Solution.

Note: After performing any of the cleaning procedures, rinse the electrode thoroughly with distilled water, rell the reference chamber with fresh electrolyte (not necessary for gel-lled electrodes) and soak the electrode in HI 70300 or HI 80300 Storage Solution for at least 1 hour before taking measurements.

Temperature Correlation For pH Sensitive Glass

Verify the temperature range by reading the limits on electrodes cap. The pH electrode’s life also depends on the temperature that is used. If constantly used at high temperatures, the life of the electrode is drastically reduced.

pH Probe

Maintenance

Alkaline Error

High concentrations of sodium ions interfere with readings in alkaline solutions. The pH at which the interference starts to be signicant depends upon the composition of the glass. This interference is called alkaline error and causes the pH to be underestimated. Hanna’s glass formulations have the indicated characteristics.

Sodium Ion Correction for the glass at ambient temperature

Concentration pH Error

0.1 mol/L Na

12.5 0.05

13.0 0.11

13.5 0.16

14.0 0.20

1.0 mol/L Na

11.5 0.01

12.0 0.06

12.5 0.11

13.0 0.15

13.5 0.21

14.0 0.27

Rinse the probe with clean water after measurements. If a more thorough cleaning is required, remove the probe sleeve and clean the probe with a cloth or a nonabrasive detergent. Make sure to reinsert the sleeve onto the probe properly and in the right direction. After cleaning the probe, recalibrate the instrument.

The insulator used to support the platinum rings is made of glass. Use extreme caution when handling this probe.

EC Probe Maintenance

pH Probe Maintenance

Maintenance

The oxygen probe body is made of PEI. A temperature sensor provides temperature measurements of the sample. Use the protective cap when the probe is not in use. To replace the membrane

or rell with electrolyte, proceed as follows:

Remove the protective shipping tube by gently twisting and pulling it o the body of the probe (see g. 1).

Unscrew the membrane cap by turning it clockwise (see g. 2).

The new membrane cap supplied with the meter should be rinsed with electrolyte solution. Rell with clean electrolyte solution.

Gently tap the sides of the membrane cap to ensure that no air bubbles remain trapped. Do not tap the bottom directly with your nger, as this will damage the membrane.

Make sure that the rubber O-ring sits properly inside the membrane cap. With the sensor facing down, slowly screw the membrane cap clockwise. Some electrolyte will overow.

DO Probe

Maintenance

DO Probe Maintenance

The platinum cathode (DO Probe Diagram, page 67) should always be bright and untarnished. If it is tarnished or stained, the cathode should be cleaned. You can use a clean lint-free cardboard or cloth. Rub the cathode very gently side to side 4-5 times. This will be enough to polish and remove any stains without damaging the platinum tip. Afterwards, rinse the probe with deionized or distilled water and install a new membrane cap using fresh electrolyte and follow DO Probe Preparation page 65.

Important

In order to have accurate and stable measurements, it is important that the membrane surface is in perfect condition. This semi-permeable membrane isolates the sensor elements from the environment but allows oxygen to enter. If any dirt is observed on the membrane, rinse carefully with distilled or deionized water. If imperfections still exist, or any damage is evident (such as wrinkles or tears), the membrane should be replaced. Make sure that the O-Ring sits properly in the membrane cap.

Maintenance

Symptoms Problems Solution

Slow response/excessive drift.

Dirty pH electrode.

Clean the electrode and then soak the tip in HI 7061 or HI 8061 for 30 minutes.

Readings uctuate up and down (noise).

pH: Clogged/dirty junction. Low electrolyte level (rellable electrodes only).

Clean the electrode. Rell with fresh solution (for rellable electrodes only). Check cable and connectors.

EC: EC probe sleeve not properly inserted; air bubbles inside sleeve.

Reinstall the sleeve. Tap the probe to remove air bubbles. Move to center of beaker. Verify top hole in sleeve is covered with solution.

DO: DO probe electrolyte contains entrapped gas.

Remove cap. Rell, tap and reinstall.

The meter does not accept the buer/ standard solution for calibration.

pH: Dirty electrode or contaminated buer.

Follow the cleaning procedure. If still no results, replace the electrode. Replace buer.

EC: The EC probe is defective.

Follow the cleaning procedure. If still no results replace the probe. Verify correct standard is selected.

If the display shows: “pH” and “-2.00” or “16.00” blinking.

Out of range in the pH scale.

A) Verify that the shipping cap has been removed. B) Make sure the pH sample is in the specied range. C) Check electrolyte level and general state of the electrode.

The display shows EC, TDS or NaCl readings blinking.

Out of range in EC, TDS or NaCl scale.

Verify the plastic shipping spacer has been removed from probe. Recalibrate the probe. Make sure the solution is in specied range. Make sure the range is not locked. (Select Auto range)

The display shows DO reading blinking.

Out of range in DO scale.

Verify area of cathode is free of bubble inside cap. Verify solution movement past membrane. Remove cap, inspect and clean if necessary. Install new cap, fresh electrolyte with no bubbles, permit longer polarization. Stir or increase ow rate.

Troubleshooting

Guide

Maintenance

Symptoms Problems Solution

If the display shows: “mV” and “-1000” or “1000” blinking.

Out of range in the mV scale.

A) Verify the shipping cap has been removed. B) Make sure the sample pH is within specied range. C) Verify electrolyte level in pH sensor is topped o. D) Verify no bubbles inside pH membrane.

The meter does not measure temperature. “----” is displayed on 2nd LCD line.

Broken temperature sensor.

Replace the probe.

The meter fails to calibrate NaCl.

Incorrect EC calibration.

Recalibrate the meter in EC range. Set cell constant to 1.

The meter fails to calibrate or gives faulty readings.

Broken pH electrode. Replace the electrode.

At startup the meter displays all LCD tags permanently.

One of the keys is stuck.

Check the keyboard or contact your local Hanna Oce

CAL “Prod” message at startup.

Instrument was not factory calibrated or lost factory calibration.

Contact Hanna Technical Support for help.

Troubleshooting Guide

Specications

pH Temperature

Range

-2.00 to 16.00 pH

-2.000 to 16.000 pH* ±1000.0 mV

-20.0 to 120.0 ºC (-4.0 to 248.0 °F)**

Resolution

0.01 pH

0.001 pH*

0.1 mV

0.1 ºC

Accuracy @ 25 °C / 77 °F

±0.01pH ±0.002 pH* ±0.2 mV

±0.5 ºC

pH Calibration

Automatic, up to 3 points (5 points*) calibration, 5 standard (7 standard*) buffers available (1.68*, 4.01 or 3.00, 6.86, 7.01, 9.18, 10.01,

12.45*) and 2 custom buffers*

Temperature compensation

Automatic using integral temperature sensor.

pH Electrode

HI 11310 Intelligent pH/temperature electrode (included)

Log feature

Up to 1000* records organized in: Log on demand (Max. 200 logs) Log on stability (Max. 200 logs) Interval logging*

*Standard Mode Only ** Temperature limits will be reduced to actual probe/sensor limits

Specications

EC TDS Salinity

Range

0.00 to 29.99 μS/ cm, 3.00 to 29.99 μS/cm, 300. to

2999. μS/cm,

3.00 to 29.99 mS/cm, 30.0 to

200.0 mS/cm, up to 500.0 mS/ cm, absolute * conductivity

0.00 to 14.99 ppm (mg/L), 15.0 to 149.9 ppm (mg/L), 150. to

1499. ppm (mg/L), 1.50 to 14.99 g/L, 15.0 to

100.0 g/L, up to 400.0 g/L absolute * TDS (with

0.80 factor)

0.0 to 400.0% NaCl **, 2.00 to 42.00 PSU **, 0.0 to 80.0 g/L **

Resolution

0.01 μS/cm, 00.1 μS/cm, 0.01 μS/ cm, 0.01 mS/cm,

00.1 mS/cm

0.01 ppm, 0.1 ppm, 1 ppm, 0.01 g/L, 0.1 g/L

0.1% NaCl, 0.01 PSU, 0.01 g/L

Accuracy @ 25 °C / 77 °F

±1% of reading (±0.05 μS/cm or 1 digit, whichever is greater)

±1% of reading (±0.03 ppm or 1 digit, whichever is greater)

±1% of reading

EC Calibration

1 Cell Factor calibration;6 standards available: 84, 1413 μS/cm, 5.00,

12.88, 80.0, 111.8 mS/cm, 1 point off set: 0.00 μS/cm

Salinity Calibration %NaCl (only)

Single point with HI 7037L Standard

Temperature compensation

Automatic NoTC - can be selected to measure absolute conductivity.

Specications

Conductivity temperature coefficient

0.00 to 6.00% / ºC (for EC and TDS only). Default value is 1.90% / ºC

TDS factor

0.40 to 0.80 (default value is 0.50)

EC Probe

HI 763100

Log feature

Up to 1000 ** (400) records organized in: Manual log on demand (Max. 200 logs), Manual log on stabilit y (Max. 200 logs), Inter val logging ** (Max. 600 logs; 100 lots)

* Absolute conductivity (or TDS) is the conductivity (or TDS) value without temperature compensation. ** Standard mode only.

Specications

Range

0.00 to 45.00 ppm (mg /L)

0.0 to 300.0%

-20.0 to 120.0 ºC (-4.0 to 248.0 °F)*

Resolution

0.01 ppm (mg/L)

0. 1%

0.1 °C

Accuracy @ 25 °C / 77 °F

±1.5% of reading or ±1 digit ±0.5 ºC

DO Calibration

One or t wo point s at 0% (HI 7040) and 100% (water saturated air)

Altitude Compensation Resolution

-500 to 4,000 m (-1640 to 13120’) 100 m (328’)

Salinity Compensation Resolution

0 to 40 g/L 1 g/L

Temperature Compensation

0.0 to 50.0 ºC (32.0 to 122 ºF)

DO Probe

HI 764080

Log feature

Up to 1000 records organized in Manual Log on Demand (Max. 200 logs) Manual Log on Stabilit y (Max. 200 logs) Interval Logging 100 lot s, Max. 600 logs/ lot

Additional Specications

PC Interface

Micro USB

Storage Interface

USB

Power Supply

5 VDC Adapter (included)

Environment

0-50 ºC (32-122 ºF) Max 95% RH non-condensing

Dimensions

202 x 140 x 12 mm (7.9 x 5.5 z 0.5”)

Weight

250g (8.82 oz)

* Temperature limits reduced to actual sensor limits.

Specications

Accessories

Buer Solutions

HI 70004P pH 4.01 Buer Sachets, 20 mL (25 pcs.)

HI 70007P pH 7.01 Buer Sachets, 20 mL (25 pcs.)

HI 70010P pH 10.01 Buer Sachets, 20 mL (25 pcs.)

HI 7001L pH 1.68 Buer Solution, 500 mL

HI 7004L pH 4.01 Buer Solution, 500 mL

HI 7006L pH 6.86 Buer Solution, 500 mL

HI 7007L pH 7.01 Buer Solution, 500 mL

HI 7009L pH 9.18 Buer Solution, 500 mL

HI 7010L pH 10.01 Buer Solution, 500 mL

HI 8004L pH 4.01 Buer Solution in FDA approved bottle, 500 mL

HI 8006L pH 6.86 Buer Solution in FDA approved bottle, 500 mL

HI 8007L pH 7.01 Buer Solution in FDA approved bottle, 500 mL

HI 8009L pH 9.18 Buer Solution in FDA approved bottle, 500 mL

HI 8010L pH 10.01 Buer Solution in FDA approved bottle, 500 mL

ELECTRODE STORAGE SOLUTIONS

HI 70300L Storage Solution, 500 mL

HI 80300L Storage Solution in FDA approved bottle, 500 mL

ELECTRODE CLEANING SOLUTIONS

HI 70000P Electrode Rinse Sachets, 20 mL, 25 pcs

HI 7061L General Cleaning Solution, 500 mL

HI 7073L Protein Cleaning Solution, 500 mL

HI 7074L Inorganic Cleaning Solution, 500 mL

HI 7077L Oil & Fat Cleaning Solution, 500 mL

HI 8061L General Cleaning Solution in FDA approved bottle, 500 mL

HI 8073L Protein Cleaning Solution in FDA approved bottle, 500 mL

HI 8077L Oil & Fat Cleaning Solution in FDA approved bottle, 500 mL

ELECTRODE REFILL ELECTROLYTE SOLUTIONS

HI 7082 3.5M KCl Electrolyte, 4x30 mL, for double junction electrodes

HI 8082

3.5M KCl Electrolyte in FDA approved bottle, 4x30 mL, for double junction electrodes.

Accessories

Conductivity Solutions

HI 70030P 12880 μS/cm, 20 mL sachets (25 pcs.)

HI 70031P 1413 μS/cm, 20 mL sachets (25 pcs.)

HI 70039P 5000 μS/cm, 20 mL sachets (25 pcs.)

HI 7030M 12880 μS/cm, 230 mL bottle

HI 7031M 1413 μS/cm, 230 mL bottle

HI 7033M 84 μS/cm, 230 mL bottle

HI 7030M 12880 μS/cm, 230 mL bottle

HI 7034M 80000 μS/cm, 230 mL bottle

HI 7035M 111800 μS/cm, 230 mL bottle

HI 7039M 5000 μS/cm), 230 mL bottle

HI 7030L 12880 μS/cm, 500 mL bottle

HI 7031L 1413 μS/cm, 500 mL bottle

HI 7033L 84 μS/cm, 500 mL bottle

HI 7034L 80000 μS/cm, 500 mL bottle

HI 7035L 111800 μS/cm, 500 mL bottle

HI 7039L 5000 μS/cm, 500 mL bottle

HI 7037L 100% NaCl sea water standard solution, 500 mL bottle

HI 8030L 12880 μS/cm, 500 mL FDA approved bottle

HI 8031L 1413 μS/cm, 500 mL FDA approved bottle

HI 8033L 84 μS/cm, 500 mL FDA approved bottle

HI 8034L 80000 μS/cm, 500 mL FDA approved bottle

HI 8035L 111800 μS/cm, 500 mL FDA approved bottle

HI 8039L 5000 μS/cm, 500 mL FDA approved bottle

Accessories

HI 7040M Zero Oxygen Solution, 230 ml

HI 7040L Zero Oxygen Solution, 500 ml

HI 7041S Relling Electrolyte Solution, 30 ml

HI 764080 Spare probe with 2 meter (6.7') cable

HI 764080A/P 5 spare membranes

Other Accessories

HI 75110/220U Voltage adapter from 115 Vac to 5 Vdc (USA plug)

HI 75110/220E Voltage adapter from 230 Vac to 5 Vdc (European plug)

HI 76404B Electrode holder

HI 2000WC Wall cradle

HI 2000BC Bench cradle

Ordering Information

HI 2020-01 edge™ instrument with US plug

HI 2020-02 edge™ instrument with EU plug

HI 11310 Glass body, double junction, pH/temperature electrode

HI 11311

Glass body, double junction, pH/temperature electrode with enhanced diagnostics

HI 12300 Plastic body, double junction, pH/temperature electrode

HI 12301

Plastic body, double junction, pH/temperature electrode with enhanced diagnose

HI 763100 EC/temperature probe

HI 764080 DO/temperature probe

Accessories

Warranty

edge™ is guaranteed for two years against defects in workmanship and materials when used for its intended purpose and maintained according to instructions. Electrodes and probes are guaranteed for six months. This warranty is limited to repair or replacement free of charge. Damage due to accidents, misuse, tampering or lack of prescribed maintenance is not covered. If service is required, contact your local Hanna Oce. If under warranty, report the model number, date of purchase, serial number and the nature of the problem. If the repair is not covered by the warranty, you will be notied of the charges incurred. If the instrument is to be returned to Hanna Instruments, rst obtain a Returned Goods Authorization number from the Technical Service department and then send it with shipping costs prepaid. When shipping any instrument, make sure it is properly packed for complete protection.

Hanna Instruments reserves the right to modify the design, construction or appearance of its products without advance notice.
