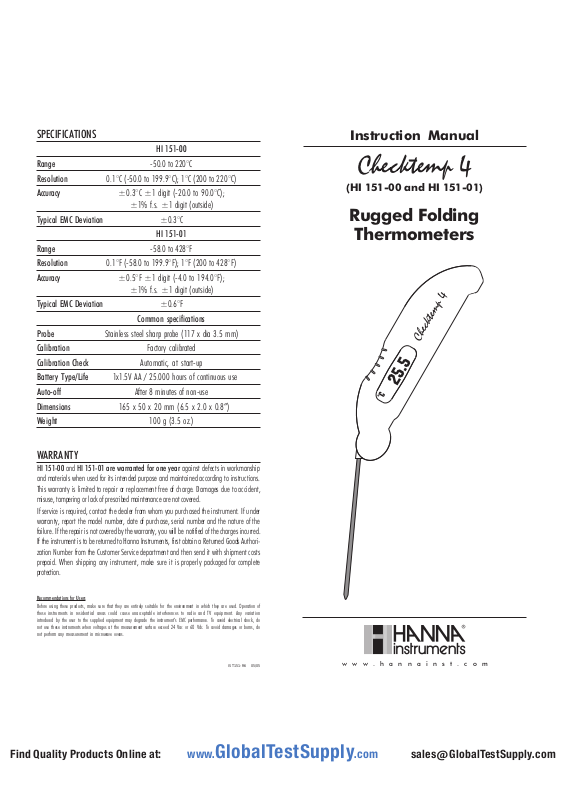

SPECIFICATIONS
HI 151-00
Range -50.0 to 220°C
Resolution 0.1°C (-50.0 to 199.9°C); 1°C (200 to 220°C)
Accuracy ±0.3°C ±1 digit (-20.0 to 90.0°C);
±1% f.s. ±1 digit (outside)
Typical EMC Deviation ±0.3°C
HI 151-01
Range -58.0 to 428°F
Resolution 0.1°F (-58.0 to 199.9°F); 1°F (200 to 428°F)
Accuracy ±0.5°F ±1 digit (-4.0 to 194.0°F);
±1% f.s. ±1 digit (outside)
Typical EMC Deviation ±0.6°F
Common specifications
Probe Stainless steel sharp probe (117 x dia 3.5 mm)
Calibration Factory calibrated
Calibration Check Automatic, at start-up
Battery Type/Life 1x1.5V AA / 25.000 hours of continuous use
Auto-off After 8 minutes of non-use
Dimensions 165 x 50 x 20 mm (6.5 x 2.0 x 0.8”)
Weight 100 g (3.5 oz.)
Instruction Manual
Checktemp 4
(HI 151-00 and HI 151-01)
Rugged Folding
Thermometers
WARRANTY
HI 151-00 and HI 151-01 are warranted for one year against defects in workmanship
and materials when used for its intended purpose and maintained according to instructions.
This warranty is limited to repair or replacement free of charge. Damages due to accident,
misuse, tampering or lack of prescribed maintenance are not covered.
If service is required, contact the dealer from whom you purchased the instrument. If under
warranty, report the model number, date of purchase, serial number and the nature of the
failure. If the repair is not covered by the warranty, you will be notified of the charges incurred.
If the instrument is to be returned to Hanna Instruments, first obtain a Returned Goods Authorization Number from the Customer Service department and then send it with shipment costs
prepaid. When shipping any instrument, make sure it is properly packaged for complete
protection.
Recommendations for Users
Before using these products, make sure that they are entirely suitable for the environment in which they are used. Operation of
these instruments in residential areas could cause unacceptable interferences to radio and TV equipment. Any variation
introduced by the user to the supplied equipment may degrade the instrument’s EMC performance. To avoid electrical shock, do
not use these instruments when voltages at the measurement surface exceed 24 Vac or 60 Vdc. To avoid damages or burns, do
not perform any measurement in microwave ovens.
IST151-R6 05/05
www.hannainst.com
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Checktemp 4 are high accuracy thermometers, easy to use, offering quick and
precise measurements.
Checktemp 4 is the ideal solution for food applications. The sharp stainless
steel probe is specially designed for penetration of cooked as well as on semifrozen food. In addition, the probe nestles in the casing to make the
thermometers truly portable.
Checktemp 4 is equipped with the Cal-Check feature. Every time the meter is
turned on, it performs a self test of its calibration status and provides a visual
confirmation.
Two models are available:
• HI 151-00 measures temperature in °C
• HI 151-01 measures temperature in °F.
The meters are calibrated using four temperature points.
TAKING MEASUREMENTS
• Turn the meter on by simply opening the probe.
• Introduce the probe in the sample. For ideal measurement an immersion level
of 4 cm (11/2’’) is recommended. Wait for a few seconds for the reading to
stabilize and for the temperature value be displayed on the LCD.
• After 5 minutes, the meter switches itself off. To restart, close and open the
probe again.
• Turn the meter off by closing the probe and returning it to its original position.
CALIBRATION SELF CHECK
Every time the meter is switched on, it checks its calibration status.
If the LCD displays “CAL” and then -0- the meter is calibrated and in a few
seconds it will be ready for normal operating mode.
If the meter is not calibrated or the battery level is too low, the “Err” indication
appears on the LCD.
First replace the battery as described below; if the “Err” warning message is still
displayed, contact your dealer or your nearest Hanna Service Center for recalibration.
BATTERY REPLACEMENT
“Err” warning message, variations in readings or fading display can indicate a
low battery level. Remove the cover of the battery compartment on the back side
and replace the 1.5V AA battery while paying attention to its polarity.
Note: Clean the probe after use and before storing it.
CE DECLARATION OF CONFORMITY
