Instruction Manual
BL1.5 - BL3 - BL5
BL7 - BL10
BL15 - BL20
BL7913 - BL7914
Dosing Pumps
These Pumps are in Compliance with the CE Directives
http://www.hannainst.com
Dear Customer,
Thank you for choosing a Hanna product.
Please read this instruction manual care-
fully before using the pump. This manual
will provide you with the necessary information for a correct use of the pump, as well
as a precise idea of its versatility. If you
need more technical information, do not hesitate to e-mail us at tech@hannainst.com.
These instruments are in compliance with
directives EN 50081-1 and EN 50082-1.
TABLE OF CONTENTS
Preliminary Examination ............................ 3
General Description ................................... 5
Flow Rate Chart ......................................... 9
Functional Description of
BlackStone Pumps................................... 12
Specifications of BlackStone Pumps ....... 13
Functional Description of BL7913 ............ 14
Specifications of BL7913.......................... 15
Functional Description of BL7914 ............ 16
Specifications of BL7914.......................... 17

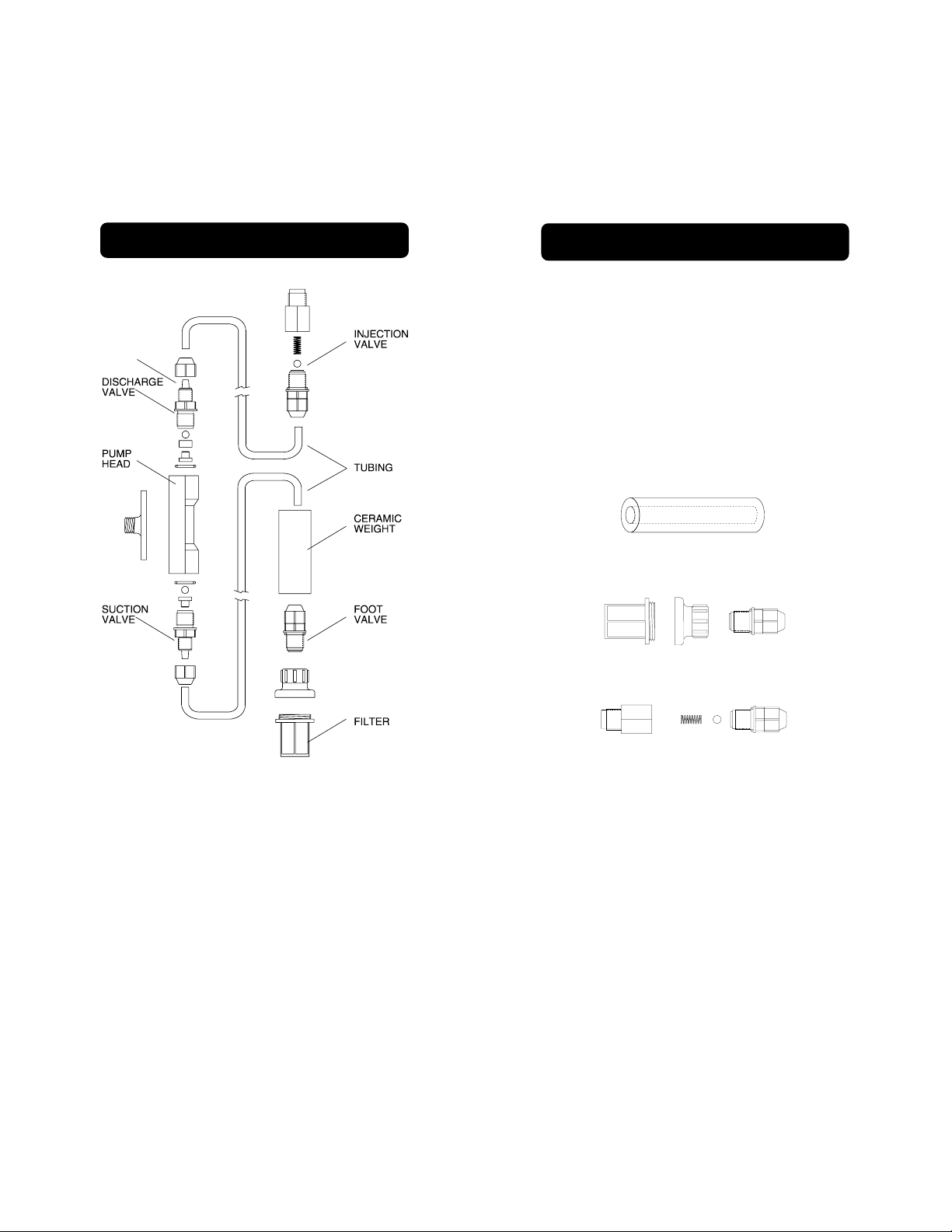

Valve / Hose Assembly Diagram.............. 18

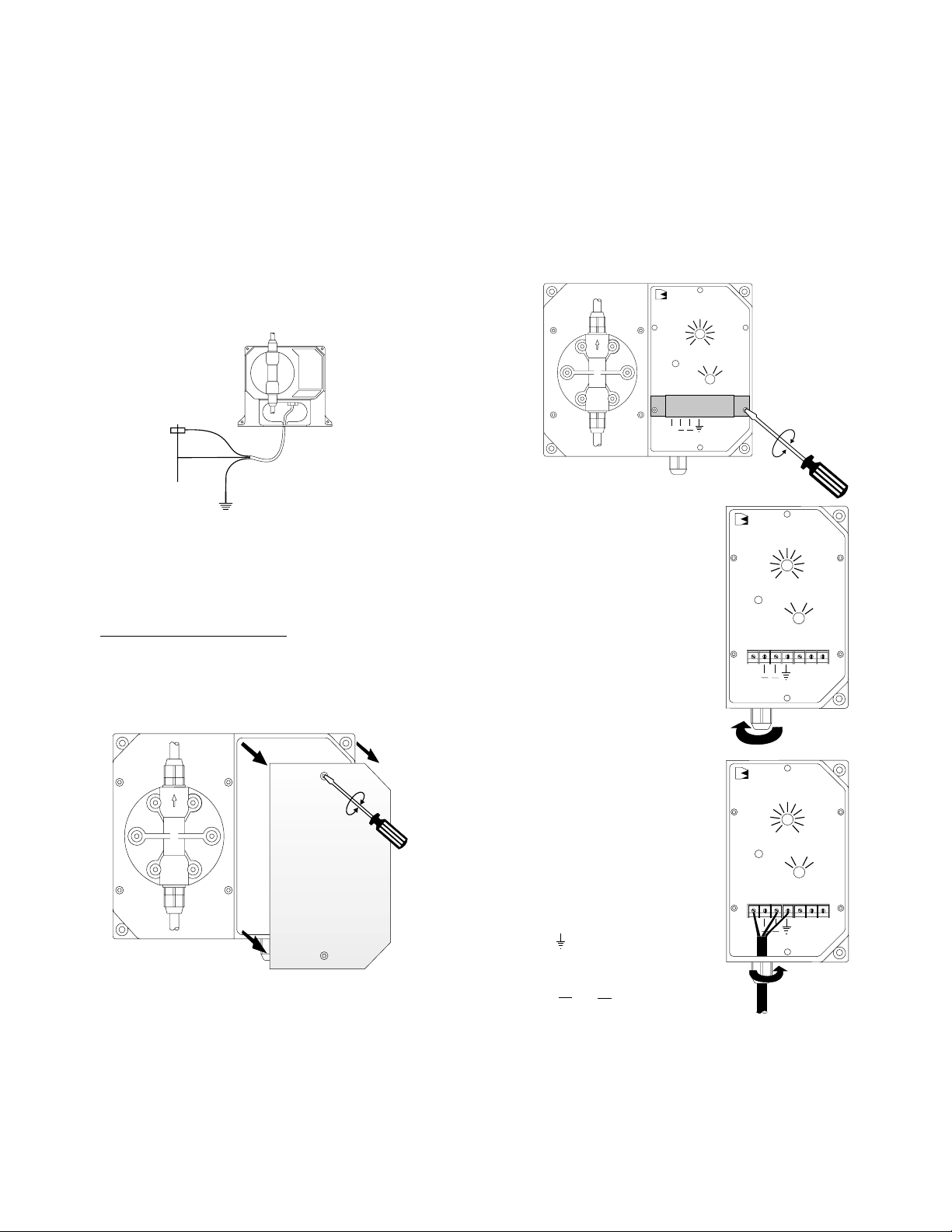

Installation ................................................ 19
Operational Guide .................................... 30
Troubleshooting Guide ............................. 34
Maintenance............................................. 36
Chemical Compatibility Guide .................. 38
Accessories .............................................. 40
Warranty................................................... 42
CE Declaration of Conformity .................. 43
ISO 9000 Certified
Company since 1992
PRELIMINARY EXAMINATION
Remove the pump from the packing material and examine it carefully to make sure
that no damage has occurred during shipping. If there is any noticeable damage,
notify your Dealer.
Each pump is supplied complete with:
• 7 m (23') LPDE suction and discharge
tubing
• Instruction manual
Note: Save all packing material until you
are sure that the pump functions correctly. Any defective item must be
returned in the original packaging together with the supplied accessories.
READ ATTENTIVELY THE INSTRUCTIONS
BEFORE INSTALLING OR
OPERATING YOUR PUMP
The BL electronic dosing pumps are easy to
use. We recommend, however, that you read
the entire manual before using the pump.
Familiarity with the features and controls of
the unit will give you a better idea of the
dosing potential and help reduce operator
errors. Please operate the pump only as
directed in the instruction manual. Follow all
general safety guidelines during operation.
Remember: electrical devices are potentially
hazardous. Check that the voltage of the
installation matches the voltage indicated
on the specification label on the back of the
pump. Always be sure the pump is grounded.
Note: It is the responsibility of the user to
install and ground the pump properly; it is highly recommended to install an external switch.
32
Always store chemicals in safe, out of reach
places. Follow the directions for use with
each chemical. Do not assume chemicals
are the same because they look alike. Hanna
Instruments cannot be held responsible for
the misuse of chemicals or the pump.
Always wear protective clothing (gloves and
safety glasses) when working near chemical
dosing pumps. When pumping chemicals,
make sure all tubes are securely attached to
the fittings. It is recommended that tubing is
shielded to prevent possible injury in case
of rupture or accidental damage.
Avoid using a pipe wrench or pliers on plastic parts and connectors. These are best
tightened with an open end or crescent
wrench. Avoid overtightening these parts
as this could cause damage to the seats
and threads.
If a hose is used, it should be securely
fastened to columns, walls, braces, etc. This
will ensure that the hose connection will remain tight and leak free. Shield the hose
from direct sunlight. Sunlight can cause an
autocatalytic reaction with some chemicals
and weaken the hose walls.
The arrow on the pump head indicates the
direction of chemical flow and should always point upwards (vertically). Never position the pump horizontally with suction and
discharge valves horizontal. Locate the pump
in an area out of the reach of children and
pets.
All pumps undergo stringent tests to ensure
that they comply with their stated specifications and are calibrated at the maximum
rated pressure.
GENERAL DESCRIPTION
BLACKSTONE DOSING PUMPS
BlackStone pumps are equipped with a single
control for pump output.
Flow range is continuously adjustable from
0 to 100% of the maximum capacity through
a graded dial on the front of the pumps.
Seven models are available, each with a
different dosing capacity:
BL 20 18.3 lph (4.8 gph) @ 0.5 bar (7.4 psi)
BL 15 15.2 lph (4.0 gph) @ 1 bar (14.5 psi)
BL 10 10.8 lph (2.9 gph) @ 3 bar (43.5 psi)
BL 7 7.6 lph (2.0 gph) @ 3 bar (43.5 psi)
BL 5 5.0 lph (1.3 gph) @ 7 bar(101.5 psi)
BL 3 2.9 lph (0.8 gph) @ 8 bar (116 psi)
BL 1.5 1.5 lph (0.4 gph) @13 bar (188.5 psi)
For charts with the typical flow rates against
pressure see page 9.
54
BL7913 IPS VARIABLE FLOW RATE PUMP
BL7914 IPS MULTIRANGE PUMP
BL7913 is a single range dosing pump, ideal
for use when the pumping requirement is
constant. The individual pump flow rates
can also be adjusted on the front panel from
0 to 100%.
Four models are available with different dosing capacities:
BL7913/2 5.4 lph (1.4 gph) @ 0.5 bar (7.4 psi)
BL7913/5 7.6 lph (2.0 gph) @ 0.5 bar (7.4 psi)
BL7913/10 10.0 lph (2.6 gph) @ 0.5 bar (7.4 psi)
BL7913/15 13.3 lph (3.5 gph) @ 0.5 bar (7.4 psi)
For charts with the typical flow rates against
pressure see page 11.
Other features include:
•Overheating is prevented by the thermostatic circuit protection device.
•Isolated Power Supply provides the unit
with low voltage (12V) power from 220/
240V or 110/115 VAC for safety.
•Modular design with electrical and mechanical assemblies separated.
BL7914 offers four different ranges providing greater flexibility.
The flow rate is selectable from:
Knob pos. 2 0 to 2.5 lph (0 to 0.7 gph)
Knob pos. 5 0 to 5.8 lph (0 to 1.5 gph)
Knob pos.10 0 to 10.0 lph (0 to 2.6 gph)
Knob pos.15 0 to 13.3 lph (0 to 3.5 gph)
The above flow rates relate to 0.5 bar
(7.4 psi) pressure.
For charts with the typical flow rates against
pressure see page 11.
All selected ranges are adjustable from 0 to
100% of the pump's maximum capacity.
Other features include:
• Overheating is prevented by the thermostatic circuit protection device.
•Isolated Power Supply provides the unit
with low voltage (12V) power from 220/
240V or 110/115 VAC for safety.
•Modular design with electrical and mechanical assemblies separated.
76
COMMON FEATURES OF BLACKSTONE
PUMPS
High quality materials
BlackStone pumps incorporate Kynar® and
Teflon® into their diaphragms, hose connectors and pump heads to provide maximum
protection for parts in contact with aggressive chemicals.
The ball valves are constructed in glass.
The body is made of fiber-reinforced polypropylene for strength and durability.
Reliability through simplicity
All BlackStone pumps use the positive displacement solenoid method of pumping. This
method has fewer moving parts than a standard motor-driven pump, and does not have
the mechanical failures associated with conventional pumps.
BlackStone's Positive Displacement design
has several distinct advantages over other
types of mechanical designs:
• It is more accurate. Each stroke of the
piston is precisely the same as the stroke
before it ... and the stroke after it.
• Positive displacement allows for easier selfpriming.
• Pumping pressure is as high as 12 bar
(176 psi). This allows you to install your
pump in the widest variety of tank-totank and tank-to-in-line applications.
• High accuracy and repeatability. A wirewound potentiometer and solid state electronics are combined to achieve greater
precision and control.
Kynar® is registered Trademark of "Pennwalt Co."
Teflon® is registered Trademark of "du Pont de Nemours & Co."
Easy installation
Designed with mounting holes in the base
as well as rear panel, BlackStone pumps
can be installed on a wall as well as directly
on top of tanks and drums.
There is no need for additional hardware.
All the controls and pump assemblies are
conveniently located on the front of the unit.
If the operator must access the pump head
or control panel for any reason, there is no
need to dismount the unit.
FLOW RATE CHART
The following charts show the relationship
between their flow rate and pressure.
An increase of pressure in the system decreases the flow rate.
BL1.5
bar (psi) lph (gph)
0.5 (7.4) 8.3 (2.20)
1 (14.7) 6.8 (1.80)
2 (29.4) 5.4 (1.43)
3 (44.1) 5.2 (1.38)
4 (58.8) 4.8 (1.27)
5 (73.5) 4.5 (1.19)
6 (88.2) 4.1 (1.08)
7 (102.9) 3.2 (0.85)
8 (117.6) 2.9 (0.77)
9 (132.3) 2.1 (0.56)
10 (147) 1.8 (0.48)
11 (161.7) 1.7 (0.45)
12 (176.4) 1.6 (0.42)
BL3
bar (psi) lph (gph)
0.5 (7.4) 15.8 (4.18)
1 (14.7) 12.2 (3.23)
2 (29.4) 9.3 (2.46)
3 (44.1) 7.9 (2.09)
4 (58.8) 6.5 (1.71)
5 (73.5) 5.0 (1.32)
6 (88.2) 4.0 (1.06)
7 (102.9) 3.3 (0.87)
8 (117.6) 2.9 (0.77)
9 (132.3) 2.5 (0.66)
10 (147) 2.2 (0.58)
11 (161.7) 1.9 (0.50)
12 (176.4) 1.5 (0.40)
98
BL5
bar (psi) lph (gph)
0.5 (7.4) 15.8 (4.18)
1 (14.7) 12.2 (3.23)
2 (29.4) 10.8 (2.86)
3 (44.1) 9.3 (2.46)
4 (58.8) 7.9 (2.09)
5 (73.5) 6.5 (1.72)
6 (88.2) 5.8 (1.53)
7 (102.9) 5.0 (1.32)
8 (117.6) 4.3 (1.14)
9 (132.3) 4.0 (1.06)
10 (147) 3.6 (0.95)
BL20
bar (psi) lph (gph)
0.5 (7.4) 18.3 (4.84)
1 (14.7) 15.2 (4.02)
2 (29.4) 13.6 (3.60)
BL7913
BL7913/2 BL7913/5 BL7913/10 BL7913/15
bar (psi) lph (gph) lph (gph) lph (gph) lph (gph)
0.5 (7.4) 5.4 (1.40) 7.6 (1.98)10.0 (2.64) 13.3 (3.46)
1.0 (14.7) 4.6 (1.20) 6.3 (1.64) 8.8 (2.29) 11.7 (3.04)
2.0 (29.4) 4.1 (1.07) 5.6 (1.46) 7.7 (2.00) 10.1 (2.63)
4.0 (58.8) 3.2 (0.83) 4.3 (1.12) 5.8 (1.51) 7.8 (2.03)
6.0 (88.2) 2.1 (0.55) 3.6 (0.94) ----- -----
BL7
bar (psi) lph (gph)
0.5 (7.4) 17.2 (4.55)
1 (14.7) 13.6 (3.60)
2 (29.4) 10.8 (2.86)
3 (44.1) 7.6 (2.01)
4 (58.8) 6.0 (1.59)
5 (73.5) 5.7 (1.51)
6 (88.2) 5.4 (1.43)
7 (102.9) 4.4 (1.16)
8 (117.6) 3.6 (0.95)
BL10
bar (psi) lph (gph)
0.5 (7.4) 18.3 (4.84)
1 (14.7) 15.2 (4.02)
2 (29.4) 13.6 (3.60)
3 (44.1) 10.8 (2.86)
4 (58.8) 9.4 (2.49)
BL7914
knob position#
2 5 10 15
bar (psi) lph (gph) lph (gph) lph (gph) lph (gph)
0.5 (7.4) 2.5 (0.65) 5.8 (1.51) 10.0(2.64) 13.3 (3.46)
1.0 (14.7) 2.0 (0.53) 5.1 (1.33) 8.8 (2.29) 11.7 (3.04)
2.0 (29.4) 1.8 (0.47) 4.4 (1.14) 7.6 (1.98) 10.1 (2.63)
4.0 (58.8) 1.4 (0.36) 3.4 (0.88) 5.9 (1.53) 7.8 (2.03)
BL15
bar (psi) lph (gph)
0.5 (7.4) 18.3 (4.84)
1 (14.7) 15.2 (4.02)
2 (29.4) 13.6 (3.60)
3 (44.1) 10.8 (2.86)
1110
FUNCTIONAL DESCRIPTION OF
BLACKSTONE PUMPS
20
1
MODEL:
OUTPUT:

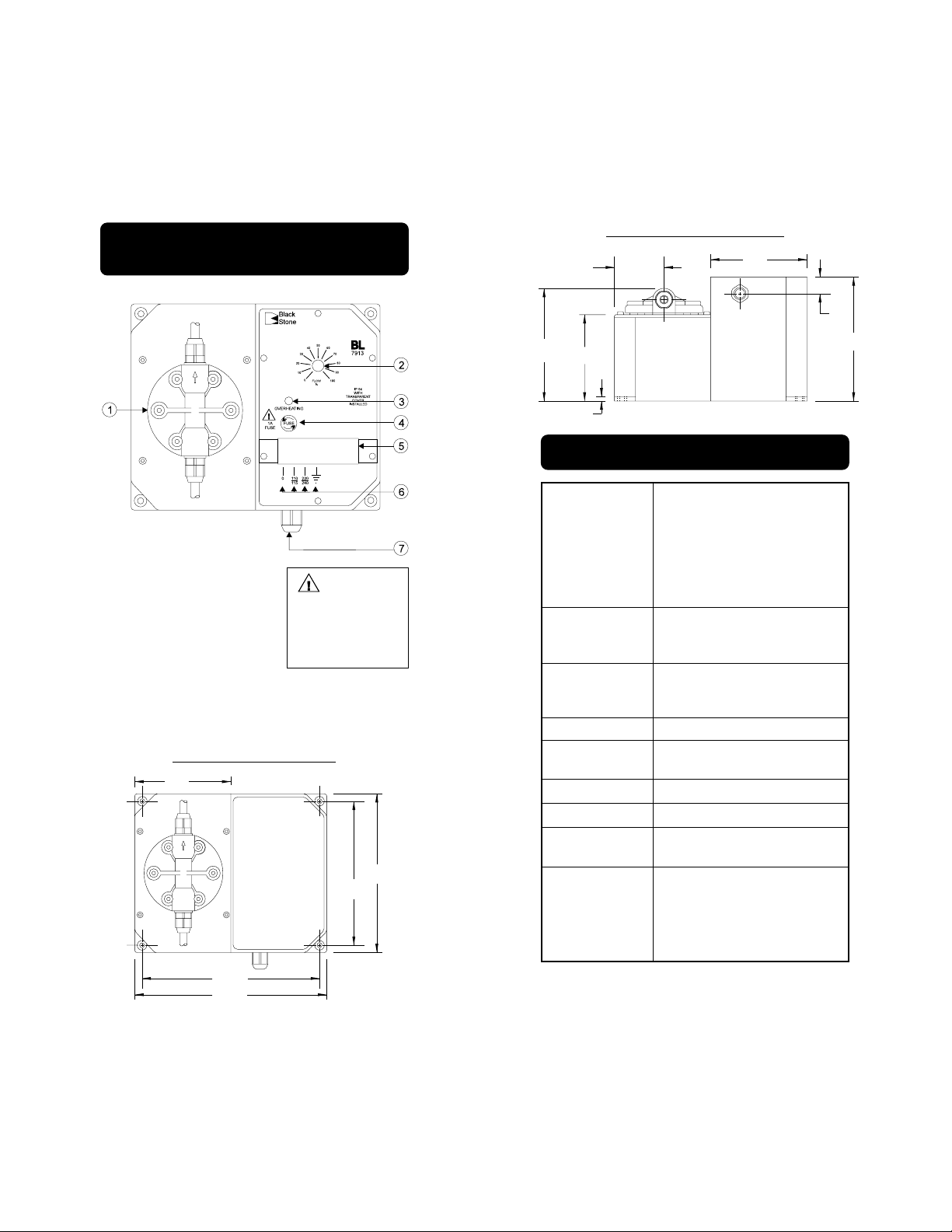

1. Pumphead
2. Stroke LED
3. Flow Rate % Knob
4. Power Cord
MECHANICAL DIMENSIONS
10
STROKE
30
40
0
FLOW RATE %
BL3-12
3L/H
12 BAR
SPECIFICATIONS OF
BLACKSTONE PUMPS
FLOW RATE
BL1.5 1.5 lph (0.4 gph) @13 bar (188.5 psi)
BL3 2.9 lph (0.8 gph) @ 8 bar(116 psi)
50
60
100
2
70
80
3
90
4
BL 5 5.0 lph (1.3 gph) @ 7 bar(101.5 psi)
BL7 7.6 lph (2.0 gph) @ 3 bar (43.5 psi)
BL10 10.8 lph (2.9 gph) @ 3 bar (43.5 psi)
BL15 15.2 lph (4.0 gph) @ 1 bar (14.5 psi)
BL20 18.3 lph (4.8 gph) @ 0.5 bar (7.4 psi)
Adjustable from 0 to 100% of
maximum pump capacity
POWER
SUPPLY
BL.../115 100/115V; 50-60Hz
BL.../220 220/240; 50-60Hz
SELF PRIMING Max.self-priming height 1.5 m (5')
ENVIRONMENT 0 to 50°C (32 to 122°F)
95% R.H. max
PROTECTION IP65
WEIGHT 3 Kg (6.6 lb.)
DIMENSIONS 194 x 165 x 121 mm (WxHxD)
(7.6 x 6.5 x 4.8")
MATERIAL BODY: Polypropylene with
reinforced fiberglass
VALVES: glass balls
PUMPHEAD: Kynar
DIAPHRAGM: Teflon
®
®
165.2mm
6.50"
65mm
2.56"
120.7mm
4.75"
165.2mm
6.50"
154.1mm
6.06"
151.4mm
5.96"
*
176.3mm
6.94"
194.3mm
7.65"
**
Teflon® is registered Trademark of "du Pont de Nemours & Co."
Kynar® is registered Trademark of "Pennwalt Co."
1312
99 mm
3.90"
110 mm
4.33"
142 mm
5.60"
5 mm
0.19"
129 mm
5.08"
17 mm
0.67"
55 mm
2.16"
FUNCTIONAL DESCRIPTION OF
BL7913
1. Pumphead
2. Flow Rate % Knob
3. Overheating LED
4. Fuse Holder
5. Connections Cover
6. Power Connections
7. Cable Gland.
MECHANICAL DIMENSIONS
Front View of BL7913
110 mm
4.33"
204 mm
8.03"
221 mm
8.70"
Unplug the
instrument
from power
supply before replacing the fuse.
181 mm
7.13"
164 mm
6.45"
Bottom View of BL7913
SPECIFICATIONS OF BL 7913
FLOW RATE
BL7913/2 4.6 lph (1.20 gph)
BL7913/5 6.3 lph (1.64 gph)
BL 7913/10 8.8 lph (2.29 gph)
BL7913/15 11.7 lph (3.04 gph)
POWER SUPPLY
BL7913U/2/5/10/15 100/115V; 50-60Hz
BL7913D/2/5/10/15 220/240; 50-60Hz
OVERHEATING Red LED for overheating
PROTECTION alarm if temperature is
SELF PRIMING Max. self-priming height 1.5 m (5')
ENVIRONMENT 0 to 50°C (32 to 122°F)
PROTECTION IP54
WEIGHT 4.7 Kg (10.4 lb.)
DIMENSIONS 221 x 181 x 142 mm (WxHxD)
MATERIAL BODY: Polypropylene with
Teflon® is registered Trademark of "du Pont de Nemours & Co."
Kynar® is registered Trademark of "Pennwalt Co."
MAX at 1 bar (14.7 psi)
Adjustable from 0 to 100% of
maximum pump capacity
higher than 90°C (194°F)
95% R.H. max
(8.7 x 7.1 x 5.6")
reinforced fiberglass
VALVES: glass balls
PUMPHEAD: Kynar
DIAPHRAGM: Teflon
®
®
1514
99 mm
3.90"
110 mm
4.33"
142 mm
5.60"
5 mm
0.19"
129 mm
5.08"
17 mm
0.67"
55 mm
2.16"
FUNCTIONAL DESCRIPTION OF
BL7914
Bottom View of BL7914
SPECIFICATIONS OF BL 7914
1. Pumphead
2. Flow Rate % Knob
3. Overheating LED
4. Capacity Knob
5. Fuse Holder
6. Connections Cover
7. Power Connections
8. Cable Gland.
MECHANICAL DIMENSIONS
Front View of BL7914
110 mm
4.33"
Unplug the
instrument
from power
supply before replacing the fuse.
181 mm
7.13"
164 mm
6.45"
FLOW RATE Selectable 2.0, 5.1, 8.8, 11.7 lph
(0.53, 1.33, 2.29, 3.04 gph)
max at 1 bar (14.7 psi).
Adjustable from 0 to 100% of
maximum pump capacity
POWER SUPPLY
BL7914U 100/115V; 50-60Hz
BL7914D 220/240; 50-60Hz
OVERHEATING Red LED for overheating
PROTECTION alarm if temperature is
higher than 90°C (194°F)
SELF PRIMING Max. self-priming height 1.5 m (5')
ENVIRONMENT 0 to 50°C (32 to 122°F)
95% R.H. max
PROTECTION IP54
WEIGHT 4.7 Kg (10.4 lb.)
DIMENSIONS 221 x 181 x 142 mm (WxHxD)
(8.7 x 7.1 x 5.6")
MATERIAL BODY: Polypropylene with
reinforced fiberglass
VALVES: glass balls
PUMPHEAD: Kynar
DIAPHRAGM: Teflon
®
®
204 mm
8.03"
221 mm
8.70"
Teflon® is registered Trademark of "du Pont de Nemours & Co."
Kynar® is registered Trademark of "Pennwalt Co."
1716
VALVE / HOSE ASSEMBLY DIAGRAM
NECK
INSTALLATION
Materials Needed
•LDPE hose (7 meter/22 feet) (included)
or other type of tubings (Teflon®, for example) more suitable for a specific application (optional)
•a 3-wire power cable (for BL7913 and
BL7914 only)
Optional Accessories
•4 each, ceramic weights (HI 720032)
•1 each, foot valve assembly (HI 712005)
•1 each, injection valve assembly (HI 721004)
Location
A suitable location should:
• be near to a power source
• be conveniently close to the injection point
• allow easy access to the flow rate control
and pipe or hose connections
• be no more than 1.5 meters (5 feet) above
the operating position of the suction valve
assembly.
Dimensions for Installation
BlackStone Pumps are designed for permanent installation.
1918
The pump can be mounted directly on a
wall or tank (see pages 12-17 for the specific mounting dimensions).
Power Requirements
BlackStone pumps are designed to operate
to specifications within the following voltage
ranges:
100 - 130 Volts for 115V models
200 - 240 Volts for 220V models
To ensure maximum performance, check
the voltage at the point of supply to verify
that it is sufficient. It is recommended that
you install a 1 Amp circuit breaker between
the pump and the power supply. This will
give additional protection to the internal circuit and provide a convenient way to disconnect the power supply prior to servicing
the pump, if needed.
Inside BL7913 and BL7914, for increased
safety, the incoming voltage of either 115 or
240V is reduced to 12V by an isolated trans-
former. With a maximum voltage of 12V
and with the transparent cover installed, risk
of electrical problems is minimized. This
makes the unit safer to operate with.
Injection Point
• Choose an injection point that allows you
to mount the injection valve assembly vertically.
• The spring in the injection valve assembly
(HI 721004) adds approximately 1.5 bar of
back pressure. If pumping into a high back
pressure, the spring should be removed.
Other Considerations
• If you are mounting the system to a wall,
column, etc., be sure it is strong enough
to support the weight of the entire system.
• The ambient temperature of the pump,
when in operation, should be between 0
and 50°C (32 to 122°F) and should be
protected from direct exposure to outdoor
elements (direct sunlight, rain, extreme
temperatures, high humidity, etc.).
• Generally speaking, the shorter the suction distance, the more efficient the pump
operates.
• The pump should be placed in a conventional location that will allow easy access
to the control and connections. It should
be placed so that regular visual inspections of the connections and hoses are
facilitated.
Vertical Surface Mounting
Once you have selected the best installation
site, simply screw or bolt the unit into a wall
or mounting panel above the chemical feed
tank.
The 4 mounting screw holes on the pump
will accommodate up to a 5mm (3/16") screw
or bolt (remember to use heavy screws or
bolts to secure the system).
Be sure you do not over tighten and cause
excessive stress on the mounting holes.
For BL7913 and BL7914
Make sure to leave a slight overhang in
front to allow for the connection cable.
Electrical Connections
Note: All cables must be according to local
electrical codes.
For safety of the users, the pump has to
be grounded.
For BlackStone Pumps:
The pump should be connected to a single
phase power source.
2120
Color coding for wires:
Blue - Live
Brown - Neutral
Yellow/Green - Ground (earth)
•Remove the protective plastic plate covering the terminals by removing the 2
screws on both sides of the plate.
Black
Stone
50
40
BL
60
70
30
7914
80
20
90
10
0100
FLOW
%
IP 54
WITH
TRANSPARENT
COVER
INSTALLED
OVERHEATING
105
215
LITRES/HOUR
BLUE
BROWN
YELLOW/
GREEN
It is recommended that the system be connected to a power line/leg equipped with a
circuit breaker of 1 Amp.
For BL7913 and BL7914:
•Unscrew and remove the transparent front
panel cover and gasket seal for access to
the terminals.
0110
220
115
240
•Remove the cable
gland from the hole on
the housing below the
power terminals (No. 1
through 7, left to right).
•Push a 3-wire power
cord through the white
gasketed fitting (inside
the cable nut), leaving
approximately 150mm
(5") of cable to work
with.
•Feed the cord through
the hole and connect
the cable ends as indicated on the front
panel, check the label
on the front panel first
and connect #1, 2, 4
for a 110V voltage or
#1, 3, 4 for a 220V voltage, where:
is ground
0 is neutral
Black
Stone
OVERHEATING
0110
Black
Stone
OVERHEATING
0110
50
40
30
20
10
0 100
FLOW
%
215
LITRES/HOUR
220
115
240
50
40
30
20
10
0 100
FLOW
%
215
LITRES/HOUR
220
115
240
60
BL
70
7914
80
90
IP 54
WITH
TRANSPARENT
COVER
INSTALLED
105
60
BL
70
7914
80
90
IP 54
WITH
TRANSPARENT
COVER
INSTALLED
105
110
220
&
115
are the live
240
2322
terminals.
•Slide the fitting up, screw it onto the base
and tighten the nut to form the watertight
seal.
•Replace the protective plastic cover.
•Replace the transparent cover and gasket
seal on the front panel.
Permanent Connection using 3/8"PVC
pipe
All piping for the
pump feed and discharge should be
plumbed to the location of the pump.
The threads on both
valve assemblies
allow the use of
standard 3/8" (Eu-
U
NION CONNECTION
A
DAPTER
D
ISCHARGE VALVE
P
UMP
S
UCTION VALVE
A
DAPTER
F
OOT VALVE
-
F
ILTER
Diagram for Rigid Pipe Hose
ropean) pipe fittings
for permanent pipe connections.
The foot valve assembly (HI
721005) should always hang
vertically and not lay horizontal on the bottom of the
tank or drum.
A vertical assembly will ensure that the valve is positioned properly and prevent
loss of prime.
For the U.S. standard installations, use PVC adapters to connect the suction
and discharge valves to the
PVC pipe.
Hose Connections
•Cut a long enough
section of the hose
to reach the suc-
tion valve of the pumphead from the feed
tank. Allow some slack in the hose and be
sure it is not kinked or twisted.
•Slip a hose connector
onto the hose over the
head valve and up to
the bottom of the
threads ensuring it is
fully seated.
•Slide the connector up
to the threads and
tighten to form a seal.
•Slip the ceramic weight
(HI 721008) and a connector over the other end
of the hose.
•Attach the foot valve assembly (HI 721005) to
the hose and slide the
connector up to the
threads and tighten to
form a seal.
2524
•Repeat the same installation procedure for
the hose connections on the discharge end
with the injection assembly (HI721004).
Assembling the Hose to the Valve
The end of the valve is specially tapered to
form a leak free seal when the hose is properly installed.
Be sure to seat the hose completely so that
there is no gap. Push the hose until it covers the end of the valve completely.
Suction and Discharge Valves
The suction and discharge valves located
on the pumphead should not be interchanged
as they are different internally. The discharge
valve is fitted with a valve guide and will not
function properly if used on the suction side.
•Secure the hose so that its movement is
minimized when the pump is operating.
Excessive hose movement could cause
the connectors to loosen and result in leakage.
2726
EXAMPLE OF TYPICAL INSTALLATIONS
LEGEND
HOSE PIPE
CONNECTION
RESEVOIR
MANUAL
SHUTOFF
VALVE
PUMP
FILTER /
FOOT VALVE
CHECK VALVE
Uphill Installation
Suggested installation
whenever the supply
is located higher than
the discharge point;
typically a waste water application.
It is important to install the Injection
valve to prevent siphoning.
Flooded Suction Installation
Suggested Installation for consistent
output when using
a low stroke rate.
Also suggested for
highly viscous
chemicals.
A slight suction
pressure avoids
self-priming problems, especially
with high viscosity
liquids.
Suction Lift Installation
Suggested installation for
most in-line applications
with nominal output and
pressures.
The maximum self-priming height is 1.5 m (5 ft.).
It is advisable to install a
level controller in order
to stop the pump when
feed tank liquid level is
low.
Downhill Installation
Suggested installation when
pumping from
one container to
another, each at
different levels
and with only
nominal pressure.
2928
OPERATIONAL GUIDE
STARTUP
At startup, purge all chemical gases and air
from the suction tubing, valves and pump
head. Start the pump.
When all the air or gas is vented, the solution being metered will appear in the output
line.
For BlackStone Pumps
An LED indicator will light up each time a
stroke begins.
STROKE
50
60
40
0
FLOW RATE %
70
80
90
100
30
20
10
Note: only when operating under pressure,
the pump must be started unloaded.
For BL7914 only:
5
Set the pump flow rate capacity by
10
215
turning the Liters/Hour knob on the
face of the pump.
LITRES/HOUR
The selectable rates are:
•2.0 lph (0.53 gph) @ 1 bar (14.7 psi)
•5.1 lph (1.33 gph) @ 1 bar (14.7 psi)
•8.8 lph (2.29 gph) @ 1 bar (14.7 psi)
•11.7lph (3.04 gph) @ 1 bar (14.7 psi)
For all models:
An external Flow Rate Control (potentiometer) on the face of the pump allows to
adjust the flow up to 100% of the pump's
rated capacity.
50
60
40
0
FLOW RATE %
70
80
90
100
30
20
10
BlackStone Pumps BL7913/BL7914
40
30
20
10
0 100
FLOW
50
60
70
80
90
%
BL3-12
MODEL:
3L/H
OUTPUT:
12 BAR
Operating Pressure and Back Pressure
Operating pressure is a combination of back
pressure plus all of the other resistances to
flow present in your system.
BlackStone Pumps are designed to dose
their rated output at the operating (
rated
pressure.
Therefore,
rated
pressure of the pump you
install should be close to operating pressure
present in the system.
Too little back pressure can cause the pump
to overdose.
To prevent this from happening on a low
back pressure installation, a spring has been
added to the discharge/anti-siphon valve assembly (HI 721004).
When pumping into a high back pressure,
the spring should be removed.
)
3130
Actual Flow Rate
The actual flow rate depends upon the operating pressure which includes resistance at
the injection fittings, hose and piping, the
chemical viscosity and suction lift. The Flow
Rate Control adjusts the flow up to 100% of
the
rated
output. Less back pressure will
increase the output, more will decrease it.
To determine the correct setting for your
application, use the following procedure.
1. Be sure that the pump is primed and that
the output connections are completed at
the injection point.
2. Place the foot valve as-
sembly (HI 721005) in a
graduated container with
500 mL of the solution to
be dosed.
3. Switch the pump from
OFF to the 100% setting
and run until the system
has been fully reprimed.
Switch OFF and refill the
container to the 500 mL
50
60
40
0
FLOW RATE %
70
80
90
100
30
20
10
level.
4. Switch the pump ON to
the estimated setting and
run for a specific amount
of time (e.g.1 minute).
Count the number of
strokes, length of time,
50
60
40
0
FLOW RATE %
70
80
90
100
30
20
10
and volume pumped.
turn the Flow Rate Control to 7 (9/12). Run
the test again to verify the results.
Overheating Prevention System (for
BL7913 and BL7914 only)
The pump automatically shuts down if it
heats up to the point where irreparable damage could occur.
Once the unit detects an excessive temperature, it will alert the operator with a red
LED.
Black
Stone
50
40
60
BL
70
OVERHEATING
0110
115
30
20
10
0 100
220
240
7914
80
90
FLOW
%
IP 54
WITH
TRANSPARENT
COVER
INSTALLED
105
215
LITRES/HOUR
Note: It is suggested that you run the test
for as long as possible to maximize
the accuracy.
For example, if at the maximum setting of
100% you find you pumped 200 mL in one
minute, your hourly output would be 12 liters/hour (200 mL x 60 min. = 12000 mL/hr).
If your application called for 9 liters/hour,
3332
TROUBLESHOOTING GUIDE
Electrical
The pump does not operate when turned
ON:
• Check the power supply and connections.
Voltage should be between 100 - 130 VAC
for 115 V models and between 200 240 VAC for 220 V models.
• Check wiring color scheme. See Installation section on page 19 or call for technical assistance.
•Check fuse (BL7913 and BL7914).
Liquid
The pump operates but does not prime:
• Check for a clogged or loose filter on the
suction valve assembly. Retighten if
necessary.
• Check to see if the pump is too high
above the foot valve assembly (HI 721005)
in the feed tank. This vertical distance
should not exceed 1.5 meters (5 feet).
Either lower the pump or raise the feed
tank.
• Check the pumphead, suction and
discharge valves for blockage.
• Check for any changes in the viscosity of
the chemicals being used. Increase the %
flow by adjusting the Flow Rate control to
a higher setting and run a Flow Rate test.
• Be sure that valves have been properly
installed in the pumphead.
Leakage at the connections:
• Be sure that the hose is fully seated and
hose connectors are tight.
• Be sure that valves are tight and o-rings
are in place.
Leakage around the pumphead:
• Be sure that the valves are tight and
o-rings are in place and the head screws
(hex bolts) are tight.
Pump flow rate is reduced:
• Check the pumphead, discharge and injection valve assembly for any clogging.
Clean and reassemble.
• Check for any additional back pressure
created since the last flow rate was conducted.
3534
MAINTENANCE
Your BlackStone Pump is designed to give
you years of trouble-free service. Maintenance should be the preventative type, that
is, periodic cleaning and inspecting for any
damage or leakage.
Cleaning the Suction, Discharge and Injection Valves
Remove the valves from the pumphead,
the injection fitting and the feed.
Keep the suction and discharge valves separated as they are not interchangeable.
Disassemble each valve and clean it with a
neutral liquid. Inspect the Kynar® springs.
After cleaning the glass balls, inspect them
for any excessive wear due to abrasion from
the chemical. Replace if necessary with parts
from HI 721102, HI 721103, HI 721104 and
HI721105 (see page 40 for listing).
When reinstalling the valves into the
pumphead, tighten by hand first and then
with a wrench ¼ to ½ turn.
Cleaning the Pumphead
The pumphead should be cleaned at regular
intervals and at least once a year. Remove
the deposits that form in the cavities with a
solution that is neutral to the chemical the
pump has been dosing. Inspect the head
for any cracks or worn areas.
Replace if necessary with parts from the
pumphead spare part HI 721106 (for BL7,
BL10, BL15, BL20, BL7913 and BL7914) or
HI721107 (for BL1.5, BL3 and BL5).
SCHEDULED MAINTENANCE
After 50 hours
Tight the pumphead screws with a torque
force of 2.5 Nm (22" lbf).
After 12 months
It is recommended to replace HI 721102, HI
721103 (suction and discharge valves assemblies) as well as the o-rings. The LDPE
hose can also deteriorate over time and, for
safety reasons, should also be changed
with HI 720032.
Inspecting the hose
(if used as supplied
with the pump)
Inspect to see if the hose has worn out or
weakened due to the chemicals. Pay particular attention for any signs of abrasion or
discoloration. Also check the connectors to
ensure they are tight.
Replace if necessary with parts from HI
720032.
Kynar® is registered Trademark of "Pennwalt Co."
After 24 months
It is recommended to replace HI 721102, HI
721103, HI 720032 and HI 721106 (for BL7,
BL10, BL15, BL20, BL7913 and BL7914) or
HI 721107 (for BL1.5, BL3 and BL5).
3736
CHEMICAL COMPATIBILITY GUIDE
Partial Listing of Chemicals that can be
used with BlackStone Pumps
(Rated for 45°C. For higher temperatures
consult your dealer or nearest Hanna Service Center)
Adipic Acid
Alcohol Amyl
Alcohol, Diacetone
Alcohol, Isoproyl
Alcohol, Methyl
Aluminium, Ammonium Sul-
fate
Aluminium Chloride
Aluminium Sulfate
Alums
Ammonium Carbonate
Ammonium Chloride
Ammonium Fluoride
Ammonium Hydroxide
Ammonium Nitrate
Ammonium Phosphate
Ammonium Sulfate
Aqua Ammonia
Arsenic Acid
Barium Carbonate
Barium Chloride
Barium Hydroxide
Barium Sulfate
Beer
Beet Sugar Liquors
Bismuth Carbonate
Back Liquor
Bleach
Borax
Boric Acid
Bromic Acid
Butyric Acid
Calcium Bisulfite
Calcium Carbonate
Calcium Chlorate
Calcium Chloride
Calcium Hydroxide
Calcium
Hypochlorite
Calcium Nitrate
Calcium Sulfate
Carbonic Acid
Castor Oil
Caustic Soda
Chloral Hydrate
Chromic Acid 50%
Citric Acid
Copper Chloride
Copper Cyanide
Copper Nitrate
Copper Sulfate
Corn Oil
Cottonseed Oil
Cresylic Acid
Crude Oil
Dextrose
Detergents (general)
Diesel Fuel
Dictyl Phthalate
Disodium Phosphate
Ethanol (1-95%)
Ethylene Dichloride
Ethylene Glycol
Fatty Acids
Ferric Chloride
Ferric Nitrate
Ferric Sulfate
Ferrous Chloride
Ferrous Sulfate
Fluoboric Acid
Fluosilicic Acid
Formaldehyde
Fruit Juice Pulp
Fuel Oil
Gallic Acid
Gasoline, Refined
Glucose
Glycerine or Glycerol
Glycolic Acid 30%
Hexane
Hydrazine
Hydrobromic Acid 20%
Hydrochloric Acid (Concen-
trated)
Hydrochloric Acid (Diluted)
Hydrofluoric Acid 60%
Hydrogen Sulfide Aqueous
Solution
Hypochlorous Acid
Kerosene
Lactic Acid
Lard Oil
Lauric Acid
Lead Acetate
Linoleic Acid
Linseed Oil
Lithium Salts
Magnesium Carbonate
Magnesium Chloride
Magnesium Hydroxide
Magnesium Nitrate
Magnesium Oxide
Magnesium Sulfate
Maleic Acid
Malic Acid
Mercuric Chloride
Methanol
Methyl Sulfate
Milk
Mineral Oils
Noptha Petroleum
Nickel Chloride
Nickel Sulfate
Nitric Acid 50%
Oils and Fats
Oleic Acid
Olive Oil
Oxalic Acid
Palmitric Acid
Perchloric Acid 70%
Perchloroethylene
Petroleum Oils (sour)
Phenol
Phosphoric Acid
Photographic Solutions
Plating Solutions
Potassium Carbonate
Potassium Bromide
Potassium Chlorate
Potassium Chloride
Potassium Cyanide
Potassium Ferrocyanide
Potassium Hydroxide
Potassium Nitrate
Potassium Permanga-
nate10%
Potassium Phosphate
Potassium Sulfate
Propyl Alcohol
Propylene Dichloride
Sea Water
Silver Nitrate
Silver Plating Solutions
Soaps
Sodium Acetate
Sodium Bicarbonate
Sodium Bisulfate
Sodium Bisulfite
Sodium Borate
Sodium Chlorate
Sodium Chloride
Sodium Cyanide
Sodium Fluoride
Sodium Hexametaphosphate
Sodium Hydroxide 50%
Sodium Hypochlorite 18%
Sodium Metaphosphate
Sodium Nitrate
Sodium Peroxide
Sodium Phosphate
Sodium Silicate
Sodium Sulfate
Sodium Sulfide
Sodium Sulfite
Sodium Thiosulfate
Sour Crude Oil
Stannic Chloride
Stannous Chloride
Stearic Acid
Sulfur
Sulfuric Acid Concentration
Sulfurous Acid
Tannic Acid
Tanning Liquors
Tartaric Acid
Tetrachlorethane
Tetraethyl Lead
Tetralin
Tin Salts
Vegetable Oils
Vinegar
Water Acid, Mine
Water, Fresh
Water, Distilled
Water, Salt
Whiskey
Wines
Zinc Chloride
Zinc Sulfate
3938
ACCESSORIES
SPARE PARTS
HI 721102 Discharge Valve
(Glass Ball, Valve O-Ring, Hose
Connector)
TUBE NUT HEAD NIPPLE SPACER
CHECK
BALL
VALVE
SEAT
VITON®
O-RING
HI 721103 Suction Valve (Glass Ball, Valve
O-Ring, Hose Connector)
CHECK
VITON®
O-RING
BALL
VALVE
SEAT
HEAD NIPPLE TUBE NUT
HI 721008 4 x Ceramic Weights
HI 721101 Pumphead, O-Ring, 6 screws and
washers
HI 721106 (for BL7, BL10, BL15, BL20,
BL7913 and BL7914)
Pumphead
Large Teflon® Diaphragm
Aluminum Piston
Aluminum Disk
HI 721003 10 x Glass Balls
10 x Valve O-Rings
HI 721004 Injection Valve Assembly
CHECK
VALVE ASSEMBLYINJECTION NIPPLE KYNAR®
SPRING
BALL
HI 721005 Foot Valve Assembly
VALVE ASSEMBLYFILTER FILTER HOLDER
HI 721006 4 x Kynar® Springs
HI 720032 LPDE Hose - 100 m (330')
Kynar® is registered Trademark of "Pennwalt Co."
PUMP HEAD DIAPHRAGM
HI 721107 (for BL1.5, BL3 and BL5)
Pump-head
Small Teflon® Diaphragm
Aluminum Piston
OTHER ACCESSORIES
HI 731326 Small calibration screwdrivers
(20 pcs)
MANBLR1 Instruction Manual
Teflon® is registered Trademark of "du Pont de Nemours & Co."
Kynar® is registered Trademark of "Pennwalt Co."
4140
WARRANTY
All Hanna Instruments pumps are warranted
for one year against defects in workman-
ship and materials when used for their intended purpose and maintained according
to instructions.
This warranty is limited to repair or replacement free of charge.
Damages due to accident, misuse, tampering or lack of prescribed maintenance are
not covered.
If service is required, contact the dealer
from whom you purchased the instrument. If
under warranty, report the model number,
date of purchase, serial number and the
nature of the failure. If the repair is not
covered by the warranty, you will be notified
of the charges incurred. If the instrument is
to be returned to Hanna Instruments, first
obtain a Returned Goods Authorization Number from the Customer Service department
and then send it with shipment costs prepaid. When shipping any instrument, make
sure it is properly packaged for complete
protection.
To validate your warranty, fill out and return
the enclosed warranty card within 14 days
from the date of purchase.
CE DECLARATION OF CONFORMITY
DECLARATION OF CONFORMITY
We
Hanna Instruments Srl
V.le delle industrie 12
35010 Ronchi di Villafranca (PD)
ITALY
herewith certify that the dosing pumps
BL 1.5 BL 3 BL 5
BL 7 BL 10 BL15
BL 20 BL 7913 BL 7914
have been tested and found to be in compliance with the following regulations:
IEC 801-2 Electrostatic Discharge
IEC 801-3 RF Radiated
IEC 801-4 Fast Transient
EN 55022 Radiated, Class B
Date of Issue: 31-01-1996
D.Volpato - Engineering Manager
On behalf of
Hanna Instruments S.r.l.
All rights are reserved. Reproduction in whole
or in part is prohibited without the written
consent of the copyright owner,
Hanna Instruments Inc., Woonsocket, Rhode
Island, 02895, USA.
Hanna Instruments reserves the right to modify
the design, construction and appearance of
its products without advance notice.
Recommendations for Users
Before using these products, make sure that they are entirely suitable for the environment
in which they are used.
Operation of these instruments in residential area could cause unacceptable interferences
to radio and TV equipments, requiring the operator to take all necessary steps to correct
interferences.
Any variation introduced by the user to the supplied equipment may degrade the instruments'
EMC performance.
4342
PRINTED IN
PORTUGAL
MANBLR1
03/97
http://www.hannainst.com
Loading...
