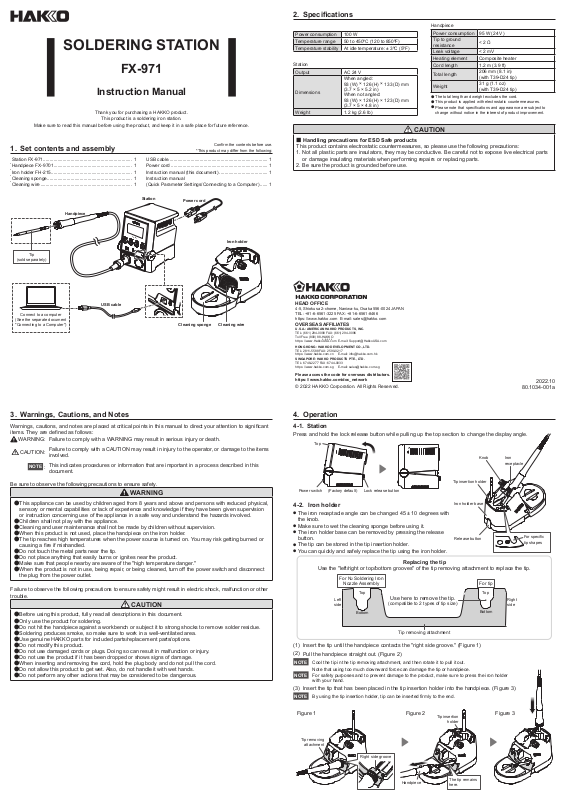

Hakko FX971 Instruction Manual

SOLDERING STATION

© 2022 HAKKO Corporation. All Rights Reserved.

FX-971

Instruction Manual

Thank you for purchasing a HAKKO product.

This product is a soldering iron station.

Make sure to read this manual before using the product, and keep it in a safe place for future reference.

1. Set contents and assembly

Station FX-971 .................................................................... 1

*

Handpiece FX-9701 ............................................................ 1

*

Iron holder FH-215.............................................................. 1

*

Cleaning sponge ................................................................. 1

*

Cleaning wire ...................................................................... 1

Confirm the contents before use.

*This product may differ from the following:

USB cable............................................................................ 1

Power cord .......................................................................... 1

Instruction manual (this document) ..................................... 1

Instruction manual

(Quick Parameter Settings/Connecting to a Computer) ...... 1

2. Specifications

Handpiece

Power consumption 100 W
Temperature range 50 to 450ºC (120 to 850ºF)
Temperature stability At idle temperature: ± 3ºC (5ºF)

Station

Output AC 24 V

Dimensions

Weight 1.2 kg (2.6 lb)

When angled:
93 (W) × 126 (H) × 133 (D) mm
(3.7 × 5 × 5.2 in)
When not angled:
93 (W) × 126 (H) × 123 (D) mm
(3.7 × 5 × 4.8 in)

■ Handling precautions for ESD Safe products

This product contains electrostatic countermeasures, so please use the following precautions:

1. Not all plastic parts are insulators, they may be conductive. Be careful not to expose live electrical parts
or damage insulating materials when performing repairs or replacing parts.

2. Be sure the product is grounded before use.

Power consumption 95 W (24 V)
Tip to ground

resistance
Leak voltage < 2 mV
Heating element Composite heater
Cord length 1.2 m (3.9 ft)

Total length

Weight

●

The total length and weight excludes the cord.

●

This product is applied with electrostatic countermeasures.

●

Please note that specifications and appearance are subject to

change without notice in the interest of product improvement.

< 2 Ω

206 mm (8.1 in)
(with T39-D24 tip)

31 g (1.1 oz)
(with T39-D24 tip)

CAUTION

Tip

(sold separately)

Connect to a computer
(See the separate document
"Connecting to a Computer")

Handpiece

USB cable

FX-971

Station

Power cord

Cleaning sponge

Iron holder

Cleaning wire

HEAD OFFICE

4-5, Shiokusa 2-chome, Naniwa-ku, Osaka 556-0024 JAPAN
TEL: [phone] FAX: [phone]
https:// www.hakko.com E-mail: [e-mail]

OVERSEAS AFFILIATES

U.S.A.: AMERICAN HAKKO PRODUCTS, INC.

TEL: [phone] FAX: [phone]
Toll Free (800) 88-HAKKO

4 2 5 5 6

https:// www.HakkoUSA.com E-mail: [e-mail]

HONG KONG: HAKKO DEVELOPMENT CO., LTD.

TEL: [phone] FAX: [phone]
https:// www.hakko.com.cn E-mail: [e-mail]

SINGAPORE: HAKKO PRODUCTS PTE., LTD.

TEL: [phone] FAX: [phone]
https:// www.hakko.com.sg E-mail: [e-mail]

Please access the code for overseas distributors.
https:// www.hakko.com/doc_network

2022.10

80.1034-001a

3. Warnings, Cautions, and Notes

Warnings, cautions, and notes are placed at critical points in this manual to direct your attention to significant
items. They are defined as follows:

WARNING:

CAUTION:

Be sure to observe the following precautions to ensure safety.

● This appliance can be used by children aged from 8 years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and understand the hazards involved.

● Children shall not play with the appliance.

● Cleaning and user maintenance shall not be made by children without supervision.

● When this product is not used, place the handpiece on the iron holder.

● The tip reaches high temperatures when the power source is turned on. You may risk getting burned or

causing a fire if mishandled.

● Do not touch the metal parts near the tip.

● Do not place anything that easily burns or ignites near the product.

● Make sure that people nearby are aware of the "high temperature danger."

● When the product is not in use, being repair, or being cleaned, turn off the power switch and disconnect

the plug from the power outlet.

Failure to observe the following precautions to ensure safety might result in electric shock, malfunction or other

trouble.

● Before using this product, fully read all descriptions in this document.

● Only use the product for soldering.

● Do not hit the handpiece against a workbench or subject it to strong shocks to remove solder residue.

● Soldering produces smoke, so make sure to work in a well-ventilated area.

● Use genuine HAKKO parts for included parts/replacement parts/options.

● Do not modify this product.

● Do not use damaged cords or plugs. Doing so can result in malfunction or injury.

● Do not use the product if it has been dropped or shows signs of damage.

● When inserting and removing the cord, hold the plug body and do not pull the cord.

● Do not allow this product to get wet. Also, do not handle it with wet hands.

● Do not perform any other actions that may be considered to be dangerous.

Failure to comply with a WARNING may result in serious injury or death.

Failure to comply with a CAUTION may result in injury to the operator, or damage to the items

involved.

This indicates procedures or information that are important in a process described in this

NOTE

:

document.

WARNING

CAUTION

4. Operation

4-1. Station

Press and hold the lock release button while pulling up the top section to change the display angle.

Top

Knob

Tip insertion holder

Power switch

(Factory default)

4-2. Iron holder

●

The iron receptacle angle can be changed 45 ± 10 degrees with

Lock release button

Iron holder base

the knob.

●

Make sure to wet the cleaning sponge before using it.

●

The iron holder base can be removed by pressing the release
button.

●

The tip can be stored in the tip insertion holder.

●

You can quickly and safely replace the tip using the iron holder.

Release button

Replacing the tip

Use the "left/right or top/bottom grooves" of the tip removing attachment to replace the tip.

For N2 Soldering Iron

Nozzle Assembly

Top Top

Left

side

Bottom

(1)

Insert the tip until the handpiece contacts the "right side groove." (Figure 1)

(2)

Pull the handpiece straight out. (Figure 2)

NOTE Cool the tip in the tip removing attachment, and then rotate it to pull it out.

Note that using too much downward force can damage the tip or handpiece.

NOTE

For safety purposes and to prevent damage to the product, make sure to press the iron holder

with your hand.

(3)

Insert the tip that has been placed in the tip insertion holder into the handpiece. (Figure 3)

NOTE By using the tip insertion holder, tip can be inserted firmly to the end.

Use here to remove the tip.

(compatible to 2 types of tip size)

Tip removing attachment

For tip

Bottom

Iron
receptacle

Right
side

For specific
tip shapes

Figure 1 Figure 2 Figure 3

Tip removing

attachment

Right side groove

Handpiece

Tip insertion

holder

The tip remains
here.

4. Operation

(cont'd)

4-3. Operation

CAUTION

Place the handpiece into the iron holder and then turn on the power.

The following display appears after turning the power on.

Parameter

icon

Temperature

icon

Offset icon

Operation

button

Up

button

Down

button

Confirm

button

■ Changing the temperature setting

Push

Push this button once to display [ ] and transition to "temperature setting mode."
This mode is used when changing the set temperature.

Back

button

Lock icon

Communication
icon

Preset icon

Preset No.

Mode

Temperature

Correction Mode

Temperature

Setting Mode

Tip sensor
temperature

Setting
temperature

Sleep Mode

■ Tip temperature correction (offset)

Push this button once to display [ ] and transition to "temperature correction mode." If the setting

Push

–

/0

0 to 5

*Note that temperatures that exceed the correction range cannot be entered.

(ºF: 0 to 9)

Once a tip degrades from wear, the tip temperature tends to drop.

The tip temperature changes if you replace the tip, the offset will

need to be readjusted. Make sure to change the offset value as

needed while monitoring the actual tip temperature.

You can automatically change the offset value using a HAKKO

thermometer with a temperature sending function.

Push the button before sending the measured value.

(See the figure on the right)

temperature and the measured value of the tip temperature differ in this mode, you can correct the temperature.
(Correction range: ± 50ºC/ ± 90ºF)

To correct a temperature by 5ºC for a setting of 400ºC (to correct
actual tip measurement reading 395ºC when set to 400ºC)

Push Push Push Push

0 to 9

Push five times

Temperature

control begins

FX-971

IR receiver

Normal screen

] disappears.

[

Temperature sending screen

The communication icon is
only displayed at this state.

To change to 400ºC

Normal screen

Push Push Push

Push once

Once the normal screen appears, push the button to transition to preset No. mode.

Push five times

Temperature

control begins

] and [ ]

[

disappear.

■ Changing the preset No.

You can register up to five frequently used setting temperatures on the product, and then select the registration No. to change

the setting temperature.

Push this button once to transition to "preset No. mode."

Push

Push once

The registered temperature of each preset No. can be changed in "parameter No.

NOTE

(See the separate document "Quick Parameter Settings")

If you want to limit setting temperature changes, change the setting in "parameter No.

NOTE

(See the separate document "Quick Parameter Settings")

Select one of the five temperatures registered in this mode.
( Factory default temperature settings: P1 250ºC (600ºF), P2 300ºC (700ºF), P3 350ºC (750ºF),

P4 400ºC (800ºF), P5 450ºC (850ºF))

To change to P4 (400ºC)

Normal screen

Push

Temperature

control begins

."

."

■ Pausing work (sleep mode)

Push this button once to immediately transition to "sleep mode (state where the tip temperature has

Push

The product will not transition to sleep mode in the following cases:

・When the setting temperature is lower than 300ºC (570ºF)
・When the parameter No.

Approximately six minutes after placing the handpiece on the iron holder, the product automatically transitions to sleep mode.

Change parameter No.
Settings")

To further prevent tip oxidation, set auto shut-off.

(1)

Enable the parameter No.

(2)

Set the time until the product is automatically shut-off in parameter No.
The shorter the set time, the more effective it is.
If you disable the parameter No.

elapsed.

dropped to the set activation temperature)." Use this function occasionally to prevent tip oxidation.
( Factory default setting: Parameter No.

Parameter No.

・Lift the handpiece from the iron holder.
・ Push any of the operation buttons.

and settings as necessary for your work. (See the separate document "Quick Parameter

is 200ºC)

setting is disabled

setting.

setting, the product will not automatically shut-off even when the set time has

setting is enabled and the activation temperature in

Normal screenTransition to normal mode

Temperature control begins

.

5. Parameter Settings

You can change the parameter settings to suit different work environments. See the separate document
"Quick Parameter Settings."

6. Maintenance

CAUTION

Do not file oxidation attached on the tip. This will shorten the tip lifespan.

Conducting maintenance will help keep the product in good condition and prolong the usage of the unit.

■ Daily maintenance

Setting
temperature

Before
beginning work

When pausing
work

After finishing

work

■ Periodic maintenance

●

Tip

Wear and tear on the tip will vary due to the operating temperature as well as the quality and amount of
solder/flux used. Maintenance should be performed based on what suits your usage.

(1)

Turn the power ON.

(2)

Set the temperature to 250ºC (482ºF).

(3)

Once the temperature is stable, use the cleaning sponge to wipe the tip.

(4)

If there is any black oxidation on the solder plating, apply new solder containing flux and then wipe it off
with the cleaning sponge. Repeat this process until the oxidation is removed. Afterward, coat it with new

solder.

(5)

Turn the power off and remove the tip once it has cooled.
If you find flux, debris, and other particulates on anything other than the end of the tip, wipe it off with

industrial alcohol.

●

Handpiece
Remove flux, debris, and other particulates adhering to
the nipple.

It may cause contact failure inside the handpiece.

●

Iron holder

・ Press down the release button and remove the iron holder base, then clean the collected solder waste

from the iron holder.

・Rotate the cleaning wire as need to a clean side where solder is not accumulated.

Using the product at a temperature that is higher than necessary can accelerate tip deterioration
and damage parts that are susceptible to heat. Use the lowest temperature whenever possible.

Perform a visual check of the tip. Replace it if it is bent or considerably worn. Use the cleaning
sponge to wipe off any oxidation or old solder from the tip. Impurities on a circuit board can result

in poor soldering.

Use sleep mode instead of leaving the handpiece set to a high temperature for a long period of

time. This prevents tip oxidation which helps to maintain workability, which can extend the tip

lifetime. Turn off the power switch when not using the product for a long period of time.

(See " ■ Pausing work (sleep mode)" in "4-3. Operation")

Thoroughly clean the tip with the cleaning sponge and then coat it with new solder. Doing so can

prevent oxidation of the tip.

FX-9701

Nipple

7. Troubleshooting

CAUTION

Before performing an inspection or replacing parts, make sure to disconnect the power plug from the outlet.

Has the power cord or connection

No operation even if

plug been removed?

power switch is turned
ON.

Is the fuse blown?

Is an incompatible soldering
iron connected?

[C - E] is displayed.

Has the handpiece plug been
removed?

Is the heat capacity of the tip too
small for the object to be soldered?

[H - E] is displayed.

Is the set value for the low temp

alarm too small?

[H S E] is displayed. Is the tip an applicable genuine tip?

Is the tip fully inserted?

Is the heating element/sensor

[S - E] is displayed.

[- - -] is displayed.

Cannot get solder on
the tip.

The tip temperature is
too high/low.

The auto shut-off
function does not work.

disconnected?

Is there a strong noise source
around the soldering iron?

Is the tip setting temperature too
high or too low?

Is there any oxidation on the tip?

Is the offset value entered correct?

Is parameter No.

[OFF]? Change it to [On] to enable feature.

Plug unit into outlet.

Replace the fuse.
If the fuse is blown again, send the main unit
(including handpiece, power cord) back for

service.

Connect the compatible handpiece.

Turn off the power switch, reconnect the

handpiece, and turn the power switch back on
again.

Use a tip with a larger heat capacity.

Increase the set value.
( See the separate document "Parameter No.

in "Quick Parameter Settings")

Turn off the power switch, insert an applicable

genuine tip, and turn on the power switch again.

If the problem persists, replace the tip.

Insert tip firmly into the handpiece.
(Do not use excessive force)

Measure the resistance between the heating

element and sensor, and if the measured value is

abnormal, replace the tip. The normal resistance

values are as follows:

T39: 5.7 Ω ± 10％ (at room temperature)
　T50: 8.0 Ω ± 10％ (at room temperature)

T50T39

Measure the resistance between these points.Measure the resistance between these points.

Move the soldering iron away from the noise
source, or use other circuit for the power.

Set an appropriate temperature.

Remove the oxidation. (See "6. Maintenance")

Measure and adjust the value.
(See " ■ Tip temperature correction (offset)" in
"4-3. Operation")

"

Visit the website for more support information including information for replacement parts/options.
If you cannot find a solution in this manual or on the website, or if another problem occurs,

please contact the retailer where you purchased the product.

https://www.hakko.com/doc_fx971-ah
