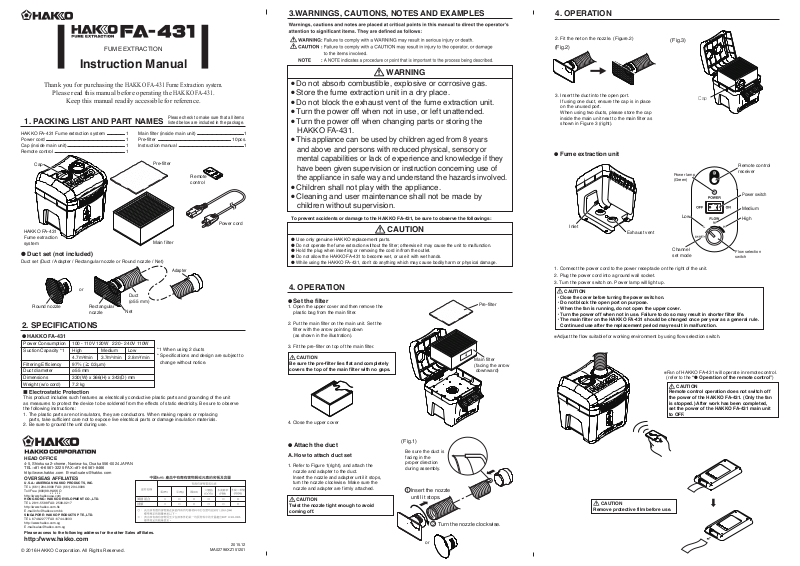

Hakko FA-431 Instruction Manual

3.WARNINGS, CAUTIONS, NOTES AND EXAMPLES

4. OPERATION

FUME EXTRACTION

Instruction Manual

Thank you for purchasing the

Please read this manual before operating the

Keep this manual readily accessible for reference.

1. PACKING LIST AND PART NAMES

HAKKO FA-431 Fume extraction system
Power cord
Cap (inside main unit)
Remote control

Cap

HAKKO FA-431
Fume extraction
system

● Duct set (not included)

Duct set (Duct / Adapter / Rectangular nozzle or Round nozzle / Net)

or

Round nozzle

Rectangular
nozzle

2. SPECIFICATIONS

● HAKKO FA-431

Power Consumption
Suction Capacity *1

Filtering Efficiency
Duct diameter
Dimensions
Weight (w/o cord)

This product includes such features as electrically conductive plastic parts and grounding of the unit
as measures to protect the device to be soldered from the effects of static electricity. Be sure to observe
the following instructions:

1. The plastic parts are not insulators, they are conductors. When making repairs or replacing
parts, take sufficient care not to expose live electrical parts or damage insulation materials.

2. Be sure to ground the unit during use.

100 - 110V 120W 220 - 240V 110W
High    Medium  Low

4.7m³/min 3.7m³/min 2.8m³/min
97％(≧0.3μm)
ø55 mm
330(W) x 366(H) x 343(D) mm

7.2 kg

HAKKO FA-431 Fume Extraction system.

Main filter (inside main unit)

1

Pre-filter

1

Instruction manual

1
1

Pre-filter

Main filter

Duct
(ø55 mm)

Net

*1 When using 2 ducts
* Specifications and design are subject to
change without notice.

HAKKO FA-431

Please check to make sure that all items
listed below are included in the package.

Remote
control

Adapter

.

Power cord

10pcs.

2. Fit the net on the nozzle. (Figure.2)

(Fig.3)

(Fig.2)

WARNING

●

Do not absorb combustible, explosive or corrosive gas.

●

Store the fume extraction unit in a dry place.

●

Do not block the exhaust vent of the fume extraction unit.

●

Turn the power off when not in use, or left unattended.

●

Turn the power off when changing parts or storing the

1

1

HAKKO FA-431.

●

This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of
the appliance in safe way and understand the hazards involved.

●

Children shall not play with the appliance.

●

Cleaning and user maintenance shall not be made by
children without supervision.

To prevent accidents or damage to the HAKKO FA-431, be sure to observe the followings:

CAUTION

● Use only genuine HAKKO replacement parts.
Do not operate the fume extraction without the filter; otherwise it may cause the unit to malfunction.

●

●

Hold the plug when inserting or removing the cord in/from the outlet.

●

Do not allow the HAKKO FA-431 to become wet, or use it with wet hands.

●

While using the HAKKO FA-431, don’t do anything which may cause bodily harm or physical damage.

4. OPERATION

●Set the filter

1. Open the upper cover and then remove the
plastic bag from the main filter.

2. Put the main filter on the main unit. Set the
filter with the arrow pointing down
(as shown in the illustration).

3. Fit the pre-filter on top of the main filter.

Be sure the pre-filter lies flat and completely
covers the top of the main filter with no gaps.

4. Close the upper cover

Pre-filter

Main filter
(facing the arrow
downward)

3. Insert the duct into the open port.
If using one duct, ensure the cap is in place
on the unused port.
When using two ducts, please store the cap
inside the main unit next to the main filter as
shown in Figure 3 (right).

Cap

● Fume extraction unit

Remote control

Power lamp
(Green)

Low

Inlet

1. Connect the power cord to the power receptacle on the right of the unit.

2. Plug the power cord into a ground wall socket.

3. Turn the power switch on. Power lamp will light up.

CAUTION

・

Close the cover before turning the power switch on.

・Do not block the open port on purpose.
・When the fan is running, do not open the upper cover.
・Turn the power off when not in use. Failure to do so may result in shorter filter life.
・The main filter on the HAKKO FA-431 should be changed once per year as a general rule.

Continued use after the replacement period may result in malfunction.

※Adjust the flow suitable for working environment by using flow selection switch.

Exhaust vent

Channel
set mode

※Fan of HAKKO FA-431 will operate in remote control.

(refer to the “● Operation of the remote control”)

CAUTION
Remote control operation does not switch off
the power of the HAKKO FA-431. (Only the fan
is stopped.) After work has been completed,
set the power of the HAKKO FA-431 main unit
to OFF.

receiver

Power switch

Medium

High

Flow selection
switch

HEAD OFFICE

4-5, Shiokusa 2-chome, Naniwa-ku, Osaka 556-0024 JAPAN
TEL:[phone] FAX:[phone]
http://www.hakko.com E-mail:[e-mail]

OVERSEAS AFFILIATES

U.S.A.: AMERICAN HAKKO PRODUCTS, INC.

TEL: [phone] FAX: [phone]
Toll Free (800)88-HAKKO

4 2 5 5 6

http://www.hakkousa.com

HONG KONG: HAKKO DEVELOPMENT CO., LTD.

TEL: [phone] FAX: [phone]
http://www.hakko.com.hk
E-mail:[e-mail]

SINGAPORE: HAKKO PRODUCTS PTE., LTD.

TEL: [phone] FAX: [phone]
http://www.hakko.com.sg
E-mail:[e-mail]

Please access to the following address for the other Sales affiliates.

風扇組合
插頭

http://www.hakko.com

© 2016 HAKKO Corporation. All Rights Reserved.

MA02798XZ151201

2015.12

●Attach the duct

A. How to attach duct set

1. Refer to Figure 1(right), and attach the
nozzle and adapter to the duct.
Insert the nozzle and adapter until it stops,
turn the nozzle clockwise. Make sure the
nozzle and adapter are firmly attached.



Twist the nozzle tight enough to avoid
coming off.

(Fig.1)

Be sure the duct is
facing in the
proper direction
during assembly.

1

Insert the nozzle
until it stops.

2

or

CAUTION

Remove protective film before use.

Turn the nozzle clockwise.

4. OPERATION

● Operation of the remote control

HAKKO FA-431 can be operated using the remote control.

ON button

OFF button

Theremotecontrolhasthefollowingbuttons:

● ON button

Starts the fan of the HAKKO FA-431.

● OFF button

Stops the fan of the HAKKO FA-431.

● Channel selection buttons (CH1 to CH4)

・Sets the channel of the remote control to the same channel as the HAKKO FA-431 main unit.
・When one of the channel selection buttons (channels CH1 to CH4 are selectable) is held

pressed together with the OFF button for 2 seconds or longer, sets the channel of the remote
control itself to the pressed channel.

※When the channels of the remote control and the HAKKO FA-431 are the same, pressing the

remote control's ON button will cause the fume extractor to operate. (Both units are initially
set to channel CH1.)

● How to set the channel

Example:Settingtochannel3

1. Set the flow selection switch of the HAKKO FA-431
to CH SET.

2. While holding the OFF button of the remote control
pressed, press CH3 and hold both buttons pressed
for approximately 2 seconds.

3. When channel setting has been completed, the LED
on the main unit will blink twice and the buzzer will
sound the same number of times as the set channel.

ON

OFF

CH 1 CH 2 CH 3 CH 4

Channel selection
buttons

Holdpressedforapprox.2sec.

5. MAINTENANCE

Performing proper and periodic maintenance extends the product life. Wear of the product will differ
depending on work environment, the quality and quantity of the solder and flux.
Apply the following service procedure as dictated by the conditions of the usage.

● Filter replacement timing

NOTE：
When replacing the filter, please be performed in a state in which the fan has stopped.

6. TROUBLE SHOOTING GUIDE

● Nothing happens when the power switch
is turned on.

● Even if a remote control button is pressed,
the fume extractor does not operate.

● Remote control channel cannot be set.

Instruction manual in the language of Japanese, English, Chinse, French, German and Korean
can be downloaded from the HAKKO Document Portal.
(Please note that some languages may not be available depending on the product.)

CHECK :

ACTION :

CHECK :

ACTION :

CHECK :

ACTION :

CHECK :

ACTION :

CHECK :

ACTION :

CHECK :

ACTION :

CHECK :

ACTION :

CHECK :

ACTION :

Is the power cord disconnected ?
Connect it.
Is the main filter set properly ?
Fit the main filter properly before turning
on the power switch again.
Is the flow control set to CH SET ?
Adjust the flow suitable for working environment
by using the flow selection switch.

Is the flow control set to CH SET ?
Adjust the flow suitable for working environment
by using the flow selection switch.
Are the remote control and HAKKO
FA-431 set to different channels?
Set both units to the same channel.
Is the battery of the remote control
exhausted?
Replace the battery.

Is the flow selection switch set to a
setting other than CH SET?
Set the flow selection switch to CH SET.
Is the battery of the remote control exhausted?
Replace the battery.

7. PARTS LIST

7. PARTS LIST

●HAKKO FA-431

1
2
3
4
5
6

7

●Option

Item No.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

3

Part No.

Pre-filter

A5034

Main filter

A5033

Cap

B3619

Knob

B1486

Power switch

B2852
B2421

Power cord, 3 wired cord but no plug

B2422

Power cord, 3 wired cord & BS plug

B2424

Power cord, 3 wired cord& European plug

B2425

Power cord, 3 wired cord & BS plug

B2426

Power cord, 3 wired cord & Australian plug

B2436

Power cord, 3 wired cord & Chinese plug

B3508

Power cord, 3 wired cord & American plug (B)

B3550

Power cord, 3 wired cord & SI plug

B3616

Power cord, 3 wired cord & BR plug

B3641

Power cord, 3 wired cord & American plug (U)

C5035

Remote control

Part No.
C1571

C1572

B3642
B3620
B3621
B3622
B3623
B2418
B3625
B2410
B2416
A5035
A5036
A5037
B5146
B5147

Duct set /
Rectangular nozzle
Duct set /
Round nozzle
Duct
Adapter
Adapter
Rectangular nozzle
Round nozzle
Bench top hood
Net
Duct
Duct band
Sub-filter
Sub filter / for rectangular nozzle
Sub filter / for round nozzle
Filter case / for rectangular nozzle
Filter case / for round nozzle

Item No.

Part Name

Part Name

1

4

2

Specifications

10 pcs.

220 - 240V
India
220V KTL , 230V CE
230V CE , U.K.

China

U.S.A.

Specifications

Duct (1) / Adapter (1)
Rectangular nozzle(1) / Net (1)
Duct (1) / Adapter (1)
Round nozzle (1) / Net (1)

φ 55 mm 

For 3 inch

5 pcs.

For 3 inch (φ 75 mm) 

Set of 2
5 pcs.
20 pcs.
20 pcs.

6

9

CAUTION
If the above procedure is performed without setting the main unit's flow selection switch
to CH SET, only the channel of the remote control will be changed and operation by remote
control cannot be performed. If this occurs, perform the channel setting procedure again.

※When using multiple HAKKO FA-431 units, all fume extractors set to the same channel as

the remote control will operate when the remote control is used. Operation of fume extractors
according to the application can be performed by changing the channel setting of the fume
extractors as necessary.

①

CAUTION
If the remote control stops operating
completely, it might be because the

battery (CR2032) is completely exhausted.

Replace the battery.

②

CR2032

3

4

8

7

5

12

13

7

10

9

11

15

16

14
