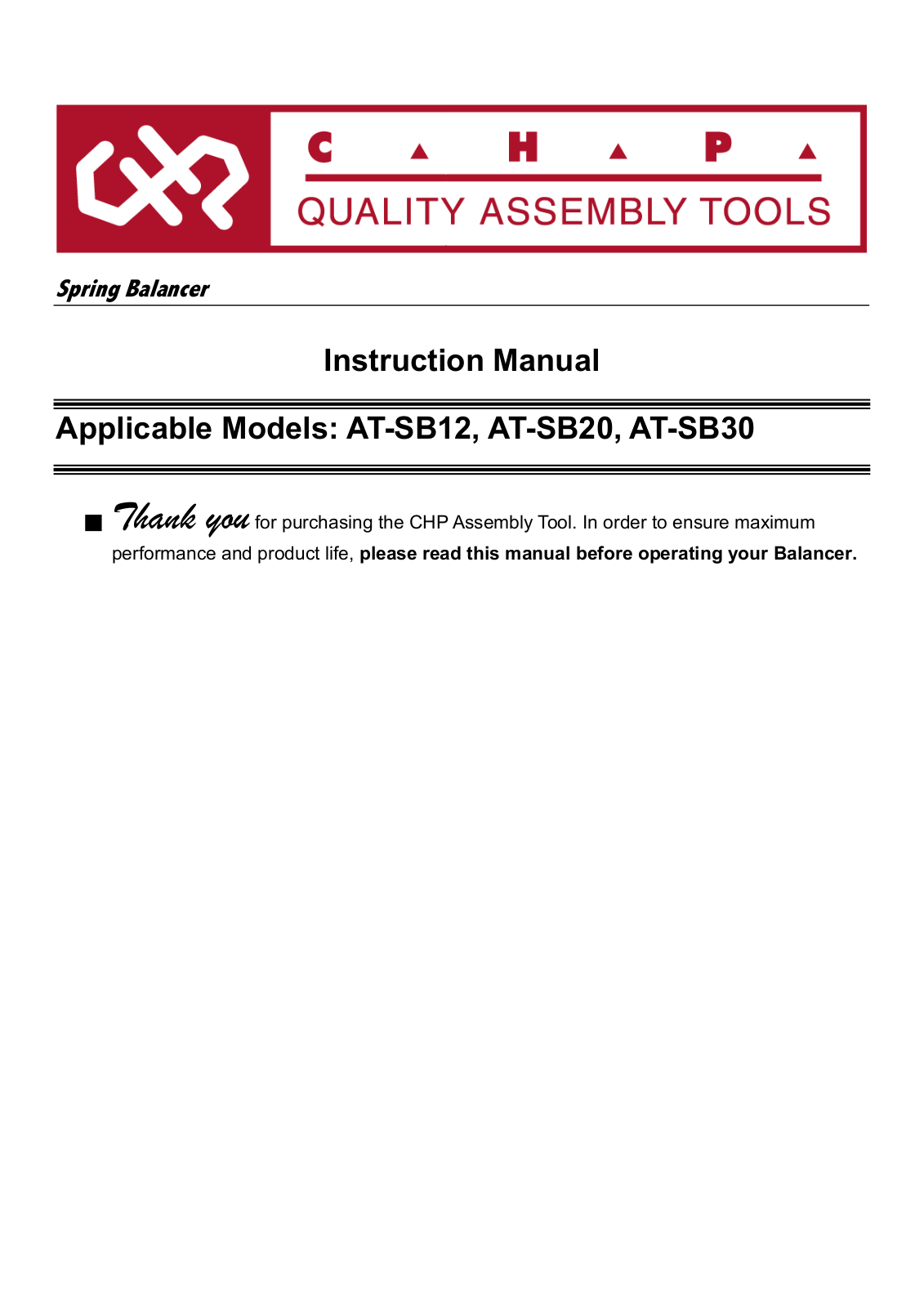

Hakko AT-SB12, AT-SB20, AT-SB30 User Manual

Spring Balancer

Instruction Manual

Applicable Models: AT-SB12, AT-SB20, AT-SB30

■ Thank you for purchasing the CHP Assembly Tool. In order to ensure maximum

performance and product life, please read this manual before operating your Balancer.

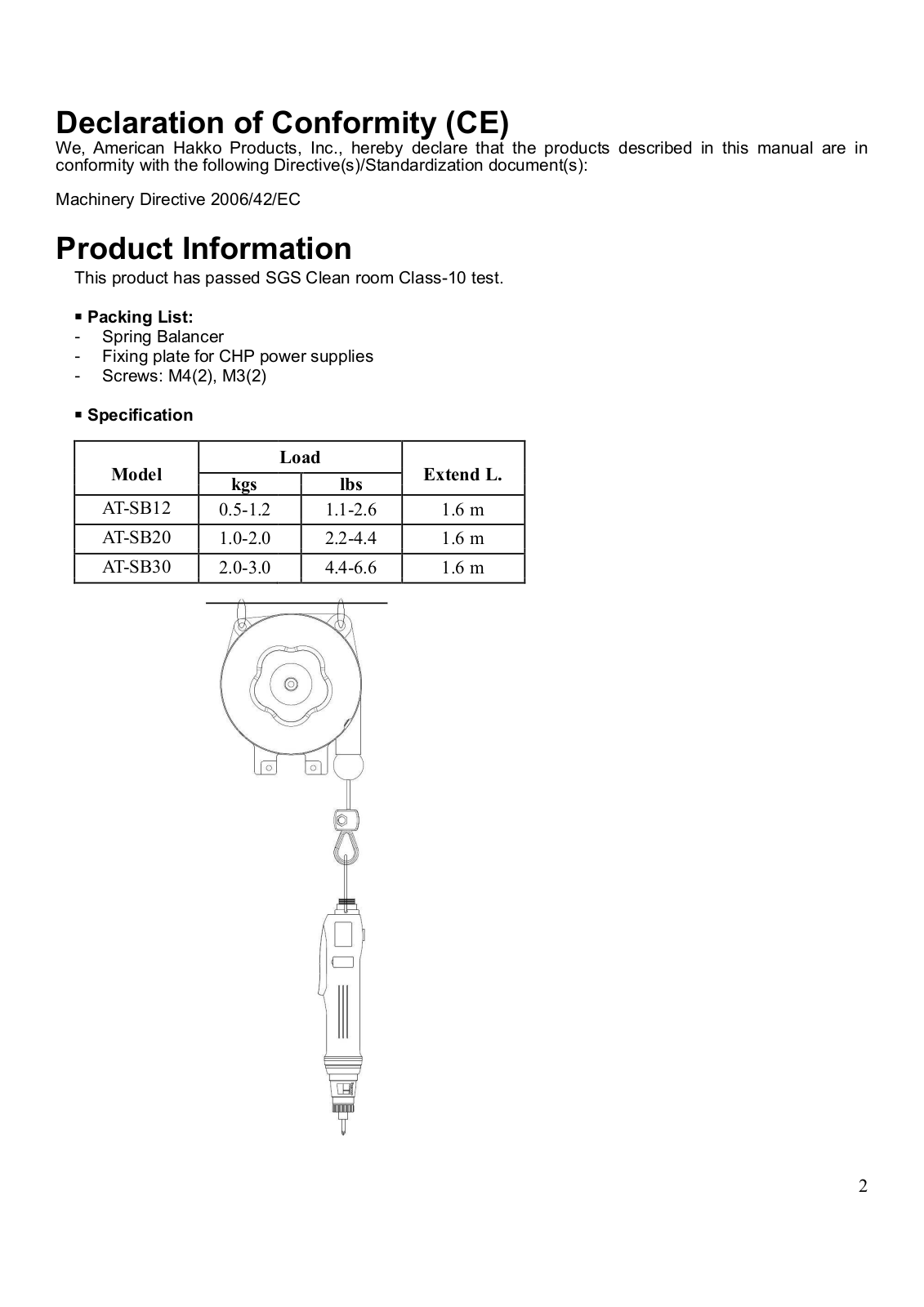

Declaration of Conformity (CE)

Model

Load

Extend L.

kgs lbs

AT-SB12

0.5-1.2

1.1-2.6

1.6 m

AT-SB20

1.0-2.0

2.2-4.4

1.6 m

AT-SB30

2.0-3.0

4.4-6.6

1.6 m

We, American Hakko Products, Inc., hereby declare that the products described in this manual are in

conformity with the following Directive(s)/Standardization document(s):
Machinery Directive 2006/42/EC

Product Information

This product has passed SGS Clean room Class-10 test.

 Packing List:

- Spring Balancer

- Fixing plate for CHP power supplies

- Screws: M4(2), M3(2)
 Specification

2
