Haier HWF10AN1, HWF80AN1, HWF90AN1, HWF80ANB1, HWF10ANB1 User Manual

Download

HWF10AN1 HWF90AN1 HWF80AN1 HWF80ANB1 HWF10ANB1

NZ AU

Thank You

NZ AU

Thank you for purchasing a Haier Product.

Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings.

Legend

Warning – Important Safety information

General information and tips

Environmental information

Disposal

Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal

WARNING!

of it. Remove the door catch to prevent children and pets to get closed in the appliance.

NZ AU

1-Safety information ........................................................................................................................... 4

2-Product description .........................................................................................................................7

3-Control panel ....................................................................................................................................8

WiFi connection & Remote mode.............................................................................................

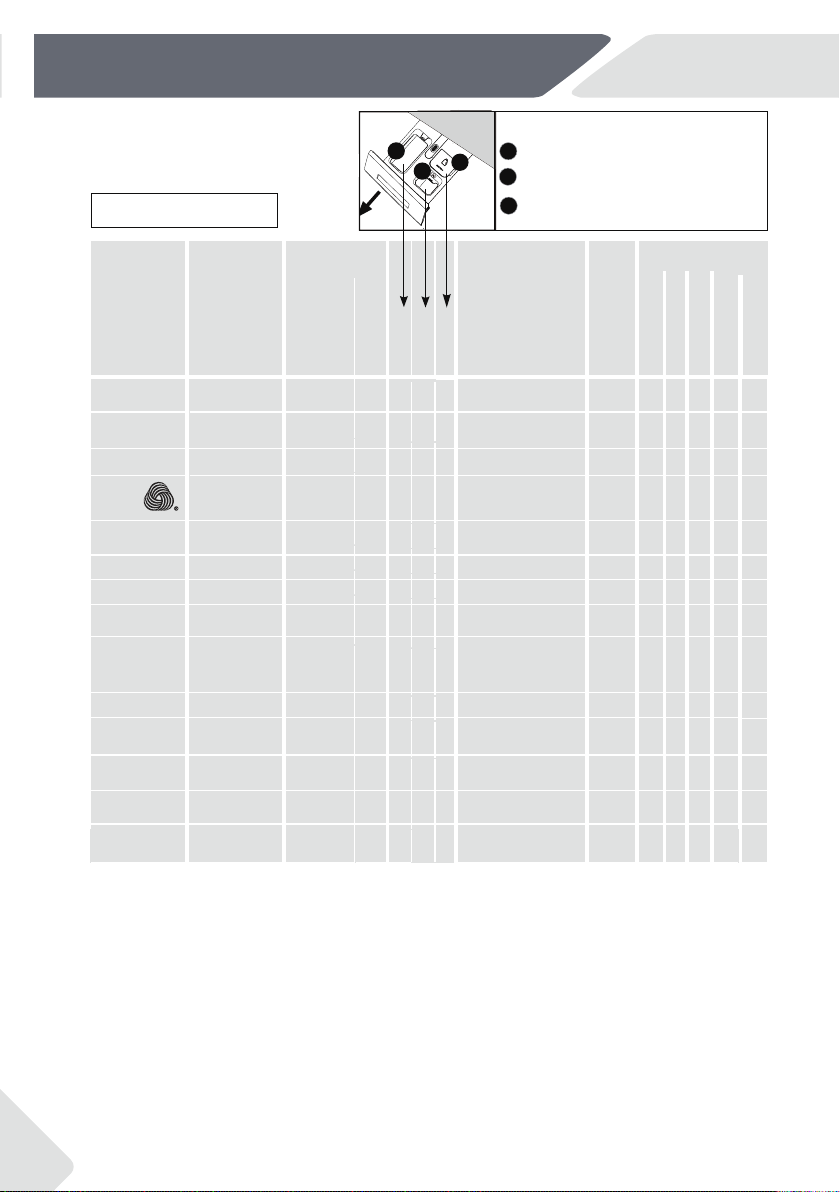

5-Programmes ..................................................................................................................................12

6-Consumption ..................................................................................................................................13

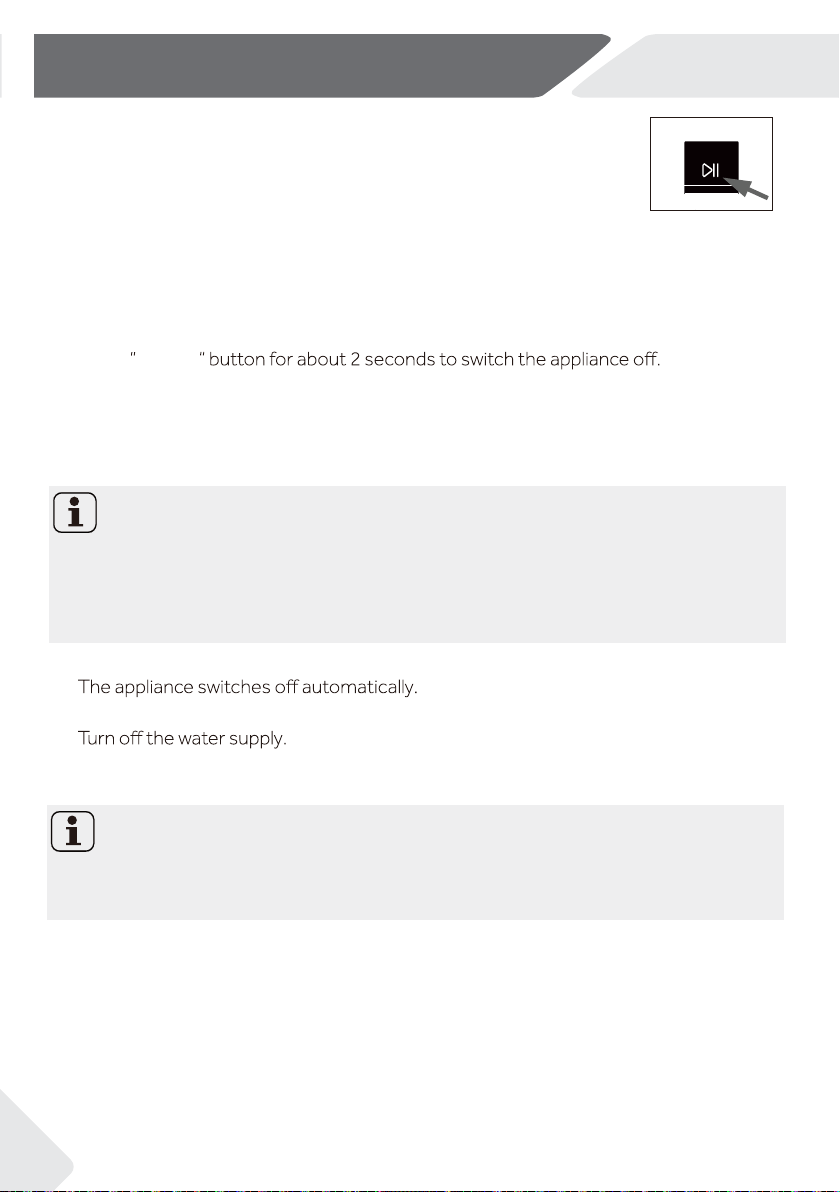

7-Daily use ...........................................................................................................................................14

8-Eco-friendly washing ....................................................................................................................19

9-Care and cleaning .......................................................................................................................... 20

10-Troubleshooting .......................................................................................................................... 23

Content

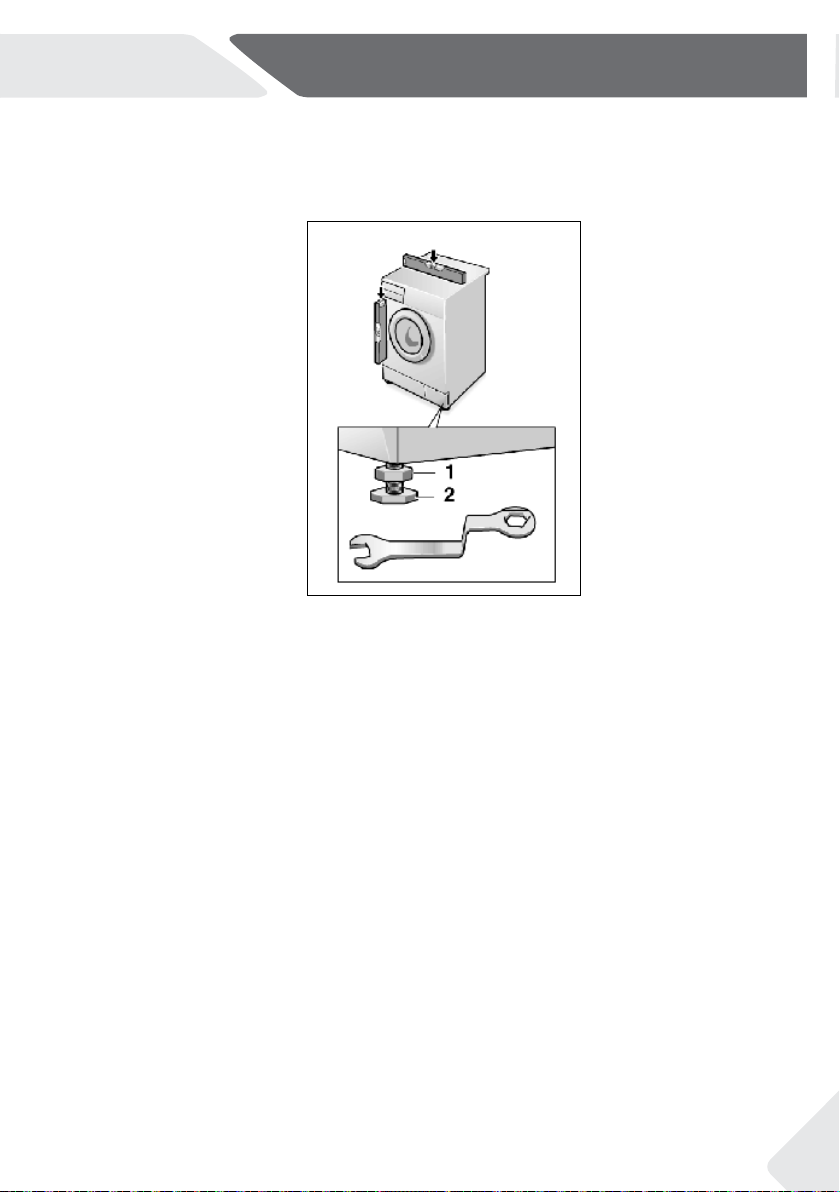

11-Installation .....................................................................................................................................26

12-Technical data ...............................................................................................................................30

13-Customer service ........................................................................................................................31

1-Safety information

NZ AU

Bef safety hints!

WARNING!

▶

Make sure there is no transport damage.

▶

Make sure all transport bolts are removed.

▶

Remove all packaging and keep out of children´s reach.

▶

Handle the appliance always with at least two persons because it is heavy.

Daily use

▶

This appliance is not intended for use by persons (including children) with reduced physical,sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

▶

Children should be supervised to ensure that they do not play with the appliance.

▶

Children shall not play with the appliance.

▶

Do not let children or pets come close to the appliance when the door is open.

▶

Store washing agents out of reach of children.

▶

prevent laundry fr om being entangled. If necessary, use an appropria te bag or net.

▶

Do not touch or use the appliance when barefoot or with wet or damp hands or feet.

▶

Do not cover or encase the appliance during operation or afterwards to allow any moisture or dampness to evaporate.

▶

Do not place heavy objects or sources of heat or damp on top of the appliance.

▶

Do not use or store ﬂammable detergent or dry cleaning agent in close vicinity to the appliance.

▶

Do not use any ﬂammable sprays in close vicinity to the appliance. Do not wash any garments treated with solvents in the appliance

▶

without having dried them previously in the air.

ing

NZ AU

WARNING!

Daily use

▶ Do not remove or insert the plug in the presence of ﬂammable

gas.

▶ Do not hot wash foam rubber or sponge-like materials. ▶ Do not wash any laundry which is polluted with ﬂour. ▶ Do not open detergent drawer during any wash cycle. ▶ Do not touch the door during the washing process, it gets hot. ▶ Do not open the door if the water level is visibly over the porthole. ▶ Do not force the door to open. The door is tted with a self-lock

device and will open shortly after the washing procedure is ended.

▶

undertaking any routine maintenance and disconnect the appliance from the electrical supply to save electricity and for safety.

▶ Hold the plug, not the cable, when unplugging the appliance.

Maintenance / cleaning

▶ Make sure children are supervised if they carry out cleaning and

maintenance.

▶ Disconnect the appliance from the electrical supply before un-

dertaking any routine maintenance.

▶ Keep the lower part of the porthole clean and open door and de-

tergent drawer if appliance is not in use to prevent odours.

▶ Do not use water spray or steam to clean the appliance. ▶ Replace a damaged supply cord only by the manufacturer, its ser-

1-Safety information

▶ Do not try to repair the appliance by yourself. In case of repair

please contact our customer service.

Installation

▶ The appliance should be placed in a well-ventilated place. Ensure

a location which allows opening the door fully.

▶ Never install the appliance outdoors in a damp place, or in an area

which may be prone to water leaks such as under or near a sink unit. In the event of a water leak cut power supply and allow the machine to dry naturally.

1-Safety information

WARNING!

Installation

▶ Install or use the appliance only where the temperature is above

5 °C.

▶ Do not place the appliance directly on a carpet, or close to a wall

or furniture.

▶ Do not install the appliance in direct sunlight or in the near of heat

sources (e. g. stoves, heaters).

▶ Make sure that the electrical information on the rating plate

agrees with the power supply. If it does not, contact an electrician.

▶ Do not use multi-plug adapters and extension cables. ▶ Make sure only the delivered electric cable and hose set are used. ▶ Make sure not to damage the electric cable and the plug. If

damaged have it replaced by an electrician.

▶ Use a separate earthed socket for the power supply which is easy

accessible after installation. The appliance must be earthed.

▶

no leakage.

▶

The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.

▶

The manual are suitable for 8.0kg, 9.0kg, 10.0kg washing machines. The applicable water pressure of the washing machine is 0.03MPa to 1MPa.

NZ AU

Intended use

This appliance is intended for washing machine-washable

laun

dry only. Anytime follow the instructions given on the label of

garment label. It is designed exclusively for domestic use

each

house. It is not intended for commercial or industrial use.

inside

Changes or modiﬁcations to the device are not allowed. Unintended

use m

the

ay cause hazards and loss of of all warranty and liability claims.

NZ AU

R EFR

E SH

5 25

D RUM

2-Product description

Note:

2.1 Picture of appliance

Front (Fig. 2-1): Rear side (Fig. 2-2):

Delay

Stain removal

Cotton

Temp.

Steam

Extra Rinse

Speed

Synthetics

Wool

Duvet

Delicate

Outdoor

MixBabycare

Fast

Express 15’

Spin

Refresh

Eco 40-60Cotton 20

2-1

2 3 4

S3 S5

2-2

1 Detergent /

Softener drawer 2 Work top 3 Programme selector 4 Panel

5 Washer door 6 Service ﬂap 7 Adjustable feet

1 Transportation bolts

2 Back cover 3 Back cover screws 4 Power cord

ater inlet valve

5 6

Drain hose

2.2 Accessories

Check the accessories and literature in accordance with this list (Fig.2-3):

2x 2x

Inlet hoseassembly

5 Blanking

plugs

Drain hose

bracket

Noise reduc-

tion pads

Warranty

card

2-3

User manual

take HWF10AN1 as an example

3-1

3-2

NZ AU

Refresh

3-3

3-4

3-5

3.4 Detergent drawer

Open detergent drawer, the following components can be seen

(Fig. 3-5): 1: compartment for powder detergent. 2: compartment for liquid detergent. This compartment is intended for liquid detergent to be used

with the auto-dose function. Reservoir capacity is 750ml. 3: compartment for softner. 4: lock tab, press it down to pull out dispenser drawer.

NE AU

The recommendation on the type of detergents is suitable for the various washing temperatures, please refer to the manual of detergent (see P11).

3.5 Function buttons

ptions o lanoitidda elbane )6-3 .giF(snottub noitcnuf ehT in the selected programme before programme starts. The related indicators are displayed.

ogramme

3.5.1

3.5.2

all options are disabled. If a button has multiple options, the desired option can

be selected by pressing the button sequentially. By touching the buttons, when it is in dull light, the function

is unselected; when it is in bright light, the function is

3.5.7

3.5.6

selected.

Note: Factory settings

there is no special requirement default settings are recommended.

3.5.1-Function button “ Auto Dose“

Touch this button (Fig. 3-7) gently to select the auto dose function for liquid detergent, panel display . If the liquid detergent is not enough to

Auto Dose

complete the cycle, will ﬂash every second.

To set up level of detergent:

The Auto Dose function dispenses the right amount of detergent for the clothes

according to the weigh and load type. The default setting is "D-3", which is the average

amount of detergent needed to launder a medium soiled load. There are 3 additional

levels that allow to change the way the washer calculates the volume of liquid detergent; this enables a personalized experience according to the laundry needs. For lightly soiled

clothes, use level "D-1" or level "D-2" and for heavily soiled clothes we recommend setting

the washer to level "D-4". Similarly, for sensitive skin, we recommend using the lower

setting "D-1", to minimize possible residual detergent in the clothes. To change the Auto Dose setting: Press the "Auto Dose" button for 3s to enter the program setting mode. The program indicator light will turn ON and the default position

"D-3" will be displayed. Rotate the knob to switch between levels and select the desired

setting. Press the "Auto Dose" button again to save the selection and exit the mode.

3-6

3.5.3

3.5.5 3.5.4

3-7

Note: Liquid detergent

If using liquid detergent, it is not recommended to adding more than 750ml.

3.5.2 Function button “+ Garment”

（Fig.3-8）

can be used to interrupt the cycle to add or remove

a garment at any time during the wash part of the cycle (provided the wash temperature selected is lower than 60°C). Water in the washer will be drained

to a level where the door can be opened, if necessary.

3.5.3 Function button “Soak“

Touch

this button (Fig. 3-9) to add deep cleaning soak for your mixed daily

loads in a normal wash action.

3-8

+ Garment

3-9

Soak

3-Control panel

3-10

3.5.4 Function button“Spin Speed“

Touch this button (Fig. 3-10) to change the spin speed of the programme. If “ ” is selected, the laundry will not spin.

3-11

3.5.5 “Temp.” button

Touch

this button (Fig. 3-11) to change the washing teperature of the programme

If no value is illuminated ( the

3-12

3.5.6 “ UV Sanitise“ button

Touch this button (Fig. 3-12) , the ultraviolet light turns on during wash and rinses. UV Sanitisation is by default ON in the Allergy programme.

3-13

3.5.7 “Options“ button

Touch this button (Fig. 3-13) to choose special functions The symbols are explained as follow:

Spin Speed

Temp.

UV Sanitise

Options

NZ AU

display" -- ") the water will not be heated.

°C

for programmes.

Speed up

following cycles: Cotton, Synthetic, Delicate, Shirts, Towels, Bedding, Bulky,

This function reduces washing time.Use for light soiled items. Available for the

Durable, Downloaded (Baby Care by default).

Use the ECO option to save water and energy. The cycles of this function

ECO

available for is the same as

Stain

Use Stain Treatment to treat garments soiled with liquid food stains.

Pre-treatment

might be needed to remove stubborn spots, always manufacturer

Speed up

label to avoid color changes. Stain treatment is available for changes.Stain

treatment is available for Cottons, Synthetics, Delicates, Shirts, Towels, Bedding,

Bulky and Durable. The maximum capacit y recommended when using this

modiﬁer is 1kg.

3-14

3-15

3.6 “Start/Pause“ button

Touch this button (Fig. 3-14) gently to start or interrupt the currently

displayed programme. During programme setting and during programme

run the LED

above the button is shining, or if interrupted blinking.

3.7 Key lock

Choosing a programme and then start, touch button “Optio

ns” and ”UV Sanitise” (Fig .3-15) for 3 seconds simultaneously to block all panel elements against activation, p

anel display . For unlocking please touch again the two buttons.

The key lock indicator lights up when the key lock works. Feature is optional

3-16

3-17

3-18

when the machine is running. The display shows c oII- (Fig. 3-16) if

key lock is activa

Speed

3.8 Favourite

ted. The change

Choosing a programme and then start, touch button “Temp.“

( Fig .3-17) for 3 seconds simultaneously

for availab

for all programmes please select Express 15 programme and then touch

button

the display shows

programme,pa

“Auto Dose“, “Temp.“ and “Spin Speed“

dEf

nel display . For restoring the default parameters

(Fig. 3-18).

a button will be pressed, when the

is not running.

and ”Spin Speed ”

to save personalised options

for 3 seconds simultaneously,

NZ AU

Your appliance can be connected to your home wireless network and operated remotely using the app.

4-WiFi connection & Remote mode

Ge ng started

Ensure your home WiFi network is turned on.

You will be given step by step guidance on both your appliance and mobile device.

It may take up to 10 minutes to connect your appliance.

On your mobile device:

Your product is WiFi connectable, please visit the webpage below to download the app and ﬁnd

out more:

Australia https://www.haier.com.au/smart New Zealand https://www.haier.co.nz/smart

Add your appliance and set up the WiFi connection.

Connec ng to your home WiFi

When your machine is connected to WiFi successfully, the icon lights up.

4-1

Speed

1. Press and hold and combination keys for three seconds and the icon lights up. is now enabled certain functions that your washer can now be accessed via the app. For disabling remote mode please touch again the two buttons,and the icon goes out.

Soak

+Garment

Remote Mode

2. When turning oﬀ the whasher, the Remote Mode will be automatically released. When the washer runs the programme in Remote Mode via app, the remote mode indicator ﬂashes every second.

5-Programmes

NZ AU

Detergent compartment for:

Yes,

•

Programme

Cotton 8/9/1

Synthetic

Shirts

Wool

Delicate

Towels

Refresh

Allergy

Bedding

Express 15

Bulky

Spin

Durable

Downloaded

Water is not heated up.

Choose 90°C wash tempera tur e onl y for special hygienic requi rements.

Reduce dete rgent amount because programme duration is short.

Li qu id Detergent only be used for auto dose.

The Refresh cycle meant to be used to reduce wrinkles and odour of dry clothes. For better results, it is recommended to treat one garment at a time. Hang garments as soon as the cycle is complete to reduce the need for ironing.

Optional, / No

HWF80AN** /HWF90AN1 /HWF10AN**

2.5/2.5/2.5

Max. load

in kg

8/9/10

2/2.5/3

8/9/10

6/7/7

8/9/10

4/4.5/5

Temperature

selectable

0 * to 90

in °C

range

* to 60

* to 40

* to 30

* to 90

* to 40

* to 60

* to 90

Preset

20 Cotton

• •

•

• •

1 2

/ /

Fabrics

Synthetic or mixed

•

fabric

Shirt

Machine-washable fabric made of wool

or with wool content

Delicate laundry and

silk

Towel

Cotton / Synthetic

Lightly soiled mixedlaundry of cotton and

synthetic

Cotton / Synthetic

non-fragile fabric

Cotton / Synthetic

Powder Detergent

1 2

Softener or care product

Li qu id D eter gent

type

Preset

spin

speed

in rpm

1200

• • • •

1000

• • •

800

600

1400

• • •

1000

• •

1000

800

1000

1400

• • •

1000

• • •

Function

Options

••

•

/ / /

•

• • •

•

Auto Dose

UV Sanitise

+ Garment

•

•••

•

••• •

•

///

Soak

NZ AU

***Woolmark WOOL CARE The wool wash cycle of this machine has been approved by The Woolmark Company

for the washing of machine washable wool products provided that the products are washed according to the instructions on the garment label and those issued by the

manufacturer of these washing machines M2112 (HWF80AN1, HWF80ANB1) and M2111 (HWF90AN1, HWF10AN1 and HWF10ANB1).

Check the energy label for energy consumption information. The actual energy consumption may diﬀer from the declared one according to local

conditions.

The standard

60°C

and

cotton programmes are suitable to clean normally soiled

40°C

6-Consumption

cycle tempe

Note: Auto Weight

The appliance is equipped with a loading recognition. At low loading, energy, water and washing time will be reduced automatically in some progr

General information and tips:

Standard prog ramme for the Energy and Water Labelling according to AS/NZS 2040.2 Cotton, 40°C

program washing, please use 80% standard detergent.

, 1400 rpm, No Auto Dose, others are de f

Detergent dissolvent method: Dissolve the detergengt ﬁrst and pour the dissolved detergent into the machine when the main wash starts. The washing operation starts

at the end of the ﬁrst water ﬁlling.

rature.

Actual

ammes.

The display shows AUtO.

ault setting. When using standard

7-Daily use

NZ AU

7.1 Power supply

Connect the washing machine to a power supply (220V to 240V~/50Hz; Fig. 7-1). Please refer also to section INSTALLATION (see P29).

7-1 7-2

7.2 Water connection

▶ Before connecting check the cleanliness and clarity

of the water inlet.

▶ Turn on the tap (Fig.7-2).

Note: Tightness

Before use check for leakage in the joints between the tap and the inlet hose by turning on the tap.

7.3 Preparing laundry

▶ Sort out clothes according to fabric (cotton,

synthetics, wool or silk etc.) and how dirty they

are of washing labels.

▶ Separate white clothes from coloured ones.

they fade or run.

▶ Empty pockets (keys, coins, etc.) and remove

harder decorative objects (e.g. brooches).

▶

- gnillebal erac eht ot noitnetta yaP . )3-7 .giF(

7-3

into a wash bag to care for this delicate laundry (hand or dry cleaning would be better).

▶ Close zippers, velco fastener and hooks, make

sure the buttons are sewn on tightly.

▶

hem, delicate underwear and small

as socks, belts, bras, etc. in a wash

▶ Unfold large pieces of fabric such as bed sheets,

bedspreads etc.

▶ Turn jeans and printed, decorated or color-inten-

sive textiles inside out; possibly wash separately.

CAUTION!

Non-textile, as well as small, loose or sharp-edged items may cause malfunctions and damage of clothes and appliance.

items such

bag.

NZ AU

Care chart

Washing

Bleaching

Drying

Ironing

Washable up to 95°C normal process

Washable up to 40°C normal process

Washable up to 30°C normal process

Wash by hand max. 40°C

Any bleaching allowed Only oxygen/

Tumble drying possible normal temperature

Line drying Flat drying

ron at a maximum temperature up to 200 °C

Do not iron

Washable up to 60°C normal process

Washable up to 40°C mild process

Washable up to 30°C mild process

Do not wash

non-chlorine

Tumble drying possible lower temperature

Iron at a medial

temperature

up to 150°C

7-Daily use

Washable up to 60°C mild process

Washable up to 40°C very mild process

Washable up to 30°C very mild process

Do not bleach

Do not tumble dry

Iron at a low temper-

ature up to 110 °C; without steam (steam ironing may cause

irreversible damage)

Professional Textile Care

Dry cleaning in

tetrachloroethene

Professional wet clean Do not professional

Dry cleaning in hydrocarbons

wet clean

Do not dry clean

7.4 Loading the appliance

▶ Put in the laundry piece by piece. ▶

thumb for maximum load: Keep six inches between load and drum top.

▶ Close the door carefully. Make sure that no pieces of laundry are pinched.

7-Daily use

7.5 Selecting detergent

▶ ▶ Use only machine wash approved detergent.

. ▶

▶ See tips for countertop detergent stickers.

▶ Do not use dry cleaning agents such as trichloroethylene and similar products.

Choose the best detergent

Kind of detergent Programme Cotton Synthetic Shirts Wool - - L/P L/P o Delicate - - L/P o Towels Refresh Allergy Bedding Express 15 Bulky Spin Durable Downloaded

Universal Colour Delicate Special Softener

L/P

L/P L/P

- - - -

- - o

- -

L L - - o

L/P - - o

L/P

L/P - - o

L/P

L/P L/P

- - o

- - -

--- - o

NZ AU

L = gel-/liquid detergent P = powder detergent O = optional _ = no If using liquid detergent, it is not recommended to activate the time delay.

We recomment by using:

▶ Laundry powder: 20°C to 90°C* (best use: 40-60°C) ▶ Color detergent: 20°C to 60°C (best use: 30-60°C) ▶ Wool/delicate detergent: 20°C to 30°C (best use:20-30°C)

* Choose 90 °C wash temperature only for special hygienic requirements.

If you choose the water temperature 60°C or above,we would like to advise you to use

less detergent.

* It is better to use less or free suds detergent powder.

NZ AU

7-Daily use

7-4

Note:

▶ Remove detergent residues before next wash cycle from the detergent drawer. ▶ Do not overuse detergent or softener. ▶ Please follow the instruction on the detergent package. ▶ ▶ Concentrated liquid detergent should be diluted before adding. ▶ Do not use liquid detergent if function “Delay“ is selected. ▶

Carefully choose the programme settings according to the care symbols on all laundry

labels and according to the programme table.

7-5

7-6

7.6 Adding detergent

1. Slide out the detergent drawer.

2. Put the required chemicals into corresponding compartments (Fig. 7-4).

3. Push back the drawer gently.

7.7 Switch on the appliance

PowerTouch (Fig. 7-5). The LED of the „Start/Pause“ button is ﬂashing.

7.8 Select a programme

To get the best washing results, select a programme

type. Turn the programme knob (Fig. 7-6) to select the right

programme. Related programme LED lights up and the default settings are displayed.

Note: Odour removal

amount of detergent in washing agent compartment (2) or special

machine

7-7

cleaner to

remove possib

“COTTON+90 °C

ly corruptive residues.

+600rpm”

7.9 Add individual selections

Select required options and settings (Fig. 7-7);

refer to

Control Panel.

Daily use

NZ AU

7.10 Start wash programme

Touch “Start/Pause“ button (Fig. 7-8) to start. The LED of the ”Start/

Pause“ button stops ﬂashing and lights up continuously. Appliance operates according to present settings. Changes are only possible by cancelling the programme.

7-8

7.11 Interrupt / cancel wash programme

To interrupt a running programme press gently “Start/Pause“. The LED above the button is ﬂashing. Press it again to resume operation.

To cancel a running programme and all its individual settings:

1. Touch”Start/Pause” button to interrupt the running programme. Touch

4. After closing the programm to restart the appliance,select a new programme and

start it.

Power

tceles

,ecnailppa eht no nrut ot nottub "rewoP " eht hcuoT

nur

.retaw eht niard ot ),ffo era sthgil deeps( "deepS

dna nipS emmargorp

7.12 After washing

Note: Door lock

▶

For safety reasons the door is locked partially during the washing cycle. It is only possible to open the door at the end of the programme or after the programme was cancelled correctly (see description above). In case of high water level, high water temperature and during spinning it is not

▶

possible to open the door; Lock is displayed.

1. At programme cycle end END is displayed.

3. Remove laundry as soon as possible to go easy on it and to prevent more wrinkling.

5. Unplug the power cord.

6. Open the door to prevent formation of moisture and odours. Let it open while not used.

on "

Note: Standby-mode / energy-saving mode

The appliance will go into stand-by mode after 2 minutes of inactivity. The display turns

oﬀ to save energy. Resume operation by pressing the power button to turn product on.

7.13 Activate or deactivate the sounds

The sounds and signals can be activate if necessary:

1. Switch on the appliance.

2. Select the

ces 3

onds. “bEEP ON” will be displayed and the buzzer will be activated.

For deactivating the buzzer touch these two buttons at the same time again. “bEEP OFF ”

Express 15

be displayed.

will

programme.

“ dna nottub“ Auto Dose“ eht hcuoT .3

Spin Speed

tuoba

rof emit emas eht ta nottub ”

NZ AU

8-Eco-friendly washing

Environmentally responsible use

▶

To achieve best use of energy, water, detergent and time you should use the recommended maximum load size.

▶ Do not overload (hand width clearance above laundry). ▶ For slightly soiled laundry select the Express 15 programme. ▶ Apply exact dosages of each washing agent. ▶

ciently cleaning below 60°C.

▶ Raise default settings only due to heavy staining. ▶ Select max. spinning speed if a domestic dryer is used.

-iffe era stnegreted nredom-erutarepmet gnihsaw etau qeda tsewol eht esoohC

9-Care and cleaning

NZ AU

9.1 Cleaning the detergent drawer

Take always care there are no detergent residues. Clean the drawer regularly (Fig. 9-1):

1. Pull out the drawer until it stops.

2. Press the release button and remove the drawer.

3. Flush the drawer with water until it is clean and insert the drawer back in the appliance.

When cleaning the detergent drawer be mindful of the liquid detergent stored in the Auto dose compartment to avoid wastage.

9.2 Cleaning the machine

▶ Unplug the machine during cleaning and

maintenance.

▶ Use a soft cloth with soap liquid to clean the

machine case (Fig. 9-2) and rubber components.

▶ Do not use organic chemicals or corrosive

solvents.

To prevent blockage of water supply by solid

substances like lime clean regularly the inlet valve ﬁlter.

▶

supply.

▶ Unscrew the water inlet hose at the back (Fig.

9-3) of the applian9ce as well as on the tap.

▶ ▶

9-1

Delay

Temp.

Stain removal

Steam

Speed

Extra Rinse

52 5 DR

R E F R

E SH

9-3

Synthetics

Outdoor

Cotton

Wool

Refresh

Duvet

Delicate

MixBabycare

Spin

Express 15’

Eco 40-60Cotton 20

Fast

9-2

9-4

9.4 Cleaning the drum

▶

Remove accidentally washed items,especially metal parts such as pins, coins, etc. from the drum (Fig.9-5) because they cause rust stains and damage.

▶ Use a non-chloride cleaner for removing rust

stains. Observe the warning hints of the cleaning agent manufacturer.

▶ Do not use any hard objects or steel wool for

cleaning.

9-5

NZ AU

9-Care and cleaning

9-6 9-7

9-8 9-9

9-10

9-12 9-13

9-11

9.5 Long periods of disuse

If the appliance is left idle for a longer period:

1. Pull out the electrical plug (Fig. 9-6).

92.

3. Open the door to prevent formation of mould and odours. Leave door open while not used.

Before next usage check carefully power cord, water inlet and drain hose. Make sure everything is properly installed and without leaks.

for instance if the appliance:

▶ Doesn´t drain the water. ▶ Doesn´t spin. ▶ Cause unusual noise while running.

3. Provide a ﬂat container to catch leach water

4. Pull the drainhose out and hold its end above the

5. Take the sealing plug out of the drainhose (Fig.

6. After complete drainage close drainhose (Fig.

7. Unscrew and remove counter clockwise the pump

8. Remove contaminants and dirt (Fig. 9-13).

WARNING!

hot! Before any action please ensure water has cooled down.

Push and open service ﬂap

(Fig. 9-10). water.

container (Fig. 9-10).

9-10).

9-11). and push it back into the machine.

Be prepared to catch large amounts of

(Fig. 9-9).

9-Care and cleaning

NZ AU

9. (Fig. 9-14).

11. Close service ﬂap.

CAUTION!

▶

910.

can leak.

undamaged.

9-14 9-15

properly

NZ AU

10-Troubleshooting

of a problem please check all shown possibilities and follow below instructions before you

WARNING!

▶ Before maintenance, deactivate the appliance and disconnect the mains plug from

the mains socket.

▶

improper repairs can cause considerable consequential damages.

▶ A damaged power cable should only be replaced by the manufacturer, its service

10.1 Information codes

Following codes are displayed only for information referring to the washing cycle. No measures must be performed.

Code Message

1:25 AUtO End Lock bEEP OFF bEEP ON cLok

App Add

The remaining wash cycle time will be 1 hour and 25 minutes.

Automatic load detection is working; only in some programmes.

Door is closed because of high water level, high water temperature or spinning cycle

The buzzer is deactivated.

The buzzer is activated.

The function keys is closed.The programme changing is invalid.

The machine is in conﬁguration for remote mode.

The garment function is working.

dEF

Restore the default parameters for all programmes.

10.2 Troubleshooting with display code

Problem Cause Solution

CLr FLtr

E2 E4

• Drainage error, water is not fully drained

within 6 minutes.

• Lock error. • Shut the door properly.

•

Water level not reached after 12 minutes.

• Drain hose is self-syphoning.

• Water protective level error. • Contact the After sales service.

•

• Check drain hose installation.

• Make sure that tap is fully opened and water

pressure is normal.

• Check drain hose installation.

10-Troubleshooting

Problem Cause Solution

NZ AU

F3 F4

FC0, FC1 or FC2

Unb

Temperature sensor error. Contact the After sales service.

Heating error.

Motor error. Contact the After sales service.

Water level sensor error.

Abnormal communication error.

Unbalanced load error.

Contact the After sales service.

Check and balance laundry load in the drum.

Reduce the load.

9.3 Troubleshooting without display code

Problem Cause Solution

Washing machine fails to operate.

Washing machine

water.

Machine is draining

Drainage failure.

Strong vibration while spinning.

Operation stops before completing wash cycle.

Programme is not yet started. Door is not properly closed. Machine has not been switched on. Power failure. Child lock is activated.

No water. Inlet hose is kinked.

Water pressure is less than 0.03

MPa. Door is not properly closed. Water supply failure.

Height of drain hose is below 80

cm. Drain hose end could reach into

water.

Drain hose is blocked.

Drain hose end is higher than 100

cm above ﬂoor level.

Not all transportation bolts have

been removed. Appliance has no solid position.

Machine load is not correct.

Water or electric failure. Check power and water supply.

Check programme and start it. Close the door properly. Switch the machine on. Check power supply. Deactivate child lock.

Check water tap. Check inlet hose.

Check water pressure.

Close the door properly. Ensure the water supply.

Make sure that drain hose is

properly installed.

Make sure the drain hose is not

in water.

Unblock drain hose.

Make sure that drain hose is

properly installed.

Remove all transportation bolts.

Ensure solid ground and a

evelled position.

Check load weight and balance.

Operation stops for a period of time.

Appliance displays error code. Problem due to load pattern. Programme performs soaking cycle.

Consider display codes. Reduce or adjust load. Cancel programme and restart.

NZ AU

Problem Cause Solution

10-Troubleshooting

Excessive foam

detergent drawer.

Automatic adjustment of washing time.

Spinning fails.

washing result.

ashing powder

esidues are on the

laundry.

Laundry has grey patches.

Detergent is not a appropriate.

•

Excessive use of detergent.

•

Washing programme duration will be adjusted.

•

Degree of pollution does not agree with selected programme

•

Detergent quantitiy was not sufﬁci-

•

Maximum load has been exceeded.

•

Laundry was unevenly distributed

in the drum.

•

Insoluble particles of detergent can remain as white spots on the laundry.

•

Caused by fats such as oils, creams or ointments.

Note: Foam formation

••

Check detergent recommendations. Reduce amount of detergent.

•

This is normal and doesn‘t aﬀect functionality.

Check machine load and

•

laundry and run a spinning programme again.

Select an other programme.

•

Choose the dete rgent acc.

the degree of pollution

according to manufacture

speciﬁcations.

Reduce loading.

•

Loose the laundry.

•

Perform extra rinse. Try to brush the points from the

•

dry laundry.

•

Choose an other detergent.

•

Pretreat the laundry with a special cleaner.

and

If too much foam is inspected during spin cycle, motor stops and drain pump will be activated for 90 seconds. If that elimination of foam fails up to 3 times, programme ends without spinning.

applicance, disconnect the power supply and contact the customer service.

10.4 In case of poower failure

The current programme and its setting will be saved.

10-1

When power supply is restored operation will be

resumed.

If a power failure cuts an operating wash programme door opening is mechanically bloc10ked. To get out any laundry water level should not be seen in the glassy

parts.

When the washing machine in a safe state (under the water level below the window along a certain distance, barrel temperature below 55 , the inner barrel did not turn), may unlock the doors of the machine operation.

°C

11-Installation

11.1 Preparation

▶ Take the appliance out of the packaging. ▶

keep them out of childrens reach. While opening the package, water drops may be seen on plastic bag and porthole. This normal phenomenon results from water tests in the factory.

NZ AU

Note: Packaging disposal

Keep all packaging materials out of children´s reach and dispose them in an environmentally friendly manner.

11.2 OPTIONAL: Install noise reduction pads

11-1

1.When opening the shrink package,you will ﬁnd four

noise reduction pads.These are used for reducing

noise(Fig. 11-1).

hole pointing upwards, bottom side towards op-

3. Take out the noise reduction pads and remove the

double-sided adhesive protective ﬁlm;

paste around

-trop ,edis sti ot nwod enihcam gnihsaw eht yaL .2

the bottom;the noise reduction pads under the washing machine cabinet as shown in Figure 3(two longer pads in position 1 and 3, two shorter pads in

position 2 and 4). Finally set the machine upright again.

11-2

11.3 Dismantle the the transportation bolts

The transport protection on the rear side is designed for clamping anti-vib ration components inside the appliance during transportation to prevent inner damage. All elements (T1-T4, Fig. 11-2) must be removed before

use.

1.Remove all 4 bolts (T1 - T4) (Fig. 11-3).

11-3

General informa tion and tips:

K eep the transportation bolts in a safe place for later use. If the machine is to be moved to another location,replace transportation bolts contrariwise to prvent damage.

2. Fill the transportation bolt holes with blanking plugs

(Fig. 11-4).

11-4

NZ AU

11.4 Moving the appliance

If the machine is to be moved to a distant location, replace the transportation bolts removed before installation to prevent damage: The assembly takes place in reverse order.

11-7

11.5 Aligning the appliance

Adjust all feet (Fig. 11-7) to achieve a complete level position. This will minimize vibra-

and thus noise

tions a spirit level for adjustment. Floor should

during use. It will also reduce wear and tear. We recom

be as stable and ﬂat as possible.

11-Installation

mend to use

1. Loose the locknut (1) by using a wrench.

2. Adjust the high by turning the foot (2).

3. Tighten lock ut (1) against the housing.

11-Installation

NZ AU

11.6 Drain Water Connection

Fix the water drain hose properly to the piping. The hose has to reach at one point a height between 80 and 100 cm above the appliance bottom line! If possible keep always drain

Following connections are possible:

11.6.1 Drain hose to sink

11.6.2 Drain hose to waste water connection

11.6.3 Drain hose to sink connection

WARNING!

▶ Use only the supplied hose set for the connection. ▶ Never reuse old hose sets! ▶ Only connect to cold water supply. ▶ Before connection, check whether the water is clean and clear.

▶ Hang the drain hose with the U-support over the

edge of a sink with adequate size (Fig. 10-8).

▶

ping.

▶ The internal diameter of the stand pipe with

vent-hole must be minimum 40 mm.

▶ eht ni mm 001-08 rof esoh niard eht tuP

wastewater pipe.

▶

(Fig. 10-9).

▶ The junction must lie above the siphon. ▶ A spigot connection is usually closed by a pad (A).

That must be removed to prevent any disfunction (Fig. 10-10).

▶ Secure the drain hose with a clamp.

11-8 11-9

11-10

CAUTION!

▶ The drain hose should not be submerged in water and should be securely xed and

leak-free. If the drain hose is placed on the ground or if the pipe is at a height of less than 80 cm, the washing machine will continuously drain while being lled (self-siphoning).

▶ Drain hose is not to be extended. If necessary contact after sales service.

NZ AU

11-Installation

11-11

11-13

11-12

11.7 Fresh Water Connection

Make sure that the gaskets are inserted.

1. Connect the water inlet hose with the angled end to the appliance (Fig. 11-11). Tighten the screw joint by hand.

2. The other end connect to a water tap with a 3/4 thread (Fig. 11-12).

11.8 Electrical Connection

Before each connection check if:

▶ power supply, socket and fusing are appropriate to

the rating plate.

▶ the power socket is earthed and no multi-plug or

extension are used.

▶ the power plug and socket are strictly according.

Put the plug into the socket (Fig. 11-13).

WARNING!

▶

dry and leack free!

▶ Take care these parts are never to be crushed, kinked, or twisted. ▶ If the supply cord is damaged, it must be replaced by the service agent (see warranty

card) in order to avoid a hazard.

12-

12.1 Additional technical data

11.1 Additional technical data

Voltage in V 220-240 V~/50Hz

Current in A 10

Technical data

HWF10AN1

HWF10AN1 HWF90AN1 HWF80AN1

HWF10ANB1

HWF90AN1

NZ AU

HWF80AN1

HWF80ANB1

Max. power in W 1900

Max p ower in W 2000

Water pressure in MPa 0.03≤P ≤1

Netto weight in kg 71 7071

Netto weight in kg 77 7080

12.2 Product dimensions

11.2 Product dimensions

PRODU CT DIM ENSI ON S

A Overall height of product mm

B Overall width of product mm

C Overall depth of product

(To main control board size) mm

Depth of door open mm

E Minimum door clearance

to adjacent wall mm

Note: The exact height of your washer is dependent on how far the feet are extended from

the base of the machine. The space where you install your washer needs to be at least

40mm wider and 20mm deeper than its dimensions.

HWF10AN1

HWF10ANB1

HWF10AN1 HWF90AN1 HWF80AN1PRODU CT DIM ENSI ON S

850 850 850

595 595 595

600 0 06 550

600 0 35 460

1134 1134 1084

1190 1120 1050

06 2

00 3

HWF90AN1

06 2

00 3

TOP VIEWL LAWFRONT VIEW

1900

HWF80AN1

HWF80ANB1

06 2

00 3

NZ AU

We recommend our Haier Customer Service and the use of original spare parts.

▶ your local dealer. ▶

and FAQs and where you can activate the service claim.

To contact our Service, ensure that you have the following data available. The information can be found on the rating plate.

Model ____________________ Serial No. _____________________

Also check the Warranty Card supplied with the product in case of warranty.

Warranty Card.

13-Customer service

：

contact our Customer Care Centre according to

For more information please refer to www.haier.com.

1 3

0020507792AR

Haier HWF10AN1, HWF80AN1, HWF90AN1, HWF80ANB1, HWF10ANB1 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
