Important:

4

Test power plug before each use:

1. Press ìreset ìbutton.
2 . Press ìtest ìbutton, unit should trip.

3. Press ìresetî button again for use .
Do not use if above test fail.
In the event this device trips , the cause of the malfunction is to
be corrected before further use of the device .

5

2. MODE Set Switch

easy

access

filters

2-way

airflow

MODEL: HWF05XC5

control

panel

65

4

7

3

8

9

2

SPEED

1

10

HI

LOW

MIN

MAX

COOL

COOL

FAN ONLY

POWER

Wait 3 Minutes Before

Restarting

ONOFF

6

2. fan Speed

easy
access
filters

2-way

airflow

MODEL: HWR05XC5

control

panel

TIME ON

TIME OFF

HI SPEED

LOW SPEED

FAN

COOL

POWER
ON/OFF

Pressing the Fan Speed button of remote
control between High and Low speed.

7

MODEL: HWF05XC5

65

4

7

3

2

1

MIN

COOL

FAN ONLY

Wait 3 Minutes Before

Restarting

8

9

10

MAX

COOL

POWER

SPEED

HI

ON

LOW

OFF

8

POWER Turns air conditioner off.
SPEED "LOW" Low speed fan operation with cooling or not.
SPEED "HI" High speed fan operation with cooling or not.

This automatically controls the temperature of indoor air. Turn the knob
so that arrow points to the cooler marks for more moderate cooling.

Normal Fan

1. Turn the SPEED mode switch to the "HI" or the "LOW" setting.

2. Set the thermostat control to the temperature mark "FAN ONLY".

Normal cooling

1. Turn the SPEED mode switch to the "HI" or the "LOW" setting.

2. Set the thermostat control to the desire temperature (the mid-point
is a good starting position).
If the room temperature is not satisfactory after a reasonable time, adjust
the control to a warmer setting, as appropriate.

Maximum cooling

1. Turn the SPEED mode switch to the "HI" setting

2. Set the thermostat control to the MAX COOL temperature mark.

Quieter operation

1. Turn the SPEED mode switch to the "LOW" setting.

2. Set the thermostat control as needed.

CAUTION:

1

Also when you shut off the air conditioner wait for 3 minutes

2

before turning it on again.

3

9

MODEL: HWR05XC5

Control Panel

10

ON/OFF

MODE SPEED TIMER

TEMP/TIME

1

2

3

TIME ON

TIME OFF

HI SPEED

LOW SPEED

4

FAN

5

COOL

POWER
ON/OFF

1

1. ON/OFF

To turn set ON, press the button. To turn set OFF, press the button again.

2. TIMER

Press TIMER button, for each press, TIMER mode will changes as follows:
TIMER ON

TIMER OFF CANCEL

3. FAN

Pressing the FAN button changes between LOW and HIGH SPEED.

4. MODE

Every time you press this button, it will change between COOL and FAN.

5. TEMP./TIME

Used to set temperature and time.

11

12

short screws 13/32"

short screws 13/32"

wood screws 31/32"

window seal gasket

Model: HWF05XC5

wood screws 31/32"

window seal gasket

Model: HWR05XC5

toprail

ON/OFF

MODE SPEED TIMER

TEMP/TIME

ìCR2025ì battery

Remote

control

toprail

13

ASSEMBLE
CURTAINS/TOP RAIL

Install top rail with 3 short
screws13/32".

Insert the side curtains into the
top and bottom rails of the air
conditioner. Fasten the curtains
to the unit with 8 short screws
13/32".

65

4

7

3

8

9

2

SPEED

1

10

HI

LOW

MIN

MAX

COOL

COOL

FAN ONLY

POWER

Wait 3 Minutes Before
Restarting

ONOFF

HWF05XC5,HWR05XC5

31

1

32

5

11

8

13

11

16

7

34

16
15

20

32

7

11

16

5

17

16

13

13

32

14

2

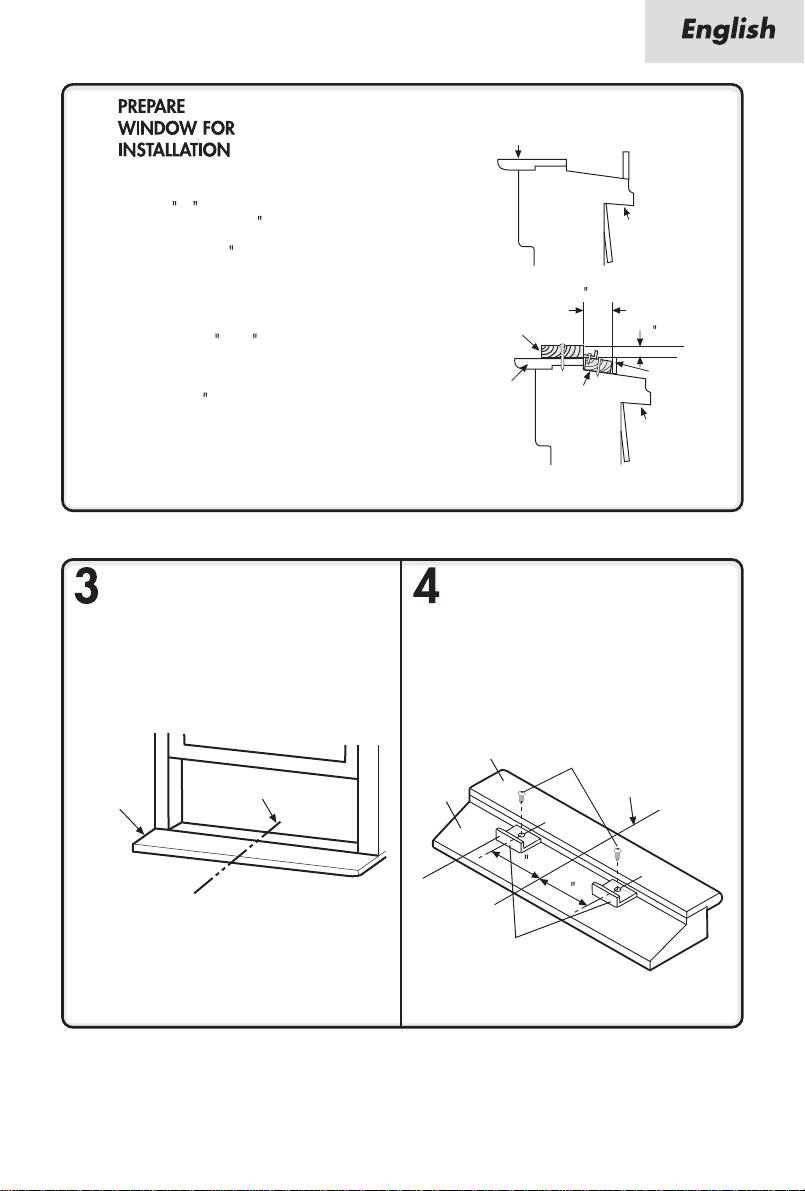

1. This unit is designed for installation in standard double hung windows
with actual opening widths of 21
must open sufficiently to allow a clear vertical opening of 12
bottom of the sash to the window stool.

2. If storm window presents interference, fasten a 2
included) (OUTER SILL) to the inner window sill across the full width of
the sill. The wood strip should be thick enough to raise the height of
the window sill so that the unit can be installed without interference by
the storm window frame (STORM WINDOW FRAME) or wood strip
(OUTDOORS) to help condensation to drain properly to the outside.

3. Install a second wood strip (approximately 6
same thickness as first strip) in the center of the outer sill flush against
the back off the inner sill. This will raise basepan angle .

4. If the distance between STORM WINDOW FRAME and WOOD STRIP
MOUNTED ON TOP OF INNER SILL is more than 1
strip are not necessary.

to 35 . The upper and lower sash

from the

wide wood strip(not

long by 3/2 wide and

, two of wood

INNER
SILL

I
N
D
O
O
R
S

WOOD STRIP
MOUNTED ON
TOP OF INNER SILL

INNER
SILL

I
N
D
O
O
R
S

1 MAX.

WOOD STRIP
FOR BASEPAN
ANGLE

OUTER

SILL

3/4 CLEARANCE

STORM
WINDOW FRAME

OUTER

SILL

O
U
T
D
O
O
R
S

O
U
T
D
O
O
R
S

LOCATING UNIT IN
WINDOW

Open the window and mark center line on the
center of the inner sill.

INNER SILL

INDOOR SIDE

CENTER LINE

ATTACH BASEPAN
ANGLE

Install the basepan angle behind the inner window sill, with
the short side of basepan angle as shown. Use the 2 short
screws13/32" provided.
The basepan angle helps to hold unit securely in place.
Be sure to place basepan angle edge flush against back
of inner sill.

INNER SILL

OUTER SILL

SHORT SCREW13/32"

CENTER LINE

INSIDE

7,5

SHORT SIDE

7,5

OUTSIDE

BASEPAN ANGLE

15

INSTALL THE AIR CONDITIONER
IN THE WINDOW

WINDOW FRAME

UPPER GUIDE

Carefully lift the air conditioner and slide it into the open
window. Make sure the bottom guide of the air conditioner
drops into the notches of the basepan angle.
While steadying the air conditioner ,carefully bring the
window sash down behind the upper guide of the air
conditioner.

BOTTOM GUIDE

INSTALL THE SEAL GASKET
AND SASH LOCK

Extend the side curtains to fill the
window opening using 4 wood screws
31/32" to secure them.
Cut the seal gasket to the window
width. Stuff the sash seal between the
glass and the window to prevent air
and insects from getting into the room.
Fasten the basepan angle, using a
short screw13/32".

BASEPAN ANGLE

SHORT SCREW13/32"

WOOD SCREW31/32"

ABOUT 1/4

BASEPAN ANGLE

WINDOW SEAL GASKET

16

Always unplug your air conditioner before cleaning.

The air filter behind the inlet grille should be checked and cleaned at least once
every 2 weeks (or as necessary) to maintain optimal performance of the air
conditioner.

How to remove the air filter

1. The grille may be opened from the top for easy maintenance after installation.

2. Open the inlet grille by pulling off the exposed door on the top of the unit(based
on the installation).

3. Pull the tab slightly to release the filter. Pull the filter in the same direction as
the opening.

4. Clean the filter with warm, soapy water. The water should be below 40

5. Rinse off and gently shake off excess water from the filter. Let it dry before
replacing it.

DO NOT use your air conditioner without the air filter in place.
To clean the front panels or the cabinet DO NOT use harsh

chemicals, abrasives, ammonia, chlorine, bleach, concentrated
detergents, solvents or metal scouring pads.

Always use a soft cloth dampened with water or mild soap
and water solution to wipe the front of the cabinet.

17

18

(see page 8)

(see page 16)
